hager New VegaD User manual

Technical Manual
New VegaD
for surface-mounting
flush-mounting
& Accessories

2Technical changes reserved
Table of contents
1About this manual 4
2For your safety 5
3Product range by New VegaD surface 7
3.1 External dimensions 7
3.2 Market-specific product ranges 9
3.2.1 DN Version 9
3.2.2 AN Version 10
3.2.3 BN Version 11
3.2.4 BMN Version 12
3.2.5 CN Version 14
3.2.6 LN Version 15
3.2.7 GN Version 16
3.2.8 RN Version 17
3.2.8 MN Version 18
3.2.9 ZN Version 19
3.2.10 ACN Version 20
4Product range by New VegaD flush 21
4.1 External dimensions 21
4.2 Market-specific product ranges 22
4.2.1 DN Version 22
4.2.2 AN Version 23
4.2.3 BN Version 24
4.2.4 CN Version 25
4.2.5 LN Version 26
4.2.6 GN Version 27
4.2.7 RN Version 28
4.2.8 MN Version 29
5Doors for flush and surface enclosures 30
5.1 External dimensions 30
5.2 Door mounting into enclosure frames 32
5.3 Door hinges 33
6Accessories 34
6.1 Equipment units 35
6.1.1 FD01.. = Equipment units, height 150 mm 35
6.1.2 FD02.. = Equipment units, height 300 mm 38
6.1.3 FD03.. = Equipment units, height 450 mm 44
6.2 Single and spare parts 45
6.2.1 FD00A… = Standard accessories 45
6.2.2 FD00B… = Side brackets for vertical cables 52
6.2.3 FD00C… = Covers 56
Table of contents

Technical changes reserved 3
6.2.4 FD00M … = Mounting plates 55
6.2.5 FD00E… = Electrical adapter for socket outlet 58
6.2.6 FD00F… = Fixation kit 65
6.2.7 FD00H… = DIN rail Holders for equipment units 76
6.2.8 FD00Q… = Quick-Connect & terminal holder 77
6.2.9 FD00P… = Plate for cable entry 79
6.2.10 FD00S… = Serrure (closing system) 88
6.2.11 FD00T… = Trunking 87
6.2.12 BA7A/HA7… = vertical trunkings sideways 89
6.2.13 FZ… = Univers cable storage and hiding box 90
6.2.14 UZ…V. = Univers N cable brackets 97
6.2.15 Door frames as spare parts 99
6.2.16 Vertical uprights and fixation accessories 101
7Packaging and dimensions of enclosures 103
7.1 Pictures of Packaging 103
7.2 Packaging use at shopfloor 104
7.3 Labels 105
7.3.1 Labels on cardboard packaging 105
7.3.2 Enclosure type labels 106
7.4 Dimensions of enclosures 107
7.4.1 Surface enclosures without door (FD…N) 107
7.4.2 Surface enclosures with door (FD…N) 108
7.4.3 Flush enclosures without door (FU…N) 109
7.4.4 Flush enclosures with door (FU…N) 110
8Wall fixation 111
8.1 Wall-mounting for surface enclosures 111
8.2 Flush-mounting for flush enclosures 112
8.3 Plaster protection in flush enclosures 115
9Technical datas & certifications 117
9.1 Technical datas 117
9.2 Power loss 118
9.2.1 Power loss for standard surface enclosures 118
9.2.2 Power loss for surface enclosures with ventilation openings FD00P5 118
9.2.3 Power loss for standard flush-low depth enclosures 119
9.2.4 Power loss for standard flush-high depth enclosures 119
9.3 Certifications 120
9.3.1 VDE certification for Standard DIN/EN 61439-1/-3 120
9.3.2 VDE CB certification for Standard IEC 61439-1/-3 121
9.3.3 LCIE certification for NF Standard EN 61439-1/-3 122
9.3.4
VDE certification for Standard DIN/EN/IEC 62208 for empty enclosures 123
10 List of References 124
11 Index 125
Table of contents

About this manual
4Technical changes reserved
1 About this manual
These instructions are an integral part of the New VegaD enclosures.
1.1 Subject of the manual
This document is intended for users of the flush- and surface-mounted New VegaD enclosures made by
Hager. The instruction manual describes both the technology and the product ranges agreed with the
respective markets, including accessories and spare parts required at the time of publication.
It provides also safety information for electrically skilled persons/the installer about the product’s life
cycle phases.
- Read and observe this manual before you start working on the enclosure or the switchgear and
controlgear assembly.
- Also observe the supplied assembly manual for the respective enclosure or enclosure accessories.
-
Store the manuals in a safe place. The authorised personnel must have access to the manuals at all times.
As technical documentation, the manual should accompany the products described during their entire
lifetime and is thus subject to periodical revisions, modifications and adjustments.
1.2 Warranty and Liability
These instructions do not extend the Sales and Delivery Conditions of Hager. No new claims concerning
the warranty or guarantee, which extend beyond the Sales and Delivery Conditions, can be derived from
this instruction manual.
Liability note
Hager reserves the right to modify or supplement the product or the documentation at any time without
prior notice. Hager assumes no liability for typographical errors and any damage which may arise from them.

For your safety
Technical changes reserved 5
2 For your safety
- Avoid dangers. Adherence to the safety information in this section is a prerequisite for the safe
assembly and use of the field distributor.
- Also observe the safety information provided in other sections.
2.1 Proper use
The Hager New VegaD enclosure is a product oering for flush-mounted and surface installations,
protected to IP30/40/41, for residential and commercial buildings with a maximum supply current of 160 A.
New VegaD flush enclosures are installed at a depth of 110 mm in the wall. They are available in 6 dierent
heights and 2 dierent depths.
New VegaD surface enclosures are installed at a depth of 193 mm on the wall. They are available in
6 dierent heights.
The New VegaD enclosures have been equipped with components from the New VegaD internal fitting system.
Hager’s tried and tested New VegaD enclosures and the New VegaD internal fitting system enable the
implementation of switchgear and controlgear assemblies according to EN 61439 Part 3 (Distribution
boards intended to be operated by ordinary persons / DBO).
Fixed indoor installation/wall mounting
With its enclosed design, the New VegaD enclosures
are intended for stationary, indoor, surface- and
flush-mounting in walls/hollow walls. The operating
conditions for the indoor installation according to
EN 61439 and the maximum ambient temperatures
must be observed at the place of installation.
The New VegaD enclosures meet protection types IP30/IP40/IP41 when equipped with internal system
and/or closed or slotted doors. The instructions in this manual regarding compliance with the protection
type must be observed during installation works.
The New VegaD enclosures are available in protection class II (double insulated). The instructions in this
manual regarding compliance with the protection type must be observed during installation works.
For more detailed information, refer to the technical data.
Intended use also includes:
- Reading and observing this manual, the installation manuals and the manuals for the internal
fitting system
- Complying with the requirements for authorised personnel.
Misuse
Any other or additional use as well as changes and modifications to the field distributor enclosure are
considered to be misuse. Hager does not assume any liability for damages resulting from misuse.
Limitation of operating areas
There are certain areas in which the New VegaD enclosure may not be used, in order to prevent hazards
or damage to the enclosure.

For your safety
6Technical changes reserved
The New VegaD is not suitable for use:
- in areas that require a higher protection type,
- in areas where ATEX directives must be observed,
- in operating sites at risk of fire,
- in corrosive environments. In particular, the enclosure and internal components can become
damaged if used in chlorinated, sulphurous, acidic or saline environments.
2.2 Requirements for authorised personnel
- Only qualified electrically skilled persons may
assemble, install, commission switchgear and
controlgear assemblies, perform extensions,
troubleshooting or maintenance and disassemble
and dispose of them.
- The qualified electrically skilled persons must
have appropriate experience in initial testing and
subsequent commissioning, troubleshooting and
maintenance.
Product life cycle phase Minimum training, qualifications or competence
Planning Electrically skilled person, consultant electrical engineer
Transport, assembly, installation Electrically skilled person
Commissioning Electrically skilled person with appropriate testing experience
Operation Short-circuit devices for operation by ordinary persons inside
distribution boards for operation by ordinary persons according to
EN 61439-3 (DBO): Ordinary persons
All other components must be secured against use by ordinary persons.
Inspection and maintenance Electrically skilled person with appropriate testing experience
Extensions Electrically skilled person, planning and documentation required
Disassembly, disposal Electrically skilled person, only for clearly defined mechanical and
electrical work: electrically instructed person
- An electrically skilled person by virtue of their professional training, skills and experience as well
as knowledge of the relevant regulations can assess the work assigned to them and identify possible
dangers.
- An electrically instructed person must be suciently informed and supervised by an electrically
skilled person. The instructed person must thus be capable of identifying risks and avoiding dangers
as well as dangers due to electricity.
- Anyone who is not an electrically skilled person or an electrically instructed person should always be
considered as a non-professional, ordinary person. Non-professional, ordinary persons should never
perform work in electrical systems independently or on their own authority. Non-professional,
ordinary persons may only operate short-circuit devices intended for use by ordinary persons
according to EN 61439-3.

Technical changes reserved 7
3 Product range by New VegaD surface
3.1 External dimensions
FDX2 BN / CN / DN / LN / RN / ZN / ACN full equipped
FDX2 AN / MN partly equipped
FDX2 BMN partly equipped, Multimedia
Product range by New VegaD surface

About the New VegaD enclosure
8Technical changes reserved

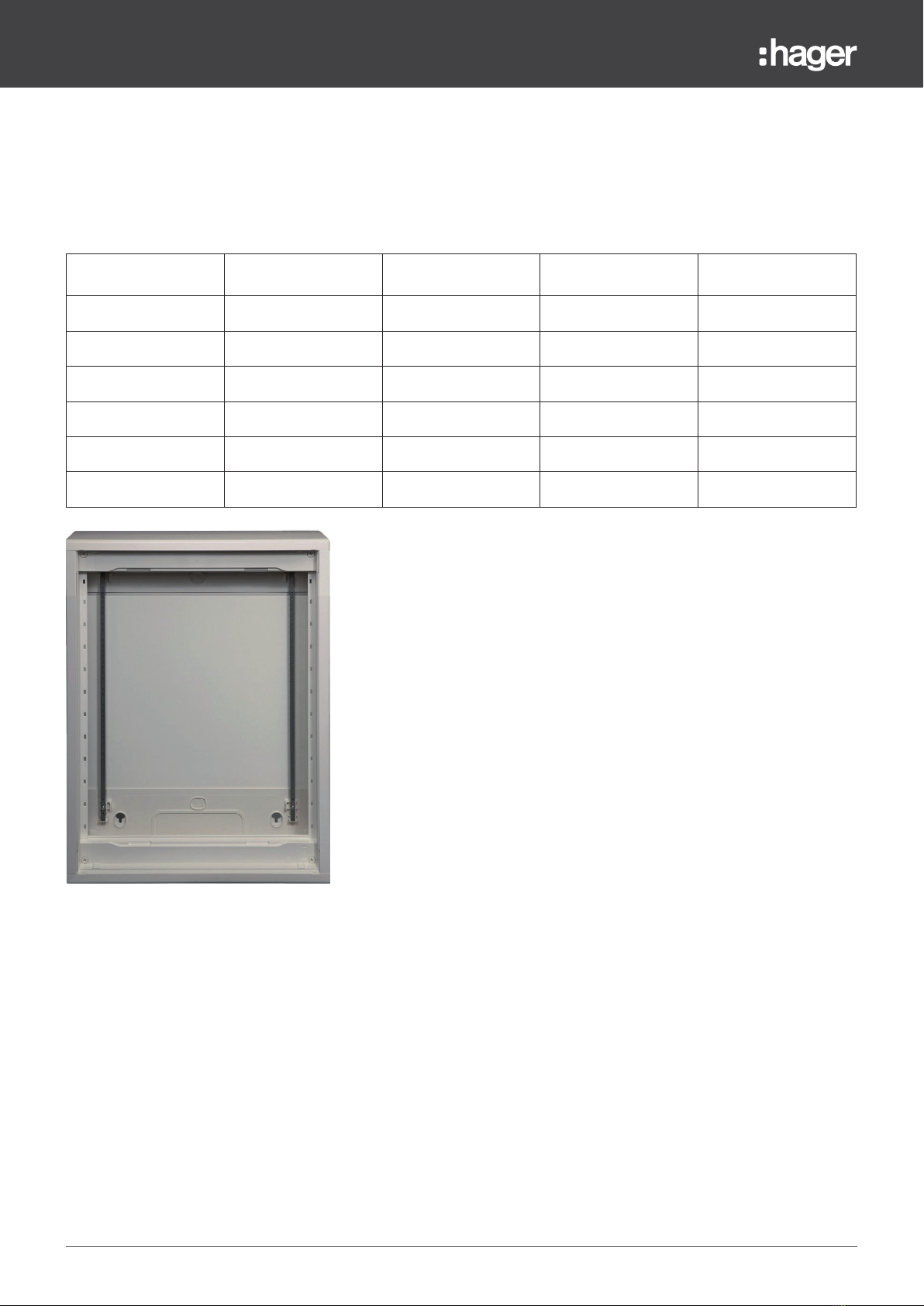

FDX2GN empty
FDX2ZN tarif bleu triphasé

About the New VegaD enclosure
Technical changes reserved 9
3.2 Market-specific product ranges
3.2.1 DN Version
- full equipped without door
- with Quick-Connect terminals Green/Yellow
- main market: France
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side
bracket
for
surface
Instruction
sheet with
Quick-
Connect
explanation
Cover
slot strip
JP002
4 screws
kit 4x16
for
optional
PEN
holder
or slider
fixing
5 caps
kit for
covering
wall-
fixation
screws
Paper
cover
marking
strips 24
mod. and
holder
Cable
strain
relief bar
Drawing
map
FD22DN 1x 1x KN26E 4x 1x 1x 1x 1x 2x 1x 1x
FD32DN 1x 2x KN22E 1x KN99E 6x 1x 1x 1x 1x 3x 1x 1x
FD42DN 1x
1x KN22E /
1x KN26E
1x KN99E 8x 1x 1x 1x 1x 4x 1x 1x
FD52DN 1x
1x KN22E /
1x KN26E
1x KN99E 10x 1x 1x 1x 1x 5x 1x 1x
FD62DN 2x 3x KN26E 2x KN99E 12x 1x 1x 1x 1x 6x 1x 1x
FD72DN 2x 3x KN26E 2x KN99E 14x 1x 1x 1x 1x 7x 1x 1x
Example: FD42DN

About the New VegaD enclosure
10 Technical changes reserved
3.2.2 AN Version
- partly equipped without door
- two first rows to complete
- with Quick-Connect terminals Green/Yellow
- main market: France
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side
bracket
for
surface
Instruction
sheet with
Quick-
Connect
expla-
nation
Cover
slot strip
JP002
4 screws
kit 4x16
for
optional
PEN
holder
or slider
fixing
5 caps
kit for
covering
wall-
fixation
screws
Paper
cover
marking
strips 24
mod. and
holder
Cable
strain
relief bar
Drawing
map
FD22AN 1x 1x KN26E 1x 1x 1x 1x 1x 1x
FD32AN 1x 2x KN22E 1x KN99E 2x 1x 1x 1x 1x 1x 1x 1x
FD42AN 1x
1x KN22E /
1x KN26E
1x KN99E 4x 1x 1x 1x 1x 2x 1x 1x
FD52AN 1x
1x KN22E /
1x KN26E
1x KN99E 6x 1x 1x 1x 1x 3x 1x 1x
FD62AN 2x 3x KN26E 2x KN99E 8x 1x 1x 1x 1x 4x 1x 1x
FD72AN 2x 3x KN26E 2x KN99E 10x 1x 1x 1x 1x 5x 1x 1x
Example: FD42AN

About the New VegaD enclosure
Technical changes reserved 11
3.2.3 BN Version
- full equipped with plain door
- door mounted-in, door opening angle 135°
- with Quick-Connect terminals Green/Yellow
- main market: Belgium
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side
bracket for
surface
Instruction
sheet with
Quick-
Connect
explanation
Cover slot
strip JP002
4 screws
kit 4x16 for
optional
PEN holder
or slider
fixing
5 caps
kit for
covering
wall-
fixation
screws
Paper
cover
marking
strips 24
mod. and
holder
Drawing
map
FD22BN 1x 1x KN10E /
1x KN26E 1x KN99E 4x 1x 1x 1x 1x 2x 1x
FD32BN 1x 1x KN06E /
2x KN26E 2x KN99E 6x 1x 1x 1x 1x 3x 1x
FD42BN 2x
4x KN18E 3x KN99E 8x 1x 1x 1x 1x 4x 1x
FD52BN 2x
1x KN14E /
3x KN26E
3x KN99E 10x 1x 1x 1x 1x 5x 1x
FD62BN 2x 1x KN06E /
4x KN26E 4x KN99E 12x 1x 1x 1x 1x 6x 1x
FD72BN 2x 6x KN22E 5x KN99E 14x 1x 1x 1x 1x 7x 1x

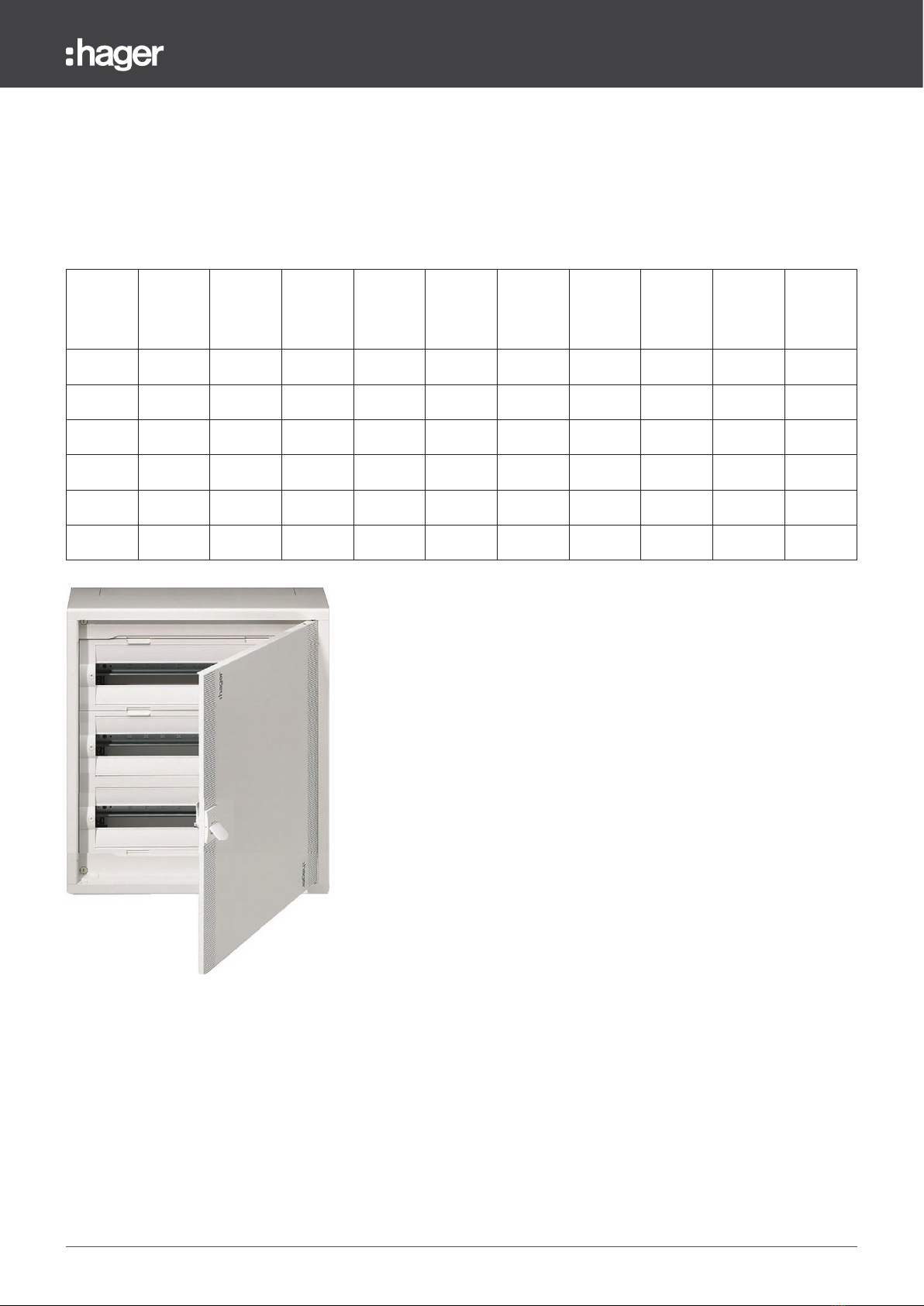

Example: FD32BN

About the New VegaD enclosure
12 Technical changes reserved
3.2.4 BMN Version
- full equipped with plain door
- door mounted-in, door opening angle 135°
- with Quick-Connect terminal Green/Yellow
- main market: Belgium
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
DIN rail 24
modules
front
cover
Multi-
functional
side
bracket for
surface
Instruction
sheet with
3x socket
outlet
explanation
Cover
slot strip
JP002
4 screws
kit 4x16
for
optional
PEN
holder
or slider
fixing
5 caps
kit for
covering
wall-
fixation
screws
Paper
cover
marking
strips 24
mod. and
holder
Drawing
map
FD42BMN 1x 1x KN06E 1x 1x
FD00C4 2x 1x 1x 1x 1x 1x 1x
FD52BMN 1x 1x KN06E 2x 1x
FD00C1 4x 1x 1x 1x 1x 2x 1x
Cable
straps
Elastic
strips
TV sticker
Aeration
grid kit
FD00P5
Mounting
plate
FD00M1
Cable
bracket
Univers
35x screw
bag for
Multimedia
Earthing
cable for
Multimedia
3x F-type
Socket
outlet
VZ00ASF
Socket
outlet
mounting
steel
holder
Mutimedia
device
starting kit
1x TN003S
+ 1x TN010S
FD42BMN 4x 4x 1x 1x 2x 6x 1x 1x 1x 1x 1x
FD52BMN 4x 4x 1x 1x 2x 6x 1x 1x 1x 1x 1x

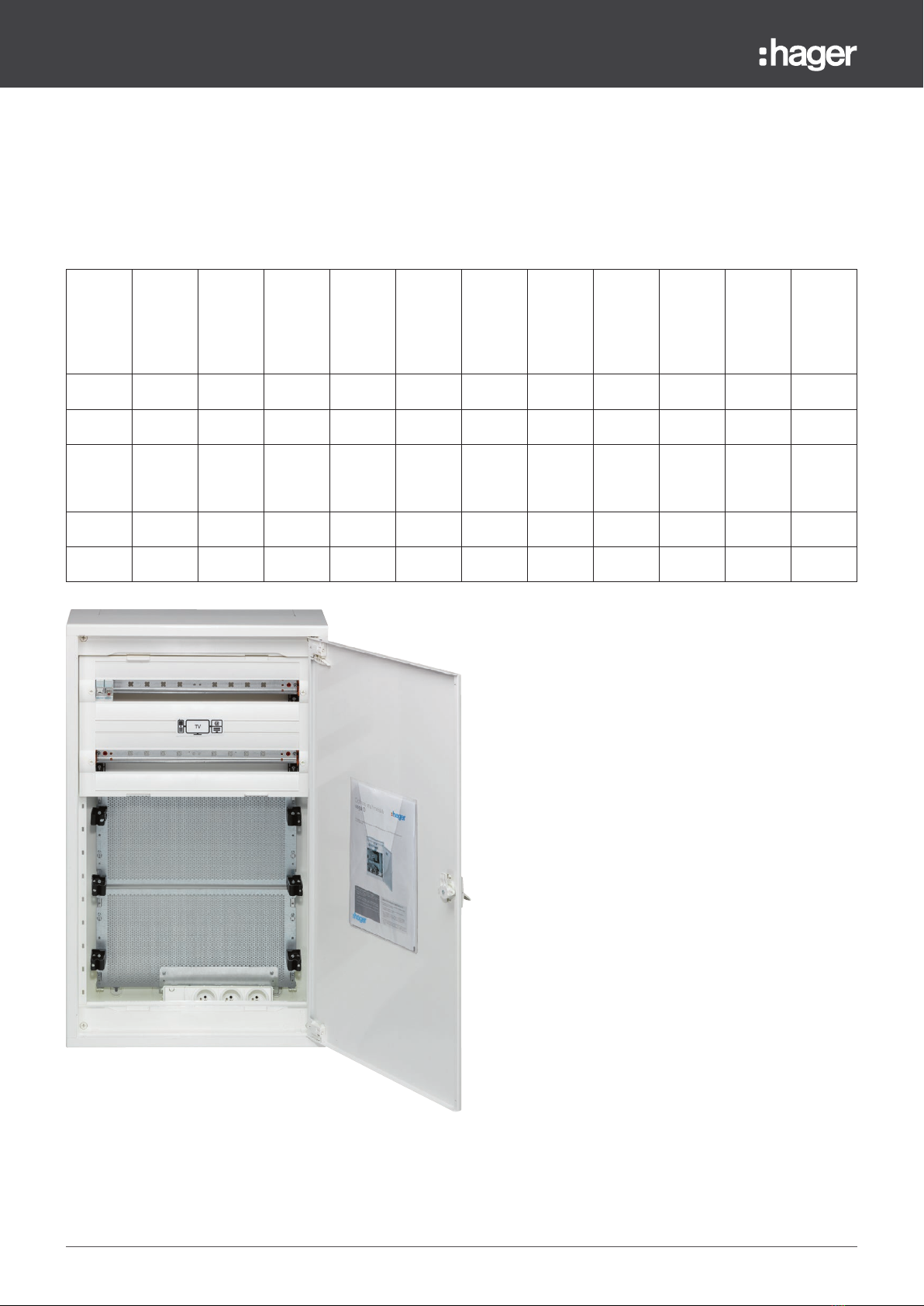

Example: FD52BMN

About the New VegaD enclosure
Technical changes reserved 13
FD00P5
Parts delivered-by in each BMN enclosure
FZ794 VZ00ASF
Example: multimedia enclosure FD42BMN (left) associated with standard enclosure FD42CN (right)

About the New VegaD enclosure
14 Technical changes reserved
3.2.5 CN Version
- full equipped with transparent door
- door mounted-in, door opening angle 135°
- with Quick-Connect terminals Green/Yellow
- main market: Belgium
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side
bracket for
surface
Instruction
sheet with
Quick-
Connect
explanation
Cover slot
strip JP002
4 screws
kit 4x16 for
optional
PEN holder
or slider
fixing
5 caps
kit for
covering
wall-
fixation
screws
Paper
cover
marking
strips 24
mod. and
holder
Drawing
map
FD22CN 1x 1x KN10E /
1x KN26E 1x KN99E 4x 1x 1x 1x 1x 2x 1x
FD32CN 1x 1x KN06E /
2x KN26E 2x KN99E 6x 1x 1x 1x 1x 3x 1x
FD42CN 2x
4x KN18E 3x KN99E 8x 1x 1x 1x 1x 4x 1x
FD52CN 2x
1x KN14E /
3x KN26E
3x KN99E 10x 1x 1x 1x 1x 5x 1x
FD62CN 2x 1x KN06E /
4x KN26E 4x KN99E 12x 1x 1x 1x 1x 6x 1x
FD72CN 2x 6x KN22E 5x KN99E 14x 1x 1x 1x 1x 7x 1x
Example: FD52CN

About the New VegaD enclosure
Technical changes reserved 15
3.2.6 LN Version
- full equipped without door
- without Quick-Connect terminals
- main market: Italy
Equipment
standard
PEN QC holder
24 modules
wide
Multi-
functional
side bracket
surface or
flush
Instruction
sheet w/o
Quick-Connect
explanation
Cover slot
strip JP002
4 screws
kit 4x16 for
optional PEN
holder or slider
fixing
5 caps kit for
covering wall-
fixation screws
Paper cover
marking strips
24 mod. and
holder
FD22LN 1x 4x 1x 1x 1x 1x 2x
FD32LN 1x 6x 1x 1x 1x 1x 3x
FD42LN 1x 8x 1x 1x 1x 1x 4x
FD52LN 1x 10x 1x 1x 1x 1x 5x
FD62LN 2x 12x 1x 1x 1x 1x 6x
FD72LN 2x 14x 1x 1x 1x 1x 7x
Example: FD42LN

About the New VegaD enclosure
16 Technical changes reserved
3.2.7 GN Version
- empty without door
- without Quick-Connect terminals
- main market: Italy
Equipment delivered-by PEN QC holder 24
modules wide
Instruction sheet
with Quick-Connect
explanation
4 screws kit 4x16 for
optional PEN holder or
slider fixing
5 caps kit for covering
wall- fixation screws
FD22GN 1x 1x 1x 1x
FD32GN 1x 1x 1x 1x
FD42GN 1x 1x 1x 1x
FD52GN 1x 1x 1x 1x
FD62GN 2x 1x 1x 1x
FD72GN 2x 1x 1x 1x
Example: FD42GN

About the New VegaD enclosure
Technical changes reserved 17
3.2.8 RN Version
- full equipped without door
- with Quick-Connect terminals Green/Yellow & Blue
- main market: Greece
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side bracket
surface or
flush
Instruction
sheet with
Quick-
Connect
explanation
Cover slot
strip JP002
4 screws
kit 4x16 for
optional
PEN holder
or slider
fixing
5 caps kit
for covering
wall-fixation
screws (FD
versions
only)
Paper cover
marking
strips 24
mod. and
holder
FD22RN 1x 1x KN10N /
1x KN10E 4x 1x 1x 1x 1x 2x
FD32RN 1x 1x KN18N /
1x KN18E 6x 1x 1x 1x 1x 3x
FD42RN 1x
1x KN22N /
1x KN22E
8x 1x 1x 1x 1x 4x
FD52RN 1x
1x KN26N /
1x KN26E
10x 1x 1x 1x 1x 5x
FD62RN 2x 2x KN18N /
2x KN18E 1x KN99N / 1x KN99E 12x 1x 1x 1x 1x 6x
FD72RN 2x 2x KN18N /
2x KN18E 1x KN99N / 1x KN99E 14x 1x 1x 1x 1x 7x
Example: FD72RN

About the New VegaD enclosure
18 Technical changes reserved
3.2.9 MN Version
- partly-equipped without door
- two first rows to complete
- with Quick-Connect terminals Green/Yellow & Blue
- main market: Greece
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side bracket
for surface
Instruction
sheet with
Quick-
Connect
explanation
Cover slot
strip JP002
4 screws
kit 4x16 for
optional
PEN holder
or slider
fixing
5 caps kit
for covering
wall-fixation
screws
Paper cover
marking
strips 24
mod. and
holder
FD22MN 1x 1x KN10N /
1x KN10E 1x 1x 1x 1x
FD32MN 1x 1x KN18N /
1x KN18E 2x 1x 1x 1x 1x 1x
FD42MN 1x
1x KN22N /
1x KN22E
4x 1x 1x 1x 1x 2x
FD52MN 1x
1x KN26N /
1x KN26E
6x 1x 1x 1x 1x 3x
FD62MN 2x 2x KN18N /
2x KN18E 1x KN99N / 1x KN99E 8x 1x 1x 1x 1x 4x
FD72MN 2x 2x KN18N /
2x KN18E 1x KN99N / 1x KN99E 10x 1x 1x 1x 1x 5x
Example: FD42MN

About the New VegaD enclosure
Technical changes reserved 19
3.2.10 ZN Version
- equipped with French platine kit Tarif bleu triphasé without door
- main market: France
Equipment standard Kit Michaud Platine
330x300 with cover
Instruction sheet
with Quick-Connect
explanation
4 screws kit 4x16 for
optional PEN holder
or slider fixing
5 caps kit for
covering wall-
fixation screws
Paper cover
marking strip 24
mod. Univers
FD32ZN 1x 1x 1x 1x 1x

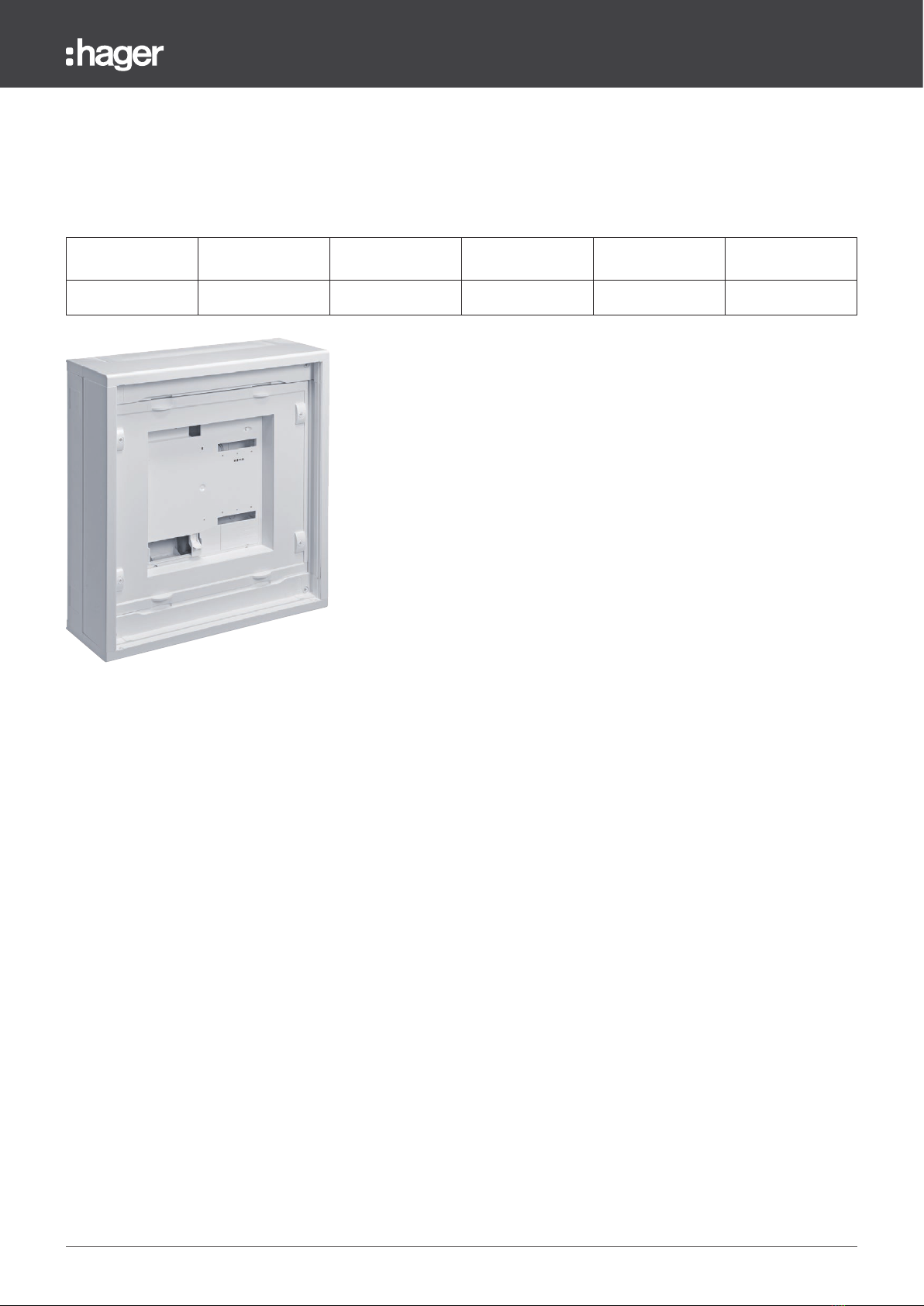

Example: FD32ZN

About the New VegaD enclosure
20 Technical changes reserved
3.2.11 ACN Version
- full equipped with transparent door
- door mounted-in
- with Quick-Connect terminals Green/Yellow
- main market: Africa
Equipment
standard
PEN QC
holder 24
modules
wide
Quick-
Connect
modules
Bridges
Multi-
functional
side bracket
for surface
Instruction
sheet with
Quick-
Connect
explanation
Cover slot
strip JP002
4 screws
kit 4x16 for
optional
PEN holder
or slider
fixing
5 caps kit
for covering
wall-fixation
screws
DIN A4 12
mod. stripes
sticker
sheet
FD22ACN 1x 1x KN26E 4x 1x 1x 1x 1x 1x
FD32ACN 1x 2x KN22E 1x KN99E 4x 1x 1x 1x 1x 1x
FD42ACN 1x 1x KN22E /
1x KN26E 1x KN99E 4x 1x 1x 1x 1x 1x
FD52ACN 1x 1x KN22E /
1x KN26E 1x KN99E 6x 1x 1x 1x 1x 1x
FD62ACN 2x 3x KN26E 2x KN99E 6x 1x 1x 1x 1x 2x
FD72ACN 2x 3x KN26E 2x KN99E 6x 1x 1x 1x 1x 2x
Example: FD52ACN
