Chest Freezer
SERVICE MANUAL
MODEL: BD-379GAA
Haier Group
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
dose not contain warnings and cautions to advice non-technical individuals of potential dangers in attempting to service a product.
Product powered by electricity should by serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
WARNING

SERVICE MANUAL
Model: BD-379GAA
2
Issue 2009-12-14
Rev.
Ref0912S018V0
Contents
Table of Contents ················································································································2
1. General Information······································································································ 3
1-1. General guideline ···································································································· 3
1-2. Insurance Test········································································································· 3
1-3. How to read this Service Manual············································································· 4
2. Product Feature ············································································································5
2-1. Specifications ········································································································· 5
2-2. External views ········································································································ 7
3. Installation, adjustments and maintenance································································8
3-1. Installation ·············································································································· 8
3-2. Defrosting and draining ·························································································· 8
3-3. Cleaning the freezer ······························································································· 9
4. Disassembly··················································································································10
4-1. Door assembly (Door, hinge, hinge cover) ····························································· 10
4-2. Compartment Grill assembly ·················································································· 10
4-3. Control panel assembly (Panel, cover board, knob, indicator light) ························ 11
4-4. Thermostat assembly ····························································································· 11
5. Control and display system·························································································12
5-1. Control and display panel······················································································· 12
5-2. Starting the Freezer································································································ 12
6. System flow principle··································································································· 13
6-1. Refrigeration flow chart··························································································· 13
6-2. Refrigeration flow scenograph················································································ 14
7. Circuit diagram·············································································································· 15
7-1. Brief principle diagram···························································································· 15
8. Trouble shooting···········································································································16
8-1. Normal phenomena ································································································ 16
8-2. Abnormal phenomena····························································································· 18

SERVICE MANUAL
Model: BD-379GAA
3
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 1 General Information
1-1. General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have
been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices
such as insulation barriers, insulation papers shields are properly installed. After servicing, make the
following leakage current checks to prevent the customer from being exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention of Electro Static Discharge (ESD) to Electrostatic Sensitive
1-2. Insurance Test
1. Check if there is any leak of current.
2. Cut out the power supply before the repair to avoid an electrical shock hazard.
3. In the case of a live-line test, insulating gloves should be worn to avoid potential electrical shock.
4. Confirm the rated current, voltage and capacity before testing with any kinds of instruments.
5. Watch if the upper door is open when you check something at a lower position.
6. Take out every part in the cabinet before moving the machine, especially things like panels (e.g.
glass shelf).
7. Please wear intact cotton gloves when repair any parts of the evaporator, so that scratches by
the sharp fins can be avoided.
8. If there is a breakdown with the refrigeration system, please surrender the machine to the service
center, else the leaked refrigerant may pollute the atmosphere.
9. The refrigerator use AC of 220-240V with a frequency of 50Hz.
10. A big fluctuation of voltage (exceed the range 187～242V) may cause a start failure of the
refrigerator, a burn-out of the control panel and compressor, or an abnormal sound from the
compressor in operation.
11. Take care not to damage the supply line. Don’t yank at the line; pull the plug out gently from the
receptacle. Don’t press the line under the cabinet or step on it. Take care not to roll on or damage the
supply line when moves the machine from the wall.

SERVICE MANUAL
Model: BD-379GAA
4
Issue 2009-12-14
Rev.
Ref0912S018V0
12. In the case of leakage of inflammable gases like carbon monoxide, open the door and windows.
Don’t pull out or insert the plugs of the appliance.
13. Don’t touch the refrigeration surface of the freezing compartment when the refrigerator is in
operation, especially when your hand is wet, else you may be glued to the surface.
14. Pull out the plug of power supply during clearance or power outage. Wait at least five minutes to
resume the power supply in order to prevent damage to the compressor caused by continuous restart.
1-2-2. Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of products, which may
differ from the products in some way.
1-3. How to read this Service Manual
1-3-1. Using Icons
Icons are used to attract the attention of the reader to specific information. The meaning of each icon is
described in the table below:
Note:
A “note” provides information that is not indispensable.
Caution:
A “caution” is used when there is danger that the reader, through incorrect manipulation, may damage
equipment, loose data, get an unexpected result or has to restart (part of) a procedure.
Warning:
A “warning” is used when there is danger of personal injury.
Reference:
A “reference” guides to find additional information on a specific topic.

SERVICE MANUAL
Model: BD-379GAA
5
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 2 Product feature

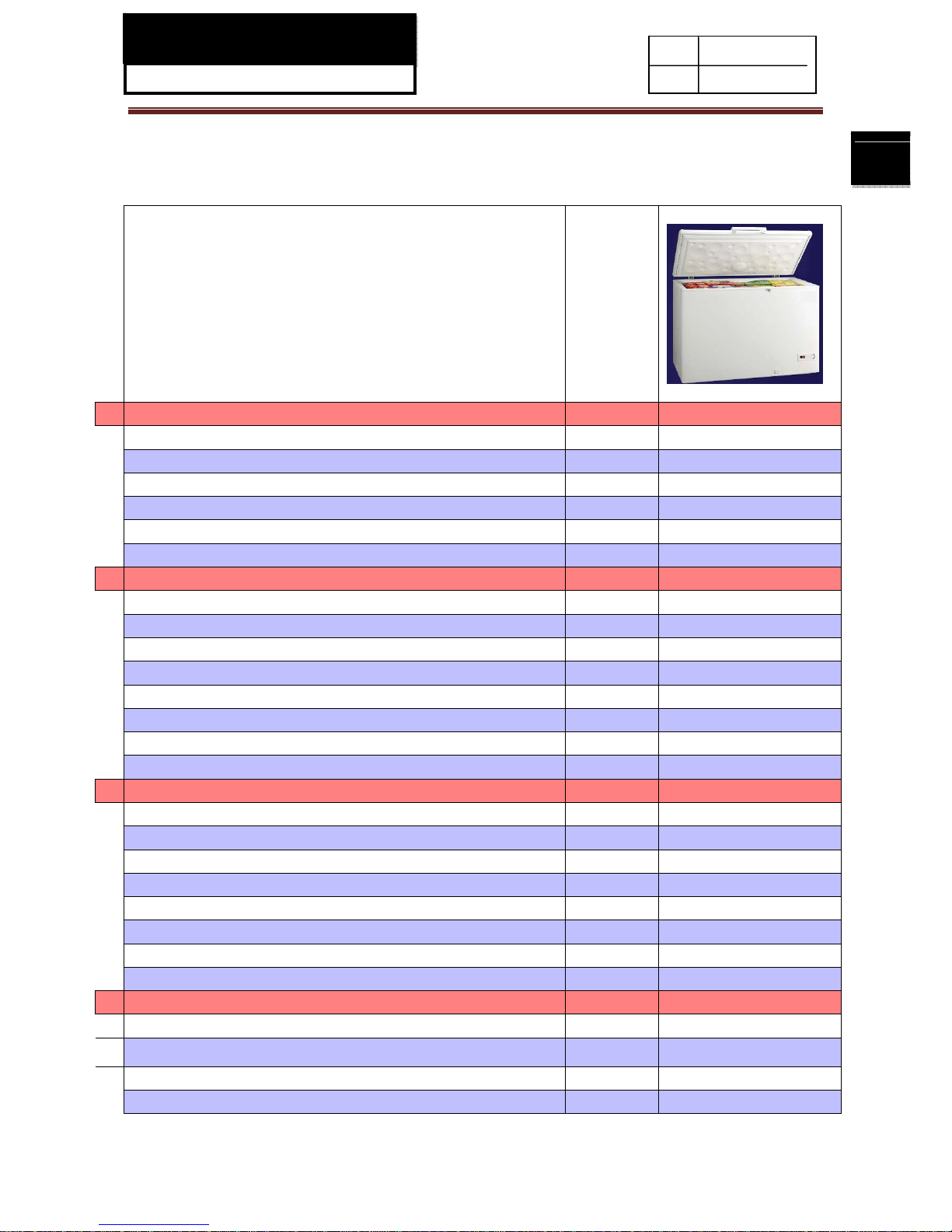

2-1. SPECIFICATIONS
Superfast freeze function.
Adjustable temperature control with power indicator.
High pressure and microbiological foam filled door for energy
conservation.
Convenient water drain.
Hi-temp indicator.
External controls.
1. Type Model BD-379GAA
Commercial brand Haier
Product description Chest Freezer
Type of appliance (FS=free standing / BI= built-in) FS
Climate class (N=16-32℃ST=16-38℃T=18-43℃) SN~T
Freezer star rating */***
Approvals (VDE / TÜV / IMQ / NF / ÖVE / DEMKO etc.) CE/GS
2. Key features
Gross capacity l 384
Total net capacity l 379
Freezing capacity(kg/24h) kg/24h 24
Energy consumption/year kWh/year 308
Max storage time at breakdown h 35
Defrosting (Manual-Automatic) Manual
Kind of coolant (R134a/R600a) R600a
Foaming components (R141b/C-P) C-P
3. Technical data
Voltage / frequency V/Hz 220-240~/50
Input power / currency W /A 140/1.3
Length of cable / incl. plug cm 150/155
Temperature range (from>to) °C ≤-18
Energy consumption / year kWh/year 308
Energy consumption (EN153) per 24 h kWh/24 h 0.84
Cooling system: (K=Compressor / A=Absorption) K
Maximum noise level dB(A) 52
4. Aesthetics
Door Streamline
Chest Streamline edges
Colours:
Cabinet white

SERVICE MANUAL
Model: BD-379GAA
6
Issue 2009-12-14
Rev.
Ref0912S018V0
Top white
Door frame white
Fascia panel / Handle (w/b/g/s) white/white
5. Equipment & accessories
Product classification (Super eco/Eco/Standard) Standard
Lid (Number/Handle/Lock) 1/●/●
Type of lid (Hinge/Counter balanced/Sliding) Hinge
Inside walls (Stainless steel/Aluminum/Synthetic mat.) Anodized Aluminum
Insulation Lid thickness cm 7.8
Wallsthickness cm 7
Baskets number n° 2(metal)
Defrostdrain ●
Interior light ●
Adjustable thermostat ●
Fast freeze lamp (yellow) ●
On light (green) ●
Breakdown light (red) ●
Fast freeze switch ●
Adjustable feet (front / rear) n° -(unable adjustable feet)
6. Product net dimensions
Unit dimensions (H / W / D) cm 85.5/124/74.5
Net weight kg 67
7. Packing dimensions & load ability
Packing dimensions (H / W / D) cm 89.5/130/77.5
Gross weight kg 66
40 ' High cube container load pcs 80
8. Service
User instruction (languages) D/GB/F/I/E/P/GR

SERVICE MANUAL
Model: BD-379GAA
7
Issue 2009-12-14
Rev.
Ref0912S018V0
2-2. External views
Handle
Lid
Control
panel

SERVICE MANUAL
Model: BD-379GAA
8
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 3 Installation, adjustments and maintenance
3-1. Installation
The freezer should be conveniently located for day-to-day use in a dry well-ventilated room.
Do not install the freezer where the temperature will go below 0°F or above 110°F, because it will
not maintain proper temperatures.
Be sure to install the freezer on a floor strong enough to support it when it is fully loaded.
The freezer must be solidly positioned on the floor if it is to function at its best. Shims may be used
to accomplish this wherever the floor is too uneven. If the place selected for the freezer is damp or
moist, place 2 X 4 s (51 mm X 102 mm) under its entire length to assure adequate support.
3-2 Defrosting and Draining
In most climates, defrosting will be necessary only about twice a year.
To have the freezer operate most efficiently, do not permit more than 1/2” (13 mm) of frost to
accumulate on the shelves.
To remove frost, scrape with a plastic or wood spatula or scraper.
Do not use an ice pick or sharp-edged instrument as it may damage or scratch the freezer.
Do not use any electrical device in defrosting the freezer.
For Complete Defrosting
1. Turn the temperature control to the OFF position and unplug the freezer.
2. Remove all food and place it in corrugated boxes, insulated bags, picnic coolers, etc. Use
towels and newspapers for insulation as needed.
3. With the door/lid open, use pans of hot water to speed loosening of frost. Remove large pieces
before they melt.
Chest models have a defrost water drain at the front.
4. Sponge excess water from the bottom of the freezer as it collects to prevent over flowing.
5. After defrosting, clean the inside of the freezer.
6. Replace the drain plug inside the cabinet and the cap on the defrost drain. Fold over and dry
the gasket on the hinge side of the lid.
7. Plug in the freezer. Return the temperature control to its previous position and return food to the

SERVICE MANUAL
Model: BD-379GAA
9
Issue 2009-12-14
Rev.
Ref0912S018V0
freezer.
Water may drip from the back flange of the lid cover during defrosting. This is normal. Ice
builds up in the lid insulation when the lid is open for adding or removing food, and melts during the
defrosting operation.
3-3 Cleaning the Freezer
Outside. Protect the paint finish. The finish on the outside of the freezer is a high quality
baked-on paint finish. With proper care, it will stay new-looking and rust-free for years. Apply a coat of
appliance polish wax when the freezer is new and then at least twice a year. Appliance polish wax also
works well to remove tape residue from freezer surfaces.
Keep the finish clean. Wipe with a clean cloth lightly dampened with appliance polish wax or
mild liquid dishwashing detergent. Dry and polish with a clean, soft cloth. Do not wipe the freezer with
a soiled dishwashing cloth or wet towel. Do not use scouring pads, powdered cleaners, bleach, or
cleaners containing bleach.
Inside. Clean the inside of the freezer at least once a year. We recommend that the freezer be
unplugged before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when
cleaning in the vicinity of switches, lights or controls.
Use warm water and baking soda solution-about a tablespoon of baking soda to a quart of water.
Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners.
An open box of baking soda in the freezer will absorb stale freezer odors. Change the box ever y
three months.
Care should be taken in moving the freezer away from the wall. All types of floor
coverings can be damaged particularly cushioned coverings and those with embossed surfaces.

SERVICE MANUAL
Model: BD-379GAA
10
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 4 Disassembly
4-1. Door assembly (Door, hinge, hinge cover)
Disassemble the hinge assembly and the hinge cover: the hinge cover, take away the cover, and then
screw off the eight screws on the bottom hinge, so the whole hinge could be moved.
4.2. Compartment Grill assembly
Unscrew the two screw of grill; you can take away the grill.

SERVICE MANUAL
Model: BD-379GAA
11
Issue 2009-12-14
Rev.
Ref0912S018V0
4-3. Control panel assembly (Panel, cover board, knob, indicator light)
Unscrew the compartment grill (refer 4-2), push the panel claw gently with your finger or tools, at
the same time pull panel outside then take it away.
Take away the knob with a sharp-edged tool.
Press the cover board and take it away.
Press two claws on indicator light side and push it from back to front.
4-4. Thermostat assembly
First take off the knob (refer 4-3), Use turnbuckle spanner or acutilingual plier, unscrew the
turnbuckle, then thermostat can be moved from back of panel.
When assembly thermostat you should placed thermostat in originally direction.

SERVICE MANUAL
Model: BD-379GAA
12
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 5 Control and display system
5-1. Control panel
Freezing temperature selection is made by setting the control from min to max (coldest).
If you want colder or warmer temperatures, adjust the control one step at a time.
Allow several hours after each one-step adjustment for the freezer temperature to stabilize.
5-2. Starting the Freezer
1. Clean the inside of the freezer with a mild solution of baking soda and water
2. Connect cord to power outlet.
3. Make sure the temperature control is set at 4.
4. Allow freezer to operate for at least four hours before placing food inside.

SERVICE MANUAL
Model: BD-379GAA
13
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 6 System flow principle
6-1. Refrigeration flow chart
The refrigeration system of direct cooling single-system cooler belongs to the category of a
single-temperature and single-control refrigerating system with one evaporators and is controlled by a
single temperature control.

SERVICE MANUAL
Model: BD-379GAA
14
Issue 2009-12-14
Rev.
Ref0912S018V0

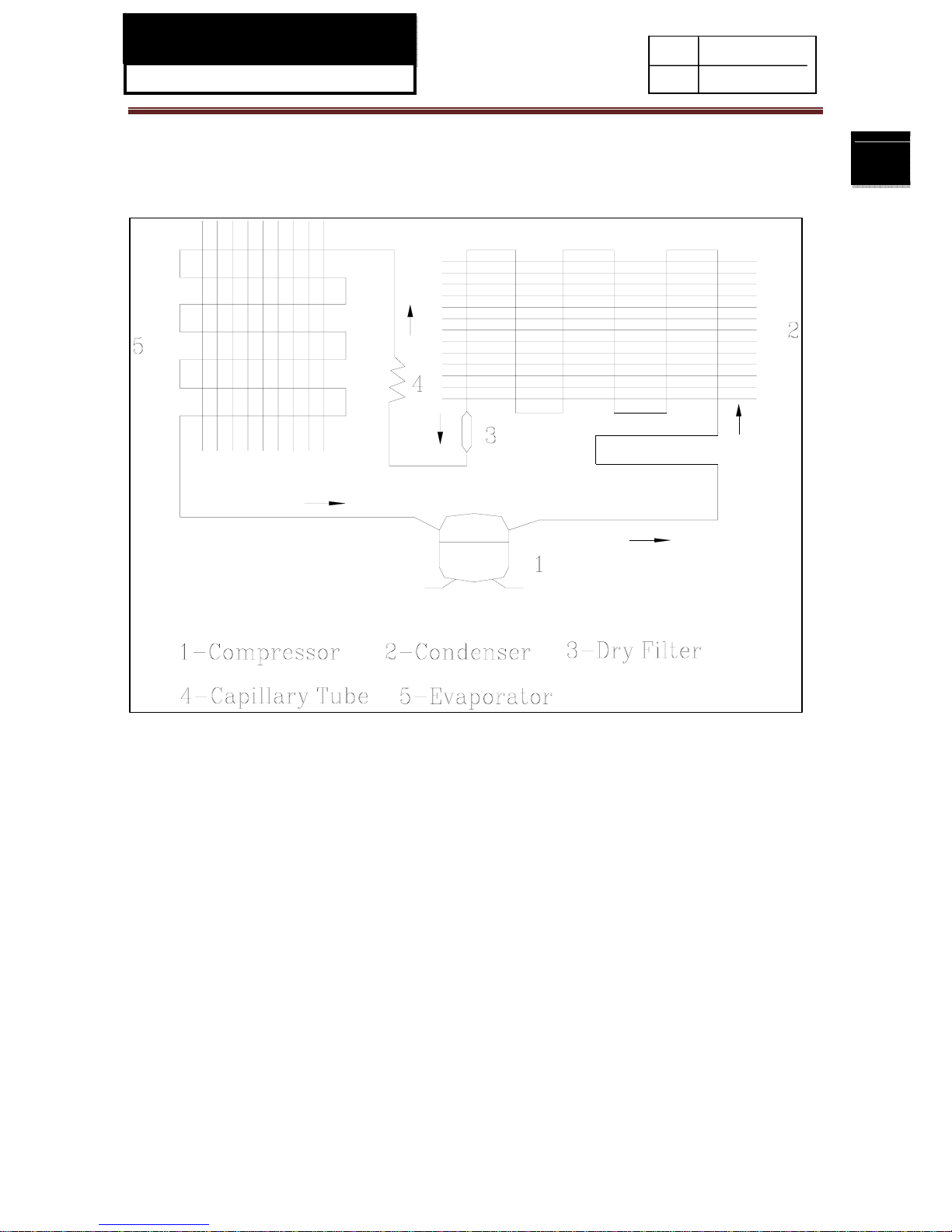

6-2. Refrigeration flow scenograph

SERVICE MANUAL
Model: BD-379GAA
15
Issue 2009-12-14
Rev.
Ref0912S018V0

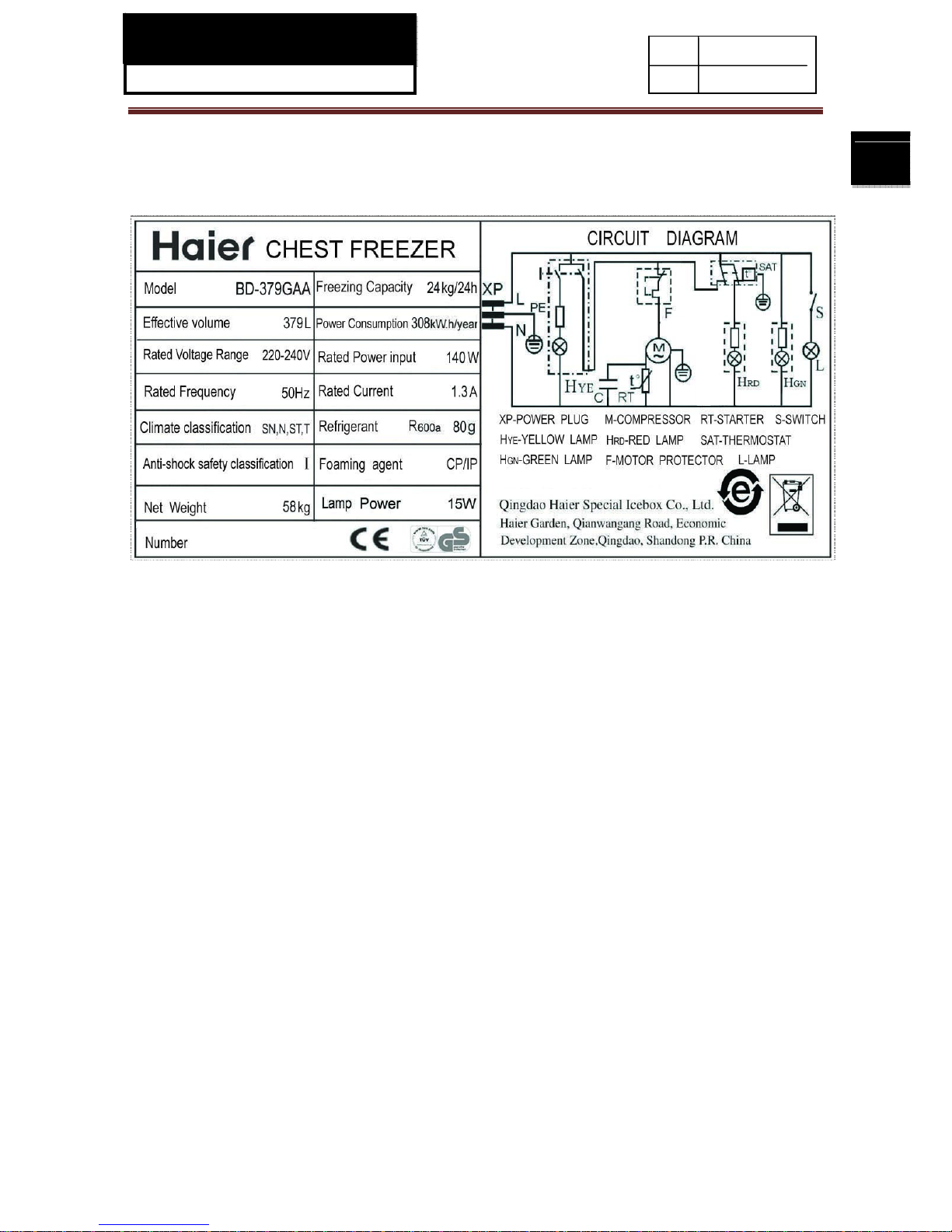

Chapter 7 Circuit diagram
7-1. Brief principle diagram

SERVICE MANUAL
Model: BD-379GAA
16
Issue 2009-12-14
Rev.
Ref0912S018V0
Chapter 8 Trouble shooting
8-1. Normal phenomena
Problem Possible Causes What To Do
Freezer does not
operate or
Power-On Light is
not on
Temperature control in OFF or
Min or 0 position.
Move the control to a temperature setting.
Freezer is unplugged. Push the plug completely into the outlet.
The fuse is blown/circuit
breaker is tripped.
Replace fuse or reset the breaker
Freezer
starts/stops too
frequently
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long to
door/lid openings.
Temperature control set too
cold. See About the operation of the freezer
Freezer operates
too long
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings.
Temperature control set too
cold. See About the operation of the freezer
Inadequate air circulation
space around cabinet. See Preparing to install the freezer
Fast Freeze switch is in the
ON position (on some
models)
See About the operation of the freezer
Noisy operation or
cabinet vibrates
Floor may be weak, causing
freezer to vibrate when
compressor is on.
Placing 2 X 4s (51 mm X 102 mm) under the
length of the freezer will help support it and
may reduce vibration.
Cabinet is not positioned
solidly on floor
See Preparing to install the freezer Or use
shims for uneven floor
Freezer
temperature too
warm
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings.
Foods defrosting
Temperature control OFF or
Min or 0 positions. Move the control to a temperature setting.

SERVICE MANUAL
Model: BD-379GAA
17
Issue 2009-12-14
Rev.
Ref0912S018V0
Freezer is unplugged. Push the plug completely into the outlet.
The fuse is blown/circuit
breaker is tripped.
Replace fuse or reset the breaker
Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings.
Freezer
temperature too
cold
Temperature control set too
cold.
See About the operation of the freezer
Fast Freeze switch is in the
ON position or has run for too
long (on some models)
About the operation of the freezer
Moisture forms on
outside of cabinet
Not unusual during periods of
high humidity
Wipe surface
Interior light does
not work (on some
models)
No power at outlet. Replace fuse or reset the breaker
Freezer is unplugged. Push the plug completely into the outlet.
Light bulb burned out. Replace bulb.
Door/lid wont fully
close by itself
Package holding door/lid
open.
Slow starting time
after being off
Built-in overload product.
Excessive frost
build-up Door/lid left open. Check to see if package is holding door/lid
open.
Too frequent or too long
door/lid openings.
Not unusual during periods of
high humidity

SERVICE MANUAL
Model: BD-379GAA
18
Issue 2009-12-14
Rev.
Ref0912S018V0
8-2. Abnormal phenomena
8-2-1. Compressor doesn’t start

SERVICE MANUAL
Model: BD-379GAA
19
Issue 2009-12-14
Rev.
Ref0912S018V0
8-2-2.Poor cooling

Sincere forever
Haier Group
Haier Industrial Park, No.1, Haier Road
266101, Qingdao, China
http://www.haier.com
