Haier AU082FYCRA(HW) User manual

ATW Service Manual
SYJS-03-2019REV.A
Edition: 2019-03

CONTENTS
1. Outdoor Units Lineup.................................................................................................................1
2. Nomenclature ............................................................................................................................2
3. Feature ......................................................................................................................................3
4. Description Of Main Components..............................................................................................4
5. Specications ............................................................................................................................6

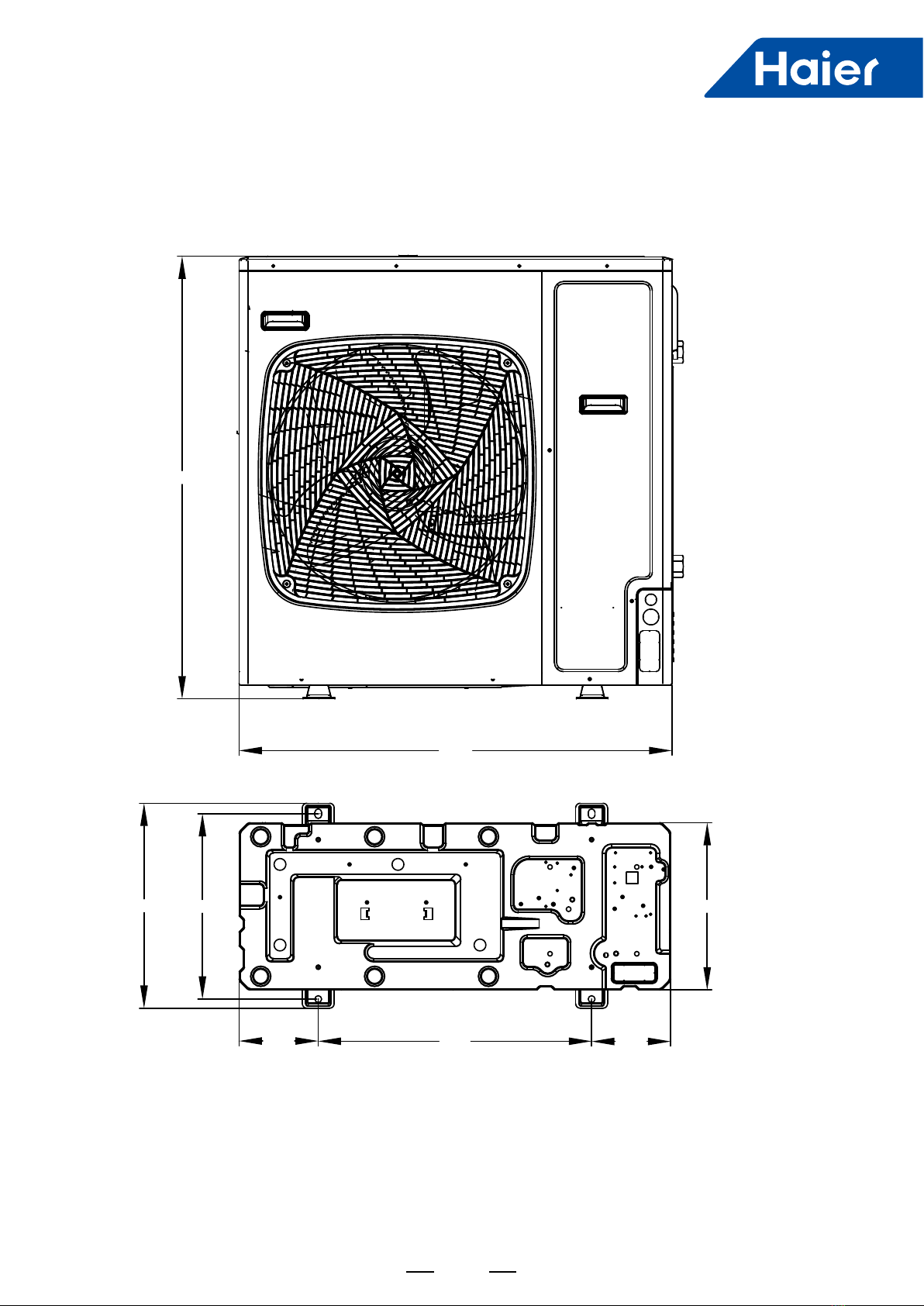

6. Dimensions ...............................................................................................................................9

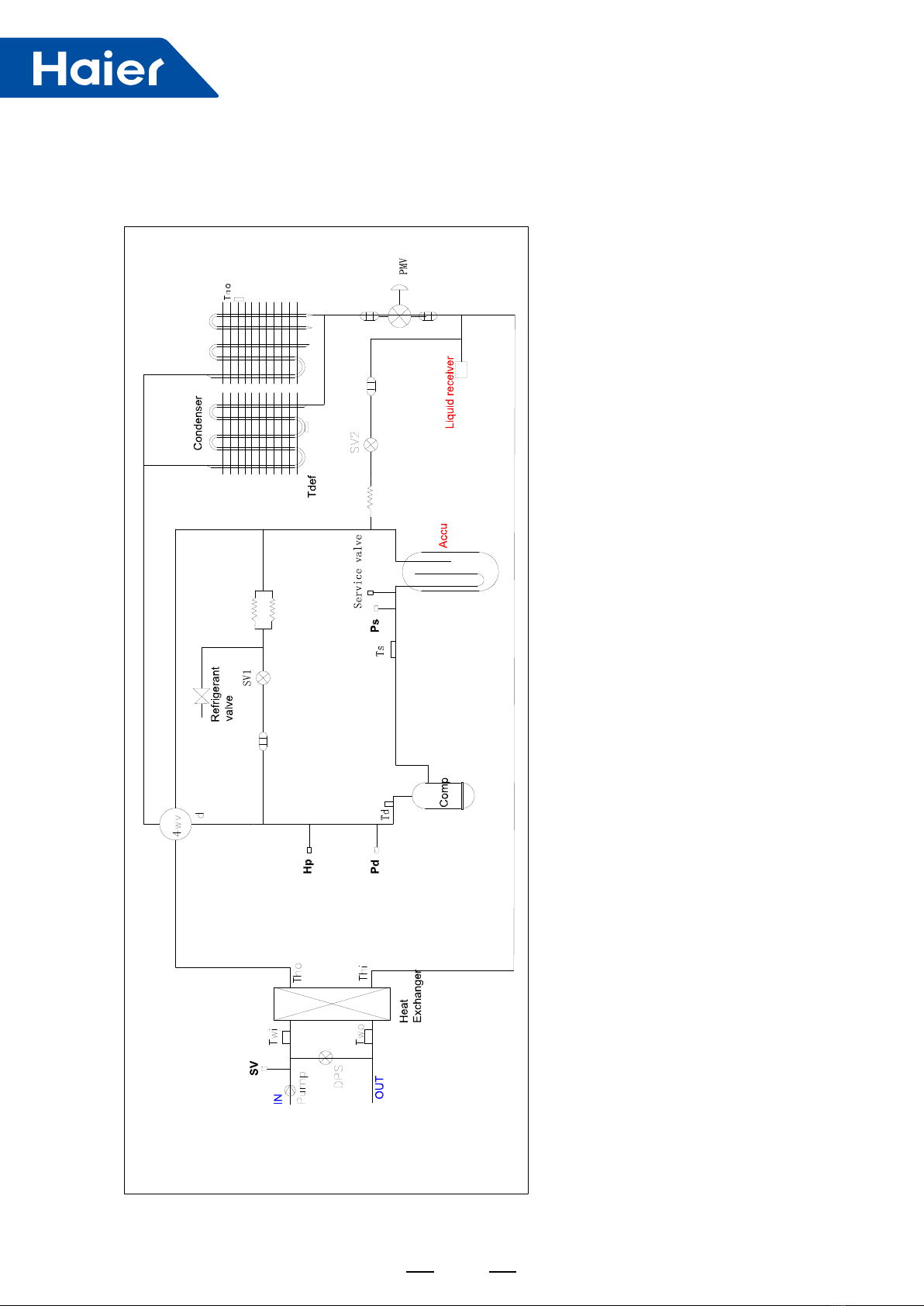

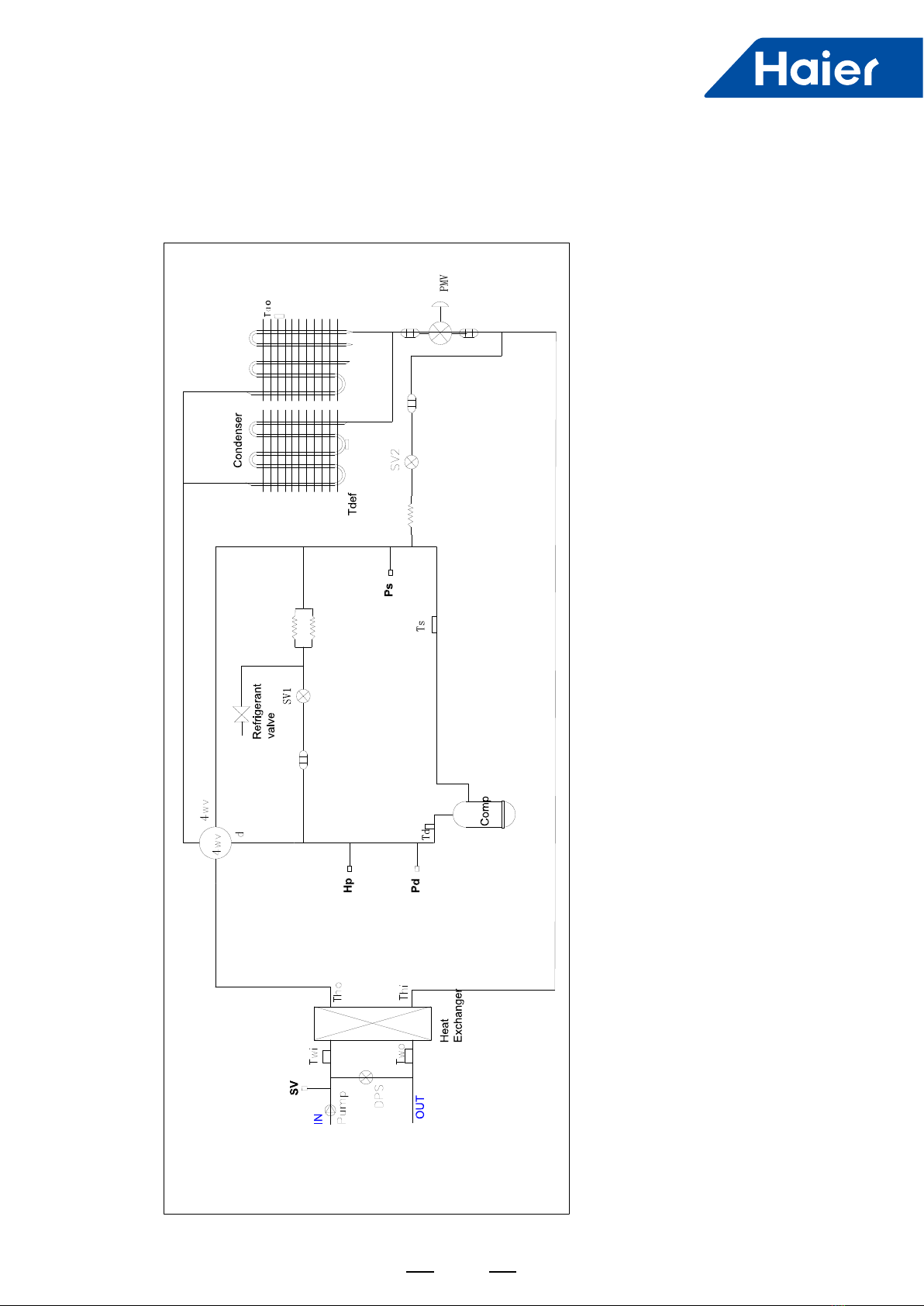

7. Piping Diagram........................................................................................................................11

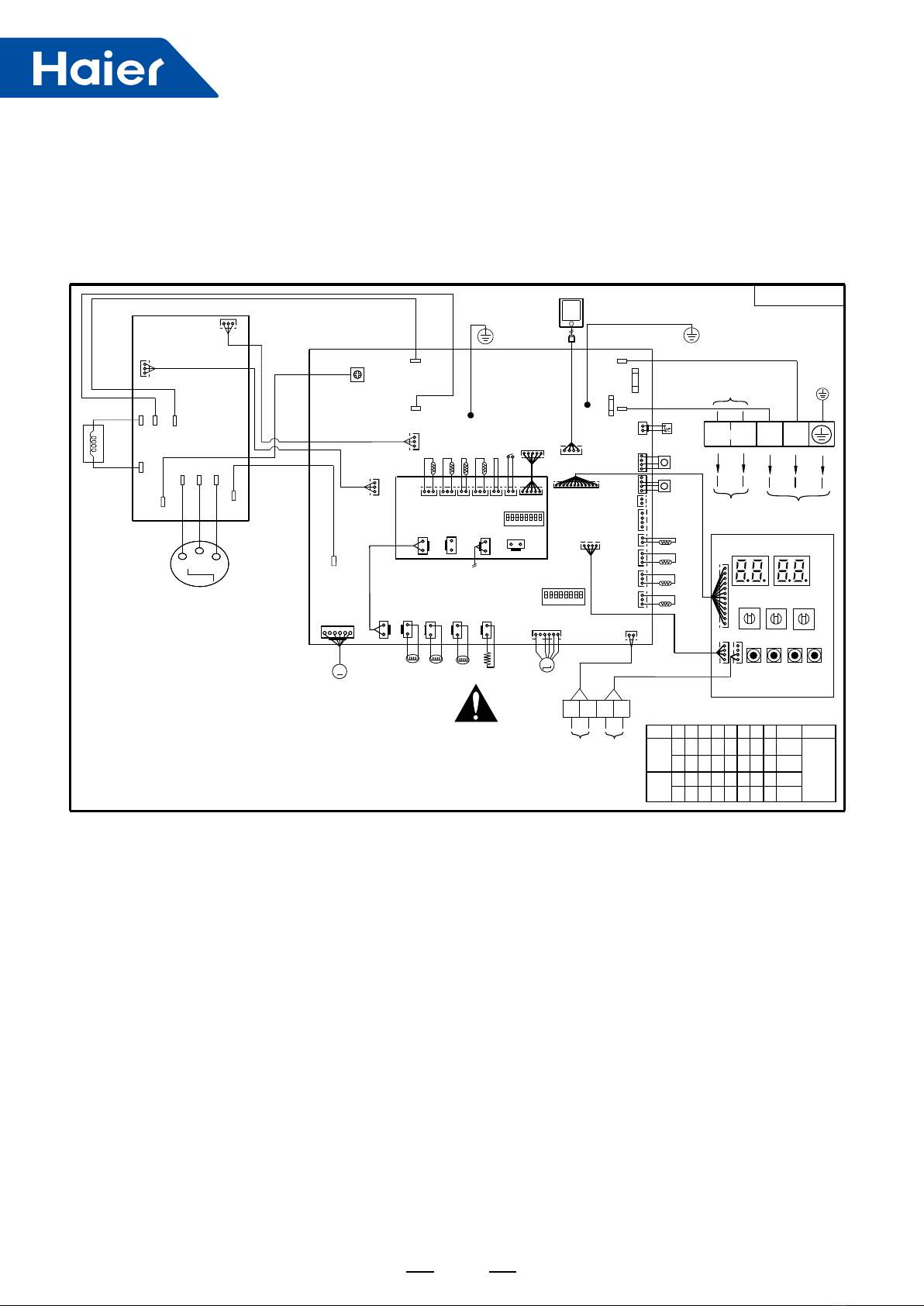

8. Wiring Diagram .......................................................................................................................14
9. Electric Characteristics............................................................................................................16
10. Capacity Tables .....................................................................................................................17
11. Operation Limits Delivery-Leaving.........................................................................................23
12. Water Pressure Drop.............................................................................................................25
13. Sound Level...........................................................................................................................27
14. Installation ............................................................................................................................28
15. PCB Photo.............................................................................................................................55
16. Dip Switch Setting .................................................................................................................56
17. Digital Tube Display...............................................................................................................57
18. Startup & Running & Maintenance ........................................................................................59
19. YR-E27(Optional wired controller).........................................................................................62
20. Error Code.............................................................................................................................73
21. Troubleshooting.....................................................................................................................74
22. APPENDIX Sensor Resistance Table .................................................................................101

1
1. Outdoor Units Lineup
Model Power Supply
(V/Ph/Hz) Capacity Compressor type
Heat
exchanger A/C mode Hydraulic module Refrigerant
AU082FYCRA(HW) 220-240/1 /50/60 8kW DC Inverter Coaxial Heat pump Built-in R32
Model Power Supply
(V/Ph/Hz) Capacity Compressor type
Heat
exchanger A/C mode Hydraulic module Refrigerant
AU112FYCRA(HW) 220-240/1/50/60 11kW DC Inverter Tubes in
shell
Heat pump Built-in R32
AU162FYCRA(HW) 220-240/1/50/60 16kW DC Inverter Heat pump Built-in R32

2
2. Nomenclature
A U 08 2 F Y C R A (HW)
Hot water
T1
DC inverter
R32
Chassis
MRV-S
(220~240V,50Hz）
Heating capacity
Outdoor unit
Air conditioner

3
3. Feature
3.1 Monobloc Air-to-Water Heat pump System
3.2 High performance heat exchanger
3.3 Low-operating sound design
3.4 Wide operation temperature range
3.5 Energy saving and high reliability
3.6 Flexible and convenient control
3.7 Integrated and compact design
3.8 EXV control ow more precisely
3.9 Water pump starts/stops compulsory function
Full DC inverter mini Heat pump adopts highly intelligent inverter-driven compressor. This advanced technology
enables the output of the outdoor unit to be modulated by the real heat load demands..
This advanced system ensures precise temperature regulation and highly efcient energy usage, making a
signicant contribution to limiting the impact on the environment.
Optimally design fan shape and new designed discharge air grille and air deector, making higher air volume and
lower operation sound.
Stable and safe running in wide ambient temperature range, cooling performance from 10 ˚C to 46˚C, heating from
-20˚C to 35˚C.
By adopting high efciency Coaxial heat exchanger or tubes in shell heater exchanger, the energy consumption can
be reduced.
Compact devices with advanced function and friendly user interface.
The Heat pump can be controlled by optional wired controller (YR-E27) ,
Fully integrated and built-in hydraulic module, such as Coaxial heat exchanger or tubes in shell heater exchanger,
water circulating pump, the water pressure difference switch, etc. It saves installation space and cost.
Stable and accurate gas ow control. EXV achieves 500 pulses to adjust ow precisely. Ensure the temperature-
control precisely and steadily to provide a comfortable environment.
Fast respond resulting in higher efciency and improved reliability.
Press the key “Set” of YR-E27 for 15 seconds to start the water pump operating when the unit is standby. Press “Set”
key for 15 seconds again to stop the water pump.
Built-in with voltage protection, current protection, anti-freezing protection, water ow protection and etc., effectively
guarantee the system to work safely.
Hydrophilic lm ns and inner-threaded copper pipes optimize heat exchange efciency.

4
4. Description Of Main Components
Structure
Panels and base are made from galvanized steel plate painted with epoxy power to ensure total resistance to
atmospheric pollution, condensate collection pan as standard.
Air cooled coils:
The coils are made from high performance and seamless copper tuber and high surface area aluminum ns to
ensure optimum heat exchange capability. Condenser coil protection grill is standard.
Fan motor:
To achieve high efciency heat exchange, the unit is equipment with the high performance axial-ow fans. The fan
is driven directly by weather proof motor to ensure reliable operation, the fan motor is six-pole electric motor with
built-in thermal cut-out.
Hydraulic module:
It is fully integrated and equipped with key hydraulic components such as Coaxial heat exchanger (applied for
AU082) and tubes in shell heater exchanger (applied for AU112/162). water circulating pump.The water pressure
difference switch is provided in the units to protect against damage to the water pump.
Power and control electrical panel
Power and control electrical panel constructed in accordance with IEC 204-1/EN60335-2-40, complete with
compressor contactor,control via control panel.

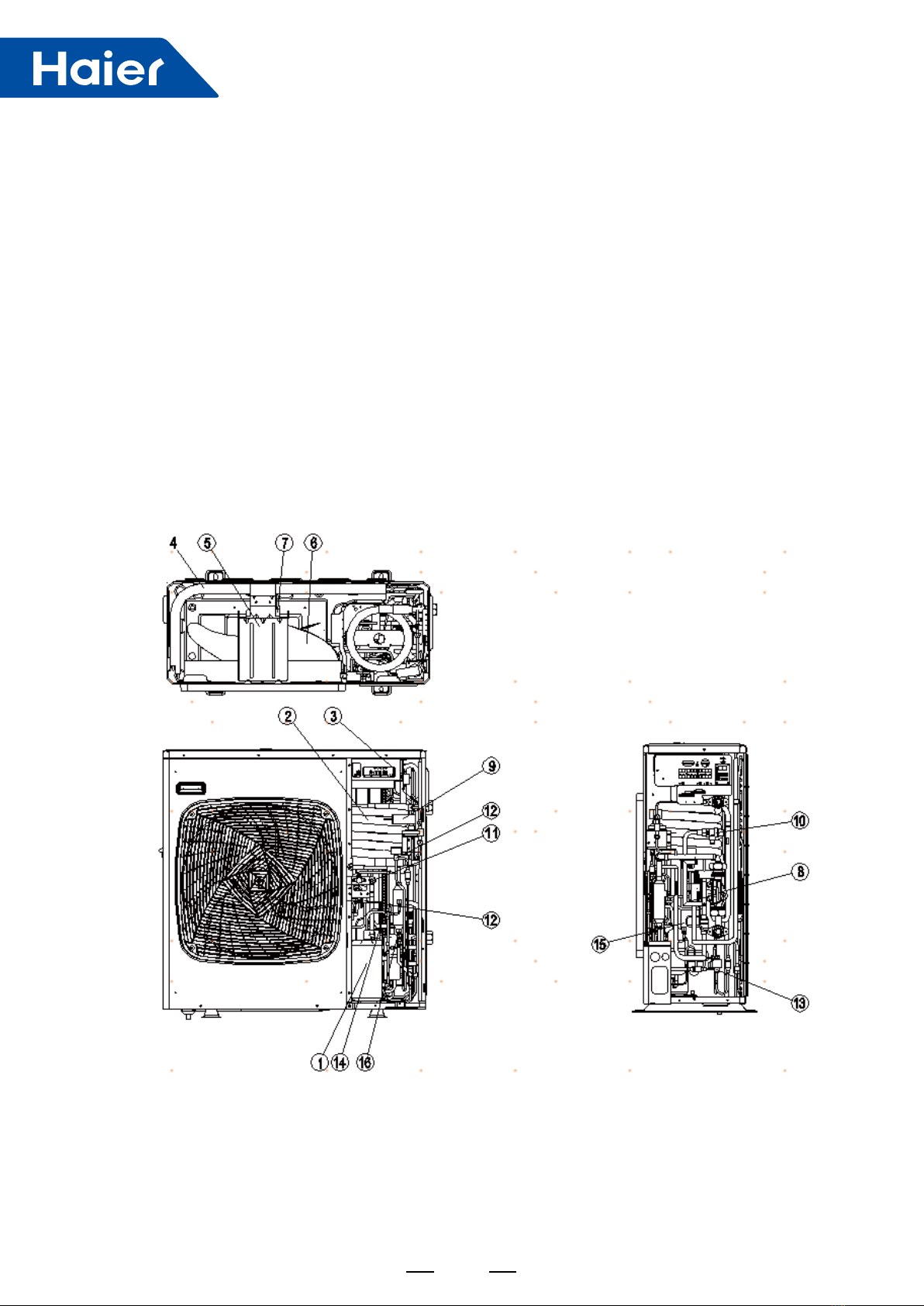

1.Compressor 2.Coaxial heat exchanger
3.Electrical panel 4.Condenser
5.Motor bracket 6.Axial-ow fan
7.Motor 8.Water Pump
9.Pressure Difference switch 10.Safety valve
11.4-ways valve 12.Solenoid valve
13.Electronic expansion valve 14.High pressure switch
15.Low pressure sensor 16.High pressure sensor
AU082FYCRA (HW)

5

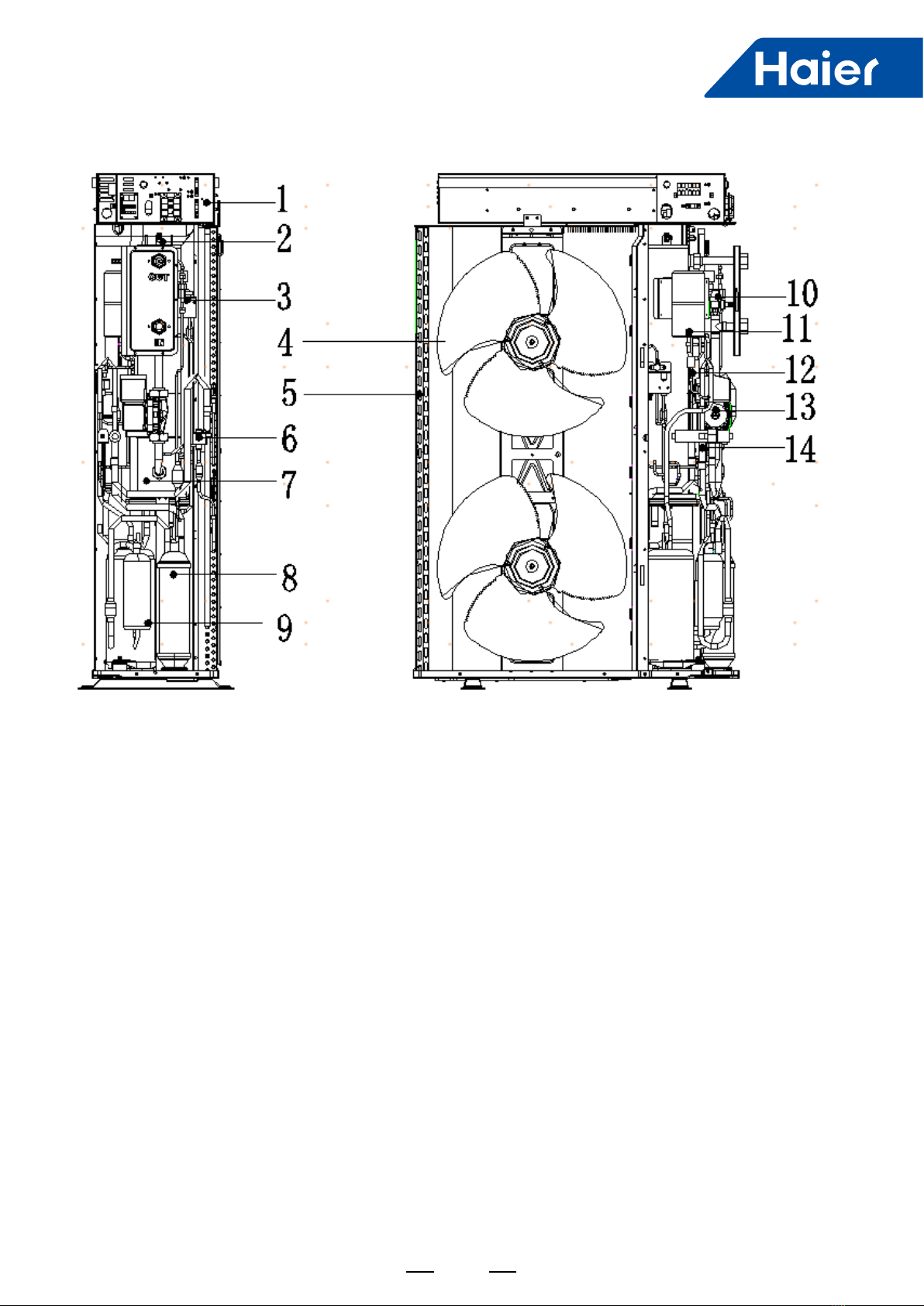

1.Electrical panel 2.Discharge valve
3.Differential pressure switch 4.Axial-ow fan
5.Condenser 6.Electronic expansion valve
7.Shell-and-tube heat exchanger 8.Accumulator
9.Compressor 10.Safety valve
11.Buffer tank 12.High pressure switch
13.Pump 14.4-Ways valve
AU112/162 FYCRA (HW)

6
5. Specications
Model AU082FYCRA(HW)
Power supply V-Ph-Hz 1PH, 220-240V~,50/60Hz
Cooling*(1) Capacity kW 5.50
Input kW 2.34
Cooling*(2) Capacity kW 7.00
Input kW 2.06
Heating*(3) Capacity kW 7.50
Input kW 2.34
Heating*(4) Capacity kW 7.80
Input kW 1.77
EER*(1) kW/kW 2.35
EER*(2) kW/kW 3.40
Max.input consumption kW 4.90
Max.input current A 21.3
Compressor
Model SVB200FKMMC
Type ROTARY
Brand Mitsubishi Electric
Capacity kW 6.45
Input kW 2.15
Rated load current A 7.90
Locked rotor Amp A 24
Thermal protector Inner
Refrigerant oil type FW68S
Refrigerant oil charge ml 400
Outdoor fan motor
Model SIC-88FWJ-F1180-1
Type DC Motor
Brand NIDEC SHIBAURA
Input kW 180
Speed r/min 160-850
Water pump
Type Para 25/8-75/SC-WILO
Input (H/M/L) W 75/57/35
Pumping head m 8
Outdoor air ow m³/h 4200
Throttle EXV
Outdoor noise level (sound power)*(3) dB(A) 60.9
Flow rate of water m³/h 1.38
The water pressure drop of heat-exchanger kPa 45
The Max. and Min. water inlet pressure kPa 500/150
Outdoor unit
Net dimension (W×H×D) mm 950×965×395
Packing dimension(W×H×D) mm 1010×990×458
Net/ Gross weight kg 87/90
Refrigerant Type R32
Charged volume kg 1.15
Connection wiring Power wire mm2 3×10.0
Pipe diameter Water inlet/outlet inch 1-1/4''
Controller (optional) Wired controller
Ambient temperature range Cooling:10~46; Heating: -20~35
(Antifreeze must be added below 5)
Leaving water temperature range Cooling: 5~20; Heating: 20~55
Note: Specications are based on the following conditions:
1. Cooling: (*1) Entering/leaving water temperature: 12/7°C,outdoor ambient temperature 35°C DB.
(*2) Entering/leaving water temperature: 23/18°C,outdoor ambient temperature 35°C DB.
2.Heating: (*3) Entering/leaving water temperature: 40/45°C,outdoor ambient temperature 7°C DB/6°C WB .
(*4) Entering/leaving water temperature: 30/35°C,outdoor ambient temperature 7°C DB/6°C WB .
3. It is tested in a semi-anechoic room (sound power).
4. The above data may be changed without notice for future improvement on quality and performance.

7
Model AU112FYCRA(HW)
Power supply V-Ph-Hz 1PH, 220-240V~,50/60Hz
Cooling*(1) Capacity kW 11.50
Input kW 3.83
Cooling*(2) Capacity kW 13.50
Input kW 2.94
Heating*(3) Capacity kW 10.5
Input kW 3.37
Heating*(4) Capacity kW 11.00
Input kW 2.61
EER*(1) kW/kW 3.00
EER*(2) kW/kW 4.60
Max.input consumption kW 5.60
Max.input current A 24.3
Compressor
Model TVB306FKMMC
Type ROTARY
Brand Mitsubishi Electric
Capacity kW 10.27
Input kW 3.42
Rated load current A 9.87
Locked rotor Amp A 45.5
Thermal protector Inner
Refrigerant oil type FW68S
Refrigerant oil charge ml 870
Outdoor fan motor
Model SIC-88FWJ-F1180-1
Type DC Motor
Brand NIDEC SHIBAURA
Input kW 180
Speed r/min 160-780
Water pump
Type UPMXL GEO 25-125 130 PWM-Grundfos
Input (H/M/L) W 160/110/80
Pumping head m 12.5
Outdoor air ow m³/h 7200
Throttle EXV
Outdoor noise level (sound power)*(3) dB(A) 62.7
Flow rate of water m³/h 1.89
The water pressure drop of heat-exchanger kPa 40
The Max. and Min. water inlet pressure kPa 500/150
Outdoor unit
Net dimension (W×H×D) mm 950×1490×380
Packing dimension(W×H×D) mm 1010×1520×458
Net/ Gross weight kg 139/142
Refrigerant Type R32
Charged volume kg 2.40
Connection wiring Power wire mm2 3×10.0
Pipe diameter Water inlet/outlet inch 1-1/4''
Controller (optional) Wired controller
Ambient temperature range Cooling:10~46; Heating: -20~35(Antifreeze must be added
below 5)
Leaving water temperature range Cooling: 5~20; Heating: 20~55
Note: Specications are based on the following conditions:
1. Cooling: (*1) Entering/leaving water temperature: 12/7°C,outdoor ambient temperature 35°C DB.
(*2) Entering/leaving water temperature: 23/18°C,outdoor ambient temperature 35°C DB.
2.Heating: (*3) Entering/leaving water temperature: 40/45°C,outdoor ambient temperature 7°C DB/6°C WB .
(*4) Entering/leaving water temperature: 30/35°C,outdoor ambient temperature 7°C DB/6°C WB .
3. It is tested in a semi-anechoic room (sound power).
4. The above data may be changed without notice for future improvement on quality and performance.

8
Model AU162FYCRA(HW)
Power supply V-Ph-Hz 1PH, 220-240V~,50/60Hz
Cooling*(1) Capacity kW 14.50
Input kW 4.92
Cooling*(2) Capacity kW 16.00
Input kW 3.64
Heating*(3) Capacity kW 15.00
Input kW 4.62
Heating*(4) Capacity kW 16.00
Input kW 3.86
EER*(1) kW/kW 2.95
EER*(2) kW/kW 4.40
Max.input consumption kW 7.30
Max.input current A 31.7
Compressor
Model MVB40FKMMC
Type ROTARY
Brand Mitsubishi Electric
Capacity kW 13.68
Input kW 4.34
Rated load current A 14.60
Locked rotor Amp A 37.8
Thermal protector Inner
Refrigerant oil type FW68S
Refrigerant oil charge ml 1250
Outdoor fan motor
Model SIC-88FWJ-F1180-1
Type DC Motor
Brand NIDEC SHIBAURA
Input kW 180
Speed r/min 160-780
Water pump
Type UPMXL GEO 25-125 130 PWM-Grundfos
Input (H/M/L) W 180/130/90
Pumping head m 12.5
Outdoor air ow m³/h 7200
Throttle EXV
Outdoor noise level (sound power)*(3) dB(A) 67.4
Flow rate of water m³/h 2.75
The water pressure drop of heat-exchanger kPa 40
The Max. and Min. water inlet pressure kPa 500/150
Outdoor unit
Net dimension (W×H×D) mm 950×1490×380
Packing dimension(W×H×D) mm 1010×1520×458
Net/ Gross weight kg 139/142
Refrigerant Type R32
Charged volume kg 2.60
Connection wiring Power wire mm2 3×10.0
Pipe diameter Water inlet/outlet inch 1-1/4''
Controller (optional) Wired controller
Ambient temperature range Cooling:10~46; Heating: -20~35(Antifreeze must be added
below 5)
Leaving water temperature range Cooling: 5~20; Heating: 20~55
Note: Specications are based on the following conditions:
1. Cooling: (*1) Entering/leaving water temperature: 12/7°C,outdoor ambient temperature 35°C DB.
(*2) Entering/leaving water temperature: 23/18°C,outdoor ambient temperature 35°C DB.
2.Heating: (*3) Entering/leaving water temperature: 40/45°C,outdoor ambient temperature 7°C DB/6°C WB .
(*4) Entering/leaving water temperature: 30/35°C,outdoor ambient temperature 7°C DB/6°C WB .
3. It is tested in a semi-anechoic room (sound power).
4. The above data may be changed without notice for future improvement on quality and performance.

9
405~410
600 174
174
450
950
965
395
6. Dimensions
AU082FYCRA(HW) (Unit: mm)

10
AU112/162FYCRA(HW) (Unit: mm)
1490
950
380
187
405~410
600 174
174
450
170

11
AU082FYCRA(HW)
7. Piping Diagram

12
AU112/162FYCRA(HW)

13
Part name Model Sign Function Date
Compressor
SVB200FKMMC
AU082FYCRA(HW)
Comp Capacity control, meet indoor load
request by adjusting the frequency
Motor resistance (at
20°C): 1.94Ω
TVB306FKMMC
AU112FYCRA(HW) Motor resistance (at 20°C): 1.53Ω
MVB40FKMMC
AU162FYCRA(HW) Motor resistance (at 20°C): 0.72Ω
Pressure
sensor ALL
Pd High pressure detection Pressure range:0 to
4.15MPa
Ps Low pressure detection Pressure range:0 to
1.7MPa
Pressure
switch ALL Hp High pressure protection 4.15MPa, OFF
Electronic
expansion
valve
AU082FYCRA(HW) PMV In heating, refrigerant ow control
￠1.8
AU112/162FYCRA(HW) ￠2.5
4-way valve ALL 4WV Change over between cooling and
heating
AC220V, electried in
heat; not electried in
cooling or defrosting
Solenoid
valve ALL
SV1 Keep balance of high/low pressure
when compressor starts up or stops AC220V
SV2 Refrigerant jet protection when
discharging temp. is too high
Liquid
receiver AU112/162FYCRA(HW) / Used to storage the refrigerant Volume:1.1L
Gas-liquid
separator AU112/162FYCRA(HW) ACCU Used to separate the gas and liquid ￠90*350
Refrigerant
valve ALL / Used to charge the refrigerant to unit ￠7
Service valve AU112/162FYCRA(HW) / Used to detect the pressure HPb59-1 S12.5
Flow switch
AU082FYCRA(HW)
DPS Detect Flow rate
0.012MPa OFF
0.009MPa ON
AU112/162FYCRA(HW) 0.008MPa, OFF
0.0055MPa ON
Pump AU082FYCRA(HW) Pump Transport liquid Pumping head:8m
AU112/162FYCRA(HW) Pumping head:12.5m
Heat
exchanger
AU082FYCRA(HW) /
Used to exchange the heat from
refrigerant to water
Design pressure: water
side:1.5MPa; Refrigerant
side:4.2MPa
AU112/162FYCRA(HW) / Design pressure: shell side:1.0MPa;Tube
pass:4.2MPa
Safety valve ALL SV Reduce system pressure Operation
pressure:0.55MPa
Temp. sensor ALL
Tdef Check frost condition of outdoor heat
exchanger
R(25°C)=10KB
(25/50°C)=3700K
Ts suction temp. of compressor
Tao Detect ambient temp. set primary setting for fan speed target pressure and PMV
open angle
Thi Detect the in refrigerant temp. of heat
exchanger
Tho Detect the out refrigerant temp. of heat
exchanger
Twi Detect the in water temp. of
heat exchanger
Two Detect the out water temp. of
heat exchanger
Td Detect the discharging temp. of
compressor R (80°C)=50KB (25/80°C)=4450K

14
8. Wiring Diagram
CN37
CN34
T25A/250VAC
FUSE1
CN13
CN15
CN9
R
BL
W U
Compressor
R
V
BW
Y/G
Y/G
Inverter module
Reactor
AC-L
AC-N
U
W V
BL CN10
BL
R
W
N
P
CN19
CN27
B CN11
N-OUT
L-OUT
AC-N
PE
HPS
AC-L
CN35
PE
Y/G
BL
R
CN1
R
CN29
CN28
BL
R
CN23
CN4
B
TE(1)
CN6
CN7 TAO
TS
W
B
W
R CN21
Power supply
BM1
NO
1 2 3 4 5 6 7 8
CN16 CN17 CN25
HEATER4WV
GYW
CN12
DC-FAN
W
M
BL CN33
W CN10
LO
LI
INV-POWER
W CN51
【 Electrical wiring diagram 】
W CN30
Main board
[1] [2] [3] [4] [5] [6] [7] [8]
0 1 0 0 1 0
BM1
BM Model
【BM Indication】
0 0 1
0
100
0 means
OFF,
1 means
ON
82
【WARNING】
Before checking the inside of the control box,
please turn off the power supply and keep the
unit closed for more than 10 minutes to ensure
that the voltage between P and N on the
converter board has been reduced to
less than DC 20V.
P
CN3 Td1
R
CN5
W
B
W
B
W
W
CN41
BL
CN18
R
COM
R CN11
THO
TW I TH I
TWO
W CN45
BL CN59
W CN43 Y CN44 W CN47
BL CN53 Y CN58 BL CN57 B CN56
R CN40
N
L
Wire controller
Docking connector
Water
board
LEVA1
M
R CN8
SV1
SV2
1
0
0
MODE
BM2
NO
1 2 3 4 5 6 7 8
0 0 0
BM2 0
1
82
100
0
1
00 0 0 0 0
000
1 00
Remarks
W
CN1
SMG1
SMG2
SW4 SW5 SW6 SW7
UP DOWN EXIT ENTER
W CN2_1
W CN2
Display board
LN
W CN24
P
OUT I/O
AQ
Centralized
controller
B
Inside pump
Connect to Terminal block PUMP
Connect to water
board CN57
0150531727
PUMP
T3.15A/250VAC
FUSE2
Colours:
B : Black
BL: Blue
Y : Yellow
G : Green
R : Red
W: White
WS
G CN46
PsPd
【NOTES】
·Please check the power firstly before test , and make
sure the crankcase heater power on for 12 hours
at least to protect compressor.
·Forbid connecting the power wire to the “P,Q,A,B” ,
otherwise the control board will be damaged.
·Please connect the wire controller to the docking terminal,
and then fix the back side of the docking terminal with a
wire clamp to prevent pulling.
SW1 SW2 SW3
AU082FYCRA(HW)

15
AU112/162FYCRA(HW)
L N
【 Electrical wiring diagram 】
【WARNING】
R
Power supply
BL Y/G
AC-N
AC-L
DCPL1
DCPL2
U
V
W
COMP
R
B
W
Tfin
CN8
CN1
PE
Reactor
0150531728
CN1
W
ACN-OUT
ACL-OUT
CN11
CN42
W
6.3A 250VAC
FUSE1
6.3A 250VAC
FUSE2
CN41
W
CN12 DCFAN2
R
M
M
CN13 DCFAN1
W
CN34
B
CN17
CN16
CN25
HEATER
4WV
G
Y
BL
CN21
CN10
R
CN7 CN3 CN6 CN4 CN29 CN28
P
HPS
CN1 CN2
R W
LEVa
M
CN8 CN5CN23
TS
TA TD
W WR B B W BL R
TE1
W
B
W
R
G
CN18
CN27
R
W
W CN51
W CN11
THO
TW I TH I
TWO
W CN45 BL CN59
W CN43 Y CN44 W CN47
BL CN53 Y CN58 BL CN57 B CN56
N
L
MODE
BM2
NO
12345678
1(L)
External pump relay
32(N)
Inside pump
4
G CN46
WS
CN30
W
CN40
R
W
CN1
SMG1
SMG2
SW4 SW5 SW6 SW7
UP DOWN EXIT ENTER
W CN2_1
W CN2
P AQ B
Y/G
Main board
Inverter module
[1] [2] [3] [4] [5] [6] [7] [8]
1 0 0 0 1 0
BM1
BM Model
0 1 1
0
162
112
0
0
0
0 0 0
BM2 0
1
112
162
0
1
00 0 0 0 0
000
1 00
Remarks
【 BM Indication 】
Before checking the inside of the control box,
please turn off the power supply and keep the
unit closed for more than 10 minutes to ensure
that the voltage between P and N on the
converter board has been reduced to
less than DC 20V.
Water
board
Display board
Wire
controller
Docking
connector
Pd
Ps
OUT I/O Centralized
controller
0 means
OFF,
1 means
ON
ACL
ACN
HEATER
SV1
SV2
4WV
DCFAN1
DCFAN2
LED1-4
Symbol
Signification
Live Wire
Neutral Wire
Heater
unloading valve
spray valve
4 way valve
up fan
down fan
lights
HPS
TD
TE(1)
TS
TA
EEV
LD1-3
SW01,02
high pressure switch
LPS
low pressure switch
compressor discharge sensor
defrost temp sensor
compressor suction sensor
ambient temp sensor
electronic expansion valve
digital display tubes
AB Monitor
Tfin IPM temperature sensor
Symbol Signification
thumbwheels
Colours:
B : Black
BL: Blue
Y : Yellow
G : Green
R : Red
W: White
【NOTES】
·Please check the power firstly before test , and make
sure the crankcase heater power on for 12 hours
at least to protect compressor.
·Forbid connecting the power wire to the “P,Q,A,B” ,
otherwise the control board will be damaged.
·Please connect the wire controller to the docking terminal,
and then fix the back side of the docking terminal with a
wire clamp to prevent pulling.
SW3
SW2
SW1
CN24
W
SV2
SV1

16
9. Electric Characteristics
Model
Outdoor Unit Power Supply Compressor OFM
Hz Voltage Phase Min. Max. MCA MFA MSC kW FLA
AU082FYCRA(HW) 50Hz 220~240V 1Ph 198V 264V 21.3 32 4.2 0.18 0.8
AU112FYCRA(HW) 50Hz 220~240V 1Ph 198V 264V 24.3 32 8.5 0.18+0.18 0.8+0.8
AU162FYCRA(HW) 50Hz 220~240V 1Ph 198V 264V 31.7 40 14 0.18+0.18 0.8+0.8
Remark:
MCA: Min. Current Amps. (A)
MFA: Max. Fuse Amps. (A)
MSC: Max. Starting Amps. (A)
OFM: Outdoor Fan Motor
FLA: Full Load Amps. (A)
kW: Rated Motor Output (kW)

17
10. Capacity Tables
AU082FYCRA(HW)
Air temp. Capacity(kW)
Nom.
Capacity(kW)
Min.
Capacity(kW)
Max.
EER(EN14511)
Nom.
EER(EN14511)
Min.
EER(EN14511)
Max.
DB Water ow temperature 20℃
45 6.75 2.03 7.43 3.95 4.05 3.81
35 7.86 2.36 8.65 3.42 5.70 3.47
25 8.69 2.61 9.56 5.13 8.24 4.90
15 9.60 2.88 10.56 7.53 10.75 7.19
10 10.17 3.05 11.19 9.36 11.45 9.47
DB Water ow temperature 18℃
45 5.95 1.79 6.55 3.93 4.02 3.79
35 7.00 2.10 7.70 3.40 5.66 3.45
25 8.24 2.47 9.06 5.10 8.18 4.87
15 9.11 2.73 10.03 7.47 10.68 7.14
10 9.33 2.80 10.27 9.85 10.98 9.41
DB Water ow temperature 15℃
45 5.92 1.66 6.46 2.21 3.09 2.15
35 6.73 1.89 7.34 2.95 4.19 2.92
25 7.66 2.15 8.35 4.30 6.03 4.12
15 8.48 2.37 9.24 6.28 8.39 6.01
10 8.71 2.44 9.50 8.49 10.20 8.08
DB Water ow temperature 10℃
45 5.16 1.44 5.67 1.97 2.69 1.91
35 6.06 1.70 6.67 2.63 3.64 2.60
25 6.67 1.87 7.34 3.82 5.25 3.66
15 7.34 2.05 8.07 5.59 7.30 5.35
10 7.71 2.16 8.48 7.55 8.88 7.19
DB Water ow temperature 7℃
45 4.24 1.27 4.66 1.95 2.49 1.78
35 5.50 1.65 6.05 2.35 3.47 2.47
25 5.39 1.62 5.93 3.81 4.86 3.47
15 6.06 1.82 6.67 5.49 7.02 5.01
10 6.52 1.96 7.17 7.21 8.41 6.35
DB Water ow temperature 5℃
45 4.14 1.24 4.97 1.75 2.10 1.58
35 4.79 1.44 5.75 2.15 2.93 2.20
25 5.35 1.61 6.42 3.41 4.09 3.09
15 5.94 1.78 7.12 4.91 5.98 4.46
10 6.28 1.88 7.54 6.94 7.74 5.65
10.1 Cooling capacity

18
AU112FYCRA(HW)
Air temp. Capacity(kW)
Nom.
Capacity(kW)
Min.
Capacity(kW)
Max.
EER(EN14511)
Nom.
EER(EN14511)
Min.
EER(EN14511)
Max.
DB Water ow temperature 20℃
45 12.78 3.83 13.42 3.66 4.51 3.25
35 13.91 4.17 14.60 4.87 6.56 4.25
25 15.64 4.69 16.42 6.55 9.84 5.78
15 17.19 5.16 18.05 9.13 10.71 7.33
10 17.70 5.31 18.59 11.41 11.75 11.38
DB Water ow temperature 18℃
45 12.41 3.72 13.03 3.45 4.25 3.06
35 13.50 4.05 14.18 4.60 6.19 4.01
25 15.18 4.55 15.94 6.18 9.29 5.45
15 16.69 5.01 17.52 8.61 10.40 6.91
10 16.75 5.03 17.59 11.08 11.93 10.74
DB Water ow temperature 15℃
45 11.87 3.56 13.05 2.83 3.49 2.51
35 13.22 4.63 14.54 3.81 5.07 3.29
25 14.43 5.05 15.88 5.06 7.62 4.47
15 15.21 5.32 16.73 7.06 8.52 5.67
10 15.97 5.59 17.57 9.08 9.78 8.80
DB Water ow temperature 10℃
45 10.24 3.17 11.77 2.49 3.07 2.21
35 12.91 4.00 14.85 3.35 4.46 2.90
25 13.96 4.33 16.05 4.46 6.70 3.94
15 15.31 4.75 17.61 6.21 7.50 4.99
10 15.91 4.93 18.29 7.99 8.61 7.75
DB Water ow temperature 7℃
45 9.77 2.93 10.74 2.14 2.46 1.96
35 11.50 3.45 11.60 3.00 3.40 3.03
25 12.90 3.87 14.19 3.88 4.69 3.47
15 14.14 4.24 15.56 5.24 6.74 4.54
10 15.25 4.58 16.78 7.64 8.45 6.62
DB Water ow temperature 5℃
45 9.39 2.82 10.32 2.07 2.26 1.88
35 10.76 3.23 11.83 2.84 3.12 2.91
25 12.11 3.63 13.32 3.77 4.32 3.34
15 13.25 3.97 14.57 5.05 6.20 4.36
10 14.03 4.21 15.43 6.08 7.77 6.36
