Haier HB16WMAA User manual

GB
Refrigerator-Freezer
HB16WMAA
HB16WBAA
User Manual
HB16WSNAA
HEFR3719FWMP
HFR5719EWMP
HFR5719EWMG
HFR5719EWPB

Thank You GB
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
RǎFH
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
5LVNRILQMXU\RUVXNjRFDWLRQ
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of
the refrigerant circuit is not damaged before being properly disposed of. Disconnect
WKHDSSOLDQFHIURPWKHPDLQVVXSSO\&XWRNjWKHPDLQVFDEOHDQGGLVSRVHRILW5HPRYH
the trays and drawers as well as the door catch and seals, to prevent children and pets
to get closed in the appliance.

GB Content
3
1- Safety information......................................................................................................................4
2- Intended use ................................................................................................................................8
3- Product description .................................................................................................................. .9
4- Control panel..............................................................................................................................10
5- Use................................................................................................................................................11
6- Energy saving tips.....................................................................................................................20
7- Equipment..................................................................................................................................21
8- Care and Cleaning.....................................................................................................................24
9- Troubleshooting........................................................................................................................27
10- Installation................................................................................................................................30
11- Technical Data.........................................................................................................................33
12- Customer Service ..................................................................................................................34

1- Safety information GB
%HIRUHVZLWFKLQJRQWKHDSSOLDQFHIRUWKHƪUVWWLPHUHDGWKHIROORZ-
ing safety hints!:
4
WARNING!
%HIRUHƪUVWXVH
ŕMake sure there is no transport damage.
ŕRemove all packaging and keep out of children´s reach.
ŕWait at least two hours before installing the appliance in order to
HQVXUHWKHUHIULJHUDQWFLUFXLWLVIXOO\HǎFLHQW
ŕHandle the appliance always with at least two persons because it
is heavy.
Installation
ŕThe appliance should be placed in a well-ventilated place. Ensure
a space of at least 20 cm above and 10 cm around the appliance.
ŕNever place the appliance in a damp area or location where it
might be splashed with water. Clean and dry water splashes and
stains with a soft clean cloth.
ŕDo not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
ŕInstall and level the appliance in an area suitable for its size and use.
ŕKeep ventilation openings in the appliance or in the in-built struc-
ture clear of obstruction.
ŕMake sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
ŕThe appliance is operated by a 220-240 VAC/50 Hz power sup-
SO\$EQRUPDOYROWDJHǍXFWXDWLRQPD\FDXVHWKHDSSOLDQFHWRIDLO
to start, or damage to the temperature control or compressor, or
there may be an abnormal noise when operating. In such case, an
automatic regulator shall be mounted.
ŕUse a separate earthed socket for the power supply which is easy
accessible. The appliance must be earthed.
ŕOnly for UK: 7KH DSSOLDQFHšV SRZHU FDEOH LV njWWHG ZLWK FRUG
JURXQGLQJSOXJWKDWnjWVDVWDQGDUGFRUGJURXQGHGVRFNHW
1HYHUFXWRNjRUGLVPRXQWWKHWKLUGSLQJURXQGLQJ$IWHUWKHDS-
pliance is installed, the plug should be accessible.
ŕDo not use multi-plug adapters and extension cables.
ŕEnsure that the power cable is not trapped by the refrigerator. Do
not step on the power cable.
ŕDo not damage the refrigerant circuit.

GB 1- Safety information
5
WARNING!
Daily use
ŕThis appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
ŕKeep away children under 3 years of age from the appliance un-
less they are constantly supervised.
ŕChildren shall not play with the appliance.
ŕ,IFRROJDVRURWKHULQǍDPPDEOHJDVLVOHDNLQJLQWKHYLFLQLW\RIWKH
DSSOLDQFHWXUQRNjWKHYDOYHRIWKHOHDNLQJJDVRSHQWKHGRRUV
and windows and do not unplug a plug in the power cable of the
refrigerator or any other appliance.
ŕ1RWLFHWKDWWKHDSSOLDQFHLVVHWIRURSHUDWLRQDWDVSHFLnjFDP-
bient range between 10 and 43°C. The appliance may not work
properly if it is left for a long period at a temperature above or be-
low the indicated range.
ŕ'R QRW SODFH XQVWDEOH DUWLFOHV KHDY\ REMHFWV FRQWDLQHUV njOOHG
with water) on top of the refrigerator, to ovoid personal injury
caused by falling or electric shock caused by contact with water.
ŕDo not pull on the door shelves. The door may be pulled slant, the
bottle rack, may be pulled away, or the appliance may topple.
ŕOpenandclose thedoors onlywith thehandles.Thegapbetween
the doors and between the doors and the cabinet is very narrow.
Do not extend your hands in these areas to avoid pinching your
njQJHUV2SHQRUFORVHWKHUHIULJHUDWRUGRRUVRQO\ZKHQWKHUHDUH
no children standing within the range of door movement.
ŕ'RQRWVWRUHRUXVHLQǍDPPDEOHH[SORVLYHRUFRUURVLYHPDWHULDOV
in the appliance or in the vicinity.
ŕDo not store medicines, bacteria or chemical agents in the ap-
pliance. This appliance is a household appliance. It is not recom-
mended to store materials that require strict temperatures.
ŕNever store liquids in bottles or cans (besides high percentage
spirits) especially carbonated beverages in the freezer, as these
will burst during freezing.
ŕChecktheconditionoffoodifawarminginthefreezerhastakenplace.

1- Safety information GB
6
WARNING!
Daily use
ŕDo not set unnecessarily low temperature in the refrigerator
compartment. Minus temperatures may occur at high settings.
Attention: Bottles can burst.
ŕDo not touch frozen goods with wet hands (wear gloves). Espe-
cially do not eat ice lollies immediately after removal from the
freezer compartment. There is the risk to freeze or the formation
of frost blisters. FIRST aid: keep immediately under running cold
water. Do not pull away!
ŕDo not touch the inside surface of the freezer storage compart-
ment when in operation, especially with wet hands, as your hands
may freeze onto the surface.
ŕUnplug the appliance in the event of a power interruption or be-
fore cleaning. Allow at least 5 minutes before restarting the appli-
ance, as frequent starting may damage the compressor.
ŕDo not use electrical devices inside the food storage compart-
ments of the appliance, unless they are of the type recommend-
ed by the manufacturer.
Maintenance / cleaning
ŕMake sure children are supervised if they carry out cleaning and
maintenance.
ŕDisconnect the appliance from the electrical supply before un-
dertaking any routine maintenance. Allow at least 5 minutes be-
fore restarting the appliance, as frequent starting may damage
the compressor.
ŕHold the plug, not the cable, when unplugging the appliance.
ŕ'R QRW VFUDSH RNj IURVW DQG LFH ZLWK VKDUS REMHFWV 'R QRW XVH
sprays, electric heaters like heater, hair dryer, steam cleaners or
other sources of heat in order to avoid damage to the plastic parts.
ŕDo not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the man-
ufacturer.
ŕIf the supply cord is damaged, it must be replaced by the manu-
IDFWXUHULWVVHUYLFHDJHQWRUVLPLODUO\TXDOLnjHGSHUVRQVLQRUGHUWR
avoid a hazard.
ŕDo not try to repair, disassemble or modify the appliance by your-
self. In case of repair please contact our customer service.

GB 1- Safety information
7
WARNING!
Maintenance / cleaning
ŕEliminate the dust on the back of the unit at least once in the year
WRDYRLGKD]DUGE\njUHDVZHOODVLQFUHDVHGHQHUJ\FRQVXPSWLRQ
ŕ'RQRWVSUD\RUǍXVKWKHDSSOLDQFHGXULQJFOHDQLQJ
ŕDo not use water spray or steam to clean the appliance.
ŕDo not clean the cold glass shelves with hot water. Sudden tem-
perature change may cause the glass to break.
WARNING!
7KH DSSOLDQFH FRQWDLQV WKH ǍDPPDEOH UHIULJHUDQW ,62%87$1(
(R600a). Make sure the refrigerant circuit is not damaged during
transportation or installation. Leaking refrigerant may cause eye
LQMXULHV RU LJQLWH ,I D GDPDJH KDV RFFXUUHG NHHS DZD\ RSHQ njUH
sources, thoroughly ventilate the room, do QRW plug or unplug the
power cords of the appliance or any other appliance. Inform the
customer service.
In case of eyes get into contact with the refrigerant, rinse immedi-
ately it under running water and call immediately the eye specialist.
Refrigerant gas information

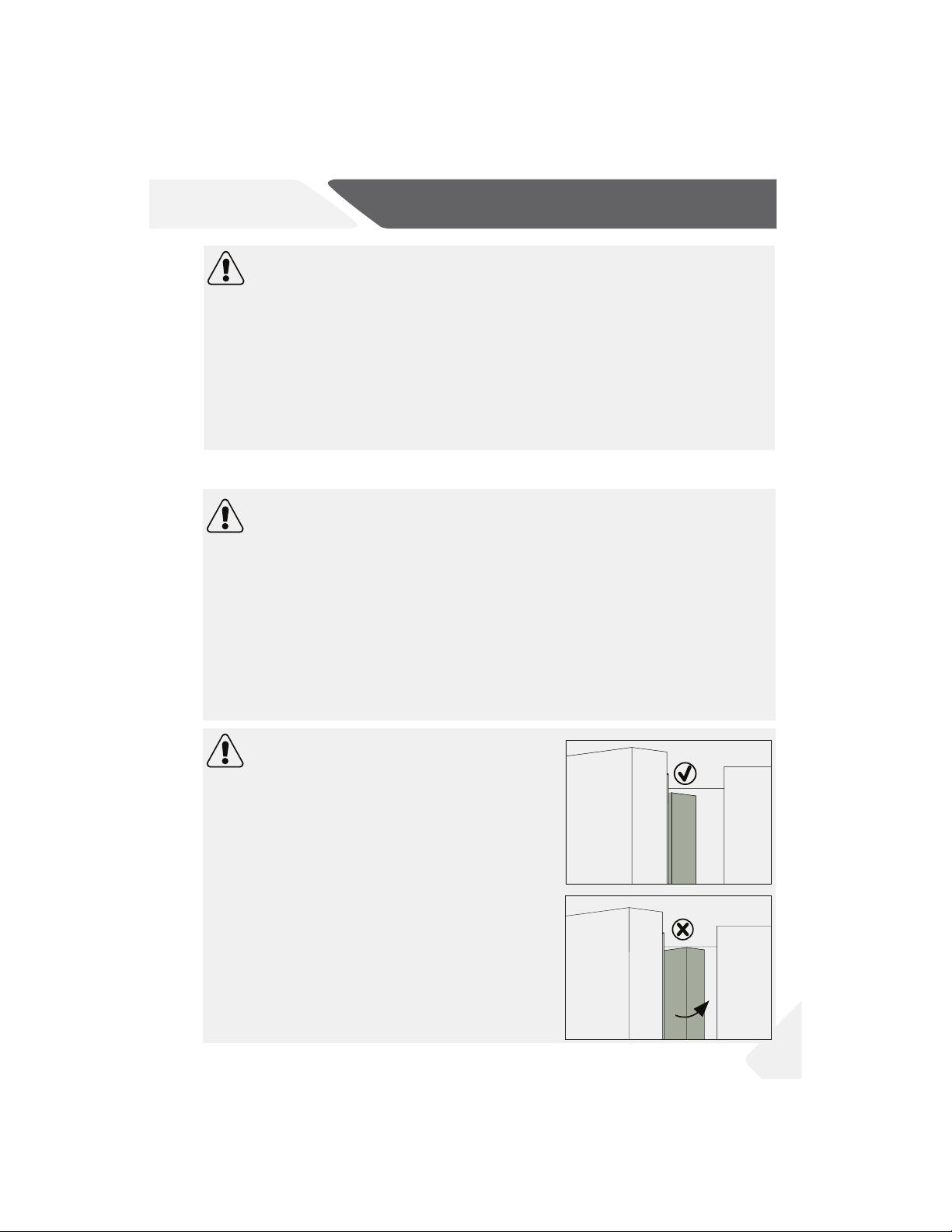

CAUTION!
When you close the door, the vertical door beam on
the left door should be bent inside (1).
If you try to close the left door and the vertical door
EHDPLVXQEHQW\RXVKRXOGEHQGLWnjUVWO\RWKHU-
ZLVH WKH GRRU EHDP ZLOO KLW WKH nj[LQJ VKDIW RU ULJKW
door. Thus a damage to the door beam or a leak will
occur.
There is a heating thread inside the vertical door
beam. The temperature of the surface will rise a lit-
WOHZKLFKLVQRUPDODQGZRQvWDNjHFWWKHIXQFWLRQRI
refrigerator.
1
2

2- Intended use GB
8
2.1 Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively
for use in dry-interior house-holds. It is not intended for commercial or industrial use.
&KDQJHVRUPRGLnjFDWLRQVWRWKHGHYLFHDUHQRWDOORZHG8QLQWHQGHGXVHPD\FDXVHKD]-
ards and loss of warranty claims.

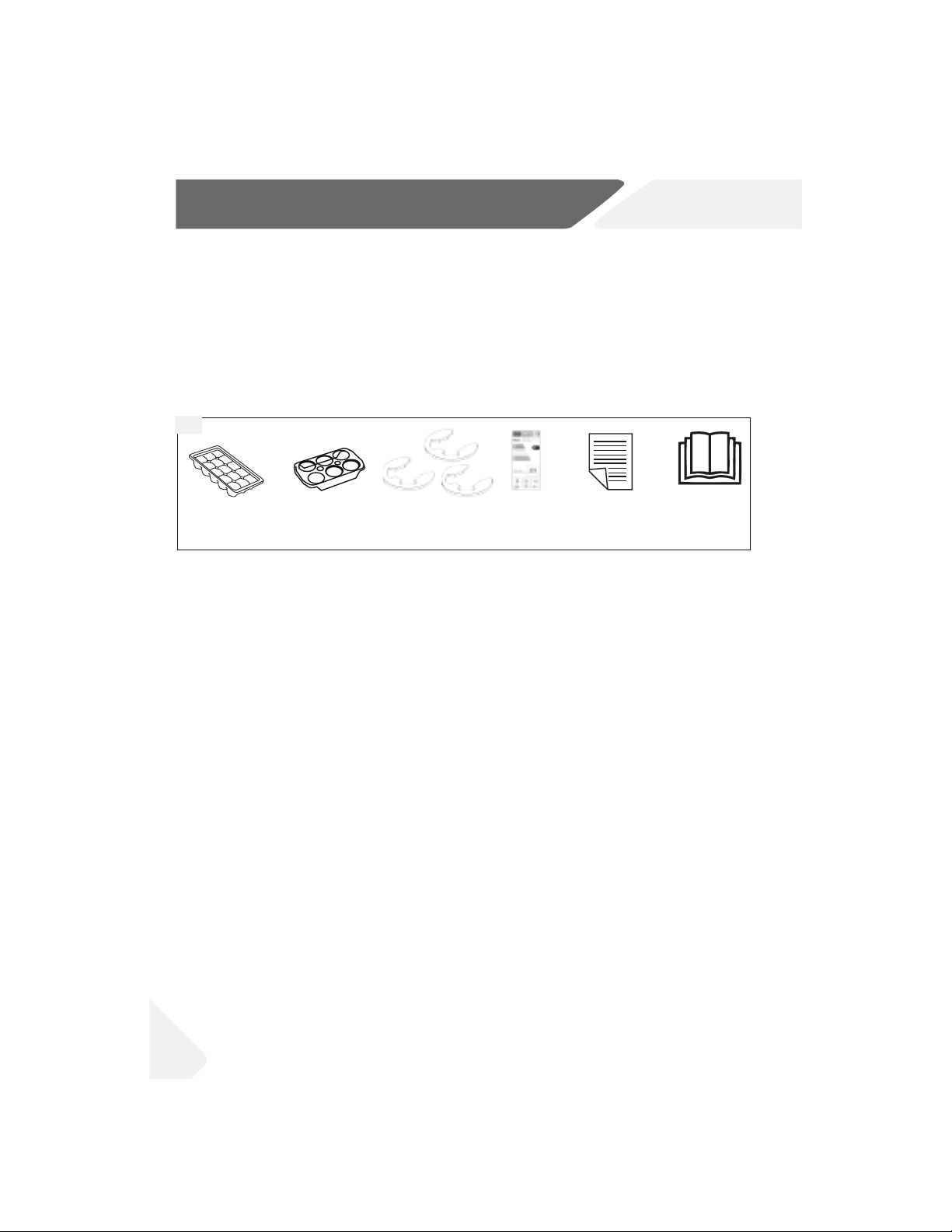

2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2.2):
Energy-
lable
Egg trayIce cube tray User
manual
Warranty
card
2.2
3 spacers

GB 3-Productdescription
9
Picture of appliance (Fig. 3)
1RWLFH'LƩHUHQFHV
'XHWRWHFKQLFDOFKDQJHVDQGGLNjHUHQWPRGHOVVRPHRIWKHLOOXVWUDWLRQVLQWKLVPDQXDO
PD\GLNjHUIURP\RXUPRGHO
A: Refrigerator compartment
1Refrigerator LED lamp
2Door beam
3Rating plate
4 Door rack
5 Glass shelf
6 My Zone drawer glass cover
7My Zone drawer
8 Water tank
9 Water dispenser
10 O.K.-temperature indicator (optional)
11 Upper freezer storage drawer
12 Lower freezer storage drawer
13Adjustable feet
B: Freezer compartment
1
2
4
5
6
7
8
4
10
11
12
13
3
A
B
3

(HEFR3719*/HFR5719*)
(HEFR3719*/HFR5719*)
HEFR3719*/HFR5719*

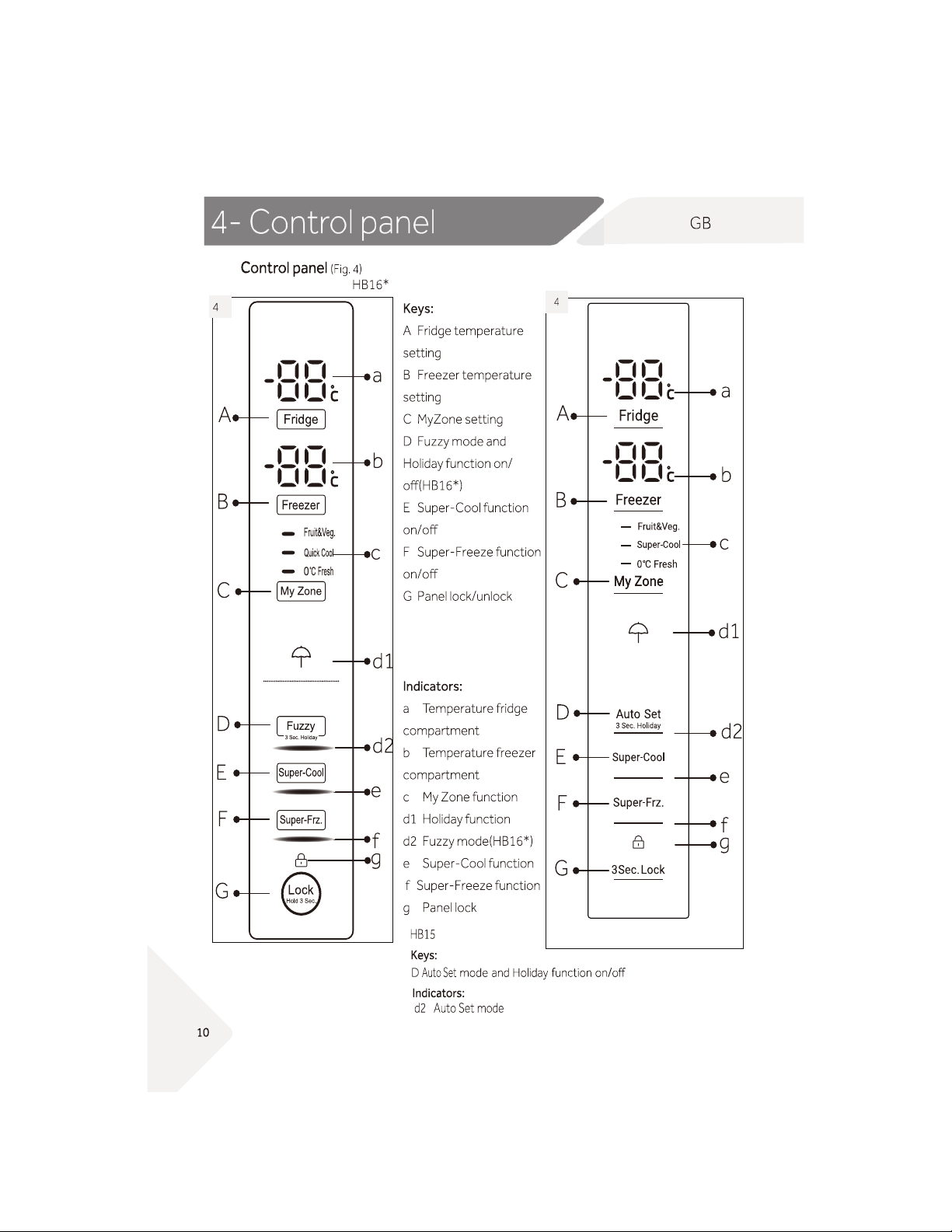

GB 5- Use
%HIRUHƪUVWXVH
ŕRemove all packaging materials, keep them out of children`s reach and dispose
them in an environmentally friendly manner.
ŕClean the inside and outside of the appliance with water and a mild detergent before
putting any food in it.
ŕAfter the appliance has been levelled and cleaned, wait for at least 2 hours before
connecting it to the power supply. See Section INSTALLATION.
ŕPrecool the compartments at high settings before loading with food. The function
Super-Freeze helps to cool down the freezer compartment quickly.
ŕThe refrigerator temperature and freezer temperature are automatically set to 5° C
and -18° C respectively. These are the recommended settings. If desired, you can
change these temperatures manually. Please see MANUAL ADJUSTING MODE.
11
6ZLWFKRQRƩWKHDSSOLDQFH
The appliance is in operation as soon as it is connected to the power supply.
:KHQWKHDSSOLDQFHLVSRZHUHGRQIRUWKHnjUVWWLPHWKHDFWXDOUHIULJHUDWRUDQGIUHH]HU
WHPSHUDWXUHVţDŤDQGţEŤDUHGLVSOD\HG7KHGLVSOD\ZLOOǍDVK,IWKHGRRUVDUHFORVHGLWZLOO
VZLWFKRNjDIWHUVHFRQGV0D\EHWKHSDQHOORFNLVDFWLYH
5.4 Standby-mode
7KHGLVSOD\VFUHHQWXUQVRNjDXWRPDWLFDOO\VHFRQGVDIWHUSUHVVLQJDNH\7KHGLVSOD\ZLOO
be automatically locked. It lights up automatically by touching any key or opening the door/
drawer .
5.2 Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly
WRXFKHGZLWKWKHnjQJHU
Notice: Presettings
ŕThe appliance is preset to the recommended temperature of 5°C (refrigerator) and
- 18°C (freezer). Under normal ambient condition you need not to set a temperature.
ŕThe presetting function for the My Zone drawer is 0°C Fresh.
ŕWhen the appliance is switched on after disconnection from the main power supply, it
may take up to 12 hours for the correct temperatures to be reached.
(PSW\WKHDSSOLDQFHEHIRUHVZLWFKLQJRNj7RVZLWFKRNjWKHDSSOLDQFHSXOOWKHSRZHUFRUG
RXWRNjWKHSRZHUVRFNHW

(HEFR3719*/HFR5719*)
(HEFR3719*/HFR5719*)
1
(HB16*/3719) or 3
minutes (HFR5719*), the door opening alarm will sound. The alarm can be silenced by closing the
door. If the door is left open for more than 7 minutes, the light inside the refrigerator and control
SDQHOLOOXPLQDWLRQZLOODXWRPDWLFDOO\VZLWFKRƩ

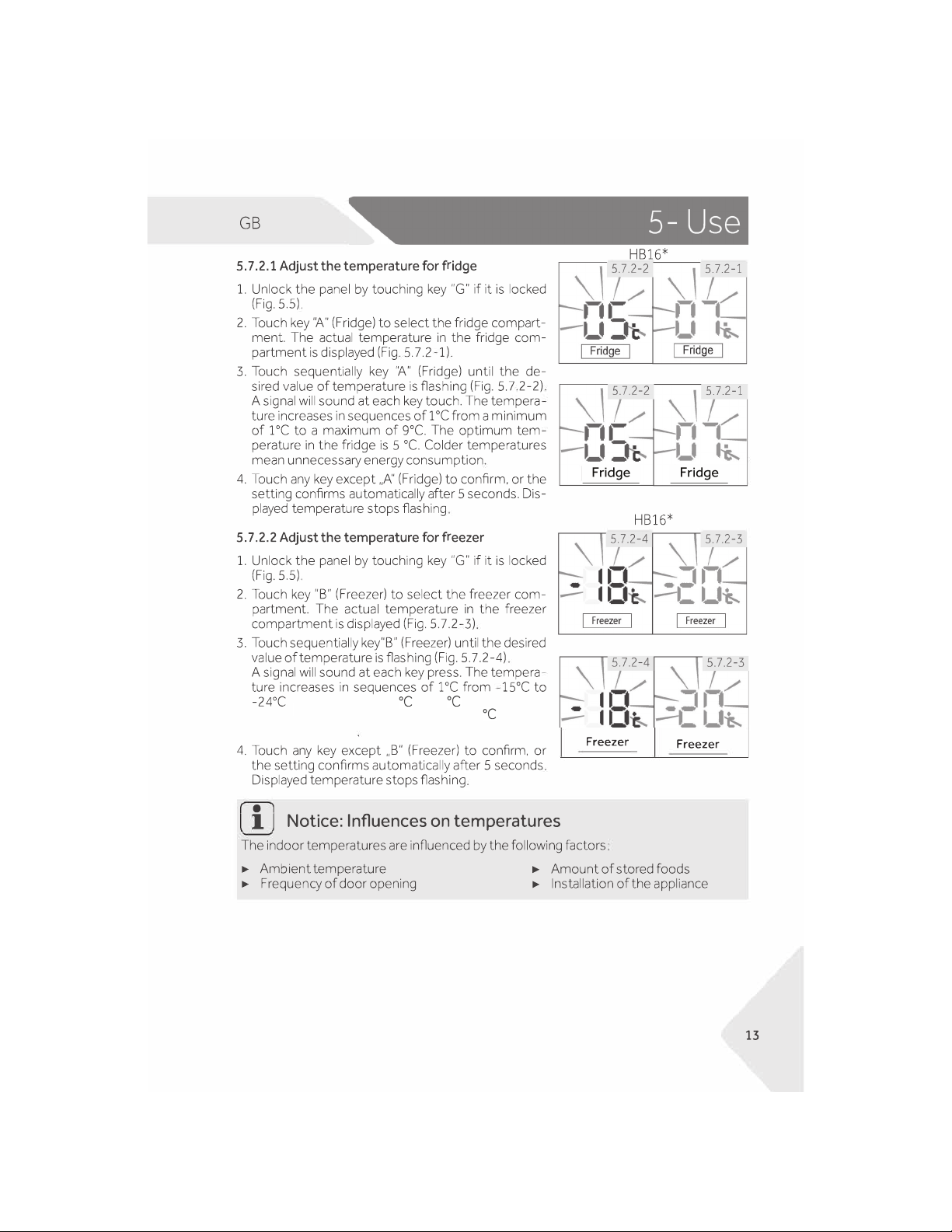

(HB16*/3719) or -14 to -24 (HFR5719*). T-
e optimum temperature in thefreezer is -18 . Colder
temperatures mean unnecessary energy consumption.
-
-
(HEFR3719*/HFR5719*)
(HEFR3719*/HFR5719*)

(HEFR3719*/HFR5719*)
(HEFR3719*/HFR5719*)
4

about

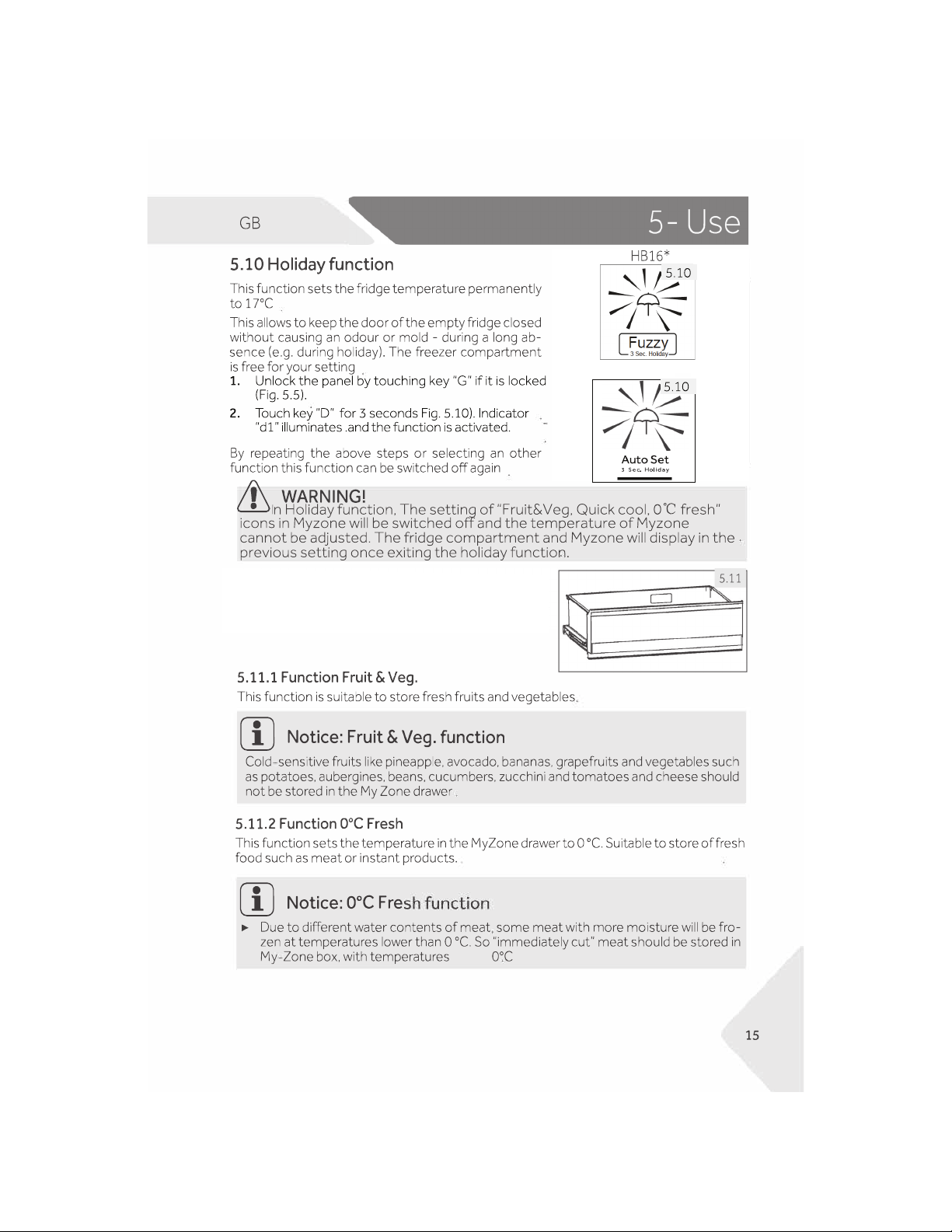

The fridge compartment is equipped with a Myzone
drawer(Fig.5.11).Following functions are available;
5.11 My Zone drawer
(HEFR3719*/HFR5719*)

5- Use GB
16

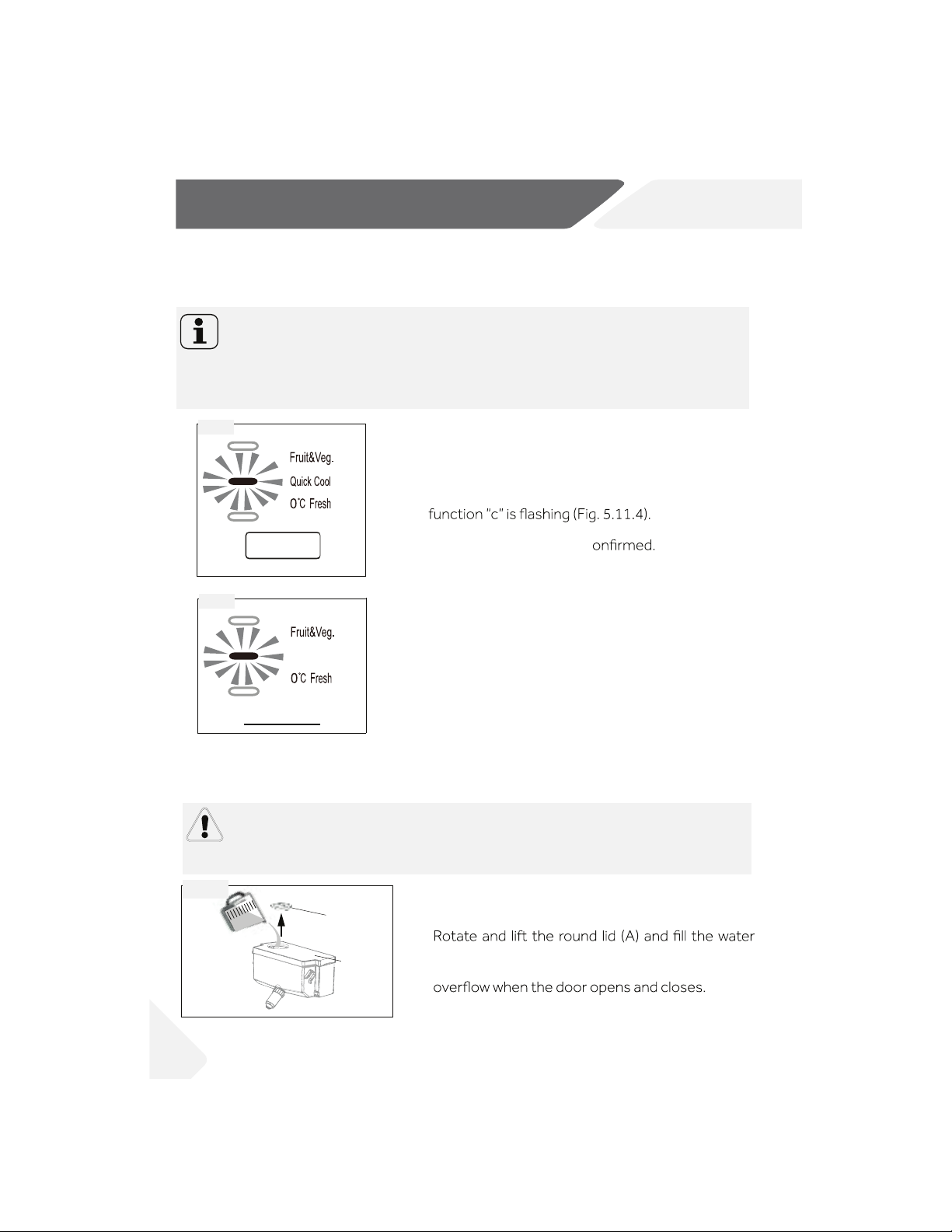

5.11.4 Select function for MyZone box
1. Unlock the panel by touching key “G” if it is locked
(Fig. 5.5)
2. Touch sequentially “C” (MyZone) until the desired
3. After a few seconds indicator “c” will shine perma-
nently and the setting is c
5.11.3 Q-Cool (Quick-Cool/Super-Cool)
This function allows to quick cool canned beverages in a short time. The temperature in
MyZone compartment is set to +2 ° C.
My Zone
5.11.4
Notice: MyZone drawer
฀One of the three functions of the My Zone compartment must always be activated
฀To reduce the refrigerator compartment temperature use the Q-Cool
5.12.1 Water dispenser
With the water dispenser(Fig.5.12.1) cool drinking water can be tapped.
The water tank should be cleaned before frst use (see CARE AND CLEANING).
1. Ensure that the water tank is properly inserted
(see EQUIPMENT)
2. tank up with fresh drinking water.
3. Fill water only up to the mark (1,8 l); as it could
4. Close the round lid until it clicks into place.
WARNING!
Use drinking water only.
A
C
5.12.1
My Zone
5.11.4
HB16*
Super-Cool
(HEFR3719*/HFR5719*)
/ Super Cool
function. To increase it, use the Fruit & Veg. function.

GB 5- Use
17
WATER DISAPPER
:KHQ\RXGRQŚWQHHGZDWHUIRUDORQJWLPHSOHDVHHPSW\WKHZDWHUWDQNDQGLQVHUW
WKHFOHDQHGWDQN.
7KHFRYHU&RQWKHZDWHUWDQNLVDGGLWLRQDOO\XVHGWRVDYHHQHUJ\,I\RXGRQRWZDQW
WRJHWZDWHUIURPWKHZDWHUGLVSHQVHUIRUDORQJSHULRGSOHDVHVWLOOLQVWDOOWKHFRYHU
EHFDXVHRIEHWWHULQVXODWLQJDQGVDYLQJHQHUJ\

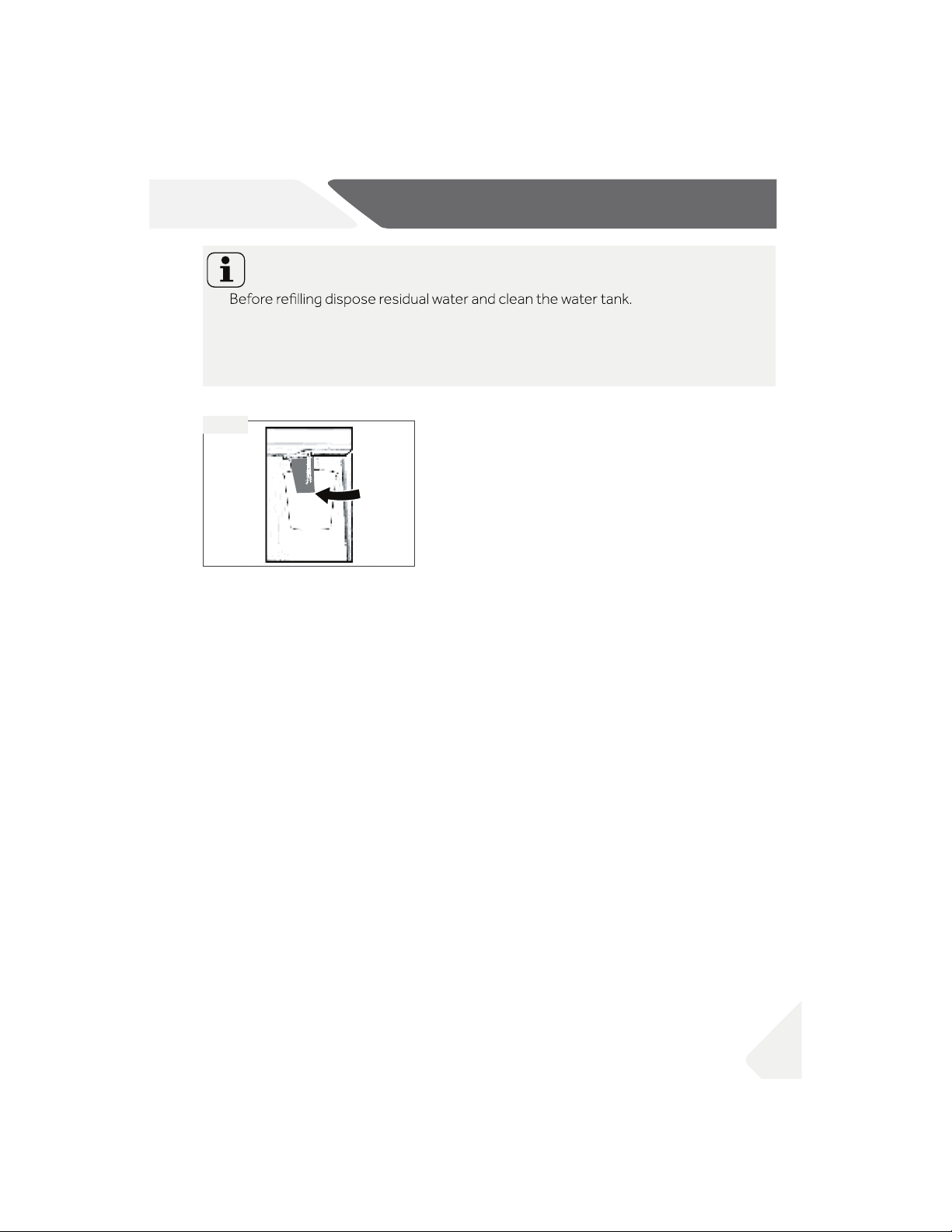

5.12.2Getting water from the dispenser
 3ODFHDJODVVXQGHUQHDWKWKHZDWHURXWOHW
 3XVK LW JHQWO\ DJDLQVW WKH ZDWHU GLVSHQVHU OHYHU
ZLWK\RXUJODVV
0DNHVXUHWKHJODVVLVLQOLQHZLWKWKHGLVSHQVHUWR
SUHYHQWWKHZDWHUIURPVSODVKLQJRXW
8"5&3%*41&/4&3


5- Use GB
18
1Butter, cheese, eggs, spices, etc.
2Eggs, canned food, spices, etc
3Drinks and bottled foods.
4Pickled foods, canned food, etc.
 Meat products, snack foods, etc.
6/7 Pasta, milk, tofu, dairy, etc.
8Moist Zone drawer:
Fruit, vegetables, salad (Fruit & Veg.)
canned beverages (Q-Cool / Super Cool)
Rraw fresh food (0°C Fresh)
5.13 Tips on storing fresh food
5.13.1 Storing into the refrigerator compartment
Keep your fridge temperature below 5°C.
Hot food must be cooled to room temperature before storing in the appliance.
Foods stored in the refrigerator should be washed and dried before storing
Food to be stored should be properly sealed to avoid odour or taste alterations.
Do not store excessive quantities of food. Leave spaces between foods to allow cold
Foods eaten daily should be stored at the front of the shelf.

don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di
rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can
erode the inner liner. Clean away oily/acid dirt whenever it is found.
Frozen food can be gently thawed in the refrigerator compartment. This saves en
ergy.
The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba
nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis
able to store them in the refrigerator. However, the ripening of strongly green fruits
can be promoted for a certain period. Onions, garlic, ginger and other root vegeta
bles should also be stored at room temperature.
Unpleasant odours inside the fridge are a sign that something has spilled and clean
ing is required. See CARE AND CLEANING.

5.13.1).
1
2
3
8
4
5
6
7
1
3
5.13.1

GB 5- Use
5.13.3 When storing commercially frozen foods, please follow these guidelines:
ŕAlways follow manufacturers’ guidelines for the length of time you should store food
for. Do not exceed these guidelines!
ŕTry to keep the length of time between purchase and storage as short as possible to
preserve food quality.
ŕBuy frozen foods, which have been stored at a temperature of –18 °C or below.
ŕAvoid buying food which has ice or frost on the packaging – This indicates that the
products might have been partially defrosted and refrozen at some point – temper-
DWXUHULVHVDNjHFWWKHTXDOLW\RIIRRG
6WRUDJHLQWRWKHIUHH]HUFRPSDUWPHQW
ŕKeep the freezer temperature at- 18°C.
ŕ24 hours before freezing switch on the Super-Freeze function; -for small quantities
RIIRRGKRXUVDUHVXǎFLHQW
ŕHot food must be cooled to room temperature before storing in the freezer com-
partment.
ŕFood cut into small portions will freeze faster and be easier to defrost and cook. The
recommended weight for each portion is less than 2.5 kg
ŕIt is better to pack food before putting it into the freezer. The outside of the pack-
aging must be dry to avoid bags sticking together. Packaging materials should be
odour-free, airtight, non-poisonous and nontoxic.
ŕIn order to avoid expiration of storage periods, please note the freezing date, time
limit and name of the food on the packaging according to the storage periods of dif-
ferent foods.
ŕ:$51,1*Acid, alkali and salt etc. could erode the internal surface of the freezer.
'RQRWSODFHWKHIRRGKDYLQJWKHVHVXEVWDQFHVHJVHDnjVKGLUHFWO\RQWKHLQWHUQDO
surface. Salt water in the freezer should be cleaned up immediately.
ŕDo not exceed the food storage times recommended by the manufacturers. Only
take the required amount of food out of the freezer.
ŕConsume defrosted food quickly. Defrosted food cannot be re-frozen unless it is
njUVWFRRNHGRWKHUZLVHLWPD\EOHVVHGLEOH
ŕDo not load excessive quantities of fresh food in the freezer compartment. Refer
to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type
plate.
ŕFood can be stored in the freezer at a temperature of at least -18°C for 2 to 12
months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12
months)
ŕWhen freezing fresh food, avoid bringing it in contact with already frozen food. Risk
of thawing!
19

6-Energy saving tips GB
20
Energy saving tips
▶Make sure the appliance is properly ventilated (see IN STALLATION).
▶secruostaehforaenehtnirothgilnustceridniecnailppaehtllatsnitonoD
(e.g. stoves, heaters).
▶noitpmusnocygreneehT.ecnailppaehtnierutarepmetwolylirassecennudiovA
increases the lower the temperature in the appliance is set.
▶Functions like SUPER-FREEZE consume more energy.
▶All ow warm food to cool d own be fore placing it in the appliance.
▶
▶
▶Avoid air within the food packaging.
▶Keep door seals clean so that the door always closes correctly.
▶Defreeze frozen food in the fridge storage compartment.
The most energy-saving cRQƪJXration requires drawer, food box and shelves to be
positioned in the appliance on factory-fresh condition, and food to be placed without
blocking the air outlet of the duct
▶
Replacing the LED-lamps
Replaceable (LED only) light source by a professional
This product contains a light source of energyeƬciency class G.
Compartment (QHUJ\HƬFLHQF\FODVV
Refrigerator G
Model
HB16WMAA
HB16WBAA
HB16WSNAA
HEFR3719FWMP
HFR5719EWMP
HFR5719EWMG
HFR5719EWPB
