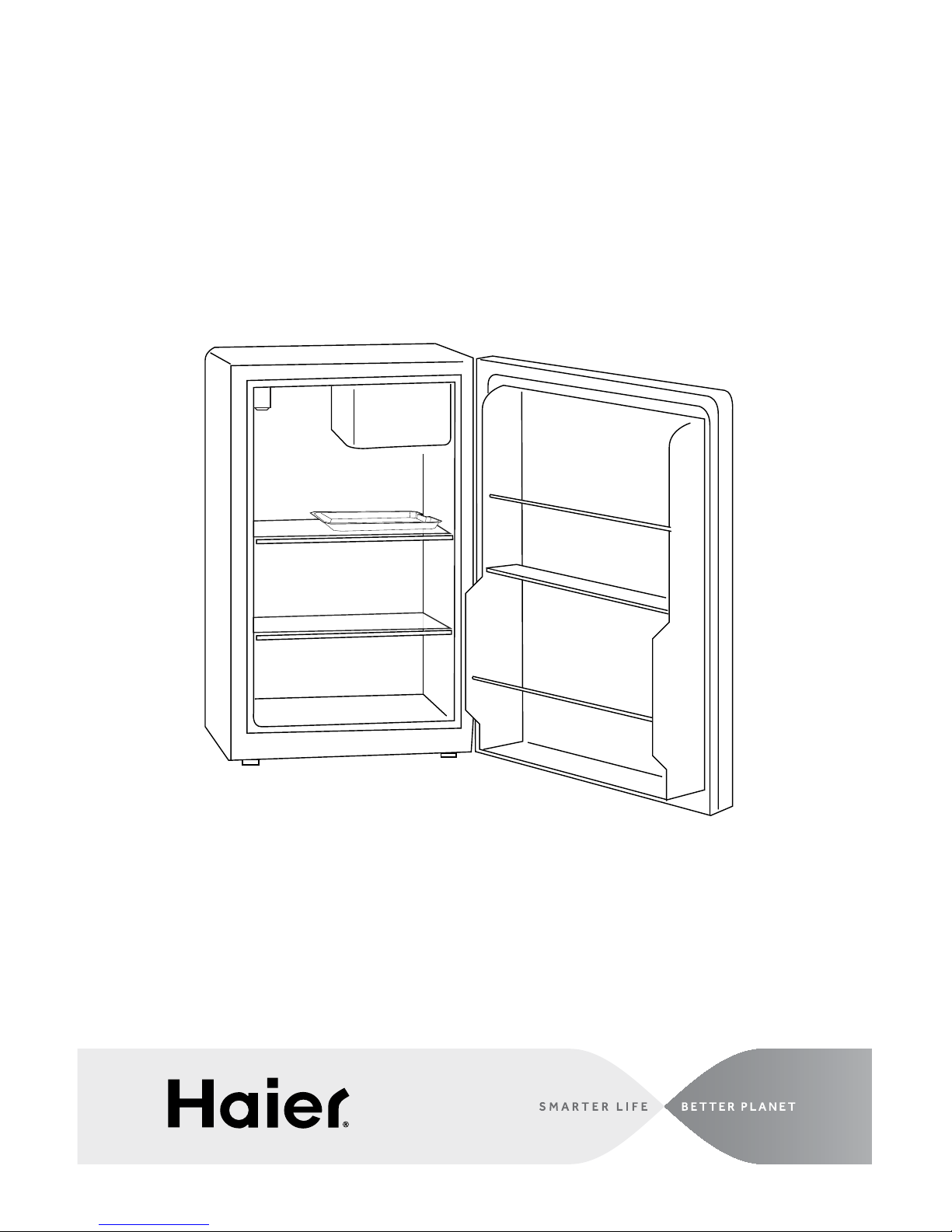

Haier HCR27L User manual

Compact Refrigerator
Refrigerador
Compacto
User Manual
Manual del Usuario Modelo
HCR27L

Read all of the instructions before using this appliance. When using
this appliance, always exercise basic safety precautions, including the
following:
NOTE: If the refrigerator has been placed in a horizontal or tilted
position for any period of time wait 24 hours before plugging the
unit in.
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have
become frayed or otherwise damaged. Do not use a cord that shows
cracks or abrasion damage along its length, the plug or the connector
end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting
your refrigerator.
7) If your old refrigerator is not being used, we recommend that you
remove the doors and leave the shelves in place. This will reduce the
possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces
in the freezer compartment, particularly when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
9) Do not refreeze foods that have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: “…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold-below 40˚F.
“…Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat.
1
English
SAFETY PRECAUTIONS

Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your refrigerator.
Remember to record the model and
serial number. They are on a label
in the rear of the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
“…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can.”
10) This refrigerator should not be recessed or built-in in an enclosed
cabinet. It is designed for freestanding installation only.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
2
English
PRODUCT REGISTRATION

3
English
TABLE OF CONTENTS
PAGE
SAFETY PRECAUTIONS ................................................................1
PARTS AND FEATURES ................................................................4
INSTALLING YOUR REFRIGERATOR............................................5
Unpacking Your Refrigerator .............................................................5
Leveling Your Refrigerator .................................................................5
Proper Air Circulation.......................................................................5
Door Alignment ...............................................................................5
Electrical Requirements .....................................................................6
Use of Extension Cord ......................................................................6
Installation Limitations.......................................................................6
REFRIGERATOR FEATURES AND USE ..........................................7
General Features .............................................................................7
Refrigerator Interior Shelves...............................................................7
Food Storage Information .................................................................8
Normal Operating Sounds................................................................8
PROPER REFRIGERATOR CARE AND CLEANING ........................9
Cleaning and Maintenance...............................................................9
Defrost............................................................................................9
Power Interruptions.........................................................................10
Vacation and Moving Care.............................................................10
Energy Saving Tips.........................................................................10
TROUBLESHOOTING..................................................................11
WARRANTY INFORMATION .....................................................12

4
1. Freezer Compartment
2. Ice Cube Tray
3. Drip Tray
4. Adjustable Temperature Control
5. Full-Width Shelves (2)
6. Leveling Legs(2)
7. Full-Width Door Shelves (2)
English
3
6
5
7
14
2
PARTS AND FEATURES

Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the refrigerator accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before
powering on the refrigerator.
Leveling Your Refrigerator
• Your refrigerator has two leveling legs which are located in the front bottom
corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them counterclockwise to raise
your refrigerator or by turning them clockwise to lower your refrigerator. The
refrigerator door will close easier when the leveling legs are extended.
Proper Air Circulation
• To ensure your refrigerator works at the maximum efficiency it was designed
for, you should install it in a location where there is proper air circulation,
plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………4"
Top..................4"
Back.................4"
Door Alignment
1. Remove the top hinge cover by using a flathead
screwdriver. Place the head under the front edge
of the cap and gently lift.
2. Loosen the top hinge screws using a Phillips
head screw driver.
3. Adjust the door or put a spacer in between and
tighten the screws.
4. Replace the top hinge cover by aligning the rear
of the cover with the rear of the hinge. Press
firmly on the front of the cover until it snaps in
place.
5
English
INSTALLING YOUR REFRIGERATOR
fig. 1

6
English
Electrical Requirement
• Make sure there is a suitable power outlet (115 volts, 15 amps outlet) with
proper grounding to power the refrigerator.
• Avoid the use of three prong adapters or cutting off the third grounding prong
in order to accommodate a two prong outlet. This is a dangerous practice since
it provides no effective grounding for the refrigerator and may result in shock
hazard.
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance.
Installation Limitations
• Do not install your refrigerator in any location not properly insulated or heated,
e.g. garage, etc. Your refrigerator was not designed to operate in temperature
settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface away
from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking
appliances, etc. Any floor unevenness should be corrected with the leveling legs
located on the front bottom corners of the refrigerator.
NOTE: As the door gets pressed in during shipping, after reversing the door, the
gasket may have to be reset. This is done to prevent the cool refrigerated
air from escaping. If there is a gap between the door gasket and the
cabinet, set the gasket by gently pulling it out to seal the gap.

7
English
General Features
Adjustable temperature dial:
Your refrigerator will automatically maintain the temperature level you select.
The temperature control dial has 5 settings plus "0". 1 is the warmest. 5 is the
coldest. At first, set the dial to 3 and allow 24 hours to pass before adjusting the
temperature to your needs.
(Note: If the refrigerator has been placed in a horizontal or
tilted position for any period of time wait 24 hours before
plugging the unit in.)
Freezer Compartment / Use of the Ice Cube Trays
This compartment is designed for making ice cubes and for short-term food
storage (a few days at most).
WARNING: This compartment is not cold enough to freeze foods safely for more
than 5 days.
• If ice cube tray freezes to the bottom of the compartment, pour a little warm
water around it to loosen it. Do not use boiling water, which can damage
plastic parts, or sharp metal objects such as a knife or screwdriver, which can
damage the cooling system tubing. Wash the ice cube tray in lukewarm water
only. Do not wash in the dishwasher.
Refrigerator Interior Shelves
To remove or replace a full-width slide-out shelf:
(see fig. # 2)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back.
REFRIGERATOR FEATURES AND USE
fig. # 2

8
English
Food Storage Information
Fresh Food
• When storing fresh food that is not prepackaged, be sure to wrap or store food
in airtight and moisture proof material unless otherwise noted. This will ensure
proper shelf life and prevent the transfer of odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to maximize
shelf life.
• Fruit should be washed and dried, then stored in sealed plastic bags before
storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers.
• Leafy vegetables should be washed and drained and then stored in plastic bags
or containers.
• Hot food should be allowed to cool before storing in the refrigeration. This will
prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for safe
storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
• All others 1-2 Days
Normal Operating Sounds You May Hear
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

9
English
Cleaning and Maintenance
Warning: To avoid electric shock, always unplug your
refrigerator before cleaning. Ignoring this warning may result
in death or injury.
Caution: Before using cleaning products, always read and follow
manufacturer’s instructions and warnings to avoid personal
injury or product damage.
General: Prepare a cleaning solution of 3-4 tablespoons of baking soda
mixed with warm water. Use sponge or soft cloth, dampened
with the cleaning solution, to wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia, chlorine
bleach, concentrated detergents, solvents or metal scouring
pads. Some of these chemicals may dissolve, damage and/or
discolor your refrigerator.
Door Gaskets: Clean door gaskets every three months according to general
instructions. Gaskets must be kept clean and pliable to
assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets
will keep the gasket pliable and ensure a good seal.
Defrost
Defrost whenever frost on the wall of the freezer compartment becomes 1/8"
thick. Never us a sharp or metallic instrument to remove frost as it may damage
the cooling coils. (A punctured cooling coil will cause serious damage to the
product and will void the warranty). We recommend using a plastic scraper. To
defrost, remove foods and ice cube tray from the freezer compartment. Make
sure the drip tray is in place and unplug the unit. Defrosting usually takes a few
hours. To defrost faster, keep the door open and place a bowl of warm water in
the refrigerator. After defrosting, empty water from the drip tray and wash the
drip tray in warm water.
PROPER REFRIGERATOR CARE AND CLEANING

10
English
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from wall outlet when a power
outage occurs. When power has been restored, replug power cord to
wall outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator. Clean refrigerator
before reusing.
Vacation and Moving Care
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature dial to the "0" position and clean
the refrigerator and door gaskets according to "General Cleaning"
section. Prop doors open, so air can circulate inside.When moving,
always move the refrigerator vertically. Do not move with the unit lying
down. Possible damage to the sealed system could occur.
Energy Saving Tips
• The refrigerater should be located in the coolest area of the room,
away from heat-producing appliances or heating ducts, and out of
direct sunlight.
• Let hot foods cool to room temperature before placing in the
refrigerator. Overloading the refrigerator forces the compressor to run
longer and thus increases energy consumption. Foods that refrigerate
too slowly may lose quality or spoil.
• Be sure to wrap foods properly, and wipe containers dry before
placing in the refrigerator.
• The shelves should not be lined with aluminum foil, wax paper, or
paper towels. Liners interfere with cold air circulation, making the
refrigerator less efficient.
• Organize food to reduce door openings and extended searches.
Remove as many items as needed at one time, and close the door as
soon as possible.

11
English
Refrigerator does not operate:
• Check if thermostat control is not in the “OFF” position.
• Check if refrigerator is plugged in.
• Check if there is power at the wall outlet, by checking the circuit breaker.
Food temperature appears too warm:
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold:
• If temperature control setting is too cold, adjust to a warmer setting and allow
several hours for temperature to adjust.
Refrigerator runs too frequently:
• This may be normal to maintain constant temperature during high temperature
and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator door does not shut properly:
• Level the refrigerator.
• Re-align refrigerator door.
• Check for blockages, e.g. food containers, crisper cover,shelves, bins, etc.
Popping or cracking sound when the compressor comes on:
• Check to ensure the refrigerator is level.
• The floor may be uneven or weak. The refrigerator rocks on the floor when it is
moved slightly. Be sure the floor can adequately support the refrigerator. Level
the refrigerator by putting wood or metal shims under part of the refrigerator.
• The refrigerator is touching the wall. re-level the refrigerator and move it from
the wall. See the “Installing Your Refrigerator” section.
TROUBLESHOOTING

12
English
What is covered and for how long?
This warranty covers all defects in
workmanship or materials for a period of:
12 months labor (carry in only)
12 months parts (carry in only)
5 years sealed system
(carry in only)
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to the
authorized service center before warranty
repairs are rendered.
EXCEPTIONS: Commercial or Rental
Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts,
which serve as a functional, purpose of
this appliance for a period of 12 months.
This includes all parts except finish, and
trim.
2. The components of the sealed system
e.g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from the
date of purchase. Any damages to such
components caused by mechanical abuse
or improper handling or shipping will not
be covered.
What will be done?
1. We will repair or replace, at our
discretion any mechanical or electrical
part which proves to be defective in
normal usage during the warranty period
so specified.
2. There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 12-month
period. Beyond this period only parts are
covered in the remaining warranty. Labor
is not provided and must be paid by
the customer.
3. Contact your nearest authorized
service center. For the name of the
nearest service center please call
1-877-337-3639.
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA.
IT DOES NOT COVER
THE FOLLOWING:
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
light bulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN
IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all other
remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how long
an implied warranty lasts, so the above
limitations may not apply to you.
This warranty gives you specific legal rights,
and you may have other rights, which vary,
from state to state.
Haier America
New York, NY 10018
LIMITED WARRANTY

1
Español
Lea todas las instrucciones antes de utilizar este aparato. Cuando utilice
este aparato, siempre ejerza las precauciones de seguridad básicas,
incluyendo las siguientes:
NOTA: Si el refrigerador se ha ubicado en una posición horizontal o
inclinada durante cualquier lapso de tiempo, espere 24 horas
antes de enchufar la unidad.
1) Utilice este aparato exclusivamente para su uso especificado, según se
describe en esta guía de uso y cuidados.
2) Este refrigerador debe ser instalado adecuadamente siguiendo las
instrucciones de instalación antes de utilizarse. Observe las
instrucciones para conectarlo a tierra en la sección de instalación.
3) Nunca desconecte su refrigerador tirando del cordón eléctrico. Sujete
siempre la clavija firmemente y retírela del contacto evitando torcerla.
4) Repare o reemplace inmediatamente cualquier cordón eléctrico que
muestre raspaduras o daños. No utilice ningún cordón que muestre
señales de abrasión o grietas en su extensión, clavija o terminal
de conexión.
5) Desconecte su congelador antes de limpiarlo o antes de hacer cualquier
reparación. Nota: Si por alguna razón este producto necesita ser
reparado, recomendamos fuertemente que la reparación se lleve a
cabo por un técnico calificado.
6) No emplee ningún aparato eléctrico o instrumento punzocortante para
descongelar su refrigerador.
7) Si su antiguo refrigerador no está siendo utilizado, recomendamos
quitarle las puertas. Esto reducirá los riesgos de accidentes infantiles.
8) Una vez que su refrigerador se encuentre operando, no toque las
superficies frías en el compartimento del congelador, especialmente
si sus manos se encuentran húmedas o mojadas. Su piel puede
adherirse a estas superficies extremadamente frías.
9) No congele alimentos que hayan sido previamente descongelados en
su totalidad. El Departamento de Agricultura de los Estados Unidos, en
su Boletín de Casa y Jardín No. 69 indica que: “…Usted puede volver
a congelar, sin correr ningún riesgo, aquellos alimentos congelados
que hayan sido descongelados y que aún contengan cristales de
hielo o que aún se encuentren fríos con una temperatura por
debajo de los 4.5°C (40°F).
INSTRUCCIONES PRECAUTORIAS

2
Español
Gracias por utilizar nuestro
producto Haier. Este sencillo
manual le orientará con respecto
al mejor uso que puede darle a su
refrigerador.
Recuerde tomar nota del modelo
y número de serie. Ambos se
encuentran impresos en una
etiqueta en la parte adentro del
refrigerador.
Número de Modelo
Número de Serie
Fecha de Compra
Agrafer le ticket de caisse au guide. Il devra être présenté pour tout
service après-vente sous garantie.
“…Carnes molidas, aves, o pescados descongelados que despidan olor
extraño o muestren decoloración no deben volver a congelarse y no
deben consumirse. El helado descongelado debe desecharse. Si el olor
o color de cierto alimento es deficiente o cuestionable, deséchelo. Tal
alimento podría resultar peligroso si lo ingiriese.
“…Incluso el descongelar parcialmente y volver a congelar los alimentos
disminuye su calidad de consumo, especialmente si se trata de frutas,
verduras y alimentos preparados. La calidad de consumo de las carnes
rojas es menormente afectada en comparación a la de muchos otros
alimentos. Utilice los alimentos que hayan vuelto a congelarse lo más
pronto posible para evitar que sufran mayor deterioro en su
calidad de consumo.”
10) Este refrigerador no debe de ser empotrado o colocado dentro
de un gabinete de cocina. Ha sido diseñado exclusivamente
para ser instalado por separado.
11) No opere su congelador en la presencia de gases explosivos.
GUARDE ESTAS INSTRUCCIONES
PELIGRO
Existe el riesgo de que los niños puedan quedar atrapados
dentro. Antes de tirar su refrigerador o congelador, quite las
puertas. Deje los anaqueles en su lugar para que los niños no
puedan entrar fácilmente en el interior.
REGISTRO DEL PRODUCTO

3
Español
INDICE
PAGINA
INSTRUCCIONES PRECAUTORIAS ....................................................1
PIEZAS Y CARACTERÍSTICAS ............................................................4
INSTALACIÓN DE SUR REFRIGERADOR...........................................5
Desempaque del Refrigerador ................................................................5
Nivelación del Refrigerador ...................................................................5
Circulación Apropiada del Aire..............................................................5
Alineación de la Puerta .........................................................................5
Requisitos Eléctricos ..............................................................................6
Uso de Alargues...................................................................................6
Limitaciones de Instalación.....................................................................6
USO Y FUNCIÓNES ..........................................................................7
Funciónes Generales .............................................................................7
Entrepaños Interiores del Refrigerador .....................................................7
Información sobre el Almacenamiento de Alimentos..................................8
Ruido Normal de Operación..................................................................8
LIMPIEZA Y CUIDADO APROPIADOS DEL CONGELADOR..............9
Limpieza y Mantenimiento .....................................................................9
Descongelamiento.................................................................................9
Interrupciones de la Corriente Eléctrica................................................. 10
Vacaciones y Mudanza...................................................................... 10
Consejos para ahorrar energía ........................................................... 10
VERIFICACIÓN DE PROBLEMAS .................................................... 11
INFORMACIÓN DE GARANTÍA ..................................................... 12

4
Español
3
6
5
7
14
2
PIEZAS Y CARACTERISTICAS
1. Congelador
2. Bandejas para cubos de hielo
3. Bandeja
4. Control de temperatura
5. Estante de del refrigerador de todo
su ancho (2)
6. Patas de nivelación (2)
7. Estante de la puerta del refrigerador
de todo su ancho (2)

5
Español
Desempaque del Refrigerador
1. Retire todo el material de embalaje. Esto incluye la base de espuma y toda
la cinta adhesiva que sostiene los accesorios del refrigerador en el interior y
exterior.
2. Inspeccione y retire cualesquier restos del embalaje, la cinta adhesiva o los
materiales impresos antes de encender
el refrigerador.
Nivelación del Refrigerador
• Su refrigerador tiene dos patas niveladoras que están ubicadas en las esquinas
frontales de su refrigerador. Después de haber colocado su refrigerador en la
posición definitiva, puede nivelar su refrigerador.
• Puede ajustar las patas niveladoras girándolas a la derecha para
elevar el refrigerador y girándolas a la izquierda para bajarlo. La puerta
del refrigerador cerrará con más facilidad cuando las patas niveladoras son
elevadas.
Circulación Apropiadado del Aire
• Para asegurar que su refrigerador funcione con la eficiencia máxima para
la que fue diseñado, éste debe ser instalado en un lugar donde haya una
circulación de aire adecuada, conexiones eléctricas y
de tubería.
• Estas son las distancias recomendadas que deben dejarse
alrededor del refrigerador:
Lados..........................102 mm
Parte Superior..............102 mm
Parte Posterior..............102 mm
Alineación de la Puerta
1. Quite el tornillo de la cubierta de la bisagra.
2. Afloje los tornillos de la bisagra superior
usando un destornillador de punta de cruz.
3. Ajuste la puerta o coloque un espaciador
entremedio y luego vuelva a apretar los
tornillos.
4. Vuelva a colocar la cubierta de la bisagra
superior.
INSTALACTÍON DE SU REFRIGERADOR
fig. 1

6
Español
Requisitos Eléctricos
• Asegúrese de que haya un tomacorriente apropiado (115 V, 15 Amp.) con
una conexión a tierra apropiada para hacer funcionar
el refrigerador.
• Evite el uso de adaptadores de tres patas o el cortar la tercer pata de conexión
a tierra para poder conectar en un tomacorriente bifásico. Esto sería una
práctica muy peligrosa ya que no proveería al refrigerador con una conexión a
tierra adecuada y podría resultar un riesgo de descarga eléctrica.
Uso de Alargues
• Evite el uso de alargues para mayor seguridad. Si fuese necesario
utilice solamente un alargue de tres cables que posea un enchuefe de tres
patas.
Limitaciones de Instalación
• No instale su refrigerador en ningún lugar que no tenga el aislamiento o la
calefacción apropiada, por ejemplo una cochera, etc. Su refrigerador no fue
diseñado para funcionar en temperaturas abajo de los 12° Centígrados (55°F).
• Seleccione un lugar adecuado para el refrigerador sobre una superficie sólida
y nivelada alejado de los rayos directos del sol o de una fuente de calor
como la de los radiadores, rejillas de calefacción, estufas, etc. Cualquier
desnivelación del piso debe ser corregido con las patas niveladoras ubicadas
en las esquinas inferiores frontales del refrigerador.
NOTA: Cuando la junta de culata de puerta obtiene apretado en durante el
envío, después que invertir la puerta que la junta de culata tendrá que
ser repone. Esto se hace para prevenir el refresca aire refrigerado de
escapar. Si hay un espacio entre la junta de culata de puerta y el gabi-
nete, puso la junta de culata suavemente estirarlo fuera sellar el espacio.

7
Español
Funciones Generales
Dial de Temperatura Ajustable:
Su refrigerador mantendrá automáticamente el nivel de temperatura que
seleccione. El dial de control de temperatura tiene 7 ajustes además del ajuste
"OFF" (apagado). El 1 es el más tibio. El 7 es el más frío. El girar el dial hasta
"OFF" (apagado), detiene el enfriamiento en ambas secciones del refrigerador y
congelador. Primero, ajuste el dial a 4 y permita que pasen 24 horas antes de
ajustar la temperatura a sus necesidades.
(Nota: Si el refrigerador ha sido colocado en una posición
horizontal o inclinada durante algún periodo de tiempo, espere 24
horas antes de enchufar la unidad.)
Compartimiento de congelador / Uso de las bandejas para cubos de
hielo
Este compartimiento está diseñando para hacer cubos de hielo y para el
almacenamiento de alimentos a corto plazo (unos pocos días como mucho).
ADVERTENCIA: Este compartimiento no está lo suficientemente frío como para
congelar alimentos por más de 5 días.
• Si la bandeja de cubos de hielo se pega al piso del compartimiento, vierta
un poco de agua tibia alrededor para aflojarla. No utilice agua hirviendo,
que puede dañar piezas plásticas; u objetos de metal filosos como un cuchillo
o destornillador, que pueden dañar la tubería del sistema de enfriamiento.
Lave la bandeja de cubos de hielo en agua tibia solamente. No la lave en el
lavavajillas.
Entrepaños Interiores del Refrigerador
Quitar o substituir un de ancho total resbala-hacia fuera el estante:
(Vea fig. # 2)
1. Levante ligeramente el entrepaño y deslícelo hacia el frente hasta sacarlo
completamente.
2. Para volver a colocar el entrepaño, seleccione la ubicación deseada y deslice
cuidadosamente el entrepaño hasta que quede enganchado.
USO Y FUNCIÓNES DEL REFRIGERADOR
fig. # 2
