Haier HSL06WNAWW User manual

@ @ @ @
What The W_rld Comes It_me To"
(Featuresmay varyby made() Mo_l#_
(Lesc*r**teristiquespeuve.t
varierenfonct_ondumodete)
Ma_a_ deJ Us_ad#o P,_,Modulo,de
gas fundonespueden
uariarsegunelmodelo)

English English

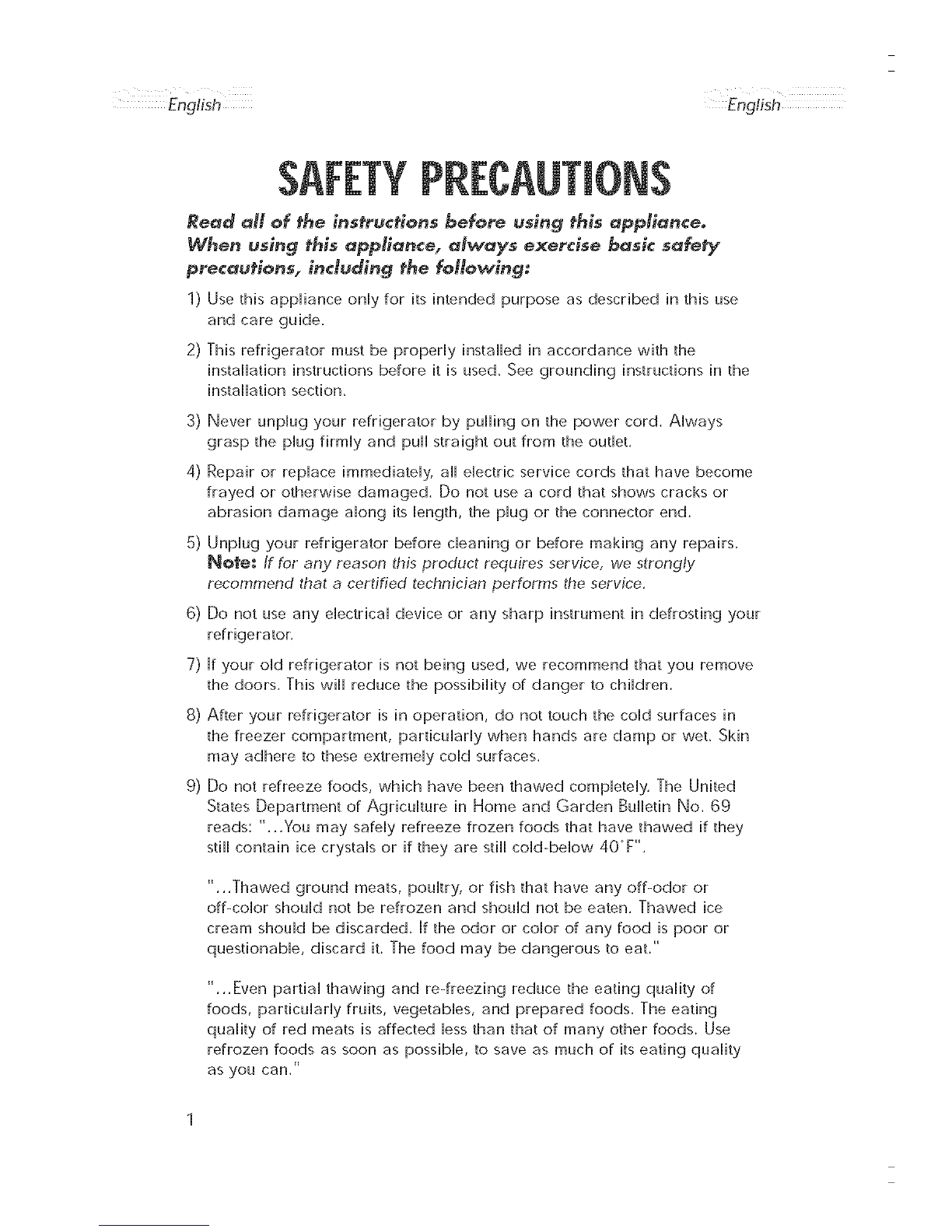

Read alt oF the instroctions before osing this applionce.
When osing this appliance, alwoy5 exercise basic safety
precaotions, in¢toOing the fottowing_
I) Use thisapplianceonlyfor itsintendedpurpose as describedinthisuse
and care guide,
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: ff for any reason _his product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
7) if your old refrigerator is not being used, we recommend that you remove
the doors. This will reduce the possibility of danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "...You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40'F".
"...Thawed ground meats, poultry, or fish that have any off-odor or
off-color should not be refrozen and should not be eaten. Thawed ice
cream should be discarded, if the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"...Even partial thawing and re4reezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as yOU can."

English English
10) This refrigerator should not be recessed or built-in an enclosed cabinet, it
is designed for freestanding installation only,
1 1) Do not operate your refrigerator in the presence of explosive fumes.
[:orFutureReferencePtease
Thank you for using our Haler
product, This easy-to-use manual wiii
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number, They are on a label in
back of the refrigerator.
Modal number
Serial number
Date ot purchase
Staple your receipt to your manual. You wiJJ need it to obtain
warranty serviceo

English

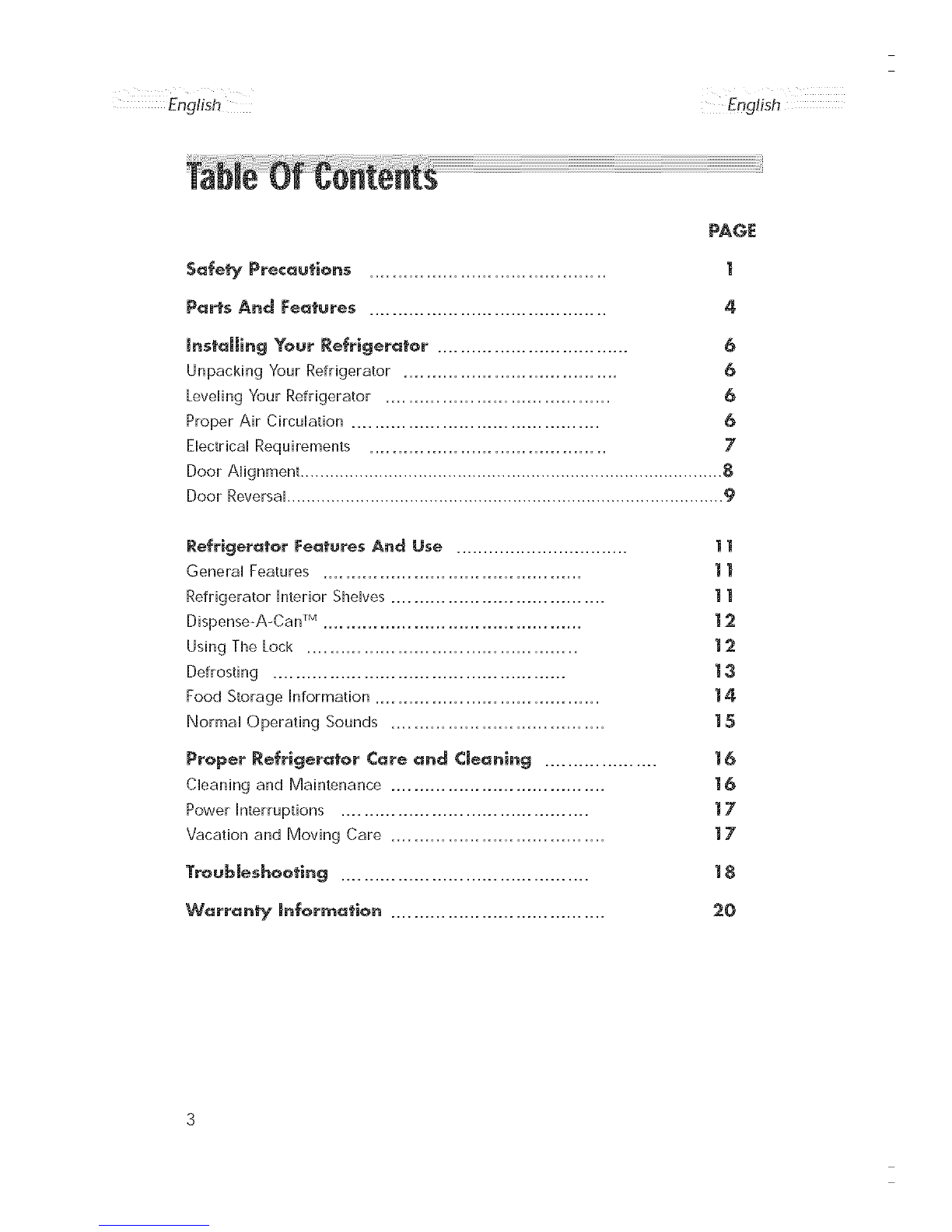

PAGE
Safe,/Precautions
Parts And Features
1
4
6
6
6
6
7
Door Alignment ...................................................................................... 8
Door Reversal......................................................................................... @
Re(rigerator Features And Use ................................ l l
General Features .............................................. ) )
Refrigerator interior Shelves ...................................... ')'(
Dispense_A-Can TM .............................................. )2
Using The Lock ................................................ )2
Defrosting .................................................... ),3

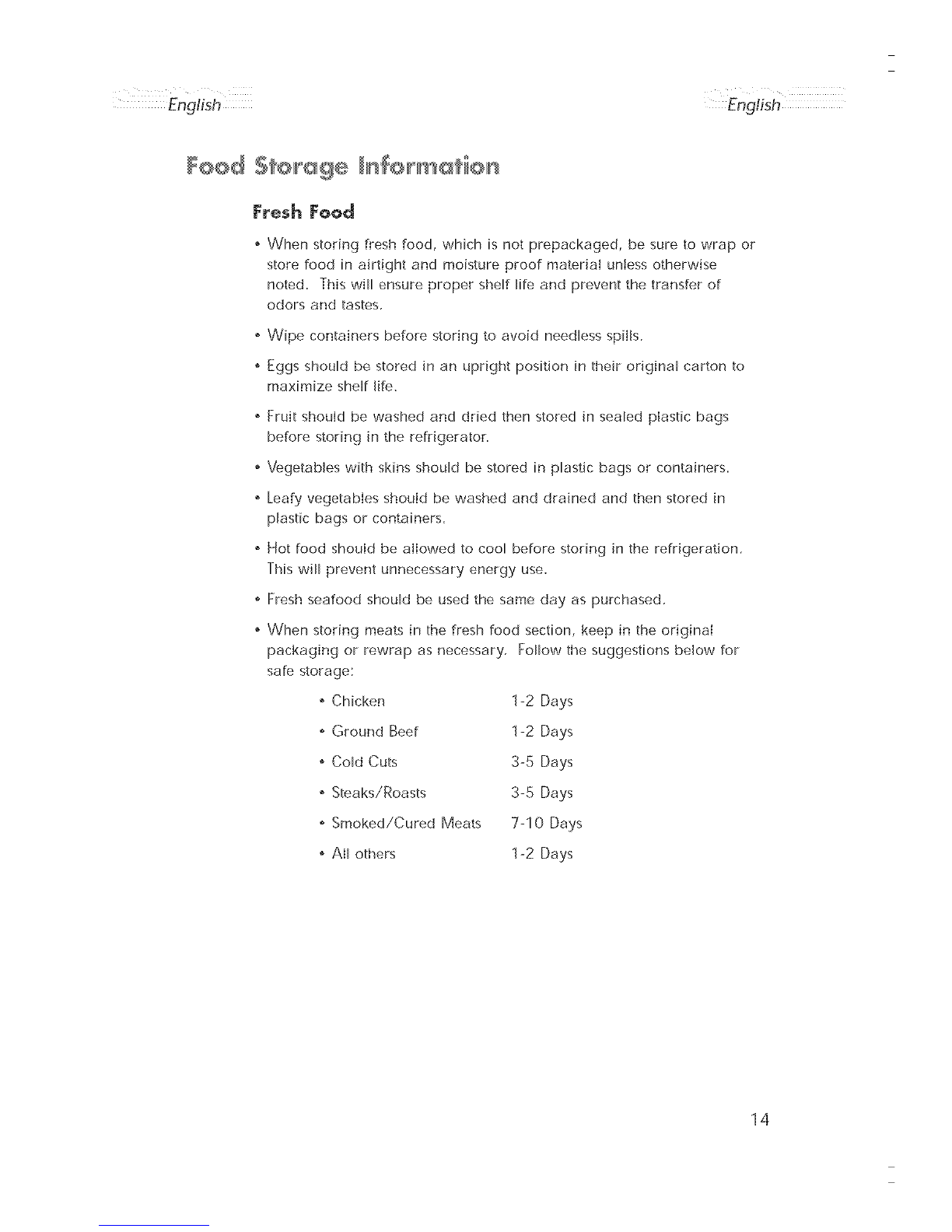

Food Storage information ........................................ )4.
Normal Operating Sounds ...................................... ')5

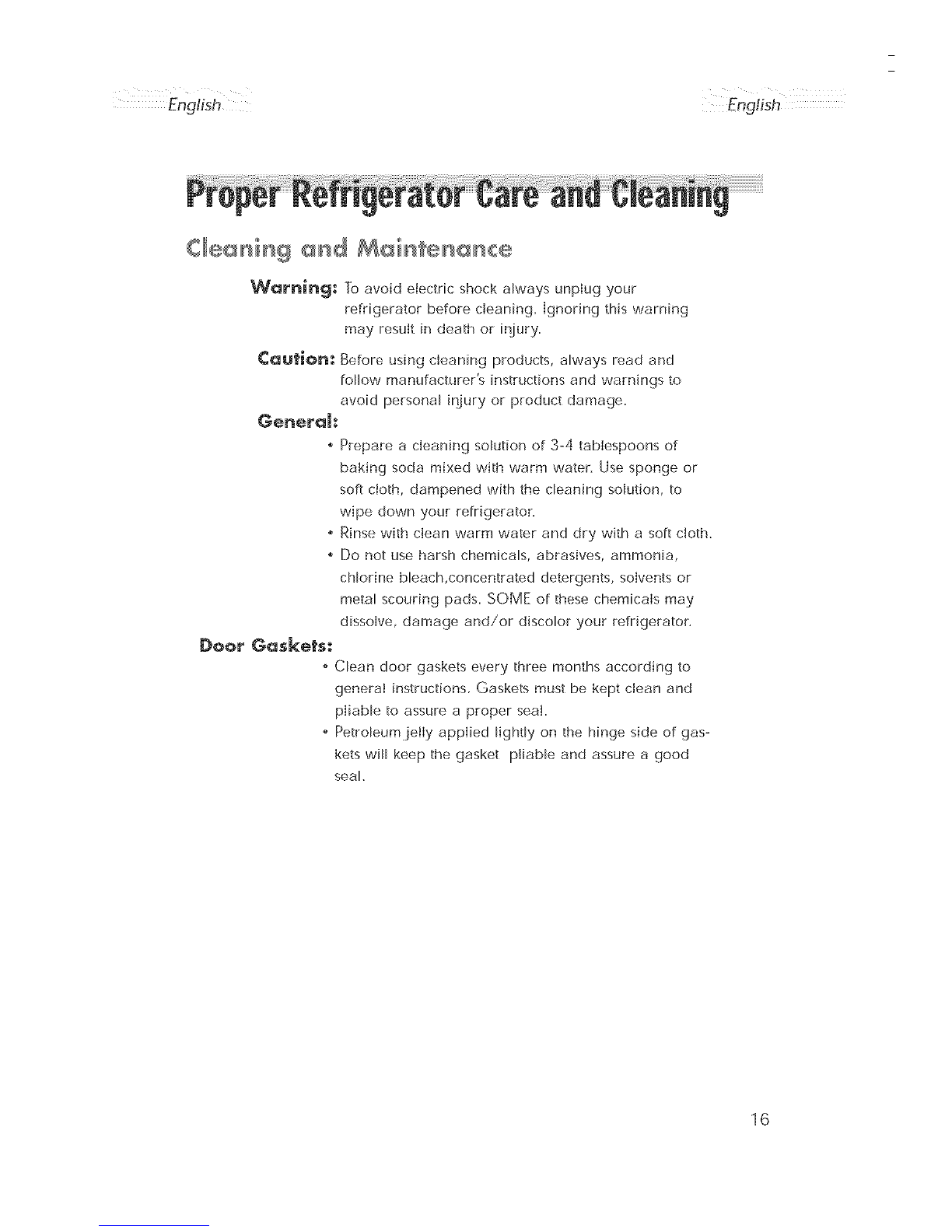

Proper Refrigerator Care ar_a C(eanlng .................... 16
Cleaning and Maintenance ...................................... )6
Power interruptions ............................................ ) 7
Vacation and Moving Care ...................................... ) 7
18
20

English
©
©
HSE06WNA
1. Freezer Compartment
(not in all models}
2. Ice Cube Tray (not in all models)
3. Fixed Door Shelves (varies by model)
4. Drip Tray (not in all models)
5. Adjustable Temperature Control
6. Slide-Out Shelves
7. Acljustable Front Leveling Legs
(not in all models, not shown)
8. Full Width Retainer Bar
(not in all models)

English English
©
©
®J
12345678910
HSL06WNA • ® ® ® ® ® ® _ • o
HSP04WNA o ® ® o ® ® ® ® •

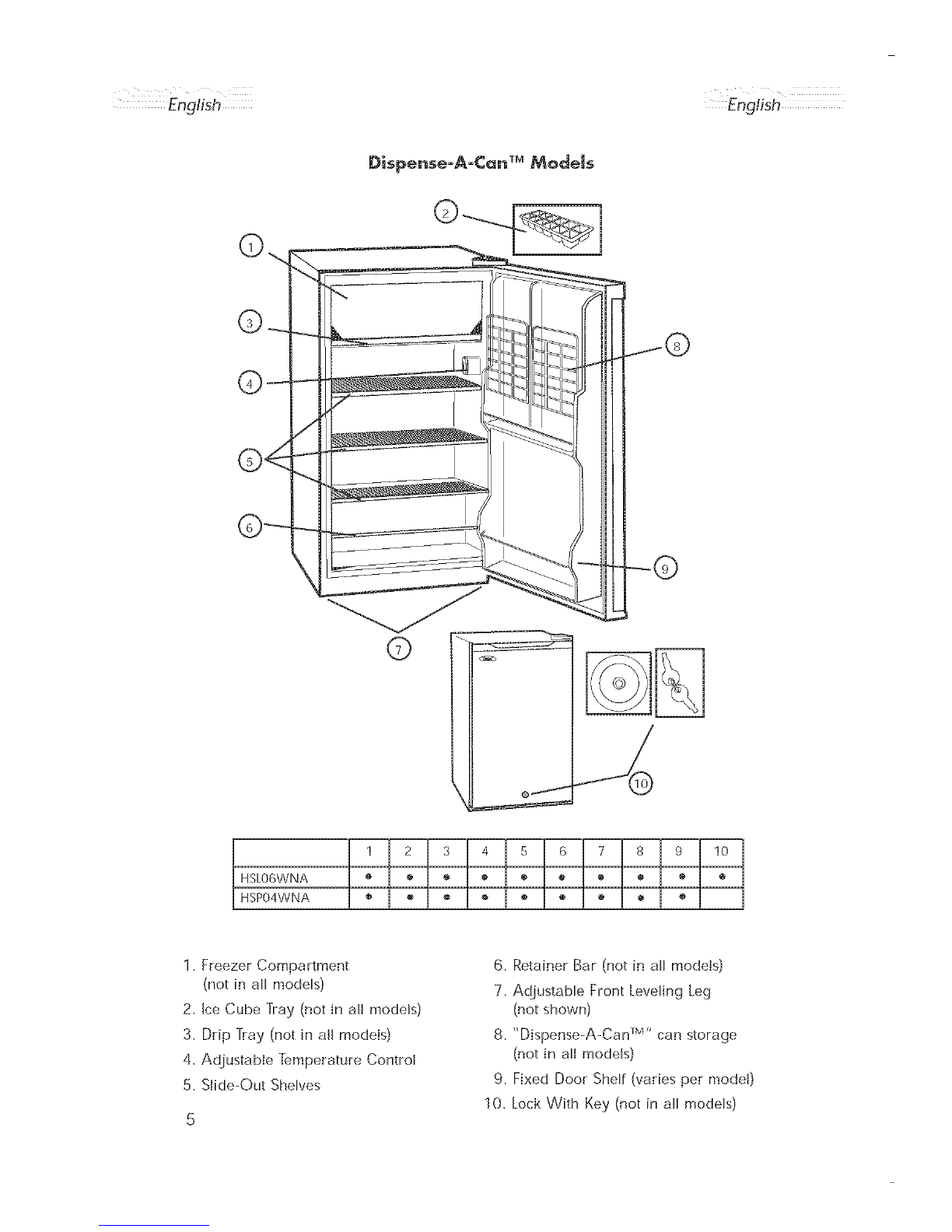

1. Freezer Compartment
(not in all models)
2. Ice Cube Tray (not in all models)
3. Drip Tray (not in all models)
4. Actjustabie Temperature Control
5. Slide-Out Shelves
6. Retainer Bar (not in all models)
7. Ac_justable Front leveling leg
(not shown)
8. "Dispense-A-Can TM'' can storage
(not in all models}
9. Fixed Door Shelf (varies per model)
10. Lock With Key (not in all models)

English English
O p cki g Your lefriger tor
1. Remove all packaging material. THis includes the Foam base and all
adhesive tape holding the refrigerator accessories inside and
outside. Slide out and remove plastic or Foam guard used to
secure the compressor from shipping damage due to vibration
and shock.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigerator.
Leveling Your Refrigerator
• Your refrigerator has two leveling legs which are located in the
front corners of your refrigerator. After properly @acing your
refrigerator in its final position, you can level your refrigerator.
. Leveling legs can be adjusted by turning them clockwise to raise your
refrigerator or by turning them counterclockwise to lower
your refrigerator. The refrigerator door will close easier when the
leveling legs are extended.
Iroper Air QirculQtie
. To assure your refrigerator works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
. The Following are recommended clearances around the refrigerator:
Sides ............... 3/4 "(19ram)
Top .................... 2" (50mm)
Back .................. 2" (50ram)

English English
_ectri_ _eq_ise_e_t
. Make sure there is a suitable power Outlet (115 volts, 15 amps outlet}
with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet, This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
Use E×te sio Cords
Avoid the use of an extension cord because of potential safety hazards
under certain conditions. Hfit is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-stot outlet that will accept the piug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the appliance.
Li it tie s
Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55 Fahrenheit.
Select a suitable location for the refrigerator on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected with the leveling legs located on the front bottom
corners of the refrigerator.

English English
©@@r A_ig_me_t (seef_g.# s)
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using a phillips head screwdriver.
4. Acljust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover.
fig. # 1

English English

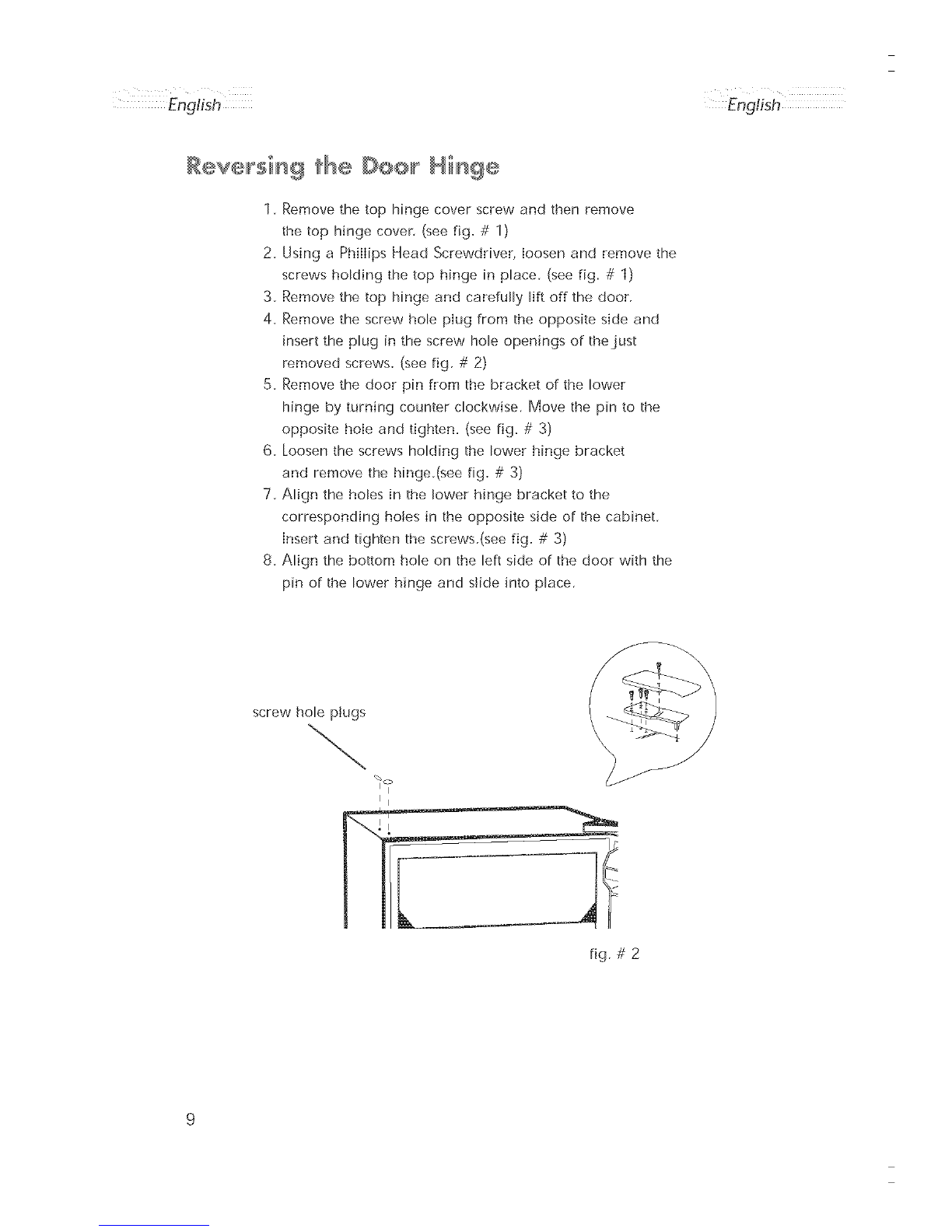

/eversi g tie Deer Hinge
1. Remove the top hinge cover screw and then remove
the top hinge cover. (see Fig. # 1)
2. Using a Phillips Head Screwdriver, loosen and remove the
screws holding the top hinge in @ace. (see rig. # 1)
3. Remove the top hinge and carefully lift off the door.
4. Remove the screw hole plug from the opposite side and
insert the plug in the screw hole openings of the just
removed screws. (see fig. # 2)
5. Remove the door pin From the bracket of the lower
hinge by turning counter clockwise. Move the pin to the
opposite hole and tighten. (see fig. # 3)
6. Loosen the screws holding the lower hinge bracket
and remove the hinge.(see fig. # 3)
7. Align the holes in the lower hinge bracket to the
corresponding holes in the opposite side of the cabinet.
insert and tighten the screws.(see Fig. # 3)
8. Align the bottom hole on the left side of the door with the
pin of the lower hinge and slide into place.
screw hole plugs
%
fig. # 2

English English

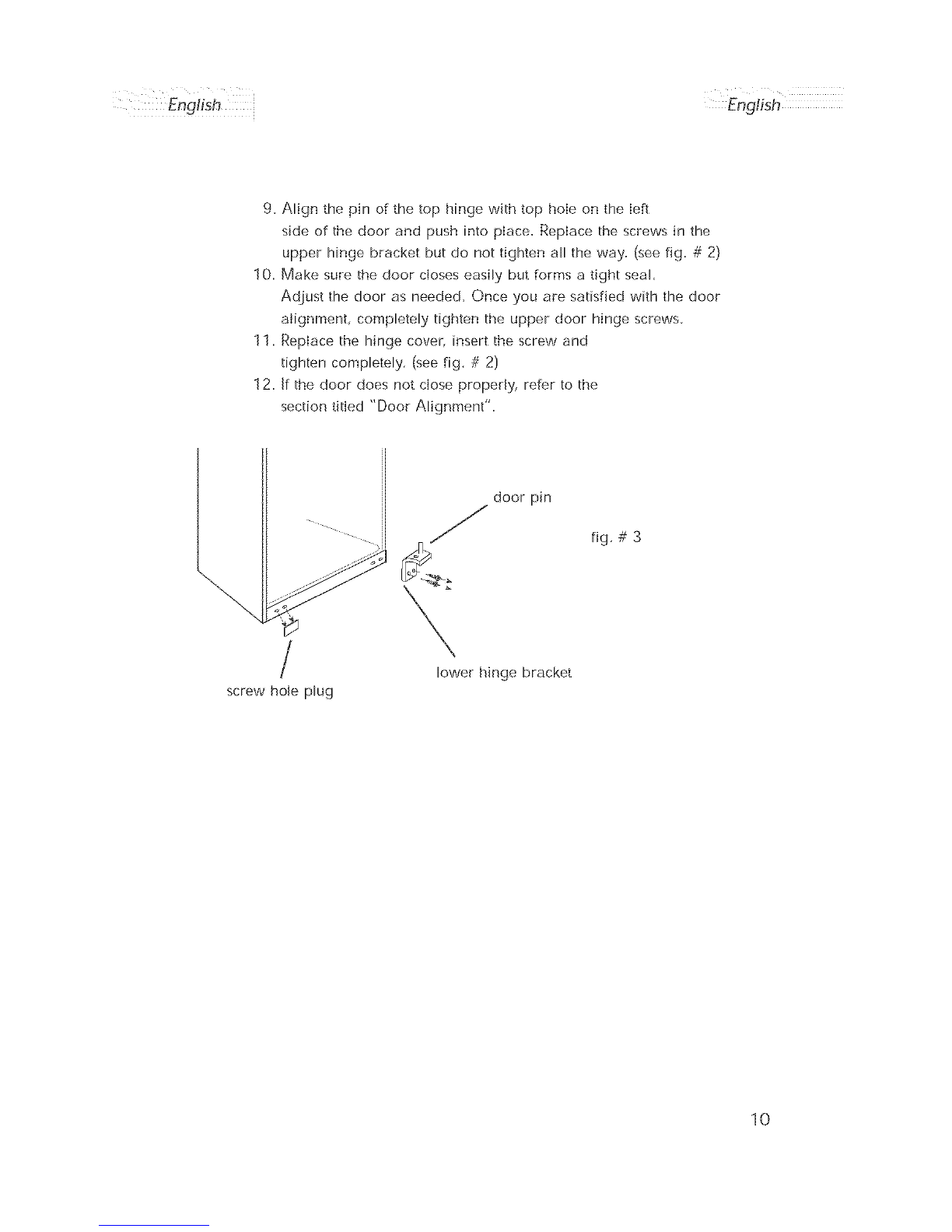

9. Align the pin of the top hinge with top hole on the Ie[t
side of the door and push into place. Replace the screws in the
upper hinge bracket but do not tighten all the way. (see Fig. # 2)
10. Make sure the door closes easily but Forms a tight seal.
Acljust the door as needed. Once you are satisfied with the door
aIignment, completely tighten the upper door hinge screws.
11. Replace the hinge cover, insert the screw and
tighten completely. (see Fig. # 2)
12. If the door does not close properly, refer to the
section titled "Door Alignment'.
screw hole plug
door pin
lower hinge bracket
fig. # 3
10

English
AdjustaBJe temperature diaJ:
Your refrigerator will automaticalIy
maintain the temperature level you
select. The temperature control dial has
7 settings plus off. 1 is the warmest. 7 is
the coldest. Turning the dial to OFF stops
cooling in both the re[rigeration and
freezer sections. At first, set the diaI to 4
and allow 24 hours to pass before
adjusting the temperature to your needs.
(Note: Jf the refrigerator Bos
been placed in o horizontal or
tilted position for any period
of time wait 24 hoots before
pJugging the unit in,)

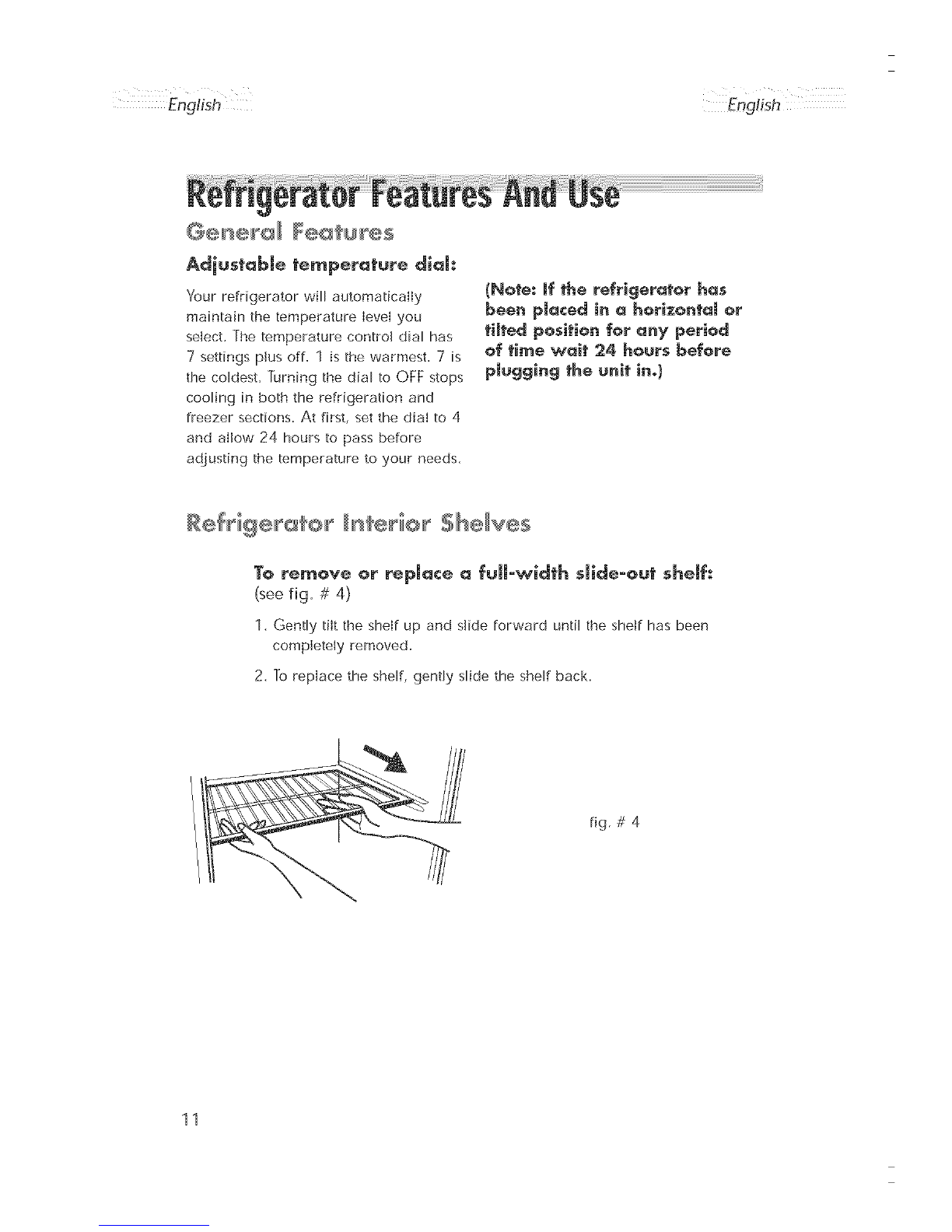

1"oremove or repJace cl fuji-width sJide-out sheJf:
(seefig. # 4)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, gently slide the shelf back.
fig. # 4
11

English English

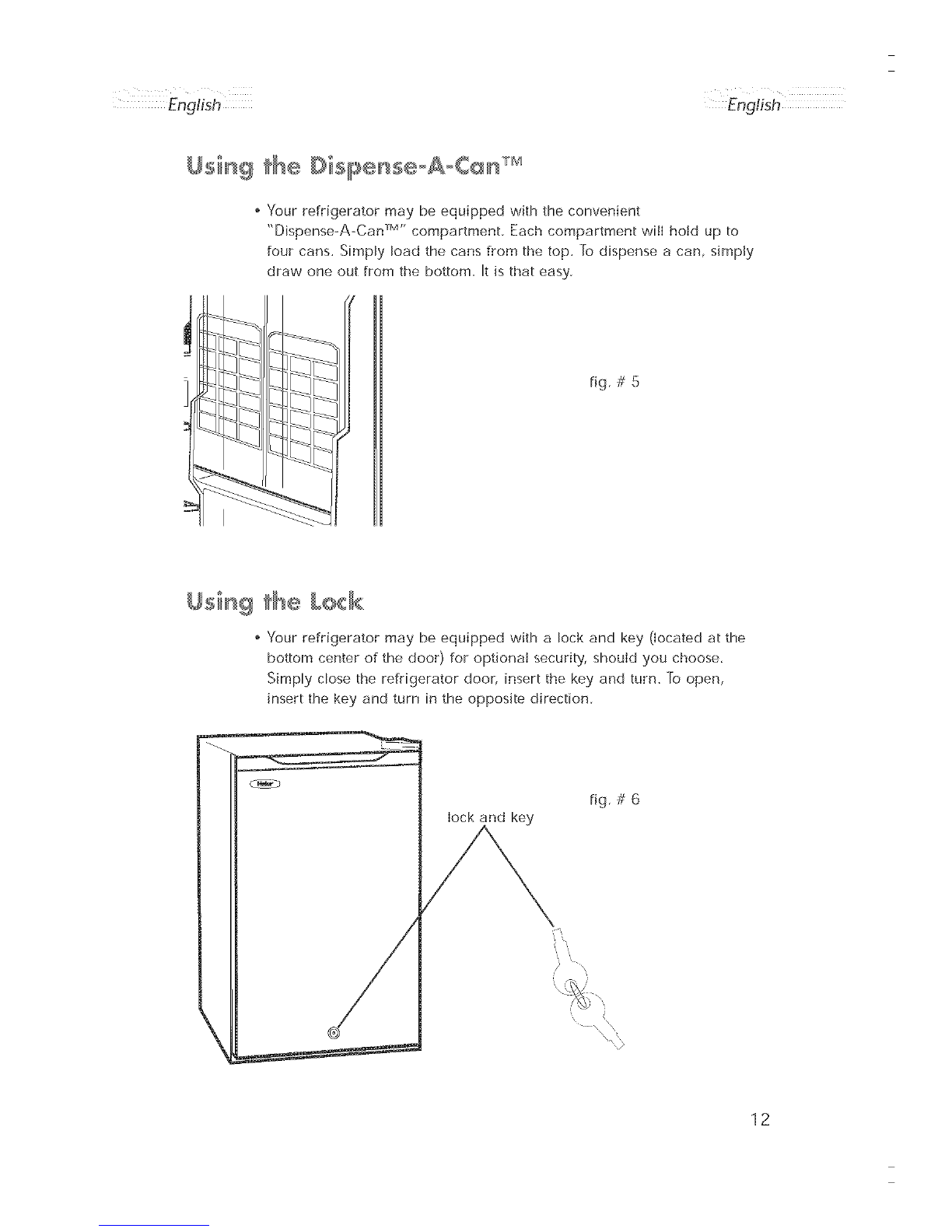

_si_g tB÷ DispesseoAo6_S _M
. Your refrigerator may be equipped with the convenient
"Dispense-A-Can TM'' compartment. Each compartment will hold up to
four cans. Simply load the cans [rom the top. To dispense a can, simply
draw one out from the bottom. It is that easy.
fig. # 5
_sis 9 the Lo_B
. Your re[rigerator may be equipped with a lock and key (located at the
bottom center of the door) for optional security, should you choose,
Simply dose the refrigerator door, insert the key and turn. To open,
insert the key and turn in the opposite direction.
lock and key fig. # 6
f \,
\^, ",,
12

English English
De_resti_g Your Refrigeroter (seeFig.# 7)
NOTE," If you have purchased a model with no freezer section,
you do not need to defrost.
• For maximum energy efficiency, defrost freezer section
whenever frost accumulates to a thickness of 1/4" or more
on freezer walls. Note that frost tends to accumulate
more during the summer months.
o To defrost freezer, remove food and ice cube tray from the freezer
section. Make sure the drip tray is under the freezer section and turn
temperature control dial to OFF position. Defrosting may take a
few hours. To speed up defrost time, keep the door open
and place a bowl of warm water in the refrigerator.
o While defrosting, water will accumulate in the drip tray. The drip tray
may also need to be emptied during the defrost process.
Do not leave unattended. (see rig. 7)
o After defrosting, empty and wipe down the drip tray, as well as the
interior of the refrigerator. You may now reset your refrigerator to the
desired temperature and return food.
fig. # 7
drip tray
13

English English
Feed
Fresh _ood
• When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
. Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
°Fruit should be washed and dried then stored in sealed plastic bags
before storing in the refrigerator.
. Vegetables with skins should be stored in plastic bags or containers.
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers.
• Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
. Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
Chicken
Ground Beef
Cold Cuts
Steaks/Roasts
Smoked/Cured Meats
AII others
1-2 Days
1-2 Days
3-5 Days
3-5 Days
7-10 Days
1-2 Days
14

English English
N@rm_l ©per_ti_g SQu_ds You M_¥ He_r
* Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
o The thermostat control will click when it cycles on and off.
15

English
W_ning: To avoid electric shock always unplug your
refrigerator before cleaning, Ignoring this warning
may resutt in death or ir_jury
C_u_ion: Before using cIeaning products, always read and
follow manufacturer's instructions and warnings to
avoid personal injury or product damage
General:
o Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
Rinse with clean warm water and dry with a soft cloth.
Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator.
Door Gaskets:
®Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seat.
Petroleum jetly applied lightly on the hinge side of gas-
kets will keep the gasket pliable and assure a good
seal.
16

English English

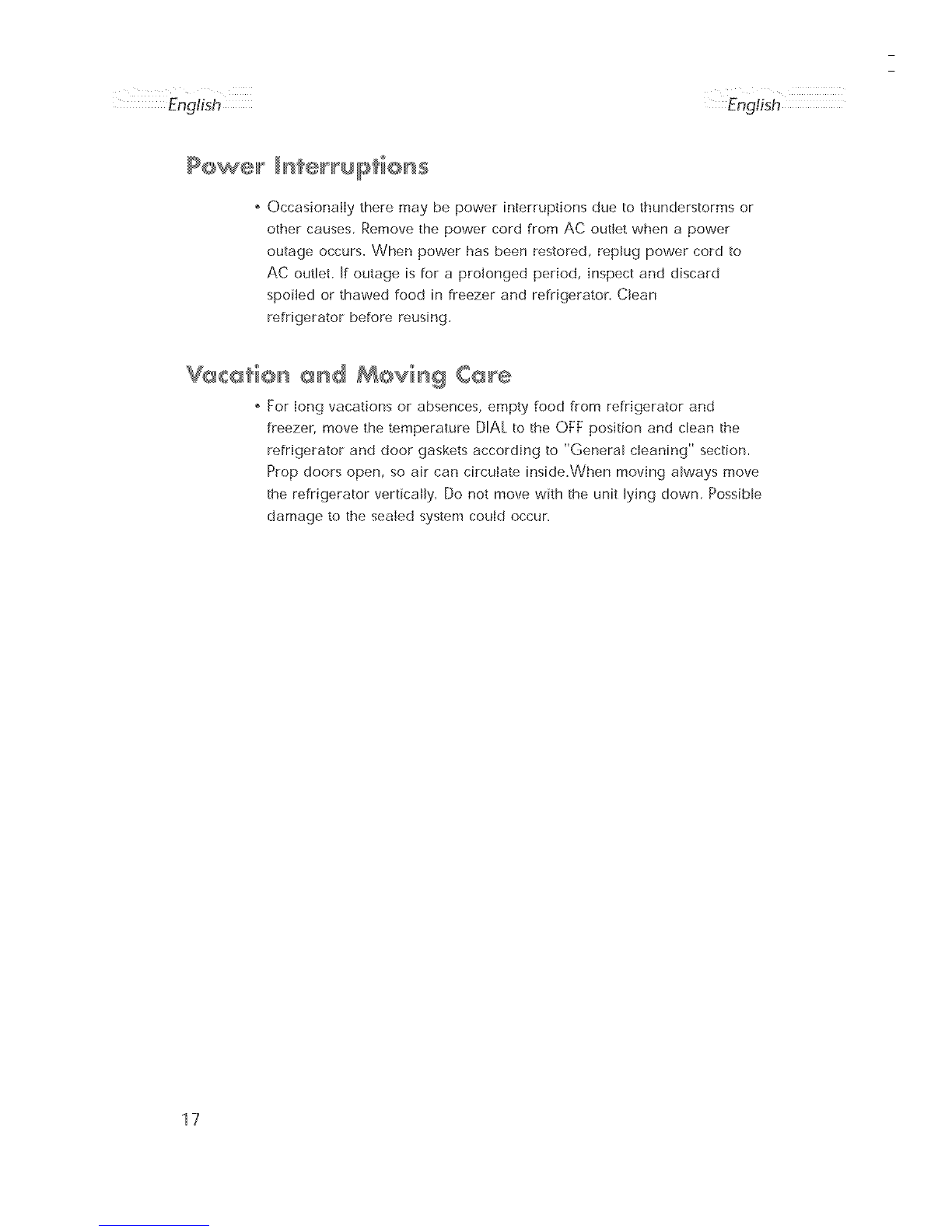

• Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, replug power cord to
AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator. Clean
refrigerator before reusing.
Moving C r÷
• For long w_cations or absences, empty food from refrigerator and
freezer, move the temperature DIAL to the OFF position and dean the
refrigerator and door gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside.When moving always move
the refrigerator vertically. Do not move with the unit lying down. Possible
damage to the sealed system could occur.
17

English

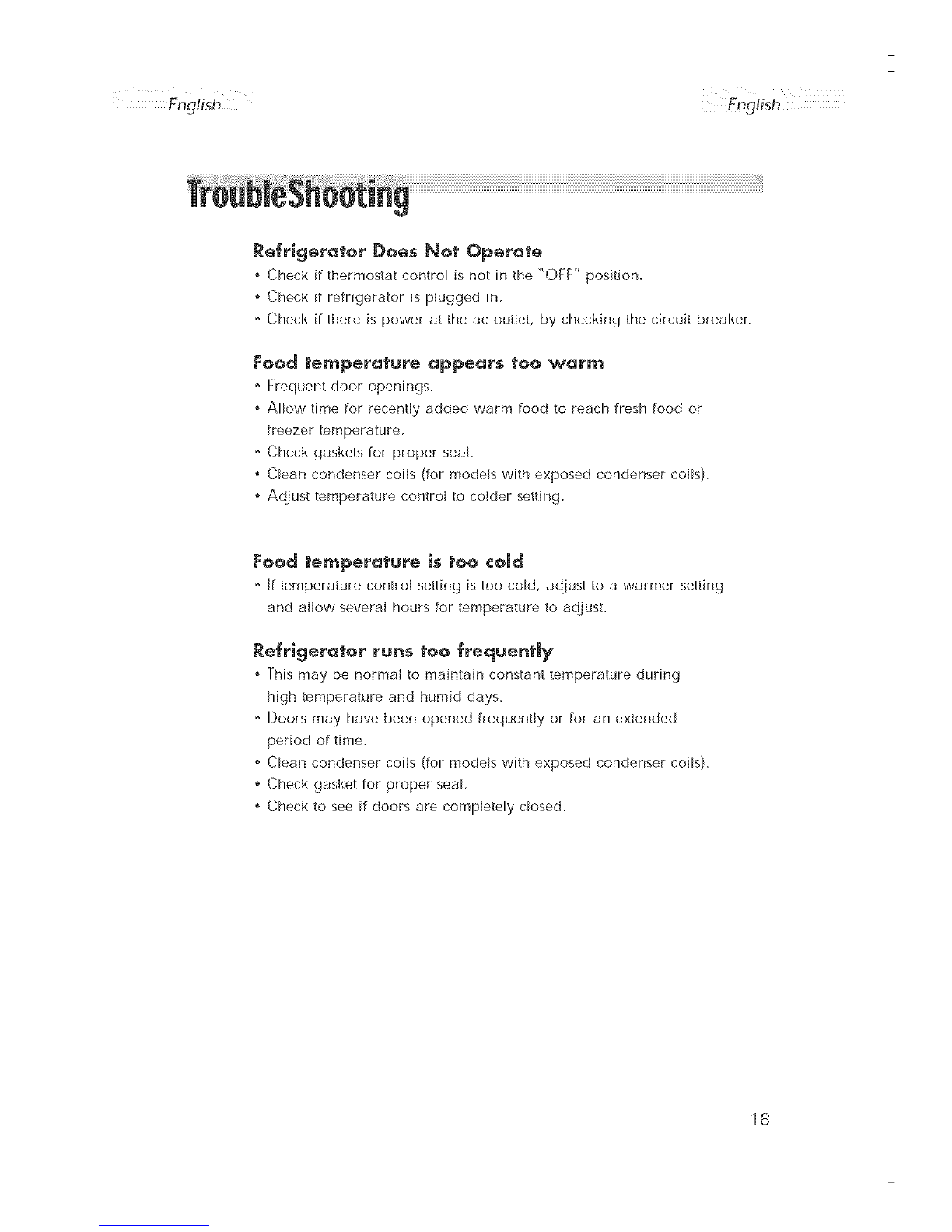

Refrigerator Does Not Operate
• Check if thermostat control is not in the "OFF" position.
• Check if refrigerator is plugged in.
o Check if there is power at the ac outlet, by checking the circuit breaker.
Food ternperatore appears too war_
, Frequent door openings.
• Allow time for recently added warm food to reach fresh food or
freezer temperature
, Check gaskets for proper seal.
• Clean condenser coils (for models with exposed condenser coils}.
• A(_just temperature control to colder setting.
Food ternperatore is too cored
,If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Refrigerotor runs too freqoentmy
• This may be normal to maintain constant temperature during
high temperature and humid days.
, Doors may have been opened frequently or for an extended
period of time.
, Clean condenser coils (for models with exposed condenser coils).
, Check gasket for proper seal.
• Check to see if doors are completely closed.
18

English English

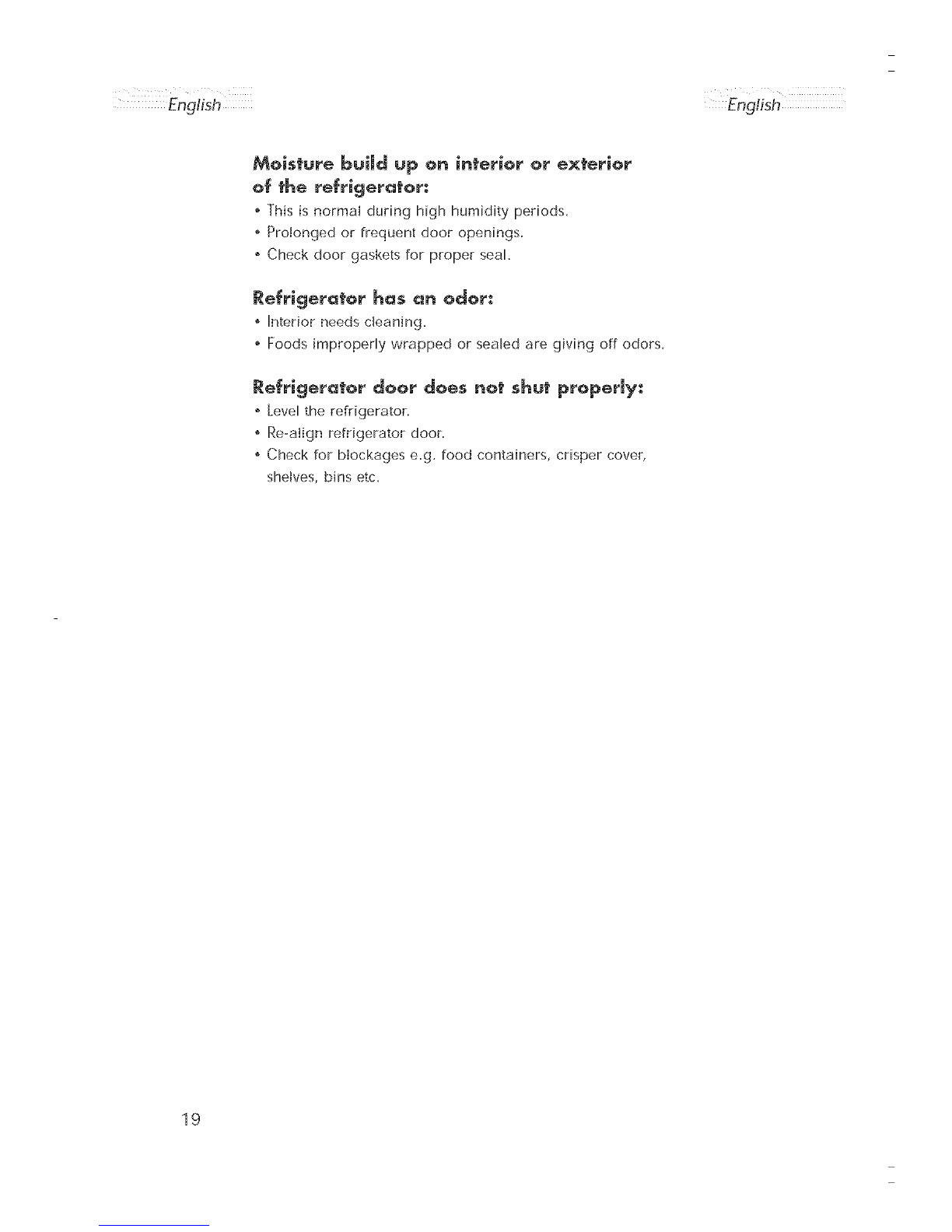

Moistore buimd op on interior or exterior
of the refrigerator:
. This is normal during high humidity periods.
. Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has on odor:
• Interior needs cleaning.
° Foods improperl'_, wrapped or sealed are giving off odors.
Refrigerator door does not shot propermy:
. Level the refrigerator.
• Re-align refrigerator door.
• Check for blockages e.g. food containers, crisper cover,
shelves, bins etc.
19
