Haier 29T7A User manual

MAIN FUNCTION
29T7A
Colour Television
Operation Instructions
◆218 Programmes stored
◆Dynamic noise reduction
◆Multi-picture mode, multi-sound mode selection
◆Auto-correcting black balance
◆Surround stereo
0090505084

CONTENTS
WARNING AND CAUTIONS
BASIC FEATURE
TECHNICAL SPECIFICATION
FUNCTION BUTTONS AND EXTERNAL SOCKETS
REMOTE CONTROLLER BOARD
OPERATING MENU
MULTI FUNCTION TIMER
GENERAL OPERATION
TELETEXT FUNCTION
EXTERNAL CONNECTIONS
AV SIDE PANEL CONNECTION DIAGRAM
TROUBLESHOOTING GUIDE
1
2
2
3
5
6
10
12
14
15
16
17

BASIC FEATURE
TECHNICAL SPECIFICATION
●218 programs stored
●Auto-correcting black balance
●Surround stereo
●Blue extension,Green improvement
●Multi-picture modes and multi-audio modes
●Fast teletext
●Audio/Video input, S-Video input
●DVD component input
POWER SUPPLY: See rating plate
TV SYSTEM: B/G D/K
COLOUR SYSTEM: PAL SECAM NTSC3.58/4.43 (AV)
CRT: 29"
AERIAL INPUT IMPEDANCE: 75Ω unbalanced
VIDEO INPUT: 1.0VP-P(75Ω)
AUDIO INPUT: 436mVrms(40KΩ)
VIDEO OUTPUT: 1.0VP-P(75Ω)
AUDIO OUTPUT: 436mVrms(≥600Ω)
AUDIO MAX OUTPUT POWER: 5W+5W
POWER CONSUMPTION: See rating plate
NET WEIGHT(kg): 44
NET SIZE(mm): 827×505×582
Supplied accessories:
Infrared remote control handset 1
Battery(AA) 2
Operating instructions 1
Design and specifications are subject to change without notice.
WARNING AND CAUTIONS
1. When you clean the TV set, please pull
out the power plug from AC outlet.
Or may result in electric shock, fire or
damage to the TV set. Don't clean the
cabinet and the screen with benzene,
petrol and other chemicals.
4. Do not place the TV set near rain
or moisture as it may cause an electric
shock, or the TV set to catch fire. The TV
set must only be used
in dry indoor
Location.
2. In order to prolong the using life of the
TV set, please place it in a well ventilated
location.
5. The back cover must only be removed
by a registered electrical service person.
Removing the back cover may result in
electric shock, fire or damage to
the TV set.
3. Don't place the TV
set in direct sunlight or
near heat source.
6. If the TV set is not going to be used for
long time, or there is a severe thunder &
lightening storm, it is recommended that
the TV set be disconnected from the AC
power outlet and the aerial plug
removed.
Explanation on the display tube
Should the picture tube require cleaning, disconnect the power and use a dry
soft cotton cloth. Do not use any cleaner or abrasive cloth.
12

Figure A Figure B
Antenna cable
with a plug
Figure C Figure D
Antenna feeder
Antenna adapter
75-300Ω
Coaxial cable(75Ω) twin-lead cable(300Ω)

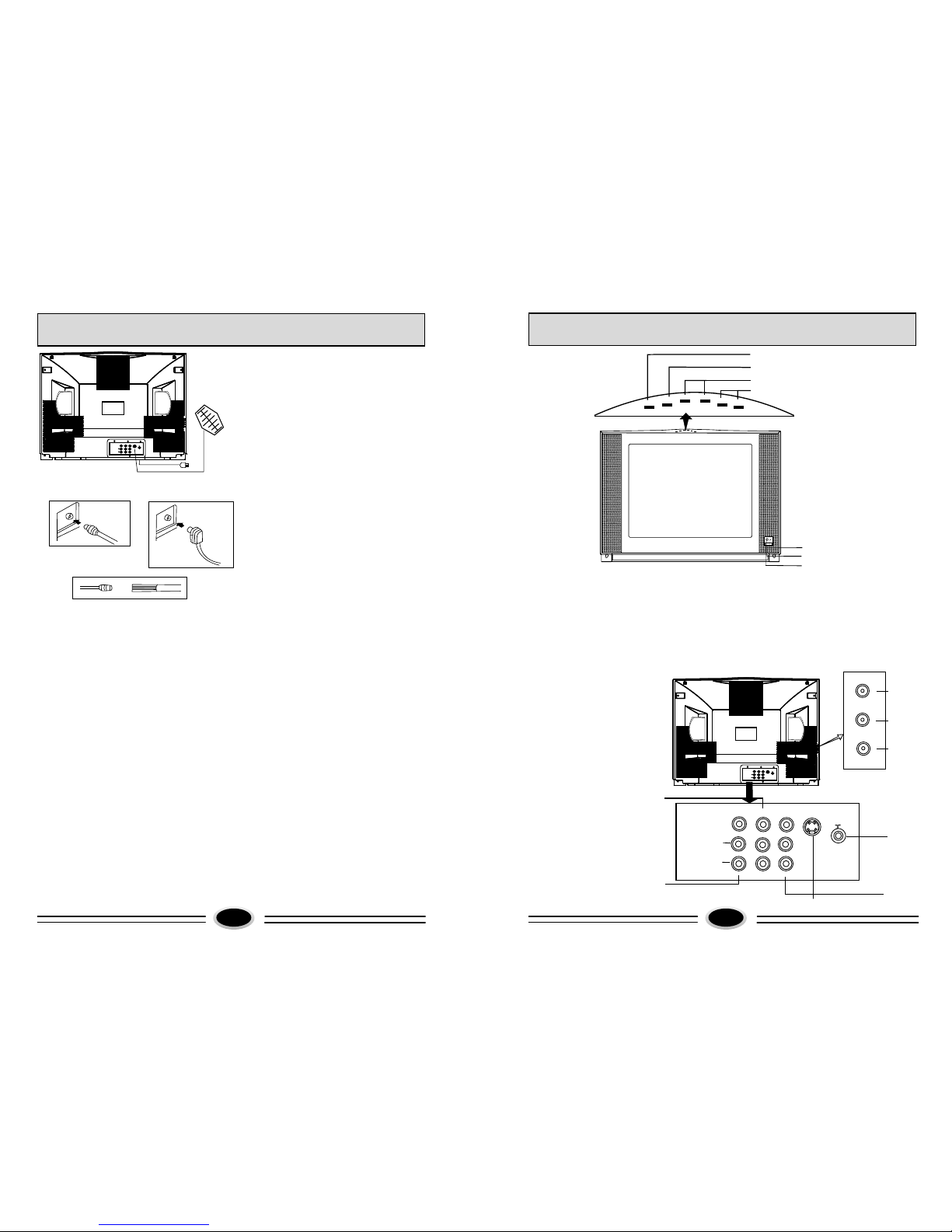

Antenna Connection
Connect an antenna to the antenna socket on
the TV set, we recommend using a Cable TV
system for better picture and audio quality.
1.If you use a coaxial cable(75 ),insert the
antenna plug (see figure C) into 75 socket
(see figure A).
2.If you use a twin-lead cable(300 ),please
shape the cable as figure D, and connect the
leads to antenna adapter and then insert the
antenna adapter into the 75 socke (see
figure B).
Power source wire connection
Insert the power plug into AC outlet.
To install and to replace batteries of the remote
control unit
1.Place the remote control unit with the face
down, then open the battery cover of the unit.
2.Place the two"AA"size batteries, matching
the + and - signs on each battery to the +
and -signs of the battery compartment.
3.Close the cover of the battery compartment.
NOTE:
(1)Don't drop or wet or dismantle the unit.
(2)If you don't intend to use the unit for a
long period or the electricity of the
batteries is used up, remove the batteries
to prevent batteries acid from leaking into
the battery compartment.
(3)Always replace both batteries at the same
time.
(4)Do not use rechargeable batteries (Ni-cd)
or mix battery types.
(5)Never place batteries in a fire. Dispose
of the batteries with your domestic
rubbish collection.
Ω
Ω
Ω
Ω
FUNCTION BUTTONS AND EXTERNAL SOCKETS
(8)S-video input
(9)Video input/output
(10)DVD component input
(11)Antenna input
(12)Audio input/output
(1)Remote sensor: let the remote controller
aim here the set can receive remote
control signal.
(2)Power switch: press the button to turn
on the TV set . Press the button again
to turn off the TV set.
(3)Power indicator: the indicator lights in
standby status ,the indicator lights in
sleep status . The indicator glints when
you use remote controller.
(4)Menu button
(5)Program up/down button
(6)Volume up/down button
(7)TV/AV
2.Rear Panel and Side Panel
1.Front Panel
(8)
(9)
(10)
(11)
(12)
Y
Cb
OUT
S-VIDEO
Cr
IN
VIDEO L AUDIO R
3 4
FUNCTION BUTTONS AND EXTERNAL SOCKETS
Antenna
AUDIO
VIDEO
AUDIO-R
AUDIO-L
VIDEO
L
R
MENU TV/AV VOL- VOL+ CH- CH+
(4)
(7)
(6)
(5)
(3)
(2)
(1)
Y
Cb
OUT
S-VIDEO
Cr
IN
VIDEO L AUDIO R
Y
Cb
OUT
S-VIDEO
Cr
IN
VIDEO L AUDIO R

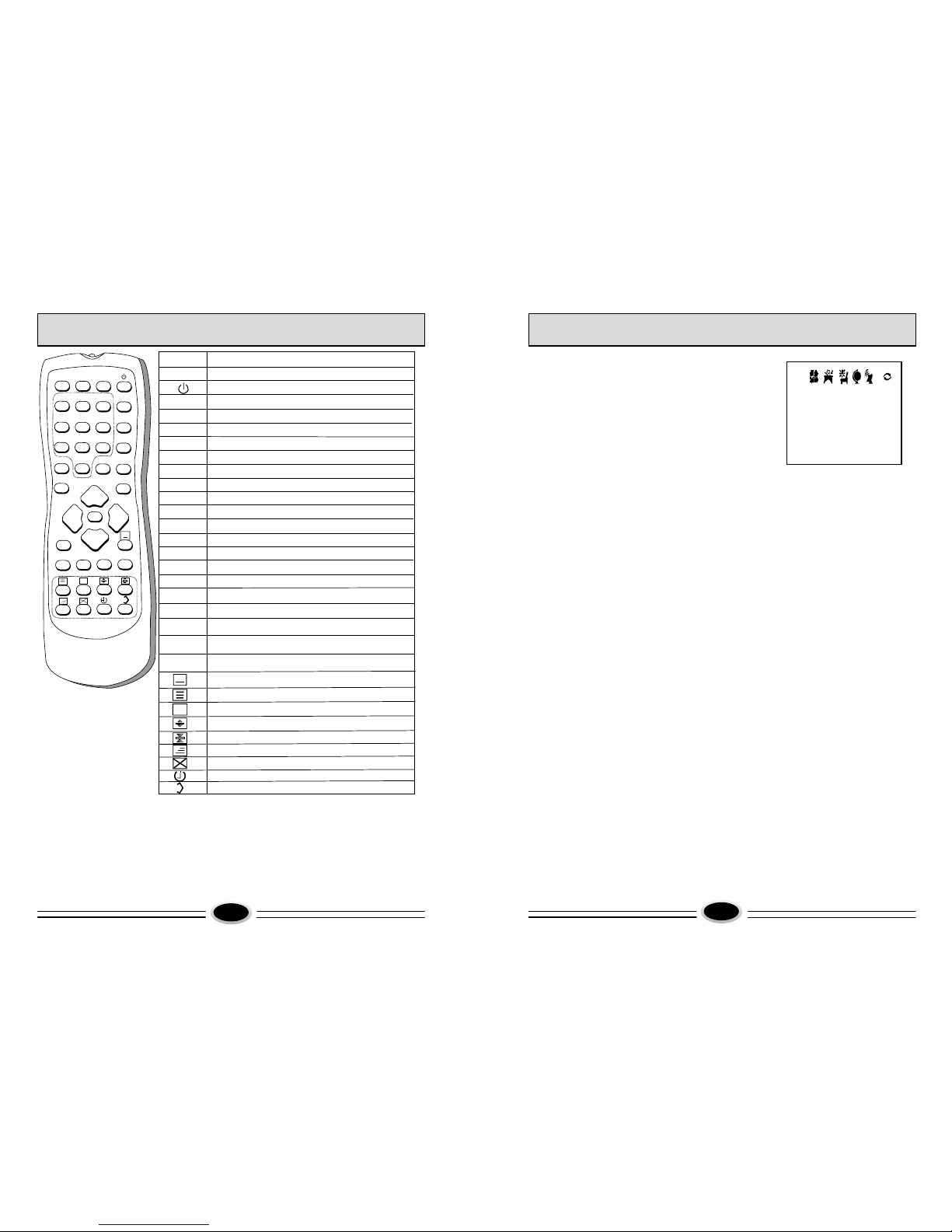

MARK FUNCTION DESCRIPTION
MUTE
STANDBY
ONE DIGIT SELECTION
ONE OR TWO OR THREE DIGITS PRE-SELECTION
TV/VIDEO SELECTION
MENU DISPLAY
SWAP PROGRAM BETWEEN THE PRESENT AND THE LAST
VOLUME CONTROL
CHANNEL NUMBER UP/DOWN
0-9
-/--
TV/AV
MENU
SWAP
-VOL+
-CH+
PICTURE MENU
SOUND MENU
SOUND
TIME MENU
TIME
FUNCTION MENU
FUNCTION
123
5
4
XT
EI
DP.ST
.SD
ST
CAN
S
A
SW P
T
PI R
CUE
OL-
V
CH +
OL
V +
C H -
E
MUT
6
OND M NTI N E
SU TI E U CO N
F TU
9
78
TVAV
/
-/--
ZOOM
CLAL
0
II
- I
.
PP
MENU
?
NOTE：
The function of selecting menu button on the remote controller is
the same as that of program up/down button on the TV set.
The function of identifying menu button on the remote controller
is the same as that of volume up/down button on the TV set.
T
MU
E
S A
CN
PROGRAM SCAN
OO
ZMO
ZOM
CALL
L
DIPAY
S
I
EXT
I
I-I
TD
PS.
T
S.SD
E
N
TU
??
TELETEXT SUBTITLE
INVALID BUTTON
PICTURE MODE SELECTION
SOUND MODE SELECTION
TUNE MENU SELECTION
TV/TELETEXT ENTERING/EXITING
TO REVEAL CONCEALED TELETEXT
TELETEXT ZOOM
TELETEXT PAGE HOLD
TELETEXT/TV MIX MODE
TV/TELETEXT ALTERATION
TIME DISPLAY(IN TV MODE)/SUBCODE SWITCH
EAST/WEST
EXIT MENU DISPLAY
REMOTE CONTROLLER BOARD OPERATION MENU
56
1.Entering and exiting menu
Press MENU button on the remote controller once (or directly
press PICTURE button on the remote controller), PICTURE
menu displays on the screen; press MENU button
twice (or directly press SOUND button on the remote
controller), SOUND menu displays on the screen .
Press the menu button again (3 times, or directly press
TIME button on the remote controller), TIME menu displays
on the screen. Press the menu button again (4 times, or directly press FUNCTION button on the
remote controller), FUNCTION menu displays on the screen. Press the menu button again (5
times or directly press TUNE button on the remote controller), TUNE menu displays on the
screen. Press the menu button again (6 times), EXCHANGE menu displays on the screen .To
turn off the on-screen menu display, either press the EXIT button or allow the TV set to
automatically turn off the menu by not pressing any buttons for a few seconds.
2.Auto search
A. Press MENU button five times continually (or directly press TUNE button on the remote
controller), e
Press MENU button five times continually (or directly press TUNE button), ensure that the
TUNE menu is displayed. Press the CH+/- buttons to select SEARCH. Then press the VOL+
button to search up or V- button to search down to the next TV station.(It is much faster to
search up.)If the wrong station is found ,press the search button again. You may need to
repeat this until the correct station is located. To store the new program, press the EXIT
button.
4.Fine tune
If the picture or sound is poor, try to use the "FINE TUNE" feature. Select the
FINE TUNE by using the CH +/- buttons. Use the VOL +/- buttons to fine-tune the
sound and picture for optimum results. Then press the EXIT button to store the
results. Do not use this feature unless reception is poor.
nsure that the TUNE menu is displayed. Press the CH+/- buttons to select
AUTO SEARCH. Then press the VOL+button, the TV set will begin to search programs
from present programme No..
B. After the search has finished, the TV set will return to the first program stored.
3. Search
5.Selecting the sound system
Press the CH+/- buttons to select SOUND item. Then press the VOL+/- buttons to select a
sound system you need.
TUNE
COLOUR AUTO
SOUND B/G
BAND VHFL
SKIP OFF
PROGRAM 19
SEARCH
FINE TUNE
AUTO SEARCH
6.Selecting color system
Usually this should be set in the auto position. However if the colours displayed on
the screen are incorrect you can manually select the correct colour system. When
you have finished remember to turn it back to auto again so that other programs
will still work correctly. Use the CH+/- buttons to select COLOUR then press VOL+/-
buttons to select a color system you need. Press the EXIT button to save the setting.
Setting channel
