Haier HT-2180 User manual

MAIN FUNCTION
HT-2180
Colour Television
Operation Instructions
◆218 Programs stored
◆Fast teletext
◆Multi-picture modes
◆Auto-correcting black balance

CONTENTS
WARNING AND CAUTIONS
BASIC FEATURE
TECHNICAL SPECIFICATION
CONTROL LOCATION
INPUT AND OUTPUT TERMINALS
REMOTE CONTROLLER BOARD
OPERATING MENU
MULTI FUNCTION TIMER
GENERAL OPERATION
TELETEXT FUNCTION

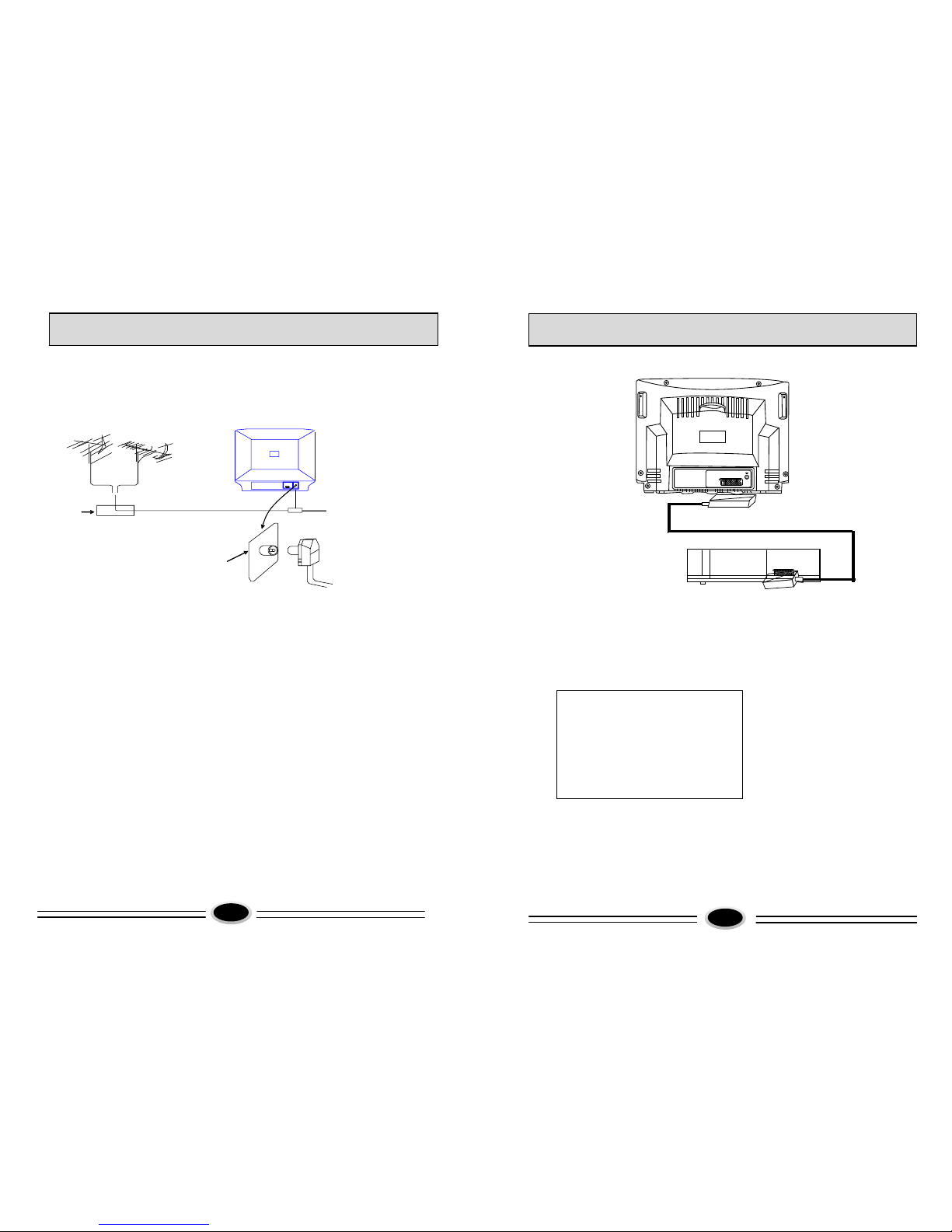

TELEVISION INSTALLATION
CONNECTING OTHER EXTERNAL DEVICES

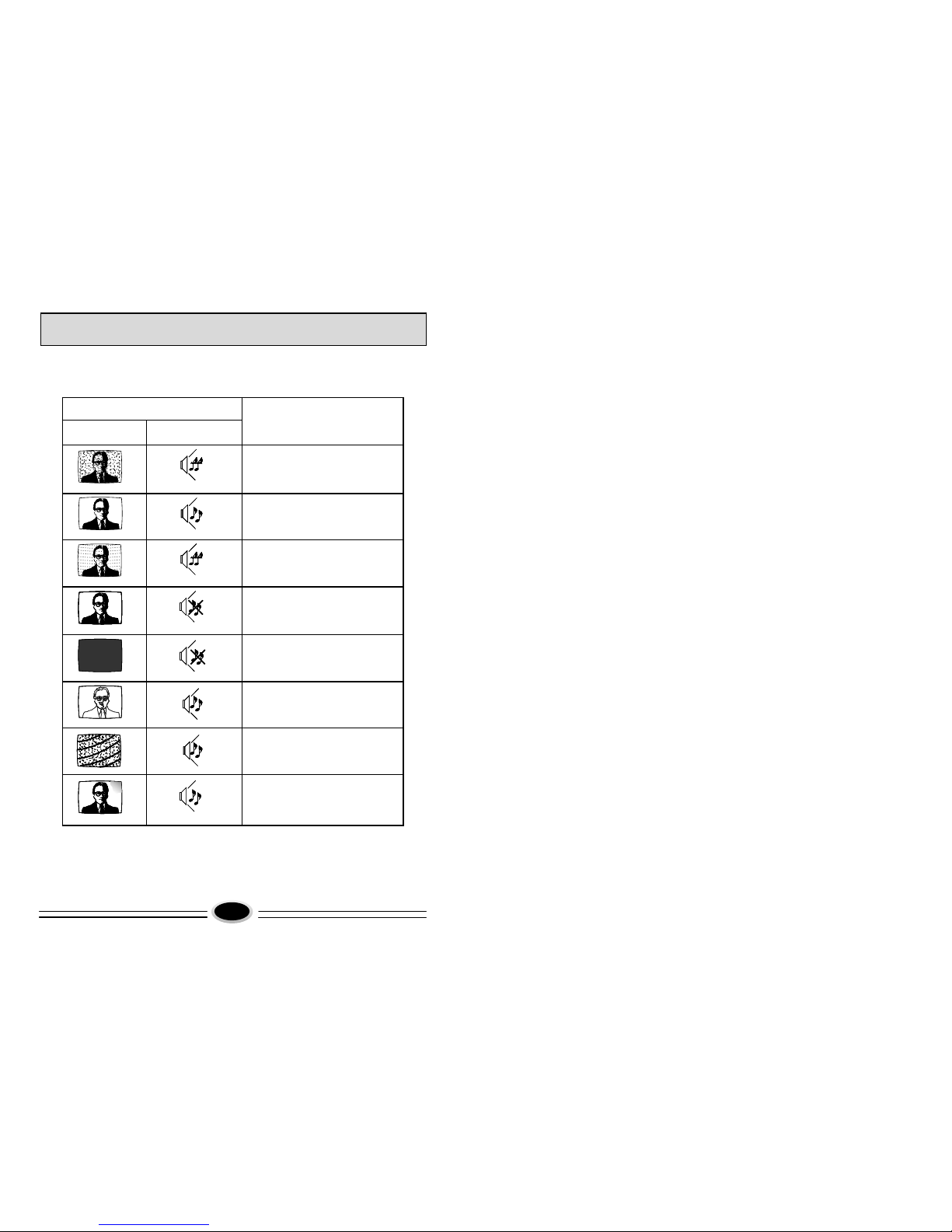

TROUBLE SHOOTING GUIDE
1
2
2
3
4
5
6
9
11
13
15
16
17

BASIC FEATURE
TECHNICAL SPECIFICATION
●218 programs stored
●Fast teletext
●Multi-picture modes
●Auto-correcting black balance

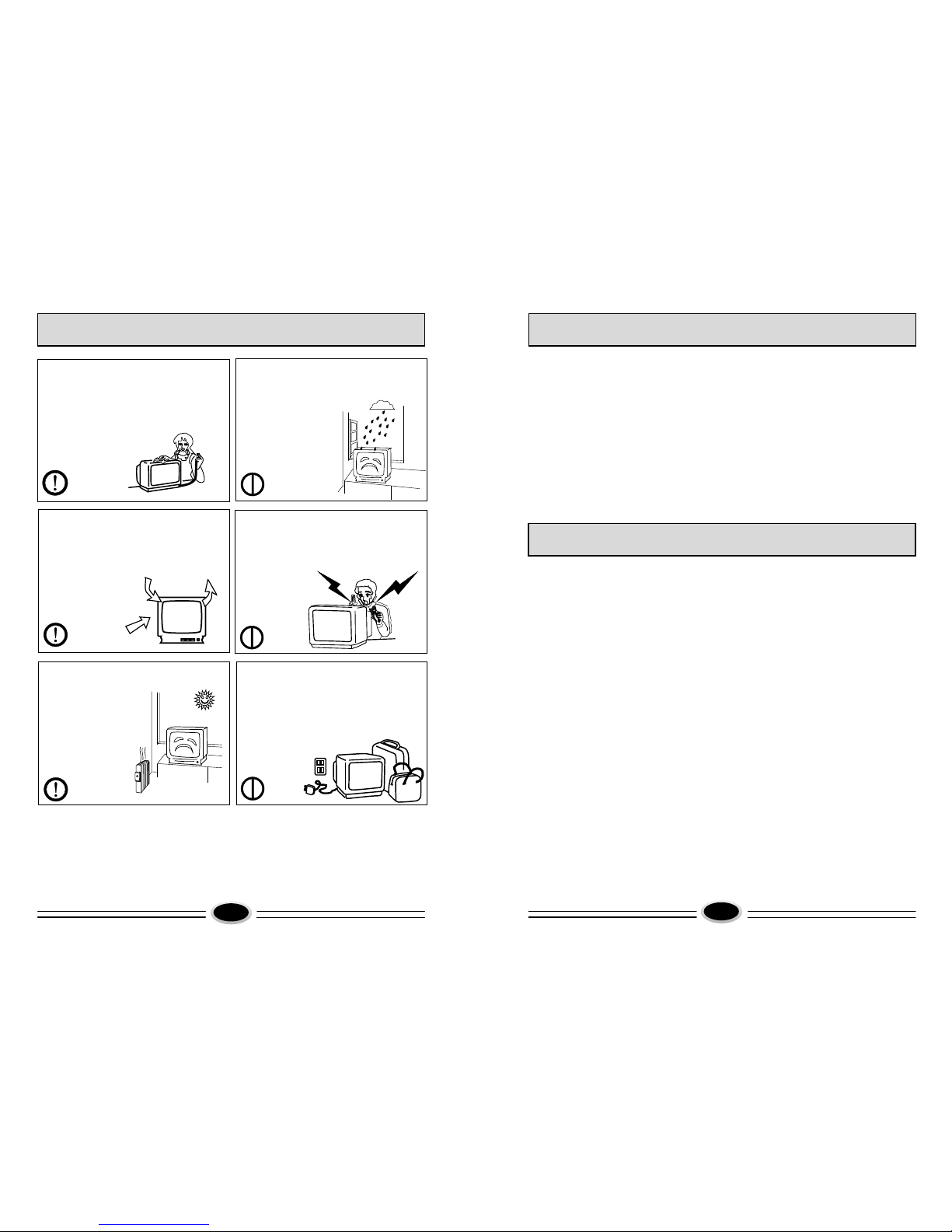

WARNING AND CAUTIONS
1. When you clean the TV set, please
pull out the power plug from AC outlet.
Or may result in electric shock, fire or
damage to the TV set. Don't clean the
cabinet and the screen with benzene,
petrol and other chemicals.
4. Do not place the TV set near rain or
moisture as it may cause an electric
shock, or the TV set to catch fire. The TV
set must only be used
in dry indoor location.
2. In order to prolong the using life of the
TV set, please place it in a well ventilated
location.
5. The back cover must only be removed
by a registered electrical service person.
Removing the back cover may result in
electric shock, fire or damage to
the TV set.
3. Don't place the TV
set in direct sunlight or
near heat source.
6. If the TV set is not going to be used for
long time, or there is a severe thunder &
lightening storm, it is recommended that
the TV set be disconnected from the AC
power outlet and the aerial plug
removed.
Explanation on the display tube
Should the picture tube require cleaning, disconnect the power and use a dry
soft cotton cloth. Do not use any cleaner or abrasive cloth.
12
1.POWER SUPPLY: See rating plate
2.COLOUR SYSTEM: PAL SECAM N TSC4.43/3.58(AV)
3.AUDIO SYSTEM: B/G D/K
4.CRT: 21”
5.ANTENNA INPUT : 75Ω Standard Coaxial Cable
6.SOUND OUTPUT POWER: 3W + 3W
7.POWER CONSUMPTION: See rating plate
8.NET WEIGHT(kg): 21.5
9.NET DIMENSION(mm): 610 x 460 x 490
Supplied accessories:
Infrared remote control handset 1
Battery(AA) 2
Operating instruction 1
Design and specifications are subject to change without notice.

3
CONTROL LOCATION
4
2.Rear Panel
INPUT AND OUTPUT TERMINALS
It can be connected to the following appliances:
video-tape recorder, video camera, tape recorder
and audio amplifier, etc......
*Please keep AC cord unplugged when connecting
TV system.
5
1.Front Panel
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
MENU TV /A V PR O
(1)Power switch: press the button to turn on the TV set ,press the button again to
turn off the TV set.
(2)Program up/down button
(3)Volume up/down button
(4)TV/AV switch button
(5)Menu button
(6)Power indicator: the indicator lights in standby status .The indicator glints
when you use remote controller.
(7)Remote sensor: let the remote controller aim here, the TV set can receive remote
control signal.
(8)Audio(R) input
(9)Audio(L) input
(10)Video input

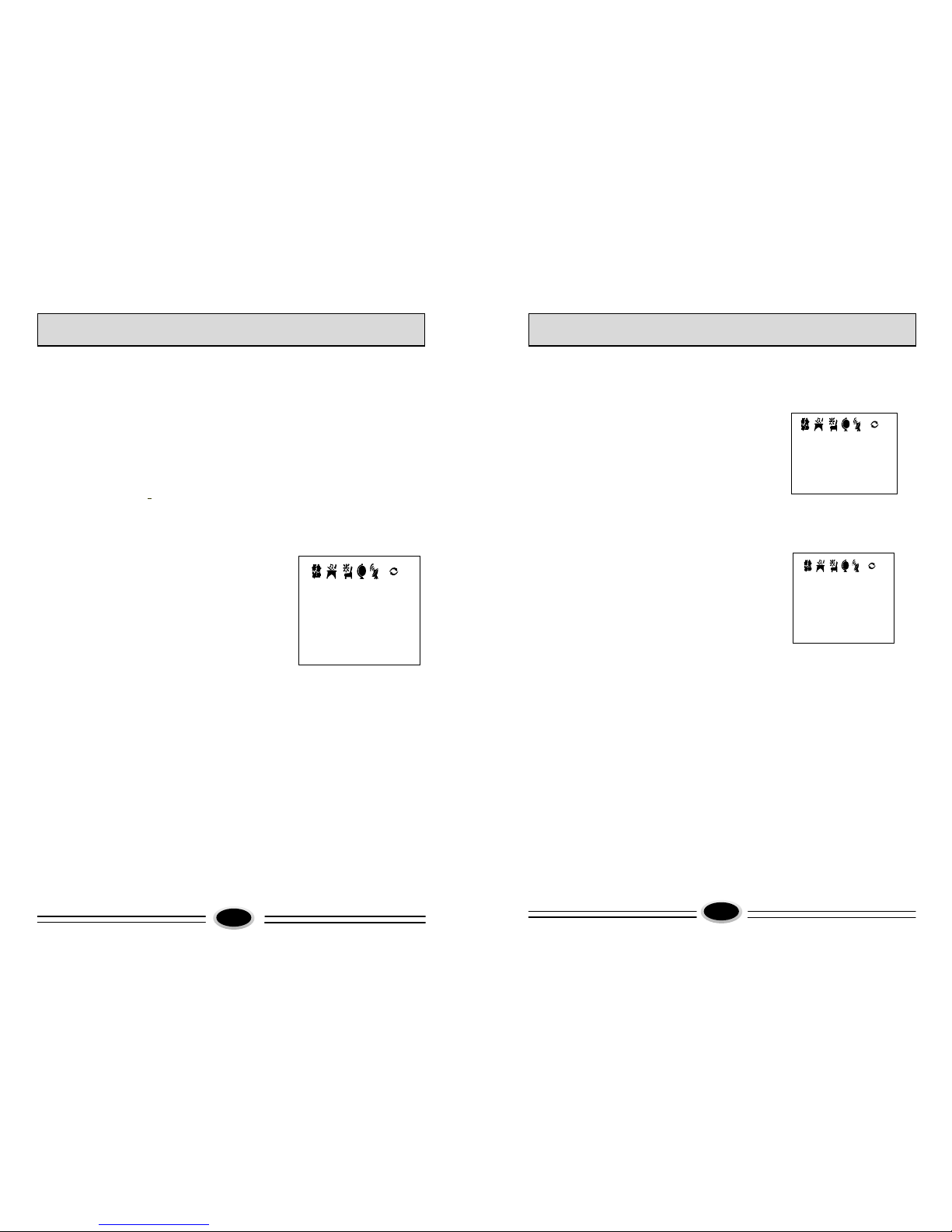

OPERATION MENU
6
1.Entering and exiting menus
Press MENU button on the remote controller once (or directly
press PICTURE button on the remote controller),PICTURE
menu display on the screen; press MENU button
twice (or directly press SOUND button on the remote
controller), SOUND menu display on the screen .
Press the menu button again (3 times, or directly press
TIME button on the remote controller), TIME menu display
on the screen. Press the menu button again (4 times, or directly press FUNCTION button on the
remote controller),FUNCTION menu display on the screen. Press the menu button again (5
times or directly press TUNE button on the remote controller), TUNE menu display on the
screen .Press the menu button again (6 times),EXCHANGE menu display on the screen .To
turn off the on screen menu display, either press the EXIT button or allow the TV set to
automatically turn off the menu by not pressing any buttons for a few seconds.
2.Auto search
A. Press MENU button five times (or directly press TUNE button on the remote controller),
e
Press MENU button five times (or directly press TUNE button), ensure that the
TUNE menu is displayed. Press the CH+/-buttons to select SEARCH. Then press the VOL+
button to search up or V-button to search down to the next TV station.(It is much faster to
search up.)If the wrong station is found ,press the search item again. You may need to
repeat this until the correct station is located. To store the new program, press the EXIT
button.
4.Fine tune
If the picture or sound is poor, try to use the FINE TUNE feature. Select the FINE TUNE by
using the CH +/- buttons. Use the VOL +/- buttons to fine-tune the sound and picture for
optimum results. Then press the EXIT button to store the results. Do not use this feature unless
reception is poor.
nsure that the TUNE menu is displayed. Press the CH+/- buttons to select AUTO SEARCH.
Then press the VOL+button,the TV set will begin to search programs from present programme
No..
B. After the search has finished, the TV set will return to the first program stored.
3. Search
5.Selecting the sound system
Press the CH+/- buttons to select SOUND item. Then press the VOL+/- button to select a sound
system you need.
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 19
SEARCH
FINE TUNE
AUTO SEARCH
6.Selecting colour system
Usually this should be set in the auto position. However if the colours displayed on the
screen are incorrect you can manually select the correct colour system. When you have
finished, remember to turn it back to auto again so that other programs will still work
correctly. Use the CH+/- buttons to select COLOUR then press the VOL+/- buttons to
select a colour system you need. Press the EXIT button to save the setting.
Setting channels
MARK FUNCTION DESCRIPTION
MUTE
STANDBY
ONE DIGIT SELECTION
ONE OR TWO OR THREE DIGITS PRE-SELECTION
TV/VIDEO SELECTION
MENU DISPLAY
VOLUME CONTROL
CHANNEL NUMBER UP/DOWN
0-9
-/--
TV/AV
MENU
SWAP
-VOL+
-CH+
PICTURE MENU
SOUND MENU
SOUND
TIME MENU
TIME
FUNCTION MENU
FUNCTION
123
5
4
XT
EI
DP.ST
.SD
ST
CAN
S
A
SW P
T
PI R
CUE
OL-
V
CH +
OL
V +
C H -
E
MUT
6
OND M NTI N E
SU TI E U CO N
F TU
9
78
TVAV
/
-/--
ZOOM
CLAL
0
II
- I
.
PP
MENU
?
T
MU
E
S A
CN
PROGRAM SCAN
OO
ZM
O
IITN
NV
AL D BUT
CALL
L
DIPAY
S
I
EXT
I
I-I
TD
PS.
T
S.SD
E
N
TU
??
TELETEXT SUBTITLE
INVALID BUTTON
PICTURE MODE SELECTION
INVALID BUTTON
TUNE MENU SELECTION
TV/TELETEXT ENTERING/EXITING
TO REVEAL CONCEALED TELETEXT
TELETEXT ZOOM
TELETEXT PAGE HOLD
TELETEXT/TV MIX MODE
TV/TELETEXT ALTERATION
TIME DISPLAY(IN TV MODE)/SUBCODE SWITCH
EAST/WEST
EXIT MENU DISPLAY

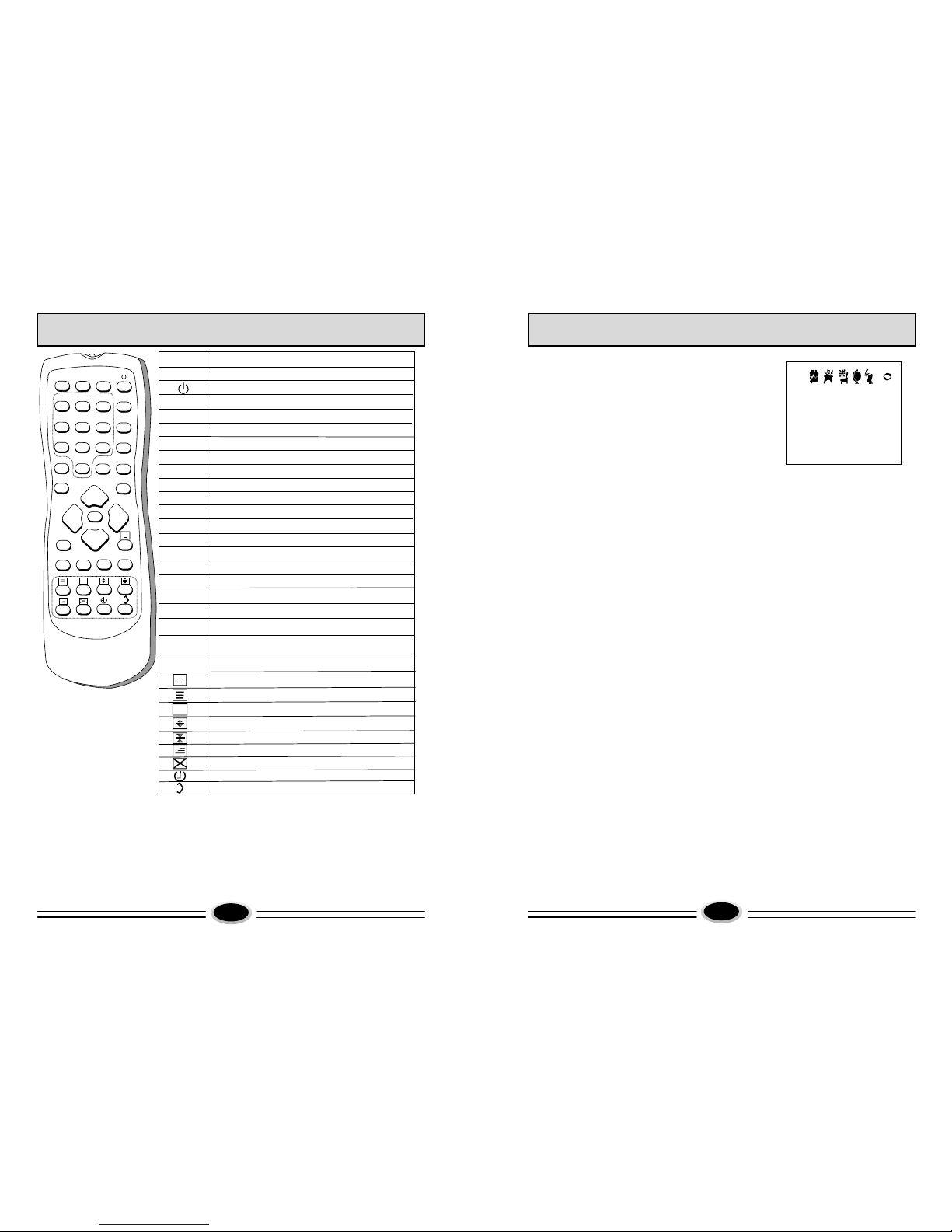

REMOTE CONTROLLER BOARD
5
NOTE：
Use CH+/- or VOL+/ -buttons, either on the remote controller or on the front panel
of the television to navigate menus and to select menu options.
RECALL PREVIOUS PROGRAM
