Halo BOLT ULTIMATE 2.0 User manual

Operating Instructions
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
BOLT ULTIMATE™2.0

HALO BOLT ULTIMATE 2.0
Thank you for choosing HALO!
Powerful and loaded with features including an easy to use
digital display, the HALO BOLT ULTIMATE 2.0 can be used to
safely jump start your vehicle, inflate your tires and power your
electronic devices anywhere. The HALO BOLT ULTIMATE 2.0
provides portable power so you can charge your phone, tablet
and other electronic devices anywhere! The HALO BOLT
ULTIMATE 2.0 also includes a convenient floodlight and
emergency light. Compact, versatile and simple to use, the HALO
BOLT ULTIMATE 2.0 and all accessories fit neatly in its carrying
pouch and is perfect to store in your home or vehicle for every
day use or an emergency need. Never be without a charge, a
jump start, or with a flat tire again!
2| LIFE. ENERGIZED.

SAFETY PRECAUTIONS/MOVING
AND STORAGE INSTRUCTIONS
DANGER-CAUTION Read and understand all safety information
before using this product. Failure to follow these instructions
may result in electrical shock, explosion, fire which may result
in serious injuries, death or property damage.
• When used correctly, lithium-ion rechargeable batteries provide
a safe and dependable source of portable power. However, if
they are misused or abused, this may result in leakage, burns,
fire or explosion, causing personal injury or damage to
other devices.
• Misusing or incorrectly connecting your HALO BOLT ULTIMATE
2.0 may cause electric shock to users and damage equipment.
• Do not operate in explosive atmospheres such as in the
presence of flammable liquids, gases or dust.
• Remove jump start clamps from vehicle battery after jump
starting vehicle.
• Keep your HALO BOLT ULTIMATE 2.0 dry and away from
moisture and corrosive materials. The HALO BOLT ULTIMATE 2.0
should not be used near water or wet areas such as bathtubs,
showers, bathrooms, sinks, swimming pools or basements.
• Do not expose your HALO BOLT ULTIMATE 2.0 to moisture,
water, rain, or snow.
• Keep your HALO BOLT ULTIMATE 2.0 away from heat sources,
including open flames, radiators, stoves, ovens, and any other
devices that product heat.
• The lithium-ion rechargeable battery used in this charging
device may present a risk of fire or chemical burn if mistreated.
Do not expose to fire or excessive temperature. Do not expose
to heat above 212°F (100°C) or incinerate.
• In the unlikely event of leakage or explosion use sand or a
chemical fire extinguisher. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
• Your HALO BOLT ULTIMATE 2.0 may become warm under
extended high power operation. Do not cover, wrap, or
otherwise restrict the HALO BOLT ULTIMATE 2.0
during operation.
• Do not disassemble your HALO BOLT ULTIMATE 2.0. There are
no user-serviceable parts inside. Incorrect reassembly may result
in shock or fire hazard.
LIFE. ENERGIZED. | 3

• Do not drop or subject to strong impacts. Do not operate your
HALO BOLT ULTIMATE 2.0 if it has received a sharp blow, or has
otherwise been damaged in any way.
• Do not puncture, crush or subject to mechanical shock.
• Only charge your HALO BOLT ULTIMATE 2.0 by the specified
method with the specified charging adapter provided with the
unit. Use of an attachment not recommended or sold by power
pack manufacturer may result in a risk of fire, electric shock, or
injury to persons.
• Do not use any non-HALO-branded accessories with the
HALO BOLT ULTIMATE 2.0. Doing so may cause electric shock to
users and damage equipment.
• Do not operate the power pack with a damaged cord or plug,
or a damaged output cable.
• The HALO BOLT ULTIMATE 2.0, along with its accessories, are not
toys and should be kept away from children.
• To reduce risk of damage to the electric plug and cord, pull the
plug rather than the cord when disconnecting the power pack.
• Make sure the jumper cables are fully plugged into the jump
start output before trying to jump start your vehicle.
• Do not touch red (positive) and black (negative) jumper clamps
together at any point.
• Do not insert any foreign object into the ports or openings of
your HALO BOLT ULTIMATE 2.0.
• Do not clean your HALO BOLT ULTIMATE 2.0 with harsh
chemicals, soaps or detergents. Just wipe the case with
a soft cloth.
• When charging the internal battery, work in a well ventilated
area and do not restrict ventilation in any way.
• Make sure the HALO BOLT ULTIMATE 2.0’s charging ports do not
become contaminated with lint or other debris. Use a
canned-air type of product periodically to ensure that the port
openings are clear.
• Batteries should be recycled or disposed of as per state
and local guidelines.
• Discharge: 14°F – 104°F (-10°C – 40°C),
Charge: 32°F – 113°F (0°C – 45°C)
4| LIFE. ENERGIZED.

TABLE OF CONTENTS
Safety Precautions
Included Items
Operating Instructions
Troubleshooting Guides
Specifications
FCC Compliance
Warranty and Contact Information
3-4
6-7
8-17
12 & 15
17
18
19
LIFE. ENERGIZED. | 5

INCLUDED ITEMS
- HALO BOLT ULTIMATE 2.0
- Jumper Cables
- 20W PD Charging Adapter
- 24 Inch USB-C to USB-C Cable
HALO BOLT ULTIMATE 2.0
18
4
9
2
3
56
7
- Interchangeable Nozzle Kit
- 24 Inch Air Hose Extension
- Carry Pouch
13 14
1 | Jump Start Output
2 | Jump Start Button
3 | Digital Screen
4 | Pressure Unit Button
5 | USB ON/OFF Button
6 | USB-A Output
7 | USB-C Bidirectional
INPUT/OUTPUT
8 |
Air Compressor ON/OFF Button
9 | Pressure Settings (+) and (-)
10 | Air Hose

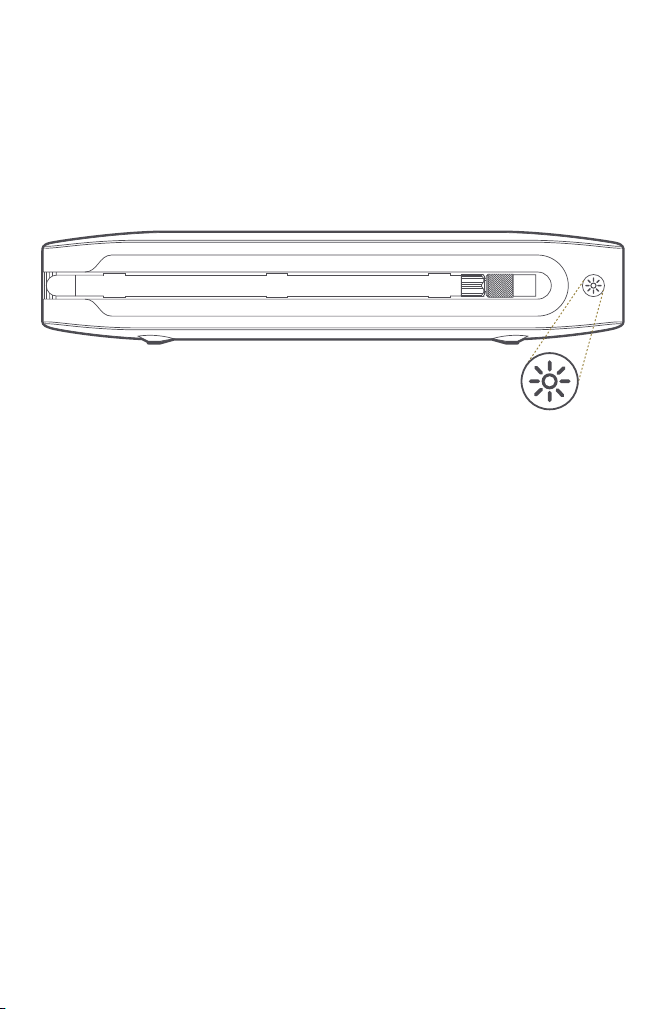

11 | Floodlight/Emergency Light
12 | Floodlight ON/OFF Button
13 | AC Output
14 | AC Power Button
15 | 24 Inch Air Hose Extension
16 | 20W PD Charging Adapter
17 | USB-C to USB-C
Charging Cable
18 | Jumper Cable Clamps
19 | Tapered Air Nozzles
20 | Inflation Needle
21 | Presta Valve Adapter
10
11 12
6| LIFE. ENERGIZED.

HALO BOLT ULTIMATE 2.0 ACCESSORIES
19
20
21
18
15
16
17
LIFE. ENERGIZED. | 7

OPERATING INSTRUCTIONS
CHARGING YOUR HALO BOLT ULTIMATE 2.0
To charge your HALO BOLT ULTIMATE 2.0, use the provided 20W
PD Charging Adapter and the USB-C to USB-C cable to plug into
the 20W PD input/output port. Next, connect the 20W PD
Charging Adapter into a wall outlet. The HALO BOLT ULTIMATE
2.0 will automatically begin charging. When fully charged, all five
battery indicator lights will be solid green and the digital screen
will indicate 100% charge. (This could take up to 9 hours).
While charging, the digital screen will illustrate the charge
percentage of the HALO BOLT ULTIMATE 2.0. When fully charged,
disconnect the cable.
CHARGING
NOTE: The HALO BOLT ULTIMATE 2.0 is
designed to charge between 32°F-113°F
(0-45° C). A "TEMP" indicator will be
illustrated on the digital display if the HALO
BOLT ULTIMATE 2.0 is attempted to be
charged outside of this temperature range.
8| LIFE. ENERGIZED.

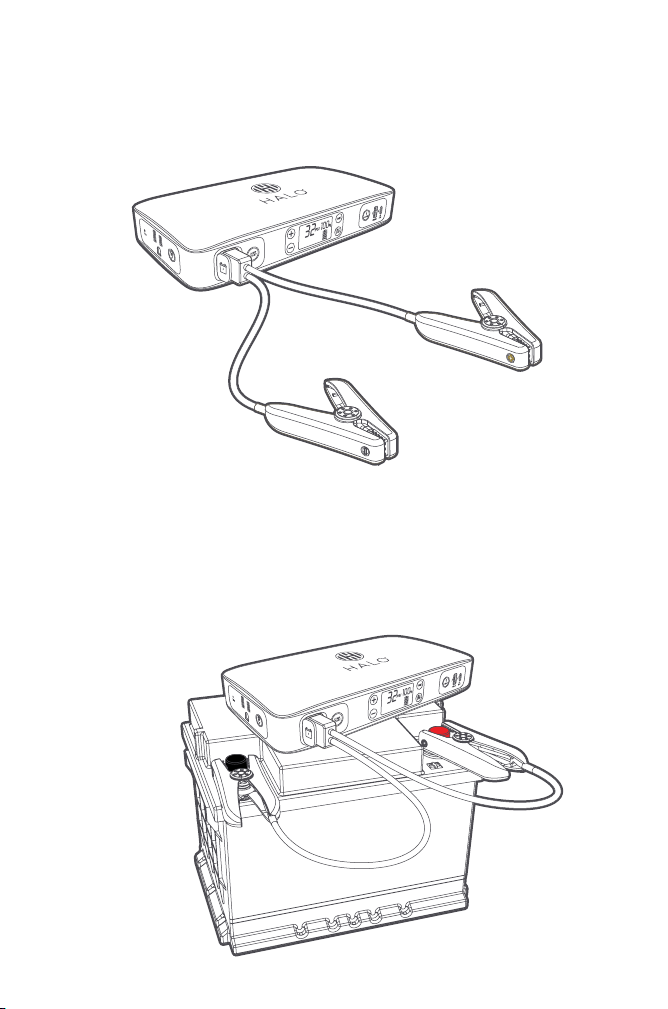

JUMP STARTING YOUR VEHICLE WITH THE HALO
BOLT ULTIMATE 2.0
1. Plug the jumper cables into the jump start output on the
HALO BOLT ULTIMATE 2.0.
2. Attach the jumper cable clamps to the vehicle battery.
- Red clamp on positive terminal (+)
- Black clamp on negative terminal (-)
NOTE: Make sure the jumper cables are fully plugged into
the jump start output before trying to jump your vehicle.
LIFE. ENERGIZED. | 9
POSITIVE
CLAMP
NEGATIVE
CLAMP

3. Press the “Jump Start” button and wait for solid green light.
4. Start your vehicle.
5. Disconnect the jumper cable clamps from the car battery.
NOTE: A flashing green light indicates safety checks
are in progress.
NOTE: If your vehicle fails to start after the first attempt, wait 30
seconds and repeat step 3 and step 4.
If your vehicle does not start after three attempts, we
recommend you consult a certified mechanic.
NOTE:
• Once the jumper cable clamps are attached to the
vehicle battery, the digital screen will display the vehicle
battery voltage.
• Do not touch red (positive) and black (negative) clamps
together at any point. If the jump start button flashes red,
the jumper cables have been connected incorrectly. If this
flashing red condition occurs, disconnect the jumper cables
from vehicle battery and restart the process from Step 1.
10 | LIFE. ENERGIZED.

LIFE. ENERGIZED. | 11
NOTE: The jump start function cannot be used in conjunction
with the USB and AC output or the air compressor. Please
ensure that you have not activated the USB/AC or Air
Compressor output modes when attempting to jump start
your vehicle.
NOTE: The HALO BOLT ULTIMATE 2.0 is designed to allow a
jump start when used within a safe temperature range. A
"TEMP" indicator will be illustrated on the digital display if
used outside of the temperature operating range.

JUMP START TROUBLESHOOTING TIPS
NOTE: If none of these troubleshooting tips work, please
consult a certified mechanic for assistance.
CONDITION POTENTIAL CAUSE SOLUTION
HALO BOLT ULTIMATE
2.0 Jump Start button
has been pressed but
nothing happens.
HALO BOLT
ULTIMATE 2.0
displays a red BATT
TOO LOW message.
HALO BOLT
ULTIMATE 2.0
Jump Start
button flashes
red and a SAFETY
CHECK FAIL
message is
displayed.
HALO BOLT
ULTIMATE 2.0
Jump Start
button flashes
green
continuously.
HALO BOLT
ULTIMATE 2.0
displays a blue or
red TEMP indicator.
The USB ON/OFF Button or
the Air Compressor ON/OFF
Button has been pressed.
The HALO BOLT
ULTIMATE 2.0 is not
sufficiently charged to
jump start the vehicle.
The jumper cables have
not been properly
connected to the
vehicle battery.
The HALO BOLT ULTIMATE
2.0 is waiting to be
connected to a battery or a
SAFETY CHECK FAIL has
been triggered.
The jump start output can not be
used in conjunction with the USB
output or air compressor modes.
Ensure that both USB and AIR
Compressor modes are off.
Recharge the HALO BOLT
ULTIMATE 2.0 and verify at
least 50% charged. Then try
the jump start process again.
Check the jumper cables and
ensure that the red clamp is
connected to the positive
terminal (+) and the black
clamp is connected to the
negative terminal (-).
Check the jumper cables and
ensure they are properly
connected to the battery. Check
and ensure the vehicle battery
voltage is greater than 2.0V. If
the SAFETY CHECK FAIL
indicator is triggered during the
jump start process, it is
recommended that you consult
with a certified mechanic.
The HALO BOLT
ULTIMATE 2.0 has
detected a low or high
temperature condition.
Disconnect the HALO
BOLT ULTIMATE 2.0 and
allow unit to acclimate to
temperature operating
range (14°F-122°F).
You cannot successfully
jump start your vehicle. The
HALO BOLT ULTIMATE 2.0
displays a vehicle battery
voltage greater than 12.0V.
The HALO BOLT ULTIMATE 2.0
detects that it is connected to
a vehicle battery with a
normal starting voltage. This
could indicate that another
vehicle component is faulty.
HALO BOLT ULTIMATE
2.0 Jump Start and
On/Off button flashes
red and blue.
This could occur when
attempting to jump start a
vehicle while other electrical
components (i.e. headlights,
heater, radio, etc.) are on.
Turn off your headlights and
any other components that
may drain your car battery and
try the jump start process again.
It is recommended that you
consult with a certified
mechanic.
It is recommended that you
consult with a certified
mechanic.
The vehicle battery may
be faulty.
BATT
TOO
LOW
TEMP
TEMP
12 | LIFE. ENERGIZED.

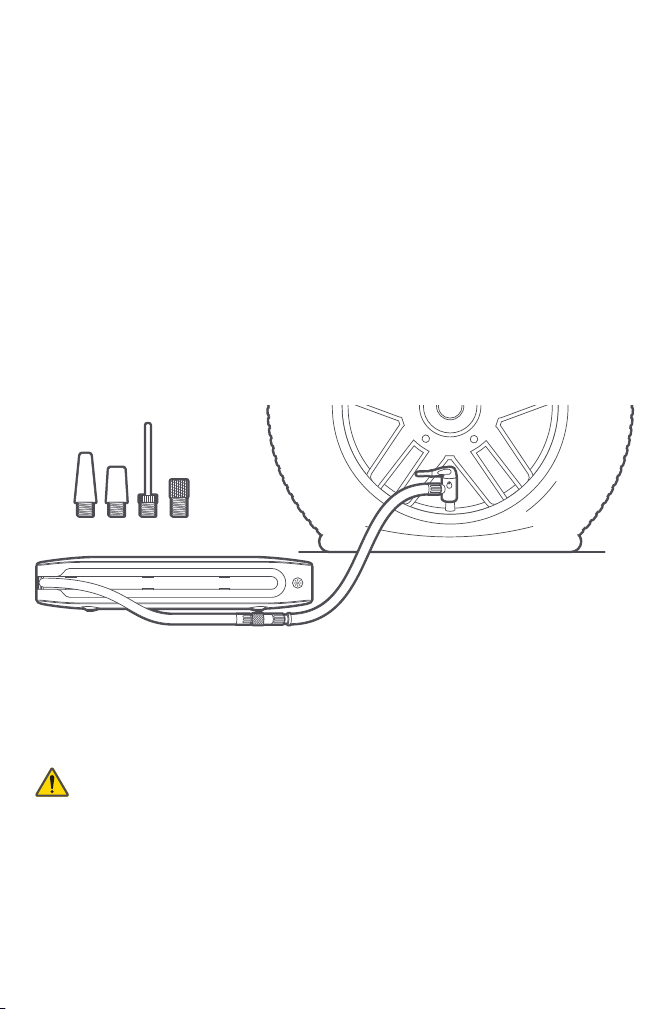

HALO BOLT ULTIMATE 2.0 COMPRESSOR
The HALO BOLT ULTIMATE 2.0 comes equipped with a 24 Inch Air
Hose Extension and Interchangeable Air Nozzles. Simply twist on
the corresponding nozzle to inflate balls, pool floaties, bike tires,
and more!
1. Connect the air hose to the tire or use the appropriate nozzle to
connect to your inflatable device
2. Press the (+) or (-) button to set the desired pressure.
The pressure measuring units can be changed by
pressing the UNIT button.
3. Once the desired pressure has been set, begin inflating by
pressing the Air Compressor ON/OFF button. The air
compressor will shut off automatically once the pressure has
been reached.
NOTE: The air compressor can be started or stopped at any point
by pressing the air compressor ON/OFF button. The (+) and (-)
may be long pressed to set the desired pressure quickly.
NOTE: Always check and follow the manufacturer's
recommended pressure. Use caution as the air hose and
connectors may get hot after extended use. The HALO BOLT
ULTIMATE 2.0 compressor is designed to automatically stop
after an extended run-time or if an over-temperature
protection set point is reached.
LIFE. ENERGIZED. | 13

14 | LIFE. ENERGIZED.
CHARGING A LAPTOP (VIA THE AC OUTPUT PORT)
1. Connect the AC power plug from your laptop (or other
electronic device which is rated at 75 watts or less) into the AC
output port of the HALO BOLT ULTIMATE 2.0 charger.
NOTE: Any electronic device can be powered by the AC output
port as long as it is rated at 75 watts or less. BE SURE TO CHECK
THAT YOUR LAPTOP OR OTHER ELECTRONIC DEVICE IS RATED
AT 75 WATTS OR LESS.
2. Press the AC Power ON/OFF Button and wait for a solid green
light
NOTE: Make sure the AC power plug is fully plugged into the AC
output port before pressing the AC Power ON/OFF Button.
NOTE: A flashing green light indicates safety checks are in
progress.
If you see a flashing red light, the device you connected is rated
for greater than 75 watts and cannot be powered using the HALO
BOLT ULTIMATE 2.0 charger.
The HALO BOLT ULTIMATE 2.0 charger will automatically power
off after 30 minutes of inactivity. While jump starting your vehicle,
you cannot charge your electronic devices using the USB or AC
output ports and you cannot charge the HALO BOLT ULTIMATE
2.0 battery via the AC wall adapter.

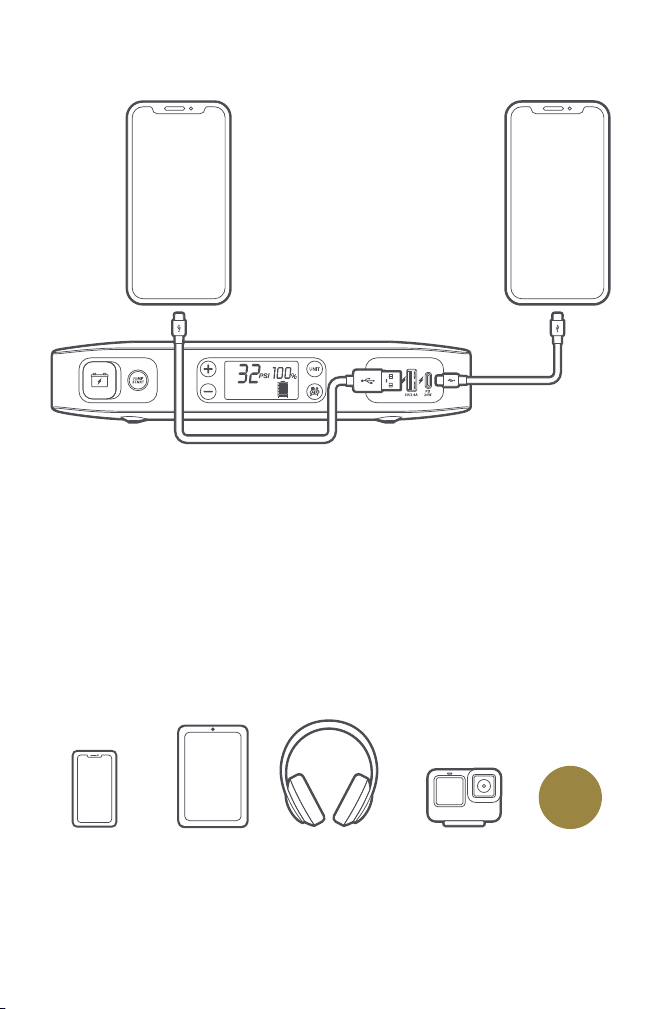

CHARGING AN ELECTRONIC DEVICE
USING THE USB OUTPUT PORTS
1. Use the charging cable provided with your electronic device,
connect to either of the USB-A or USB-C outputs, located on
the front of your HALO BOLT ULTIMATE 2.0.
2. Turn on the USB charging by pressing the USB Power ON/OFF
Button on the HALO BOLT ULTIMATE 2.0.
LAPTOP CHARGING TROUBLESHOOTING TIPS
CONDITION POTENTIAL CAUSE SOLUTION
HALO BOLT
ULTIMATE 2.0
displays a blue or
red TEMP indicator.
TEMP
TEMP
HALO BOLT
ULTIMATE 2.0
AC button flashes red.
HALO BOLT ULTIMATE 2.0
shuts off unexpectedly.
Electronic device is rated at
greater than 75 watts.
The HALO BOLT ULTIMATE
2.0 battery is not sufficiently
charged to power the
connected electronic device.
Only electronic devices rated
at 75 watts or less can be used
with the HALO BOLT
ULTIMATE 2.0 charger.
Recharge the
HALO BOLT ULTIMATE 2.0
battery.
The HALO BOLT ULTIMATE
2.0 battery is not sufficiently
charged to power the
connected electronic device.
Recharge the
HALO BOLT ULTIMATE 2.0
battery.
The HALO BOLT
ULTIMATE 2.0 has
detected a low or high
temperature condition.
Disconnect the HALO BOLT
ULTIMATE 2.0 and allow
unit to acclimate to
temperature operating
range (14°F-122°F)
(-10°C-50°C).
LIFE. ENERGIZED. | 15

HALO SMART CHARGE TECHNOLOGY
Your HALO BOLT ULTIMATE 2.0 contains the HALO SMART CHARGE
TECHNOLOGY to achieve higher compatibility for fast charging USB
devices. The HALO SMART CHARGE TECHNOLOGY will allow the
HALO BOLT ULTIMATE 2.0 to communicate with your electronic
device and provide the fastest and safest charge for that device.
COMPATIBILITY
Standard 5V USB electronic devices including:
+
more!
NOTE: The HALO BOLT ULTIMATE 2.0 USB charging feature will
automatically power off after 30 minutes of inactivity.
16 | LIFE. ENERGIZED.
Mobile
Phones
Tablets Digital
Cameras
Wireless
Headphones

USING YOUR HALO BOLT ULTIMATE 2.0 FLOODLIGHT
The floodlight can be turned on and off by simply pressing and
releasing the floodlight ON/OFF button. The first press will turn on
the floodlight. Second press will turn on the red emergency light.
Third press will turn on SOS flashing red light. The floodlight
will automatically turn off after 2 hours of inactivity.
SPECIFICATIONS HALO BOLT ULTIMATE 2.0
Battery Cells: 3x Li-Polymer 5000mAh
Battery Pack Energy: 55500 mWh
Input: 5V/3A, 9V/2.22A, 12V/1.67A
Jump Start: 12V/600Amps
Air Compressor: 130PSI max
USB-A Output: 5V/2.4A
USB-C Output: 5V/3A, 9V/2.22A, 12V/1.67A
AC Output (nominal): 115VAC/60Hz
Rated Power: 75W
Dimensions: 10 x 4.06 x 1.93 inches
Weight: 2.8 lbs
Operating Temperature: 32°F - 104°F (0°C - 40°C)
NOTE: Do not look directly into the LED floodlight.
LIFE. ENERGIZED. | 17
FLOODLIGHT
ON/OFF BUTTON

COMPLIANCE WITH FCC REGULATION
This device complies with part 15 of the FCC Rules and RSS-Gen of
IC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAUTION: To comply with the limits of the Class B digital device,
pursuant to Part 15 of the FCC Rules, this device must be used
with certified peripherals and shielded cables. All peripherals
must be shielded and grounded. Operation with non-certified
peripherals or non-shielded cables may result in interference to
radio or reception.
18 | LIFE. ENERGIZED.

LIMITED WARRANTY
At HALO, we are dedicated to making the best quality products.
To back this up, this product is warranted. HALO warrants its
products to be free from defects in material and workmanship
under normal use. During the first 90 days from date of purchase,
HALO will repair or replace the defective product. This warranty
does not affect any statutory rights that you may be entitled to.
Keep a copy of your purchase receipt as proof of purchase.
For all questions about the warranty or exchange requests, please
call 888-907-6274.
All copyrighted and copyrightable materials, including, without
limitation, the logo, design, text, graphics, pictures, copy writing
and the selection and arrangement (“Materials”) thereof are ALL
RIGHTS RESERVED Copyright © 2023 Alliance Sports Group, L.P.
Alliance Consumer Group
700 Henrietta Creek Road
Roanoke, Texas 76262
Made in China
LIFE. ENERGIZED. | 19

PRODUCT REGISTRATION
www.HALOPOWER.com
