Hama 53157 User manual

WIRELESS LAN
00053157
WLAN IP-Kamera 150 Mbps
dOriginal-Bedienungsanleitung
gUser manual

58 00053157
g
Table of Contents
Introduction .....................3
Foreword........................3
Information on this
user manual .....................3
Copyright........................3
Liability disclaimer4
Intended use .....................4
Warnings ........................5
Safety ..........................6
Danger of electric shock ............6
Fundamental safety precautions.....7
Description .....................8
Front view .......................8
Rear view .......................9
Installation and connection.......10
Safety guidelines.................10
Unpacking ......................10
Checking contents
and packaging. ..................10
Requirements for operation ........11
Requirements for place of operation .11
Setting up ......................12
Fixing to awall/ceiling.............12
Electrical connection..............12
Connecting the mains adapter ......13
Connecting the camera to the
network (LAN)...................13
Startup ........................13
Switching the device on and off.....13
Installation ......................14

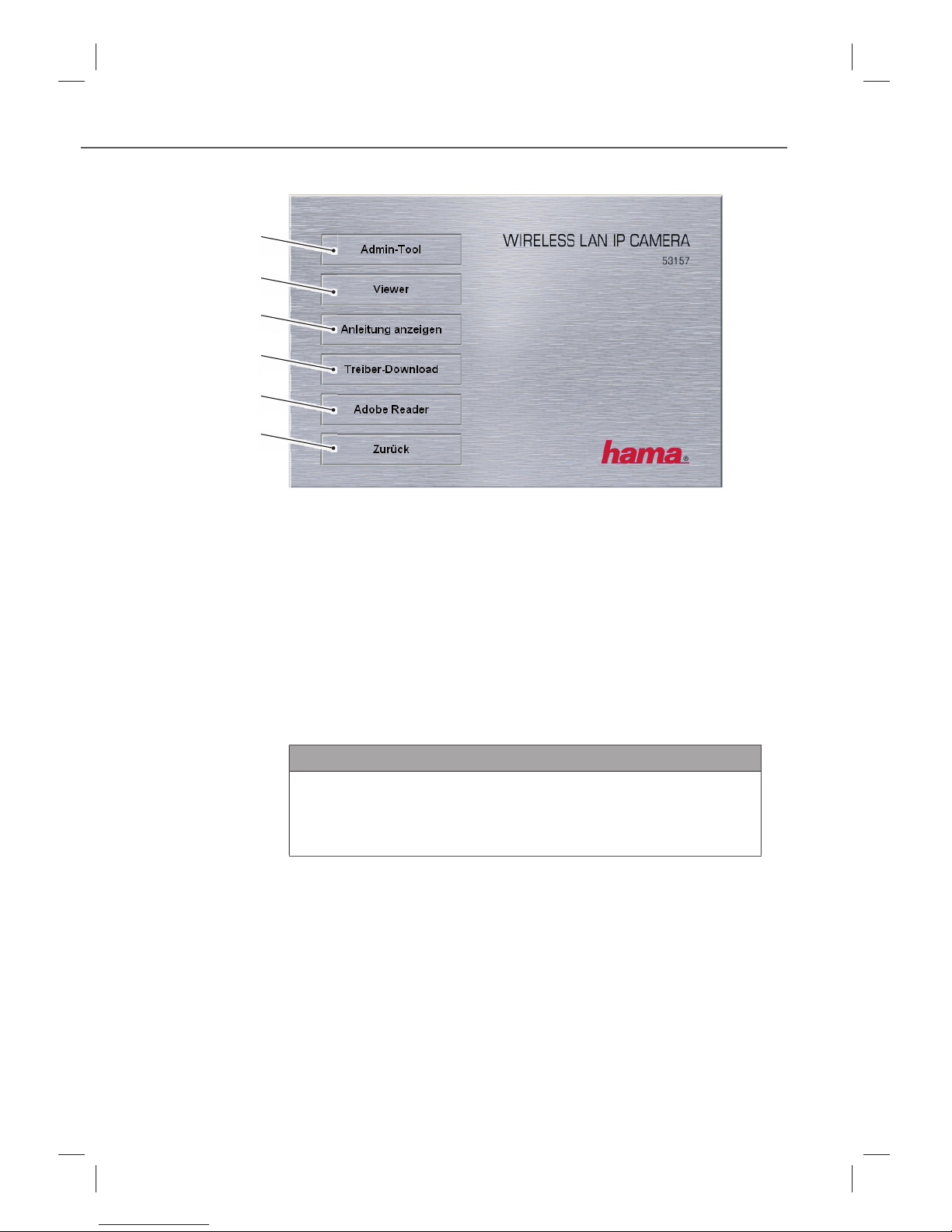

Installing the software ..........14

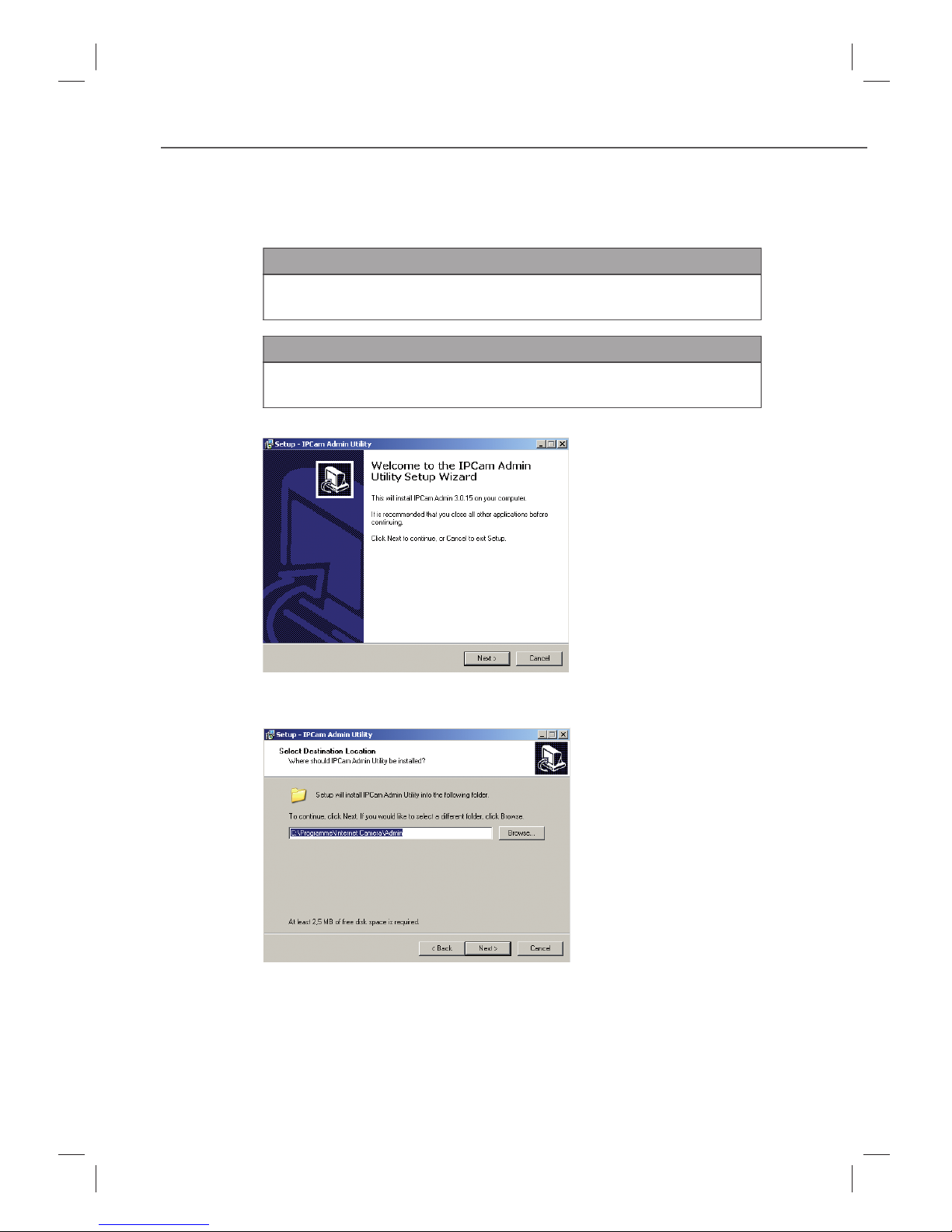

Installing the conguration
software.....................17
Establishing connection to the device 19

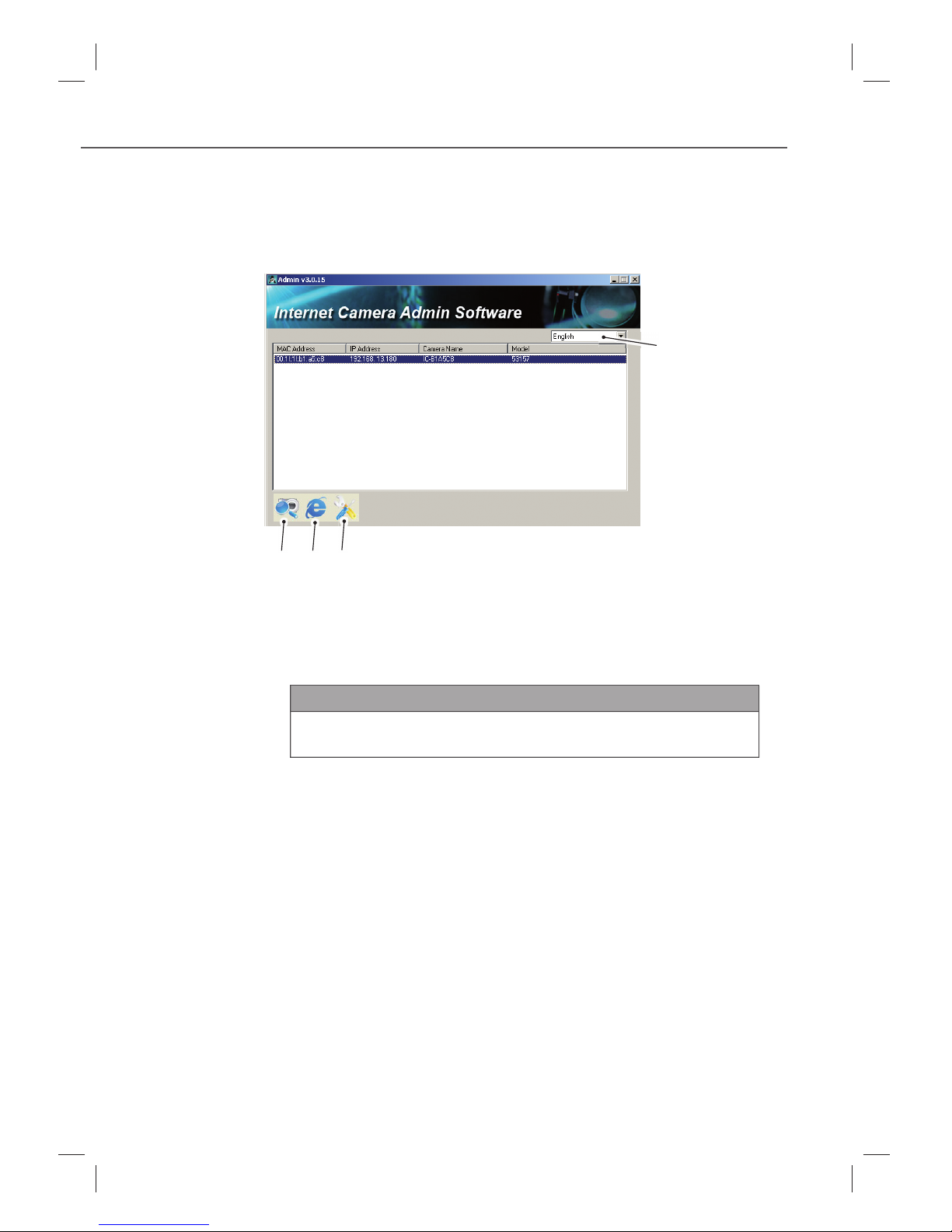

IPCam Admin Utility ..............20
Network- and
security settings .................21
LAN settings .................21
Security settings ..............22
Operation and conguration......23
Loading the user interface .........23
Login ..........................24
The user interface................25
Language selection............25
Display area .................26
Menu bar....................26
Menu items .....................27
Camera .....................27
LAN ........................29
WLAN ......................33
Video .......................37
Email/FTP ...................40
Motion detection..............42
Schedule ....................44
System .....................45
Utilities......................47
Status ......................49
Account .....................49
Log ........................50
Factory settings..................51
Troubleshooting ................52
Troubleshooting chart .............52
Frequently askedquestions (FAQs)..53
Appendix ......................55
Notes on disposal ................55
Support and contact information ....55
Technical data ...................56
Original user manual

59
Introduction
00053157
g
Introduction
Foreword
Dear Customer,
By purchasing this WLAN IP Camera 150 Mbps, you have decided in
favour of a quality product from Hama that corresponds to the latest
development standards with respect to technology and functional
performance.
Please read the information contained in this user manual to familiar-
ise yourself quickly with the device and be able to make full use of its
functions.
We wish you a lot of pleasure with the device.
Information on this user manual
This user manual is an integral part of the WLAN IP Camera 150 Mbps
(hereinafter referred to as device) and contains important information
on the intended use, safety, connection and conguration of the
device.
Keep this user manual in a safe place and pass it on to any future
owners together with the device.
Copyright
This documentation and the enclosed software is protected by copy-
right.
Any duplication or reprinting, in whole or in part, as well as reproduc-
tion of any illustrations even in modied form is only permitted with
the written approval of the manufacturer.
Hama grants the buyer the non-exclusive right to use the enclosed
software for the operation of the device. The Licensee may only
make one copy of the software, which is only to be used for backup
purposes.
Unless otherwise indicated, all trademarks and logos mentioned
are trademarks of Hama GmbH and are protected by law. Microsoft,
Windows and the Windows logo are trademarks of Microsoft Corpo-
ration. All other product and company names are trademarks of their
respective owners.

60
Introduction
00053157
g
Liability disclaimer
All technical information, data and instructions on installation, opera-
tion of the device contained in this user manual represent the current
status at the time of printing and are based on the best possible
knowledge gained by experience and know-how.
The manufacturer assumes no liability for damage or injury result-
ing from failure to observe the user manual, use for other than the
intended purpose, unprofessionalrepairs, unauthorised modications
or use of non-approvedspare parts.
Intended use
This device is intended to be used for surveillance of secluded or
critical areas and for playback of recorded images via acomputer
connected to anetwork (LAN or WLAN) in closed rooms.
Any use other than previously stated is considered as improper use.
WARNING
Danger resulting from improper use!
If not used for its intended purpose or used in any other way,the
device may be or become asource of danger.
►Only use the device for its intended purpose.
►Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage or injury resulting
from use of the device for other than its intended purpose.
The risk must be borne solely by the operator.
NOTE
►It is not permitted to publish personal lm material without prior
permission of the persons concerned.
►Observe any special regulations on video surveillance in indus-
trial, commercial and public areas.
►Video surveillance does not exempt you from your duty to
exercise due diligence, or from your welfare and supervisory
obligations.

61
Introduction
00053157
g
Warnings
The following warnings are used in this user manual:
DANGER
Awarning of this category indicatesanimpending dangerous
situation.
If the dangeroussituation is not avoided, it may lead to serious
injury or even death.
►Followthe instructionsinthis warning to avoidthe danger of
serious injury or even death.
WARNING
Awarning of this category indicatesapotentially dangerous
situation.
If the dangeroussituation is not avoided, it may lead to injuries.
►Followthe instructionsinthis warning to avoidthe risk of injury.
CAUTION
Awarning of this category indicatespotential material dam-
age.
If the situation is not avoided, it may lead to material damage.
►Followthe instructionsinthis warning to avoidmaterial damage.
NOTE
►Anote indicates additional information that simplies the use of
the device.

62
Safety
00053157
g
Safety
This device complies with the prescribed safety regulations. How-
ever,improper use can result in personal injury and/or damage to the
device.
Danger of electric current
DANGER
Danger to life by electric current!
Contact with live wires or components could lead to serious
injury or even death!
Observe the following safety precautions to avoid electric shocks:
►Do not use this device if the mains adapter,power cable or plug
is damaged.
►Do not open the housing of the mains adapter.Danger of elec-
tric shock if live connections are touched and/or the electrical
and mechanical conguration is changed.

63
Safety
00053157
g
Fundamental safety precautions
Observe the following safety instructions to ensure safe handling of
the device:
■Inspect the device for visible signs of damage before use. Do not
use adamaged device.
■Do not allow children to play with the device.
■Persons who due to their physical, mental or motor response
abilities are unable to operate the device may only use it under
supervision or instruction by aresponsible person.
■Do not open the device. Unauthorised opening and repairs can
lead to considerabledanger for the user and cause serious
damage to the device. Only allow qualied persons to carry out
repairs. Improper repairs will void the warranty.
■Repairs to the device during the warranty period may only be
carried out by service centres authorised by the manufacturer,
otherwise the warranty will become void in the event of subse-
quent damage.
■Defective parts may only be replaced with original spare parts.
Only original spare parts guarantee that the safety requirements
are met.
■Clean the housing of the device with aslightly damp cloth. Do not
use any aggressive or abrasive cleaning agents or solvents.
■Do pull on the power cable to remove the mains adapter from the
mains socket
■Electronic devices are delicate, so avoid knocks and blows.
■Disconnect the mains adapter from the mains socket in the event
of faults or during thunderstorms.

64
Description
00053157
g
Description

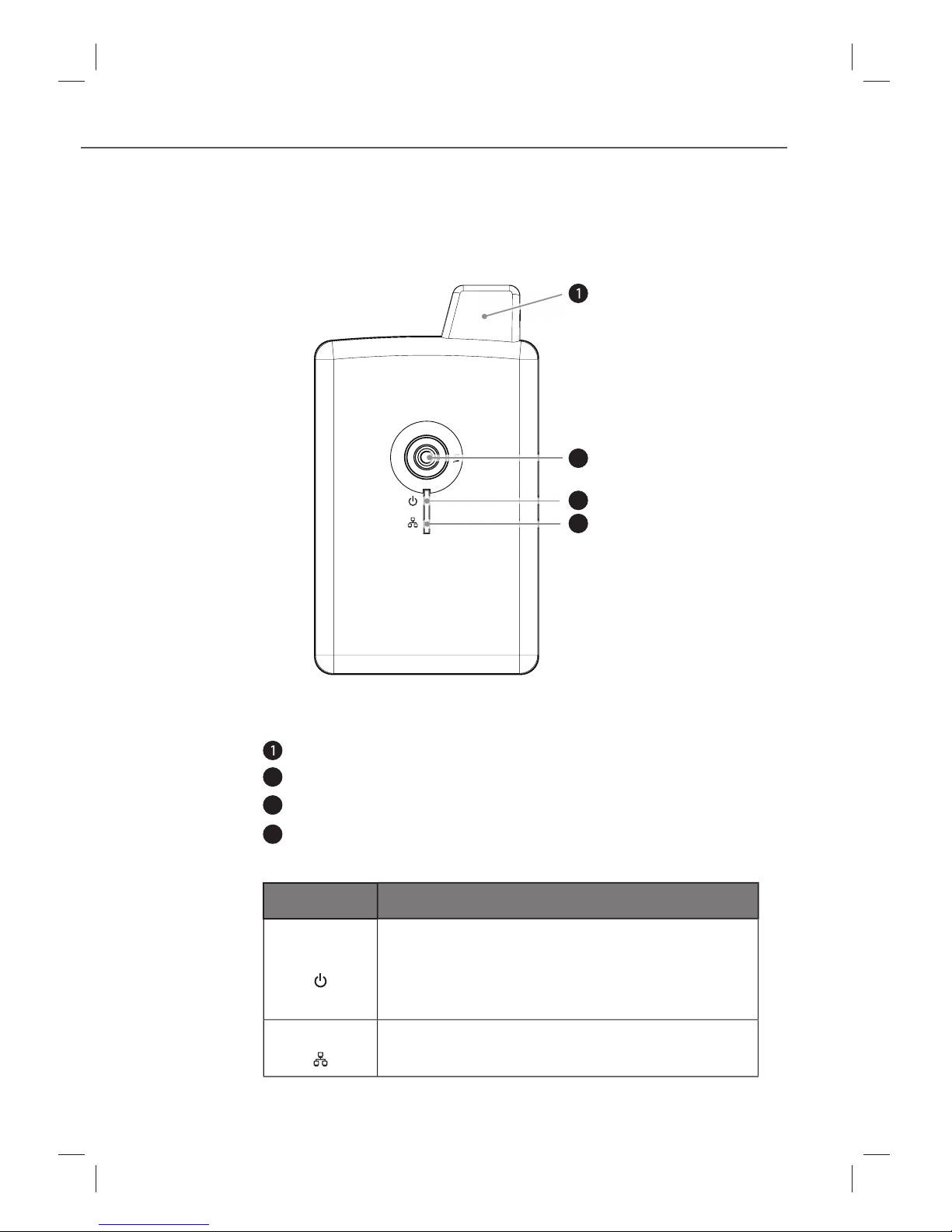

Front view
D
U
A
L
M
O
D
E
I
N
T
E
R
N
E
T
C
A
M
E
R
A
2
3
4
C
A
A
A
M
M
M
WLAN antenna (integrated)
2Camera lens
3Blue LED: status
4Green LED: network
LED Description
Status
Lights up continuously: system is switched on
Flashes slowly: camera is booting
Flashes fast: camera is waiting for WPS connec-
tion
Network Lights up continuously: network is connected
Flashes: network access

65
Description
00053157
g
Rear view
5
6
7
8
/
POWER LAN
/
/
/
/
/
/
/
POW
E
5Thread connection for tripods
6Socket for the mains adapter
7Reset/WPS button
8RJ-45 network connection
Designation Description
Resetting Press the reset button for at least 5seconds to
revert to the factory settings.
WPS
Brieypress the WPS button on the camera and
the device to be connected to establish awireless
connection.

66
Installation and connection
00053157
g
Installation and connection
Safety precautions
DANGER
Damage to the device or to persons could occur during start-
up of the device!
Observe the following safety precautions to avoid danger:
►Never play with packaging material. Risk of suffocation.
►Keep the contents of this package away from children. The
package contains small parts that can be swallowedbychildren.
Unpacking
Take all parts of the device includingthe user manual out of the
box.
Remove all packing materials from the device before using for the rst
time.
Checkingcontents and packaging
The device is supplied with the following componentsasstandard:
●WLAN IP camera
●Tripod and installation material
●Mains adapter
●RJ-45 network cable
●Installations CD
●User manual
NOTE
►Check for visible signs of damage or missing items on delivery.
Report incomplete or damaged items to your supplier/retailer
immediately.
