Hamamatsu Photonics C9300-201 User manual

8101172-02
Digital CCD Camera
C9300-201
Instruction Manual
Thank you for your purchase.
CAUTION
• Follow the safety precautions in Chapter 1 in order to avoid
personal injury and damage to property when using this camera.
The manual describes the correct method of handling C9300-201
camera and provides cautions in order to avoid accidents. Read
this manual carefully beforehand use the camera correctly.
• After reading the manual, store it in a location where you can refer
to it at any time.
Ver.1.2
April 2007
HAMAMATSU PHOTONICS K.K.

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 1
1. SAFETY PRECAUTIONS
We have classified the warnings symbols that appear in this instruction manual and on the
camera as follows for your convenience. Make sure that you fully understand them and obey
the instructions they contain.
WARNING
Improper handling of the camera without observing these warnings could
lead to serious injury to the user and even death.
CAUTION
Improper handling of the camera without observing these cautions could
lead to personal injury to the user or damage to property.
Note
This symbol indicates a note to help you get the best performance from the camera.
Read the contents of the note carefully to ensure correct and safe use. Failure to
observe one of these notes might impair the performance of the camera.
This symbol indicates a cautionary item that should be obeyed when handling the
camera. Read the contents carefully to ensure correct and safe use.
This symbol indicates an action that is forbidden.
Read the contents carefully and be sure to obey them.
This symbol indicates a compulsory action or instruction.
Read the contents carefully and be sure to obey them.

C9300-201 Ver.1.2
2H AMAMATSU PHOTONICS K.K.
WARNING
Power Supply
Use the camera with the voltage indicated on the rating. Using a
different voltage can damage the camera and lead to fire or electric
shock.
Cables
Be careful not to place heavy objects on cables or bend it excessively.
Doing so can damage the cable and lead to fire or electric shock.
Do not attempt to dismantle or modify the camera
Doing so can also lead to damage and even injury, as some internal
components become very hot. Only touch parts as indicated in this
manual.
Do not allow foreign objects such as combustible substances,
metal objects or water to get inside the camera. They can damage the
camera and lead to fire or electric shock.
If an abnormality occurs,
such as the image suddenly disappearing or a strange noise, smell or
see smoke coming from the camera, turn the power off immediately and
contact Hamamatsu subsidiary or local distributor. In case the repair is
needed, it should be always treated at Hamamatsu side.

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 3
CAUTION
Connecting and disconnecting cables
Always turn off the power before connecting and disconnecting cables.
Fixing the camera
When fitting the camera to a tripod, for example, use the screw
(1/4-20UNC) in the center of a camera mount. Be careful that the fitting
screw does not enter more than 5 mm from the surface of the mount.
Screwing it in excessively can impair normal operation.
Shipping precautions
When transporting the camera by truck, ship, airplane, etc., wrap it
securely in packaging material or something similar.
Strong Impact
Do not subject the camera to strong shocks by dropping it, for example.
Doing so can damage the camera.
Disposal
When disposing of the system, take appropriate measures in
compliance with applicable regulations regarding waste disposal and
correctly dispose of it yourself, or entrust disposal to a licensed
industrial waste disposal company. In any case, be sure to comply
with the regulations in your country, state, region or province to ensure
the system is disposed of legally and correctly.

C9300-201 Ver.1.2
4H AMAMATSU PHOTONICS K.K.
2. CHECK THE CONTENTS OF PACKAGE
When you open the package, check that the following items are included before use. If the
contents are incorrect, insufficient or damaged in any way, contact Hamamatsu subsidiary
or local distributor without attempting to operate the camera.
Digital CCD camera 1
Lens mount cap (attached to the camera) 1
C9300-201 instruction manual (this booklet) 1
[Option]
AC adapter (Accessories: Power supply cord) A3472-06
Camera cable
A3194-00 (2 m)
A3194-01 (5 m)
A3194-02 (10 m)
A3194-03 (25 m)
CameraLink interface cable A9262-05 (5 m)
A9262-10 (10 m)
Note • The cable listed in option is highly recommended for use with the camera.
The camera system may not confirm to CE marking regulation if other
type of cable is used with.
3. INSTALLATION
Do not use or store the camera these locations.
• Where the ambient temperature may fall below 0 °C or rise above 40 °C
• Where the temperature fluctuates sharply
• In direct sunlight, or near a source of heat
• Where the humidity exceeds 70 %, or where it is exposed to water
• Near sources generating strong magnetic or electrical fields
• Where there is vibration
• Where it comes in contact with corrosive gases (chlorine, fluorine, etc.)
• Dusty locations

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 5
C
Co on nt te en nt ts s
1. SAFETY PRECAUTIONS............................................................................ 1
2. CHECK THE CONTENTS OF PACKAGE................................................... 4
3. INSTALLATION........................................................................................... 4
4. OVERVIEW.................................................................................................. 7
5. FEATURES.................................................................................................. 7
6. NAME AND FUNCTION OF THE PARTS................................................... 8
6-1 CAMERA.............................................................................................................8
7. CONNECTING CABLES........................................................................... 10
8. OPERATION.............................................................................................. 11
8-1 PREPARATION FOR IMAGING........................................................................11
8-2 IMAGING...........................................................................................................11
8-3 END OF IMAGING.............................................................................................11
9. IMAGE ACQUISITION............................................................................... 12
9-1 THEORY OF CCD.............................................................................................12
9-2 OVERVIEW OF CAMERA MODES...................................................................13
9-3 DETAIL OF CAMERA MODES.........................................................................13
9-3-1 DIGITAL OUTPUT BIT COUNT ............................................................................................ 13
9-3-2 CCD OUTPUT MODE .......................................................................................................... 14
9-3-3 DETAIL ON CCD SCANNING (SCAN MODE) ..................................................................... 14
9-3-4 EXPOSURE TIME SETTING ............................................................................................... 15
9-3-5 FAST REPETITION MODE .................................................................................................. 23
10. COMMAND SPECIFICATIONS................................................................. 26
10-1 TRANSMISSION INTERFACE..........................................................................26
10-2 COMMAND FORMAT .......................................................................................26
10-3 CAMERA RESPONSE TO COMMANDS..........................................................26
10-4 OVERVIEW OF COMMANDS...........................................................................28
10-5 COMMAND INITIAL SETTING..........................................................................30
10-6 DETAIL OF COMMANDS .................................................................................31
11. PRECAUTIONS WHEN USING THE CCD................................................ 36
12. MAINTENANCE ........................................................................................ 37
12-1 CARE.................................................................................................................37
13. TROUBLESHOOTING CHECKLIST......................................................... 38
13-1 IMAGE NOT TRANSFERRED ..........................................................................38
13-2 ALTHOUGH IMAGES ARE TRANSFERRED...................................................38
14. SPCIFICATIONS ....................................................................................... 39
14-1 CAMERA SPECIFICATIONS............................................................................39
14-2 SPECTRAL RESPONSE CHARACTERISTICS ...............................................40
14-3 CAMERALINK INTERFACE SPECIFICATIONS ..............................................41
14-3-1 CAMERALINK INTERFACE ................................................................................................. 41

C9300-201 Ver.1.2
6
14-3-2 TIMING I/O CONNECTOR PIN ASSIGNMENTS [TIMING I/O]............................................43
14-3-3 CAMERA CONNECTOR PIN ASSIGN MENT [POWER] .....................................................43
14-4 IMAGE DATA OUTPUT TIMING SPECIFICATIONS........................................44
15. DIMENSIONAL OUTLINES....................................................................... 45
15-1 CAMERA...........................................................................................................45
16. WARRANTY.............................................................................................. 46
17. CONTACT INFORMATION....................................................................... 47

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 7
4. OVERVIEW
The C9300-201 is a small size and high performance digital CCD camera with 12 bit output.
The camera meets the demand in the industrial/scientific field for high accuracy and high
quality imaging. And it is based on CameraLink and can output the image data into the
CameraLink board on market.
5. FEATURES
(1) High speed
Equipped with a high-speed solid-state imaging device having 640 (horizontal) × 480
(vertical) pixels. Pixels are square, facilitating image processing for measurement
purposes.
(2) Dual readout
The CCD has dual readout amplifiers for the half left side area of the CCD and right
side. (When using single readout mode, only left side amplifier is used.) So you can
obtain the image data with quite high frame rate.
Note • Dual readout mode uses two-separated readout Amp whose performance is not
perfectly same. Due to the readout Amp characteristics variation, you may see
little intensity gap between right side and left side in one image even though the
fine adjustment is done at factory before shipping. Single readout mode is
recommended to achieve the best possible image quality.
(3) Digital output
Image signals are converted from analog to digital in the camera and output externally
as 12 bit digital data. (Transmission line length: max. 10 m, based on CameraLink.)
(4) Small Head
Small, lightweight camera allows for a construction that is extremely easy to use in
such applications as microscopic measurement and spectrometry.
(5) Lens mount
C-mount used for the lens mount.

C9300-201 Ver.1.2
8H AMAMATSU PHOTONICS K.K.
6. NAME AND FUNCTION OF THE PARTS
6-1 CAMERA
Fig. 6-1
① Lens mount
C-mount lens or optical system with C-mount can be attached.
Note
• C-mount has a depth of 7 mm. Screwing the lens too far into
the camera may scratch the glass surface.
② Camera connector [POWER]
The camera is supplied a power supply from this connector. Following is the
specifications of the power supply.
Camera
Power supply voltage DC 12 V ± DC 0.6 V
Electric current capacity + 1 A
Ripple noise Peak to peak 150 mV
○
1○ 4
○
3
○
5○ 6○ 2

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 9

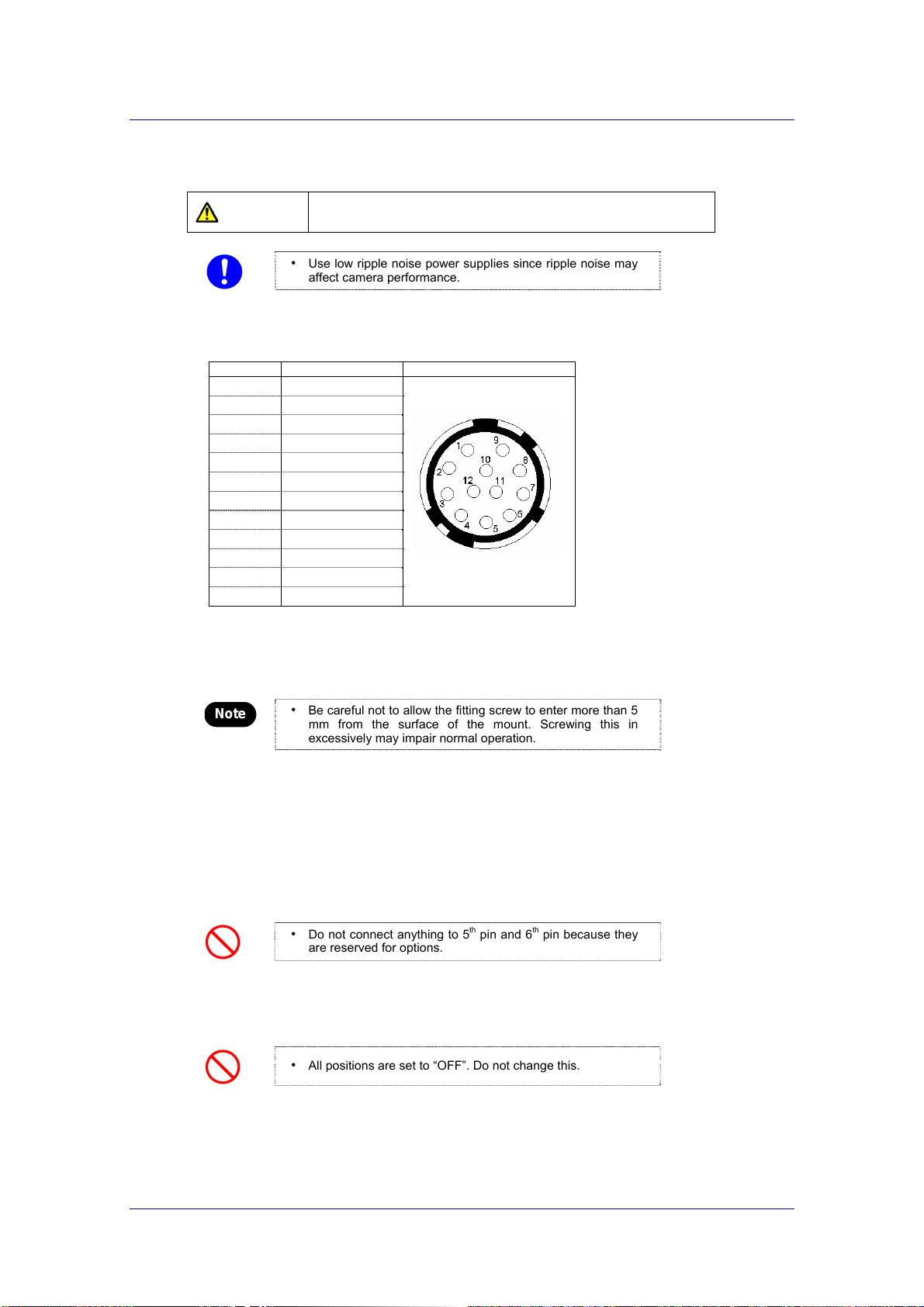

CAUTION • Power supply must satisfy the above specifications to prevent
trouble with the camera.
• Use low ripple noise power supplies since ripple noise may
affect camera performance.
The camera employs Hirose model HR10A-10R-12PB connector.
Number Signal Pin connection
1 GND (Camera)
2 12 V (Camera)
3 NC
4 NC
5 NC
6 NC
7 NC
8 NC
9 NC
10 NC
11 NC
12 NC
HR10A-10R-12PB
③ Camera mount
Jig for fixing the camera. Used when mounting the camera on a tripod or other fixture.
Note • Be careful not to allow the fitting screw to enter more than 5
mm from the surface of the mount. Screwing this in
excessively may impair normal operation.
④ CameraLink interface connector [DIGITAL OUT]
Connector used for connecting the camera to the CameraLink interface board.
⑤ Timing I/O connector [TIMING I/O]
The connector is used as the external trigger input (1st pin, 2nd pin) and the SG output
(3rd pin, 4th pin).
• Do not connect anything to 5th pin and 6th pin because they
are reserved for options.
⑥ Mode switching switch
This switch is for the camera maintenance.
• All positions are set to “OFF”. Do not change this.

C9300-201 Ver.1.2
10H AMAMATSU PHOTONICS K.K.
7. CONNECTING CABLES
Refer to the figure below when connecting the various cables.
AC adaptor
Camera
(
A3472-06: option) ○
3Power supply cord
○
1Camera cable (option)
CameraLink
i
nterface board
○
2CameraLink interface cable
Computer
NORMAL
ＬＩＮＥ
COOLING
SERIAL I/
F
DIGITAL OUT
TIMING I/O POWE
R
Fig. 7-1
• When cables are connected, confirming the power switch is in the OFF position.
① Camera cable (Option)
This connects the camera to the AC adapter.
② CameraLink interface cable (Option)
This connects the CameraLink interface connector to the CameraLink interface board
mounted on the host computer.
③ Power supply cord (Option: The accessories of A3472-06)
Note • Hamamatsu recommends optional interface for the camera.
- AC adaptor: A3472-06
- Camera cable: A3194-01
- CameraLink interface cable: A9262-05
Depending on type of interface cables, the camera may not keep
CE marking compliance in terms of EMC directive.

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 11
8. OPERATION
8-1 PREPARATION FOR IMAGING
(1) Connect the equipment as shown in Fig.7-1 before starting operating of the
camera.
(2) Switch the camera's power switch to ON.
After turning the power switch on, wait approximately 10 minutes for the
temperature to stabilize; this completes preparation for imaging.
8-2 IMAGING
The camera works with following setting after power is switched ON.
CCD output mode Single output
Scan mode Normal readout
Exposure time setting Normal setting
Contrast enhancement gain 0
Digital data output bit count 12
The camera mode and parameters can be changed by command from the host computer,
which transmitted via the CameraLink interface.
8-3 END OF IMAGING
(1) End imaging or transmission of image data with the control software when
imaging is finished.
(2) Turn off the power to the camera and peripheral equipment.

C9300-201 Ver.1.2
12H AMAMATSU PHOTONICS K.K.
9. IMAGE ACQUISITION
9-1 THEORY OF CCD
The all-pixel-readout interline transfer CCD used in this camera is arranged as shown in
Figure 9-1. Incident light at the CCD is converted by photosensors to electrical charges
which are transmitted through a shielded vertical transfer CCD (VCCD) and a horizontal
transfer CCD (HCCD) to a final output charge-voltage conversion amp. The sensor gate is
opened by the readout signal, and the charges generated by all of the photosensors are
transmitted unmixed to the VCCD, completing the exposure.
In addition, an electronic shutter signal is applied to the CCD, allowing any accumulated
charge in the photosensors to be discharged.
Photo-diode
Vertical CCD Sensor gate
On-chip AMP Horizontal CCD
Fig. 9-1
Exposure time
CCD exposure
Readut signal
from CCD chip
Digital data
output
Readout period
Fig. 9-2
● Binning
Accumulated charges for a specified number of pixels in the vertical and horizontal directions
on the CCD are calculated and combined (binned), then readout from the CCD. With this
camera, binning can be set to 2×2, where two pixels in the vertical and horizontal directions are
combined, 4×4, where four vertical and horizontal pixels are combined, or 8×8, where eight
vertical and horizontal pixels are combined.
● Exposure Time
When set to the normal CCD scanning mode, this is as shown in Figure 9-2.Exposure time is
the elapsed time between one readout signal and the next; this interval is at least as long as
the time necessary for all of the charges from the CCD to be readout.
● Dual readout
The CCD has dual readout amplifiers for the half left side area of the CCD and right side as
shown in Figure 9-1. When using single readout mode, only left side amplifier is used. And
when using dual readout mode, these two amplifiers are used at the same time for readout, so
you can obtain the image data with quite high frame rate.

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 13
9-2 OVERVIEW OF CAMERA MODES
This camera features many different operational modes. Furthermore, all modes involve the
CameraLink interface’s built-in microprocessor, providing control and setting for all modes.
Of the numerous different modes, the modes used for obtaining images are broadly
classified into the two categories below.
(1) Free running mode
Exposure and readout is performed repeatedly, controlled by the internal microprocessor.
Some operations for which the commands can be used are shown below.
CCD output mode Single/Dual
Scan mode Normal/Binning/Sub-array/Line scan
Exposure time settings Normal /Electronic Shutter/Absolute Time
Digital data output bit count 12 bit/10 bit/8 bit
(2) External control mode
An external control (trigger) pulse input the internal microprocessor and the repeating
exposure and readout. Exposure start timing and length of exposure can be controlled
with the external trigger pulse. In addition, commands can be used the following.
CCD output mode Single/Dual
Scan mode Normal/Binning/Sub-array/Line scan
Exposure time settings Internal (Electronic Shutter or Absolute Time)/External
Digital data output bit count 12 bit/10 bit/8 bit
External control pulse polarity Negative/Positive
9-3 DETAIL OF CAMERA MODES
9-3-1 DIGITAL OUTPUT BIT COUNT
Select the output bit count for the digital data output by the camera.
Output Command
12 bit digital data, output at DB0 to DB11. ADS 12
The 10 most significant bits of the 12 bit digital data are output to DB0 to DB9. ADS 10
The 8 most significant bits of the 12 bit digital data are output to DB0 to DB7. ADS 8

C9300-201 Ver.1.2
14H AMAMATSU PHOTONICS K.K.
9-3-2 CCD OUTPUT MODE
Select the output mode of CCD.
Output Command
Single output TNS 1
Dual output TNS 2
Note • Dual readout mode uses two-separated readout Amp whose performance is
not perfectly same. Due to the readout Amp characteristics variation, you
may see little intensity gap between right side and left side in one image
even though the fine adjustment is done at factory before shipping. Single
readout mode is recommended to achieve the best possible image quality.
9-3-3 DETAIL ON CCD SCANNING (SCAN MODE)
Select either normal readout or binning readout.
(1) Normal readout [SMD N]
Electrical charges from the CCD are readout in the normal, standard scanning. The
time required for CCD readout of all of the CCD’s pixels is approximately 12.2 ms at
single output mode and 6.7 ms at dual output mode.
(2) 2×2 binning readout [SMD S, SPX 2]
Electrical charges from the CCD are readout in 2×2 binning. The time required for CCD
readout of all of the CCD’s pixels is approximately 6.5 ms at single output mode and
3.7 ms at dual output mode.
(3) 4×4 binning readout [SMD S, SPX 4]
Electrical charges from the CCD are readout in 4×4 binning. The time required for CCD
readout of all of the CCD’s pixels is approximately 3.6 ms at single output mode and
2.2 ms at dual output mode.
(4) 8×8 binning readout [SMD S, SPX 8]
Electrical charges from the CCD are readout in 4×4 binning. The time required for CCD
readout of all of the CCD’s pixels is approximately 2.2 ms at single output mode and
1.5 ms at dual output mode.
(5) Sub-array readout [SMD A]
In this mode, only a required area is readout at the normal speed while the remaining
areas are rapidly cleared. This operation allows the frame rate to be increased.
(6) Line scan readout [SMD L]
In this mode, only a required area is readout at the normal speed while the remaining
lines are rapidly cleared. This operation allows the frame rate to be increased.

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 15
9-3-4 EXPOSURE TIME SETTING
The exposure time and the methods used for making the exposure time settings are different for
the free running mode and the external control mode.
The following explains more about each mode.
9-3-4-1 Free running mode [AMD N]
(1) Exposure time setting: Normal [NMD N]
Exposure and readout are performed repeatedly according to the sequence set
internally. Exposure timing and exposure time is as following.
[Exposure timing]
Readout period
CCD exposure
Readout signal
from CCD chip
Digital data
output
Exposure time
[Exposure time at each readout mode]
Normal readout Approx. 12.2 ms (82.0 Hz)
2×2 binning readout Approx. 6.5 ms (155.5 Hz)
4×4 binning readout Approx. 3.6 ms (280.7 Hz)
8×8 binning readout Approx. 2.2 ms (465.0 Hz)
Sub-array readout
(SVW: readout line width) (SVW+2) × 24.7 µs + (491-SVW) × 1 µs
2×2 sub-array readout (SVW/2+2) × 26.0 µs + (491-SVW/2) × 2 µs
4×4 sub-array readout (SVW/4+2) × 28.7 µs + (491-SVW/4) × 4 µs
8×8 sub-array readout (SVW/8+2) × 34.1 µs + (491-SVW/4) × 8 µs
Single output
Line scan readout
(n : readout line number) (n+1) × 30.7 µs + (492-n) × 1 µs
Normal readout Approx. 6.7 ms (150.6 Hz)
2×2 binning readout Approx. 3.7 ms (274.2 Hz)
4×4 binning readout Approx. 2.2 ms (461.7 Hz)
8×8 binning readout Approx. 1.5 ms (694.2 Hz)
Sub-array readout
(SVW: readout line width) (SVW+2) × 13.5 µs + (491-SVW) × 1 µs
2×2 sub-array readout (SVW/2+2) × 14.8 µs + (491-SVW/2) × 2 µs
4×4 sub-array readout (SVW/4+2) × 17.5 µs + (491-SVW/4) × 4 µs
8×8 sub-array readout (SVW/8+2) × 22.9 µs + (491-SVW/4) × 8 µs
Dual output
Line scan readout
(n : readout line number) (n+1) × 19.5 µs + (492-n) × 1 µs

C9300-201 Ver.1.2
16H AMAMATSU PHOTONICS K.K.
(2) Exposure time setting: Electronic Shutter [NMD S･SHT n]
Exposure and readout repeat along with the operation of the electronic shutter
according to the sequence set internally. The exposure time is set with the SHT n
command. This setting is made in units of one horizontal scan cycle for each scan
mode. Exposure timing and exposure time is as following.
[Exposure timing]
CCD exposure
Readout signal
from CCD chip
Digital data
output
Exposure time = SHT n
Readout period
Electrical
shutter signal
[Exposure time at each readout mode]
Normal readout 33.1 µs + (n-1) ×24.7 µs (n = 1 to 40432)
2×2 binning readout 34.4 µs + (n-1) ×26.0 µs (n = 1 to 38413)
4×4 binning readout 37.1 µs + (n-1) ×28.7 µs (n = 1 to 34803)
8×8 binning readout 42.5 µs + (n-1) ×34.1 µs (n = 1 to 29297)
1 line scan readout 552 µs + (n-493) ×30.7 µs (n = 493 to 33013)
2 line scan readout 582 µs + (n-493) ×30.7 µs (n = 493 to 33013)
3 line scan readout 612 µs + (n-493) ×30.7 µs (n = 493 to 33012)
4 line scan readout 642 µs + (n-493) ×30.7 µs (n = 493 to 33011)
5 line scan readout 671 µs + (n-493) ×30.7 µs (n = 493 to 33010)
6 line scan readout 701 µs + (n-493) ×30.7 µs (n = 493 to 33009)
7 line scan readout 731 µs + (n-493) ×30.7 µs (n = 493 to 33008)
8 line scan readout 761 µs + (n-493) ×30.7 µs (n = 493 to 33007)
9 line scan readout 790 µs + (n-493) ×30.7 µs (n = 493 to 33006)
10 line scan readout 820 µs + (n-493) ×30.7 µs (n = 493 to 33005)
11 line scan readout 850 µs + (n-493) ×30.7 µs (n = 493 to 33004)
12 line scan readout 880 µs + (n-493) ×30.7 µs (n = 493 to 33003)
13 line scan readout 909 µs + (n-493) ×30.7 µs (n = 493 to 33002)
14 line scan readout 939 µs + (n-493) ×30.7 µs (n = 493 to 33001)
15 line scan readout 969 µs + (n-493) ×30.7 µs (n = 493 to 33000)
Single output
16 line scan readout 998 µs + (n-493) ×30.7 µs (n = 493 to 32999)

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 17
Normal readout 21.9 µs + (n-1) ×13.5 µs (n = 1 to 74258)
2×2 binning readout 23.2 µs + (n-1) ×14.8 µs (n = 1 to 67721)
4×4 binning readout 25.9 µs + (n-1) ×17.5 µs (n = 1 to 27252)
8×8 binning readout 31.3 µs + (n-1) ×22.9 µs (n = 1 to 43732)
1 line scan readout 530 µs + (n-493) ×19.5 µs (n = 493 to 51836)
2 line scan readout 548 µs + (n-493) ×19.5 µs (n = 493 to 51835)
3 line scan readout 567 µs + (n-493) ×19.5 µs (n = 493 to 51834)
4 line scan readout 585 µs + (n-493) ×19.5 µs (n = 493 to 51833)
5 line scan readout 604 µs + (n-493) ×19.5 µs (n = 493 to 51832)
6 line scan readout 622 µs + (n-493) ×19.5 µs (n = 493 to 51831)
7 line scan readout 641 µs + (n-493) ×19.5 µs (n = 493 to 51830)
8 line scan readout 659 µs + (n-493) ×19.5 µs (n = 493 to 51829)
9 line scan readout 678 µs + (n-493) ×19.5 µs (n = 493 to 51829)
10 line scan readout 696 µs + (n-493) ×19.5 µs (n = 493 to 51828)
11 line scan readout 715 µs + (n-493) ×19.5 µs (n = 493 to 51827)
12 line scan readout 733 µs + (n-493) ×19.5 µs (n = 493 to 51826)
13 line scan readout 752 µs + (n-493) ×19.5 µs (n = 493 to 51825)
14 line scan readout 770 µs + (n-493) ×19.5 µs (n = 493 to 51824)
15 line scan readout 788 µs + (n-493) ×19.5 µs (n = 493 to 51823)
Dual output
16 line scan readout 807 µs + (n-493) ×19.5 µs (n = 493 to 51822)
(3) Exposure time setting: Absolute Time [NMD T, AET ss.xxx]
Exposure and readout repeat along with the operation of the electronic shutter
according to the sequence set internally. The exposure time is set with the AET ss.xxx
command (where s = seconds, x = milliseconds). The actual length of exposure time is
the specified time taken as a value expressed in horizontal scan units. Exposure time
longer than 1 s is not possible.

C9300-201 Ver.1.2
18H AMAMATSU PHOTONICS K.K.
9-3-4-2 External control mode [AMD E]
The external trigger pulse is input via the timing I/O connector on the rear panel and the polarity
is selected from “N” (negative: Low-level active) or “P” (positive: High-level active). The external
trigger pulse should be TTL level and the minimum active period is 1 µs and the repeat cycle
must match the selected mode.
Note • Images are not output correctly if the pulse input is shorter than 1 µs.
The following text describes the external control mode with the external trigger pulse polarity
set to “N” (negative). If “P” (positive) is selected, the rise and fall of each pulse is reversed
(inverted), with the LO interval becoming the HI interval. Descriptions enclosed in brackets ({ })
indicate cases where “P” (positive) is selected.
(1) Exposure time setting: Internal / Electronic Shutter [EMD E, EST n]
Exposure begins within 2 μs from the fall {rise} of the external trigger pulse, the
exposure is made using the time set with the EST n command, and readout follows.
After readout, the system waits for the external trigger pulse to fall {rise} again. The
exposure time is set with the EST n command. This setting is made in units of one
horizontal scan cycle. The repeat cycle is controlled by the external control pulse's
repeat cycle, but the minimum cycle is calculated as shown below. Set the external
control pulse's repeat cycle so that it is longer than the minimum cycle.
Minimum repetition time = readout time + set exposure time
[Exposure timing]
CCD exposure
Readout signal
from CCD chip
Digital data
output
External trigger
pulse
Electrical
shutter signal
min. 1 µs
Readout period
Exposure time = EST n
max. 2 µs

C9300-201 Ver.1.2
HAMAMATSU PHOTONICS K.K. 19
[Exposure time at each readout mode]
Normal readout
(1×1 sub-array readout) 33.1 µs + (n-1) ×24.7 µs (n = 1 to 40432)
2×2 binning readout
(2×2 sub-array readout) 34.4 µs + (n-1) ×26.0 µs (n = 1 to 38413)
4×4 binning readout
(4×4 sub-array readout) 37.1 µs + (n-1) ×28.7 µs (n = 1 to 34803)
8×8 binning readout
(8×8 sub-array readout) 42.5 µs + (n-1) ×34.1 µs (n = 1 to 29326)
Single output
Line scan readout 39.1 µs + (n-1) ×30.7 µs (n = 1 to 32538)
Normal readout
(1×1 sub-array readout) 21.9 µs + (n-1) ×13.5 µs (n = 1 to 74258)
2×2 binning readout
(2×2 sub-array readout) 23.2 µs + (n-1) ×14.8 µs (n = 1 to 67721)
4×4 binning readout
(4×4 sub-array readout) 25.9 µs + (n-1) ×17.5 µs (n = 1 to 27252)
8×8 binning readout
(8×8 sub-array readout) 31.3 µs + (n-1) ×22.9 µs (n = 1 to 43668)
Dual output
Line scan readout 27.9 µs + (n-1) ×19.5 µs (n = 1 to 51370)
[Readout time at each readout mode]
Normal readout Approx. 12.2 ms
2×2 binning readout Approx. 6.5 ms
4×4 binning readout Approx. 3.6 ms
8×8 binning readout Approx. 2.2 ms
1×1 sub-array readout
(SVW: readout line width) (SVW+2) × 24.7 µs + (491-SVW) × 1 µs
2×2 sub-array readout (SVW/2+2) × 26.0 µs + (491-SVW/2) × 2 µs
4×4 sub-array readout (SVW/4+2) × 28.7 µs + (491-SVW/4) × 4 µs
8×8 sub-array readout (SVW/8+2) × 34.1 µs + (491-SVW/4) × 8 µs
Single output
Line scan readout
(n : readout line number) (n+1) × 30.7 µs + (492-n) × 1 µs
Normal readout Approx. 6.7 ms
2×2 binning readout Approx. 3.7 ms
4×4 binning readout Approx. 2.2 ms
8×8 binning readout Approx. 1.5 ms
1×1 sub-array readout
(SVW: readout line width) (SVW+2) × 13.5 µs + (491-SVW) × 1 µs
2×2 sub-array readout (SVW/2+2) × 14.8 µs + (491-SVW/2) × 2 µs
4×4 sub-array readout (SVW/4+2) × 17.5 µs + (491-SVW/4) × 4 µs
8×8 sub-array readout (SVW/8+2) × 22.9 µs + (491-SVW/4) × 8 µs
Dual output
Line scan readout
(n : readout line number) (n+1) × 19.5 µs + (492-n) × 1 µs
