Hamilton/Buhl SCOUT SCT18 User manual

6Lens Digital Microscope
Instruction Manual
Model #: SCT18

USING THE XPLOVIEW SOFTWARE
16
Button Menu
Full Screen Viewing Image
Rotation/Flip System
Settings Menu
Device Setup
Timed Shot Setup
Movie Setup
Save Setting
Language Settings
Advanced Settings
16
17
18
19
20
20
20
21
21
22
23
23
CONTENTS
GETTING STARTED 9
PRODUCT AT A GLANCE
BEFORE USE
Important Information
Care and Maintenance
Warning
Product Description
Computer Requirements
Package Contents
Product Overview
Product Specifications
4
4
4
4
5
5
6
6
7
8
9
10
10
11
3
Saved Files
Uninstalling the xploview
Software
Software Installation
Connecting the Device
Starting the xploview Software
Installing a Specimen Slide
12
BASICS
12
13
14
15
Selecting a LightSource
Selecting Magnification Power
Focusing
Taking a Snapshot

Warning
Do not look directly into any light on the digital microscope.
Do not attempt to open or dismantle the digital microscope.
Avoid vibration, shock and pressure, and do not drop the microscope.
Keep the device dry and protect from water, steam or vapor.
Do not leave your device in a place with extreme high or low temperature.
Do not touch the device with wet hands as it may damage the device, or
cause electric shock to the user.
Do not use or store the device in dusty, dirty areas as it could cause
damage to moving parts.
Do not use harsh chemicals, cleaning solvents or strong detergents
to clean the device. Wipe it with a soft cloth slightly dampened in a
mild soap-and-water solution.
BEFORE USE
Important Information
Please read this instruction manual carefully before using this
product, and retain for futurereference.
Changes toinstructions may occur without notice due to
improvements to the software and/or equipment.
Care and Maintenance
4

Product Description
5
Windows 10 (32 bit or 64 bit)
Windows 8 (32 bit or 64 bit)
Windows 7 (32 bit or 64 bit)
WindowsVista (32 bit or 64 bit)
Windows XP SP2, SP3
Compatible
Operating Systems
Computer Requirements
Windows
This productdiffers from a traditional optical microscope;instead of
looking through an eyepiece, magnified image or livevideo is
displayed on the computer monitor via a USB connection.
This product has an integrated objectturret carrying six dierent
object lenses.When viewing the image on a 17”monitor, this product
can magnify specimens at100x, 200x, 300x, 400x, 500x and 600x. The
magnication is dependenton the sizeof the computer monitor – the
larger the monitor, the higher the magnication.
Snapshot of the specimens can be captured using the snapshot
button located on the top of the device. Livevideos and snapshots
can also be captured and stored on the computer using the software
provided.
USB USB 2.0

6

Compatible operating
systems 
USB 
PRODUCT AT A GLANCE
Package contents
Digital microscope
· • _
Installation CD 
with USB cable
-
Blank specimen slides x3

Prepared slide with cotton swatch 
User manual

Dropper
Tweezers
Specimen Slide Covers x6



1
2
3
4
5
7
8
9
6
Product Overview
7
1. Snapshot button
2. Lenses
3. Specimen slide clip
4. Specimen stage
5. Light selectorswitch
6. Lens turret
7. Focusing knob
8. USB cable
9. LED

Product Specif ications
8
Connection type USB 2.0
Illumination
Eective observation area
Magnication power
(viewing on a 17” monitor)
Power supply
L1 = 100x
L2 = 200x
L3 = 300x
L4 = 400x
L1 = 3.6 x 2.7mm
L2 = 1.8 x 1.4mm
L3 = 1.2 x 0.9mm
L4 = 0.9 x 0.7mm
L5 = 0.7 x 0.5mm
L6 = 0.6 x 0.45mm
Sensor
Maximum snapshot
resolution
Weight
Size
Maximum video
capturing resolution
L5 = 500x
L6 = 600x
LED
5V 250mA (via USB)
CMOS
1600 x 1200 pixels (UXGA)
640 x 480 pixels (VGA)
5.1" x 6.1" x 8.2"
0.8 lbs.

9
Insert the supplied application CD to the CD-ROM of the computer.
Double click the "xploview v3.2.xx.exe" icon < > located on the
Follow the xploview setup wizard to install the application software
for the digital microscope.
driver CD.
GETTING STARTED
Software Installation
Windows
Insert the supplied application CD to the CD-ROM of the computer.
Double click the "xploview v3.2.xx.dmg" icon < > located on the
driver CD.
Mac OS
Drag the xploview icon < > into the Applications folder.

10
Connecting the Device
Connect the devicetothe computer using the USB cable provided.
Starting the xploview Software
Windows
The xploview software can be launched bydouble clicking the xploview
icon < > from the desktop, or from the startmenu.
Mac OS
The xploview software can be launched bydouble clicking the xploview
icon < > from the Applications menu.
When the deviceis connected tothe computer for the rst time,a
driver will automatically be installed byWindows or Mac OS. This
process could take a few minutes.
Each time the xploview software is started, the deviceshould start
up automatically. Otherwise, the devicecan be selected from the
devicesetup section of the system settings menu.

Installing a Specimen Slide
Place a prepared specimen slide on the specimen stage and slide it into
specimen slide clips to securely hold the specimen slide.
11

Press once to switch over
illumination system
Transmitted illumination
Incident illumination
BASICS
Selecting a LightSource
This digital microscope contains two light sources, one located above the
stage and one underneath providing incident and transmitted illumination
respectively.
When the deviceis connected toa computer, and the provided software is
launched,one of the lights will turn on.
Press the light selector switch oncetoswitch over tothe desired
illumination system. When quitting the software, the lightwill switch o
automatically.
12

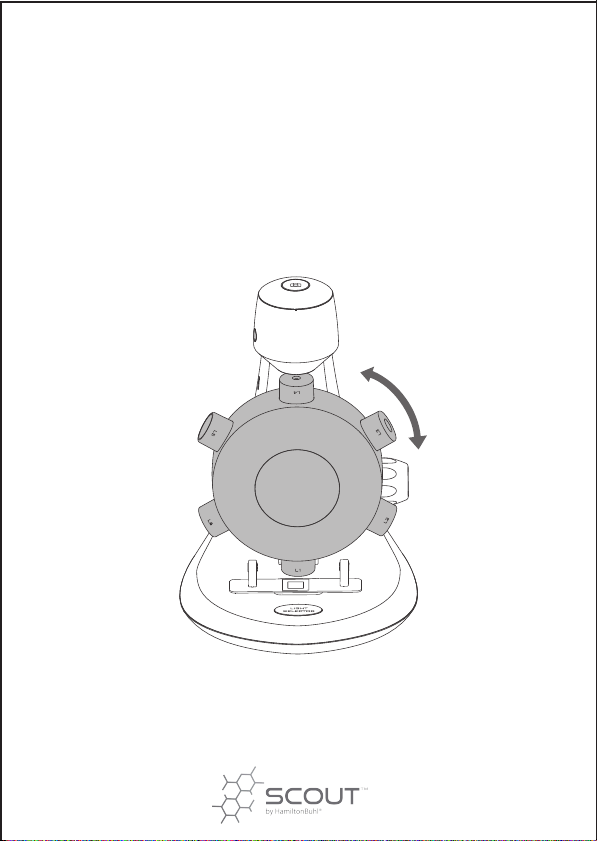

Selecting Magnif ication Power
The objective turret can be rotated both ways –clockwise or
counterclockwise.
Taking the leastpowerful lens, L1, as an example; rotate the turret so that
L1 is directly on top of the specimen. When correctly aligned, you will feel
a ‘click’.
Rotate the turret toselectthe desired magnification.
13

Focusing
Rotate the focusing knob clockwise or counterclockwise until the image
is sharp.
Note: Please make surethatthe objective is clear from obstacles and
does not hit the specimen slide while lowering the objectives turret
during focusing.
14

Taking a Snapshot
Press the snapshot button totake a snapshot.
15

USING THE XPLOVIEW SOFTWARE
Button Menu
The icons on the button menu :
16
Open System Settings Menu(see system settings
menu on page19).
Capture on screen image.
To start and to stop Timed Shot. Images will be
captured ata regular interval (see system settings
menu on page 20 toadjust frequency and duration).
To start and stop Video Recording.
Information of the application software. This
information maybe helpful when updating software.
Shut down the application software.

Full Screen Viewing
To activate the full screen mode,click the full screen button < >
located on the bottom right corner of the xploview application software
window.
To exit full screen mode,either double-click on the screen, or press the
"Esc" button on the keyboard.
17

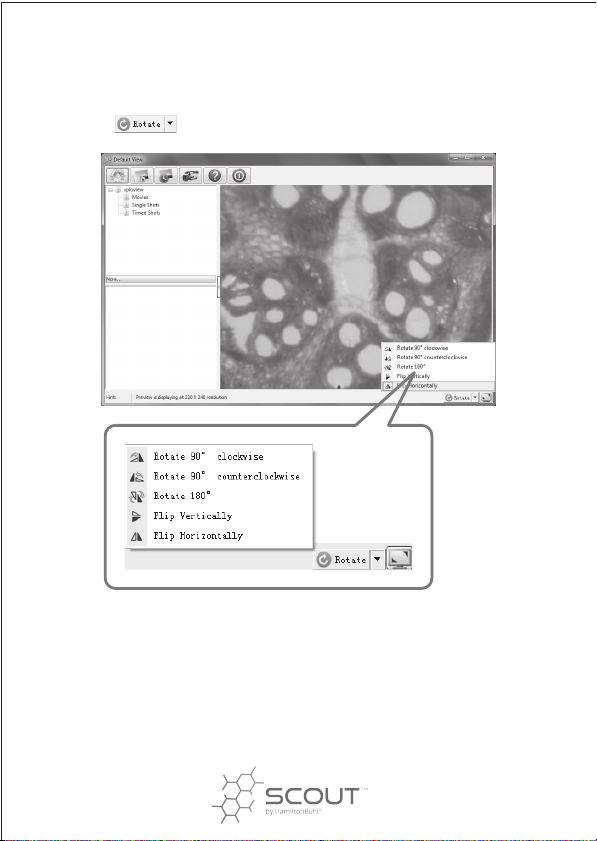

Image Rotation/Fl ip
Click < > button torotate or ip the image.
18

System Settings Menu
The first time the xploview software is started, the default settings will
be loaded. You maychange these settings manually in the system
settings menu.
19

Device Setup
If the image captured bythe digital microscope was not displayed by
default, you can change this byselecting it from the "Device" drop-down
menu.
The resolution of images you capturecan be changed from the
"Resolution" drop-down menu.
Timed Shot Setup
The frequency and duration of automatic images capturecan be adjusted
under this option.
20
Movie Setup
The resolution of videos you record can be changed from the "Resolution"
menu. You can also set a maximum le sizefor each video.
