LecternandTableTopAmplifierKitwithMicandTableTopSpeakers
SetupGuide–ModelSL935

www.HamiltonElectronics.com

www.HamiltonElectronics.com2

CongratulationsonpurchasingtheHamiltonSoundPointLecternandTableTopAmplifierKit
withMicandTableTopSpeakers.Thisquick‐setupguidewillhaveyouprojectingpowerful
soundinjustafewminutes.
KitContents:
1. Hamiltonlecternamplifier
2. 110‐240vpowersupplywith
3‐prongpowercord
3. Tabletopspeakers(2)
4. Batteryboxforamplifier
5. Speakerwires(2)
6. GooseneckMicrophone
7. Velcroformounting
amplifier
8. MountinghardwareforMic
9. Microphonewindsock

QuickSetupInstructions:

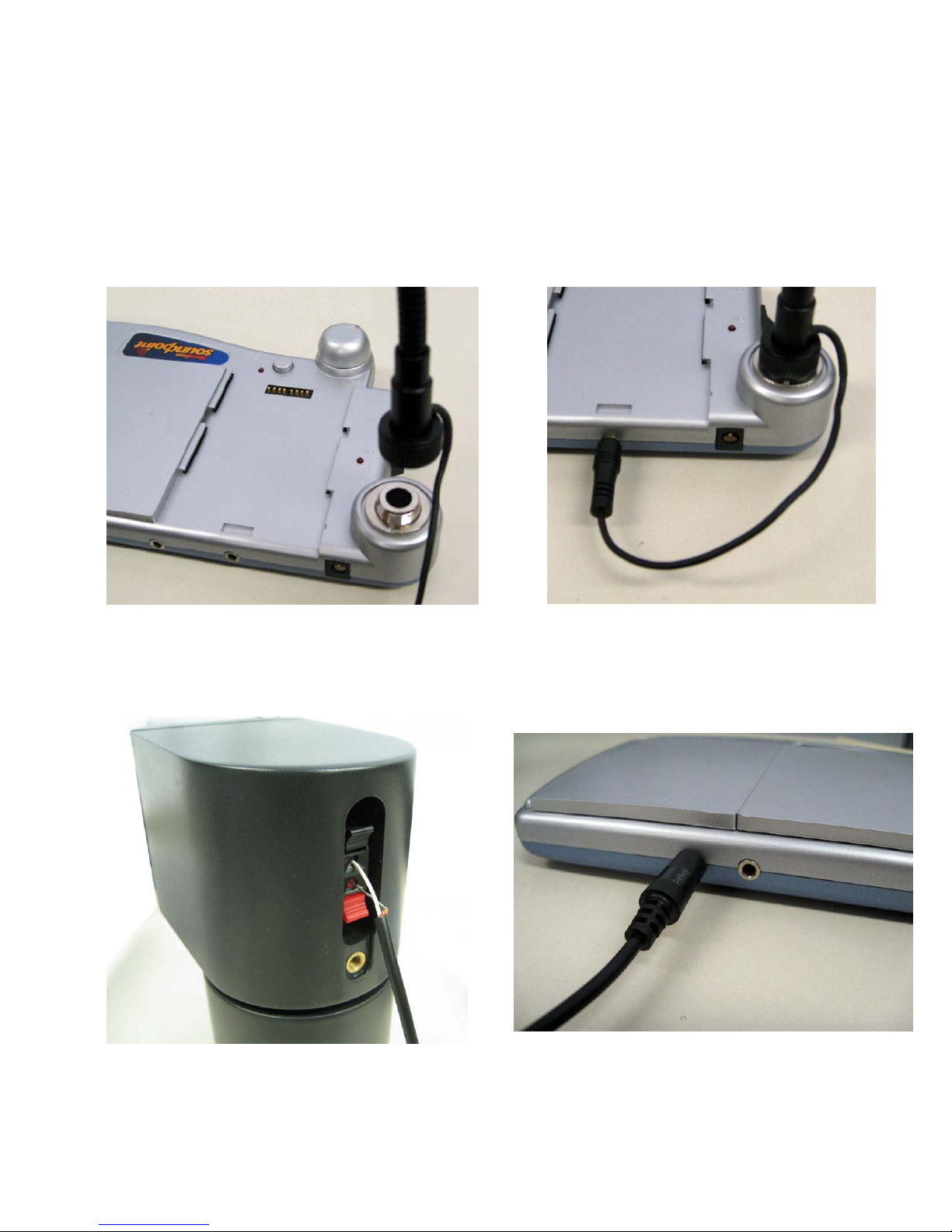

1. Turnlecternamplifierupside‐downand
insertthethreadedmicrophonemountin
throughthebottom.Itwillpushoutablanking
plugandpop‐outthetopoftheamp.

www.HamiltonElectronics.com3
2. Turntheampright‐sideupandlockthemicrophonemountinplaceusingthe
threadedmetalring.Donotover‐tighten.
3. Afterinstallingthemicrophonecollar,threadthegooseneckmicrophoneto
itsbaseandhand‐tighten.ConnecttheshortmicrophonecabletotheMAIN
MICINjackasshown.
4. Connecttheincludedspeakerwirestotheleftandrightspeakers.Bareleads
attachtothespeakerend,1/8”miniplugsgototheamplifier.









www.HamiltonElectronics.com4


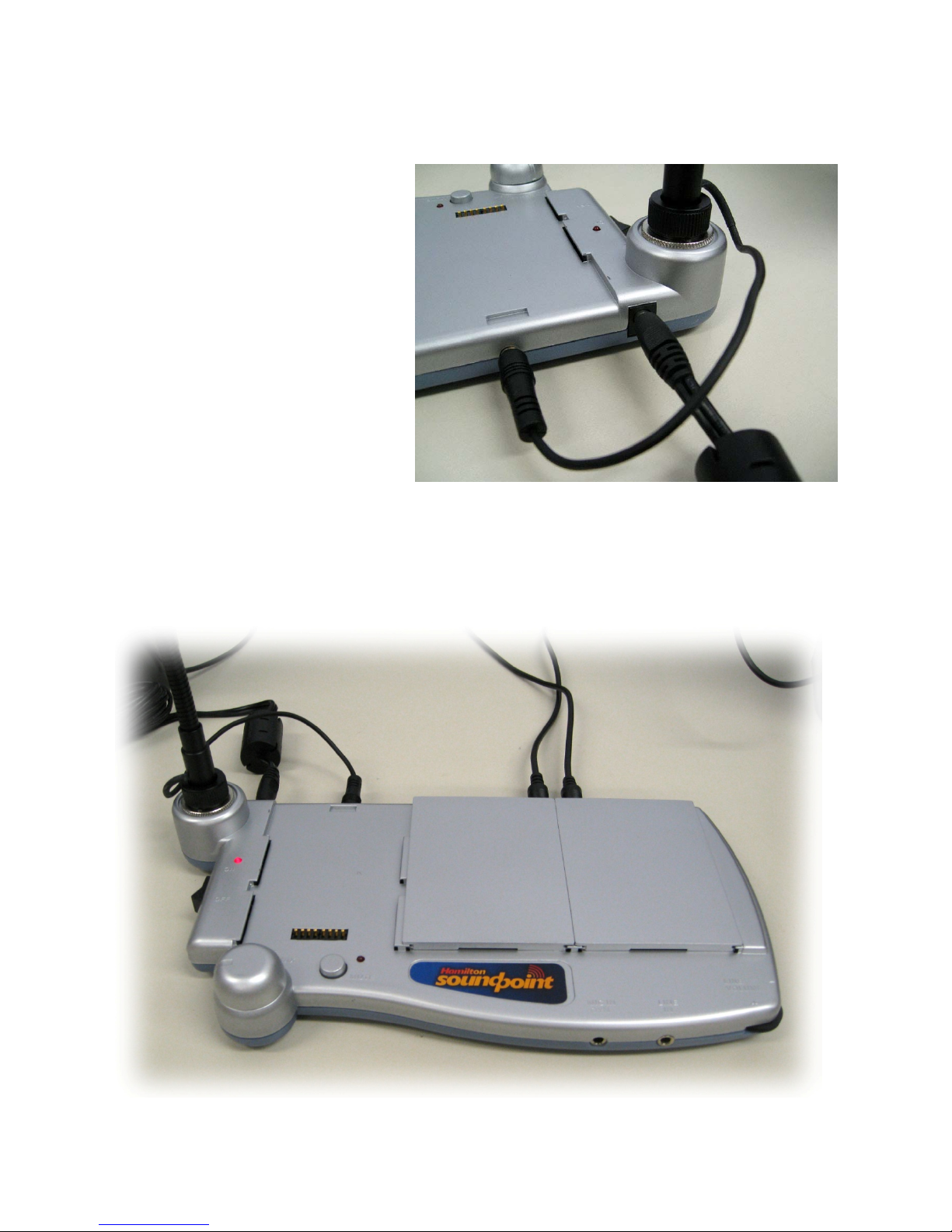

5. Insertpowerplugintojack
belowmicrophonemount





6. PowerontheamplifierusingthePowerswitchontheleftoftheunit,adjust
volumeandspeakintothemicrophone.You’redone!










www.HamiltonElectronics.com5


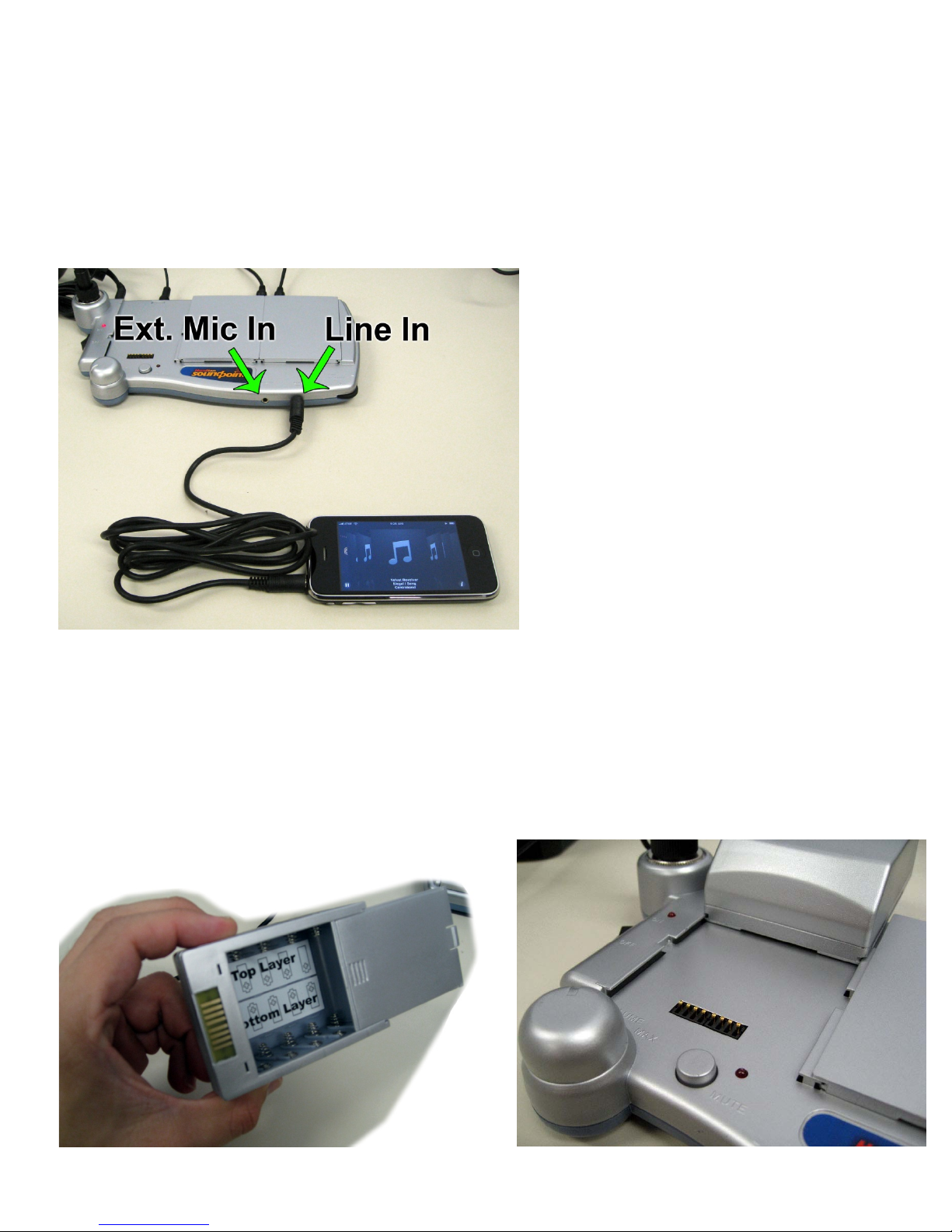

FrontPanelInputs
TheSL935canbeusedtoamplifyanyCDplayer,MP3playeroralmostanyother
portableaudiodevice.Usea1/8”
StereoMiniPlugtoMiniPlugcable
(SoldSeparately)andplugyour
devicein.Adjustthevolumeon
yourdeviceto¾ofitsmaximum
andadjusttheLineVolumeand
MasterVolumecontrolsonthe
SL935tosuit.

Anadditionaldynamicmicrophone
inputisprovidedonthefrontof
theamplifier.It’slocatedtotheleftoftheLineInput.
Optional–BatteryBox
TheSL935canrunonbatteriesaswellasexternalpower.Simplyinsert10AA
Batteriesinthebatteryboxandclipittothebodyoftheampasshown.

www.HamiltonElectronics.com6
AboutHamiltonElectronics
HamiltonElectronicsisaleaderinthedesignandmanufacturingof
electronicsandpresentationequipmentforeducation.Fromourhumble
beginningsin1933,Hamiltonhasgrowntobeatrueinnovatorintheeducational
electronicsmarket.Ourmissionistoenhancetheteachingandlearning
experiencethroughinnovativeclassroomtechnology.
InadditiontothemillionsofstudentsandteacherswhouseHamilton
products,moreandmorebusinesses,governmentagenciesandindividualsare
usingHamiltonpresentationequipmentfortrainingandinstruction.Welook
forwardtoservingallyoureducationalelectronicsandpresentationequipment
needsforyearsintothefuture.
TechnicalSupport&WarrantyInfo
TheHamiltonSL935iswarrantedtobefreeofdefectsforaperiodof1year
fromdateofpurchase.Defectivesystemswillbeeitherrepairedorreplacedatthe
discretionofHamiltonElectronics.Freetechnicalsupportisavailableviaemail.All
questionswillbeansweredpromptlyduringnormalbusinesshours(9AM‐5PM
MondaythroughFriday,EST)viaemail.

Forwarrantyserviceortechnicalsupportcontact:
