SERVICE MANUAL
SUZUKI MUSICAL INST.MFG.CO.,LTD.
*#//10&
.'5.+'2
.'5.+'92
SEP.2009
CAUTION !
see safety notice inside
LESLIE3300WP
LESLIE3300P
2-25-12, RYOKE, NAKAKU, HAMAMATSU, 430-0852 JAPAN

Great care has been taken in the design and manufacture of this product to assure that no shock hazard exists on any exposed
metal parts. Internal service operations can expose the technician to hazardous line voltages and accidentally cause these
voltages to appear on exposed metal parts during repair or reassembly of product components. To prevent this, work on these
products should only be performed by those who are thoroughly familiar with the precautions necessary when working on this
type of equipment.
To protect the user, it is required that all enclosure parts and safety interlocks be restored to their original condition and the
following tests be performed before returningthe product to the owner after anyservice operation.
Plug the AC line cord directly into a line voltage AC receptacle (do not use an isolation transformer for this test) and turn the
product on. Connect the network (as shown below) in series with all exposed metal parts and a known earth ground such as a
water pipe or conduit. Use an AC Voltmeter of 5,000 ohms per volt or higher sensitivity to measure the voltage drop across the
network. Move the network connection to each exposed metal part (metal chassis, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the voltage drop across the network. Reverse the line plug and repeat the measurements. Any
reading of 4 volts RMS or more is excessive and indicates a potential shock hazard which must be corrected before returning
the product to the user.
SAFETYNOTICE
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the
equipment manufacturer. Discard used batteries according tomanufacturer's instructions.
Advarsell
Lithiumbatteri. Eksplosionsfare ved fejlagtig håndering.
Udskiftning må kun ske med batteri as samme fabriket og type.
Lebér det brugte batteri tilbage til leverandoren.
Norge: ADVARSEL
Lithiumbatteri - Eksplosjonsfare.
Ved utskiftning benyttes kun batteri som anbefalt av apparatfabrikanten.
Brukt batteri returneres apparatleverandoren.
Sverige: VARNING
Explosionsfara vid felaktigt batteribyte.
Använd samma batterityp eller et ekvivalent typ som
rekommenderes av apparattillverkaren,
Kassera använt batteri enlig fabrikantens instruktion.
Finland: VAROITUS
Paristo voi räjähtää, jos se on virheeliseeti ansennettu
Vaihda paristo ainoastaan laitevalmistajan suosittelemaan
tyyppoonn, Hävitä käytettyparisto valmistajan ohjeiden mukaisesti.
VOM
AC SCALE
10K
2W
0.01MF
CERAMIC RF
BYPASS CAP
TEST CLIPS
CONNECTED TO KNOWN
EARTH GROUND
TEST
PROBE
TO EXPOSED METAL PARTS

#3300P
#3300WP
-Table of Contents-
1
2
3-1,3-2
4
5
6-1,6-2
7
8-1
8-2
8-3
9-1~9-3
10-1~10-7
1.SPECIFICATIONS
2.BLOCK DIAGRAM
3.DISASSEMBLY PROCEDURE
4.TEST AND ADJUSTMENT
5.WIRING CONNECTION
6.WIRING CHART
7.PRINTED WIRING BOARD ASS'Y LIST

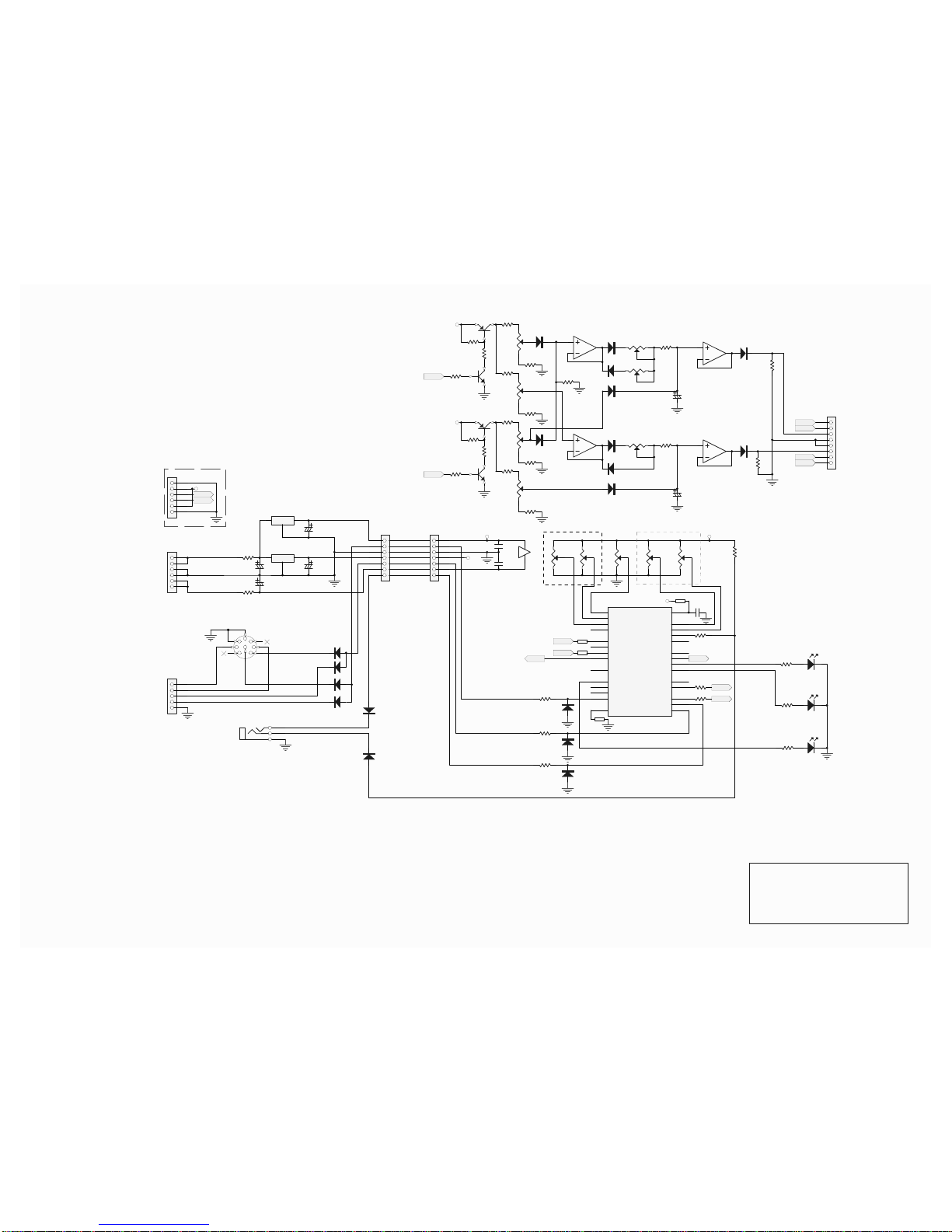

8.SCHEMATICS
PWH-74C
PAH-74B
CTH-37A
9.TECHNICAL DESCRIPTION
10.PARTS LIST
-1-
1.SPECIFICATIONS
TYPE
POWER OUTPUT
SPEAKER
OVERDRIVE
CONTROL
MOTOR
ROTORADJUST
LED
TERMINAL
POWER CONSUMPTION
DIMENSION
WEIGHT
OPTIONAL
:1-Channel(Rotary Channel Only) REAL 2-Rotor
:HORN Rotor 80W,DRUMRotor 220W
(TOTALPOWER 300W)
:ROTARY HORNDRIVER Heavy-Duty 100W,
WOOFER 38cm Massive15"(38cm)
:VACUUM TUBE 12AX7X1
TUBE DRIVE LEVEL, TUBE ON/OFF,TUBE MODE
:EQ BASS, MIDDLE,TREBLE
VOLUME,HORNLEVEL, SUB WOOFER VOLUME
:BRUSHLESS DC MOTORx2
:HORN RISE TIME,FALL TIME, SLOW SPEED, FAST SPEED
DRUM RISE TIME, FALL TIME, SLOW SPEED,FAST SPEED
:FAST,SLOW,STOP
:LESLIE 11PIN SOCKET with STATIONARY L,R THROUGH OUTPUT,
LESLIE 8PIN,LINE INPUT,LINE OUT/ SUB WOOFER OUT
FOOT SWITCH(SLOW/FAST/STOP) AC INPUT
:AC 100V,120V,220~240V,230~240V, 210W
:63(W)x52(D)x90(H)cm
:57kg
:LESLIE CABLE 11PIN(LC11-7M)
LESLIE CABLE 8PIN(LC8-7M)
FOOT SWITCHFS-9H
1) Horn Driver
2) Power Board
3) Preamp. Board
4) SP Spacer ass'y
5) WR-HZ144-A
6) Upper motor & Bearing ass'y : Pan head machine screw M4x20 fixing the driver mount --> Changed to M4x16
Changes from Leslie 3300
*
: Changed to PA-D50Z made by P.AUDIO
: PWH-72A --> Changed to PWH-74C
: PAH-74A --> Changed to PAH-74B
: Changed to SP Spacer P
: Sleeve added to the terminal for the driver

DC SERVO
MOTOR 1
ROTARY
HORN
HORN
DRIVER
SPEAKER
15"WOOFER
DC SERVO
MOTOR 2
DRUM
ROTOR
2.BLOCK DIAGRAM
#3300P, #3300WP
#3300P
#3300WP
POWER SUPPLY
& POWER AMP
TUBE PREAMP
PWH-74C
PAH-74B
CTH-37A
LGH-43A
LGH-43A
CONTROL PANEL
Power SW PANEL
Power SW
PANEL
MOTOR SPEED
CONTROLLER
MOTOR
DRIVER 1
MOTOR
DRIVER 2
LINE IN
SUB WOOFER
/ LINE OUT
Stationary-L OUT
Stationary-R OUT
POWER
TRANS
EPH-123
SLOW/FAST/STOP
FOOT SW
REMOTE
POWER ON
RELAY
1 - Rotary sig. IN
2 - Stationary-L IN
3 - Stationary-R IN
4 - Audio GND
5 - Control GND
6 - Power ON
7 - LES.FAST
8 - LES.SLOW
11- +15V OUT
Rotary SIG
SLOW / FAST
S/F
8PIN ROT SIG
+24V
P.S.
+24V
P.S.
+15V
+15V
-15V
80W HORN
POWER AMP
220W BTL
POWER AMP
+37V TUBE P.S.
HORN SIG
BASS SIG
+15V
-15V
+15V -15V
EPH-122 SUB TRANS
for POWER RELAY
AC INLET
POWER
SWITCH
J110
J106
J107
J109 J108
J112
CN3
CN2
CN1
CN1
CN2
CN3
LESLIE 11PIN
LESLIE 8PIN
FAST SLOW STOP
SPEED IND. LED
1
11
10
9
8
765
4
3
2
POWER ON
J303
J302
J101 J111
J103
J102
J301
Voltage
Select
Plug
Primary
IC1A
MIX AMP
IC1B
Tube Drive
Level VOLUME
Tube MODE
SUB
WOOFER
VOLUME
HORN
LEVEL
JK3
JK4
JK2
JK1
Tube 12AX7
HPF
LPF
LPF
BASS
MID
TREBLE
3BAND
EQ
IC3B
U1
U6,Q5 Thermo Sensor
U2
IC2
LED1 LED2 LED3
IC3C
IC3A,D
U2 HORN/DRUM
Speed, Rise & Fall
Time Control
U1 CPU
Motor Control
J201
J205
Cooling Fan
J202
J104

#3300P
#3300WP
#3300P, #3300WP
3.DISASSEMBLY PROCEDURE
3. DISASSEMBLY PROCEDURE
#3300P, #3300WP
1/2
2.Remove the Middle Rear Panel.
Remove the 8 tapping screws(type-1 truss,Ø4x30),then remove the Middle Rear Panel.
1.Remove the Upper Rear Cover.
Remove the 4 tapping screws(type-1 truss, Ø4x16),then remove the Upper Rear Cover.
NOTE: Unplug the Power Cable from the unit before disassembling it.
3. Procedure to change the Horn Rotor Belt..
Locate a small Philips screwdriver (of maximum total length 8.5cm).Drop the Belt by tilting in
the Motor. Next remove the 2 small screws (bind M3x16 for fixing the Horn Rotor) and remove
the Horn from the Bearing.
Place the new Belt around the Bearing Ass'y and after mounting the Horn Rotor,
lift it onto the Motor Pulley and the Horn.
Fig. 3
Motor Pulley
Bearing Ass'y
6. Remove the Motor Drive PWB.
Remove the Cover Bracket of the Motor Cover Ass'y by removing the 2 tapping screws (type-1 bind,
Ø3x10).
Slide and remove the PWB with the Connector from the Cover.
Keep track of the wiring for the UP Motor and the Low Motor.
(They are Similar in appearance but not interchangeable.)
Fig. 7
4. Procedure to replace the Horn Driver:
Pull out the "SP Spacer" (between the Horn Driver and the Woofer Speaker).
Remove the connecting leads from the horn driver.
Rotate the Driver Unit to the left and remove it from the Upper Horn Motor Ass'y.
Be careful not to pinch your fingers between the Woofer Magnet and the Horn Driver.
(as the magnetic pull from the woofer magnet is strong.)
5. Removing the 15" Woofer Speaker.
Remove the 8 screws W Sems (P=3 M4x30).
Place a thick piece of cardboard etc. between the Magnets of the Speaker and the
Horn Driver and avoid both Magnets from sticking together.
7. Remove the PWH-74C.
First remove the wiring(s) from the PWB.
Next remove the 4 tapping screws (type-1 truss, Ø4x16);
(2 are horizontal on the top, 1 is on the bottom,
and another fixes the heat-sink bracket).
Fig. 6
Fig. 1,2
Fig. 4,5
SP Spacer

#3300P
#3300WP
#3300P, #3300WP
3. DISASSEMBLY PROCEDURE
2/2
Fig. 12-E
Fig 12-D,E
Fig. 12-C
Link Drive
Pin.
9. Remove the Bottom Rear panel.
Pull the panel up from the unit after removing the 4 tapping screws (type-1 truss,
Ø4x30). Slide it down when remounting.
Fig 10-1
Fig 10-2
10. Removing the Power Switch Panel.
Remove the 3 tapping screws (type-1 truss, Ø4x16) (2 horizontal,
1 vertical).
If necessary, remove the 2 GND wirings inserted to the Faston terminal.
Turn the UP Bearing Ass'y.
11. How to change the wide Drum Rotor Belt.
First remove the Belt by tilting in the Lower Motor. After removing the
2 screws W Sems (P=3, M4x30), turn and detach the UP Bearing Ass'y
from the Cabinet.
Take out the Belt from the opening of this Cabinet, and replace it with a
new one.
12. Remove the Drum Rotor.
NOTE: Don't let an unexperienced service staff remove the Drum Rotor.
It requires a certain level of technique to put the shaft into the
Lower Bearing Ass'y at the assembly.
A, Remove the 15" Speaker and the Power Switch Panel.
B, Pull out the UP Bearing Ass'y from the Pulley Ass'y.
C, Pull out the rubber Link Drive (for conducting the rotation of the pulley
to the rotor) from the Rotor Pin,
D, Slowly take it out from the Drum Rotor by turning
the Pulley and the Shaft.
E, When the Shaft is pulled out from the Lower Bearing Ass'y, move the Drum Rotor
to the front.
F, Then slide it from underneath the Horn Driver, and take out the Shaft from the
Rotor. Finally, take out the Drum Rotor from the Cabinet.
Fig 11
Shaft and Pulley Ass'y
LOWER Bearing ASS'Y
Fig. 9

#3300P
STEP
NOTE
SUBJECT
TEST POINT
ADJUSTM
SPECIFICATION
SETTING
INPUT
RISE
TIME FALL
TIME
HORN
DRUM
1. a DC Power Supply Check +15V PWH-74C J110-6
b
-15V J110-1 DC +15V ±5%
DC -15V ±5%
STEP NOTESUBJECT TEST POINT ENT
POINT SPECIFICATIONSETTING INPUT
b
15V
J110 1
c+37V MAIN VOLUME 0: J111-4
d+24V J112-3,4
DC
15V
±5%
DC +40V ±4V
DC +24V ±1V
eLESLIE 11PIN DC OUT Check LES11P -PIN11,(GND)
fRemote Power ON Check Power SW OFF Short PIN6 -PIN 4 DC +15V ±5%
Power ON
RISE
TIME FALL
TIME
HORN
DRUM
2. Resetting Rotation Speed to Factory Settings
Switch ON the power, pressing the Foot SW, and wait for 5 sec. Check the STOP LED (RED) slowly flashes and the HORN and the DRUM ROTOR turns at SLOW.
a
SLOW SPEED Adjustment: Adjust SLOW by the TRIMMER on the panel
Turn the HORN side so the FAST (GRN) LED turns on As the rotation approaches the standard it flashes
RISE
TIME FALL
TIME
HORN
DRUM
a
SLOW
SPEED
Adjustment:
Adjust
SLOW
by
the
TRIMMER
on
the
panel
.
b
FAST SPEED Adjustment: Adjust FAST by the TRIMMER on the panel
Turn
the
HORN
side
,
so
the
FAST
(GRN)
LED
turns
on
.
As
the
rotation
approaches
the
standard
,
it
flashes
.
Turn the DRUM side, so the SLOW (ORG) LED turns on. (40±3rpm*)
Turn the HORN side so the FAST (GRN) LED turns on As the rotation approaches the standard it flashes
Press on the Foot SW and switch the Motor to FAST, and wait until the Brake LED (RED) turns on.
RISE
TIME FALL
TIME
HORN
DRUM
b
FAST
SPEED
Adjustment:
Adjust
FAST
by
the
TRIMMER
on
the
panel
.
Turn the DRUM side, so the SLOW (ORG) LED turns on. (400±10rpm*)
c
After checking switch OFF the power and switch it ON again for normal operation Turn the DRUM side so the SLOW (ORG) LED turns on
Turn
the
HORN
side
,
so
the
FAST
(GRN)
LED
turns
on
.
As
the
rotation
approaches
the
standard
,
it
flashes
.
RISE
TIME FALL
TIME
HORN
DRUM
c
3. Check the RISE TIME and the FALL TIME of the HORN and the DRUM. (See the figure on the right)
3 1 HORN RISE TIME (SLOW > FAST) approx 2 5 ±0 5 sec at 10 o
'
clock position
After
checking
,
switch
OFF
the
power
and
switch
it
ON
again
for
normal
operation
.
Turn
the
DRUM
side
,
so
the
SLOW
(ORG)
LED
turns
on
.
RISE
TIME FALL
TIME
HORN
DRUM
3
-
1
HORN
RISE
TIME
(SLOW
-
>
FAST)
approx.
2
.
5
±0
.
5
sec. a
t
10
o
'
c
l
oc
k
pos
iti
on
3-2 HORN FALL TIME (FAST -> SLOW) approx. 2.5 ± 0.5 sec. at 9 o'clock position
3-3 DRUM RISE TIME (SLOW -> FAST) approx. 8 ± 1.5 sec. at 11 o'clock position
3 4 DRUM FALL TIME (FAST > SLOW) approx 8±15sec atthecenter
RISE
TIME FALL
TIME
HORN
DRUM
3
-
4
DRUM
FALL
TIME
(FAST
->
SLOW)
approx.
8
±
1
.
5
sec. a
t
th
e cen
t
er
If not at these tolerances, adjust by the TRIMMER.
If the TRIMMER must be turned more than 30 degrees from the standard position A malfunction is present.
RISE
TIME FALL
TIME
HORN
DRUM
4CHECK Power AMP .
a
TUBE ON/OFF CHECK
MAIN VOLUME G d 2
Adj t th VR9 f th PAH74B t t h th t t t th TUBE ON/OFF
Set TUBE MODE, BASS, MID, TREBLE, HORN LEVEL at the center.
TUBE DRIVE LEVEL is TUBE OFF; SUB WOOFER VOL is MAX
RISE
TIME FALL
TIME
HORN
DRUM
aTUBE ON
/
OFF CHEC
K
MAIN VOLUME: Gra
d
e 2 A
dj
ust t
h
e VR9 o
f
t
h
e PAH74B so as to not c
h
ange t
h
e output at t
h
e TUBE ON
/
OFF
bWOOFER SP LINE IN 800Hz 80mV LINE IN PWH-74C J104-2,4 (LINE OUT 15mVrms)
cHORN SP LINE IN 8kHz PWH-74C J102-1
SUB WOOFER OUT
LINE IN 80H
SUBWOOFER OUT JACK
600mV rms ±30mV
130 V ±12 V
550mV rms ±6mV
RISE
TIME FALL
TIME
HORN
DRUM
cSUB WOOFER OUT LINE IN 80Hz
dTONE VR Check LINE IN 80Hz BASS VR MAX-MIN
eLINE IN 2kHz MID VR MAX-MIN
f
LINE IN 8kH
TREBLE VR MAX MIN
+4dB,-17dB
+4.5dB,-6.5dB
SUBWOOFER OUT JAC
K
130mV rms ±12m
V
10dB
RISE
TIME FALL
TIME
HORN
DRUM
fLINE IN 8kHz TREBLE VR MAX-MIN
5. CHECK the Noise MAIN VOLUME: MAX
()
±10dB
RISE
TIME FALL
TIME
HORN
DRUM
aWoofer SP- Noise Level PWH-74C J104-2
bWoofer SP+ Noise Level PWH-74C J104-4
cHORN SP Noise Level PWH-74C J102-1
1.0mV max (IEC"A"net)
1.0mV max (IEC"A"net)
1.5mV max (IEC"A"net)
RISE
TIME FALL
TIME
HORN
DRUM
#3300P, #3300WP
RISE
TIME FALL
TIME
HORN
DRUM
4.TEST AND ADJUSTMENT
RISE
TIME FALL
TIME
HORN
DRUM

5.WIRING CONNECTION
#3300P, #3300WP
#3300P
#3300WP
POWER
SWITCH
AC INLET
GND TERMINAL
PANEL
Earth
11PIN
100V
120V
220V
240V
00106-00241
00106-00242
00106-00243
00106-00244
Part No.
Volts
Voltage Select Plug
Secondary
Primary
POWER SW PANEL
BLK
Horn Driver
Woofer
CONTROL PANEL
WR-HZ144-D
WR-HZ144-A
WR-HZ144-A
WR-HZ144-E
WR-HZ144-D
REAR COVER
WR-HZ144-G 2/2
WR-HZ144-B
WR-HZ144-D
WR-HZ144-A
MOTOR CABLE
MOTOR CABLE
PANEL GND
J301
5P
6P
7P
PAH-74B
Tube PreAmp
J302
J303
EPH-123
PWH-74C
Power
J106 J107 J108 J109
J112 J110 J113 J103
3P
4P
2P 8P
5P
5P
10P
4P
J111
3P
J101J102
J105
J104
4P
4P 2P 3P
UPPER MOTOR ASSY
LOWER MOTOR ASSY
J205
8P
J204
J203
J202
5P
J201
6P
CTH-37A
Motor Control
LGH-43A 1
Motor Driver
CN2 CN1 CN3
9P 10P 2P
LGH-43A 2
Motor Driver
CN2 CN1 CN3
9P 10P 2P
WR-HZ144-G 1/2
RED
White Red
POWER
TRANS
Red
5PIN
R Red
L White
Pink
5PIN Pink
Black
Red
Black
CN3
CAUTION !!
CN3
CAUTION !!
WR-HZ144-C

6.WIRING CHAR
T
PLUG FROM TO PLUG WIRE TO PWB J201 1 J110-6 ORG PWH-74C +15V
No. PIN No. & PIN No. COLOR NAME 2 J301-1 ORG PAH-74B +15V
J101 1 J302-5 WHT PAH-74B HF IN 3 J111-3 BLK PWH-74C GND
2 J302-4 SHIELD PAH-74B HF GND 4 J301-2 BLK PAH-74B GND
3NC 5 J110-1 GRN PWH-74C -15V
J102 1 HORN out RED DRIVER HORN out 6 J301-3 GRN PAH-74B -15V
2HORN out BLK DRIVER HORN GND J202 1 J303-3 WHT PAH-74B 8PINSIG OUT
J103 1 J302-3 WHT PAH-74B LF+IN 2 J303-2 SHIELD PAH-74B AGND
2 NC 3 11P-7 VIO 11P PLUG SLOW
3 J302-2 SHIELD LF GND 4 11P-8 GR
Y
FAST
4 NC 5 11P-5 BLK CONT GND
5 J302-1 RED LF-IN J203 1 J204-1 BLK CTH-37A FOOT SW
J104 1 NC JUMPER 2 J204-2 BLK +15V
2SPEAKER WHT SPEAKER Woofer- 3 J204-3 BLK SLOW
3 NC 4 J204-4 BLK +5V
4SPEAKER RED SPEAKER Woofer+ 5 J204-5 BLK GND
J105 1 SP HI OUT L NC 6 J204-6 BLK FAST
2GND NC 7 J204-7 BLK -12V
3SP HI OUT R NC J205 1 CN3-1 RED LGH-43A-1 HCLK
4GND NC 2 CN3-1 RED LGH-43A-2 DCLK
J106 1 AC INLET L BLK AC INLET
A
C IN 3 CN3-5 PNK LGH-43A-1 HVS
2NC 4 CN3-6 SHIELD LGH-43A-1 GND
3AC INLET N WHT
A
C INLET
A
C IN 5 CN3-6 SHIELD LGH-43A-2 GND
J107 1 POWER SW. BLK POWER SW. P.S. Send L 6 CN3-5 RED LGH-43A-2 DVS
2 BLK P.S. Return L 7 CN3-9 WHT LGH-43A-2 DBRK
3 WHT P.S. Return N 8 CN3-9 WHT LGH-43A-1 HBRK
4 WHT P.S. Send N
J109 1 TRANS. RED Secondary in +37VAC
2 BLK +37VAC CT J301 1 J201-2 ORG CTH-37A +15V IN
3 RED +37VAC 2 J201-4 BLK Power Gnd
4GR
Y
+20VAC CT 3 J201-6 GRN -15V IN
5 BRN +20VAC 4NC Power Gnd
6 BRN +20VAC 5 J111-4 VIO PWH-74C +37V IN
7 ORG +30VAC J302 1 J103-5 WHT PWH-74C LOW-
8 ORG +30VAC 2 J103-3 SHIELD
A
GND
J110 1 J201-5 GRN CTH-37A -15V OUT 3 J103-1 RED LOW+
2NC -15V OUT 4 J101-2 SHIELD
A
GND
3NC GND 5 J101-1 WHT HORN OUT
4NC GND 6 J110-10 GR
Y
POWERON OUT
5NC +15V OUT J303 1 11P-11 WHT 11P PLUG LES DET IN
6 J201-1 ORG CTH-37A +15V OUT 2 J202-2 SHIELD CTH-37A
A
GND
7NC +5V OUT 3 J202-1 WHT CTH-37A 8PIN SIG IN
8NC +5V OUT 4L JACK-1 SHIELD L JACK
A
GND
9NC GND 5 11P-1 WHT 11P PLUG 11PIN SIG IN
10 J302-6 GR
Y
PAH-74B POWER ON 6NC
J111 1 NC 7 11P-6 BLU 11P PLUG POWER ON IN
2NC
3NC 11PIN 1 J303-5 WHT PAH-74B ROT SIG
4 J301-5 VIO PAH-74B +37V Ou
t
2 WHT out JACK L STA SIG L
J112 1 CN1-2 BLK LGH-43A-1 GND 3 RED out JACK R STA SIG R
2 CN1-2 BLK LGH-43A-2 GND 4 J303-4 BLK PAH-74B AGND
3 CN1-1 RED LGH-43A-1 +24V 5 J202-5 BLK CTH-37A CONT GND
4 CN1-1 RED LGH-43A-2 +24V 6 J202-3 BLU CTH-37A Power On
J113 1 J201-3 BLK CTH-37A GND 7 J202-4 VIO CTH-37A SLOW
2 NC 8 J303-7 GR
Y
PAH-74B FAST
3 NC 11 J303-1 WTH PAH-74B LES DET
4NC
5NC
PRE AMPLIFIE
R
6-1
POWER AMPLIFIE
R
PWH-74C
FUNCTION
PAH-74
B
11PIN LESLIE IN PLU
G
#3300P
#3300WP
MOTOR CONTROL
CTH-37
A

PLUG FROM TO PLUG WIRE TO PWB FUNCTION
No. PIN No. & PIN No. COLOR NAME
CN1 1 J112-3 PNK PWH-74C +24V
2 J112-2 BLK PWH-74C GND
CN2 1 MOTOR BRN MOTOR MU
2 RED M
V
3 ORG MW
4 YEL N.C
5 GRN HW
6 BLU HV
7 VIO HU
8GR
Y
GND
9 WHT +12V
CN3 1 J205-1 RED CTH-37A HU OUT
2NC HV OUT
3NC ALARM OUT
4NC SPEED VR
5 J205-3 PNK CTH-37A SPEED VIN
6 J202-4 SHIELD CTH-37A GND
7 CN3-10 BLK LGH-43A GND
8NC F/R
9 J205-8 WHT CTH-37A BRAKE
10 CN3-7 BLK LGH-43A RUN
CN1 1 J112-4 RED PWH-74C +24V
2 J112-1 BLK PWH-74C GND
CN2 1 MOTOR BRN MOTOR MU
2 RED M
V
3 ORG MW
4 YEL N.C
5 GRN HW
6 BLU HV
7 VIO HU
8GR
Y
GND
9 WHT +12V
CN3 1 J205-2 RED CTH-37A HU OUT
2NC HV OUT
3NC ALARM OUT
4NC SPEED VR
5 J205-6 RED CTH-37A SPEED VIN
6 J202-5 SHIELD CTH-37A GND
7 CN3-10 BLK LGH-43A GND
8NC F/R
9 J205-7 WHT CTH-37A BRAKE
10 CN3-7 BLK LGH-43A RUN
L 1 11P-4 BLK 11P PLUG
A
GND
R JACK-1 BLK R JACK
A
GND
J303-4 BLK PAH-74B
A
GND
2 11P-2 WHT 11P PLUG STA SIG L
4NC
R1
L JACK-1 BLK L JACK
A
GND
211P-3 RED 11P PLUG STA SIG R
4NC
6-2
MOTOR DRIVER HORN
MOTOR DRIVER DRUM
STAITONARY OUT JAC
K
LGH-43A-
2
#3300P
#3300WP
LGH-43A-1

7.PRINTED WIRING BOARD ASS'Y LIST
#3300P
#3300WP
FUNCTION PWB.NAME PART No.
POWER AMP PWH-74C 00218-29276
TUBE PRE AMP PAH-74B 00219-54222
MOTOR CONTROL CTH-37A 00220-20271
MOTOR DRIVER LGH-43A 00220-20251
-7-

1
1
2
2
3
3
4
4
D D
C C
B B
A A
1
2
3
J106
5219-03A
C48
0.047u/275V
F1
C49 3300p/250V
C50
3300p/250V
C51 0.01u/250V
C52
0.01u/250V
1
2
3
4
J107
5219-04A
3 4
RL3A
AW3021
6 5
RL3B
1
2
3
U3
7824
C32 0.1u
R34
1/2W 150
18
+
-
RL3C
AW3021
D2
D3
R36
2200
R58
22k
C34
1000u/25V
1
2
J108
5219-02A
F2
T5AL
F3
T5AL
DB1
DBF-60C
C30
10000u/50V
C31 10000u/50V
+B
-B
DB3
DBF-40C
C44
2200u50v
DB2
DBF-20C
D6
D5
C42
100u/35V
D7
R40
3300
R38
1800
R39
150K
C43
22u/35V
D8
1SS133
ZD1
RD6.2EB2
Q2
2SC1815Y
D4
R41 4700
R42
2200
1
2
3
4
J111
5045-04A
+B
C36
2200u35v
C39
2200/35V
C37
0.1u
C40
0.1u
1
2
3
U4
7815
2
1
3
U5
7915
C38
100u/25V
C41
100u/25V
+15V
-15V
1
2
3
4
5
6
7
8
9
10
J110
5045-10A
-15V
+15V +5V
LES. POWER ON
FG
1 2 3
J101
5045-03A
R1
4700
R2
5600
C1
470p R3
56K
R4 1500
R11
56K
C8
3p
R8 3W 0.22
1
2
J102
5273-02A
PSW3
RXEF300
PSW1 RXEF185
PSW2
RXEF185
LES. POWER ON
SW
POWER SW
C2
0.047u TF
1
2
3
4
5
J103
5045-05A
R13
10k
C13 470p
R14
2200
C14
68p
R21 56K
C17 3p
R19
3W 0.22
C12
2.2u/50V
R15 56K
R16
1800
C15
33u/16V
C5
100μ/50V
R17
1/2w 100
C6
100μ/50V
R22
10K
C20 470p
R23
2200
C21
68p
R29
56K
C24
3p
R28
3W 0.22
C19
2.2u/50V
R24
56K
R25
1800
C22
33u/16V
C4
100u/50V
R26
1/2W 100
C7
100μ/50V
C27 0.1u
R33 1/2W 4.7
+B
-B
1
2
3
4
J105
5045-04A
to EPH-123Primary
AC Line
Motor Power
Mute
Secondary
DC Output
Bass Input
Treb./Horn Input
Rotary Horn
Woofer
R44
2200
L2 3μH
R12
1/2W 4.7
C10
0.1u
R10
1/2W 4.7
PGND
L4 3uH
R32
1/2W 4.7
L3 3uH
R30
1/2W 4.7
D11
1
2
3
4
5
J113
5045-05A
C3
0.47u TF
C28
C29
R45 33K
R20 330
1
1
2
3
4
5
6
Vio
0V Wht
100V Blu
120V Grn
0V Gry
100V Yel
120V Orn
Pri(1)
Pri(2)
2
80V Wht
NC
NC
1
2
8
1
2
3
4
5
6
7
9
TA
EPH-123
1
2
3
4
5
6
7
8
J109
5273-08A
Q1
2SA1015Y
R35
1K
3191-02R1
3191-09R1
100V
1
1
2
3
4
5
6
Vio
0V Wht
100V Blu
120V Grn
0V Gry
100V Yel
120V Orn
Pri(1)
Pri(2)
2
80V Wht
NC
NC
1
2
8
1
2
3
4
5
6
7
9
TA
EPH-123
3191-02R1
3191-09R1
120V
1
1
2
3
4
5
6
Vio
0V Wht
100V Blu
120V Grn
0V Gry
100V Yel
120V Orn
Pri(1)
Pri(2)
2
80V Wht
NC
NC
1
2
8
1
2
3
4
5
6
7
9
TA
EPH-123
3191-02R1
3191-09R1
220-230V
1
1
2
3
4
5
6
Vio
0V Wht
100V Blu
120V Grn
0V Gry
100V Yel
120V Orn
Pri(1)
Pri(2)
2
80V Wht
NC
NC
1
2
8
1
2
3
4
5
6
7
9
TA
EPH-123
3191-02R1
3191-09R1
230-240V
Voltge Select Plug
connect to J108
Critical components for safety
C48: R46KI2470M
C49 - C50: DE0910E332M-KX or DE1E3KX332MA5B
C51 - C52: DE1607F103M-KH or DE2D3KH103MA3B
F1:
T4AL(100V AREA) 218004
T3.15AL(120V AREA) 218003
T2AL(220-240V AREA) 218002
POWER SWITCH: ALPS SDDJF30200
RL3: AW3021
M1: FAN PUDC24Z4
GND
+37V
CONTROL GND
R IN
L IN
AG
INAG
HORN
GND
T1
EPH-122
ZD4
RD5.1EB2
Q4
2SC2655Y
ZD2
RD6.2EB2
+15V
D12
D 1-3, 5-7,9,10-15 : 1SR139-400
+24V
MGND
16
1
1
3
6
5
4
R50
10K
R49
10k
Q5
2SA1020Y
R47 120K
TH1
A
-
+
M1 FAN
PUDC24Z4
+15V
R48
1M
GND 3
VCC 1
IN 2
OUT 5
NC 4
U6
M51945B
D13
1
Not used
RED
BLK
LM
UM
C53
100u35v
LLA LLA
1
2
3
4
5
6
7
8
34V Red
0V Blk
Sec(1)
34V Red
30V Orn
Sec(2)
0V Grey
17.5V Brn
0V Orn
Sec(3)
17.5V Brn
TB
EPH-123
Ch.1 In
11
Ch.1 NF
12
Pre +Vcc
8
GND
10
Ch.1 +VE
4
Ch.1 -VE
5
+Vcc
3
Ch.2 In
15
Ch.2 NF
14
Sub Gnd
9
Pre -Vcc
1
Ch.2 -VE
7
Ch.2 +VE
6
-Vcc
2
ST-BY 13
U1A STK433-330
Ch.3 In
16
Ch.3 NF
17
Ch.3 -VE
19
Ch.3 +VE
18
U1B STK433-330
C9
68p
R6 4700
R46
1/2w220
R7
10K
AG
GND
R55
6800
Q6
2SA970GR
R53
56K
D16
1SS133
R51 56K
R56
6800
Q7
2SA970GR
R54
56K
D17
1SS133
R52 56K
LSP
R5 100K
Q8 2SC1815Y
LSP
JP
D8,16-20 : 1SS133
1
2
3
U7
7824
C45
0.1u
C46 100u35v
JP
JUMPER
JP
JUMPER
JP
JUMPER
JP
JUMPER
C54
0.1u
R27
1k
R57
6800
Q9
2SA1015Y
D10
D9
C47
100/35v
-20v
-20v
R9 2200
R59
10K
R60
10K
1
2
3
4
J112
5045-04A
Q3
2SC2655Y
ZD5
RD15EB3
R37
4700
R43
4700
-15V
C11
22u/50V BPP
D20
1SS133
ZD7
RD15EB2
R62 220
D18
1SS133
ZD6
RD20EB2
R61 220
1
2
3
J114
B3B-PH
OverLoad LED
GND --
D1 1SS133
C23
33u/16V
D19
1SS133
HORN+
BASS+
C26 0.1u
R31 1/2W 4.7
1
2
3
4
J104
5273-04A
L SP
R SP
GND
GND
C35
100u/16V
Q10 2SC1815Y
+20V
+20V
R64
1/2w1K
PGND
PGND
PGND
R63 1/2w1K
Not used
Not used
Not used
Not used
Not used
Not used
TH1 20K
TH1
#3300P, #3300WP
PWH-74C
00218-29203
#3300P, #3300WP
8-1
Power Amp & Supply

1
1
2
2
3
3
4
4
D D
C C
B B
A A
R55 470
C29
1000u/16V
C28
1000u/16V
+15V
GND
-15V
LOW +
LOW --
3
2
1
V1A 12AX7
8
7
6
V1B 12AX7
4 5
9
V1C 12AX7
R49
22 1/2W
R9
100k
R3
10K
R2 10K
R8
1M
C7
100p
R48
22 1/2W
R5
22k
+14V
R15
100k
R11
10M
C8
0.047u
R6 33k
R1 47k
R51
22k
R12
1M
+24V
POWER ON
HORN OUT
AG
R18
47K
C10
22p
GND
R7
680k
R14
47k
+24V
C6
0.22u
1
2
3
VR3 50kB
-14V
R13
27k
R10
680k
R4
680K
1
2
3
VR1
100kA
R17
4700
R16 22k
1
2
3
VR2
50kA
C11
0.22u
R19
2700
C12 1000p
R20 3300R27
100k
LINE IN
2
4
1
JK3
HLJ0520-01-110
C17
Comment: 0.1u
R26
680
1
2
3
VR4
20kB
R25
22k
C16
0.1u
C15
Comment: 2200p
R24
2200
1
2
3
VR5
20kB
R23
47k
C14
0.015u
C13
Comment: 820p
R22
680
1
2
3
VR6
20kB R38
470
R50
22 1/2W
VOLUME
C19
0.01u TF
C20
0.01u TF
R28
12k
R29
33k
R30
1000
R33
15k
R34
15k
R35
1000
C22 0.018u
C23
6800P
R36
10k
R37
10k
R39
470
R40
15k
R41
15k
R42
1000
C25 0.22u
C26 0.082u
R43
1000
R31
470
R32
JP
1
2
3
VR7
5kB
C21
0.47u
1
2
3
VR8
5kB
C4
100p
C2
Comment: 2.2u/50V LLA
C24
Comment: 10u/50V
C27
Comment: 100u/50V
BASS MID TREBLE
Tube Drive Level
TUBE MODE
HORN LEVEL
SUB WOOFER
to PWH-74C
C30
0.1u
C31
0.1u
C32
0.1u
C33
0.1u
84
IC1C
uPC4570C
C34
0.1u
C35
0.1u
PWH-74C
411
IC2E
uPC4741C
5
6
7
IC2B
uPC4741C
10
9
8
IC2C
uPC4741C
3
2
1
IC2A
uPC4741C
12
13
14
IC2D
uPC4741C
BASS OUT (Tip)
411
IC3E
uPC4741C
5
6
7
IC3B
uPC4741C
10
9
8
IC3C
uPC4741C
3
2
1
IC3A
uPC4741C
12
13
14
IC3D
uPC4741C
+24V
FB1
FB3
8PSIG IN
POWER ON
AGND
AG
11P SIG IN
1
2
3
4
5
6
J302
5046-06A
C1 Comment: 2.2u50V LLA
C3
Comment: 2.2u/50V LLA
FB2
+37V
R52 1k
+14V LES DET
3
2
1
IC1A
uPC4570C
5
6
7
IC1B
uPC4570C
R53
NA
1
2
3
4
5
J301
5045-05A
R21
47
2
3
1
JK4
HLJ0520-01-010
R54 2700
R56
47k
(60Hz) (1.7kHz) (8kHz)
C9
0.47u
LESLIE 11P IN
FB1-FB3 : EXCELDR25V
AG
C18
Comment: 1u/50V LLA
POWER ON
POWER ON
1
2
3
4
5
6
7
J303
5045-06A
NC
C36
Comment: 2.2u LLA
R44
680k
R45
680k
C37
0.47u
R57
470
+14V
-14V
+15V
R58 NU
1
2
3
VR9 300k
TUBE OFF
VR1-SW
Tube Gain Adjust
Tube Pre Amp
VOLUME
/ LINE OUT (Ring)
LED4
L-7104SED
R46
2700
R47
0
R60
1000
R61
4700
R62
4700
C36
100p
#3300P, #3300WP
PAH-74B
00219-54222
#3300P, #3300WP
8-2

1
1
2
2
3
3
4
4
D D
C C
B B
A A
C57
470u16V
C56
100u16V
+15V
GND
-15V
R102 1/2w100
R72
47K
R101
1/2w 2 .2
R78
22k
R77
10k
R90
4700
1
2
3
VR1
10k
R73
22k
11P FAST
R98
1000
1
2
3
VR14
Not Used
1
2
3
VR5 1M
1
2
3
VR6 1M
R91
4700
1
2
3
VR12
C58
Comment: 100u/16v
Horn Fast Speed
LGH-43A
C53
104Z50
C54
104Z50
Horn & Drum-Motor driver
411
U2E
NJM084D
5
6
7
U2B
NJM084D
10
9
8
U2C
NJM084D
3
2
1
U2A
NJM084D
+12V
SLOW
FAST
ROT SIG IN
R94
1000
R92
1000
2
3
1
JK1
HLJ0520-01-010
SLOW
CONT GND
to PAH-74A
AGND
FAST
8P SIG IN
11P LESLIE IN
FOOT SW
C59
Comment: 100u16v
11P SLOW
1
2
3
4
5
J202
5045-05A
from PWH-72A
LESLIE 8P IN
Diode D1-19 : 1SS133
D1
Q1
2SA933S
Q3
2SC1815Y
R75
47K
R82
1k
R81
15k
1
2
3
VR3
2k
R76
22k
+12V
D3
Q2
2SA933S
Q4
2SC1815Y
R80
22k
R79
10k
1
2
3
VR2
10k
D2
R84
1500
R83
15K
1
2
3
VR4
2k
D4
D6
R85
1M
D5
R87
4700
D17
D9
D10 1
2
3
VR7 1M
D8
D7
R89
100k
D13
D12
Horn Slow Speed
Drum Slow Speed
Horn Fall Time
Drum Rise Time
Horn Rise Time
Drum Fast Speed
P07/Ain
1
P05/Ain/Aout
2
P03/Ain/Aout
3
P01/Ain
4
SMP
9
P17/SCL
10
P15/SDA
11
P13
12
P11/SCL
13
Vss
14 P10/XtalOut/SDA 15
P12 16
P14/ExtCLK 17
P16 18
XRES 19
P00/Ain 24
P02/Ain 25
P04/Ain 26
P06/Ain 27
Vdd 28
P27
5
P25
6
P23/Ain
7
P21/Ain
8
P20/Ain 20
P22/Ain 21
P24/ExtAGND 22
P26/ExtVref 23
U1
CY8C24423-24PI
C55
104Z50
+5V
1
2
3
U3
7805
1
2
3
U4
7812
12
13
14
U2D
NJM084D
DBRK
HBRK
+5V
DBRK
HBRK
+12V
LED2
L-7104SED
R96
1K
STOP LED(RED)
LED1
GL3TR8
R97
82
SLOW LED(ORN)
LED3
GL3EG8
R95
150
FAST LED(GRN)
1
2
3
VR9
Not Used
1
2
3
VR8
10k
1
2
3
VR11
+5V
D14
D11
D16
1
2
3
4
5
6
J201
5046-06A
R71
4700
R74
4700
FAST
SLOW
FAST SLOW
Drum Fall Time
Not used
1
2
3
4
5
6
7
J203
1
4
2
5
3
6 7
8
JK2
TCS5090-1840577
1
2
3
4
5
6
7
J204
SLOW
FAST
FOOT SW
1
2
3
4
5
6
7
8
J205
S8B-PH
HCLK
DCLK
HCLK
DCLK
HVS
DVS
GND
C51
2.2u50vLLA
C52
10u50vLLA
D15
R104 1K
R103 1K
+5V
HCLK
DCLK
1
2
3
4
5
6
J206
R105 4700
R106
4700
D18
D19
FB5
FB4
FB6
FB7
FB4-FB7 : EXCELDR25V
#3300P, #3300WP
CTH-37A
00219-54222
#3300P, #3300WP
8-3
Motor & Control

#3300P
9. TECHNICAL DESCRIPTION
1. General
This unit corresponds with the Leslie 11-pin Input, the 8-pin Input and the LINE Input.
It has 1 channel (the Rotary Channel only) and two very powerful Amplifiers (220W + 80W).
The Treble Horn Rotor and the Bass Drum Rotor are driven by the respective DC
Servo-Motors, The built-in Tube allows natural distortion/overdrive effects without adding excess
Volume similar to the performance of Leslie models 122 and 147.
The Slow/Fast speeds and Rise/Fall times are user-adjustable.
The PWB’s consist of:
a. Pre-Amp & Tube Drive PWB (PAH-74B)
b. CPU Motor Control PWB (CTH-37A)
c. Power Amplifier & Power Supply PWB (PWH-74C)
d. Motor Driver PWB (LGH-43A)
2. Operation of Each PWB
A. PREAMP & TUBE DRIVE (PAH-74B)
This PWB consists of the Pre-Amp, the Tube Drive section and the Filter section.
The signals, input from the Leslie 11-pin Connector Pin (1), are sent through J303-5
and are mixed with the input of the Line-In Jack JK-3 and the Leslie 8-pin Connector CTH-37A
JK-2 Pin (1), then the gain is adjusted at the Sub-Pre-Amp IC1A and VR1, and are supplied to
the input of the V1 through the Tube ON/OFF switch of the VR1.
The V1 is the circuit for the Tube-Overdrive. With this, the user can set the Overdrive to
the VR1 Drive Level and the VR3 Tube Mode Volume from softer distortion to hard distortion as
required.
The Overdrive can be switched OFF, only by turning the VR1 Drive Lever to the leftmost position, i.e.
“Tube OFF”, which automatically switches ON the direct input to IC1B.
Next, the signals, sent through the Master VR2, can be controlled by the Bass (60Hz), the MID (1.7kHz)
and the Treble (10kHz) by ±10dB Iusing the 3 band Equalizer C2.
Finally, the signals, divided by the HPF and the LPF of the IC3, are sent to the PWH-74C by J302.
Also the signals for the Sub-Woofer (below 125Hz) and those for the Line-Out are sent to the JK4
through the VR8.
B. CPU MOTOR CONTROL (CTH-37A)
This PWB consists of the Voltage Generating circuit for the Motor Control, the CPU circuit for
controlling and the Power IC circuit.
The U1 CY8C24423A is a 1-chip CPU, containing the built-in CPU of the Clock circuit, the
ROM,RAM,
and Analog Interface circuits. This most advanced Controller CPU is operated by the
Power Supply of only +5V. It monitors the Rotation Pulses (J205-1, 2) of the Horn side and the Drum
side Motors, emits the Brake Pulse to the LGH-43A circuit, and automatically controls the Rise Time.
It also monitors the Slow/Fast Control signals received via the Leslie 11-pin and 8-pin and controls the
motor rotation with “Last-Action-Priority” by adding the Foot-Switch operation.
9-1

#3300P
An advanced feature is the Rotation Speed Adjusting-mode. It enters this mode by pressing
the Foot-Switch for 5 seconds or longer at Power ON. By using the LED on the panel, the Rotation
Speed of Slow and Fast is controlled.
Refer to Page 11 of the Owner’s Guide for details.
The function of the U2 is to control the Rise/Fall of the Motor Control Voltage, together
with the constant circuit at the time of VR1,2,3,4 and C51,52.
The TR Q1,3 and the TR Q2,4 are driving circuits to switch ON/OFF +12V and convert the
Slow/Fast signals, sent from the U1,and send to the Adjusting circuit of the U2 Rise/Fall Time.
Finally, the voltage for controlling the speed is put out from the J205-3PIN and 6PIN to the
LGH-43A PWB.
The Power circuit makes +12V and +5V for the U1 from +15V from the PWH-74C by using
the U4 (+12V) and the U3 (+5V).
C. POWER SUPPLY & POWERAMP PWB (PWH-74C)
This PWB consists of the Power Supply, the Power Amp, the Power ON Muting circuit
and the Remote Power ON circuit.
POWER SUPPLY:
TheprimarysideofthePower-TransEPH-123 is designed for easily switching 100V, 120V,
220- 230V, and 230 - 240V by changing the combination of wirings of the Voltage-Select Plug.
There are three lines of ±34V, ±17.5V, +30V secondary side of the transformer.
From these the Power Amp’s power source, ±15V, +24V Motor’s power source are produced.
The devices PSW1, 2, 3, placed between the transformer volume line and the rectifier diodes,
are Poly-Switches and function as fuses.
They reset by re-switching ON after removing the reason for the blown fuse.
They do not require replacement in normal use.
The Part No. RXE-185 corresponds to the 1.6A Time lag or Slow Blow Fuse.
POWER AMP:
The Power-Amp consists of 3 channels: 3-Channel Amp IC U1.
The Treble-side amp. and the Bass-side (BTL motion) function as 1 channel.
The output of the U1 Amp is mixed through R8,9 (0.22 ohm) at the Pin 12,13 and is supplied to
the Horn Driver through the Choke Coil L2, via J102-1. The U1 has a Muting circuit for
preventing a Pop Noise at Power ON and OFF.
The heat-sink is equipped with a DC cooling fan, which detects the temperature by the TH1 Thermistor
and the U6 IC. If the temperature approaches 50 deg C, the DC fan automatically turns and prevents excess
heating of the heat-sink.
REMOTE POWER ON:
The T1 is a Sub-Power-Transformer for the Remote-Power-ON circuit. It is always connected to
the power source, even when the main power is switched OFF. The Power-ON signal of the Leslie
11-pin is connected to the RL3, and, if the terminal goes down to the GND level, the RL3C is switch-
ed ON and = the Power is switched ON, and, if the organ and the 11-pin cable are connected, the
Power Switches on the organ and the Leslie operate simultaneously.
9-2

#3300P
D. MOTOR DRIVER PWB (LGH-43A)
The LGH-43A is a DC Servo-Motor-Drive circuit-board and controls the motors at the Speed
Control Terminal (CN3-5) and the Brake Terminal (CN3-9). It also sends the rotation information
by the Rotation Pulse to the CTH-37A from the CN3-1.
The approximate Speed Control Voltages are [0.7VDC] at Slow, and [7.0VDC] at Fast.
Pay particular attention in making the correct connection of the Horn(UP)Connector (5-pin-PINK)
And the Drum (LOW) Connector (5-pin-RED).
If the connection is not correctly made,
the control of Rise Time on the drum side is not possible.
On the PWB, the over-current-protective circuit is built-in, which stops the motor rotation in
case the load on the motor is abnormal, but it will function normally by re-switching the power ON
after removing the excessive load.
9-3

10.PARTS LIST
1.FINAL ASS'Y #3300P (66810-01101)
10-1
00453-40257Tube Retainer Spring
00308-06001Vacuum Tube 12AX7
00451-40702Leslie Badge #2
00451-40669Rear Cover
66811-02102Control Panel Ass'y
00450-40842#3300P : Rear Panel(middle)
00450-40904#3300WP : Rear Panel(middle)
00450-40843#3300P : Rear Panel(Bottom)
00450-40905#3300WP : Rear Panel(Bottom)
01613-53010Tapping Screw Type1(Bind,Ø3x10)
Tapping Screw Type1(Truss,Ø4x16)
Tapping Screw Type1(Truss,Ø4x30)
01613-64016
01613-64030
01703-84030Machine Screw(W sems,P=3,M4x30)
00750-03011Polyslider washer(LL-3105-02)
3
49
11
5
10
6
10
7
8 12
12
00412-01532Caution Label #2
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
13
#3300P
#3300WP
#3300WP(66820-01101)

10-2
14 66791-02201
#3300WP : Cabinet Total Ass'y
14 66751-02201#3300P : Cabinet Total Ass'y
15 66751-02104
Upper Motor & Bearing Ass'y
16 66751-02108
Lower Motor Ass'y
17 66751-02121
Upper Bearing Ass'y
18 66751-02126
Rotor Pulley Ass'y
19 66751-02122
Lower Bearing Ass'y
20 00315-08014
Rotor Form 122A BAL
21 00315-08010
Rotary Horn 514-140436
22 00453-40128
Cloth Belt 400x3mm
23 00453-40331
Belt Drive-Treated 522-141182
24 66811-02111
Power Substrate Sub Ass'y
25 66751-02112
Power SW Panel Ass'y
26 00402-06022
PC Board Cushion
27 00314-09005
Faston Tab
28 00315-08015Horn Driver PA-D50Z
31
14
26
24
21
34
38
15
37
28
40
29
36
17
36
20
18
1933
27 32
25 33
22
26
33
26
16
34
33 39
30 35
43
47 46
45
44
Tapping Screw Type1(Bind,Ø3x10)
Tapping Screw Type1(Truss,Ø4x16)
31
29
30
32
33
00315-06017
00307-01323
00220-20251
01613-53010
01613-64016
Machine Screw(Bind,M6x16)
34 01703-53016
Machine Screw(W sems,P=3,M4x20)
35 01703-84020
Woofer 15" USA514-059587
Power Transformer(EPH-123)
LGH-43A PWB Ass'y
Wiring WR-HZ144-A
43
44
00443-05035
00443-05038Wiring WR-HZ144-D
Wiring WR-HZ144-E
Toothed Lock Washer(Ø4)
45
46
00443-05039
00755-44000
Hexagon Nut(M4)
47 01725-14000
Upper Moter Spacer
38
36
37
39
40
01703-84030
01703-84050
00450-40871
00340-02011Nylon Clip NK-9N
SP Spacer Ass'y
Belt Drive 400x3Ø
41
66811-02208
00453-40128
Belt Drive-Treated USA522-141182
42 00453-40331
Machine Screw(W sems,P=3,M4x30)
Machine Screw(W sems,P=3,M4x50)
41
42
#3300P
#3300WP

10-3
3.UPPER MOTER & BEARING ASS'Y(66751-02104)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
00451-40665
00451-40300
00451-40299
00451-40291
66641-02120
00345-01006
00451-40301
00443-05033
66751-02207
00401-03022
00453-40132
00453-40157
00453-40177
00453-40176
00453-40325
00453-40127
00453-40023
00451-40302
00451-40345
00730-04012
01703-43008
01703-44010
01703-54016
01613-53006
01653-53006
01745-24000
01723-14000
00453-40133
Rotary Horn Base
Motor BKT
Driver Mount BKT
Hold BKT
Spindle Hub Set
Motor FY8S15D3
Motor Pulley #22
Motor Cable
Motor Cover Ass'y
Coner Angle
Rubber Grommet(FVC)
Rubber Grommet(G-91)
Damper Rubber
Damper Sponge
Up Stop Sheet
Cushion(Large)
Pedal Spacer
Spring
Spacer Pipe #8
Hex Head Spacer Nut
Machine Screw(Pan Head,M3x8)
Machine Screw(Pan Head,M4x10)
Machine Screw(Bind,M4x16)
Tapping Screw Type1(Bind,3x6)
Tapping Screw Type2(Bind,3x6)
Plain Washer(M4x8x0.8)
Hexgon Nut(M4)
Rubber Ring
1
5
12 26 11 223
6
8
16
15
20 22
4
25
14
18
13
16
25
23
19
12
3
23
28 7
21 19
17
9
25
10
24
23
27
2.CONTROL PANEL ASS'Y(66811-02102)
Nyron Rivet P-3045 BLk
1
2
5
3
4
6
00451-40691
00219-54222
00220-20271
00332-12005
00402-31010
00760-03003
01653-53005Tapping Screw Type2(Bind,Ø3x5)
7
Control Panel
PAH-74B PWB Ass'y
CTH-37A PWB Ass'y
Jack Nut HLJ0999-01-250
Volume Knob XB
00333-14017
00333-14019
00332-12017
00332-12019
00340-06031
00340-06032
8
9
Volume Washer Ø7
Volume Washer Ø9
Volume Nut M7
Volume Nut M9
10
11
DK Clamp DKN-7G
DK Clamp DKN-10G
12
13
00750-06006
Polyslider Washer(Ø6.2x9.5x0.25t)
14
10
8
3
7
14
213
4511
9
414
73
7
6
12
#3300P
#3300WP
