USER S MANUAL
Model :HSD329TN

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 2/2 www.hbe.co.kr
Contents
1.
Package Contains ------------------
Page 3
2,
Locations and Function ------------------
Page 3
3,
XDRUM N Stick ------------------
Page 4
*Key lock ------------------
Page 6
4,
Windows98 Install ------------------
Page 7
5,
Utilityprogram ------------------
Page 9
* PasswordSet and Change
------------------
Page 11
* Boot Upfunction ------------------
Page 13
6,
USB2.0 XDRUM N Stick ------------------
Page 16
7,
Important Notice ------------------
Page 17
8,
A/Sand Cautions ------------------
Page 18
9, Guarantee ------------------
Page 19

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 3/3 www.hbe.co.kr
Package Contains
Please check Package Contains in Box
Location and Function
─Cap : USB Connector protect cap
─LED : Lighting on operation
─Write Protect Switch : Change switch to direction
─Neck strap jack
─USB Connector : USB Port connect part
1. USB2.0 XDRUM N Stick 1pcs 4. Extra cap 1pcs(option)
2. USB extension cable 1pcs(option)
5. CD Drive 1pcs(option)
3. Neck strap 1pcs(option) 6. Manual 1pcs(option)
Cap
LED
USB Connector
Neck Strap
Write Protect Switch
LED

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 4/4 www.hbe.co.kr
How toUsetheUSB2.0 XDRUM N Stick
You can use the USB2.0 XDRUMNStick right away simply by inserting it in the
USB port of your PC. (WindowsME/2000/XP and beyond, excluding
Windows98/SE, will automatically recognize the USB2.0 XDRUM N Stick)
For users with Windows98/SE O/S, the Windows98/SE driver must first be
installed. Please refer to page 7 for driver installation.
Should you wish to use the security or partition functions, install the USB2.0
XDRUM N Stick.EXE program. Please refer to page 9.
For more information about USB, visit http://www.usb.org.faq/.
How toUsetheUSB2.0 XDRUM N Stickwith Windows
When you insert the USB2.0
XDRUM N Stick in your USB port,
Windows will automatically
recognize it as a “portable storage device”and designate the drive accordingly.
Go to “My Computer”, and the [portable disk] icon will appear.
When the [safe hardwareremoval] icon is displayed on the [taskbar], you can
double-click it to remove the device safely.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 5/5 www.hbe.co.kr
To confirm whether thedevice is installed properly, choose “Start-> Settings->
Control Panel-> System-> Hardware”,
then double-click on the device manager
to display the [Universal Serial Bus] icon.
Double-click that icon tosee ifthe “USB
mass storage device”is installed.
It is recommended to use
USB2.0 XDRUM N Stick
compatibly with “Hi-Speed
USB 2.0”. If you connect the
USB2.0 XDRUM N Stick to a
“non Hi-Speed USB 2.0 Hub”, Windows will display a warning message as
shown below. You may use the device without changing any settings, but
reading/writing speed will slow down.
Remove the USB2.0 XDRUM NStick
In order to remove the device safely,
double-click the [safe hardware removal]
icon, remove device, then choose “Stop->
OK-> OK-> Close”.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 6/6 www.hbe.co.kr
Note: Wheneveryou remove adevice
without executing safe removal, a
warning message thatthe “computer
may stop responding, or you may lose
data”will be displayed. Do not remove
the device when the LED is flashing
since this indicatesthat reading or
writing is active. Remove thedevice
safely after the LED turns off.
Write-Protect Function
◈Write-protect tab is located at the lower part of XDRUM N Stick.
◈Open (when tab is slid up): you can freely read and write.
◈Locked (when tab is pushed down): you can read, but cannot write.
Note: If you change the setting of the tab when the device isnotconnected to
the computer, it may cause the loss of data.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 7/7 www.hbe.co.kr
How to Install the USB2.0 XDRUM N Stick with Windows98
1) Double-click and
execute “XDRUM NStick
Win98 Driver2.0. EXE”
from the CD, and then
choose “Next”when the
“Installation Manager”file
appears as follows.
2) When given options to
make a new directory
during installation, choose
“Yes”and click “Next”.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 8/8 www.hbe.co.kr
3) After the UBS XDRUM N
Stick is installed, click
“OK”to finish installation.
4) When the UBS N Stick
is connected to a UBS
port, the computer will
automatically locate
software for the new
device. Simply find the
drive where your UBS N
Stick is connected and
use it.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 9/9 www.hbe.co.kr
How to Use the XDRUM N Stick Utility Program
The XDRUM NStick provides functions such as password protection, partitioning,
and booting setup alteration.
How to Install the XDRUM N
Stick Utility Program
Follow the installation guide:
1. Execute “XDRUM N
Stick.EXE”from the driver
CD enclosed with the
product.
2. When the Installation
Wizard appears, click
[Next>].
3. Installation Wizard begins
to copy and install required files
and programs. Click “Yes”, and
then “Next”.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 10/10 www.hbe.co.kr
4. Clicking on “OK”,to
completesinstallation of the
utility program.
5. Check if the [XDRUM N
Stick] folder is displayed in the
[program] folder of the [Start]
menu.
Note: When the XDRUM N Stick”is inserted into the USB port, a key-shaped
program execution icon will appear in the lower right corner of the
startup screen. Click that icon to execute the utility program.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 11/11 www.hbe.co.kr
■ How to Use the XDRUM N Stick Utility Program
Set/Check Password
The XDRUM NStick allows the setting or alteration of a[password]. In orderto
set apassword for the first time, choose “resize”as displayed in the following
picture. If apassword isalready set, amessage will appear advising you to enter
that password. If you want to alter the password, follow this procedure.
1. Double-click the key-shaped icon on the tray bar in the lower right corner of
the startup screen to execute the XDRUM N Stick utility.
2. To enter secure mode, select “Public Area + Security Area”, enter the
password you wish to use in the “New Password”box, then click “OK”.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 12/12 www.hbe.co.kr
3. When you connect the “XDRUM
N Stick”with a password set, a
key shape will be displayed in
red on the tray bar.
4. To use the XDRUM N
Stick after setting the
password, enter the
appropriate password
in the “password”box,
and clock “OK”. (To
quit using secure
mode, click “logout”,
then “OK”, to go to
the public area.)
Change Password
A function of altering the
XDRUM N Stick password.
First, enter the existing
password, and then a new
one. For confirmation, enter
the new password two times.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 13/13 www.hbe.co.kr
How to Use the Boot Up Function[Copy System File]
This function is used to enable
you to boot your computer with
the USB disk. Choose [Utility],
and the following window will pop
up. USB Flash Disk supports
USB FDD, ZIP or HDD booting
functions. However, you can use
this function only when your PC’s
mainboard supports it.
How to Make aBoot Up Floppy forWinXP[Copy
SystemFile]
1. Click 3.5 Floppy disk (A:) in the Win XP “My
Computer”menu, choose “Format”,then “Make
DOS Starting Disk”, and click “Start”.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 14/14 www.hbe.co.kr

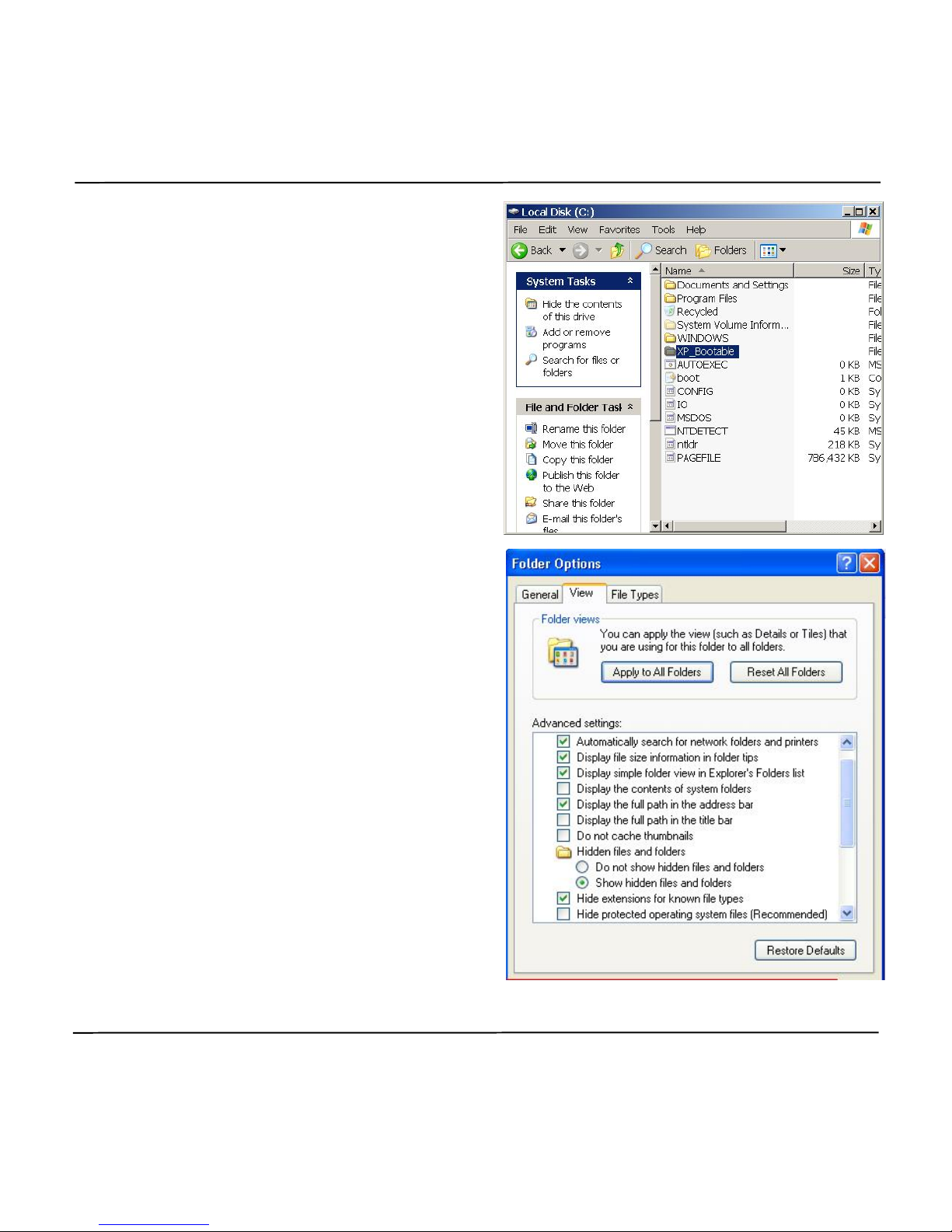

2. Create anew XP_Bootable folder
within the CDrive (System Disk), copy
all files from 3.5 Floppy disk (A:), and
paste them in the new XP_Bootable
folder.
Note: To copy the system file from
3.5 Floppy disk (A:), set all
files and system file as
view”using folder options
as the following picture
shows, and then click OK”.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 15/15 www.hbe.co.kr
3. Choose the [Utility]
index from the
XDRUM NStick utility,
and click “USB ZIP”,
then “OK”.
Note: This function may not be supported depending on the O/S that you
use. When your O/S does not support this function, utility index
window wont be activated. (available only on Win98/XP)
Note: To use this booting function on Win XP, BootDisk folder should be
located at C Drive.
Note: This function is not supported in Windows ME or Windows 2000.
Note: Not all computers support the USB Flash Disk. Whenyour computer
does not support it, contact the PC or mainboard manufacturer. In this
case, you should set aproper [boot sequence] compatible with your
USB Flash Drive in the mainboard BIOS Setup.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 16/16 www.hbe.co.kr
USB XDRUM N Stick Specification
Capacity 16, 32, 64, 128, 256, 512MB
Read Performance 56Mbit/sec(Depend on PC mainboard type)
Write Performance 48Mbit/sec(Depend on PC mainboard type)
Available PC IBM PC/Mac..PC System with USB Port
Available O/S Windows 98 / ME / 2000 / XP /
Linux 2.4 or higher, Mac OS 9.0 or Higher
Drive Support Windows98/SE Install driver
Power Supply USB power supply
LED 1 (LED State)
LED fast mode for Transmitting and
Receiving data
LED 2 (LED State) Power State
USB Interface USB2.0 and USB1.1 Compatible
Suspend Current ＜350μA ( Max :＜500μA )
Operating Current ＜31mA
Operating Temperature 0℃to 70℃
Storage Temperature -10℃to 125℃
Dimention 18.5(W)×42.55(H)×4(T)mm(Without CAP)
Security Function and
6type of Software
GUI software installed Password function &
E-mail, PC-Lock, File-Lock, AutoRun,
Time-Lock Soft Ware supported
Booting Disk Function Usable as Booting Disk
Write protect switch Write protect switch supported

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 17/17 www.hbe.co.kr
※How to remove the USB2.0 XDRUM N Stick safely
●All O/S : Unplug the XDRUM N Stick from the USB port after the activating
pointer of mouse is stopped.
●Windows 98 : Do not unplug the XDRUM N Stick from the USB port while its
LED is blinking.
●Windows ME, 2000,XP: Execute hardware separation icon located on the
bottom of the right in the Windows to remove the device safely or unplug it by
using hardware wizard on the control pannel.
The operating system can be discontinued and the data can be damaged when
the device is unplugged before executing the device removed from program
action.
●Mac : Unplug the XDRUM N Stick from the USB port after throwing it away to
the trash box in your computer.
●Linux : Unplug the XDRUM N Stick from the USB port after executing
Unmount”commend.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 18/18 www.hbe.co.kr
※Customer Service
·Website : http://www.hbe.co.kr /e-mail : [email protected]
·Address : 414-5 Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea
Hanbit Electronics Customer Service team
·Telephone : [phone] /Fax : [phone]
※Caution
·To use your Data safely, Please make back-up file. Because NAND Flash memory chip
has a feature which can write data within 300,000 times.
·All the information in this document is subject to change without prior notice. The
manufacturer does not make anyrepresentations or anywarranties (implied or
otherwise) regarding the accuracy andcompleteness of this document andshall inno
event be liable for any loss of profit or anyother commercial damage, including but
not limited to special, incidenal, consequential, or other damages.
·No part of this document may be reproduced or transmitted in any formby any means
without the express written permission of the manufacturer.
·All brand names and product names used in this document are trademarks or
registered trademarks of their respective holders.

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 19/19 www.hbe.co.kr
Regulatory Information
FCC Compliance Statement
Caution : Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note : This equipment has been tested andfound tocomplywith the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference ina residential installation.
This equipment generates, uses andcan radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee thatinterference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,the
user is encouraged totryto correct the interference by one or more of the following
measures:
ŸReorient or relocate the receiving antenna.
ŸIncrease the separation between the equipment and receiver.
ŸConnect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
ŸConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following

Hanbit Electronics Co.,Ltd. All rights reserved
Rev.5.0, 2003-09-03 Page 20/20 www.hbe.co.kr
two conditions: (1) this device maynot cause harmful interference, and(2) this device
must
accept any interference received, including interference that maycause undesired
operation.
CE Marking and European Union Compliance
Products intended for sale withinthe European Union are marked with
the CE Mark which indicates compliance to applicable Directives and
European Normes (EN), as follows. Amendments to these Directives or
Ens are included:
Applicable Directives
ŸElectromagnetic Compatibility Directive 89/336/EEC
Applicable Standards
ŸEN 55022:1998, Limits and Methodsof Measurement of Radio Interference
Characteristics of
Information technology Equipment
ŸEN 55024:1998; Information technologyequipment-Immunity characteristics Limits
and methods
of measurement.
