HANBiT Electronics USB STORiUM N DRIVE User manual

USB STORiUM DRIVE
HANBiT Electronics Co., LTD. [www.hbe.co.kr]
Portable Flash Memory Disk Drive
USER’S MANUAL

[ INDEX ]
1. Installation for Windows98……...…………………………..3
2. Format …………………..………………………………………5
3. Password …………………………….……………………….. 6
4. Change password …………………………………………….8
5. USB STORiUM NDrive Specification …………………….. 9
6. Warranty Card …………………………………………………10
■ Contents
Please check whether the package contains following items !
1. USB STORiUM N DRIVE x 1EA
2. Installation CD-ROM x 1EA
3. Neck Strap x 1EA
4. User’s Manual & Warranty Card x 1EA
.

1. Driver Installation
1.1 Windows2000/ME/XP,Linux 2.4X,Mac OS9.X/Mac OS X operating system:
Just insert STORiUM NDriveinto USB port, then system will install the hardware
automatically.
* Notice
* Please wait for 3~5minutes until a pointer of a mouse is stopped before you insert
STORiUM NDrive into USB port or remove it from USB port.
When you insert STORiUM NDrive into USB port before the pointer of mouse is
stopped, the functions of STORiUM NDrive would be damaged.
* The write protect switch must be on the "open" position in all procedures to install
the STORiUM NDrive.
1.2 Installation Method for Windows 98.
* Installation Method 1.
The procedures to install before plugging STORiUM NDrive into USB port.
1.2.1 Please insert your STORiUM NDriverCD,then you can find the folder named
"Win98DRIVE" in the folder named “N DRIVE” and double click the "DrvSetup” file
required for installation.
1.2.2 Click "98 Driver Install" button.
1.2.3 Press “OK”button to continue.
1.2.4 Plug USB STORiUM NDrive into the USB port.

1.2.5 Press again “OK”button on the “PlugIn Device" wizard and then click “EXIT”button
on the “Drive Install" wizard.
1.2.6 Now all the drivers have been installed into your system, you should see the
Removable Disk icon appearing in the window when you activate "My Computer"
icon.
*Installation Method 2.
The procedures to install after plugging STORiUM NDrive into USB port.
1.2.7 Plug STORiUM NDriveinto USB port,then add new hardware wizard occurs.
1.2.8 Select “Search for the best driver for your device.(Recommended)”and click
“Next”button.
1.2.9 Check “Specify a location”, click “Browse..”and select the driver folder named
"Win98DRIVE" in the folder named “N DRIVE” from driver CD.

1.2.10 After searching driver, click “Next”button.
1.2.11 When Windows has finished the installation of STORiUM NDrive, the wizard as
below appears. If installation is to be continued,press “Finish”button.
1.2.12 Open “My Computer”to check the new storage exist. "Removable Disk"will appear
in "My Computer"automatically,then you can operate USB STORiUM NDrivejust as
your local hard disk.

1.3 How to patch security function for Windows ME.
* Please follow the procedures below to patch security function, before plugging the
USB STORiUM NDrive into USB port.
1.3.1 Please insert STORiUM NDriveCD,then you can find the folder named
"WIN98DRIVE" in the folder named “N DRIVE” and double click "DrvSetup”file.
1.3.2 Click "Me Driver Patch"button.
1.3.3 Press “OK” button to continue.
1.3.4 Please insert USB STORiUM NDrive into USB port again for using it when a pointer
of a mouse is stopped(3~5minutes),after taking USB STORiUM NDrive out.

2. Format Function
* Recommend to do format the USB STORiUM NDrive when it is used for the first time.
* Method of format is same in all OS supported including Windows98.
* Method to reset the password when it is lost.
(When the data storaged is deleted, the password will be set up ‘0000’automatically)
2.1 Insert the STORiUM NDriveinto the USB port.
2.2 Find the file “Manager”from directory “\\ N Drive\STORiUM Manager”of the attached CD-
ROM, and then click it. The wizard as below appears.
2.3 Click “Quick Format”or “Full Format”and press “Formatting”button.
(It takes a lot of time to format if you click “Full Format”)
-Quick Format : format only the data block of memory in the STORiUM NDrive.
-Full Format : format the all data block of memory in the STORiUM NDrive.
* Note: Recommend to do format using the file “Manager”from directory “\\ N
Drive\STORiUM Manager”of the attached CD-ROM.
2.4 You can use the STORiUM NDrive normally, after finishing format’s execution.
(The password will be set up ‘0000’automatically, after formatting)

3. Password Function
3.1 Insert the STORiUM NDriveinto the USB port, after finishing format’s execution.
3.2 Execute the file “Manager”from directory “\\ N Drive\STORiUM Manager”of the
attached CD-ROM.
3.3 lf you want to use password function, click “Using Password”and press “O.K”
button.Unplug the STORiUM NDrive from the USB port and plug it again to the USB port
of the PC after waiting for 3~5 minutes until the icon is not worked.
3.4 You should see the Removable Disk icon appearing in the window when you activate
"My Computer"icon after plugging the STORiUM NDrive into the USB port.

3.5 To input the password “0000”, the screen,executed “PassMan”, is displayed as below.
Prass “APPLY ”button to continue.
(The basic passwordl be set up ‘0000’automatically)
3.6 If you have followed the all procedures, you can easily access the STORiUM NDrive after
inputting the password “0000”.

4. Changing Password
4.1 Plug the STORiUM NDrive into the USB port for changing password.

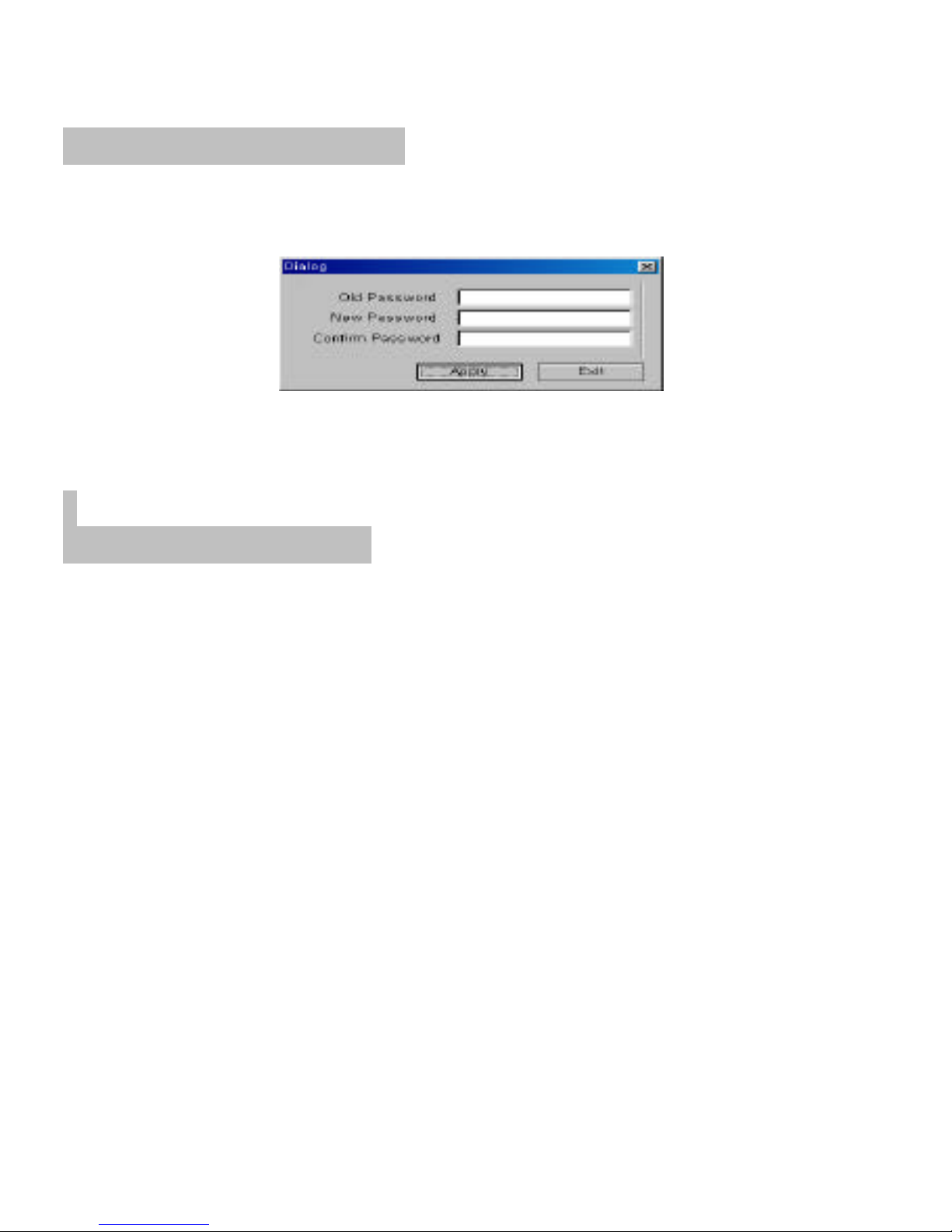

4.2 Execute “PassMan” on the Removable Disk icon and the password ,set up
already,can be changed by clicking “Change Password”.
* Old password : Input the password, set up already.
* New Password : Input a new Password you want to change.
* Confirm Password : Confirm the new password again.
5. Using booting disk
* Note (For Window98) : Do click “Make Bootable Disk”for using the function of booting
disk when the question for option to make booting appears during setting Windows
98 up.
5.1 Just double click the file“Manager”under the directory“N Drive\STORiUM
Manager”in the attached CD-ROM.
(The wirte protect switch should be located to the “open”position)
5.2 Click “Make Bootable Disk”and press “Formatting”button at the right of wizard
after “STORiUM Manager”wizard appears.

5.3 Reboot the system after executing format. Find “BIOS Features”on screen
occurred after pressing “Delete”on your keyboard and select “USB-ZIP”in
“Boot Device”of BIOS Features.
* Booting disk can be used on PC suppored USB-ZIP mode in “Boot Device”of BIOS
Features.
8 Caution : Do not select “Using Password”on the “STORiUM Manager”wizard during
the making the booting disk.
6. Write Protect Function
* The write protect function is located on the left of the STORiUM NDrive.
* Open : You can read and write data, if it is located “open”position.
* Lock : If it is located “open”position, you can only read data, but not wirte.
* Caution: How to remove the USB STORiUM N Drive
safely
* Unplug the STORiUM N Drive from the USB port after the pointer of mouse is not
stopped.
* Windows 98 : Do not unplug the STORiUM N Drive from the USB port while its LED
is blinking.
* Windows ME, 2000 : Unplug the STORiUM N Drive from the USB port after executing
“Removable Device”located on the bottom of the right in the Windows.
* Mac : Unplug the STORiUM N Drive from the USB port after throwing it away to the
trash box.
* Linux : Unplug the STORiUM N Drive from the USB port after executing “Unmount”
commend

7. USB STORiUM NDrive
Capacity 16, 32, 64, 96, 128, 192, 384, 512MB
Read Performance 942KB/sec
Write Performance 885KB/sec
Hardware IBM PC / Notebook / Mac etc…
PC System with USB Port
Available Operating System Windows 98 / Me / 2000 / XP / CE
Linux OS, Mac OS 9.0 or Higher
Drive Support Win98 Install driver / Win ME Patch
driver ( Drive : Special support )
Power Supply No external power supply
USB power supply (4.5V to 5.5V)
Data Retention Over 10 years
LED Indicator Light LED fast mode for Transmitting and
Receiving data ( reading / writing )
USB Interface USB data transmission with USB 1.1
Operating Temperature 0 to 70°C
Storage Temperature -10°C to 125°C
Suspend Current < 350uA ( Max :<500uA )
Operating Current < 31mA
