Phase Green PhG-AS5KS User manual

Version ：V1.1
User Manual
PhG-AS5KS/AS3KS
ENERGY STORAGE SYSTEM

Trademarks and Permissions
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 2
PHASEGREEN TECHNOLOGY INC
Copyright © PHASEGREEN TECHNOLOGY INC. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means
without prior written consent of PHASEGREEN TECHNOLOGY INC
TrademarksandPermissions
and other PhaseGreen trademarks are trademarks of
PHASEGREEN TECHNOLOGY INC.
All other trademarks and trade names mentioned in this document are the property of
their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between
PhaseGreen and the customer. All or part of the products, services and features described in
this document may not be within the purchase scope or the usage scope. Unless otherwise
specified in the contract, all statements, information, and recommendations in this
document are provided "AS IS" without warranties, guarantees or representations of any
kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all
statements, information, and recommendations in this document do not constitute a
warranty of any kind, express or implied.
PHASEGREEN TECHNOLOGY INC
Address: 3401 El Camino Real, Palo Alto, CA 94306, USA
EIN#: 88-3185469
Website: www.phasegreen.com

Version History
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 3
Version History
Changes between document issues are cumulative. The latest document issue contains all the
changes made in earlier issues.
Version 1.0 (2022-01-20)
Version 1.1 (2022-10-27) Update address

CONTENTS
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 4
CONTENTS
TrademarksandPermissions ................................................................................................................2
Version History.....................................................................................................................................3
CONTENTS............................................................................................................................................4
1 Introduction ......................................................................................................................................7
1.1 System Introduction...............................................................................................................7
1.2 Operation Modes...................................................................................................................8
1.3 Safety Introduction ................................................................................................................9
1.3.1 Manual Keeping ..........................................................................................................9
1.3.2 Operator Requirements............................................................................................10
1.3.3 Protection of Warning Sign.......................................................................................10
1.3.4 Setting of Warning Sign for Safety............................................................................10
1.3.5 Measuring Equipment...............................................................................................10
1.3.6 Moisture Protection..................................................................................................10
1.3.7 Operation after Power Failure..................................................................................11
1.4 Battery Safety Datasheet .....................................................................................................11
1.4.1 Hazard Information...................................................................................................11
1.4.2 Safety Datasheet.......................................................................................................11
1.5 General Precautions.............................................................................................................11
1.6 Parts List...............................................................................................................................13
1.7 System Appearance..............................................................................................................16
1.7.1 Cable Box Part...........................................................................................................17
1.8 Liability Limitation................................................................................................................18
2 Installation.......................................................................................................................................19
2.1 Installation Site and Environment........................................................................................19
2.1.1 General......................................................................................................................19
2.1.2 Restricted Locations..................................................................................................19
2.1.3 Barrier to Habitable Rooms ......................................................................................20
2.2 Installation............................................................................................................................21
2.2.1 Battery Installation....................................................................................................21
2.2.2 Inverter Installation...................................................................................................22
2.3 External CT Connection........................................................................................................28
2.4 DRED Port Connections (optional).......................................................................................29
2.5 Single Line Diagram..............................................................................................................31
3. System Operation...........................................................................................................................32
3.1 Switch On .............................................................................................................................32
3.2 Switch Off.............................................................................................................................32
3.3 Emergency Procedure..........................................................................................................32
3.3.1 Emergency Handling Plan .........................................................................................33
3.3.2 Hazards......................................................................................................................33
3.3.3 Fire ............................................................................................................................33
4 EMS Introduction And Set Up .........................................................................................................35
4.1 Function Description............................................................................................................35
4.2 Display and Setting ..............................................................................................................37
4.2.1 PV1 input display interface .......................................................................................37
4.2.2 PV2 input display interface .......................................................................................37
4.2.3 Bus voltage................................................................................................................37
4.2.4 Battery.......................................................................................................................37
4.2.5 Battery Prmeter ........................................................................................................37
4.2.6 BMS parameters .......................................................................................................37

CONTENTS
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 5
4.2.7 Grid-connected output .............................................................................................38
4.2.8 Inverter output..........................................................................................................38
4.2.9 Load...........................................................................................................................38
4.2.10 Power ......................................................................................................................38
4.2.11 Power ......................................................................................................................38
4.2.12 Temperature ...........................................................................................................38
4.2.13 Status information ..................................................................................................39
4.2.14 Error information ....................................................................................................39
4.2.15 System setting.........................................................................................................39
4.2.16 User setting.............................................................................................................39
4.3 Setting ..................................................................................................................................40
4.3.1 System setting...........................................................................................................41
4.3.2 Battery parameters...................................................................................................44
4.3.3 Grid standard ............................................................................................................47
4.3.4 Operation parameters ..............................................................................................47
4.3.5 485 Address...............................................................................................................55
4.3.7 Language ...................................................................................................................55
4.3.8 LCD backlight.............................................................................................................55
4.3.9 Date/time..................................................................................................................55
4.3.10 Clear history ............................................................................................................55
4.3.11 Password Setting.....................................................................................................56
4.3.12 Maintenance ...........................................................................................................56
4.3.13 Factory default setting............................................................................................56
4.3.14 Auto Test.................................................................................................................56
4.4 Inquiry ..................................................................................................................................57
4.5 Restart..................................................................................................................................61
5 Battery storage and recharging ......................................................................................................62
5.1 Battery storage requirements..............................................................................................62
5.2 Storage expiration................................................................................................................62
5.3 Inspection before battery recharging..................................................................................62
5.4 Recharge Operation Steps ...................................................................................................63
6 Stick Logger Quick Guide.................................................................................................................64
6.1 Download APP......................................................................................................................64
6.2 Stick Logger Installation .......................................................................................................64
6.3 Logger Status........................................................................................................................64
6.3.1 Check Indicator Light.................................................................................................64
6.4 Abnormal State Processing ..................................................................................................65
6.5 Usage Methods and Notices for Reset Button ....................................................................66
6.5.1 Usage methods and key-press descriptions for reset button ..................................66
6.5.2 Notice........................................................................................................................66
7 SOLARMAN Smart APP....................................................................................................................67
7.1 Registration..........................................................................................................................67
7.2 Create a Plant.......................................................................................................................67
7.3 Add a Logger ........................................................................................................................67
7.4 Network Configuration ........................................................................................................68
8 Alarm Code and Error Code ............................................................................................................70
8.1 Alarm Code...........................................................................................................................70
8.2 Error Code ............................................................................................................................70
9 Fault Diagnosis and Solutions .........................................................................................................72
10. Product Specifications..................................................................................................................74

CONTENTS
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 6
11 Routine Maintenance....................................................................................................................77
11.1 Maintenance Plan ..............................................................................................................77
11.2 Notes..................................................................................................................................77
12 Quality Assurance .........................................................................................................................79
13 Contact information......................................................................................................................80

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 7
1 Introduction
1.1 System Introduction
Smart all in one energy storage system PhG-AS series integrate the hybrid inverter, battery
module together, provide the compact, smart, reliable, safe residential energy storage solution.
The system includes the hybrid inverter named PhG-P3K6LS or PhG-P5K0LS, the stackable
battery module named PhG-BPACK5.1 with 100Ah capacity. The system battery capacity can be
easily extended from 5kWh to 20kWh, please refer to the table 1-1. The PhG-AS can be applied
in DC- coupled systems (mostly new installation), AC-coupled systems (mostly retrofit) and
Hybrid-coupled systems (mostly retrofit, and PV capacity-increase), as the following schemes as
figure 1-1 and figure 1-2:
Solution
Configuration
Inverter
ESS
PhG-AS3KS-5-K
PhG-P3K6LS
1*PhG-BPACK5.1
PhG-AS3KS-10-K
PhG-P3K6LS
2*PhG-BPACK5.1
PhG-AS5KS-10-K
PhG-P5K0LS
2*PhG-BPACK5.1
PhG-AS5KS-20-K
PhG-P5K0LS
4*PhG-BPACK5.1
Table 1-1 PhG-AS configuration
Figure1-1 DC-coupled Storage System-Scheme

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 8

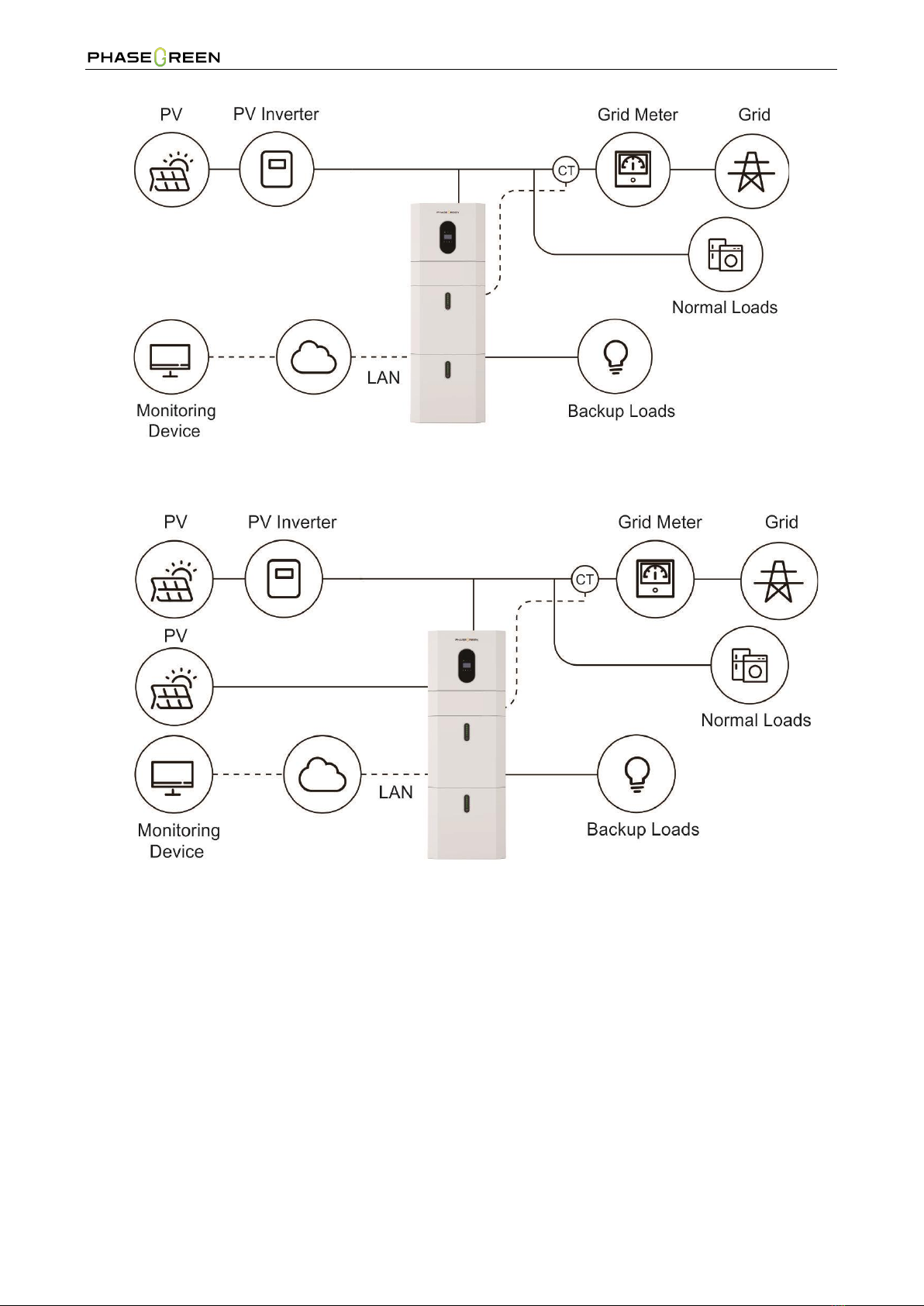

Figure1-2 AC-coupled Storage System-Scheme
Figure 1-3 Hybrid-coupled Storage System-Scheme
1.2 Operation Modes

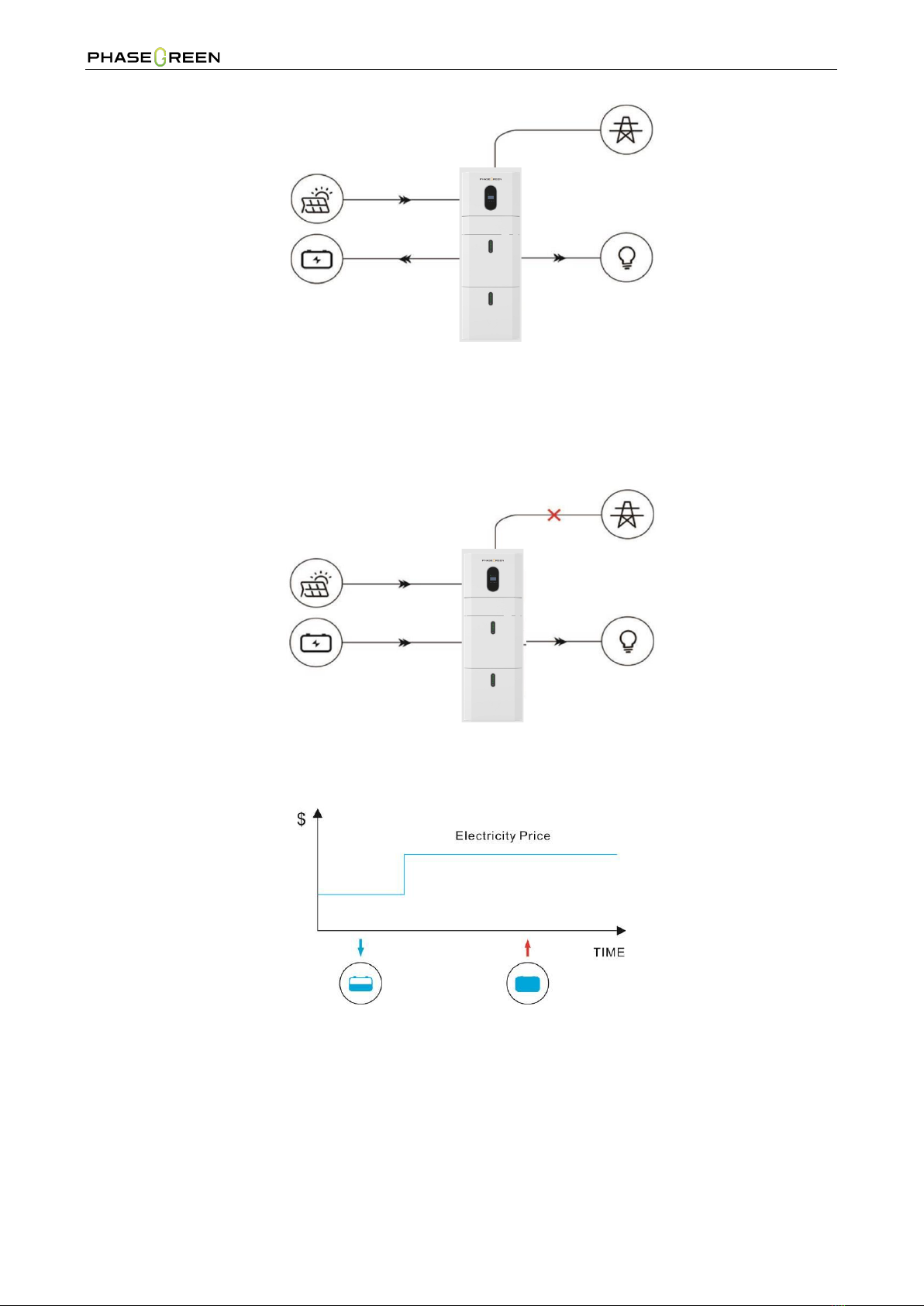

There are three basic modes that end users can choose via inverter screen/APP.
SELF CONSUME: The energy generated by the solar panels will be used in the following order:
Feed the home loads; Charge the battery and then, feed into the grid.
When the sun is off, the load will be supported by battery to enhance self-consumption.
If the power supply from the batteries is not sufficient, the grid will support the load demand.

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 9
BATTERY PRIORITY: Under this mode, the battery is only used as a backup power supply when
the grid fails and as long as the grid works, the batteries won’t be used to power the loads. The
battery will get charged with the power generated by the PV system or from the grid.
PEAK SHIFT: This mode is designed for time-use mode customer. The customer is able to set up
the charging/discharging time & power via inverter screen or APP.
1.3 Safety Introduction
1.3.1 Manual Keeping
This manual contains important information about operating the system. Before operating,
please read it very carefully. The system should be operated in strict accordance with the
instructions in the manual, otherwise it can cause damages or loss to equipment, personnel and
property. This manual should be kept carefully for maintenance and reparation.

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 10
1.3.2 Operator Requirements
The operators should get a professional qualification or be trained.
The operators should be familiar with the whole storage system, including compositions and
working principles of the system.
The operators should be familiar with the Product Instruction.
While maintaining, the maintainer is not allowed to operate any equipment until all the
equipment has been turned off and fully discharged.
1.3.3 Protection of Warning Sign
The warning signs contain important information for the system to operate safely, andit is
strictly prohibited to torn or damage them. Ensure that the warning signs arealways well-
functioned and correct placed. The signs must be replaced immediatelywhen damaged.
This sign indicates a hazardous situation which, if not avoided, could result in
death or severe injury!
The PhG-AS5/AS3 must not be touched or put into service until 5
minutes after it has been switched off or disconnected to prevent an
electric shock or injury.
This sign shows danger of hot surface!
Refer to the operating instructions.
1.3.4 Setting of Warning Sign for Safety
During instruction, maintenance and repair, follow the instructions below to preventnon-
specialist personnel from causing misuse or accident:
⚫Obvious signs should be placed at front switch and rear-level switch to prevent
accidents caused by false switching.
⚫Warning signs or tapes should be set near operating areas.
⚫The system must be reinstalled after maintenance or operation.
1.3.5 Measuring Equipment
To ensure the electrical parameters to match requirements, related measuring equipment are
required when the system is being connected or tested. Ensure that the connection and use
matched specification to prevent electric arcs or shocks.
1.3.6 Moisture Protection

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 11
It is very likely that moisture may cause damages to the system. Repair or maintaining
activities in wet weather should be avoided orlimited.
1.3.7 Operation after Power Failure
The battery system is part of the energy storage system which stores life-threatening high
voltage even when the DC side is switched off. Touching the battery outlets is strictly
prohibited. The inverter can keep a life-threatening voltage even after disconnecting itfrom the
DC and / or AC side. Therefore, for safety reasons, it must be tested with aproperly calibrated
voltage tester before an installer works on the equipment.
1.4 Battery Safety Datasheet
1.4.1 Hazard Information
Classification of the hazardous chemical
Exempt from classification according to Australian WHS regulations.
Other hazards
This product is a Lithium Iron Phosphate Battery with certified compliance under the UN
Recommendations on Transport of Dangerous Goods, Manual of Tests and Criteria, Part III,
subsection 38.3. For the battery cell, chemical materials are stored in a hermetically sealed metal
case, designed to withstand temperatures and pressures encountered during normal use. As a
result, during normal use, there is no physical danger of ignition or explosion and chemical danger
of hazardous materials' leakage. However, if the product is exposed to afire, added mechanical
shocks, decomposed, added electric stress by misuse, the gas release vent will be operated. The
battery cell case will be breached at the extreme. Hazardous materials may be released.
Moreover, if heated strongly by the surrounding fire, acrid or harmful fume may be emitted.
1.4.2 Safety Datasheet
For detailed information please refer to the provided battery safety datasheet.
1.5 General Precautions
DANGER
Danger to life due to high voltages of the PV array, battery and electric shock. When exposed to
sunlight, the PV array generates dangerous DC voltage which will be present in the DC
conductors and the live components of the inverter. Touching the DC conductors or the live
components can lead to lethal electric shocks. If you disconnect the DC connectors from the
system under load, an electric arc may occur leading to electric shock and burns.
⚫Do not touch uninsulated cable ends. Do not touch the DC
⚫Do not open the inverter and battery.
⚫Do not wipe the system with damp cloth.
⚫Have the system installed and commissioned by qualified people with the
appropriate skills only.

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 12
⚫Prior to performing any work on the inverter or the battery pack, disconnect
the inverter from all voltage sources as described in this document.
WARNING
Risk of chemical burns from electrolyte or toxic gases. During standard operation, no electrolyte
shall leak from the battery pack and no toxic gases shall form. Despite careful construction, if
the Battery Pack is damaged or a fault occurs, it is possible that electrolyte may be leaked or
toxic gases formed.
⚫Do not install the system in any environment of temperature below -10°C or
over 50°C and in which humidity is over 90%.
⚫Do not touch the system with wet hands.
⚫Do not put any heavy objects on top of the system.
⚫Do not damage the system with sharp objects.
⚫Do not install or operate the system in potentially explosive atmospheres or
areas of high humidity.
⚫Do not mount the inverter and the battery pack in areas containing highly
flammable materials or gases.
⚫If moisture has penetrated the system (e.g. due to a damaged enclosure), do
not install or operate the system.
⚫Do not move the system when it is already connected with battery modules.
Secure the system to prevent tipping with restraining straps in your vehicle.
⚫The transportation of PhG-AS5/AS3 must be made by the manufacturer or
an instructed personal. These instructions shall be recorded and repeated.
⚫A certified ABC fire extinguisher with minimum capacity of 2kg must be carried
along when transporting.
⚫It is totally prohibited to smoke in the vehicle as well as close to the vehicle
when loading and unloading.
⚫For the exchange of a battery module, please request for new hazardous goods
packaging if needed, pack it and let it be picked up by the suppliers.
⚫In case of contact with electrolyte, rinse the affected areas immediately with
water and consult a doctor without delay.
CAUTION
Risk of injury through lifting or dropping the system. The inverter and battery are heavy. There
is risk of injury if the inverter or battery is lifted incorrectly or dropped during transport or
when attaching to or removing from the wall.
⚫Lifting and transporting the inverter and battery must be carried out by more
than 2 people.

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 13
1.6 Parts List
Check the following parts list to ensure it is complete.
Delivers a total system separately on site to client, this consists of:
Inverter
BPACK5.1
Accessory - Cable (BPACK5.1)
Accessory - Cable (2*BPACK5.1)

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 14

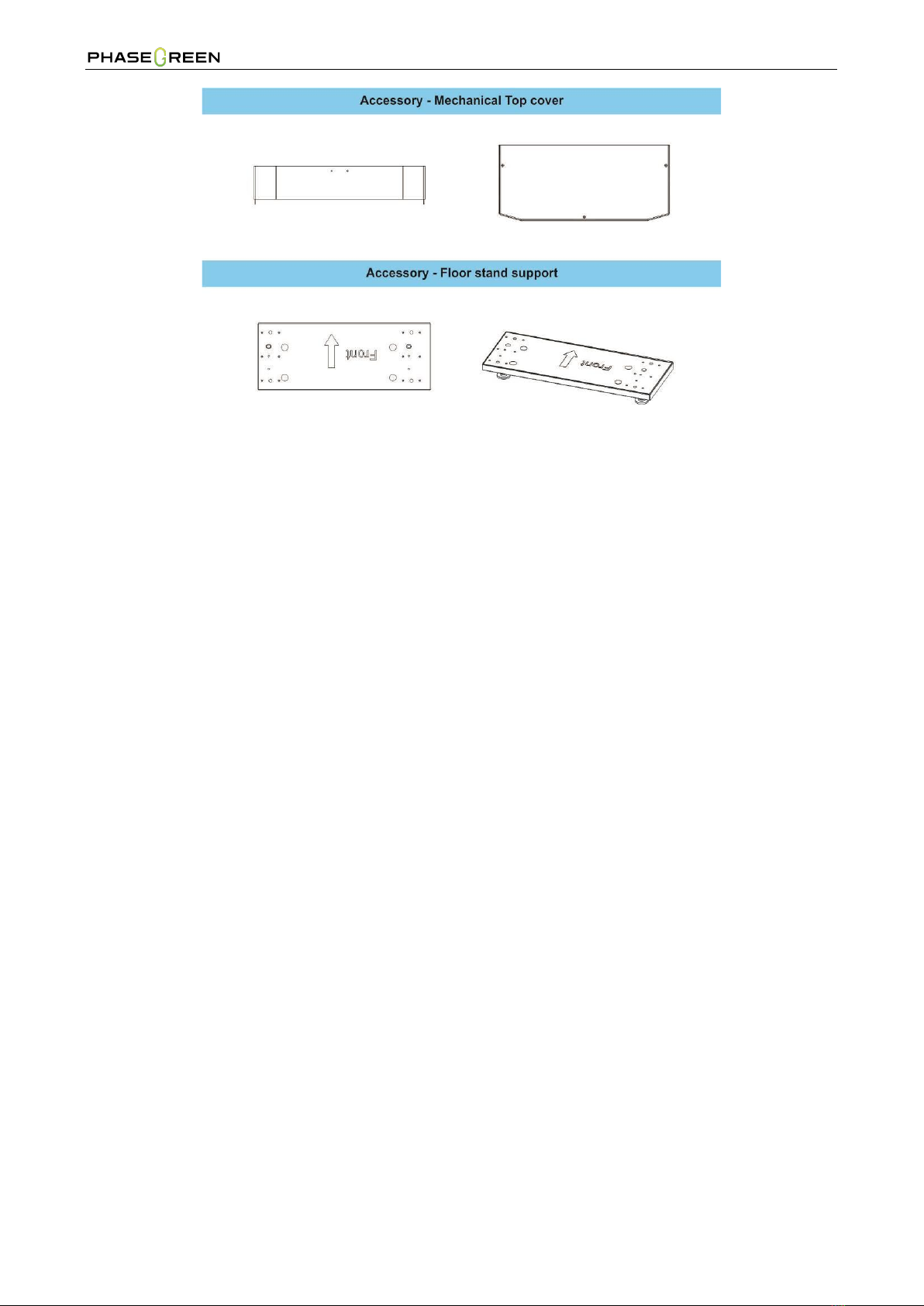

Accessory - Cable (3*BPACK5. 1)
Accessory - Cable (4*BPACK5.1)

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 15

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 16

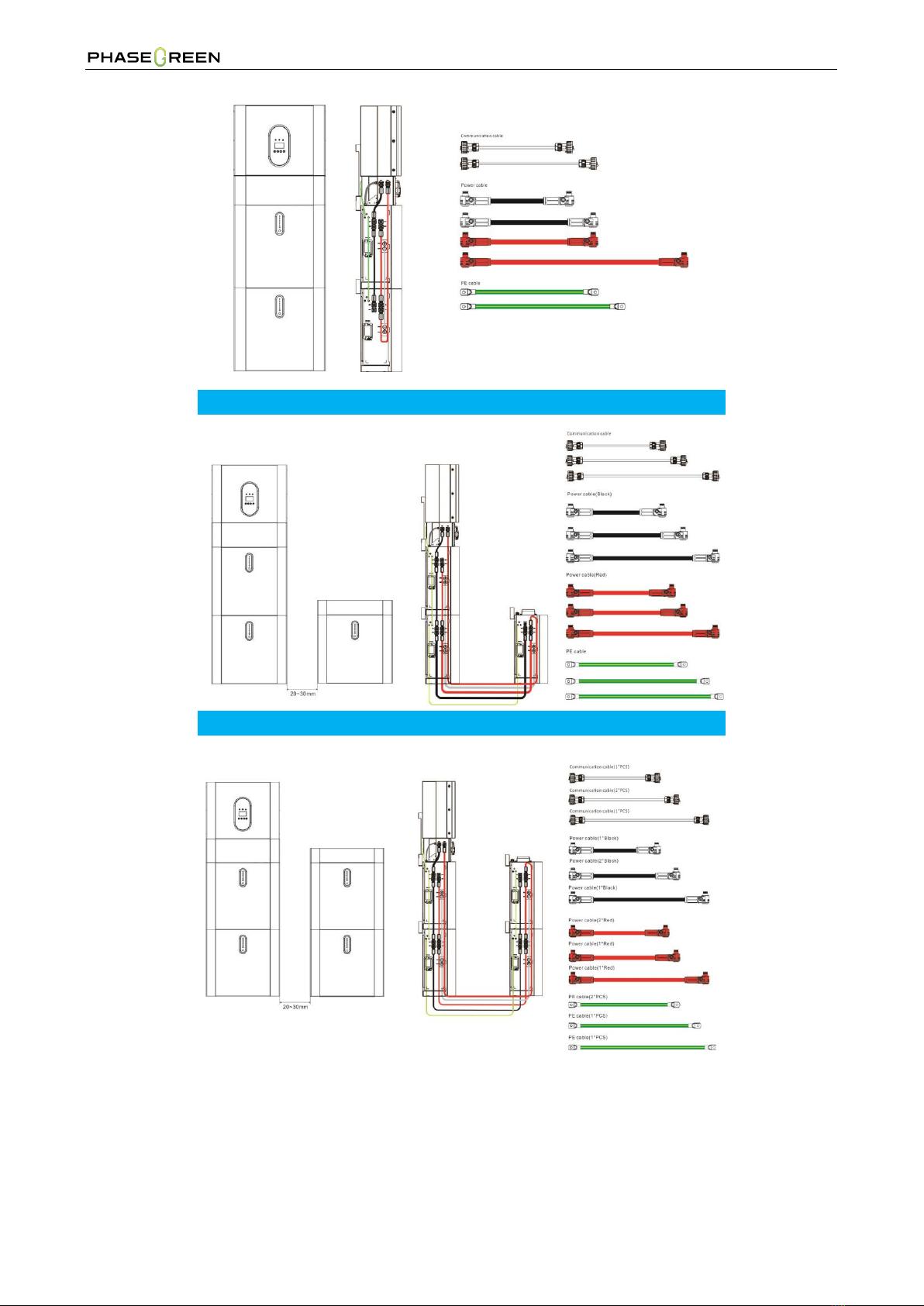

1.7 System Appearance
Figure 4 PhG-AS5/AS3 Delivery Scope
Object
Description
1
Hybrid Inverter
2
EMS Display Screen
3
Cable Box (connected to Inverter)
4
BPACK5.1 (Battery 1)
5
BPACK5.1 (Battery 2, if configured)

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 17
1.7.1 Cable Box Part

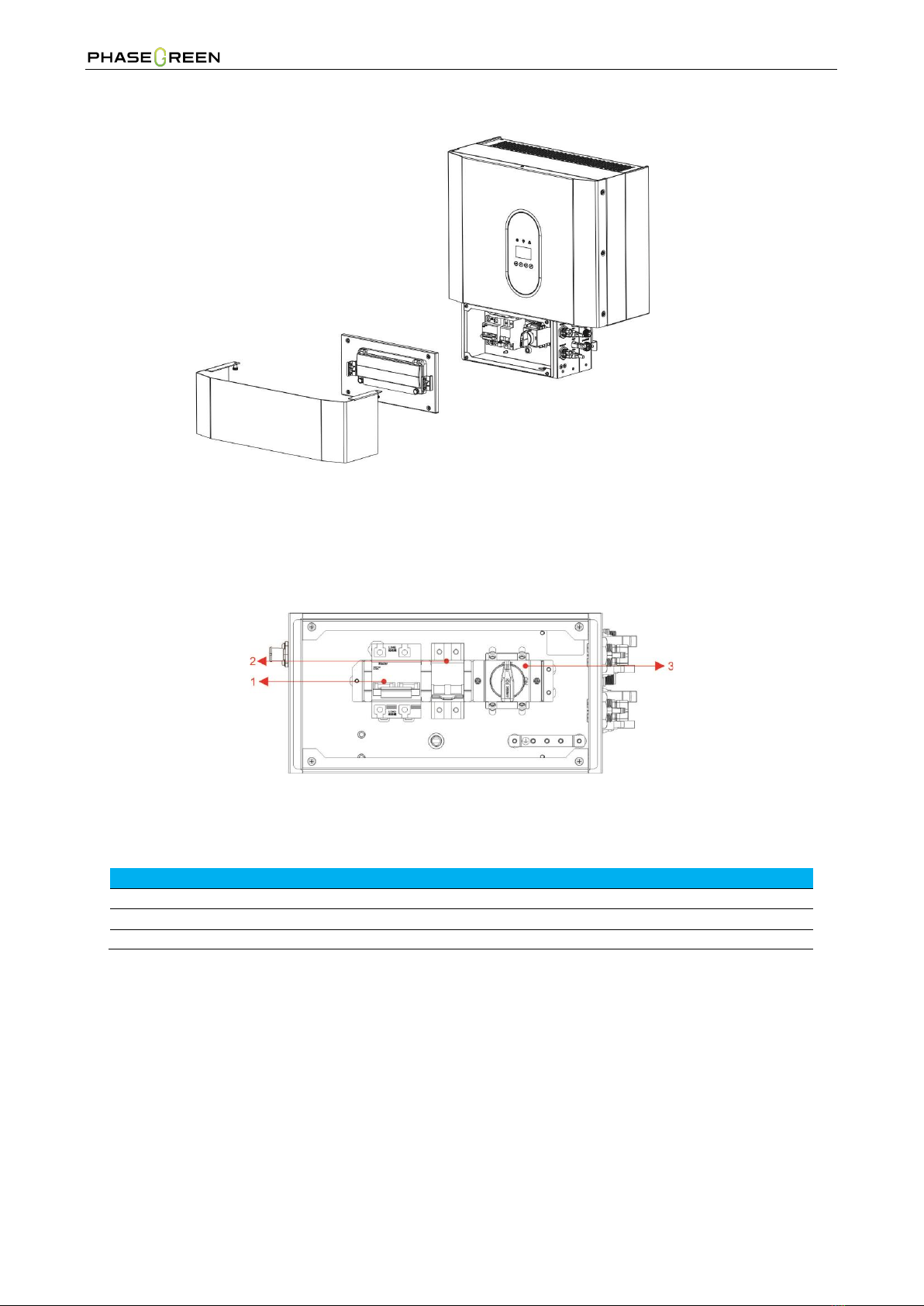

Figure 5 Inverter without Cable Box Covers-Front View
Figure 6 Cable Box Part without Covers-Front View
Object
Description
1
Battery circuit breaker
2
Output terminal block（BACK UP）
3
DC isolation switch

1 Introduction
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 18
Figure 7 Cable Box Part without Covers
Object
Description
DVC class
Object
Description
DVC class
1
PV1, PV2
DVC C
2
GRID
DVC C
3
BACKUP
DVC C
4
DRM
DVC A
5
COM
DVC A
6
CT/METER
DVC A
7
INV
DVC C
8
BAT+, BAT-
DVC C
9
RJ45
DVC C
1.8 Liability Limitation
Any product damage or property loss caused by the following conditions, does not assume any
direct or indirect liability.
⚫Product modified, design changed or parts replaced without authorization;
⚫Changes, repair attempts and erasing of series number or seals by non-company technician;
⚫System design and installation are not in compliance with standards and regulations;
⚫Fail to comply with the local safety regulations (VDE for DE, SAA for AU);
⚫Transport damage (including painting scratch caused by rubbing inside packaging during
shipping). A claim should be made directly to shipping or insurance company in this case as
soon as the container/packaging is unloaded and such damage is identified;
⚫Fail to follow any/all of the user manual, the installation guide and the maintenance
regulations;
⚫Improper use or misuse of the device; Insufficient ventilation of the device;
⚫The maintenance procedures relating to the product have not been followed to an acceptable
standard;
⚫Force majeure (violent or stormy weather, lightning, overvoltage, fire etc.); Damages caused
by any external factors.

2 Installation
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 19
2 Installation
This Manual introduces the basic steps to install and set up.
NOTE:
Please be cautious unpacking the battery, otherwise components could be damaged.
2.1 Installation Site and Environment
2.1.1 General
This PhG-AS5/AS3 energy storage system is outdoor version and can be installed in an outdoor
or an indoor location.
When PhG-AS5/AS3 systems are installed in a room, PhG-AS5/AS3 must not be hampered by
the structure of the building, the furnishings and equipment of the room.
The PhG-AS5/AS3 is naturally ventilated. The location should therefore be clean, dry and
adequately ventilated. The mounting location must allow free access to the unit for installation
and maintenance purposes, and the system panels must not be blocked.
The following locations are not allowed for installation:
⚫Habitable rooms;
⚫Ceiling cavities or wall cavities; on roofs that are not specifically considered suitable; access
/ exit areas or under stairs / access walkways;
⚫Where the freezing point can be reached, such as garages, carports or other places as well
as wet rooms (environmental category 2); locations with humidity and condensation over
90%; places where salty and humid air can penetrate;
⚫Seismic areas - additional security measures are required; Sites with altitude below 2000m;
⚫Places with an explosive atmosphere;
⚫Locations with direct sunlight or a large change in the ambient temperature;
⚫Places with flammable materials or gases or an explosive atmosphere.
2.1.2 Restricted Locations
The PhG-AS5/AS3 shall not be installed:
(a) In restricted locations as defined for panels in AS / NZS 3000;
(b) Within 600mm of any heat source, such as hot water unit, gas heater, air conditioning
unit or any other appliance.
(c) Within 600mm of any exit;
(d) Within 600mm of any window or ventilation opening;
(e) Within 900mm of access to 240Vac connections;
(f) Within 600mm of side of other device.
A PhG-AS5/AS3 installed in any corridor, hallway, lobby or the like and leading to an emergency
exit shall ensure sufficient clearance for safe egress of at least 1 meter.

2 Installation
Version 1.1 Copyright © PHASEGREEN TECHNOLOGY INC 20
The PhG-AS5/AS3 must also not be installed in potentially explosive atmospheres for gas
cylinders that are heavier than air gases and have a vent clamp in accordance with AS / NZS
3000.
2.1.3 Barrier to Habitable Rooms
To protect against the spread of fire in living spaces where the PhG-AS5/AS3 is mounted or on
surfaces of a wall or structure in living spaces with a PhG-AS5/AS3 on the other side, the wall or
structure shall have a suitable non-combustible barrier. If the mounting surface itself is not
made of a suitable non-combustible material, a non-combustible barrier can be placed between
the PhG-AS5/AS3 and the surface of a wall or structure.
If the PhG-AS5/AS3 is mounted at a wall or at a distance of 300mm from the wall or the
structure separating it from the habitable space, the distances to other structures or objects
must be increased. The following distances must remain free:
600 mm beside the PhG-AS5/AS3; 500 mm above the PhG-AS5/AS3; 600 mm before the PhG-
AS5/AS3.
If the distance between the PhG-AS5/AS3 and the ceiling or any object above the system is less
than 500mm, the ceiling or structural surface above the system must be made of
noncombustible material within a radius of 600mm around the system.
The PhG-AS5/AS3 must be mounted to ensure the highest point is not more than 2.2m above
the ground or the platform.
Figure 8 Limited Distance of Installation to Neighboring Objects
