Handler AERO Series User manual

OWNER’S MANUAL
HANDLER AERO SERIES
MODEL 42ESU
EXTRAORAL SUCTION UNIT
For Your Own Safety
 Please read this Manual before operating your Handler 42ESU.
 Always wear eye protection while using power tools.
 NEVER use this product to pick up flammable liquids or any liquids and do not use near
flammable or combustible liquids as fire or explosion can occur.
 ALWAYS operate the 42ESU with filters properly in place and inspected for any damages.
Debris can cause inhalation problems.
 ALWAYS disconnect the 42ESU from a power source when removing or replacing filter bags
or doing any sort of maintenance.

42ESU EXTRAORAL SUCTION UNIT
Includes:

Base suction unit

48” long x 2.5” diameter rigid, flexible suction hose assembly with attached hood and hose clamp

Two installed HEPA filters

Factory installed 6’ power cord with grounded plug

Remote foot control on/off switch with 8’ cord and grounded plug
Set Up Instructions:
1. Unpack contents of the box
2. Inspect contents for any damage. Damage may be concealed even if the box does not appear
to have damage or signs of distress. If there is damage, contact your carrier immediately and
file a claim. Contact Handler to reorder a replacement unit.
3. Wipe down the parts with disinfectant wipes or spray all items with Lysol® or similar aerosol
disinfection agent as a safety precaution to disinfect prior to use.
4. Place the collection box on the floor and lock castors to hold in place. Plug the power cord into
the foot switch and plug the foot switch into a wall outlet.
5. Attach the rigid hose with factory hood to the suction inlet of the base unit using the hose
assembly instruction file attached to the hose.
6. Your HANDLER 42ESU is now ready for use.
7. NOTE: Never pull the 42ESU by the hose as it will cause the hose to lose rigidity.
Operating Instructions:
1. The HANDLER 42ESU is meant to be used chair side by the DCU (Dental Chair Unit) and used in
conjunction with an intraoral HVE (High Volume Evacuation). It is not intended to replace an
intraoral HVE.
2. Wheel the HANDLER 42ESU next to the chair after the patient is in the DCU and ready for
treatment. Please note that the HANDLER 42ESU is not an intraoral device and should have no
contact with the patient.

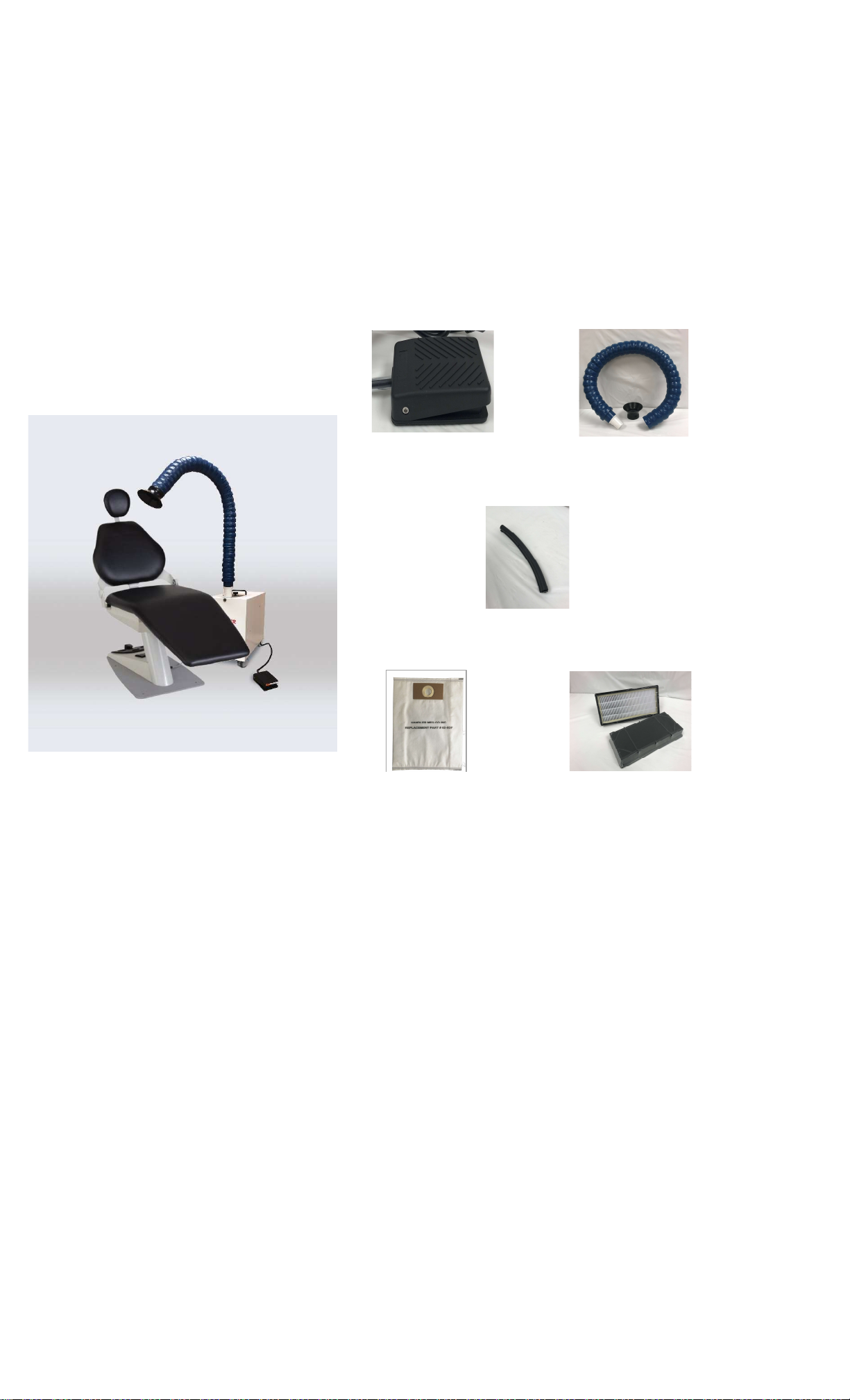

HANDLER 42ESU PARTS LIST
62FS CONTINUOUS
ON/OFF FOOTSWITCH
P42-01 HOSE ASSEMBLY
WITH HOOD
P42-02 RUBBER GASKET
SEAL FOR HEPA FILTER
62-IIDF DISPOSABLE HEPA
FILTER BAG, SET OF 3
42-HFC HEPA H13
FILTER/CHARCOAL

3. When ready for treatment that will create airborne aerosol, adjust the rigid flexible hose and
hood directly in front of the patient’s mouth approximately 3” to 4” from the oral cavity.
4. The green lighted rocker switch should always remain in the ON position and the variable speed
knob adjusted to the highest position for maximum suction. The variable speed knob can be
adjusted to lower suction as per user preference.
5. Use the “hands free” foot control on/off switch during procedures to reduce the risk of
contamination to gloved hands.
6. As you are performing work on a patient, you may adjust the proximity of the hood opening for
maximum efficiency.
a. Note, keep the rigid hose as compressed as possible to avoid slumping or hose movement
during procedures.
7. NOTE: Never pull the 42ESU by the hose as it will cause the hose, always use the black handle
located on top of the unit.
Recommended Cleaning Instructions (Does not supersede ADA, CDC or OSAP disinfection
guidelines):
After each use, the hood opening, and rigid flexible hose should be cleaned.
1. Make sure the unit is turned off and the hose is fully compressed and in a standing upright
position.
2. Using approved disinfection wipes, wipe down the inside and outside of the hood opening
thoroughly. Using a second wipe, wipe down the outside of the hose thoroughly.
3. Turn the unit on with variable speed knob turned to the lowest setting to reduce CFM. Spray
the inside of the hood opening for 5 seconds with an aerosol disinfection agent that is greater
than 70% alcohol. The suction will draw down the disinfecting spray into the hood opening to
cover the inside of the hood opening and rigid flexible hose from top to bottom. Shut the unit
off and reset the variable speed knob to its appropriate setting.
4. Any additional required cleaning in accordance with CDC, ADA or OSAP guidelines.
Filter Maintenance:
1. Make sure the unit is turned off and unplugged when performing filter maintenance.
2. The HANDLER 42ESU has two HEPA filters.
 A disposable H11 HEPA filter bag is located in the front of the unit.
a. This filter should be changed on a regular basis. Suggested filter replacement is once
monthly, possibly sooner based upon heavy use. The part number to order is 62-IIDF, set
of 3 filters.
b. ALWAYS WEAR APPROPRIATE PPE WHEN ACCESSING AND REPLACING FILTERS.
c. To access this disposable filter bag filter, remove the two thumbscrews in the front and
remove the door.
d. Slowly and carefully remove the used filter bag and dispose of it according to CDC
guidelines as it may contain contaminants.
e. Spray the inside front cavity generously with an aerosol disinfection agent that is greater
than 70% alcohol and allow to dry.
f. Install a new bag making sure the rubber gasket is completely sealed to the suction inlet
tube.
g. Put the front door back on and wipe down the unit.

 A disposable HEPA H13 cartridge filter with activated charcoal is located in the rear of the unit.
a. This filter should be changed on a regular basis. Suggested filter replacement is every 8 –
12 months, possibly sooner based upon heavy use. The part number to order is 42-HCF
for one.
b. ALWAYS WEAR APPROPRIATE PPE WHEN ACCESSING AND REPLACING FILTERS.
c. Make sure the unit is turned off and unplugged when performing filter maintenance.
d. To access this HEPA cartridge filter, remove the 11 Phillips head screws that hold the side
panel on the unit.
h. Once the side is off, slowly, and carefully remove the used filter and dispose of it according
to CDC guidelines as it may contain contaminants.
e. Slide a new 42-HCF securely into place and reinstall the side door making certain that all
screws are secure.
42ESU EQUIPMENT SPECIFICATIONS
Base Unit 10"W x 15 1/2"L x 16"H
Shipping 18”W x 21 1/2"L x 18 1/2"H
Hose 2 1/2" Diameter x 48" Long
Hood 4 1/2" Diameter light weight hood
Cabinet
Construction
18 Gauge Steel with powder coated finish and rubber non-skid locking
casters
Weight 32 Lbs. - Shipping Weight 38 Lbs.
Air Volume 120 - 160 CFM
Electrical
811 Watts, 120V/60Hz, 7.2 Amps, 6' power cord with grounded plug, foot
control ON/OFF switch
Sound Level 64 dBA
Filters
1) HEPA H11 disposable filter, 2) HEPA H13 cartridge filter with activated
charcoal
Warranty One Year Limited Warranty
Handler Mfg. LLC
612 North Avenue East
Westfield, NJ 07090
[phone] Ph
[phone] Fax
[e-mail]
LIMITED WARRANTY
Warranty period is 1 year for the 42ESU Extraoral Suction Unit. Handler Mfg., LLC warrants, to the original purchaser only, that its
products will be free from defects in material or workmanship for the applicable period of time indicated above following the purchase
date. During the warranty period, the defective product will be repaired or replaced at Handler’s discretion without charge, EXW
Handler. This warranty does not cover damage caused in transit or by accident, misuse, or ordinary wear.
ALL IMPLIED WARRANTIES INCLUDING, WITHOUT LIMITATION, IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND
MERCHANTABILITY, ARE LIMITED IN DURATION TO THE APPLICABLE WARRANTY PERIOD. IN NO EVENT WILL WE BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusion may not apply to you.
All warranty repairs must be done at Handler’s factory. We will not pay any shipping or transportation charges. Any product sent back
for repair must be authorized by Handler with a Handler issued RMA number written on the box of the product being sent back for
repair. If not, the product will be refused at the loading dock.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
