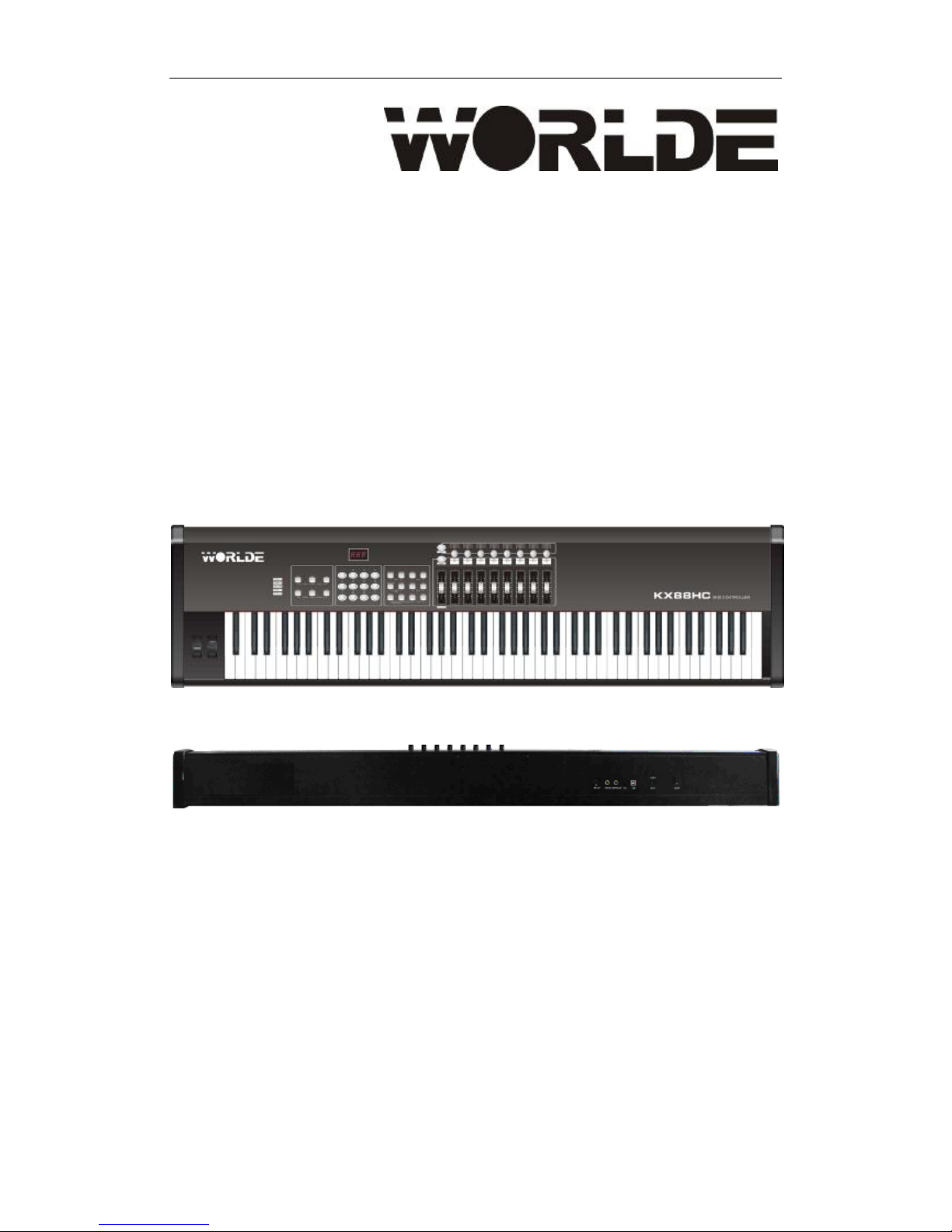

HANGZHOU WORLDE MUSIC ELECTRONIC KX61/76/88HC User manual

KXMIDIController
User sManual
Model KX61/76/88HC
HANGZHOUWORLDEMUSICELECTRONICCO., LTD

HANGZHOU WORLDEMUSICELECTRONICCO., LTDKX61/76/88HC
1
Thankyou forchoosing WORLDEKX61/76/88HC
MIDI Controller.
Pleaseread “NOTICE”onPage2beforeuse.
Pleasereadthismanual carefullybeforeuse.
Pleasekeepthismanualforreference.
ProductList
Pleasecheck all the itemsinyourKX61/76/88HC package:
lTheKX61/76/88HC product 1pcs
lUSB cable1pcs
lUser’smanualCD 1pcs
Contact
HANGZHOUWORLDEMUSICELECTRONICCO., LTD
Tel: [phone]
Fax: [phone]
Web: www.worlde.com.cn
E-Mail: [e-mail]

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
2
NOTICE
Alwaysfollowthe basicprecautionslistedbelowtoavoidthepossibilityof seriousinjury
oreven deathfromelectricalshock,damage,fireorotherhazards.Theseprecautions
include, but arenot limited to, thefollowings:
1.Read andunderstand all the instructions.
2.Alwaysfollowthe instructionson theinstrument.
3.Beforecleaningtheinstrument, alwaysremovetheelectricplugfromthe outletas
wellasthe USB cable.When cleaning, useasoft and drycloth. Donot usegasoline,
alcohol, acetone, turpentine oranyotherorganicsolutions; donot useliquidcleaner,
spraycleanerortoowet cloth.
4.Donotusetheinstrumentnearwaterormoisture,suchasbathtub,washbasin,
washingsinkinthe kitchenorsimilarplaces.
5.Donotplacethe instrumenton an unstableplacewhereitmightaccidentallyfall
over.
6.Donotjamsinks orholesofthe instrument; thosesinks orholesareusedforair
circulation topreventthe instrumentfromoverheating.Donotplacethe instrument
nearheat sinkoranyplaceswithpooraircirculation.
7.Donotplaceanythingon thepowercord.Makesurethe powercordisseton asafe
place, sonobodywill stepon it andno bodywill tripoverit.
8.Donot insert anythinginthe instrument, whichmaycausefireorelectricalshock. Do
not splashanykindofliquidtothe instrument.
9.Donot disassemblethe instrument incaseofaccidentalelectricalshock.
10.Alwaystakethe instrumenttoaqualified servicecenterinneed ofrepair.You will
endangeryourselfifyou open orremovethe cover,and improperassemblymay
causeelectricalshock infutureuse.
11.Unplugallthe connectorsandtaketheinstrumenttoaqualified servicecenterif
anythinginthebelowlisted happens:
(1)The powercordorconnectorgetsdamaged orwornout.
(2)Anyliquidgetsintotheinstrument.
(3)The instrument getsrainorwatersplash.
(4)The instrument doesnot workproperlyafterfollowingall the instructions.
(5)The instrument fallsdownorgetsbroken.
(6)The instrument functionspoorly.
12.Donotusethe instrumentinthunder;otherwisethe thundermaycause
long-distanceelectricalshock.
13.When the powercordisconnectedtothe ACoutlet,donottouchthenakedpartof
the cordorthe connector.
14.Keepthe instrument awayfromdust, heat andvibration.
15.WORLDEisnotresponsibleforanydamageordataloss causedbyimproper
operation tothe instrument.
16.All thepicturesandtheLEDdisplaysinthe manualareusedfordemonstration; they
maybedifferent fromthe realinstrument.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
3
CONTENTS
1. INTRODUCTION .......................................................................................................................4
2. FEATURES.................................................................................................................................4
3. OPERATION...............................................................................................................................5
3.1. PARTSILLUSTRATION.................................................................................................5
3.1.1.FRONTPANEL....................................................................................................5
3.1.2.REARPANEL.......................................................................................................5
3.2. CONNECTION/POWER/CONTROL...............................................................................6
3.3. FUNCTION BUTTONS....................................................................................................6
3.3.1.PROGRAM...........................................................................................................6
3.3.2.CHANNEL............................................................................................................6
3.3.3.TRANSPOSE.......................................................................................................6
3.3.4.OCTAVE................................................................................................................7
3.3.5.CURVE..................................................................................................................7
3.3.6.TEMPO.................................................................................................................7
3.3.7.DUAL.....................................................................................................................7
3.3.8.SPLIT....................................................................................................................8
3.3.9.SPLITPOINT.......................................................................................................8
3.3.10. TOUCH...............................................................................................................8
3.3.11. MTC.....................................................................................................................8
3.3.12. MUTE..................................................................................................................8
3.3.13.ASSIGN ..............................................................................................................8
3.3.14. RESET................................................................................................................9
3.3.15.ALLNOTESOFF...............................................................................................9
3.3.16. RESETALLCONTROLLERS.........................................................................9
3.3.17. GMON..............................................................................................................10
3.3.18. GSON ..............................................................................................................10
3.3.19. XG ON ..............................................................................................................10
3.3.20. SNAPSHOT....................................................................................................10
3.4. ASSIGNABLEDIAL......................................................................................................10
3.5. ASSIGNABLESLIDER..................................................................................................11
3.6. ASSIGNABLEBUTTONS..............................................................................................11
3.7. ASSIGNABLEWHEEL..................................................................................................11
3.8. ASSIGNABLEPEDAL...................................................................................................12
3.9. MASTERVOLUME.......................................................................................................12
3.10. SAVE/LOAD.................................................................................................................12
3.11. UPLOAD/DOWNLOAD...............................................................................................13
4. APPENDIX.................................................................................................................................15
4.1. APPENDIX1 ASSIGNABLECONTROLLERLIST.....................................................15
4.2. APPENDIX2 ASSIGNABLECONTROLLERPARAMETERLIST............................16
4.3. APPENDIX3 LEDSTATUSLIST..................................................................................18
4.4. APPENDIX4 TECHNICALSPECIFICATIONS............................................................19

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
4
1.INTRODUCTION
KX61/76/88HC is61/76/88-keyUSB-MIDIController,whichsupplieswith
professionalkeyboardofinitialtouchandprofuseassignablecontrollers.
2. FEATURES
lExpandableUSB-MIDI controller.
l61KeyswithInitialTouch/AfterTouch.（KX61C）
l76/88KeysHammerEffectwithInitialTouch/AfterTouch.（KX76/88HC）
l2xAssinablePedalInterfaces(PEDALA，PEDALB),whichcan beassigned as
147 controllers.
l8xAssignableDials,whichcan accomplishtwogroupsoffunctions(KA1~KA8
and KB1~KB8). Eachdialcan establishanindependent channelineachfunction
group, and can beassigned as143controllers.
l8xAssignableSlider,realizing twogroupsoffunctions（SA1~SA8and SB1~SB8）.
Eachdialcanestablishan independentchannelineachfunction group,and can
beassigned as143controllers.
lAssignablePitchBend Wheeland ModulationWheel （WHEELPandWHEEL
M）,whichcan beassigned as143controllers.
l6xAssignableButton（RTZ,REW,FF,REC,STOP,PLAY）, whichcan beassigned
as147 controllers.
l1xMasterVolumeSlider.（M.VOLUME）.
l12xFunction selectionbutton,providing functionslikePROGRAM,CHANNEL,
CURVE,TEMPO, OCTAVE,TRANSPOSE, DUAL, SPLIT, MUTE, and etc.
l10xDataentryand +/-button.
l5xKeyboardVelocityCurve.
lSupportingMIDI Sync, realizingSyncfunctionsliketempoadjustment.
lBuilt-inMemory,whichcan store/load10groupsofuser’sparameter.
lPCUpload and Download functions, usefulforusersettingsaveand transmit.
l1xMIDI OUT.
lUSB interface, adaptabletoUSB 1.1. PowersuppliedbyUSB and DC 9V.
lCompatiblewithWinXP/VistaandMacOSX. Drivefree andhot-plugsupported.
lCompatiblewithmajoraudioandsequencersoftware.
lOptionalexpansion board.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
5
3.OPERATION
3.1.PARTS ILLUSTRATION
3.1.1.FRONTPANEL
(1)WHEELP/WHEELM,AssignableWheel,whichcan beassigned as143controllers,
withinitialsettingtobePITCH BEND and MODULATION.
(2)IndicatorofPEDALA, PEDALB, USB,WHEELPand WHEELM.
(3)AssignableButton whichcan beassigned as147controllers, withthe initialsettingto
beControllerNo. 114～119.
(4)Dataentryand +/-Button.
(5)Function SelectionButton.
(6)AssignableDial,Function GroupSwitchButtonand theirIndicator.Dialcan be
assigned as143controllers,witheachone establishingan independentchannelinevery
function group.
(7)AssignableSlider,Function GroupSwitchButton andtheirIndicator.Slidercan be
assigned as143controllers,witheachone establishingan independentchannelinevery
function group.
(8)LED, displayingthe information ofcurrent Number/Status.
(9)M.VOLUME, MasterVolumeadjustingslider.
3.1.2.REARPANEL
(1)MIDI OUT, MIDI Output Interface.
(2)PEDALA,PedalAInputInterface.It can beassigned as147 controllers,withthe
initialsettingtobeSustainPedal.
(3)PEDALB,PedalBInputInterface.Itcan beassigned as147controllers,withthe
initialsettingtobeSoft Pedal.
（
1
）
（
2
）
（
3
）
（
4
）
（
6
）
（
5
）
（
7
）
（
8
）
（
9
）
（
1
）
（
2
）
（
4
）
（
6
）
（
3
）
（
5
）

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
6
(4)USB, USB Interface.
(5)DC9V, 9VPowerInput Interface.
(6)OFF/ON, PowerSwitch.
3.2. CONNECTION/POWER/CONTROL
üKX61/76/88HC getsconnectedtoPCviathe USB cable. Thisconnectionpowersthe
keyboardand isused totransferthe MIDI datatoPC. Inaddition,you canconnect to
otherdevicessuchasasound moduletosend outMIDI dataviaMIDI output port.
TheUSB interfaceofKX61/76/88HC displaysinPCasUSB AudioDevice.
üKX61/76/88HC can alsobeusedindependentlywhenconnected to9VDC. Inthis
casetheMIDI datawill onlybesentout viathe MIDIoutput port.
3.3.FUNCTIONBUTTONS
3.3.1.PROGRAM
üVoiceadjustingfunction button, adjustingthevoiceofcurrent channel.
üWhen thisbutton isvalid,the indicatorisON,and the LEDdisplaysthecurrent
voiceNo.ThevoicecanbeadjustedorselectedwithNUMERICbutton or+/-
Button. Theinitialsettingis000,adjustingscaleis0～127.
3.3.2.CHANNEL
üChannelselectionfunction button, selectingcurrent MIDI channel.
üWhen thisbutton isvalid,the indicatorisON,and the LEDdisplaysthecurrent
channelNo.Thechannelcan beselectedwithNUMERICbutton or+/-Button.
Theinitialsettingis00, adjustingscaleis0～15.
üWhen thisbutton isvalidinASSIGNmode,the MIDIchannelofDialand Slider
can beadjusted.
3.3.3.TRANSPOSE
üTransposeadjustingfunction button.Thisfunction allowsthe keyboardtochange
the pitchup/downbysemi-tone.
üWhen thisbuttonisvalid,theindicatorisON,andtheLEDdisplaysthevalue of
currenttranspose.It canbeadjusted byNUMBERICbutton or+/-button.The

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
7
initialvalue is00,adjustingscaleis-12～12,i.e.ascending/descendingan
octave. When theLEDshowsnegativenumber,it meansflat. Theminuscan be
addedorremoved byholding –button.
3.3.4.OCTAVE
üOctaveadjustingfunction button.Thisfunction allowsthe keyboardtochange
the pitchup/downbyoctave.
üWhen thisbutton isvalid,the indicatorisON,and the LEDshowsthe value of
currenttransposition.It can beadjusted byNUMERICbutton or+/-button.The
initialvalue is0,adjustingscaleis –3~3,i.e.ascending/descendingthree octaves.
When the LEDshowsnegativenumber,itmeansflat. The minuscan beaddedor
removed byholding –button.
3.3.5.CURVE
üVelocityCurveselection function button.
üWhen thisbutton isvalid,the indicatorisON,and theLEDshowsthe numberof
currentvelocitycurve.It can beadjusted byNUMBERICbutton or+/-button.The
initialvalue is0, adjustingscaleis0～4.
3.3.6.TEMPO
üTempoadjustingfunction button, adjustingthe tempo ofMIDITimeCode (MTC).
üWhen thisbutton isvalid,the indicatorisON,and the LEDshowsthe value of
currenttempo.It can beadjusted byNUMERICbutton or+/-button.The initial
settingis100, adjustingscaleis20～250.
3.3.7.DUAL
üDualswitchfunction button.
üWhen DualisON, the indicatorisON, Keyboard/Wheel/Pedal/TouchsendsMIDI
infooftwochannels,withthevoice/channelofbothchannelsadjustable.The
voiceand channelof2nd layercan beadjusted currently(DualisON).
üDualand Split can not beusedatthesametime.When DualisON, Split isOFF.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
8
3.3.8.SPLIT
üKeyboardSplit ON/OFF function button.
üWhen Split isON, the indicatorisON,Wheel/Pedal/TouchsendsMIDI infooftwo
channels,the keyboardissplittorightsection andleft section bythe splitpoint,
witheachsectionuseaownchannel.Thevoice/channelofbothchannelsis
adjustable. The voiceand channelofrightsection can beadjusted currently(Split
isON).
üDualand Split can not beusedatthesametime.When Split isON, DualisOFF。
3.3.9.SPLITPOINT
üDefaultSplitPointisthe centralC(MIDINo.60).Usercan choosethe SplitPoint.
üHoldtheSplitbutton,LEDshowsCHO, remindingusertoselecttheSPLIT
POINT.Press the keythatneedstobethe newSplitPoint, LEDshowsdon,
meaningthiskeyisset tobethe newSplit Point.
3.3.10.TOUCH
üChannelAfterTouchON/OFF function button.
üWhen TouchisON,indicatorisON,and the systemsendsChannelAfterTouch
infoaccordingtothe velocitywhen pressingthe keys.
3.3.11.MTC
üMIDITimeCode ON/OFF function button.
üWhen MTCisON, indicatorisON, keyboardsendsMTCinfo（F8）.
3.3.12. MUTE
üMUTEON/OFF function button.
üWhen MUTEfunction isON, indicatorisON, no MIDI infowill besent.
3.3.13. ASSIGN
üASSING mode ON/OFF function button.
üWhen ASSIGNmode isON,indicatorisON,defaultasassigningthe controller

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
9
No.that isassignable.Operatethecontrollertobeassigned and selectthevery
controller(e.g.ifyou wanttoassignSA1,press SA/SB buttontoturnon the
indicatorof SAgroup,then slide SA1tochooseit),the indicatorwillbeON,LED
showsthe controllerNo.ofcurrentcontroller.Inputthedesired controllerNo.with
NUMERICbutton or+/-button (e.g.when SA1isselected,LEDshowsthe
default No. 007. Ifyou input 010,SA1isassigned asPAN).
üWhen ASSIGNmode isON, press CHANNELbuttontoassignthe channelNo. of
the channel-assignablecontroller.Operatethe controllerthatneedstobeassigned
channel, andselect the verycontroller(e.g. ifyou want toassignthe channelof
SA1, press SA/SB buttontoturnontheindicatorofSAgroup, slide SA1tochoose
it), the indicatorwill beON, LEDshowsthe channelNo. ofcurrent controller. Input
the desired channelNo. withNUMERICbutton or+/-button (e.g. when SA1is
chosen,LEDshowsthe default No.00.Ifyouinput 01, thechannelofSA1is
assigned as01).
üSomeFunctionsareinvalidwhen Assignmode isvalid.
üAssignablecontrollerreference: Appendix1-AssignablecontrollerList
üAssignablecontrollerparametersreference: Appendix2-AssignableController
ParameterList.
3.3.14.RESET
üPress PROGRAMand CHANNELbuttonsatthesametimetoresetthesystem,
restoringtofactorysetting, sendingsysteminitialsettinginfoat the sametime.
3.3.15. ALLNOTES OFF
üPress TRANSPOSE and OCTAVE buttonsatthesametimetosend MIDI
messageofALLNOTEOFF(Controller#123)incaseofabnormalconstantsound
fromsystemorexternalsound module.
üLEDshowsdon when messageissent.
3.3.16.RESETALLCONTROLLERS
üPress CURVE and TEMPObuttonsatthesametimetosend MIDImessageof
RESETALLCONTROLLERS(Controller#121).
üLEDshowsdon when the messageissent.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
10
3.3.17.GMON
üPress DUALand SPLITbuttonsatthe sametimetosend GMONmessage（F0
7E7F 09 01 F7）.
üLEDshowsdon when the messageissent.
3.3.18.GSON
üPress TOUCH and MTCbuttonsatthesametimetosend GSONmessage（F0
41 10 42 12 40 00 7F 00 41F7）.
üLEDshowsdon when the messageissent.
3.3.19.XGON
üPress MUTEand ASSIGNbuttonsat the sametimetosend XGONmessage（F0
43 10 4C 00 00 7E00 F7）.
üLEDshowsdon when the messageissent.
3.3.20.SNAPSHOT
üPress TEMPOandMUTEbuttonsatthe sametimetosendmessageofall user
settings.
üLEDshowdon when the messageissent.
3.4. ASSIGNABLE DIAL
KA1~KA8，KB1~KB8）
ü8dialsthat can beassigned channelandcontrollerNo. independently.
üTherearetwogroups,switched byKA/KBbutton.If the indicatorofKAisON,
KA1~KA8areactive; ifindicatorofKB ison, thenKB1~KB8areactive.
üOperatethedialtoselectthedial,theveryindicatorisON,LEDshowsthe
adjustingvalue.
üInputtheNo.withNUMERICbutton and+/-button isOKwhen thedialis
selected.
üPleasereferto3.3.14 astohowtoassignchanneland controller.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
11
3.5. ASSIGNABLE SLIDER
SA1~SA8，SB1~SB8）
ü8slidersthat canbeassigned channeland controllerNo. independently.
üTherearetwogroups,switched byKA/KBbutton.If the indicatorofSAisON,
SA1~SA8areactive; ifindicatorofSB isON, then SB1~SB8areactive.
üOperatethe slidertoselectthe slider,the veryindicatorisON,LEDshowsthe
adjustingvalue.
üInputthe No.withNUMERICbutton and+/-button isOKwhen the slideris
selected.
üPleasereferto3.3.14 astohowtoassignchanneland controller.
3.6. ASSIGNABLE BUTTONS
RTZ,REW,FF,REC,STOP,PLAY）
ü6buttonsthat canbeassigned controllersindependently.
üThenchannelNo. is0.
üWhen the buttonsareactive, the value is127（forinstance, default controllerNo.
ofRTZis#114, B0727Fissent when RTZbutton ispressed）.
üIt iscommon tosetthe6buttonsasSequencerremotecontrolbuttons,which
needstobeassigned and connectedinsequencersoftware.TakeSONARasan
example,SelectOptions--ControlSurfacesinSONAR,then createaCakewalk
GenericSurfacesinthepop-outwindow,selectKX61/76/88HC asinput(inputto
beUSB AudioDeviceorSoundCard,it dependson connectingviaUSB orMIDI).
Press ENTER,then add ControlSurfacestotoolbar.The windowGeneric
Surfaceappearswhen clickingthe propertyofControlSurfaces.Selectproper
buttons,suchasPlayinGlobalParameters,then press PLAY button onthe
keyboard,and click Learn,correspondinginfowillbedisplayed inthe MIDI
messageon the rightside ofthe window:Controller119（initialvalue）、 Channel1
（initialvalue）.ChangeTriggerinto127,theassignmentand connectionofPLAY
button isdone. Thisalsoappliestootherbuttons.
üPleasereferto3.3.14 astohowtoassigncontrollers.
3.7. ASSIGNABLEWHEEL
WHEELP，WHEELM）

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
12
ü2wheelsthat canbeassigned controllerNo. independently.
üThechannelNo. iscurrent channelNo.
üPleasereferto3.3.14 astohowtoassigncontrollers.
3.8. ASSIGNABLE PEDAL
PEDALA，PEDALB）
ü2pedalinterfacesthatcan beassigned controllerNo. independently.
üThechannelNo. iscurrent channelNo.
üPleasereferto3.3.14 astohowtoassigncontrollers.
üSystemcanrecognizeorchange pedalpolarity.Ifyouwantpedaltotransmit
PEDALONmessagewhilepressingthe pedaland PEDALOFF messagewhile
releasingthe pedal,youneed toreleasethe pedalbeforethe systemispowered
on (orreset).Otherwise,you need topress downthe pedalbeforethe systemis
powered on (orreset)
3.9.MASTERVOLUME
M.VOLUME）
üIt sendsGMMasterVolumemessage（F07F7F04 01 00xx F7）.
3.10.SAVE/LOAD
üSystembuilt-inmemorycan save/load 10 groupsofuserparameter.
üPress RTZandREWbuttonsatthesametimetoenterSAVE mode,LEDshows
S-.Thesavingposition (group)can beselected byentryofnumber0-9.For
example,ifyouinput0,LEDshowsS0,meaninguserparameterissaved at
position (group)0.2secondsafterwards,systemreturnstothestatuspriorto
saving.Ifno numberisinput2secondsaftersystementerstoSAVE mode,
systemreturnstothestatuspriortosaving.
üPress REWand FF buttonsatthesametoenterLOADmode,LEDshowsL-.If
youinput number0-9, the userparameterthat’ssaved at the veryposition (group)
can beloaded,andSNAPSHOTfunction isalsoactivated.Forinstance,ifyou
input0,LEDshowsL0,meaningtoloadtheuserparameterthat’ssaved at
position (group)0.Ifno numberisinput2secondsaftersystementerstoLOAD
mode, systemreturnstothe statuspriortoloading.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
13
3.11. UPLOAD/DOWNLOAD
üConnectingviaUSB interfacetoPCcan accomplishupload and download ofuser
parameter,i.e.toupload KX61/76/88HC panelparameterstocomputer,or,to
download the parametersfromcomputertoKX61/76/88HC.
üThe transmitmessagesaresystemexclusivemessagesinformofF0……F7.
Accordingtodifferentsequencersoftware,therearedifferentwaystoreceive/send
systemmessage: mainlyrecord/playback styleandsystemmessagewindowstyle.
Detailsareasfollows:
lRecordStyle（TakeCubaseasexample）
²FromKX61/76/88HC toPC（UPLOAD）
1. Connect PCandKX61/76/88HC viaUSB interface;
2. SetKX61/76/88HC Parameters;
3. Open CubaseandcreateMIDI project;
4. ChooseKX61/76/88HC asMIDI input, output canbeignored;
5.Validatethe systemmessageinFile-Preferences…-MIDI-MIDIFilter(uncheck
the boxSysexinRecord);
6. Cubasestartsrecording;
7.Press RECand STOPbuttonsatthe sametime,KX61/76/88HC entersto
systeminfouploadingmode,LEDshowsSEu;don isshownwhen the upload is
finished;
8. Cubasestopsrecording;
9.InCubase,selectMIDI-Open listEditortofind received systeminfo;press
Comment toopen systeminfowindow, then select Export tosave, inthe format of
*.sys;
²FromPCtoKX61/76/88HC（DOWNLOAD）
1. Connect thePCtoKX61/76/88HC viaUSB;
2. Open CubaseandcreateMIDI project;
3. SelectKX61/76/88HC asMIDI output;
4. Load the previouslysaved systeminfoinCubase（*.sys）;
5.Press STOPandPLAYbuttonsatthesametime,KX61/76/88HC enterssystem
infodownload mode, LEDshowsSEd;
6. Cubasestartsplaying, sendssysteminfotoKX61/76/88HC;
7. KX61/76/88HC receivesthe correct systeminfoand showsdon;
8.SystemstartsSNAPSHOTfunction,sendingthe downloaded settinginfoto
sequent device.
lSystemInfoReceivingWindowStyle（TakeCakewalkasexample）
OperateKX61/76/88HC inthe samewayasinRecordStyle,theonlydifferenceis
the operationinsequencersoftware:
²FromKX61/76/88HC toPC（UPLOAD）
1. Connect PCtoKX61/76/88HC viaUSB;
2. SetKX61/76/88HC parameters;

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
14
3. Open Cakewalkand createMIDI project;
4. SelectKX61/76/88HC asMIDI input, output canbeignored;
5.SelectView-Sysx toopen systeminfowindow;selectaBank,and choose,
then chooseYou startdumpon instrument, Cakewalkenterssysteminforeceiving
mode;
6.Press RECandSTOPbuttonatthesametime,KX61/76/88HC enterssystem
infouploadingmode, LEDshowsSEu; donisshownwhen upload isfinished;
7. Savethe received infoinCakewalk, inthe format of*.sys;
²FromPCtoKX61/76/88HC（DOWNLOAD）
1. Connect PCtoKX61/76/88HC viaUSB;
2. Open Cakewalkand createMIDI project;
3. SelectKX61/76/88HC asMIDI output;
4.SelectView-Sysx toopen systeminfowindow;selectabankandloadthe
previouslysaved systeminfo;
5.Press STOPandPLAYbuttonsatthe sametime,KX61/76/88HC enterssystem
infodownloadingmode, LEDshowsSEd;
6.ExecutesendingsysteminfoinCakewalktosend systeminfoto
KX61/76/88HC;
7. KX61/76/88HC showsdon afterreceived the correct systeminfo;
8.SystemstartsSNAPSHOTfunction,sendingthedownloadedinfotosequent
device.
üPress STOPandPLAYbuttonsat the sametimecan enter/exitdownload mode.
üMost Functionsareinvalidwhen download mode isvalid.
Notice:
üControland operation ofotherunstatedcontrollersarebasicallythesame.
Pleaserefertoaboveinstruction.
üFortheconfiguring and connection oftheaudioand sequencersoftwareto
KX61/76/88HC, pleaserefertotheoperation manual ofthesoftware.

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
15
4. APPENDIX
4.1. APPENDIX 1ASSIGNABLE CONTROLLERLIST
NO
ITEMCHANNELRANGEINITIAL
CHANNEL
PARAMETE
RRANGE INITIAL PARAMETER INITIAL PAREAMETER
VALUE
1WHEELP128 64
2WHEELM
0~15
CURRENTCHANNEL 00~142 10
3PEDALA64 0
4PEDALB 0~15
CURRENTCHANNEL 00~146 67 0
5RTZ114 0
6REW115 0
7FF 116 0
8REC117 0
9STOP118 0
10 PLAY
000~146
119 0
11KA172 64
12 KA273 64
13 KA374 64
14 KA475 64
15 KA571 64
16 KA610 64
17 KA791 64
18 KA893 0
19 KB150
20 KB276 64
21 KB377 64
22 KB478 64
23 KB5129 2
24 KB6132 64
25 KB7141 64
26 KB8
0~15
INDEPENDENTCHANNEL 00~142
142 64
27 SA10
28 SA21
29 SA32
30 SA43
31 SA54
32 SA6
0~15
INDEPENDENTCHANNEL
5
0~142 7100

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
16
33 SA76
34 SA87
35 SB18
36 SB29
37 SB310
38 SB411
39 SB512
40 SB613
41 SB714
42 SB815
4.2.APPENDIX 2ASSIGNABLECONTROLLER
PARAMETERLIST
CONTROLLERNO. DEFINITIONINITIALVALUEVALUERANGE
0BANKSELECTMSB 00-127
1MODULATIONMSB 00-127
2BREATHMSB 127 0-127
3CONTROLLER00-127
4FOOTCONTROLLERMSB 127 0-127
5PORTAMENTO TIMEMSB 00-127
6DATAENTRYMSB 20-127
7CHANNELVOLUMEMSB 100 0-127
8BALANCEMSB 64 0-127
9CONTROLLER00-127
10 PANMSB 64 0-127
11EXPRESSIONMSB 127 0-127
12 EFFECTCONTROL1MSB 00-127
13 EFFECTCONTROL2MSB 00-127
14-31 CONTROLLER00-127
32 BANKSELECTLSB 00-127
33 MODULATIONLSB 00-127
34 BREATHLSB 127 0-127
35 CONTROLLER00-127
36 FOOTCONTROLLERLSB127 0-127
37 PORTAMENTO TIMELSB 00-127
38 DATAENTRYLSB 00-127
39 CHANNELVOLUMELSB 127 0-127

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
17
40 BALANCELSB 64 0-127
41 CONTROLLER00-127
42 PANLSB 64 0-127
43 EXPRESSIONLSB 127 0-127
44-63 CONTROLLER00-127
64 SUSTAIN00-127
65 PORTAMENTO00-127
66 SOSTENUTO00-127
67 SOFTPEDAL00-127
68 LEGATOFOOTSWITCH 00-127
69 HOLD200-127
70 SOUND CONTROLLER64 0-127
71 RESONANCE64 0-127
72 RELEASE TIME64 0-127
73 ATTACKTIME64 0-127
74 CUTOFF 64 0-127
75 DECAYTIME64 0-127
76 VIBRATO DEPTH64 0-127
77 VIBRATO DEPTH64 0-127
78 VIBRATO DEPTH64 0-127
79 SOUND CONTROLLER64 0-127
80-83 CONTROLLER00-127
84 PORTAMENTO CONTROL00-127
85-90 CONTROLLER00-127
91 REVERB64 0-127
92 EFFECTS00-127
93 CHORUS00-127
94 EFFECTS00-127
95 EFFECTS00-127
96 RPNINCREMENT00-127
97 RPNDECREMENT00-127
98 NRPNLSB 00-127
99 NRPNMSB 00-127
100 RPNLSB 00-127
101 RPNMSB 00-127
102-119 CONTROLLER00-127
120 ALLSOUND OFF 00-127
121 RESETALLCONTROLLERS00-127
122 LOCALCONTROL00-127

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
18
123 ALLNOTES OFF 00-127
124 OMNI OFF 00-127
125 OMNI ON00-127
126 MONO00-127
127 POLY00-127
128 PITCH BEND 64 0-127
129 PITCH BEND SENSITIVITY（RPN）20-127
130 CHANNELFINETUNING（RPN）64 0-127
131 CHANNELCOARSE TUNING（RPN）64 0-127
132 MODULATIONDEPTHRANGE（RPN）64 0-127
133 VIBRATO RATE（NRPN）64 0-127
134 VIBRATO DEPTH（NRPN）64 0-127
135 VIBRATO DELAY（NRPN）64 0-127
136 FILTERCUTOFF FREQUENCY（NRPN）64 0-127
137 FILTERRESONANCE（NRPN）64 0-127
138 EGATTACKTIME（NRPN）64 0-127
139 EG DECAYTIME（NRPN）64 0-127
140 EG RELEASETIME（NRPN）64 0-127
141 EQ LOWGAIN（NRPN）64 0-127
142 EQ HIGHGAIN（NRPN）64 0-127
143 START（MTC）--
144 CONTINUE（MTC）--
145 STOP（MTC）--
146 RESET（MTC）--
4.3. APPENDIX 3LEDSTATUS LIST
NO. StatusDescription
1xxx 3-digit Display
2xx AscendingTransposeValue/ChannelNo.
3-xx DescendingTransposeValue
4xAscendingOctaveValue/VelocityCurveNo.
5-xDescendingOctaveValue
6CHOReminderofChoosingSplit Point
7don Operation donesuccessfully
8Err Operation Error
9SEuParameterUpload
10 SEdParameterDownload
11SxSave

HANGZHOU WORLDEMUSICELECTRONICCO., LTD KX61/76/88HC
19
12 LxLoad
4.4. APPENDIX 4TECHNICALSPECIFICATIONS
NO.
ItemSpecification
1Keyboard uKX61C: 61Keys, C1-C6, InitialTouch/AfterTouch.
uKX76HC: 76Keys, A2-C7, HammerEffectwithInitialTouch/AfterTouch.
uKX88HC: 88Keys, A1-C7, HammerEffectwithInitialTouch/AfterTouch.
2Function uMIDIData:ProgramSelect,BankSelect,SequencerControl,MIDITimeClock,
ControllerChange, GM,GS, XGSystemReset, etc.
uControllableParameters:Transpose,Octave,MIDITransmitChannel,Velocity
CurveAdjust,KeyboardSplit Pointand etc.
3Panel
&Indicator u8xAssignableDials(with8indicators).
u1xDial Function Group SwitchButton (with2indicators).
u8xAssignableSliders(with8indicators).
u1xSliderFunctionGroup SwitchButton (with2indicators).
u6xAssignableButtons.
u2xAssignableWheels(with2indicators).
u12xFunction Buttons(with12 indicators).
4Display u1group of 8-segment,3-digitLED
5Input/Output
Interface u1xMIDIOutputInterface u1xUSBInterface(with1indicator)
u2xPedal InputInterfaces(with2indicators)
u1xDC Input Interface
u1xPowerSwitch
6Power
Supply u9VDC
uUSB Power
