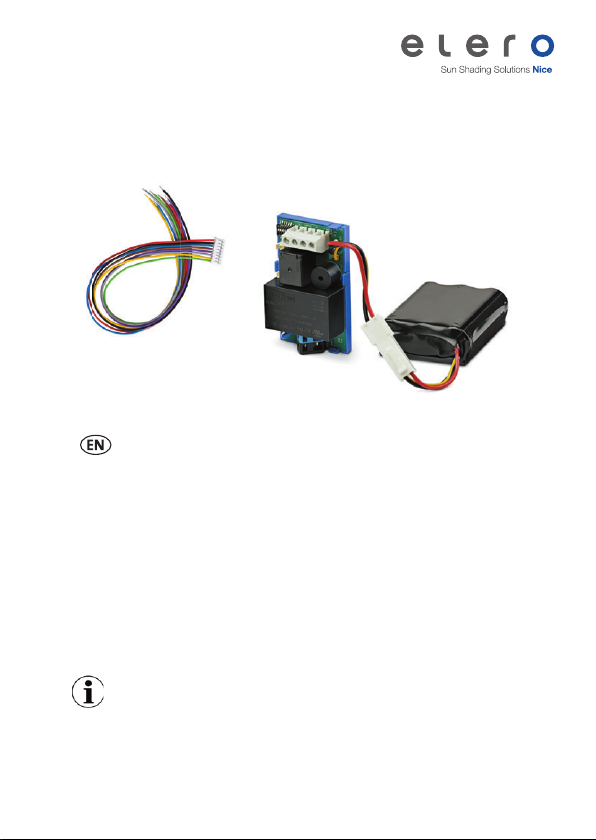

Nice Elero ExitSafe 28 388.0001 User manual

18 123.4701_EN_0322
ExitSafe
28 388.0001
Operating instructions
Keep for future use.
The system is only fully ready for operation after it has
been charged for eight hours from the mains.

2 | EN ࿈elero GmbH
Translation from the original German version.
All other documents in different languages are
translations of the original version.
All rights reserved in the event of registration of
patents, working models or design patents.

࿈elero GmbH EN | 3
Contents
1 Introduction .........................................5
1.1 Manufacturer contact details ..................... 5
1.2 Symbols and warnings .............................. 5
2 Safety instructions ...............................6
2.1 Target group .............................................. 6
2.2 Intended use .............................................. 6
2.3 Installation and commissioning ................. 7
3 System description ..............................8
3.1 System design ........................................... 8
3.2 Usable drives ............................................. 9
3.3 Delivery condition .................................... 10
3.4 Electrical connection ............................... 11
4 Technical data ...................................13
4.1 Electrical data .......................................... 13
4.2 Ambient conditions .................................. 14
4.3 Mechanical data ...................................... 14
4.4 Electrical connections .............................. 15
4.5 Settings ................................................... 17
4.6 Connection and installation ..................... 18
4.7 Commissioning ........................................ 20
4.8 Installation in installation box ................... 21

4 | EN ࿈elero GmbH
5 Operation ..........................................21
5.1 Individual and master control .................. 21
5.2 Priority individual or master control ......... 21
5.3 Signalling ................................................. 22
5.4 Automatic retraction of the blind .............. 23
5.5 Push-button mode or maintained mode .. 23
5.6 Wire breakage recognition ...................... 24
5.7 Shutdown and restart .............................. 24
5.8 Additional information .............................. 25
6 Servicing ...........................................25
6.1 Maintenance ............................................ 25
6.2 Replacing the battery pack ...................... 26
6.3 Repairs .................................................... 26
7 Certification and imprint ....................26
7.1 EU Declaration of Conformity .................. 26
7.2 Legal Disclosure ...................................... 26
8 Information for use for the operation
of the device ......................................27
9 Notes on commissioning and
handover to the operator ...................27

࿈elero GmbH EN | 5
1 Introduction
This information for use describes the special features of
the ExitSafe system that are required for installation.
Follow these instructions to ensure proper and safe
use.
Retain for future use.
1.1 Manufacturer contact details
elero GmbH
Maybachstr. 30
73278 Schlierbach
Telephone: [phone]
Email: [email protected]
Website: www.elero.de
1.2 Symbols and warnings
This user manual uses the following illustrations to
display important warnings:
DANGER
Danger with a high level of risk, resulting in death
or serious injury.
WARNING
Danger with a medium level of risk, possibly
resulting in death or serious injury.

6 | EN ࿈elero GmbH
CAUTION
Danger with a low level of risk, possibly resulting
in minor injuries.
ATTENTION
Danger, possibly resulting in damage to property.
2 Safety instructions
2.1 Target group
This document is primarily intended for use by electri-
cians, technicians and engineers with experience in the
design, installation, commissioning and maintenance of
building technology.
2.2 Intended use
ExitSafe has been developed for the operation of elec-
trically powered roller shutters and venetian blinds. The
ExitSafe system is designed for the operation of elero
12 V DC tubular drives and venetian blind drives on a
230 V AC network with temporary failure of the mains
supply and occasional use (not for JA 10 Soft DC
35 093.0002).
ExitSafe allows the implementation of a second escape
route with electrically powered roller shutters and vene-
tian blinds.
WARNING
Injuries / material damage may occur as a result
of improper use!

࿈elero GmbH EN | 7
WARNING
ExitSafe ExitSafe may not be used in escape rou-
tes and primary rescue routes in accordance with
the Model Building Regulation (MBO).
• Do not use in locations where failure or malfunction
could result in the obstruction of an escape route or
a primary rescue route.
When using ExitSafe, compliance with the national and
international safety and accident prevention regulations
specific to the application is required.
ExitSafe components are designed for installation in
flush/surface mount housings. Any conversions or other
modifications to ExitSafe are not permitted.
Use the ExitSafe system only with suitable drives for
roller shutters and venetian blinds from elero. If drives
from other manufacturers are connected, there will be
no entitlement to warranty.
2.3 Installation and commissioning
WARNING
Risk of injury due to unexpected start-up of the
connected drive.
• Disconnect the ExitSafe battery pack before perfor-
ming work on the drive.
• Only perform work on the electrical connection if it
has been disconnected from the power supply.

8 | EN ࿈elero GmbH
WARNING
Risk of injury, damage to the ExitSafe and
damage to the area surrounding the ExitSafe as
a result of improper electrical connections.
• The electrical connection may only be conducted by
qualified personnel.
• Only perform work on the electrical connection if it
has been disconnected from the power supply.
• Observe the charge status of the battery pack.
• Note the technical data for the device.
• Take care to ensure correct, securely affixed
connections.
ATTENTION
Exchanging components of the ExitSafe with
third party components may damage the compo-
nents or other connected systems.
• Exchange components between different systems
only after consultation with the manufacturer or your
supplier.
• When replacing a component, check whether the
type description of the new component matches the
one being replaced.
3 System description
3.1 System design
ExitSafe consists of two main components:
• Control module (ExitSafe-S)
• Battery pack (ExitSafe-A)
Figure 1 is a diagram of the ExitSafe connection.

࿈elero GmbH EN | 9
3.1.1 Control module (ExitSafe-S)
The drive, mains supply, battery pack and all the com-
mand initiators required are connected to the ExitSafe-S
control module. The control module also contains the
DIP switches used to set the ExitSafe system. The
control module evaluates these DIP switches and the
connected command initiators and controls the drive
accordingly. It supplies the drive with power from the
battery pack. The control module generates voltage via
the mains connection, which is used to recharge the
battery pack.
3.1.2 Battery pack (ExitSafe-A)
The battery pack ExitSafe-A stores the power required
to operate the ExitSafe. The battery pack contains
various protective devices that prevent damage to the
battery cells due to overvoltage or undervoltage, short
circuits or overloading.
3.2 Usable drives
To be used only with wired elero DC drives (12 V direct
current).

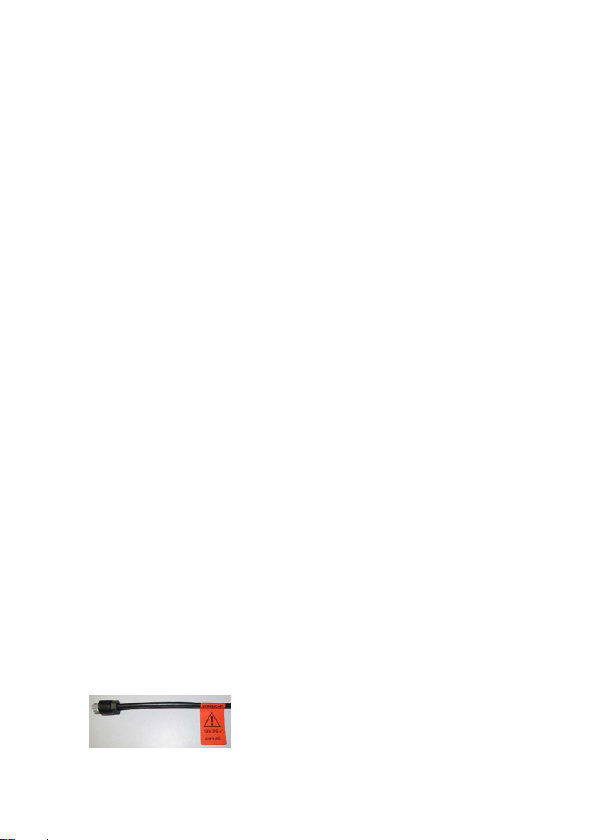

• VariEco M10 DC (34 621.0101), with original 2.0 m
connection cable, do not extend
• VariEco M12 DC (34 611.0101), with original 2.0 m
connection cable, do not extend
• JA 04 Soft DC (35 113.0001), with original 0.5 m
connection cable, can be extended with a maximum of
one extension, art. no. 26 619.0401 (length of 2.20 m)

10 | EN ࿈elero GmbH
The end positions for the blind are set directly on the
respective drive (not with elero 230 V assembly cable).
The drives draw their power exclusively from the battery
pack.
The 230 V power supply is used exclusively to charge
the battery pack.
The installation is carried out in the vicinity of the drive
in a double-height and double-depth installation box (not
included in the scope of delivery).
The blind is operated individually with an interlocked
push button or switch in a separate installation box or
in combination with the elero VarioTec-868 DC with a
separate elero radio transmitter.
It is also possible to connect a potential-free normally
closed or normally open contact to the central input, e.g.
via a smoke detector.
3.3 Delivery condition
The battery pack is in power-saving mode with a low
charge and must first be brought into an operational
state by charging it. The charging process can take up
to eight hours.
It is only fully ready for operation after it has been
charged for eight hours from the mains.
The end positions of the blind can be set only after the
ExitSafe system has been installed and the battery pack
has been fully charged on the drive itself.

࿈elero GmbH EN | 11
3.4 Electrical connection
WARNING
Risk of injury, damage to the ExitSafe and dama-
ge to the area surrounding the ExitSafe due to
improper electrical connections.
• The electrical connection may only be conducted by
qualified personnel.
• Only perform work on the electrical connection if it
has been disconnected from the power supply.
• When connecting the motor terminal, ensure correct
assignment to the sense of rotation of the drive.
When the battery charge level is low and automatic
retraction of the blind is activated (UP direction of
travel, DIP switch 3, see section 5.4), a switching
command is issued to retract the blind.
• Observe the charge status of the battery pack.
• Note the technical data for the device.
• Do not extend the original connection cable of the
roller shutter drive.
• Take care to ensure the connections are correct and
secure.

12 | EN ࿈elero GmbH

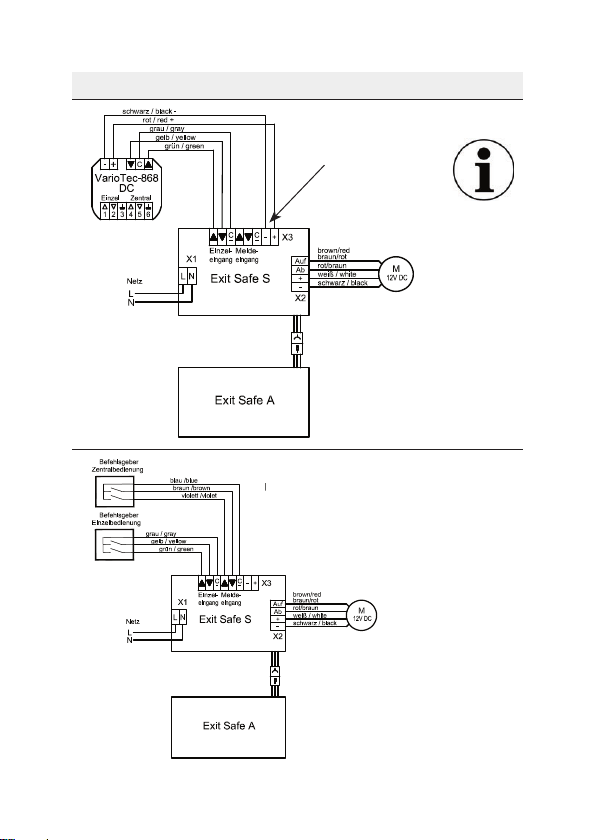

Terminal connection diagram
Figure 1: Connection diagram
The terminals ๨
DQG๩ at the signal
input of the Exit
Safe S are required
exclusively for the
power supply of the
VarioTec-868 DC.
Command devices,
interlocked push buttons
VarioTec-868 DC

࿈elero GmbH EN | 13

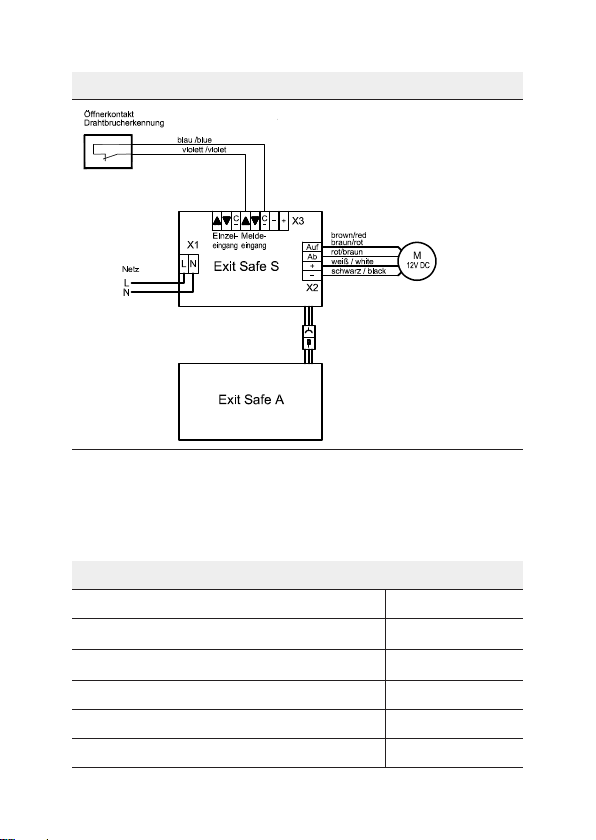

Wire breakage recognition
Figure 2: Wire breakage detection
4 Technical data
4.1 Electrical data
Electrical data
Power supply input 230 V AC, 50 Hz
Max. power consumption for input 5.5 W
Output voltage motor terminals 8.4 to 12 V DC
Rated current motor terminals 4 A
Max. current motor terminals 22 A, 10 ms
Rated current command initiator 1.2 mA
Alarm / smoke detector: i
nput with wire break detection
Coding:
DIP 6: on
DIP 1: on

14 | EN ࿈elero GmbH
Electrical data
Output voltage supply of control elements 8.4 to 12 V DC
Rated current supply control elements 50 mA
Battery type Li-Ion,
18650, 3S1P
Rated voltage battery pack 10.8 V
Nominal capacity of the battery pack 3,400 mAh
Recommended charging voltage 12 V DC
Recommended charge current 700 mA
Max. control factor 20 min / 8 h
Maintained mode period 180 s
Software class A
4.2 Ambient conditions
Ambient conditions
Protection class IP 20
Operating temperature 0° to +60 °C
Storage temperature -20° to +60 °C
Relative air humidity 0 to 95%
Max. usage altitude 2.000 m over NHN
4.3 Mechanical data
Mechanical data
Control module (ExitSafe-S) dimensions 67 x 40 x 22 mm

࿈elero GmbH EN | 15
Mechanical data
Control module (ExitSafe-S) weight 60 g
Battery pack (ExitSafe-A) dimensions 70 x 55 x 20 mm
Battery pack (ExitSafe-A) weight 168 g
4.4 Electrical connections
The ExitSafe is supplied with power of 230 V AC via the
spring clamps (X1) on the control module.
Designation Assignment
L External conductor
N Neutral conductor
Table 1: Assignment power input
The drive to be connected is controlled and powered via
the screw contacts (X2) on the ExitSafe control module.
No. Designation /
wire colour
Assignment
1 ๩-
black
0 V motor supply
2 ๨+
white
+ 8.4 to 12 V DC
motor supply
3 ▼
red/brown
DOWN signal for
motor
4 ▲
brown/red
UP signal for
motor
Table 2: Assignment motor terminals

16 | EN ࿈elero GmbH

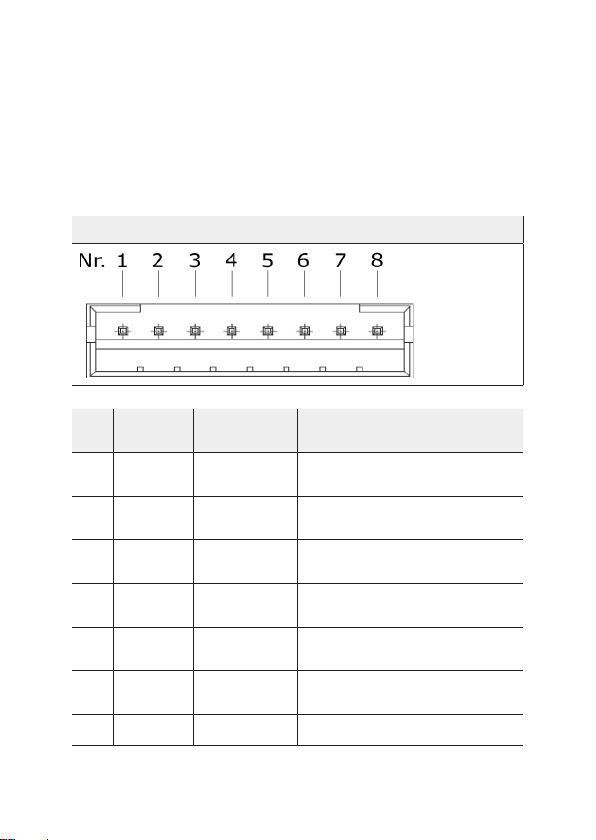

The ExitSafe is controlled by potential-free contact com-
mand initiators. They are connected to the connector
strip (X3) on the control module. Control elements that
need to be supplied even in the event of a failure in the
mains supply can also be connected to this connector
strip.
Control elements
No. Wire
colour
Designation Assignment
1 JUHHQ Individual ▲UP signal from individual
control
2 \HOORZ Individual ▼DOWN signal from individual
control
3 grey Individual C Common dimensions for
individual inputs
4 YLROHW Signal ▲Signal UP from master
control or sensor
5 EURZQ Signal ▼DOWN signal from
master control
6 blue Signal C Common dimensions for
signal inputs
7 black ๩- 0 V supply control elements

࿈elero GmbH EN | 17
No. Wire
colour
Designation Assignment
8 red ๨+ + 8.4 to 12 V DC supply of
control elements
Table 3: Assignment control elements
Insulate the wires not required against contact.
Do not plug the control lines into the printed circuit board
until they have been wired.
4.5 Settings

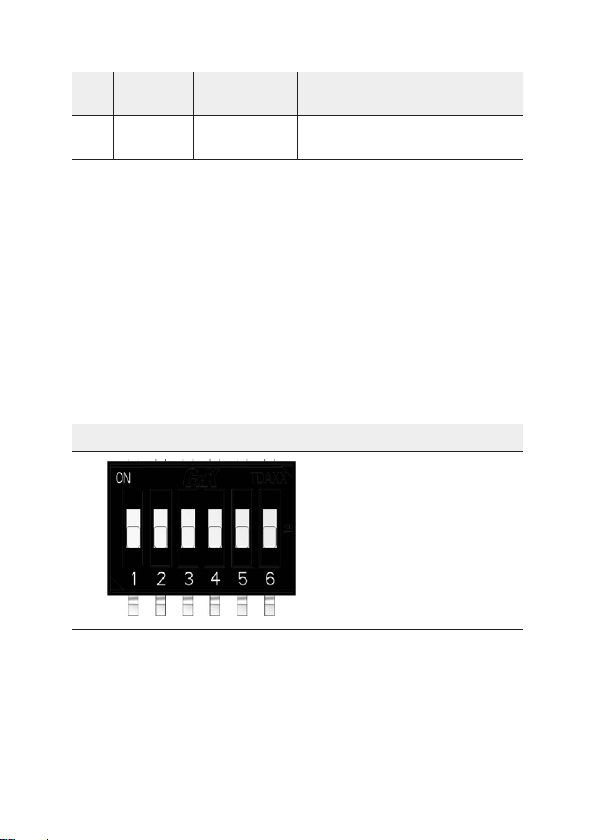

The ExitSafe-S control module has six DIP switches to
set the functions listed in Table 4. These settings should
be configured before installing the ExitSafe.
For automatic retraction of the blind at a low charge
level, set DIP switch 3 to “On”.
DIP switches 1 to 6
(Default setting:
All 6 DIP switches in
the OFF position.

18 | EN ࿈elero GmbH
DIP
Function position
OFF
Function position ON Off| On

1 Individual control has
priority over master
control
Master control has priority over
individual control
2 A warning signal will
sound after two years
of operation or
500 charging cycles
of the battery pack.
No warning signal will sound
after two years of operation
or 500 charging cycles of the
battery pack.
3 The drive will not
be automatically
controlled UP at a
low battery pack
level.
The drive will be automatically
controlled UP at a low battery
pack level.
4 Push-button mode Maintained mode
5 Maintained mode is
activated immediately
Maintained mode is activated
after a delay
6 Normally open
contact at the signal
input ▲
Normally closed contact at the
signal input ▲(wire breakage
detection).
Table 4: Settings overview
4.6 Connection and installation
WARNING
Risk of injury, damage to the ExitSafe and
damage to the area surrounding the ExitSafe
due to improper electrical connections.

࿈elero GmbH EN | 19
WARNING
• The electrical connection may only be conducted by
qualified personnel.
• Only perform work on the electrical connection if it
has been disconnected from the power supply.
• Observe the charge status of the battery pack.
• Note the technical data for the device.
• Do not extend the original connection cable of the
roller shutter drive.
• Take care to ensure the connections are correct and
secure.
ExitSafe must be installed in a dust-free and dry
environment.
Recommended procedure for the installation and
connection of the ExitSafe in an installation double box
[e.g. electronic flush-mounted box ECON 1068-21 or
cavity wall 9062-94 from Kaiser GmbH (www.kaiser-
elektro.de)]:
1. First check whether the ExitSafe components
can be inserted into the installation space without
connecting the cables. Depending on the design of
the installation box, a different sequence may be
appropriate. Please note that the battery pack should
be replaced after 2 years.
2. Connect the required command initiators and control
elements to the eight-pin connection cable that has
not yet been plugged in. Any open ends of lines that
are not being used are to be insulated.

20 | EN ࿈elero GmbH
3. Connect the drive cable to the four-pole screw
terminal of the control module using the original
connection. The sense of rotation of the drive can
be adjusted by exchanging the cables at the UP and
DOWN terminals.
4. Connect the mains supply to the two spring clamps
on the control module.
5. Insert the eight-pin connection cable to the control
module.
6. Insert the battery pack and the control module into
the installation box. Pay attention to the cable routing
and avoid putting pressure on the components.
7. Connect the battery pack to the control module using
the plug connection.
4.7 Commissioning
The battery pack is delivered in power-saving mode
with a low charge level to prevent it from giving offany
energy initially. ExitSafe is not ready for operation in this
state. In order to be fully operational, the battery pack
must first be charged.
Procedure for commissioning the ExitSafe:
1. First carry out the installation steps described in
Chapter 4.6 Connection and assembly.
2. Switch on the ExitSafe power supply. After a few
minutes, the battery pack starts to charge via the
control module.
3. Wait eight hours.
4. Check the sense of rotation of the drive.
5. Check all connected command initiators and control
elements.
