Hank Electronics Co., Ltd. HKW001EUS1 User manual

Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using our product.
Model：HKW001EUS1
Model：HKW001EEU1

Notice:
We reserves the right to make changes in the hardware, packaging
and any accompanying documentation without prior written notice.
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

Contents
■ Product Overview.....................................................................................................1
■ Features.................................................................................................................... 1
■ Package Contents................................................................................................... 1
■ Specifications........................................................................................................... 2
■ Panel Descriptions...................................................................................................2
■ Connections and Operations................................................................................. 6
■ EDID Management.................................................................................................. 7
■ Warning and Precaution......................................................................................... 7

1
■Product Overview
The HDMI Extender over Single Cat5e/6 with Bi-directional IR. It
includes one transmitter and one receiver. The transmitter unit is
used to transfer the HDMI and IR signal input and carry the signal
through one RJ45 connector over one low cost Cat5e/6 cable. The
receiver unit is responsible for equalizing transferred TMDS
multimedia data and re-sending IR signal. The transmission
distance between the transmitter and receiver unit can be up to
50m for Full HD resolution (1080p).
■Features
●Supports 3D,Transmit the following 3D video format,distance of up to 50
meters.
DIP switch3
DIP switch2
DIP switch1
EDID Information
1
1
0
1080p/60hz 24bit 3d 2.1ch
● Extends the transmission distance up to 50m from the sources 1080p
● DTS-HD Master Audio and Dolby True HD high bit rate audio support
● Supports bi-directional full frequency of IR signal,20KHz-60KHz
● Supports EDID Management.
■Package Contents

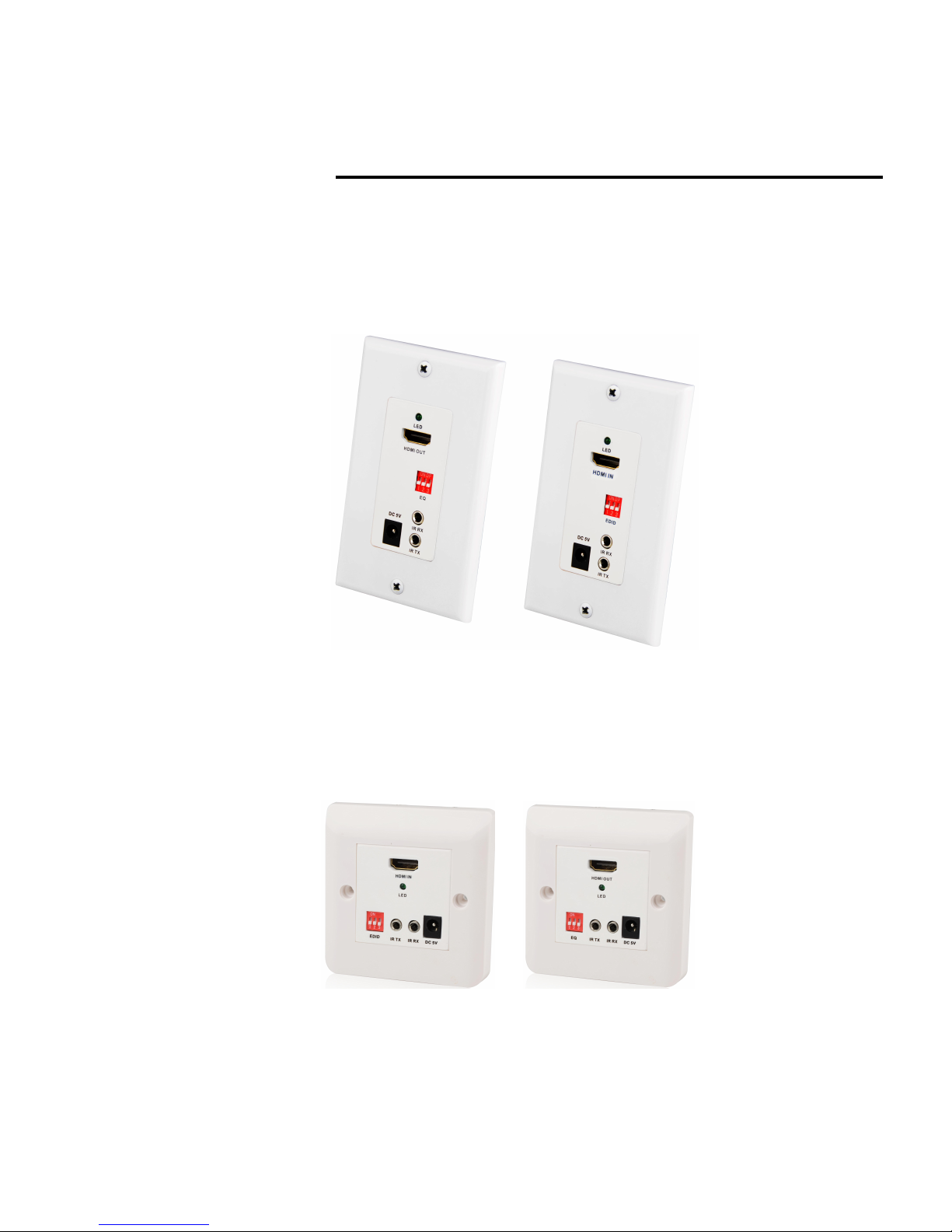

HKW001EUS1(Wall plate Extender ,US type):
1Main unit: 1XTransmitter,1XReceiver
2Operating instructions
32x 5V/1.2A power supply
41x IR Receiver cable
51 x IR Transmitter cable
HKW001EEU1((Wall plate Extender ,EU type):

2
1Main unit: 1XTransmitter,1XReceiver
2Operating instructions
32x 5V/1.2A power supply
41x IR Receiver cable
51 x IR Transmitter cable
■Specifications
Operating Temperature Range
-5 to +35°C (-41 to +95 °F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input TMDS Signal
1.2 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Format Supported
480i /480p/720p/1080i/1080p@60
Audio support
Surround sound(up to 7.1ch)or stereo
digital audio
Transmission Distance
1080P：50m(Cat6)
Power Supply
5V/1.2A DC
Power Consumption
3Watts（max）
Dimensions
114mmL×70mmW(1)
86mmL×86mmW(2)
Net Weight (Main unit)
140g(1),120g(2)
Notes:
1. Available on US type
2. Available on EU type
■Panel Descriptions

3
HKW001EUS1(Wall plate Extender US type-TX:
Front Panel
①:HDMI IN
②:EDID
③:DC 5V
④:IR TX
⑤:IR RX
Back Panel

4
①:External Power socket(Reserve DC 5V)
②: HDMI Signal OUT(RJ45)
HKW001EUS1-RX:(Wall plate Extender US type-RX:
Front Panel
①:HDMI OUT
②:EQ
③:DC 5V
④: IR TX
⑤: IR RX
Back Panel

5
①:External Power socket(Reserve DC 5V)
②: HDMI Signal IN(RJ45)

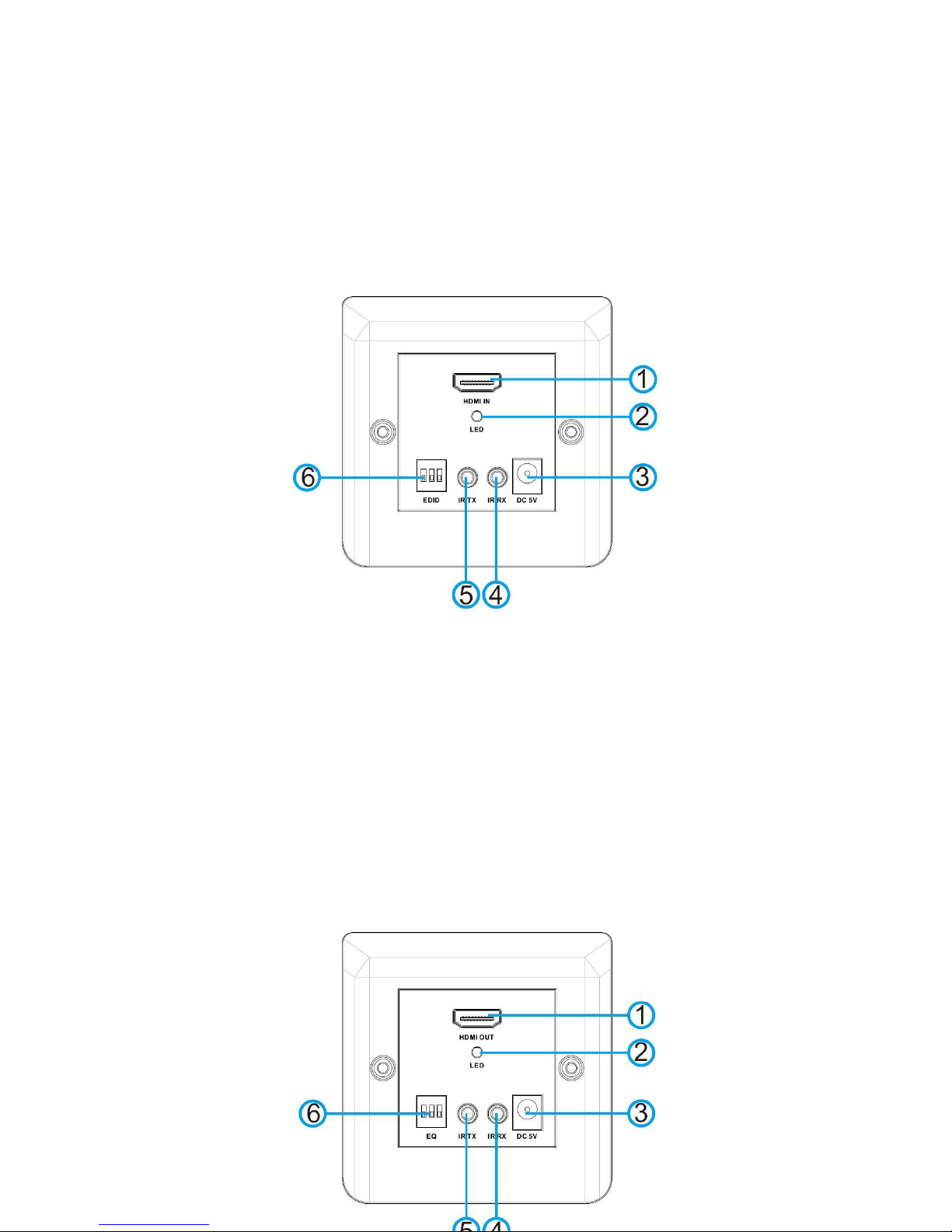

HKW001EEU1-TX:((Wall plate Extender EU type-TX
Front Panel
①:HDMI IN
②:LED
③:DC 5V
④:IR RX
⑤:IR TX
⑥:EDID
Back Panel:
①:External Power socket(Reserve DC 5V)
②: HDMI Signal OUT(RJ45)
HKW001EEU1-RX:(Wall plate Extender EU type-TX
Front Panel

6
①:HDMI OUT
②:LED
③:DC 5V
④: IR RX
⑤: IR TX
⑥:EQ
Back Panel:
①:External Power socket(Reserve DC 5V)
②: HDMI Signal IN(RJ45)
■Connections and Operations

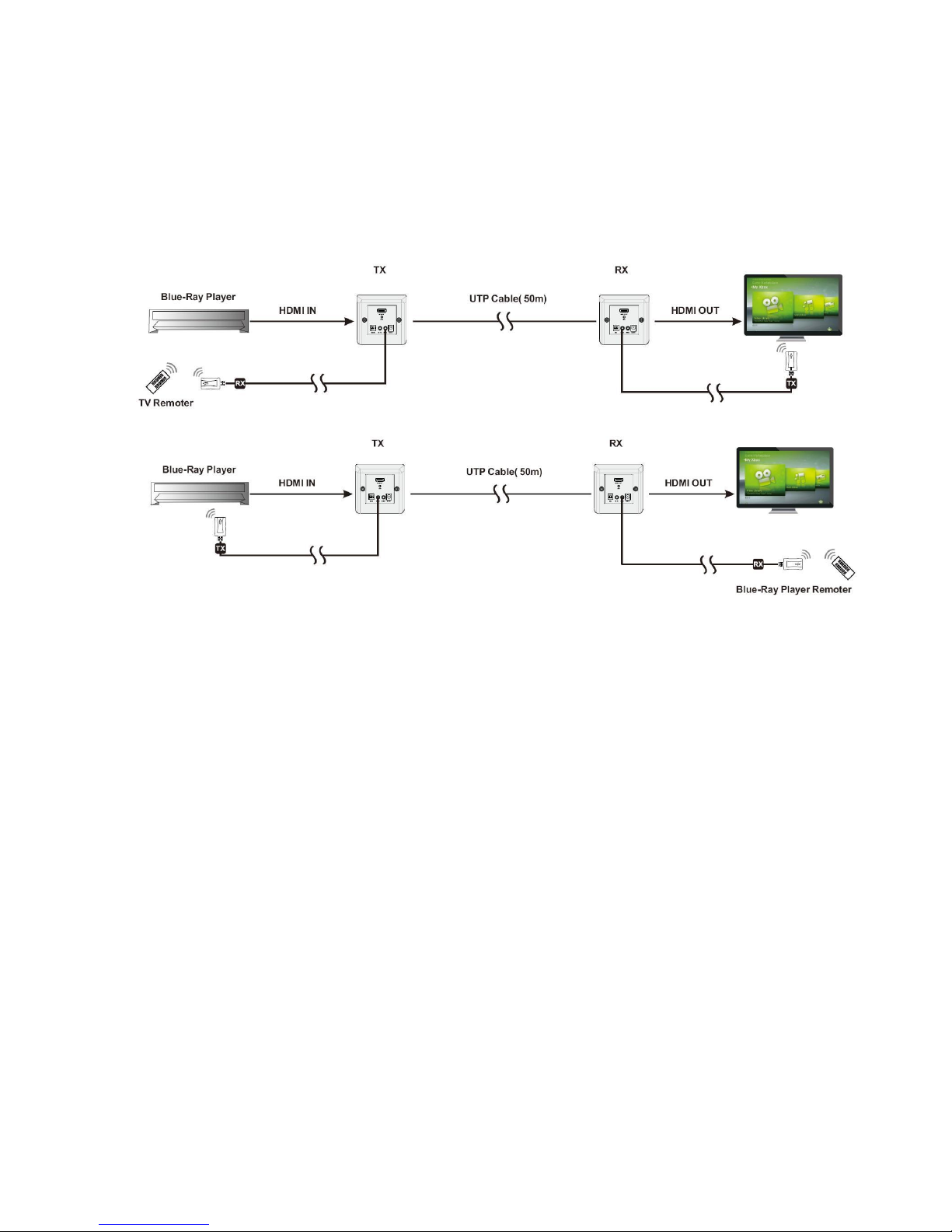

1. Connection diagram:
HKW001EUS1：

7
HKW001EEU1
2. Operation:
①.Connect the Extender’s HDMI Input to signal source (eg. DVD, STB) with
HDMI cable.
②.Connect a Cat5e/6 cable between the transmitter and receiver units.
③.Connect the receiver’s HDMI Output to display device (eg.TV set) with
HDMI cable.
④.Turn on DVD, TV set and Extender.

8
■EDID Management
EDID Information:
DIP
switch3
DIP
switch2
DIP
switch1
EDID Information
0
0
0
1080p/60hz 24bit 2d 7.1ch
0
0
1
1080p/60hz 24bit 2d 2.1ch
0
1
0
1080p/60hz 36bit 2d 7.1ch
0
1
1
NC
1
0
0
1080p/30hz 1080i/60hz
720p/60hz 24bit 2d 7.1ch
1
0
1
1080p/30hz 1080i/60hz
720p/60hz 24bit 2d 2.1ch
1
1
0
1080p/60hz 24bit 3d 2.1ch
1
1
1
reserved
■Warning and Precautions
1) Away from the heat source and avoid direct sunlight.
2) To ensure proper heat dissipation, avoid poorly ventilated spaces and do not
block the vents.
3) To prevent electrical shock and fire, do not keep the machine in rain or wet
places.
4) Do not connected to power supplies when installation or moving the device.
5) Do not touch the power adapter plug with wet hands.
6) Do not spill liquid on the machine, as it may cause internal short circuit or
fire.
7) Do not attempt to open the cabinet. Please contact qualified service
personnel for maintenance.
