www.harbingerproaudio.com
HPX - BBE Series
OWNER’S MANUAL

2Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
Content
Important Safety information..................................................3
Features ....................................................................................5
HPX-BBE Model Descriptions .................................................6
HPX-BBE Rear Panel Controls & Operation .................... 7-10
Set-up Diagrams .............................................................. 11-13
Specifications.................................................................. 14 -15
Cables and Connectors ........................................................15
Warranty ................................................................................16
Welcome
CONGRATULATIONS ON YOUR PURCHASE OF
A HARBINGER HPX-BBE SERIES HIGH POWERED
LOUDSPEAKER WITH BUILT-IN BBE SONIC MAXIMIZER.
Please review all the information provided in this manual to ensure
that you attain the best possible sound quality from your system.
Harbinger HPX Series powered loudspeakers provide outstanding
clarity and sound power for a variety of applications. HPX Series
loudspeakersaretheperfectchoiceforanyportablePAapplications
requiring reliable sound power for live performance, presentation
or playback for bands, DJ’s, presenters, schools, and Houses
of Worship.
Harbinger HPX215-BBE full range powered loudspeaker may
be used as stand-alone main speaker, or combined with the
HPX118S-BBE or HPX118F-BBE subwoofer to form larger systems.
All HPX-BBE Series loudspeakers feature simple rear panel
controls, with line level outputs for linking multiple speakers. Please
see the set-up diagrams at the end of this manual for examples of
possible system configurations.
Harbinger HPX-BBE series powered loudspeakers were designed
using advanced acoustic and audio techniques with premium
components, comprehensive protection circuitry, and robust
construction to provide years of consistent, reliable performance.
Key features include: Bi-Amp power module (HPX215-BBE) with
high efficiency Class G low frequency amplification with high
current output stage and custom signal processing; clip/limit,
thermal, and short circuit protection; optimized acoustic designs
using PETP (low mass synthetic material) film compression driver
diaphragms; heat vented low frequency drivers; and sturdy
birch plywood.

3www.harbingerproaudio.com
Important Safety Instructions
Please keep this instruction manual for future reference and for the
duration of owning the HPX powered loudspeaker. Please carefully
read and understand the instructions inside this owner’s manual before
attempting to operate your new powered loudspeaker.
This instruction manual includes essential safety information regarding
the use and maintenance of the amplifier. Take special care to heed all
warning symbols and signs inside this manual and those printed on the
amplifier on the back of the loudspeaker.
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE
AMPLIFIER TO WATER/MOISTURE, NOR SHOULD YOU OPERATE THE
AMPLIFIER NEAR ANY WATER SOURCE.
The exclamation point triangular symbol is intended to alert the user to the
presence of important operating and maintenance(servicing) instructions
in the user manual accompanying the Amplifier.
The lightning flash with an arrow triangular symbol is intended to alert
the user to the presence of non-insulated “dangerous voltage” within the
product’s enclosure, and may be of sufficient magnitude to constitute a
risk of electric shock
WARNING
Handle the power supply cord with care.
Do not damage or deform it as it may cause electric shock or malfunction
when used. Hold the plug attachment when removing from wall outlet. Do
not pull on the power cord.
IMPORTANT SAFETY PRECAUTIONS
1. READ INSTRUCTIONS – All the safety and operating instructions
should be read before this product is operated.
2. RETAIN INSTRUCTIONS – The safety and operating instructions
should be retained for future reference.
3. HEED WARNINGS – All warnings on the amplifier and in the
operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS – All operating and use instructions should
be followed.
5. DO NOT turn on the HPX amplifier module before connecting all other
external devices.
6. WATER AND MOISTURE – Moisture can damage the HPX amplifier
module and can cause corrosion of electrical contacts. The speaker
system should not be used near water - for example, a bathtub,
washbowl, kitchen sink, laundry tub, wet basement, or near a
swimming pool, and the like.
7. C ARTS AND STANDS – The speaker system should be used only with a
cart or stand that is recommended by the manufacturer. A speaker and
cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the speaker and cart combination
to overturn.
8. WALL OR CEILING MOUNTING – The product should never be
mounted to a wall or ceiling.
9. HEAT – The amplifier on the back of the HPX loudspeaker should
be situated away from heat sources such as radiators, heat registers,
stoves, or other sources (including amplifiers) that produce heat.
10. POWER SOURCES – This product should be operated only from the
type of power source indicated on the rating label. If you are not
sure of the type of power supply to your home, consult your product
dealer or local power company.
11. GROUNDING OR POLARIZATION – Do not defeat the safety
purpose of the polarization or grounding-type plug. The wide blade
or the third prong is provided for your safety. If the provided plug
does not fit your outlet, consult an electrician for replacement of
the obsolete outlet. Do not defeat the safety purpose of the 3rd pin
grounding prong.
12. POWER-CORD PROTECTION – Power supply cords should be
routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to the
cord in correspondence of plugs, convenience receptacles, and the
point where they exit from the amplifier.
13. CLEANING – The speaker and amplifier should be cleaned only
as recommended by the manufacturer. Clean by wiping with a dry
cloth. Avoid getting water inside the speaker or amplifier.
14. NON-USE PERIODS – The power cord of the amplifier should be
unplugged from the outlet when left unused for a long period of time.
15. OBJECT AND LIQUID ENTRY – Care should be taken so that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16. DAMAGE REQUIRING SERVICE – The amplifier should be serviced
by qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the
amplifier; or
C. The amplifier has been exposed to rain; or
D. The amplifier does not appear to operate normally or
exhibits a marked change in performance; or
E. The amplifier has been dropped, or the enclosure damaged.
17. Keep the speaker system out of extended or intense direct sun light.
18. No containers filled with any type of liquid should be placed on or
near the speaker system.
19. SERVICING – The user should not attempt any service to the speaker
and/or amplifier beyond that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
20. VENTILATION – Slots and openings in the amplifier are provided
for ventilation and to ensure reliable operation of the product and
to protect it from overheating. These openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase
or rack.
21. ATTACHMENTS – do not use attachments not recommended by the
product manufacturer, as they may cause hazards.
22. ACCESSORIES – Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may fall, causing serious
injury to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product.

4Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
23. LIGHTNING – For added protection during a lightning storm, or
when it is left unattended and unused for long periods of time,
unplug it from the wall outlet. This will prevent damage to the product
due to lightning and power-line surges.
24. REPLACEMENT PARTS – When replacement parts are required, be
sure the service technician has used replacement parts specified by
the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
25. SAFETY CHECK – Upon completion of any service or repairs to
this product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
26. FUSES – Always use the correct rating and type of fuse as indicated
on the rear panel of the amplifier. Note the proper rating fuse is
determined by the AC line voltage in the country this speaker system
is being operated. COMPLETELY DISCONNECT POWER CORD
FROM AMPLIFIER BEFORE ATTEMPTING TO REPLACE FUSE!
27. AC SELECT SWITCH: This switch must be set to match the AC line
voltage in the country this speaker system is being operated. To
change the setting, loosen (do not remove) the two screws left and
right the slide switch. Temporarily move the protective cover strip and
slide the actuator to match the voltage in your country. Place the
protective cover strip back over the switch and tighten the two screws.
COMPLETELY DISCONNECT POWER CORD FROM AMPLIFIER
BEFORE ATTEMPTING TO CHANGE AC VOLTAGE SETTINGS!
28. HARBINGER HPX-BBE SERIES POWERED LOUDSPEAKERS
ARE NOT DESIGNED FOR TEMPORARY OR PERMANENT
SUSPENSION. ANY ATTEMPT TO SUSPEND AN HPX SERIES
CABINET COULD RESULT IN INJURY OR DEATH.
To prevent electric shock, do not use a polarized plug with an extension
cord, receptacle or other outlet unless the blades can be fully inserted to
prevent blade exposure.
HEARING DAMAGE AND PROLONGED EXPOSURE TO
EXCESSIVE SPLs
Harbinger HPX-BBE Series powered loudspeakers are capable of
producing extremely loud volume levels that can cause permanent
hearing damage to performers, production crews or the audience.
Hearing protection is recommended during long-term exposure to high
SPLs (sound pressure levels).
Remember, if it hurts, it is definitely too loud! Long term exposure
to high SPLs first causes temporary threshold shifts; limiting your
ability to hear the actual loudness and exercise good judgment.
Repeated long term exposure to high SPLs will cause permanent
hearing loss.
Please note the recommended exposure limits in the accompanying table.
More information about these limits is available on the US government
Occupational Safety and Health (OSHA) website at: www.osha.gov
WARNING: To reduce the risk of fire or shock do
not expose this equipment to rain or moisture.
AVERTISEEMENT: Pour réduire les risques
d’incendie et d’électrocution, ne pas exposer ce
matérial à la pluie ou à l’humidité.
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
CAUTION: To reduce the risk of electric shock, do not
remove chassis. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
AVERTISEEMENT: Pour réduire les risques d’incendie et
d’électrocution, ne pas exposer ce matérial à la pluie ou
à l’humidité.
WARNING: To reduce the risk of fire or shock do
not expose this equipment to rain or moisture.
AVERTISEEMENT: Pour réduire les risques
d’incendie et d’électrocution, ne pas exposer ce
matérial à la pluie ou à l’humidité.
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
CAUTION: To reduce the risk of electric shock, do not
remove chassis. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
AVERTISEEMENT: Pour réduire les risques d’incendie et
d’électrocution, ne pas exposer ce matérial à la pluie ou
à l’humidité.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE UNIT.
WARNING: To reduce the risk of fire or shock do
not expose this equipment to rain or moisture.
AVERTISEEMENT: Pour réduire les risques
d’incendie et d’électrocution, ne pas exposer ce
matérial à la pluie ou à l’humidité.
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC
ELECTRIQUE NE
PAS OUVRIR
CAUTION: To reduce the risk of electric shock, do not
remove chassis. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
AVERTISEEMENT: Pour réduire les risques d’incendie et
d’électrocution, ne pas exposer ce matérial à la pluie ou
à l’humidité.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING
AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
Permissible Noise Exposures (1)
Duration Sound level dBA
per day, hours slow response
8 90
6 92
4 95
3 97
2 100
1.5 102
1 105
0.5 110
0.25 or less 115

5www.harbingerproaudio.com
Features
SYSTEM
• Built-in BBE®Sonic Maximizer
• High efficiency Class G low frequency amplification with custom
signal processing
• Built-in compressor/limiter
• Subsonic filter: 12dB/octave
• Full thermal & short circuit protection
• Ground lift switch
• Large heatsink with convection cooling
• Oversized toroidal transformer
• LEDs for Power, Protect, Limit and Signal
• Front logo illuminated with defeatable blue LED
• 115V/230V 60Hz/50Hz selector switch
HPX215-BBE
• Bi-amp design with discrete output stages for both the woofer
and compression driver
• Proprietary 4th order electronic X-over and multi-stage custom
equalization on full range models.
• 100Hz 18dB/octave low cut switch on Full Range models
HPX118S-BBE, HPX118F-BBE
• Third order electronic crossover on HPX118S-BBE
powered subwoofer
• Polarity switch (HPX118S-BBE Subwoofer)
• Balanced XLR inputs (Left and Right)
• Left and Right Balanced XLR full-range outputs
• Left and Right balanced XLR hi-pass outputs with BBE Processing
COMPONENTS
Compression Driver:
• 1”exit with Celestion PETP film diaphragm
Horns:
• 90° x 40° constant directivity horn (HPX215-BBE)
LF Transducers:
• Vented magnet assemblies for advanced cooling
• High temperature copper voice coil wound on polyamide
former for increased reliability
• Celestion SP-1500 (HPX215-BBE)
• Proprietary SP-1804 cast frame subwoofer (HPX118S-BEE,
HPX118F-BBE)
• Celestion HLS1830F
PETP-FILM DIAPHRAGM COMPRESSION DRIVER
(HPX215-BBE)
• Optimized acoustic and magnetic design achieves outstanding
clarity and reliability
• A one-piece, PETP film diaphragm and surround optimizes
energy transfer for greater efficiency
• Patented clamping system yields low distortion performance
while improving the mid-band response
• Polyimide-insulated, copper-clad aluminium voice coil is edge-
wound on a glass-fiber former producing lower distortion and
superior power-to-weight ratio
• A matched wave front phase corrector produces a coherent
sound wave at the horn throat, yielding detailed and dynamic
mid and high frequency response
CABINET FEATURES
• Made in U.S.A.
• 5/8” birch plywood construction (HPX215-BBE)
• 3/4” birch plywood construction (HPX118S-BBE, HPX118F-BBE)
• Reinforced internal bracings
• Environmentally friendly Warnex® scratch resistant black
paint finish
• 16-gauge, wrap-around steel grilles
• Metal handles, and rubber feet rubber strips (HP112)
• 1 3/8” Metal pole mounting cup on HPX118S-BBE and
HPX118F-BBE
BBE SONIC MAXIMIZER
• The BBE®Sonic Maximizer circuitry takes already great
sounding systems to the next level
• Adds punch and depth that can be both heard and felt
• Improves the clarity and intelligibility of vocals, musical
instruments and adds overall depth to the audio program
• Controls for LF (low frequency) Contour and HF (high frequency)
Process to adjust the exact amount of BBE®processing added
to your mix

6Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
HPX-BBE Model Descriptions
HPX215-BBE: The HPX215-BBE was designed
to operate sitting on the floor, stage, or on top
of subwoofer enclosure. Do not attempt to pole
mount this loudspeaker atop the HPX118S-BBE
subwoofer cabinet!
HPX118S-BBE: The HPX118S-BBE was designed to
operate sitting on the floor or on the stage. A pole
cup, on the top of the enclosure, accepts 1 3/8”
loudspeaker mounting poles. For best quality sound,
detach the supplied casters while the subwoofer is
being played. Do not pole mount or stack more than
one full-range speaker on top of the HPX118S-BBE.
HPX118F-BBE: The HPX118F-BBE was designed to
operate sitting on the floor or on the stage. A pole
cup, on the top of the enclosure, accepts 1 3/8”
loudspeaker mounting poles. For best quality sound,
detach the supplied casters while the subwoofer is
being played. Do not pole mount or stack more than
one full-range speaker on top of the HPX118F-BBE.

7www.harbingerproaudio.com

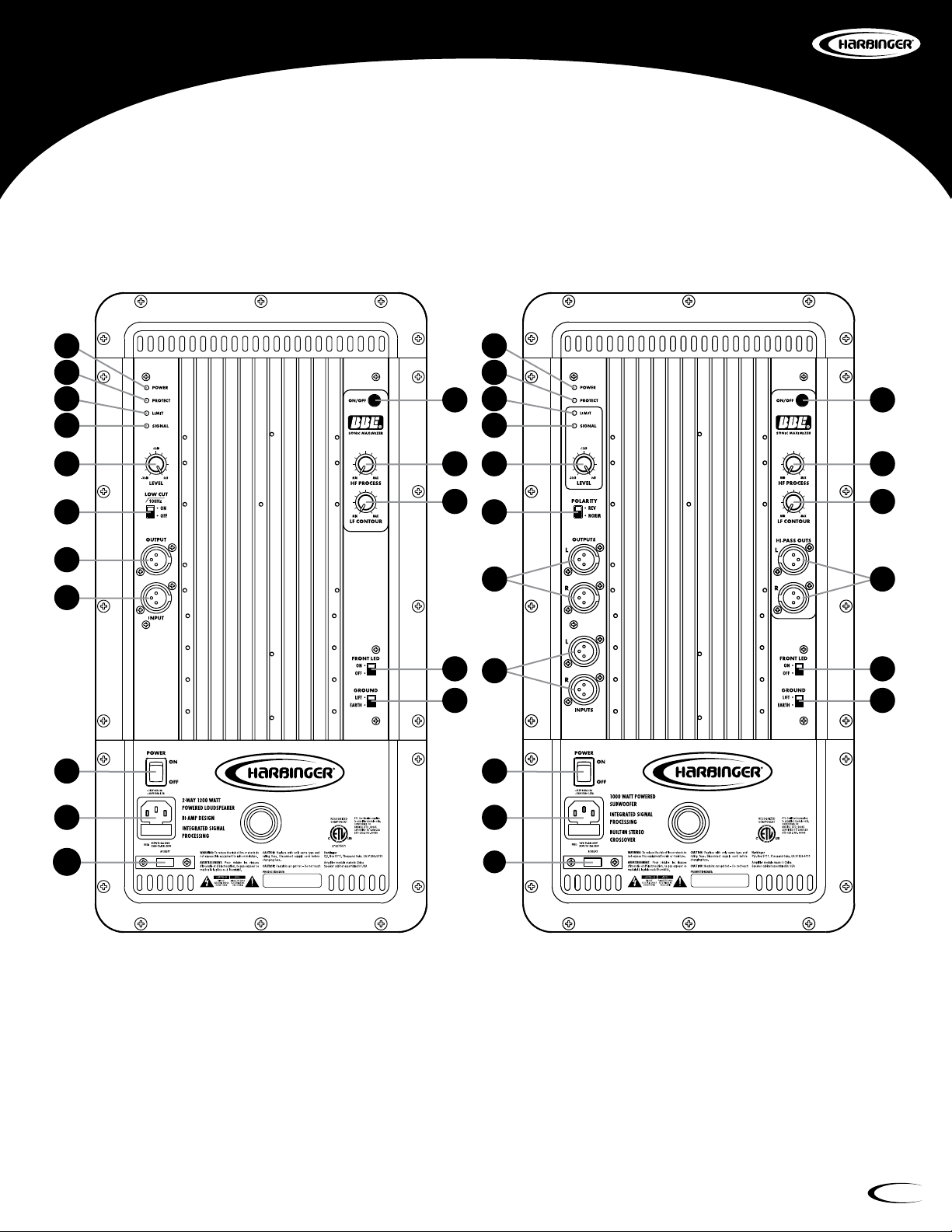

HPX-BBE Rear Controls & Operation
HPX215-BBE HPX118S-BBE & HPX118F-BBE
1 1
2 2
3 3
4 4
5 5
14 14
15 15
16 16
17 17
10 10
6 9
7A
8
11 11
12 12
13 13
7B
8
7C

8Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
1
LED POWER INDICATOR
The green LED POWER indicator, located on the back of the amplifier,
will illuminate when the AC Power switch is in the “ON” position. The
LED POWER indicator will dim and turn off when the AC Power switch
is in the “OFF” position or AC mains power has been disconnected
from the loudspeaker.
If the POWER indicator does not illuminate when the loudspeaker is
powered on, verify the AC mains line cord is properly connected to
the loudspeaker and inserted into the AC outlet. Verify the AC outlet at
the venue of operation is functioning properly. In the event of the AC
mains outlet functioning properly, but the loudspeaker fails to operate,
the loudspeaker may require servicing. Please contact support@
harbingerproaudio.com for service instructions.
2
PROTECT LED INDICATOR
If the power module overheats, the amplifier will go into “protection mode”
to limit further temperature rise. The amplifier will take about 30 seconds to
several minutes for the temperature to drop and resume operation. When
this occurs, the exposed heat sink will feel hot to the touch.
• Overheating is usually caused by excessive ambient temperature,
direct sunlight for a prolonged period of time during operation, or
playing the loudspeaker past its operational limits.
If thermal overheating occurs, reduce signal level to avoid constant
illumination of the LIMIT LED INDICATOR. In some circumstances, for
example when ambient temperature is too high, you may need to set a
fan behind the speaker to improve ventilation at heatsink.
3
LIMIT LED INDICATOR
The red LIMIT indicator alerts the user that the amplifier output signal is
clipping and therefore is being compressed by the built-in clip-limiter.
Momentary Bright Red Flashes
• Indicates that the amplifier is clipping briefly causing overdrive
distortion and the internal limiter is reducing gain.
• HPX amplifiers employ a sophisticated compressor-limiter circuitry,
which is nearly inaudible at moderate overdrive conditions. It is
normal to see the occasional flashing of the red LIMIT LED.
Continuous Bright Red Light
• Indicates continuous and gross overloading of the amplifier. Such
overloads are audible and may lead to overheating of the amplifier
and shortening the life of the speaker components. If the amplifier is
grossly overloaded and the red LIMIT LED is on the most of the time,
the operator should reduce the signal level so that LIMIT LED only
flashes occasionally.
4
SIGNAL LED INDICATOR
The green SIGNAL indicator alerts the operator to the presence of an
input signal at the loudspeaker amplifier.
• If there is no indication, check the gain settings on the amplifier and
increase the gain if necessary. Check input connections and audio
source for signal. If no output persists, try a different signal cable
from your mixer to the HPX Series loudspeaker.
• I f the green SIGNAL LED remains illuminated without a source
connected, the amp may need servicing.
5
LEVEL CONTROL
Turn the LEVEL control clockwise to increase gain and counter
clockwise to decrease gain. When operating with the GAIN
set at 1/3 volume or below, it may be possible to exceed the
headroom of input circuitry on your loudspeaker. If this is the
case, reduce the input signal strength and increase the gain of the
loudspeaker amplifier.
Always observe the red LIMIT LED on the amplifier panel. This LED
lights when a signal is clipping and the compressor-limiter is activated.
All HPX Series amplifiers employ a sophisticated limiter circuitry, which
monitors signal condition at both LF and HF amplifiers (LF only on
HPX118S-BBE, HPX118F-BBE) and compresses the output signal when
necessary to protect woofer and compression driver from damages.
Limiter circuitry works very unobtrusively; you may not even notice
when it activates. It may prompt you to push input signal more, but it
is a good practice to have red LIMIT LEDs blink occasionally and not
constantly. A constant LIMIT LED light indicates a gross overloading
condition and should be avoided. Reduce the signal level if the LIMIT
LED lights or blinks constantly.
NOTE that LEVEL Control has a range of 30dB. It does not attenuate
output signal to zero. LEVEL control on the loudspeakers is used to
set optimal maximum level for performance, not for constant control of
sound volume. Your mixer’s master volume control should be used for
this purpose.
NOTE that LEVEL control provides about 12dB attenuation in middle
position. You will find that in most cases the best sound (lowest
distortions and lowest noise) will be achieved when LEVEL control is set
somewhere between middle and full clockwise position.
6
LOW CUT SWITCH
HPX215-BBE: Found beneath the LEVEL control, this small slider switch
engages or disengages the 100Hz 18db/Octave Low Cut filter.
Switch the filter OFF when not using subwoofers or other low frequency
enclosures. Switch the filter ON when you are connecting subwoofers
or low frequency systems. This will enable your subwoofer-equipped
system to operate properly and allow the Full-range loudspeakers to
provide improved clarity in the mid and high-range frequencies.
DO NOT engage the LOW-CUT switch on HPX215-BBE Full-range
loudspeakers when connected to Hi-Pass outputs of HPX118S-BBE/118F-
BBE subwoofer. The Input signal for your full-range loudspeaker has
already been processed by subwoofer circuitry.
7
FULL RANGE OUTPUT CONNECTIONS
HPX215-BBE has one XLR output connector marked OUTPUT.
The output connector is wired in parallel with the input, allowing
connection of multiple enclosures in a “daisy-chain” fashion. The
HPX118S-BBE/118F-BBE has two sets of output connectors, one set
(left and right) for full-range outputs (wired in parallel with inputs) and
one set (left and right) for hi-pass outputs with BBE processing.
A
HPX215-BBE: Insert the XLR connector into the jack marked
OUTPUT Connect the other end of the cable to the input of the
next down-stream audio device, such as another HPX Series
loudspeaker.

9www.harbingerproaudio.com
B
Subwoofer OUTPUT (Full-range): Use the outputs marked OUTPUT
(Full-range) (left and/or Right) when you are connecting to other
speakers and/or to other powered loudspeakers that enable full-
range audio or if they feature their own low frequency filtering.
CHP (Hi-pass) OUTPUTS: Use the outputs marked High-pass outs
(Left and/or Right) when you are connecting other HPX Series
and/or other powered loudspeakers that DO NOT feature low
frequency filtering or when the low frequency roll off is desired.
DO NOT use the HPX OUTPUT connectors for connecting other
powered subwoofer loudspeakers - use the OUTPUT (Full-range)
line outs instead. (See section 7B)
NOTE: BBE processing is present at this output.
NOTE: Make sure to power OFF any HPX Series and/or other powered
loudspeakers connected to the Hi-pass OUTPUT before turning off the
subwoofer power. This will prevent any unwanted transients (thuds, low-
pops) from coming out of the connected loudspeakers.
NOTE: When you connect the HPX215-BBE Series Full-range active
loudspeaker to Hi-pass outputs of the HPX118S-BBE subwoofer,
DO NOT engage the LOW-CUT switch on Full-range loudspeaker. The
input signal has already been processed by HPX118S-BBE circuitry.
Also, if you’re using full range loudspeakers from another manufacturer,
we recommend that they be connected to the Hi-pass OUTPUT. This will
ensure proper phasing of the full range loudspeaker with respect to the
HPX118S-BBE subwoofer, and enhance its sound with BBE processing.
8
INPUT CONNECTIONS
HPX215-BBE has one female XLR line-level input marked INPUT.
The HPX118S has a second connector (two input connectors total),
one for the left channel’s audio input and one for the right channel’s
audio input.
Balanced connections should be used as much as possible to reduce
AC hum and interference, especially with long runs of cable. On all
HPX amplifier modules, the input impedance is 20k Ohm for balanced
connections.
HPX215-BBE: Insert the male XLR connector into the jack marked
INPUT. Ensure the connector is fully seated.
HPX118S-BBE: FOR STEREO OPERATION WITH FULL-RANGE
CABINETS: From your mixer, insert the left channel’s XLR connector
into the left channel’s (L) INPUT connector. Connect the right channel
of your mixer by inserting the XLR connector into the right channel’s (R)
INPUT connector on the amplifier. When a single input signal is used,
(for mono operation) make certain the input and output connections
correspond to the same channel (L or R). When two input signals
are supplied to the amplifier, the subwoofer’s gain is automatically
increased by 6dB.
9
POLARITY SWITCH (HPX118S-BBE, HPX118F-BBE)
The HPX118S-BBE has a POLARITY switch. When the POLARITY switch
is set to NORM, the polarity is such that a positive input will cause
the cone to push outward. When set to REV, the input signal’s polarity
is reversed and a positive input will cause the loudspeaker’s cone to
pull inward.
When all of the loudspeakers in a system are operating with the same
polarity, a positive polarity signal causes the excursion (the forward
motion) of all loudspeaker cones. In turn, this sets up a positive
reinforcement of the sound wave (each loudspeaker reinforces the
output of the other loudspeakers). This effect refers to the speakers
being “in phase” The effect of proper “phasing” is most noticeable in
low (bass) frequencies. If a loudspeaker’s phase is incorrect, its cone
moves inward while the properly phased loudspeaker’s cones move
outward. The inward movement, of the improperly phased loudspeaker,
will effectively cancel the bass response of a similarly-sized driver in
the system. This results in a reduction of the bass output.
It is important to maintain correct phasing in a loudspeaker system, in
order to operate at maximum performance. Incorrect polarity can be
caused by incorrectly wired cables, interconnecting cables, and mixer
functions set incorrectly.
Phasing is also influenced by the mutual positioning and orientation of
the loudspeakers in a system. It is possible to have proper polarization
(of all cables and equipment) and still achieve better bass response
by having the subwoofer set to reverse polarity, or having several
subwoofers set at different polarities. Bass response also will change
with the listener’s position in the room. During testing, monitor the bass
response from several different locations in the venue.
How to Use the POLARITY Switch: Start with all subwoofers in the
system with POLARITY switches in the NORM position. This is the same
for systems with one subwoofer as well. Next, with your system playing
at or near its expected operating level, change the polarity of each
subwoofer, one at a time. Walk around the venue and evaluate the
overall bass response, and select the phase setting that produces the
best overall bass response.
10
GROUND LIFT SWITCH
All HPX Series amplifier modules are equipped with a GROUND
LIFT switch. Powered loudspeakers are often fed by long run signal
cables, connected to power outlets different than the audio source’s.
This may create an audible hum or buzz due to ground loops or other
connection problems. The GROUND LIFT switch will help you to avoid
these issues.
It is a good idea to keep the GROUND LIFT switch in EARTH position
unless you have hum or buzz coming from your speakers. If you do
hear hum or buzz, toggle switch into LIFT position.
WARNING: NEVER BREAK EARTH CONNECTION IN YOUR AC
PLUG. IT MAY CAUSE PERMANENT DAMAGE TO THE AMPLIFIER
AND MAY CAUSE DANGER OF ELECTRICAL SHOCK TO YOU AND
OTHERS.
11
POWER SWITCH
Push in the top of the power switch to apply AC power to the powered
loudspeaker’s amplifier. Push in the bottom of the power switch to
turn the loudspeaker amplifier off. When turned on, the blue POWER
indicator LED on the front grille will illuminate, along with the POWER
and PROTECT LED on the amplifier. After a few seconds, the yellow
PROTECT LED indicator will dim and turn off.

10 Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
NOTE that System Power Sequencing prevents unexpected sounds from
your system (pops, clicks, thumps), make sure to power ON your HPX
series loudspeakers in the proper order. Improper sequencing while
powering ON your equipment can damage the loudspeakers. Power
the loudspeaker system ON and OFF in the proper order to avoid
unexpected sounds and damage to your loudspeakers.
• Power On Sequence - Turn ON all source devices (CD players,
mixers), turn ON the HPX118S-BBE subwoofer, then turn ON all
HPX-BBE Full-range loudspeakers.
• Power OFF Sequence: Turn OFF all HPX-BBE Full-range loudspeakers
and then HPX118S-BBE subwoofers, then power down all source
devices.
12
AC MAINS
Insert the IEC power cord fully into the IEC inlet on the power amplifier
module.
NOTE: Turn OFF the power switch on the HPX loudspeaker before
connecting the AC power cord. The correct AC line voltage should be
selected on the rear panel. For operation in the United States, leave the
voltage selector on the amplifier set to 115V. Connecting to the wrong line
voltage will damage the amplifier and may create the risk of electric shock.
AC Mains Disconnection - Turn the AC power switch to the off position.
To remove the AC power cord, grasp the IEC connector’s plastic body
and gently remove the IEC connector from the socket by pulling it
straight toward you.
13
AC SELECT SWITCH
Make sure AC Select Switch is set to voltage appropriate for your country.
NOTE: Connecting HPX powered loudspeakers to AC voltage not
matching to AC Select Switch will damage the amplifier and may create
the risk of electric shock.
14
BBE®ON/OFF SWITCH
This switch is used to activate the BBE®processing built into your HPX
powered subwoofer. The switch will illuminate when turned ON clearly
indicating that the BBE®processing is activated. BBE®processing on
the HPX118S-BBE/HPX118F-BBE subwoofer affects both the sound of
subwoofer itself, as well as the stereo HP (High Pass) outputs included
in BBE®section.
15
HF PROCESS
Use this knob to adjust the high frequency portion of the BBE®processing.
HPX215-BBE: HF Process will affect the mid and high frequencies.
HPX118S-BBE/HPX118F-BBE: HF Process will affect the same
frequencies on a full-range speaker connected to the Hi-pass outputs.
The HF PROCESS will provide clearer mids and highs and will enhance
the vocal reproduction of the loudspeaker connected via the HP XLR
outputs.
16
LF CONTOUR
Use this knob to adjust the low frequency portion of BBE®processing.
HPX215-BBE: LF Contour will affect low frequencies.
HPX118S-BBE/HPX118F-BBE: LF Contour will process the subwoofer
and low frequencies of full range speakers connected to the HP outputs.
The LF CONTOUR will enhance the bass output of your subwoofer and
the loudspeaker(s) connected to the HP outputs.
17
FRONT LED
Use this switch to turn the blue LED light on the Harbinger logo badge
on or off.
BBE SONIC MAXIMIZER
Benefits: The BBE®Sonic Maximizer circuitry built-in to the Harbinger
HPX215-BBE, HPX118S-BBE and HP118F-BBE takes already great
sounding systems to the next level by adding punch and depth that
can be both heard and felt. BBE®processing will dramatically improve
the clarity and intelligibility of vocals, musical instruments and will add
overall depth to the audio program. A control for both the LF (low
frequency) Contour and HF (high frequency) Process is provided to
adjust the exact amount of BBE®processing added to your mix.
HPX215-BBE: The BBE circuit adjusts Low Frequency range of the
speaker (via the LF Contour control) and High Frequency range of
the speaker (via the HF Process control).
HPX118S-BBE and HP118F-BBE: The BBE circuitry on HPX118S-BBE
and HP118F-BBE allows you to process both the subwoofer itself
and the active full-range speakers connect connected to it using the
high-pass XLR outputs provided on the subwoofer amplifier. The LF
Contour control adjusts the low frequency processing of both the
subwoofer and connected full range speaker, while the HF Process
control adjust the high frequency processing being fed to the full-
range speaker connected to it.
How it works: Phase and amplitude integrity is essential to accurate
sound reproduction. These relationships define a sound’s “sound”.
When these complex relationships pass through a speaker, the proper
order is lost. The higher frequencies are delayed. A lower frequency
may reach the listener’s ear first or perhaps simultaneously with that of
a higher frequency. The listener perceives this loss of sound integrity
in the reproduced sound as “muddy” and “smeared.” BBE®Sound,
Inc. conducted extensive studies of numerous speaker systems over a
ten year period. With this knowledge, it became possible to identify
the characteristics of an ideal speaker and to distill the corrections
necessary to return the fundamental and harmonic frequency structures
to their correct order.
Tips for using: A single function button switches the BBE®process
on or off, which is useful for comparing the processed sound to the
unprocessed sound. The switch illuminates red when the BBE®process
is on. The LF Contour control is for adjusting the level of phase corrected
low frequencies in the program material. The HF Process control adjusts
the level of phase corrected high frequencies in the program material.
On the HPX118S-BBE and HPX118F-BBE, the HF Process only affects
powered speakers connected to the High Pass XLR Outputs included
in the BBE®section of HPX118S-BBE/HPX118F-BBE amplifier, while
the LF Contour affects both the powered full-range speakers and the
subwoofer itself.

11www.harbingerproaudio.com
Set-up Diagrams
Checklist
• Make certain loudspeakers are Powered OFF and Levels
turned down.
• Connect the Mixer’s Main Left Output to the Left Input of the
Left subwoofer.
• Connect the Mixer’s Main Right Output to the Right Input of the
Right subwoofer.
• Connect the Left HPX118S HP Output L to the Input of the Left
Main Speaker.
• Connect the Right HPX118S HP Output R to the Input of the
Right Main Speaker.
• Set the Low Cut switch on the Main Speakers to OFF.
• Set Subwoofer BBE to ON.
• Set Main Speaker BBE to OFF.
• Power ON Mixer, then Power ON subwoofers, then
Main Speakers.
• Bring the Mixer’s volume up to normal operating level.
• Adjust the Level controls on the HPX-BBE series loudspeakers.
• Do not adjust the Level so high that the Red LIMIT LED is
constantly lit.

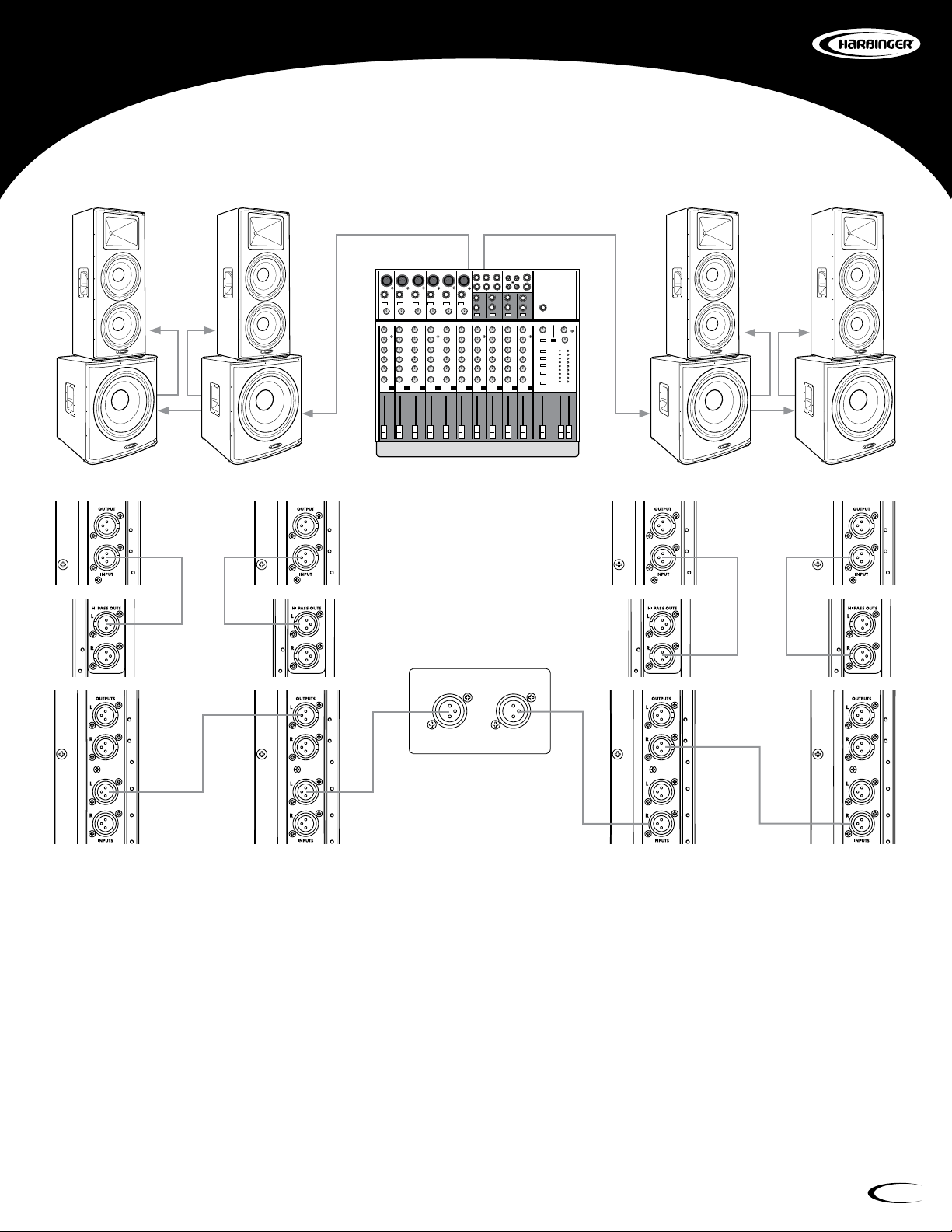

HPX215-BBE Main Speakers with Two HPX118S-BBE Subwoofers
MAIN OUTPUTS
1 2

12 Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
Checklist
• Also known as Daisy-Chaining, linking multiple speakers will
send the exact same input signal from one speaker to the next.
• Make certain loudspeakers are Powered OFF and Levels
turned down.
• Connect the Mixer’s Output to the Input of Speaker 1.
• Connect the Output of Speaker 1 to the input of Speaker 2.
• Turn down the Mixer’s volume.
• Power ON Mixer, then Power ON speakers.
• Bring the Mixer’s volume up to normal operating level.
• Adjust the Level controls on the loudspeakers. Do not adjust the
Level so high that the Red LIMIT LED is constantly lit.
• Set the Low Cut switch to ON if you want less bass response
and greater vocal clarity.
Linking Multiple HPX Main Speakers HPX215-BBE
MAIN OUTPUT
L R

13www.harbingerproaudio.com
Checklist
• Make certain loudspeakers are Powered OFF and Levels
turned down.
• Connect the Mixer’s Main Left Output to the Left Input of the Left
subwoofer 1.
• Connect the Output L of Left Subwoofer1 to the L Input of Left
subwoofer 2.
• Connect the HP Output L of Left Subwoofer1 to the Input of Left
Main Speaker 1.
• Connect the HP Output of Left Subwoofer2 to the Input of Left
Main Speaker 2.
• Connect the Mixer’s Right Output to the R Input of the Right
subwoofer 1.
• Connect the Output R of right Subwoofer1 to the R Input of
Right subwoofer 2.
• Connect the HP Output R of Right Subwoofer1 to the Input of
Right Main Speaker 1.
• Connect the HP Output of Right Subwoofer2 to the Input of
Right Main Speaker 2.
• Set the Low Cut switch on the Main Speakers to OFF.
• Set Subwoofer BBE to ON.
• Set Main Speaker BBE to OFF.
• Power ON Mixer, then Power ON Subwoofers, then Power ON
all speakers.
• Bring the Mixer’s volume up to normal operating level.
• Adjust the Level controls on the HPX-BBE series loudspeakers.
• Do not adjust the Level so high that the Red LIMIT LED is
constantly lit.
Linking Multiple HPX-BBE Subwoofers and Main Speakers
MAIN OUTPUT
L R

14 Owner’s Manual for HPX215-BBE • HPX118S-BBE • HPX118F-BBE
Specifications
HARBINGER HPX SPECS HPX215-BBE HPX118S-BBE HPX118F-BBE
Configuration Dual 15” 2-way full-range
powered loudspeaker
18" front-loaded powered
subwoofer
18" folded-horn powered
subwoofer
Transducers:
Low Frequency SP-1500 - 15” speaker
with 2.5” voice coil
SP-1804 - 18" cast framed
subwoofer with 3" voice coil.
Celestion 18" cast framed
subwoofer with 3" voice coil.
High Frequency
COMP-4-CLB - PETP film
compression driver with
1.75” voice coil
N/A N/A
LF Magnet Weight 42 oz 100 oz 100 oz
LF Magnet Structure Weight 7 lbs. 17 lbs. 17 lbs.
Frequency Range 42Hz - 20kHz 35 Hz - 140 Hz 35 Hz - 140 Hz
Frequency Response 52Hz -18kHz 46 Hz - 100 Hz 46 Hz - 100 Hz
High Frequency Dispersion 90° x 40° N/A N/A
Maximum peak SPL(1) 134dB 133dB 136dB
Power Output LF: 500Wrms Class G
HF: 100Wrms Class AB+B LF: 500Wrms Class G LF: 500Wrms Class G
System Power (2) 1200W 1000W 1000W
Input Impedance 20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
20k Ohm Balanced
10k Ohm Unbalanced
Electronic Crossover 4th order 3rd order Butterworth @ 100 Hz 3rd order Butterworth @ 100 Hz
Low Cut Filer (switchable) 3rd order Butterworth @ 100Hz
Controls
Level knob
Low-cut filter switch
Ground lift switch
Power switch
AC fuse
115/230V switch
Front LED switch
BBE ON/OFF,
BBE HF Process, LF Contour
Level knob
Polarity switch
Ground lift switch
Power switch
AC fuse
115/230V switch
Front LED switch
BBE ON/OFF
BBE HF Process, LF Contour
Level knob
Polarity switch
Ground lift switch
Power switch
AC fuse
115/230V switch
Front LED switch
BBE ON/OFF
HF Process, LF Contour
Indicators
Power
Protect
Limit
Signal
Power
Protect
Limit
Signal
Power
Protect
Limit
Signal
Cooling Convection Convection Convection
Amplifier Protection
Short circuit
Clip-limiter
Overheat mute
SOA output stage
Driver DC protection
Subsonic filter
Turn-on mute and soft ramp
Turn-on inrush current limiting
Short circuit
Clip-limiter
Overheat mute
SOA output stage
Driver DC protection
Subsonic filter
Turn-on mute and soft ramp
Turn-on inrush current limiting
Short circuit
Clip-limiter
Overheat mute
SOA output stage
Driver DC protection
Subsonic filter
Turn-on mute and soft ramp
Turn-on inrush current limiting

15www.harbingerproaudio.com
Specifications

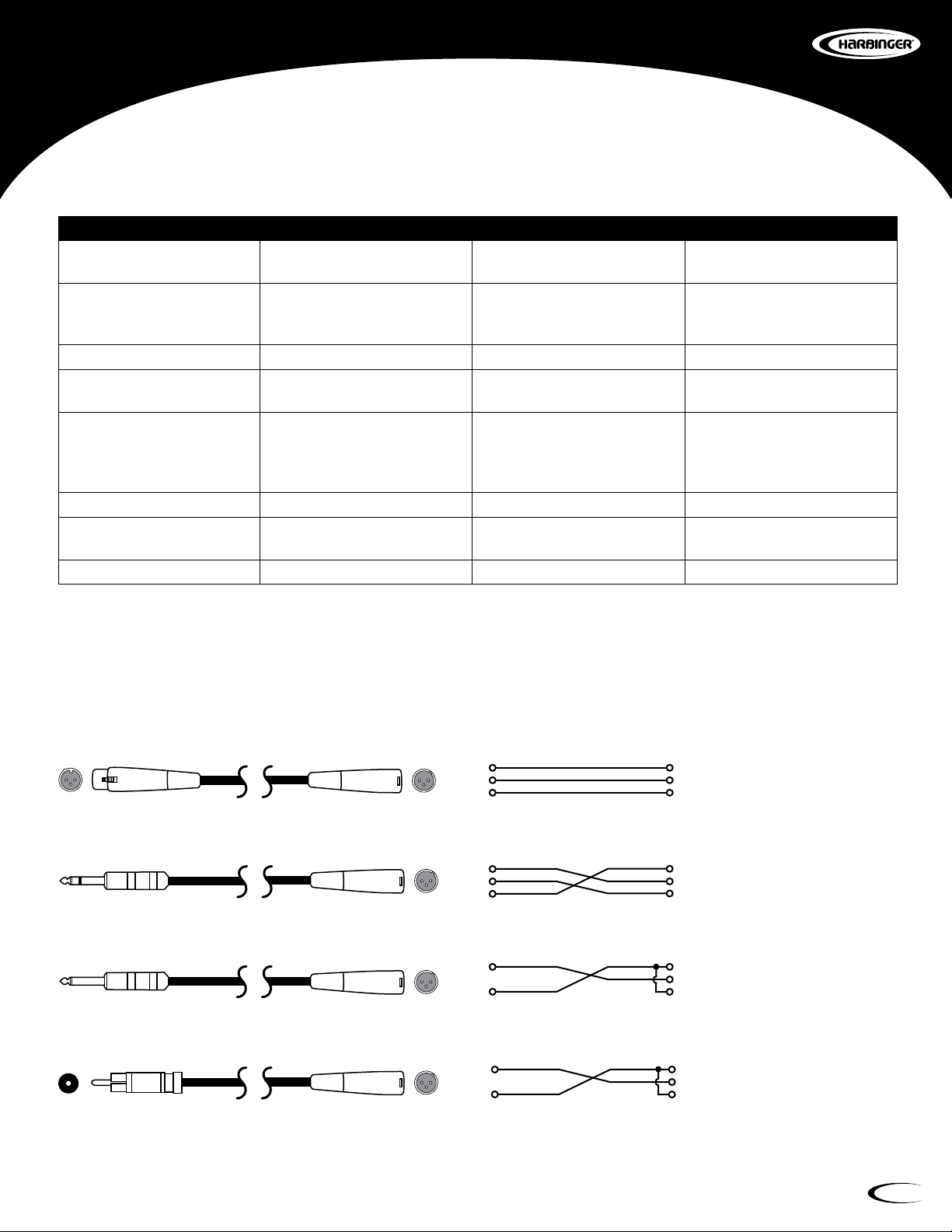

Cables and Connectors
XLR/F to XLR/M balanced cable
11 (shield)
22
33
Balanced XLR mixer
output to HPX speaker
TRS (balanced) ¼" phone jack to XLR/M
Tip 1 (shield)
Ring 2
Sleeve 3
Balanced ¼" mixer
output to HPX speaker
TS (unbalanced) ¼" phone jack to XLR/M
Tip 1 (shield)
2
Sleeve 3
Unbalanced ¼" mixer
output to HPX speaker
XLR/M to RCA (phono) cable
1
Center
2
3
Shield
Unbalanced RCA mixer
output to HPX speaker
HARBINGER HPX SPECS HPX215-BBE HPX118S-BBE HPX118F-BBE
Power Consumption @ 115V
Vac (1/8 power pink noise) 3 A 2.5 A 2.5 A
Connectors Balanced female XLR input
Balanced male XLR link output
Balanced female XLR L&R inputs
Balanced male XLR L&R link outputs
Male XLR L&R High-pass outputs
Balanced female XLR L&R inputs
Balanced male XLR L&R link outputs
Male XLR L&R High-pass outputs
Input Sensitivity (3) 775mV (0dBu) 775mV (0dBu) 775mV (0dBu)
Enclosure Black Warnex® painted birch
plywood
Black Warnex® painted birch
plywood
Black Warnex® painted birch
plywood
Hardware Metal handles
Rubber feet
Metal handles
Rubber feet
1 3/8” Pole mounting cup
3” Detachable casters
Metal handles
Rubber feet
1 3/8” Pole mounting cup
3” Detachable casters
Grille Powder coated 16 gauge steel Powder coated 16 gauge steel Powder coated 16 gauge steel
Dimensions 46” H x 19.5” W x 18” D
(1168mm x 495mm x 457mm)
26.5” H x 23.5” W x 23.5” D
(673mm x 597mm x 597mm)
36.5” H x 24” W x 32.5” D
(927mm x 607mm x 826mm)
Weight 90 lbs. / 40.8 kg 95 lbs. / 43.1 kg 155 lbs. / 70.3

16www.harbingerproaudio.com
Harbinger Limited Warranty.
Harbinger provides, to the original purchaser, a two (2) year limited
warranty on materials and workmanship on all Harbinger cabinets,
loudspeaker and amplifier components from the date of purchase.
If your covered product is defective, ship the defective component, together
with proof of purchase, freight prepaid and insured to an Authorized
Harbinger repair center or directly to Harbinger Support Headquarters.
If you are uncertain which component is defective, or to obtain
instructions for removing a component, please contact Harbinger Support
Headquarters for assistance at suppor[email protected],
or visit www.HarbingerProAudio.com.
A Return Authorization Number must be obtained from our
Customer Service Department prior to shipping the product. To
locate a repair center near you and to obtain a Return Authorization
Number, contact [email protected], or visit
www.HarbingerProAudio.com.
This warranty does not cover service or parts to repair damage caused
by neglect, abuse, normal wear and tear and cosmetic appearance to the
cabinetry not directly attributed to defects in materials or workmanship.
Also excluded from coverage are damages caused directly or indirectly
due to any service, repair(s), or modifications of the cabinet, which has not
been authorized or approved by Harbinger. This two (2) year warranty
does not cover service or parts to repair damage caused by accident,
disaster, misuse, abuse, burnt voice-coils, over-powering, negligence,
inadequate packing or inadequate shipping procedures.
The sole and exclusive remedy of the foregoing limited warranty shall be
limited to the repair or replacement of any defective or non-conforming
component. All warranties including, but not limited to, the express warranty
and the implied warranties of merchantability and fitness for a particular
purpose are limited to the two (2) year warranty period. Some states do
not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you. There are no express warranties beyond
those stated here. In the event that applicable law does not allow the
limitation of the duration of the implied warranties to the warranty period,
then the duration of the implied warranties shall be limited to as long as is
provided by applicable law. No warranties apply after that period.
Retailer and manufacturer shall not be liable for damages based upon
inconvenience, loss of use of product, loss of time, interrupted operation
or commercial loss or any other incidental or consequential damages
including but not limited to lost profits, downtime, goodwill, damage to
or replacement of equipment and property, and any costs of recovering,
reprogramming, or reproducing any program or data stored in equipment
that is used with Harbinger products. This guarantee gives you specific
legal rights; you may have other legal rights, which vary from state to state.
So we may serve you better, please register on-line at:
www.HarbingerProAudio.com
Harbinger
P.O. Box 5111, Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are recognized
as the property of their respective holders.
Amplifier module made in China
Speaker cabinet assembled in USA 1206–9793
Warranty
So we may serve you better, please register on-line at www.HarbingerProAudio.com
