Harbinger APS12 User manual

www.harbingerproaudio.com
APS12/APS15
Owner’s Manual
12”/15” Two-way 150–Watt Powered Speaker
9552 Harbinger APS12 APS15 Consolidated Manual.indd 1 3/29/11 11:32 AM

APS12/APS15
www.harbingerproaudio.com
1
Welcome
Congratulations on your purchase of Harbinger‘s APS12 / APS15 12”/15” two-way 150-Watt powered speaker. By following these
guidelines and suggestions, your new Harbinger loudspeaker will provide you with many years of great sound and reliable service.
Your new PA includes:
• Two-way, Full-Range Powered Speaker with 12”/15” Woofer and 1 3/8” Compression Driver
• 150-watt RMS, Convection-Cooled, Class A/B Amplier
• 3-Channel Mic/Line Mixer
– 2 Mic/Line Input Channels with Individual Balanced and Unbalanced Connections
– 1 Dual RCA/Single XLR Line Input for Playback Devices such as MP3, CD Players and More
• 5-Band Graphic Equalizer
• Individual Balanced and Unbalanced Line Outputs for Connecting other Powered Speakers
• Built-In Stand Mount (Stand not included)
• LED Clip Indicator
9552 Harbinger APS12 APS15 Consolidated Manual.indd 2 3/29/11 11:32 AM

Owner’s Manual
www.harbingerproaudio.com
DANGER
Exposure to extremely high noise levels may cause
permanent hearing loss. Individuals vary considerably
to noise-induced hearing loss but most will lose some
hearing if exposed to intense noise for a sufcient
period of time.
The U.S. Government’s Occupational Safety and Health
Administration (OSHA) has specied the following
permissible noise level exposures:
According to OSHA, any exposure in the above permissible
limits could result in some hearing loss. Ear plugs or
protectors in the ear canal or over the ears must be worn
when operating this amplication system in order to prevent
a permanent hearing loss. If exposure in excess of the limits
as put forth above, to insure against potentially harmful
exposure to high sound pressure levels, it is recommended
that all persons exposed to equipment capable of inducing
high sound pressure levels, such as this amplication
system, be protected by hearing protectors while this unit is
in operation.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF NON-INSULATED “DANGEROUS VOLTAGE” WITHIN THE
PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE
TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE
OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING)
INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE UNIT.
APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING
AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
IMPORTANT SAFETY INSTRUCTIONS
1. Read all safety and operating instructions before using
this product.
2. All safety and operating instructions should be kept for
future reference.
3. Read and understand all warnings listed on the
operating instructions.
4. Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e. a bathtub,
sink, swimming pool, wet basement, etc.
6. Use only a dry cloth to clean this product.
7. Do not block any ventilation openings. The product should not
be placed flat against a wall or placed in a built-in enclosure
that will impede the flow of cooling air.
8. Do not install this product near any heat sources, such
as radiators, heat registers, stoves or any other apparatus
(including heat–producing ampliers) that produces heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord being walked on or pinched,
particularly at plugs, convenience receptacles and the point
where they exit from the apparatus. Do not break the ground
pin of the power supply cord.
11. Only use attachments specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specied by the manufacturer or
sold with the apparatus. When a cart is
used, use caution when moving cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Care should be taken so that objects do not fall and liquids
are not spilled into the unit through the ventilation ports or
any other openings.
15. Refer all servicing to a qualied service professional. Servic-
ing is required when the apparatus does not operate normally
or has been damaged in any way, including damage to the
power cord or plug, damage due to liquids spilled or objects
dropped inside the unit, dropping the unit, or anything else
that interrupts normal use of the unit.
16. WARNING: To reduce the risk of re or electric shock, do not
expose this apparatus to rain or moisture.
17. When a mains plug is used as the disconnect device, the
disconnect device shall remain readily operable.
18. This product is not designed for permanent installation. The
speaker should only be used with speaker stands using the
built-in stand mount. This product should not be suspended
using eye bolts.
2
Important Safety Instructions
DURATION PER DAY (HOURS) 8 6 4 3 2 1
SOUND LEVEL (dB) 90 93 95 97 100 103
9552 Harbinger APS12 APS15 Consolidated Manual.indd 3 3/29/11 11:32 AM

APS12/APS15
www.harbingerproaudio.com
Made in China
MIC 1 IN
MIC 2 IN
INPUTS
OUTPUTS
LINE IN
L
R
LINE OUT
CAUTION: TO REDUCE THE RISK OF FIRE,
REPLACE FUSE WITH THE ASME TYPE AND
RATING. DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE. INDOOR USE ONLY.
AC~: 110V/120V-
50/60Hz
285VA MAX
FUSE: T2A 250V
POWER
Harbinger Pro Audio
Thousand Oaks, CA USA
ACTIVE POWERED SPEAKER
1. MIC Inputs
Two MIC input pairs. Each one accepts a high-impedance
1/4” jack and/or a low-impedance XLR connection. For best
results, use a low-impedance microphone and a properly
wired cable. The 1/4” inputs are designed for low line-level
signals such as microphones or acoustic guitars. Standard
line-level signals should be connected to the Dual RCA or XLR
line input.
2. LINE Input
Accepts line-level signals through the Dual RCA jacks or the
single XLR connector.
3. LINE Out
Sends signal out before the power amp, so you can connect
to another active speaker or any other device that accepts a
line level signal.
4. Power Switch
Switches the unit on or off. Be sure to turn the MASTER level
down before you turn the unit on.
5. FUSE & AC
This is a power socket with a FUSE holder.

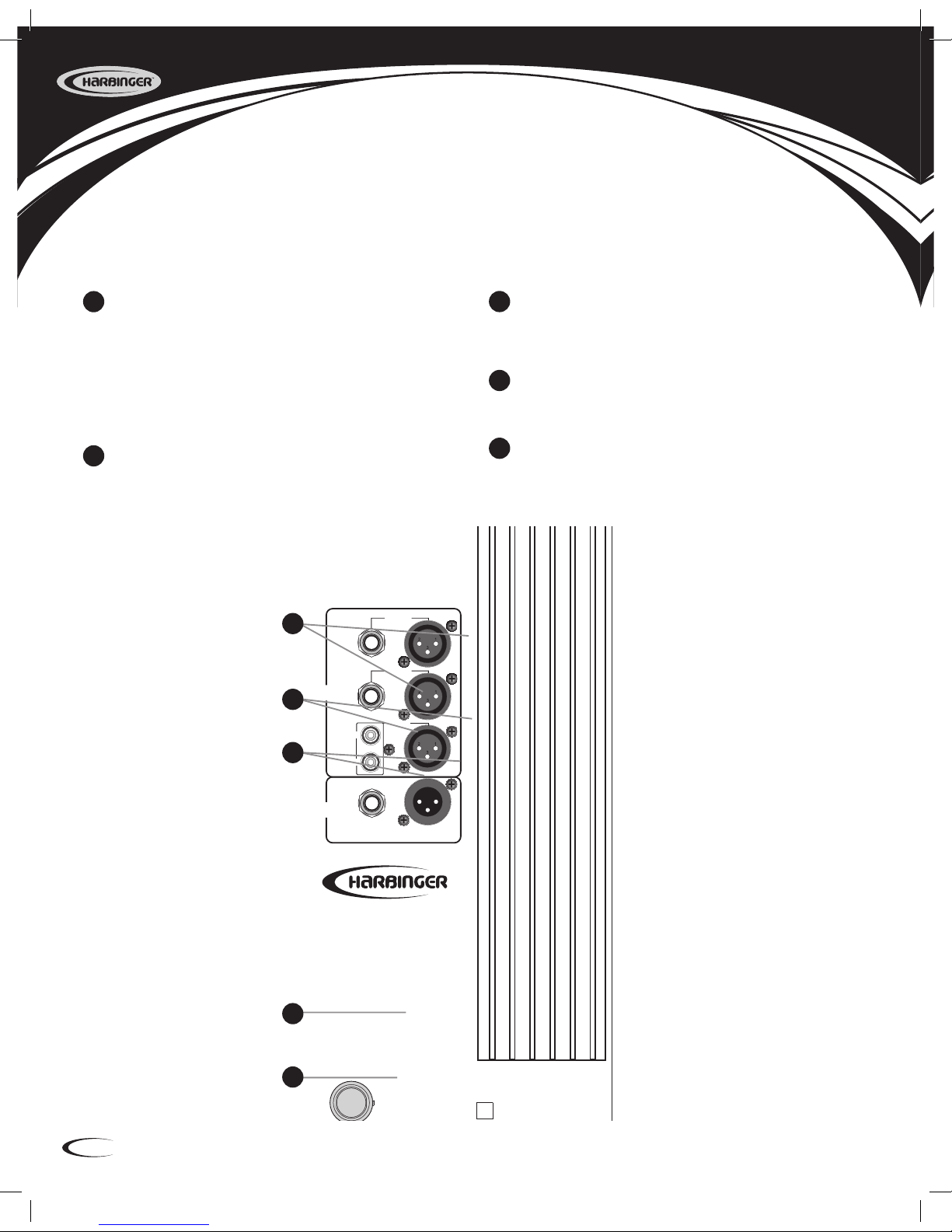

Back Panel
3
1
2
3
4
5
1
2
4
5
3
9552 Harbinger APS12 APS15 Consolidated Manual.indd 4 3/29/11 11:32 AM

Owner’s Manual
www.harbingerproaudio.com

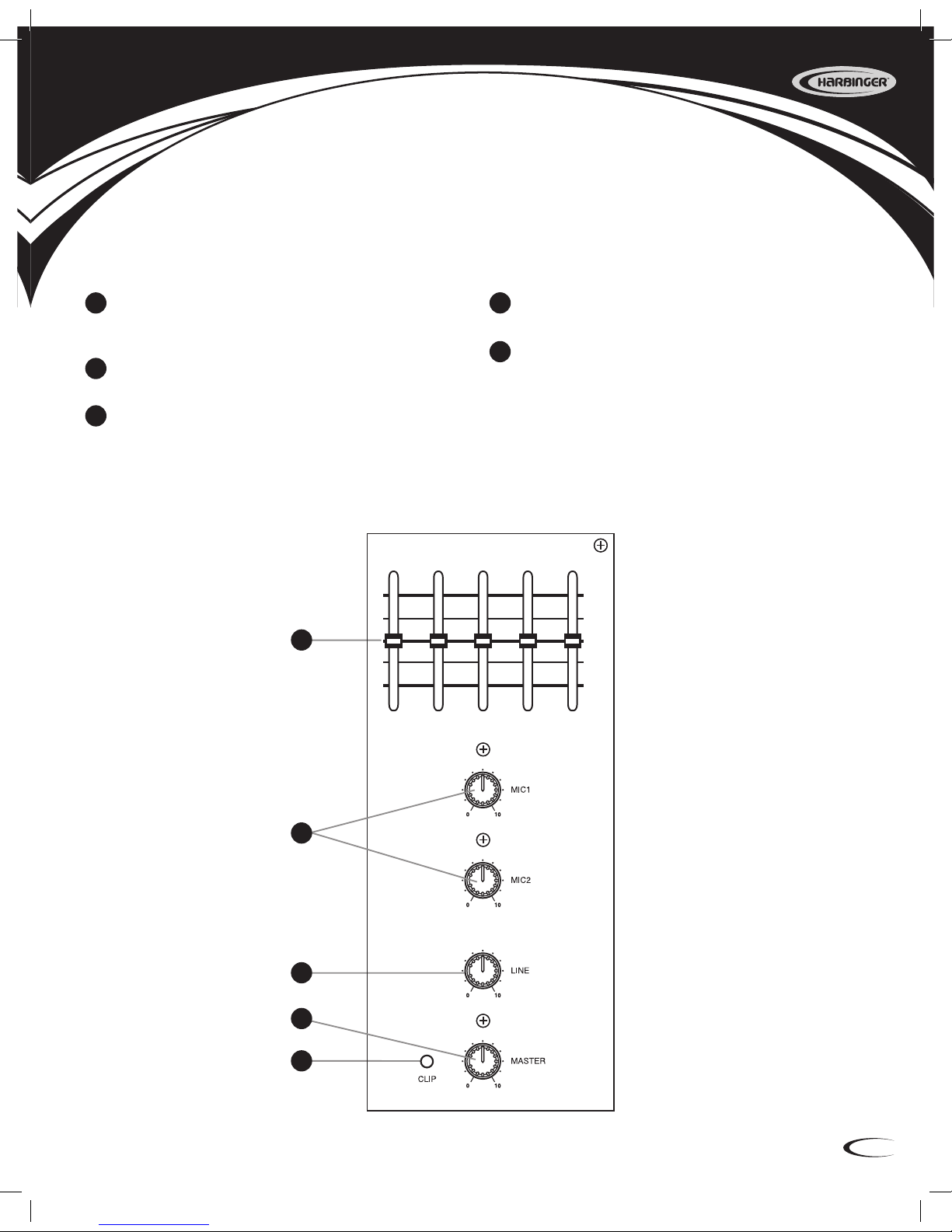

Side Panel
1. 5-Band Graphic Equalizer
Use this to adjust the overall equalization to prevent feed-
back and enhance the tone of your music.
2. MIC
Controls the MIC input levels.
3. LINE
Controls the LINE input level from an MP3 player,
mixer, etc.
4. MASTER
Adjusts the nal volume level.
5. CLIP Indicator
This LED will illuminate if output signal exceeds the
output capacity of the amplier. Reduce the input signal,
(Mic 1, Mic 2 or Line) when it becomes lit.
4
GRAPHIC EQUALIZER
250HZ 500HZ 2KHZ 6KHZ 12KHZ
+12
+6
0dB
–6
–12
1
2
3
4
5
1
2
3
4
5
9552 Harbinger APS12 APS15 Consolidated Manual.indd 5 3/29/11 11:32 AM

APS12/APS15
www.harbingerproaudio.com
Specifications
SYSTEM SPECIFICATIONS APS12 APS15
Frequency Response (–3dB) 45Hz –18kHz 45Hz - 18kHz
Frequency Range (–6dB) 40Hz – 20kHz 40Hz - 20kHz
Max SPL Long-Term @1m 97dB 98dB
Max SPL Peak @ 1m 119dB 121dB
Crossover 18dB/oct at 3.5kHz (passive) 18dB/oct at 3.5kHz (passive)
AUDIO
MIC Input
Input Type 2 bal. XLR & 2 bal. 1/4” 2 bal. XLR & 2 bal. 1/4”
Input Impedance 3k Ohms 3k Ohms
Input Sensitivity –46dBu –46dBu
LINE Input
Input Type bal. XLR/bal. RCA bal. XLR/bal. RCA
Input Impedance 10k Ohms 10k Ohms
Input Sensitivity –26dBu –26dBu
FREQUENCY EQUALIZER
Type 5-band Graphic Equalizer 5-band Graphic Equalizer
Frequency 250Hz/500Hz/1kHz/4kHz/8kHz 250Hz/750Hz/2kHz/6kHz/12kHz
Equalize Range –12dB/+12dB –12dB/+12dB
POWER AMPLIFIER
Rated Output Power 135 Watts 180 Watts
Max Output Power 150 Watts 216 Watts
Power Supply 110V, 60Hz 110V/120V ~ 50/60Hz
Max Power Consumption 276VA 285VA
Rated THD <0.5% (20Hz – 20kHz) <0.5% (20Hz - 20kHz)
Frequency Response +1/–2dB (20Hz – 20kHz) +1/–2dB (20Hz - 20kHz)
Cooling Convection Extrusion Convection Extrusion
Design Class A/B Class A/B
Dimensions H 25.2” x W 16.2” x D 13” H 28.7” x W 19.3” x D 14.6”
Weight 35.9 lb. 46.3 lb.
5
9552 Harbinger APS12 APS15 Consolidated Manual.indd 6 3/29/11 11:32 AM

Owner’s Manual
www.harbingerproaudio.com
Harbinger Limited Warranty Harbinger provides to the original purchaser a two (2) year limited warranty on materials
and workmanship on all Harbinger cabinets and loudspeaker components from the date of purchase.
If your covered product is defective, ship the defective component together with proof of purchase, freight prepaid and insured, to an
Authorized Harbinger repair center or directly to Harbinger Support Headquarters. If you are uncertain which component is defective,
or to obtain instructions for removing a component, please contact Harbinger Support Headquarters for assistance at support@
HarbingerProAudio.com, or visit www.HarbingerProAudio.com.
A Return Authorization Number must be obtained from our Customer Service Department prior to shipping the product.
To locate a repair center near you and to obtain a Return Authorization Number, contact [email protected] or visit
www.HarbingerProAudio.com.
Warranty
2
So we may serve you better, please register on-line at www.HarbingerProAudio.com
6
This warranty does not cover service or parts to repair damage caused by neglect, abuse,
normal wear and tear and cosmetic appearance to the cabinetry not directly attributed to
defects in materials or workmanship. Also excluded from coverage are damages caused directly
or indirectly due to any service, repair(s), or modications of the cabinet, which have not been
authorized or approved by Harbinger. This two (2) year warranty does not cover service or
parts to repair damage caused by accident, disaster, misuse, abuse, burnt voice-coils, over-
powering, negligence, inadequate packing or inadequate shipping procedures. The sole and
exclusive remedy of the foregoing limited warranty shall be limited to the repair or replacement
of any defective or non-conforming component. All warranties including, but not limited to, the
express warranty and the implied warranties of merchantability and tness for a particular
purpose are limited to the two (2) year warranty period. Some states do not allow limitations
on how long an implied warranty lasts, so the above limitation may not apply to you. There
are no express warranties beyond those stated here. In the event that applicable law does not
allow the limitation of the duration of the implied warranties to the warranty period, then the
duration of the implied warranties shall be limited to as long as is provided by applicable law.
No warranties apply after that period.
Retailer and manufacturer shall not be liable for damages based upon inconvenience, loss of
use of product, loss of time, interrupted operation or commercial loss or any other incidental
or consequential damages including but not limited to lost prots, downtime, goodwill, damage
to or replacement of equipment and property, and any costs of recovering, reprogramming, or
reproducing any program or data stored in equipment that is used with Harbinger products.
This guarantee gives you specic legal rights. You may have other legal rights, which vary from
state to state.
California Prop 65 Warning: This product may contain a chemical(s) known to the state of
California to cause cancer or birth defects or other reproductive harm.
Harbinger, P.O. Box 5111, Thousand Oaks, CA 91359-5111
All trademarks and registered trademarks mentioned herein are recognized as the property of
their respective holders.
Made in China
0907-9061
9552 Harbinger APS12 APS15 Consolidated Manual.indd 7 3/29/11 11:32 AM

9552 Harbinger APS12 APS15 Consolidated Manual.indd 8 3/29/11 11:32 AM
