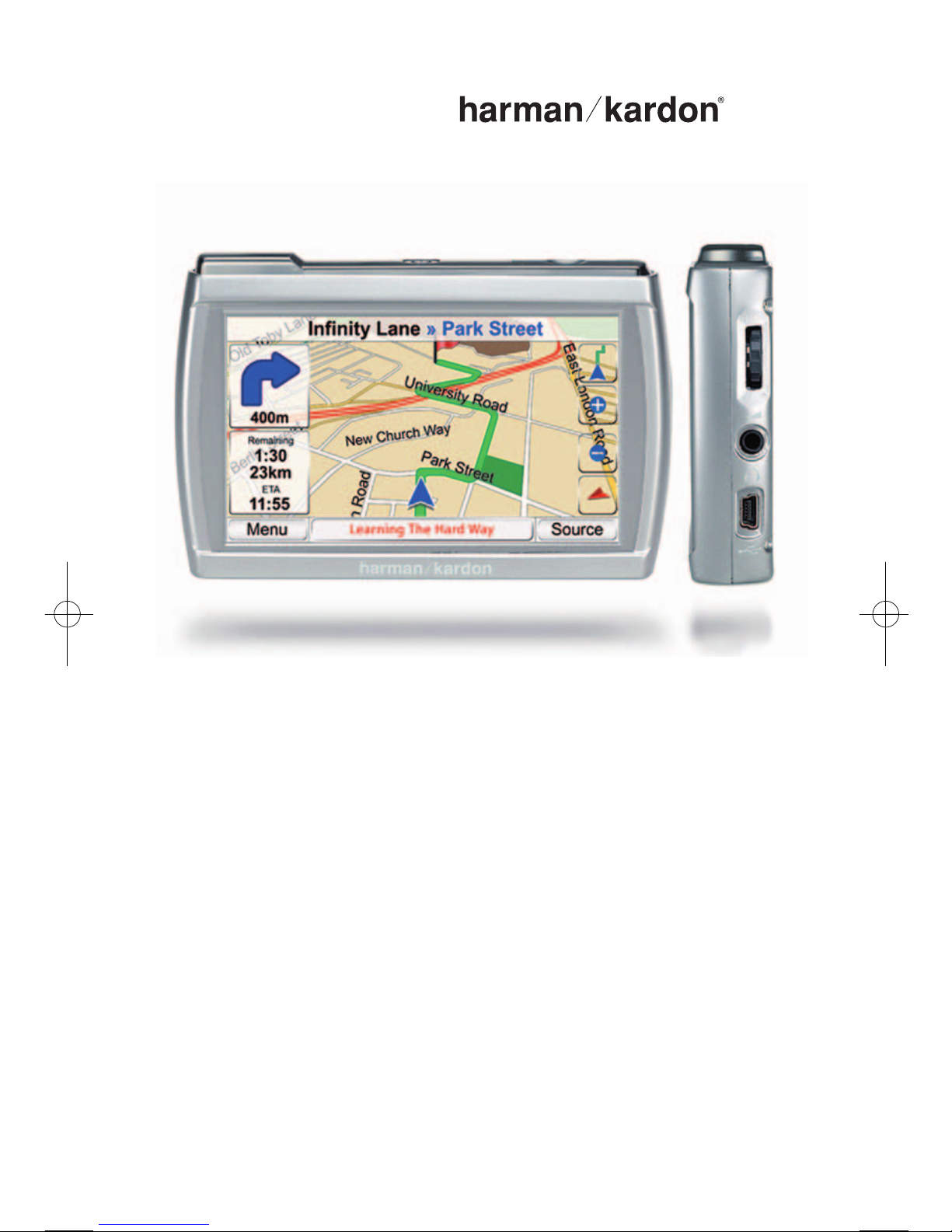

Harman Kardon guide + play GPS-200GSEC User manual

Portable Touchscreen Navigation System and A/V Media Player
User Manual
ediug +yalp
™
GPS-200GSEC, GPS-200IT and GPS-300WE
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 1

Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 – 5
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 – 20
Planning a Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Navigating to Your Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Navigation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Changing Navigation Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Traffic Message Channel“TMC” (Not GPS-200IT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
- The Source Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Playing Music Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 – 25
Loading Media on Your SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Listening to Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installation and Use in a Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 – 29
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Battery Notes:
The Harman Kardon® GPS-200/300 uses a lithium-polymer battery. Under
normal operating conditions, this battery will provide superior service with a
lifespan that is superior to those of other battery types.
To protect the performance of your GPS-200/300 and its battery, please
observe the following guidelines:
• Do not operate the GPS-200/300 in ambient temperatures outside of the
following range: 14° F (–10° C) to 131° F (55° C).
• Do not store the GPS-200/300 even for short periods in ambient
temperatures outside of the following range: –4° F (–20° C) to 140° F (60° C).
• Do not store the GPS-200/300 for long periods in ambient temperatures
outside of the following range: 32° F (0° C) to 77° F (25° C).
The GPS-200/300 will not charge the battery at temperatures above 122° F
(50° C).
User Manual 2
ediug +yalp
™
GPS-200/300
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 2

User Manual
ediug +yalp
™
GPS-200/300
3
ENGLISH
Introduction
Your new GPS-200/300 is a powerful portable touchscreen navigation system
and audio media player. The GPS-200/300’s GPS-powered navigation
features will make it easy for you with remarkable accuracy. Its audio player
lets you listen to your favorite music while using the navigation system.
We know you’re eager to start using your GPS-200/300, so we’ve included a
Quick-Start Guide that will help you use its basic features right away.
This User Manual contains detailed information about all of the GPS-200/300’s
features and functions. To get the most out of your GPS-200/300, please read
it thoroughly.
Unpacking
Your GPS-200 or 300 box should contain these items:
• GPS-200 or 300 Unit
• Wall Charger (GPS-300 only)
• Car Charger
• USB Cable
• Fold-Flat Mounting Bracket
• Mounting Base Disc for Dash-Mounting
• Adhesive Pad for Mounting Base Disc
• Alcohol Cleaning Pad for Dash Surface
• Carrying Case
• Quick-Start Guide
If anything is missing, notify the dealer where you purchased your GPS-200/300
right away.
Unpack your GPS-200/300 carefully and save the box and packing materials
so you can safely ship the unit in the future.
!
WARNING: Operation of any feature of this device while driving
is dangerous. Do not operate this device while driving. Do not
operate audio mode while driving.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 3

Controls and Features
User Manual 4
ediug +yalp
™
GPS-200/300
LEFT SIDE
F
RONT
TOP
BOTTOM
BACK
RIGHT SIDE
Lock
Switch
Volume/
Brightness
Control
Headphone
Jack
Mini USB
Connector/
Charger Port
GPS
Antenna
ON/OFF
Button
SD Card
Slot
Reset
Button
Speaker
Mounting Slot
Mounting Slot
Touchscreen
External GPS Antenna
TMC Antenna Jack
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 4

User Manual
ediug +yalp
™
GPS-200/300
5
ENGLISH
Controls and Features
Front:
TOUCHSCREEN:480 x 272 pixel WQVGA LCD touchscreen.
Back:
SPEAKER:Built-in speaker plays navigation voice guidance commands and
audio files that are stored on an SD memory card (see below).
MOUNTING SLOT:Lets you lock the GPS-200/300 onto the included fold-flat
mounting bracket for use in a vehicle.
EXTERNAL GPS ANTENNA:In case of problems with bad GPS reception (e.g.
due to heat-reflecting windscreens) an external GPS antenna with mMCX
connector can be plugged in here. Please note that the antenna only works if
the GPS unit is connected to either AC or DC power.
Top:
GPS ANTENNA:Must have a clear“view”of the sky to receive signals from GPS
satellites.
ON/OFF BUTTON:Hold down to turn the unit on; hold down again to turn
the unit off.
SD CARD SLOT:Accepts regular SD memory cards (not SD-HC) up to 4GB (not
included). The SD card is required to store audio media to be played on your
GPS-200/300.
Bottom:
RESET BUTTON:Lets you reset the unit if it becomes unresponsive or won’t
power-off. Insert a paper clip or similar item into the small hole to press the
switch. (Resetting the unit does not erase information that you have entered,
such as your home location, etc.)
MOUNTING SLOT:Lets you lock the GPS-200/300 onto the included fold-flat
mounting bracket for use in a vehicle.
Left Side:
LOCK SWITCH:Locks the GPS-200/300’s touchscreen and all of its contols. This
prevents accidental operation without your having to turn the unit’s power off,
so you can carry it in your pocket or purse.
TMC ANTENNA JACK:(Not GPS-200IT) Connect the TMC antenna to receive FM
traffic information
Right Side:
VOLUME/BRIGHTNESS CONTROL:Adjusts the volume of the GPS-200/300’s
built-in speaker. The volume control will also adjust the volume of head-
phones or an audio system that you have connected to the GPS-200/300’s
headphone jack (see below).
To adjust the brightness, press the volume control knob in. The Brightness
indicator will be superimposed on the screen and you can change the
screen’s brightness by rotating the volume knob.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 5

HEADPHONE JACK:Lets you connect headphones for personal listening. You
can also connect the headphone jack to an auxiliary input on your vehicle’s
audio system.
MINI USB CONNECTOR/CHARGER PORT: Connects to your computer and to
the included wall charger using the included USB cable (only GPS-300).
Connects to your vehicle’s cigarette lighter or accessory power port using the
included car charger.
User Manual 6
ediug +yalp
™
GPS-200/300
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 6

User Manual
ediug +yalp
™
GPS-200/300
7
ENGLISH
Before You Begin

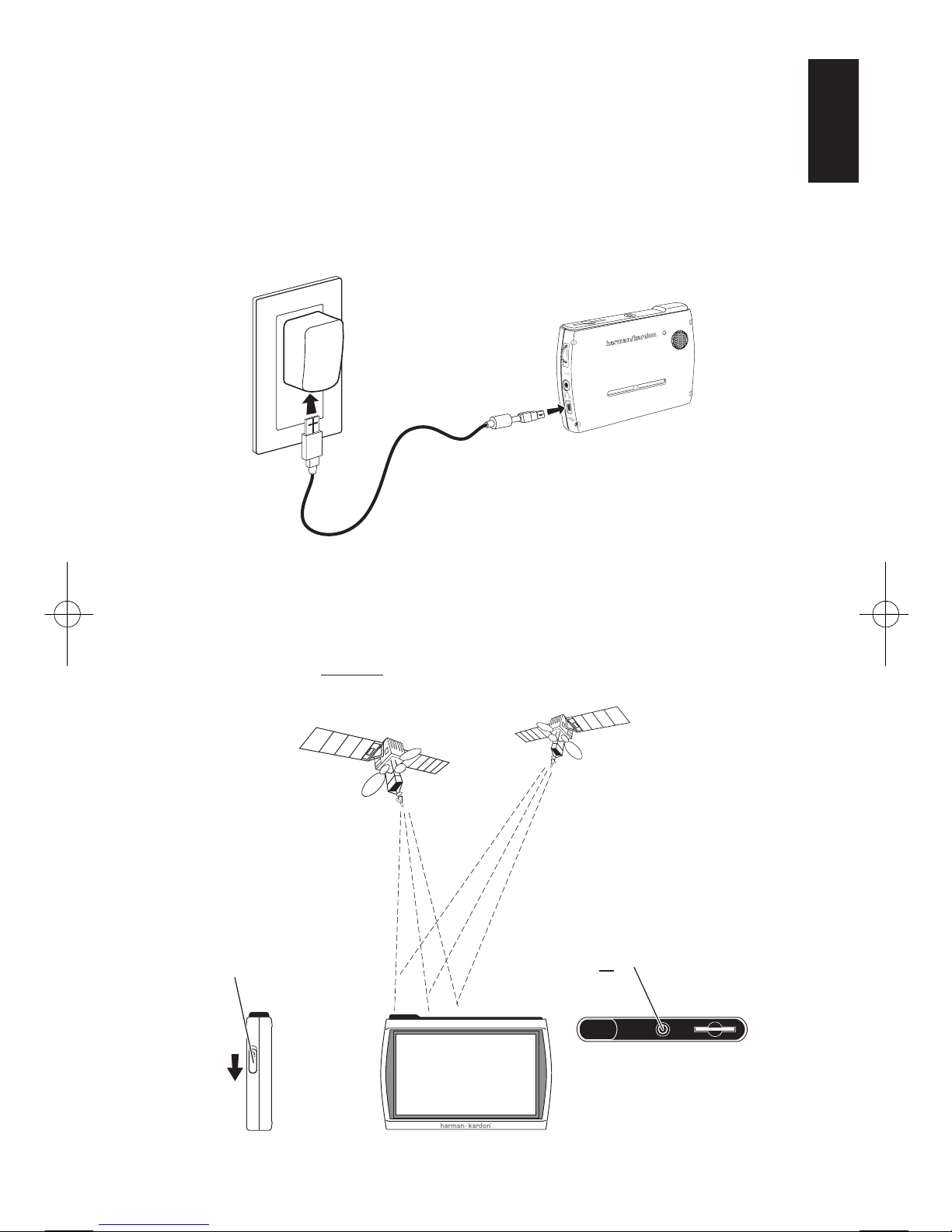

Before you begin using your GPS-200/300, you will need to charge its battery
for a minimum of 6 hours.
1. For GPS-300 only, plug the included wall charger into a wall outlet. GPS-200
may be charged by connecting to your pc with the USB cable, by the 12V
car adapter or you may purchase an original wall adapter.
2. Use the included USB cable to connect the GPS-300’s Mini USB
Connector/Charger port to the wall charger.
After the battery has charged for at least 6 hours:
1. Make sure the LOCK switch is in the DOWN (unlocked) position.
2. Go outdoors to obtain GPS reception.
3. Hold down the ON/OFF button until the unit turns on.
1. Unlock
Switch 3. Turn Power ON
2. Go Outside
to Receive
GPS Signal
1. 2.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 7

Initial Setup
When you turn your GPS-200/300 on for the first time, the Setup Wizard will
appear. The Wizard will guide you through the GPS-200/300’s initial setup
steps:
When you touch the NEXT button on the PLEASE SET THE TIME screen, the
GPS-200/300 will display the NAVIGATION MAIN MENU screen (see page 9).
NOTE: Once you complete these initial setup steps, the Setup Wizard will not reappear.
To change any of these settings, see CHANGING NAVIGATION SETTINGS, on page 18.
User Manual 8
ediug +yalp
™
GPS-200/300

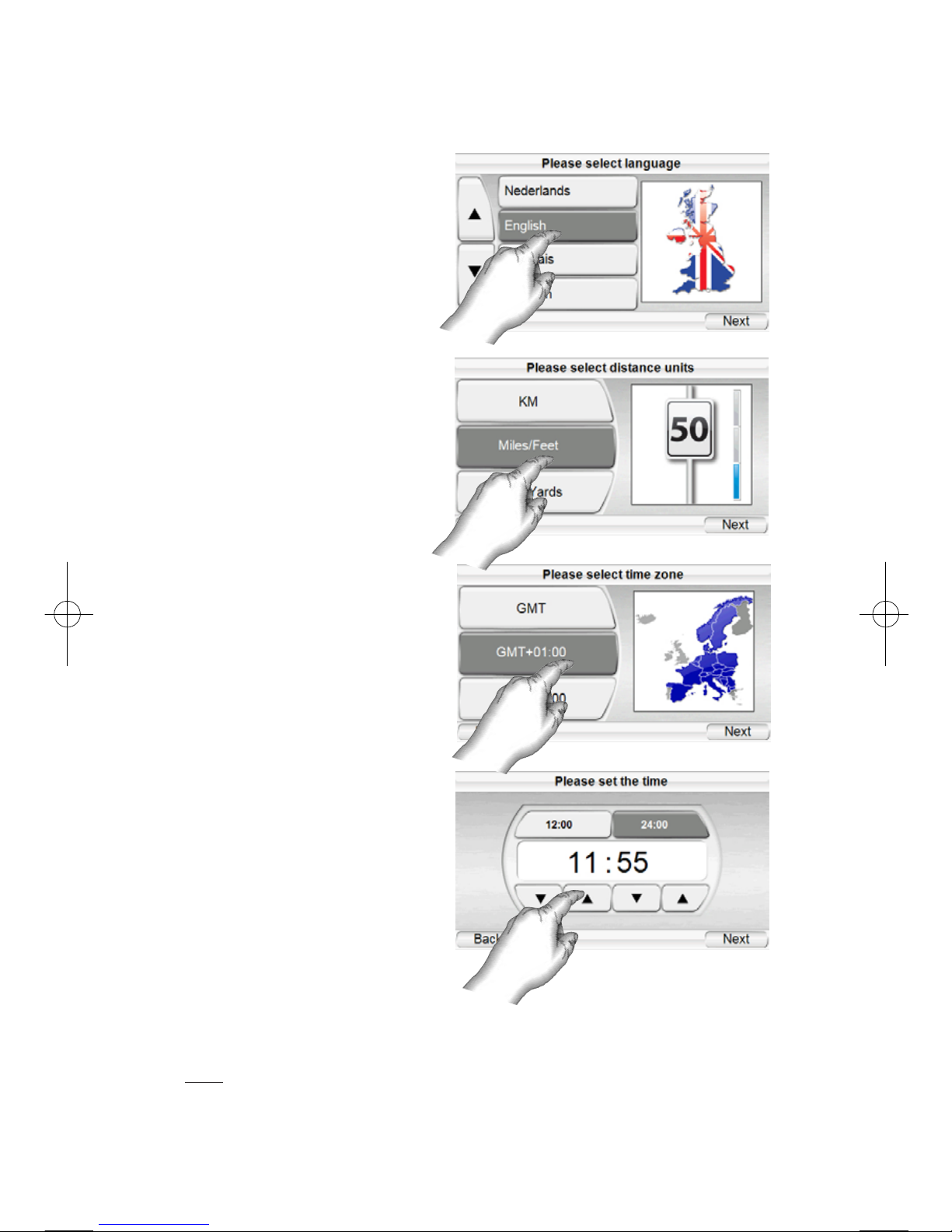

1. Touch the button for the
screen language you want to
use Nederlands, English,
Français, Deutsch, Italiano,
Espagñol. (GPS-200 no Neder-
lands.)
Touch the NEXT button.
2. Touch the button for the
distance units you want to
use (km/m, miles/ feet or
miles/yards).
Touch the NEXT button.
3. Touch the button for the
time zone where you are
located.
Touch the NEXT button.
4. Set the current local time.
You can also set the clock
to display either 12-hour or
24-hour time.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 8

User Manual
ediug +yalp
™
GPS-200/300
9
ENGLISH

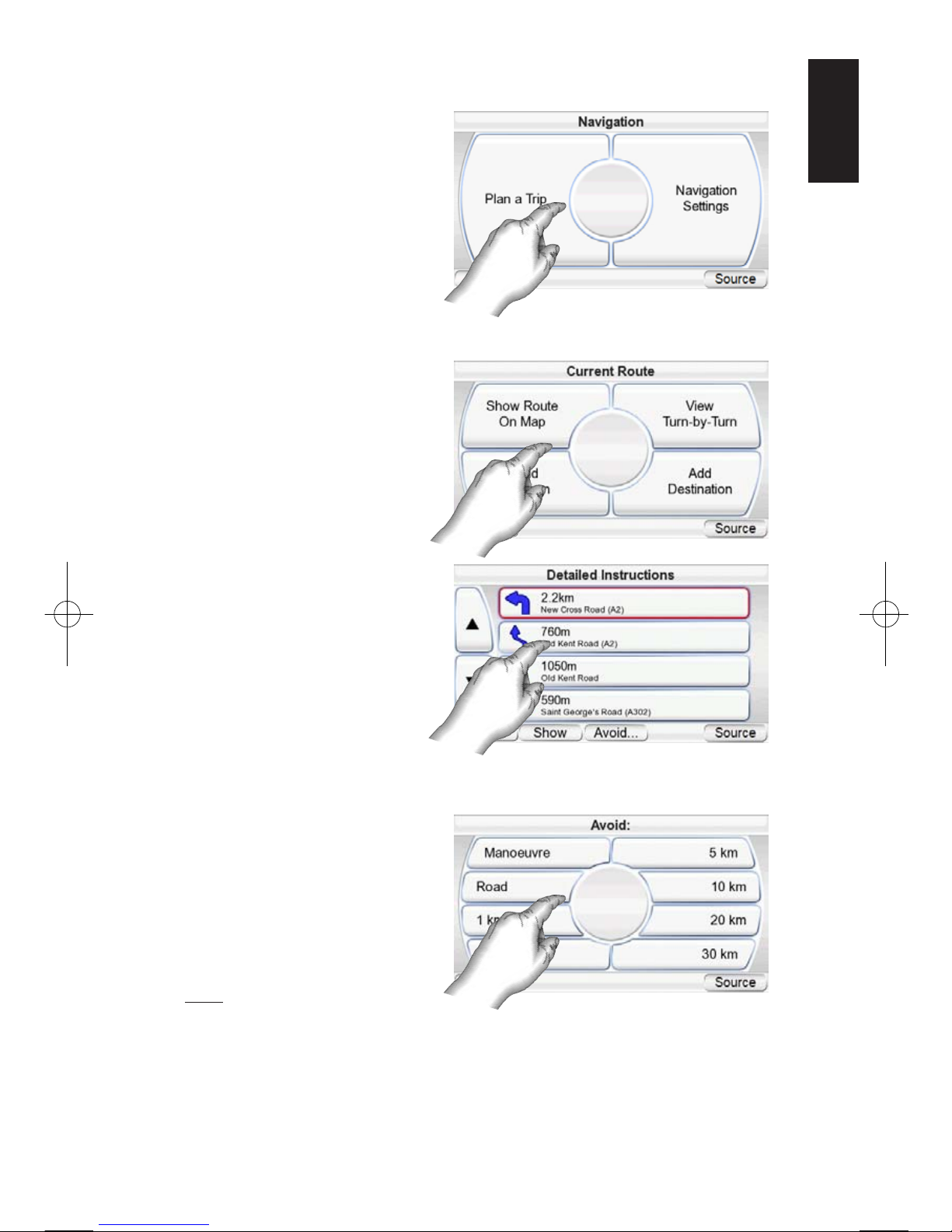

Navigation
After you complete the initial
setup steps, the NAVIGATION
screen (right) appears.
Planning a Trip
To begin navigation, touch the
PLAN A TRIP button. The WHERE
WOULD YOU LIKE TOGO? screen
(right) appears.
The WHERE WOULD YOU LIKE TO
GO? screen gives you several
ways to plan your trip. You can
enter a specific street address,
choose a place from the
GPS-200/300’s extensive point-
of-interest database, enter a
city center, intersection or
postal code, or navigate to locations you have recently visited or saved. The
GPS-200/300 also lets you store your home address so you can quickly enter
it as your destination from wherever you happen to be.
ENTERING A STREET ADDRESS
1. Touch the ADDRESS button on
the WHERE WOULD YOU LIKE TO
GO? screen. The SEARCH
screen appears (right).
2. Touch the appropriate
button for the city you want
to travel to.
• If you select one of the
city buttons, the ENTER CITY NAME screen (below) appears.
• Changing the country by
pressing SELECT COUNTRY
(Not available in GPS-200IT).
The ENTER CITY NAME screen
(right) appears.
3. Spell the name of the
desired city. When you have
finished, touch the DONE
button. The ENTER STREET
NAME screen (right) appears.
!
The geographic information provided by this device serves as a
navigational aid only and does not include information pertaining to
construction, road closures, speed restrictions, road or traffic
conditions, or other circumstances relevant to public safety. The
driver must always be aware of the actual road conditions and
surroundings, and decide whether or not to follow the information
provided by this device. Obey all traffic laws and observe safe driving
practices. The manufacturer does not accept responsibility for any
inaccurate or incomplete information provided by this device.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 9

• In most cases, once you’ve
entered some letters, the
screen will display all of the
cities that fit. Select the
desired city from the list.

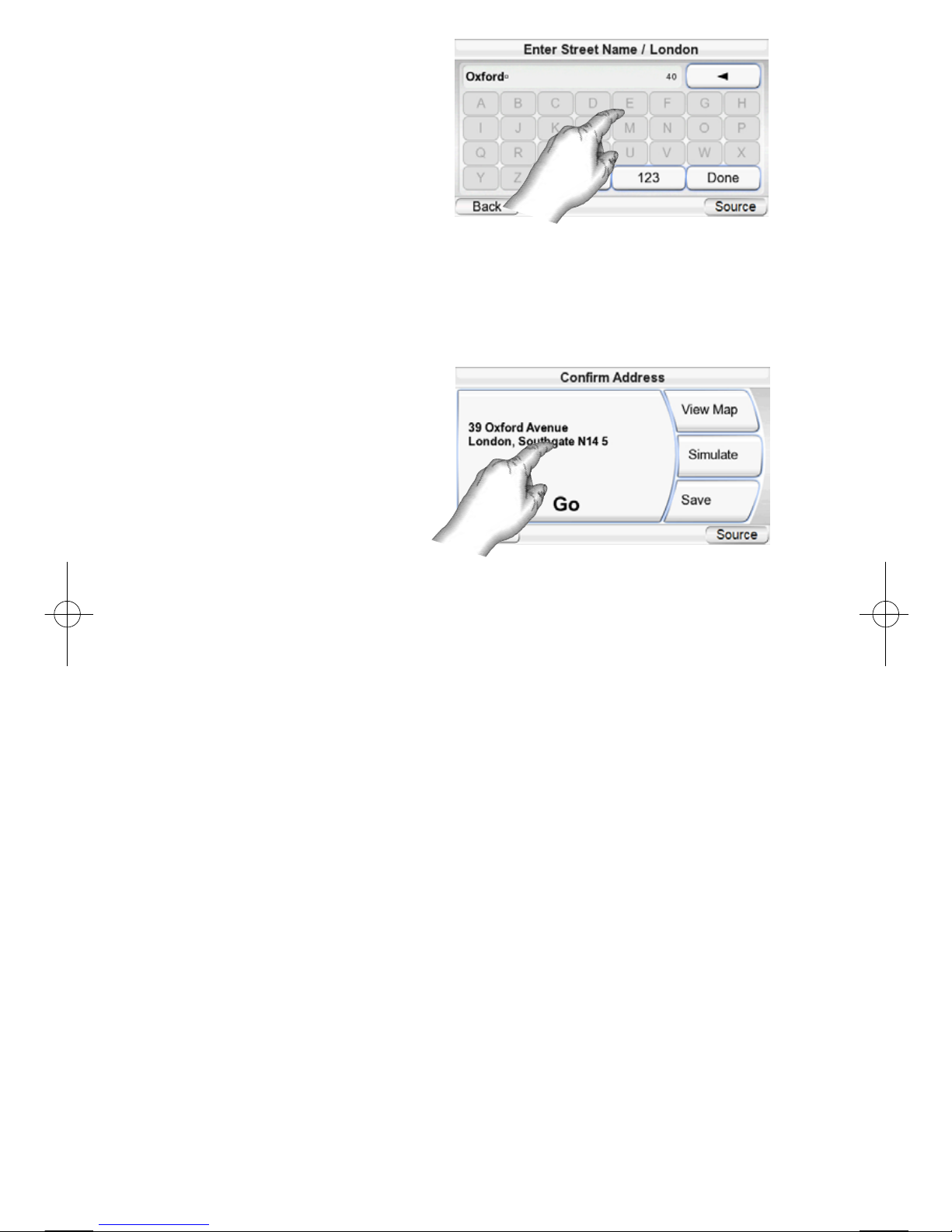

4. Spell the name of the street.
When you are finished, touch
the DONE button. The ENTER
HOUSE NUMBER screen appears.
• In many cases, once you’ve entered some letters, the screen will display all
of the streets that fit. Select the desired street from the list.
5. Enter the desired address number. When you touch the DONE button, the
CONFIRM ADDRESS screen (right) appears.
6. Touch GOto begin navigation. The map screen will appear. Once you start
driving, the GPS-200/300 will
guide you to your destina-
tion. (See Navigating To Your
Destination, on page 14.)
PLEASE NOTE WHEN ENTERING
STREET AND CITY NAMES:
Special characters may not
appear on the screen. This is no
problem, as your GPS 200/300
translates the necessary characters. As an example: Enter "ü" as a "u", enter "ö"
or "ø" as "o". Along these lines, enter special characters in the form of the ordi-
nary character looking most like the one you need. The internal map will find
and show the correct names.
CHOOSING A PLACE (POI) (FROM THE GPS-200/300’S DATABASE)
The GPS-200/300 has a built-in point-of-interest database with millions of
entries in many different categories.
User Manual 10
ediug +yalp
™
GPS-200/300
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 10

User Manual
ediug +yalp
™
GPS-200/300
11
ENGLISH

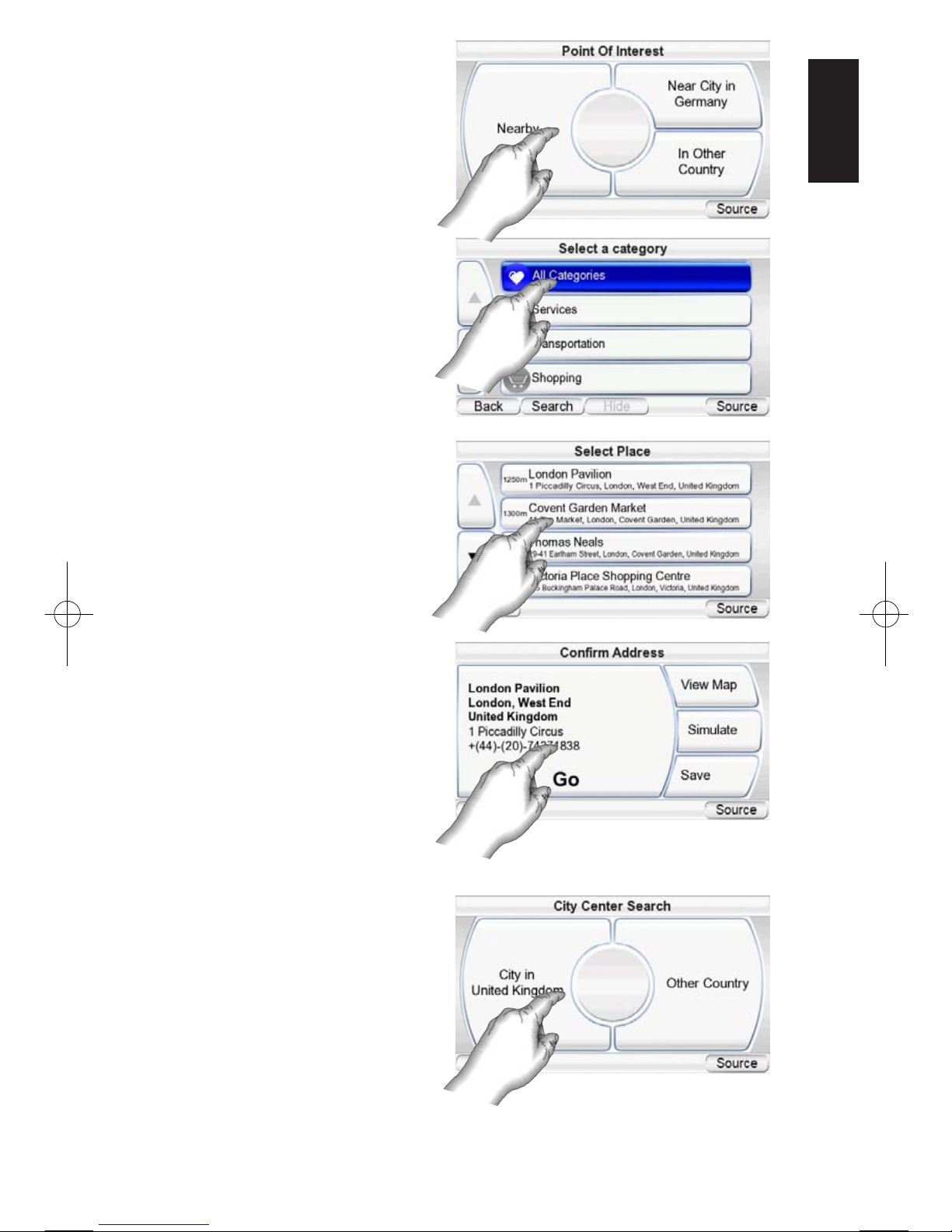

TONAVIGATE TO A PLACE
(POI)
1. Touch the PLACE (POI) button
on the WHERE WOULD YOU LIKE
TOGO? screen (see page 9).
The FIND A PLACE screen (right)
appears.
2. Select the desired area. The
SELECT A CATEGORY screen
(right) appears. (If you know
the name of the place, you
can enter it instead of search-
ing by category.)
3. Use the up/down arrow
buttons to find the desired
category, then touch it. The
SELECT PLACE (POI) screen (right)
appears.
4. Use the up/down arrow
buttons to scroll through the
list of places, then touch the
button for the place you want
to go. The CONFIRM ADDRESS
screen (right) appears.
5. Touch GOto begin navigation.
The map screen will appear.
Once you start driving, the
GPS-200/300 will guide you
to your destination. (See
Navigating to Your Destina-
tion, on page 14.)
SELECTING A CITY CENTER,
INTERSECTION OR POSTAL
CODE
The GPS-200/300 can guide
you to a city center, to the
intersection of two streets or to
a specific postal code.
NAVIGATING TO A CITY
CENTER:
1. Touch the CITY CENTER button
on the WHERE WOULD YOU LIKE
TOGO? screen (see page 9).
The CITY CENTER SEARCH screen
(right) appears.
2. Touch the appropriate
button and enter the city’s name. When you’re finished, the CONFIRM ADDRESS
screen appears (see next page).
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 11

3. Touch the GObutton to
begin navigation. The map
screen will appear. Once you
start driving, the
GPS-200/300 will guide you
to the center of the city you
selected. (See Navigating to
Your Destination, on
page 14.)
NAVIGATING TO AN
INTERSECTION:
1. Touch the INTERSECTION button
on the WHERE WOULD YOU LIKE
TOGO? screen (see page 9).
The INWHICH CITY ISTHE
INTERSECTION? screen (right)
appears.
2. Select the city. The ENTER
STREET NAME screen appears.
3. Enter the name of the first
street. When you are finished
the ENTER SECOND STREET NAME
screen appears.
4. Enter the name of the
second street. The CONFIRM
ADDRESS screen (right) appears.
5. Touch the GObutton to begin
navigation. The map screen will appear. Once you start driving, the GPS-
200/300 will guide you to the intersection you selected. (See Navigating to
Your Destination, on page 14.)
NAVIGATING TO A POSTAL CODE:
1. Touch the POSTAL CODE
button on the WHERE WOULD
YOU LIKE TOGO? screen. The
FIND A POSTAL CODE screen
(right) appears.
2. Select the country and enter
the postal code. (You can
change between letters and
numbers by pressing "123"
and "ABC"). The ENTER STREET
NAME screen appears.
3. Spell the name of the street.
When you are finished, touch
the DONE button. The ENTER
HOUSE NUMBER screen appears.
4. Enter the desired address
number. When you touch
the DONE button, the CONFIRM ADDRESS screen (right) appears.
User Manual 12
ediug +yalp
™
GPS-200/300
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 12

User Manual
ediug +yalp
™
GPS-200/300
13
ENGLISH
5. Touch GOto begin navigation. The map screen will appear. Once you start
driving, the GPS-200/300 will guide you to the address you’ve entered.
(See Navigating to Your Destination, on page 14.)

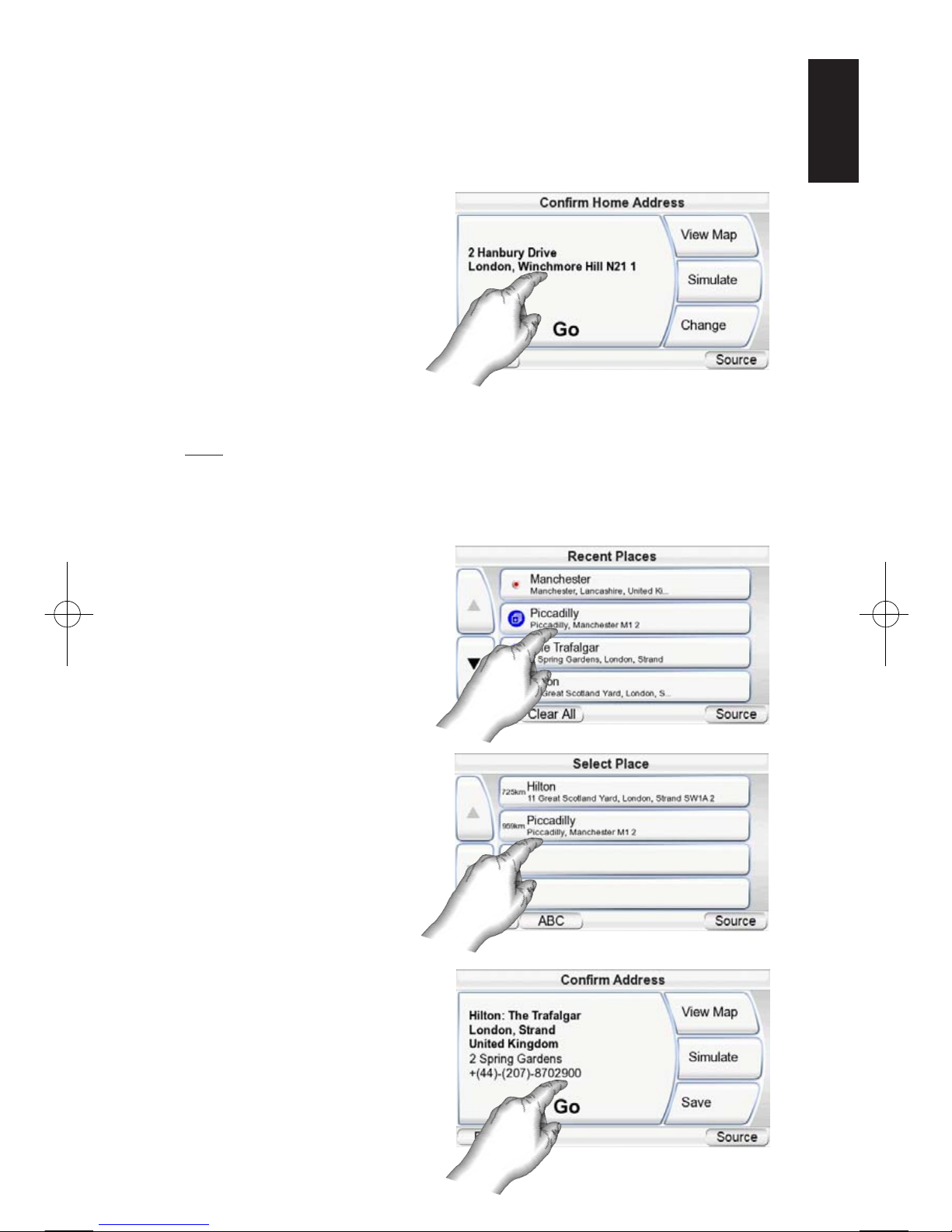

NAVIGATING TO YOUR HOME
The GPS-200/300 stores your home address so you can easily select it as a
destination, no matter where you are.
1. Touch the HOME button on
the WHERE WOULD YOU LIKE TO
GO? screen (see page 9). The
CONFIRM HOME ADDRESS screen
(right) will appear.
2. Touch GOto begin naviga-
tion. The map screen will
appear. Once you start driv-
ing the GPS-200/300 will
guide you to your destination. (See Navigating to Your Destination, on page
14.)
NOTE: If you have not yet set your home address, the GPS-200/300 will have you do so.
NAVIGATING TO RECENTLY VISITED OR SAVED LOCATIONS
The GPS-200/300 stores a list of your recently visited locations in a HISTORY
page and also lets you save locations to a special list. You can easily select
your destination from either of
these lists.
1. Touch the RECENT PLACES or
SAVED PLACES button on the
WHERE WOULD YOU LIKE TOGO?
screen (see page 9). The
HISTORY page (right) or the
SELECT PLACE list (right) will
appear.
2. Use the up/down arrow
buttons to scroll through the
list of places, then touch the
button for the place you
want to go. The CONFIRM
ADDRESS screen (right) will
appear.
3. Touch GOto begin naviga-
tion. The map screen will
appear. Once you start
driving, the GPS-200/300
will guide you to your
destination.
(See Navigating to Your
Destination, on page 14.)
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 13

CONFIRM ADDRESS SCREEN OPTIONS
Besides touching the GObutton to begin navigation, the CONFIRM ADDRESS
screen (see page 13) also gives you these options:
VIEW MAP:Touch to see a map showing your destination.You can change the
map view and zoom the view in and out (see Map Screen Options, on page 15).
NOTE: Touching the VIEW MAP button does not begin nagivation.
SIMULATE:Touch to have the GPS-200/300 simulate the trip. The simulation
includes all map movements and voice-guidance turn prompts, and takes
place at high speed. To abort the simulation, touch anywhere on the screen.
SAVE:Touch to save the address in the GPS-200/300’s address book. If you
want to, you can add a name to the address.
Navigating to Your Destination
Once you have entered your destination, touching the GObutton on any of
the GPS-200/300’s CONFIRM ADDRESS screens will begin navigation. The Map
screen (below) will appear. The blue arrowhead indicates your present loca-
tion and your direction of travel. The route that the GPS-200/300 has calculat-
ed is indicated by the green line.
The map shows the distance to and direction of your next turn, and also
shows the remaining time and distance of your trip and your estimated
arrival time.
NOTE: If you are playing music on the GPS-200/300’s Music Player (see page 21), the MAP
screen will also display the title of the currently playing song.
As you drive, the GPS-200/300 keeps track of your position via GPS, will issue
voice-guidance commands through the built-in speaker, telling you when
and where to turn, and the map will continually update your position along
your route. If you make a wrong turn, the GPS-200/300 will automatically
calculate a new route and will continue to guide you to your destination.
User Manual 14
ediug +yalp
™
GPS-200/300
Distance Until Next Turn
and Direction of Next Turn
Remaining
Time & Distance
and Estimated
Arrival Time
Your Current Location
and Direction of Travel
(Blue Arrowhead)
Title of Currently Playing Song
Calculated
Route (Green)
Map Screen
LOCK/UNLOCK Button
(shown Locked)
Map
Zoom
Buttons
Map
View
Button
NAVIGATION MENU BUTTON
Source Button
(Back to Main Menu)
Map Browsing
and Follow
Car map modes
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:06 Side 14

User Manual
ediug +yalp
™
GPS-200/300
15
ENGLISH
MAP SCREEN OPTIONS
MAP BROWSING/FOLLOW CAR BUTTON:
Touching this button switches between
1) Map Browsing, where you can move
the map position by moving your finger
on the touchscreen in the direction you
want the map to move. You may also
zoom in and out of the map
2) Follow Car, which shows you the navi-
gation map for your route. (See illustra-
tion, below, left.)
MAP VIEW BUTTON:Touching this button
cycles the map view between 2D, 2D
north-oriented and 3D. (See illustrations, below, right.)
MAP ZOOM BUTTONS:Repeatedly touching the “+” and “–” MAP ZOOM buttons
zooms your view from a distance of just a few yards off the ground all the way
to a view from thousands of miles in space. (See illustrations, below, left.)
3D Map View
2D Map View
2D (North-Oriented) Map View
Zoom In (Closest View)
Zoom Out (Farthest View)
Moving the Map Position
Map Screen Option Buttons
Map Screen
Lock/Unlock Button
(Shown Unlocked)
Map Zoom
Buttons
Map View
Button
Map Browsing
and Follow
Car map modes
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:07 Side 15

User Manual 16
ediug +yalp
™
GPS-200/300
AUTO-ZOOM
The GPS-200/300 offers different auto-zoom modes for improved route visi-
bility.
Junction zoom: When approaching a turn the map will automatically zoom in
and switch to 2D mode in order to give a better view on the upcoming
maneuver. Thereafter it will return to the default zoom settings.
Overview mode: When the distance to the next maneuver is longer than 5km
the map will automatically zoom out. Please click on the map view button to
disable overview mode temporarily.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:07 Side 16

User Manual
ediug +yalp
™
GPS-200/300
17
ENGLISH
Navigation Options
Touching the MENU button on the MAP screen (see page 14) displays the
NAVIGATION screen (below, right).
MAP BUTTON:Takes you back
to the MAP screen.
PLAN A TRIP BUTTON:Lets you
select a navigation destination.
(See Planning a Trip, on page 9.)
STOP NAVIGATION BUTTON:
Stops the current GPS-200/300
navigation session.

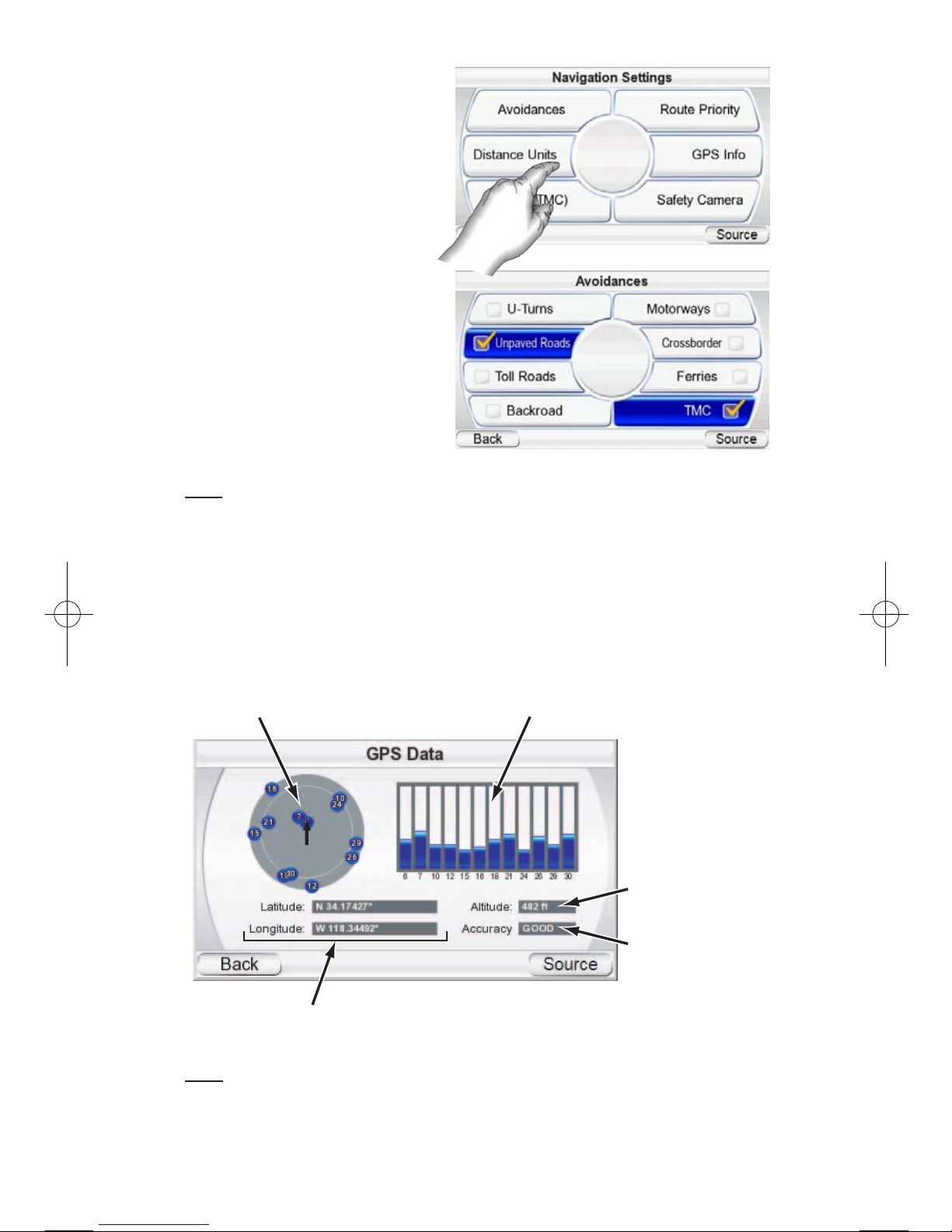

NAVIGATION SETTINGS BUTTON:Lets you change the GPS-200/300’s naviga-
tion settings. (See Changing Navigation Settings, on page 18.)
ROUTE OPTIONS BUTTON:
Displays the ROUTE OPTIONS
screen (right).
ROUTE OPTIONS SCREEN
VIEW ROUTE BUTTON:Shows a
map view of the entire naviga-
tion route. (See 2D Map View
illustration on page 15.)
VIEW TURN-BY-TURN BUTTON:
Displays a detailed list of each
turn for the entire trip (right).
The list shows the direction of
each turn and how far to drive
on each leg of the journey.
Touching the button for one
leg of the journey and then
touching the SHOW button
will display a map showing that particular leg of the trip.
Touching the button for a particular turn or leg on the detailed list screen and
then touching the AVOID button
will display the AVOID screen
(right). This screen lets the GPS-
200/300 recalculate a new
route that avoids a particular
maneuver or road, or recalcu-
late a certain distance on the
road that you selected.
NOTE: Voice guidance continues
when the GPS-200/300’s screen is in the Turn-By-Turn view.
DETOUR NEXT TURN BUTTON:Recalculates your route, avoiding the next turn.
Use this to avoid construction sites, traffic jams, etc.
ADD DESTINATION BUTTON:Lets you add another destination at the end of
your trip. See Planning a Trip, on page 9.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:07 Side 17

Changing Navigation Settings
Touching the NAVIGATION SETTINGS
button displays the NAVIGATION
SETTINGS screen (right).
AVOIDANCES:When the
GPS-200/300 calculates naviga-
tion routes, you can set it to
always avoid the following:
• U-turns
• Unpaved roads
• Toll roads
• Roads requiring permits
(Backroads)
• Highways
• Border crossings
• Ferries
• Traffic (TMC)
(Not available in GPS-200IT.)
NOTE: The GPS-200/300 comes from the factory with the UNPAVED ROADS avoidance set to ON.
DISTANCE UNITS:You can set the GPS-200/300’s distance units to kilome-
ters/meters, miles/feet or miles/yards. This affects the units shown on the
screen, and the units given during voice navigation prompts.
ROUTE PRIORITY:When the GPS-200/300 calculates navigation routes, you
can set it to give priority to either the SHORTEST DISTANCE or the SHORTEST TIME .
GPS DATA:This screen displays the following information:
NOTE: Your GPS-200/300 will lose contact with the GPS satellites whenever you turn its
power off. After turning the power back on, you will need to go outside to receive the
GPS signal again before the navigation functions will operate.
Your Position Relative
to the Nearest 12
GPS Satellites
RelativeSignal
Strength of Nearest
12 GPS Satellites
Your Current Global Position
(in Latitude and Longitude)
Your Current Altitude
(Above/Below Sea Level)
Accuracy of
GPS Satellite Data
User Manual 18
ediug +yalp
™
GPS-200/300
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:07 Side 18

SAFETY CAMERA: You can set the GPS-200/300 to warn you against Safety/
Speed cameras along the way. Pressing“Enable”in the Enable Safety Cameras
screen opens an information/Warning window showing the internet address
“www.speedcamupdate.com”, where you may download the necessary infor-
mation against a subscription charge. Also, you are warned that the function
may be prohibited in certain countries. You have to connect the GPS Unit to
your PC with the supplies USB-cable to download the information, following
the instructions on the homepage. You may select permanent or temporary
cameras, or both.
Pressing “Yes” in the information/warning window Opens the Enable screen
with the Enable button highlighted in blue. Pressing the blue button again
will disable the camera function.
Once inside the camera screen, you may choose between options regarding
Audible Warnings and Visible Warnings. Press Audible Warning to select hear-
ing the warnings either: 1) If you drive too fast, 2) Always or 3) Not at all. Press
Visible Warning to select seeing the warnings either: 1) As a Simple image, 2)
As a Detailed image including speed limit and distance to the camera, or 3)
No visible warnings.
!
Using the Safety Camera warning function may be prohibited by law in
certain countries. The user should determine whether the use of this
feature is governed by any law prior to its use.
User Manual
ediug +yalp
™
GPS-200/300
19
ENGLISH
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:07 Side 19

User Manual 20
ediug +yalp
™
GPS-200/300
Traffic Message Channel “TMC”
(GPS-200IT is not equipped with TMC.)
The GPS-300 is equipped with a built-in FM receiver to process TMC (Traffic
Message Channel) messages. The TMC is a free system to send out traffic
information via RDS (Radio Data System). TMC might or might not be avail-
able in your country. Please note that the GPS-300 does not support subscrip-
tion-based TMC services which are available in some countries as an alterna-
tive to freely distributed TMC services. In case there is traffic jams along your
route the GPS-300 will show the traffic information on the map and automat-
ically recalculate the route. If the anticipated delay is too long, the system will
put you on an alternative route. You enter the TMC menu by pressing the
“TMC” button on the “Navigation Settings”screen.
The “Traffic Events” Menu
The main TMC window displays
all incoming traffic messages
sorted by distance from your
actual position. The traffic
information contains the type
of traffic, the road number and
the length of event. You can
have a look at each individual
traffic event on the map by hit-
ting the “Show” button. Simply
hit “Back” on the map view to go back to this menu.
The “Settings” Button will route you to a subsequent settings menu where
you can make additional adjustments of the TMC system behaviour.
The “TMC Settings” Menu
Normally the GPS-300 will
automatically tune to the best
FM station. If you would like to
tune to a preferred FM station,
please “Activate Manual” and
use the“<”and“>”Buttons. This
allows you to select an FM sta-
tion which broadcasts TMC
messages, but may be too
weak to be found automatical-
ly. “Exclude selected station”
will deny the FM station which
is currently in use. This will help
you to avoid certain stations
with poor TMC performance.
Thereafter the device will
search for an alternative FM
station. Press “Show excluded
stations” to enable denied stations. The system will again include them in its
searching process.
35606_GPS200_300_eng:35606_GPS200_300 04/02/08 10:07 Side 20
