Harman Harman/Kardon RADIANCE 2400 User manual

OWNER’S
MANUAL

2
/ IMPORTANT SAFETY
INSTRUCTIONS
Verify Line Voltage Before Use
The has been designed for use with 100-
240 volt, 50/60 Hz AC current. Connection to a line voltage
other than that for which your product is intended can create
a safety and re hazard and may damage the unit. If you have
any questions about the voltage requirements for your specic
model or about the line voltage in your area, contact your
selling dealer before plugging the unit in to a wall outlet.
Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied
with your unit. We do not recommend that extension cords be
used with this product. As with all electrical devices, do not run
power cords under rugs or carpets, or place heavy objects on
them. Damaged power cords should be replaced immediately
by an authorized service center with a cord that meets factory
specications.
Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always
pull the plug; never pull the cord.
If you do not intend to use your speaker for any considerable
length of time, disconnect the plug from the AC outlet.
Do Not Open the Cabinet
There are no user-serviceable components inside this product.
Opening the cabinet may present a shock hazard, and any
modication to the product will void your warranty. If water
accidentally falls inside the unit, disconnect it from the AC
power source immediately, and consult an authorized service
center.

3
/ TABLE OF
CONTENTS
/IMPORTANT SAFETY INSTRUCTIONS............................................. 2
/ INTRODUCTION........................................................................................ 4
/WHAT’S IN THE BOX............................................................................... 5
/
PRODUCT OVERVIEW .............................................................................7
/PLACEMENT............................................................................................... 14
/ CONNECTING TO TV.............................................................................18
/ CONNECTING TO OTHER DEVICES ...............................................21
/POWER ON ................................................................................................23
/CONNECTING TO INTERNET ............................................................25
/ USING YOUR RADIANCE 2400 ........................................................27
/ SOUND SETTINGS..................................................................................31
/SETTINGS...................................................................................................33
/SPECIFICATIONS.....................................................................................34
/TROUBLESHOOTING............................................................................36
/OPEN SOURCE LICENSE NOTICE .................................................. 40
/ TRADEMARKS ........................................................................................... 41

4
/ INTRODUCTION
This manual includes information of the
wireless home theater system. We encourage you to take a few
minutes to read this manual, which describes the product and
includes step-by-step instructions to help you set up and get
started. Read and understand all the safety instructions before
using your product.
The may have an important software
update available. Please follow the instructions to connect
the product to Wi-Fi to ensure that your product has the most
recent software updates.
Design and specications are subject to change without notice.
If you have any questions about these products, their
installation or their operation, please contact your
Harman Kardon retailer or customer service, or visit us at
www.harmankardon.com

5
/ WHAT’S IN THE BOX
Carefully unpack the box and check if the following parts are
included. If any part is damaged, do not use it, contact your
Harman Kardon retailer or customer service.
2 3 4
1
5 6 7 8 10
9
1. Digital hub
2. Subwoofer
3. Tower speaker (stand) x 2
4. Tower speaker (upper part) x 2
5. HDMI cable
6. Optical cable
7. *Power cord x 4
8. Remote control with two AAA batteries
9. Adjustable rubber foot x 8
10. Carpet spike x 8
* Power cord quantity and plug type vary by regions.

/ WHAT’S IN THE BOX
6
Inserting batteries before using the remote control (AAA
batteries x 2)
Slide the battery cover in the direction of the arrow until it is
completely removed. Insert 2 AAA batteries (1.5V) oriented so
that their polarity is correct. Slide the battery cover back into
position.

7
/ PRODUCT
OVERVIEW
Front Panel - Digital Hub
1 2
1. Touch screen
• : Wi-Fi signal indicator.
• : Press to customize speaker setup.
• : Press to select a source (Bluetooth / Aux /
HDMI / Optical).
• : Press to customize the audio settings.
• : Press to customize the general settings.
• : Press to check the system information of this
product.
2. Infrared (IR) sensor
NOTE:
• The remote control operates on Bluetooth and
does not require line-of-sight with the IR sensor. You may also
operate the with a 3rd-party TV IR remote control
(See “TV remote control learning”).

/ PRODUCT OVERVIEW
8
Back Panel - Digital Hub
1 2 3 4 5 6 7 8
1. ETHERNET
• May be used to connect to the Internet (RJ45
connector).
2. SERVICE 1 / SERVICE 2 (for technical personnel only)
3. HDMI IN 1 / HDMI IN 2 / HDMI IN 3 / HDMI IN 4
• Connect to the HDMI output on a digital device.
4. AUX IN
• Connect to an audio device (3.5 mm jack).
5. HDMI OUT (TV ARC)
• Connect to the HDMI (ARC) input on your TV.
6. RESET
• Press and hold for 5 seconds to restore the factory
settings.
7. POWER
• Connect to the AC wall outlet.
8. OPTICAL IN
• Connect to an optical audio output on your TV or a
digital device.

/ PRODUCT OVERVIEW
9
Tower speakers
3 4 5
2
1
1. Connection status indicator
Solid white Connected to the digital hub
Fast ashing white Pairing / reconnecting
Slow ashing white System software updating

/ PRODUCT OVERVIEW
10
2. + / -
• Increase or decrease the volume level.
3. SERVICE (for technical personnel only)
4. POWER
• Connect to the AC wall outlet.
5. RESET
• Press and hold for 5 seconds to restore the factory
settings.

/ PRODUCT OVERVIEW
11
Subwoofer
2
3
4
1
1. Connection status indicator
Solid white Connected to the digital hub
Fast ashing white Pairing / reconnecting
Slow ashing white System software updating
2. SERVICE 2 (for technical personnel only)
3. RESET
• Press and hold for 5 seconds to restore the factory
settings.
4. POWER
• Connect to AC wall outlet.

/ PRODUCT OVERVIEW
12
Remote Control
1
3
5
4
7
6
8
9
10
13
12
11
2
1. (Power)
• Power on or switch to standby.
2. Source zone
• Select an input source: OPTICAL /
AUX / HDMI TV / HDMI 1 / HDMI
2 / HDMI 3 / HDMI 4.
3. MUTE
• Mute or unmute the audio.
4. VOL + / -
• Increase or decrease the volume
level.
• Press and hold to continually
increase or decrease the volume.
5. SOUND MODE
• Access or exit sound mode options
(Standard / Music / Movie / News).
6.
• Play or pause Chromecast built-in,
Airplay or Bluetooth playback.
7. /
• Skip to the previous or next track
for Chromecast built-in, AirPlay or
Bluetooth playback.
8. SURROUND
• Turn the surround sound eect on
or o.

/ PRODUCT OVERVIEW
13
9. BASS - / +
• Turn bass down or up.
10. AUDIO SYNC - / +
• Decrease or increase audio sync delay if the video and
audio synchronization is not correct.
11. NIGHT MODE
• Turn the night mode (Dynamic Range Control) on or o
for Dolby Digital tracks.
12. BT
• Press to select the Bluetooth source.
13. SOURCE
• Select an input source: HDMI TV / HDMI 1 / HDMI 2 /
HDMI 3 / HDMI 4 / OPTICAL / AUX / Bluetooth.
NOTE:
• The remote control operates over Bluetooth and does not
require line of sight with the Digital Hub. If the remote control is
unresponsive, please see the Troubleshooting section.

14
/ PLACEMENT
NOTE:
• Make sure there are AC outlets nearby.
Digital Hub Placement
Place the digital hub near your TV. Do not place anything on
top of the digital hub.
Tower Speaker Assembly
Align the upper part of each speaker with the stand and turn
clockwise until locking into place. Remove the label on the
tower.

/ PLACEMENT
15
Using the Supplied Spikes (Optional)
Eight metal spikes are supplied for use when you place the
tower speakers on a carpeted surface.
1) Gently lay down each tower speaker on a soft, nonabrasive
surface.
2) Screw each spike into the threaded hole. Make sure all
spikes are screwed in completely for stability.
NOTE:
• NEVER drag a tower speaker to move it, as this will damage the
spikes and/or your carpet oor.
• Always lift a tower speaker and carry it to its new location.
Using the Supplied Adjustable Rubber Feet
(Optional)
Eight adjustable rubber feet are supplied for use when you
place the tower speakers on an uneven surface. Do not try
them on even surfaces.
1) Gently lay down each tower speaker on a soft, nonabrasive
surface.
2) Screw each adjustable rubber foot into the threaded hole.
Adjust height of these adjustable rubber feet as necessary
for optimal stability.

/ PLACEMENT
16
Recommended Tower Placement
The Radiance tower uses Constant Beamwidth Technology™
(CBT) to create a wide sound stage and wide sweet spot.
TIPS:
• Place the towers at least 2m (6.5 ft) apart from each other and at
least 2m (6.5 ft) from the listening area.
• Maintain a distance of at least around 0.3 m (1 ft) between the
tower column and the front wall, and around 1 m (3.3 ft) between
the tower column and the side walls.

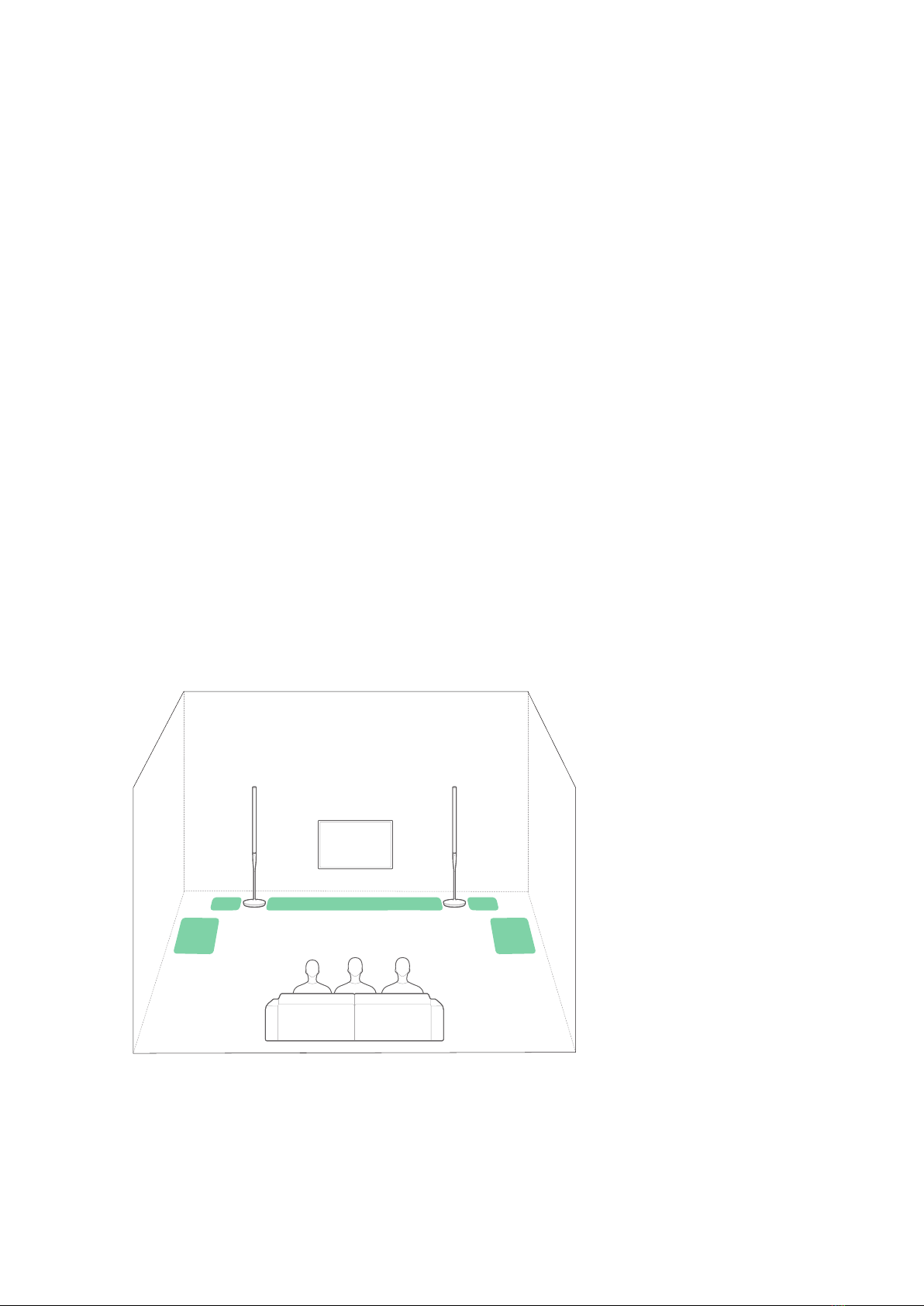

Recommended Subwoofer Placement
To get the best sound performance, it is recommended to
place the subwoofer as below:
* The green area shows the recommended subwoofer location.

/ PLACEMENT
17
TIPS:
• Place the subwoofer near the towers along the same wall.
This can be (1) in the front of the room between the towers, or
(2) outside of the towers. If this is not possible, then place the
subwoofer (3) against the side wall, near the towers.
• Avoid placing the subwoofer in a corner or next to a tall cabinet.
• Leave around 0.3m (1 ft) between the subwoofer and a wall.

18
/ CONNECTING TO TV
NOTE:
• Before you make or change any connections, make sure that all
devices are disconnected from the power outlets.
HDMI (Preferred)
1) Connect an HDMI cable from the HDMI OUT (TV ARC)
connector on the back of the digital hub to the HDMI IN
(ARC) connector on your TV.
2) Tap on the touch screen or press the HDMI TV
button on the remote control to select the mode.
HDMI IN (ARC)
HDMI OUT (TV ARC)
NOTES:
• An HDMI connection supports digital audio and video with a
single connector. It is the best option to connect to the TV.
• If your TV features an connector, you can enjoy the TV
audio through your by using a single HDMI cable.
• If you want to enjoy sound only from your wireless
home theater system, make sure to set your TV audio settings to
support external speakers and disable the built-in TV speakers.
• This HDMI connection is required if you intend to connect other
video devices to the inputs to display on your TV.
• On your TV, turn on HDMI-CEC operations. HDMI-CEC is a feature
that enables CEC compliant devices that are connected through
HDMI to be controlled by a single remote control, such as volume
control for both the TV and the . See the user
manual of your TV for details.

/ CONNECTING TO TV
19
Optical
NOTE:
• Make sure you have removed the protective cap from both ends
of the optical cable.
1) Connect the connector on the digital hub to the
connector of your TV with a digital optical
cable (sold separately).
2) Tap on the touch screen or press the
button on the remote control to select the
OPTICAL mode.
OPTICAL IN
OPTICAL OUT
TV Remote Control Setup
To use your TV remote control for both your TV and the
, check that your TV supports HDMI-CEC. If
your TV does not support HDMI-CEC, follow the steps under
“TV remote control learning”.

/ CONNECTING TO TV
20
HDMI-CEC
If your TV supports HDMI-CEC, enable the functions as
instructed in your TV user manual. You can control the
volume +/-, mute/unmute and power on/standby functions on
your through the TV remote control.
TV remote control learning
1) On the touch screen, tap “Options” > “Universal IR
learning”.
2) Tap the button to start the Universal IR learning on your
TV remote control.
3) Point your TV remote control at the digital hub. Follow
the screen instructions to operate the buttons on your TV
remote control.
NOTE:
• The source selector on your TV remote control can only be used
to select source devices connected to the TV.
