hartmann
Model : CTCS 3/60
Ceramic Cooktop
Instruction & Installation Manual for
CERAMIC COOKTOP
Model : CTCS 3/70

Working Principle
1
Safety
Power level 1 2 3 4 5 6 7 8 9
Default working
time(hour) 10 8 7 6 5 4 3 2 1
Dear customer,
Thank you for purchasing our ceramic cooktop. Our product can serve you
many years to your satisfaction. Please read the instruction manual carefully
before installation. Keep it in a safe place after reading for future reference.
The microcomputer ceramic cooktop employs resistance wire heating,
and uses power regulation with the microcomputer controlling heating
time and preventing overheating.
High temperature protection
When an excessive temperature is detected , the thermostat switches off.
Residual heat indicators
After using the hob, waste heat remains in the heating area. The
indicator shows the code “H”, warning you not to touch the heating area.
Auto shut down protection
The cooktop will automatically shut down in the following sequence.

2
Installation
Selection of installation equipment
Air intake
Figure (2)
mini 5 cm
mini 2 cm
Drill holes on the bench surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 50 mm space shall be
preserved around the hole. Be sure the thickness of the bench surface is at
least 30mm. Please select heat-resistant bench material to avoid larger
deformation caused by the heat radiation from the hotplate.
As shown in Figure (1)
Under any circumstances, make sure the ceramic cooker hob is well
ventilated and the air inlet and outlet are not blocked.Ensure the ceramic
cooker hob is in good working order. As shown in Figure (2)

Note: The safety distance between the ceramic hob and the cupboard
above the hotplate should be at least 760mm.
3
screw
bracket
base
screw hole
Figure (3)
Fix the hob on the bench by screwing four brackets on the bottom of hob
(see picture) after installation.Adjust the bracket position to suit.
The socket shall be connected according to the relevant standard
or connected to a single-pole cut-out. The method of connection
is shown in Figure (3):
Power line connection
Voltage&frequency
220-240V
50\60HZ
220-240V 2+2-N
50\60HZ
21
L
Black&Brown
1 2
L1 L2 Gray Blue N1 N2
3 4
43 5
5
Wire connection
NYellow/Green
Yellow/Green
Gray&Blue
Black Brown
Caution
1. The ceramic cooktop must be installed by qualified personnel or technicians.
We have professionals at your service. Please never conduct the operation
by yourself.
2 . The ceramic cooktop shall not be mounted to other appliances.
3 . The ceramic cooktop shall be installed such that heat radiation can be
ensured to enhance its reliability.
4 . The splash back and induced heating zone above the table surface shall
withstand heat.
5 . To avoid any damage, the sandwich layer and adhesive must be resistant
to heat.

4

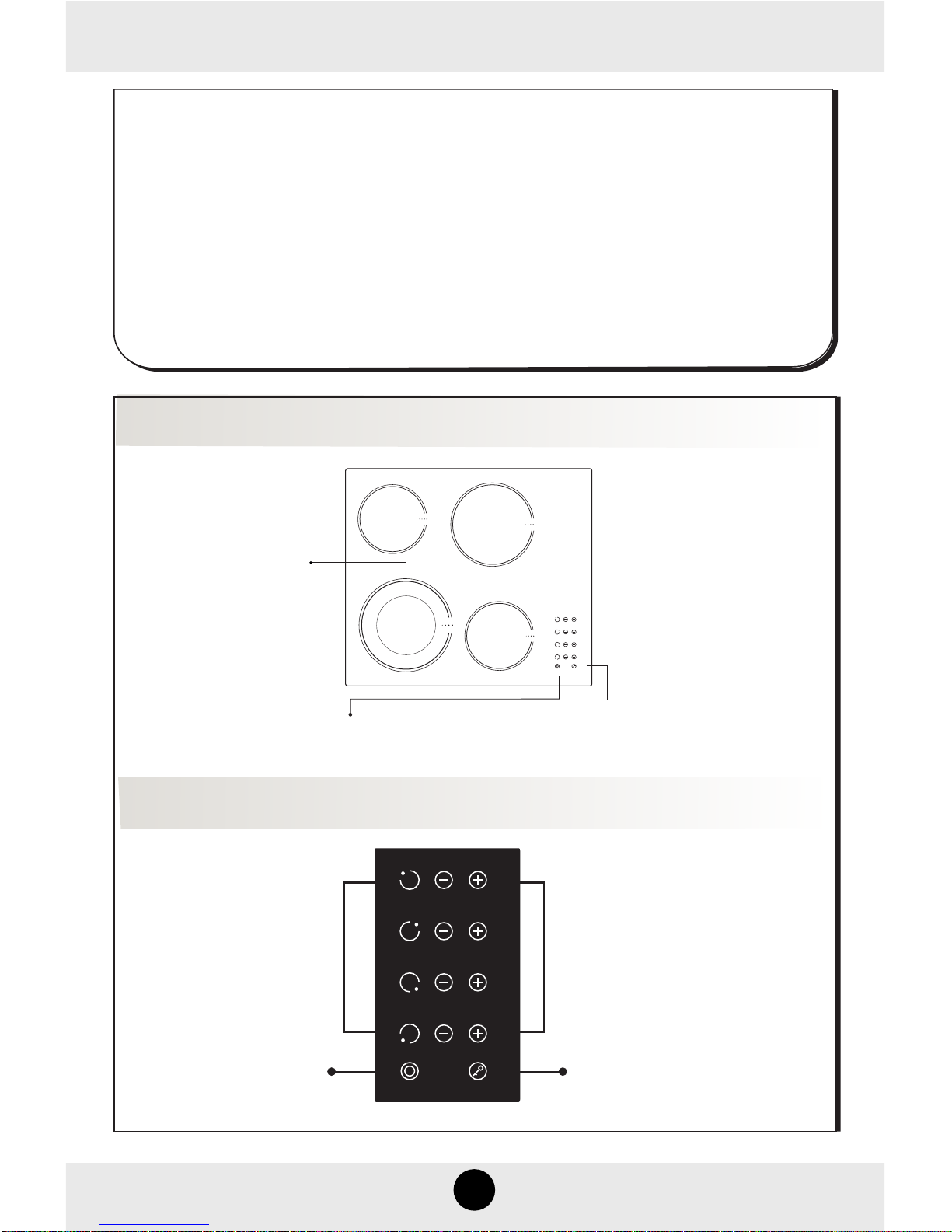

The ceramic cooker hob appearance
Schematic diagram of the control panel
Power regulating key
Double zone Childproof lock key
ON/OFF
(1/4)
ON/OFF
Glass plate
Control panel
12
3
4
If the cable is damaged or needs to be replaced, the operation must be
carried out the by after-sale agent with dedicated tools to avoid any
accidents. If the appliance is being connected directly to the mains an
omni polar circuit-breaker must be installed with a minimum opening of
3mm between contacts. The installer must ensure that the correct
electrical connection has been made and that it is compliant with safety
regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized
technicians only.

Instructions for Use
5
Preparation before using
Note: 1. In standby working mode, touch the “ON/OFF” symbol
& the heating zone will restore to the standby working
mode if there is no heat setting within 2 minutes.
2. Every heating zone is independent of each other.
Double zone function: If you want to use bigger heating
zone, please touch the heating zone selection symbol
when the hob is in working mode. You can select the
size of the heating zone according to the size of the pot.
Operation Instructions:
Touch the “ON/OFF” symbol for the corresponding heating
zone where there is a utensil and the corresponding
indicator displays “-". Then you can set the heat setting
by touching the “+” or “-“ symbol.
Childproof lock: To ensure the safety of children, the
hob is provided with the function of childproof lock.
Activating the childproof lock: When the lock is
deactivated, touch the “childproof lock” symbol to activate
the childproof lock. However when in the locked position,
the "stop" touch control has priority and cuts off the
power to the hob. And the other buttons are disabled
except the “stop” touch control button and the “Lock”
button.
Deactivating the childproof lock: When the hob in the
locking mode, you can deactivate the childproof lock
by holding the “childproof lock” symbol.
The power of each heating zone are shown as follow:
Note: 1. This function is available only in the left front heating zone.
2. You can select the function from level 1 to level 9.
3. When the heating zone is in double loop working mode,
the double loop indicator.
1 2
1200W 1800W 1000W 1200W
4
3
Heating zone
Power
Inner outter
1200W
ON/OFF
Child safety
Double zone
After power on, a signal will sound, the four power indicators light up for 1
second then go out, indicating the ceramic cooktop is in standbymode.

Never wash with water
with water directly to avoid
danger.

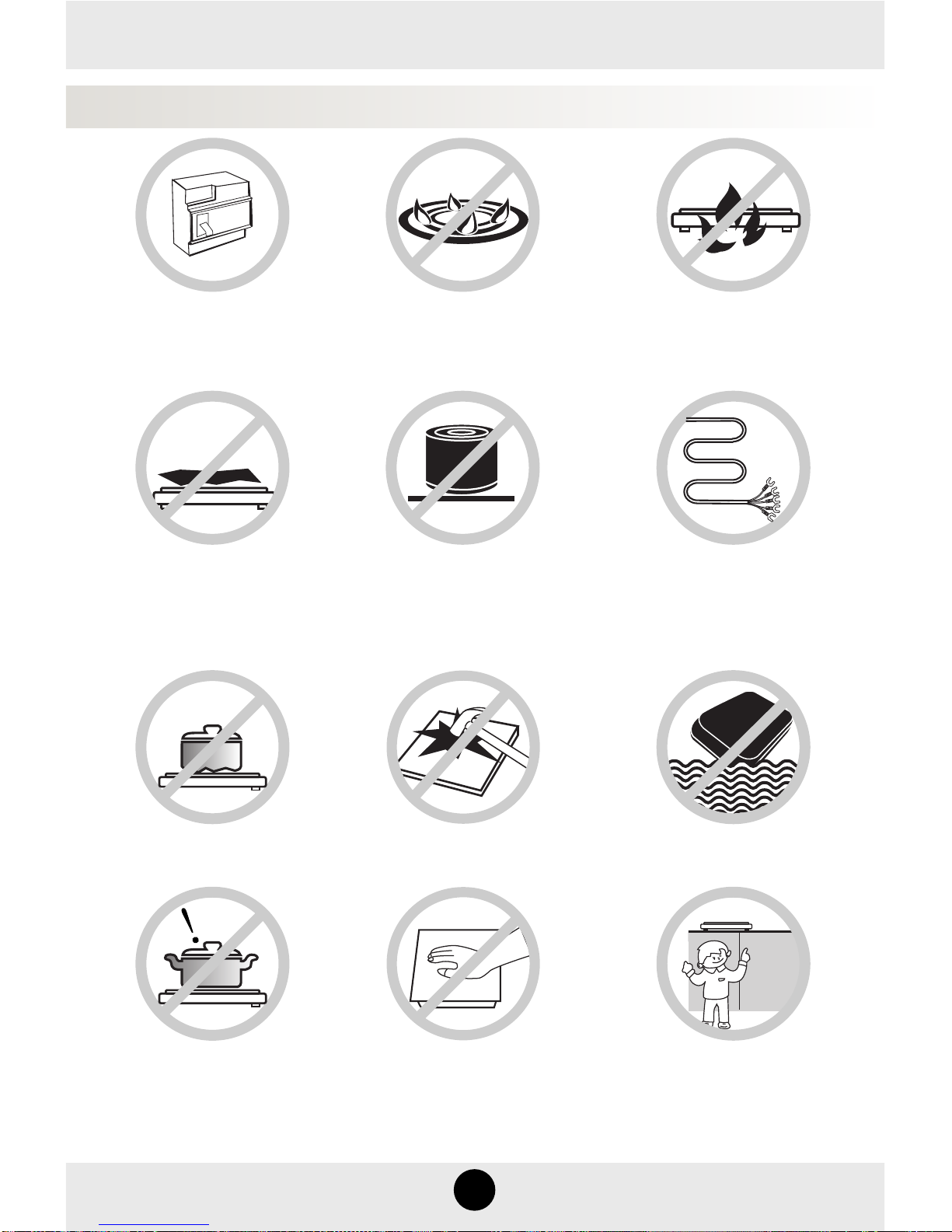

Safety Reminding and Maintenance
Never have the cooker to
work without food inside
the utensil,its operational
performance may be
affected and danger may
happen.
If the supply cord is damaged
, it must be replaced by the
service agent or similarly
in order to avoid a hazard.
6
Adedicated power protection
must be incorporated in the
fixed wiring in accordance
with the wiring rules.
Never use the ceramic cooker
hob in high temperature
environments such as near a
gas stove or kerosene stove.
For sealed foods such as
canned goods, please do not
heat them before opening their
so as to avoid any dangers
of explosion due to heating
expansion.
If the surface is cracked, swith
off the appliance to avoid the
possibility of electric shock.
Do not place rough or uneven
appliances, which may
damage the ceramic surface.
Do not put any detergents or
flammable materials in the
equipment installed under the
ceramic cooker hob.
qualified persons
Never use without food
inside, otherwise its
operational performance maybe
affected and danger may
happen.
After being used the
corresponding heating zone
is still hot. Never touch the
ceramic surface to avoid
burning.
Keep electrical appliance
out of reach from children.

7
Light
Clean with hot water and
damp sponge
Cleaning sponge
Accumulation
of dirt
Clean with hot water and
abrasive sponge
Special cleaning
sponge for ceramic
glass
Rings and lime
spots
melted plastics
Apply white vinegar to the
polluted zone, then wipe it
dry with soft cloth.
Use a scraper suitable for
ceramic glass (to protect
glass, a silicon product is
preferred) to remove
residuals
Special adhesive for
ceramic glass
Special adhesive for
ceramic glass
Cleanness and Maintenance
You can easily clean the surface of the ceramic cooker hob if
following the methods given in the table.
Type of contam-
ination Method of cleaning Articles used for
cleaning
Indoor use only.
DISPOSAL: Do not dispose
this product as unsorted
municipal waste. Separate
collection is necessary.
Clean the ceramic cooker
hob on a regular basis to
prevent foreign matters from
entering the fan thus
affecting the operation.

Special DecIaration
8
Warranty
For any failure of the product, please contact Customer Care
Damages caused by improper use, storage and maintenance of
the consumer.
Damages caused by unauthorized disassembly and repair.
Invoice and model of product are incorrect or are altered.
Valid invoice can not be presented.
Damages caused by force majeure.
Using the ceramic cooker hob for commercial purposes.
4. For those products outside the operations area of Customer Care.
Customer Care: Tel; 0415 195 309
1. There is a 2 year guarantee with this product.
2. The period of warranty shall start from the date on which the invoice
is issued.
3. Any one of the following cases is not covered by warranty:
All the contents in this material have been subjected to careful check.
For any mistake and omission in printing or misunderstanding of the
contents, the company keeps the right of interpretation.
