HAT REYA POWER PWR-AC User manual

PAGE 1 OF 8 © 2023 Human Active Technology, LLC P517925 REV A
RE YA™POWER
Installation Instructions
Human Active Technology
800 524 2744
[e-mail]
team-hat.com

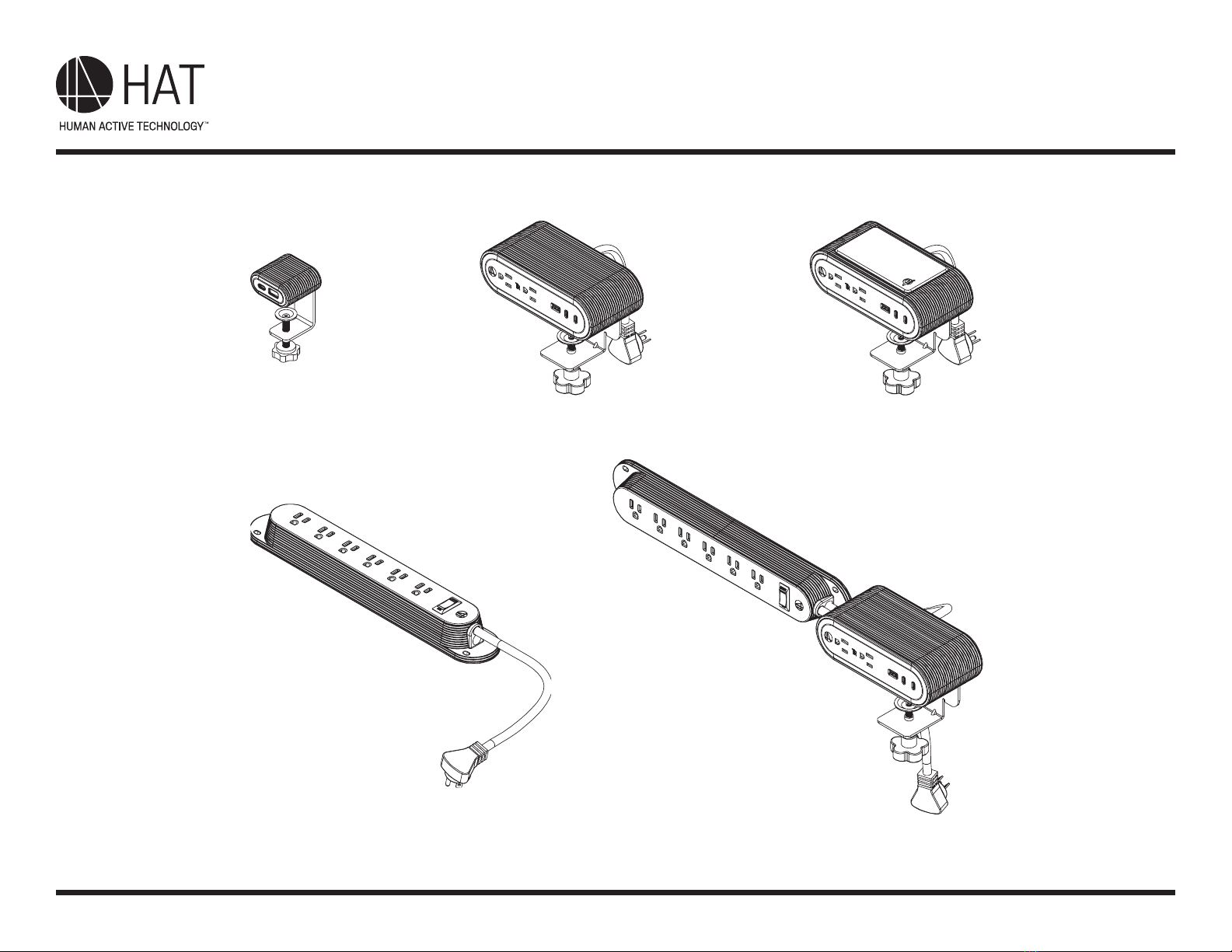

PWR-AC
PWR-STRP
PWR-ACC PWR-ACC-WRLS
PWR-ACC-STRP

PAGE 2 OF 8
A
PPh M4.8 x 22
Se lf Tappi ng
717937
B
Under Mount Adapter
117942
C
Side Mount Adapter
117941
D
PPh M4.2 x 16
Self Tapping
717935
E
Plastic-Head
Thumb Screw
717918W
F
PhFHMS M3.5 x 0.6mm x
6mm Long
718122
PWR-AC
—1x 1x 2x 1x 1x
PWR-ACC
——————
PWR-ACC-WRLS
——————
PWR-STRP
4x —————
PWR-ACC-STRP
4x —————

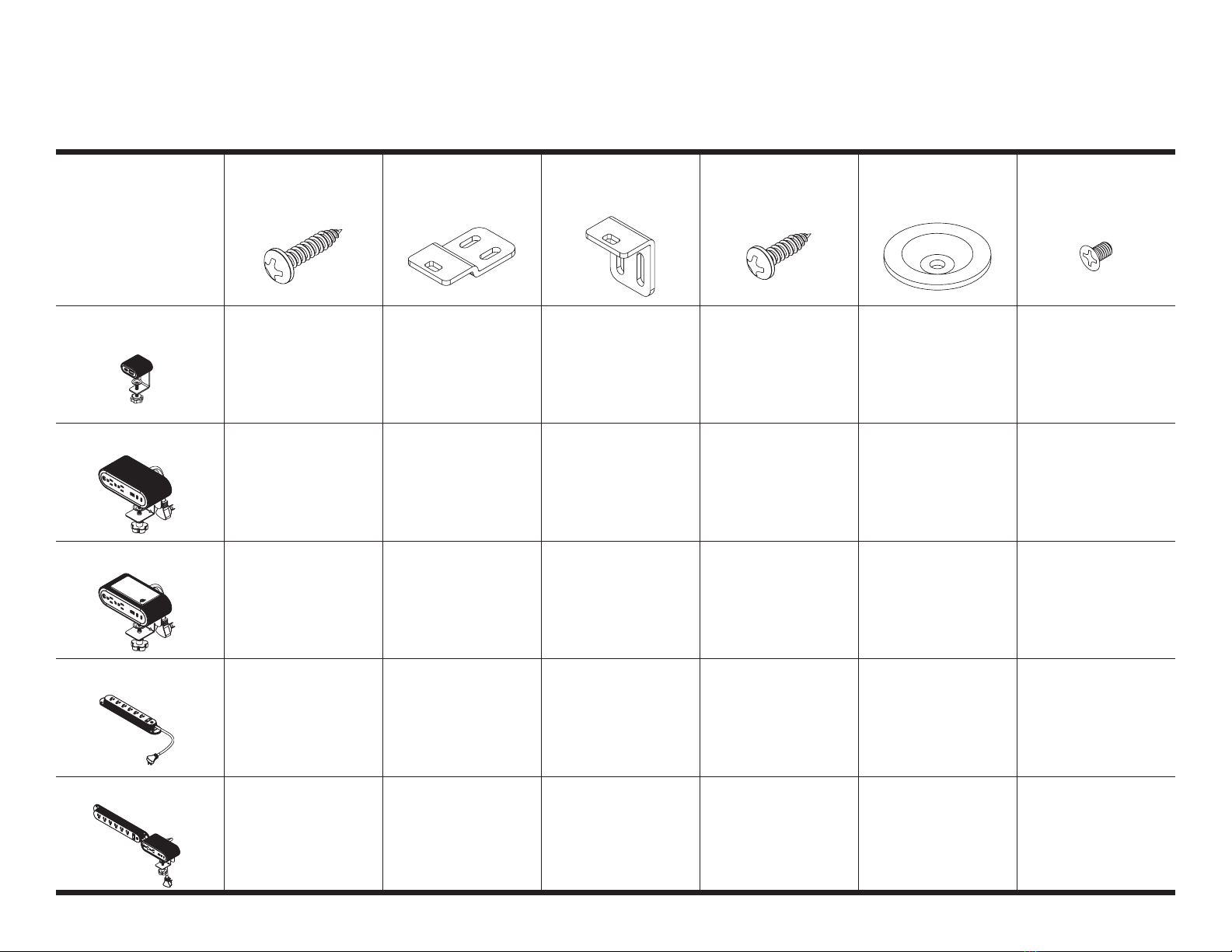

PARTS LIST

PAGE 3 OF 8
IMPORTANT SAFETY INSTRUCTIONS
WARNING - Risk of Electric Shock, Fire, and Injury.
To reduce the risks of burns, fire, electric shock, or injury to persons:
• Always unplug this unit from the electrical outlet before installing or removing it.
• Use only indoors.
• Dry location use only.
• Do not operate where aerosol (spray) products are being used or where oxygen is
being administered.
• Never operate this unit if it has a damaged cord or plug, if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the furnishing to a
service center for examination and repair.
• Do not install this unit near heated surfaces/sources.
• Do not open the unit due to risk of electric shock hazard.
No user serviceable parts inside.
• Never drop or insert any object into any opening.
• Connect this unit to a properly grounded outlet/receptacle only.

PAGE 4 OF 8
PWR-AC
Features
1 USB-A charger port
1 USB-C charger port
Can charge laptop up to 65 Watts
Mount: Desk edge/surface mount,
under mount, edge mount
(Desk edge/surface mount: 0.5" - 1.75")
Specifications
Input: DC, 65W max from HAT Base Control Box
Output:
Single Port in Use:
USB-C: QC2.0, QC3.0, PD3.0, PPS, 65W max
USB-A: 5V/2A, 10W max
Both Ports In Use:
USB-C: 20V2.25A max
USB-A: 5V2A max
* Compatible with HAT bases only

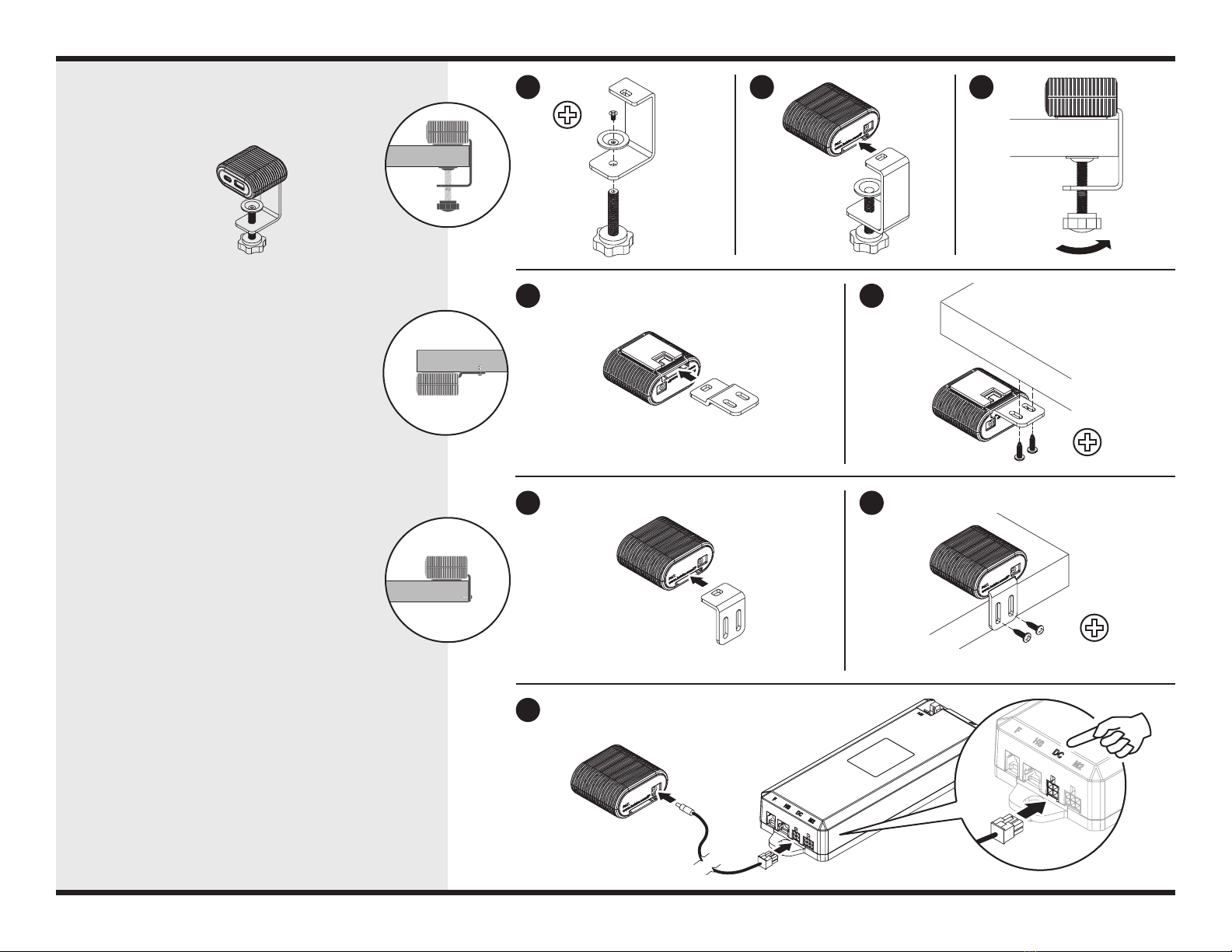

1 2 3
8
4 5
6 7
F
E
B
C
D
D
HAT Base
Control Box

PAGE 5 OF 8

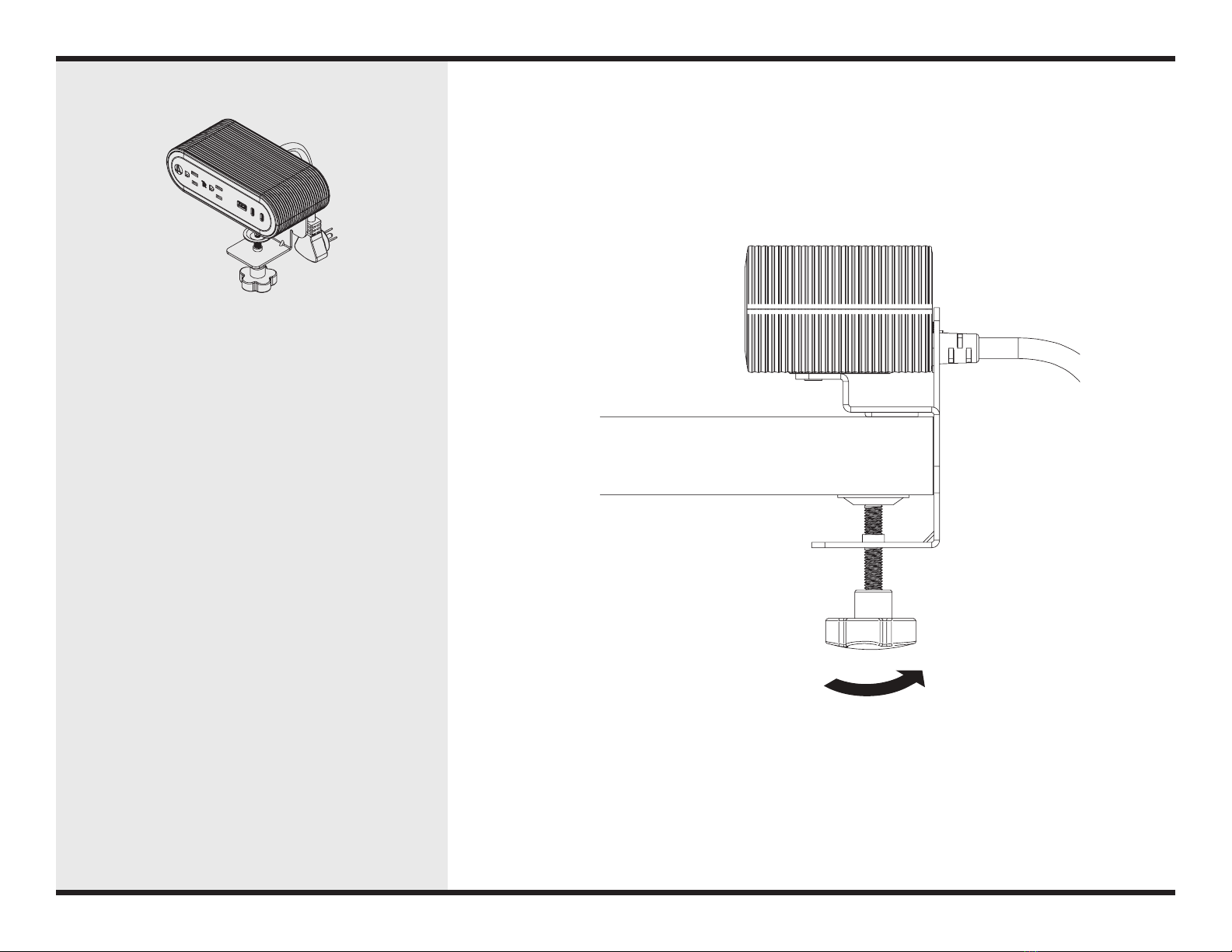

PWR-ACC
Features
2 power receptacles
1 USB-A charger port
2 USB-C charger ports
Can charge laptop up to 65 Watts
Mount: Desk edge, 0.75" - 1.75"
Conforms and tested to
UL 962A and UL 1310 standards
Tamper-resistant (TR) AC outlets
Integrated circuit breaker
Specifications
Input: 125VAC, 60Hz, 15A max
Output:
AC Outlets (2): 120VAC, 60HZ, 15A max
Single port use:
USB-A: 5V3A, 9V2.A, 12V1.5, 18W max
USB-C1: 5V/3A, 9V3A, 12V3A, 15V3A, 20V3.25A;
PPS (3.3-11V4.05A, 3.3-16V3A, 65W max);
PD3.0, APPLE2.4A, DCP1.5A, QC2.0/3.0, AFC
USB-C2: 5V3A, 9V2.22A, 12V1.67A, 20W max
Multi port use:
USB-C1 + USB-C2: USB-C1 max 45W (5V3A, 9V3A,
12V3A, 15V2.67A, 20V2.25A); USB-C2 max 20W
(5V3A, 9V2.22A, 12V1.67A)
USB-C1 + USB-A: USB-C1 max 45W (5V3A, 9V3A,
12V3A, 15V2.67A, 20V2.25A); USB-A max 18W
(5V3A, 9V2.A, 12V1.5, 18W max)
USB-C2 + USB-A: Both share 15W
USB-C1 + USB-C2 + USB-A: USB-C1 max 45W
(5V3A, 9V3A, 12V3A, 15V2.67A, 20V2.25A);
USB-C2 & USB-A share 15W

PAGE 6 OF 8

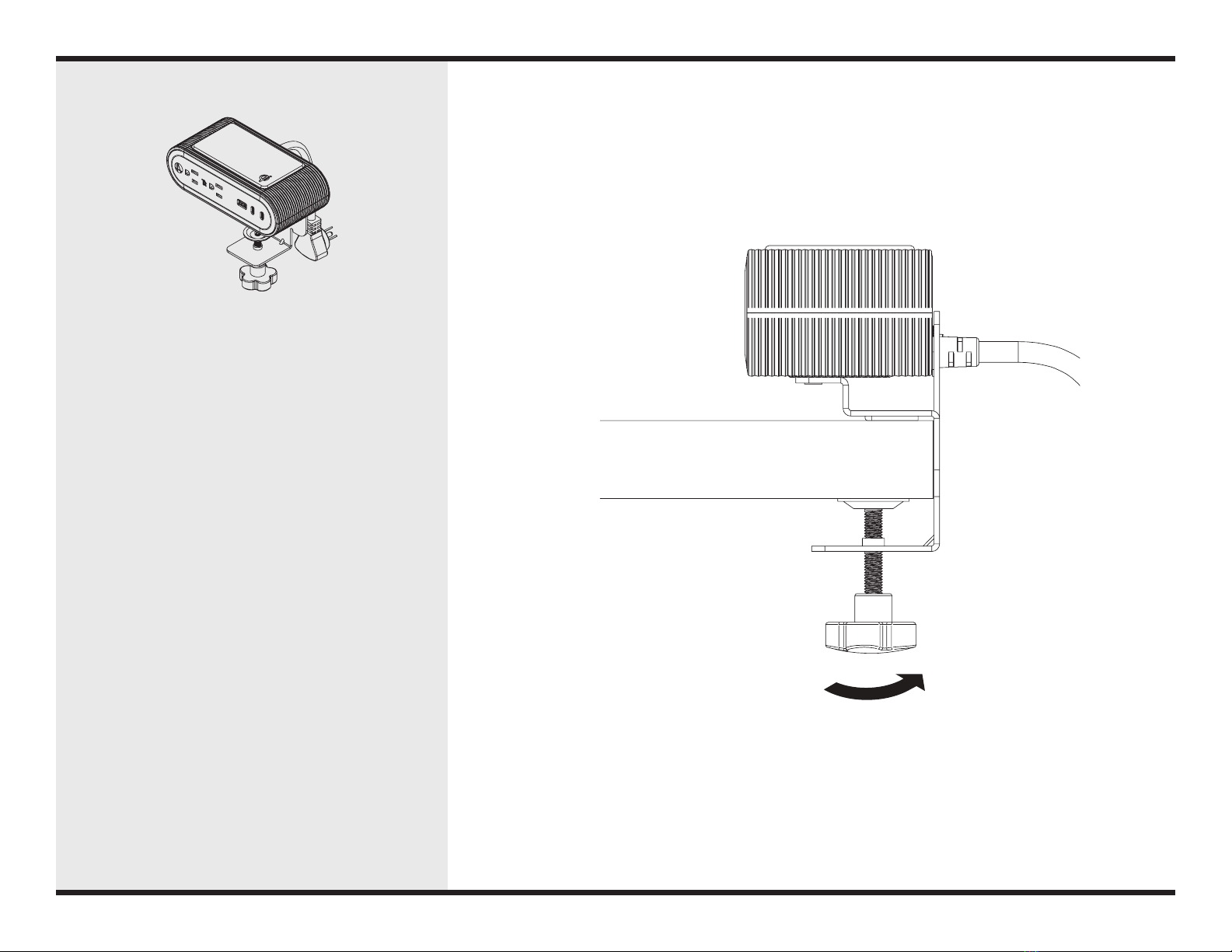

PWR-ACC-WRLS
Features
2 power receptacles
1 USB-A charger port
2 USB-C charger ports
Can charge laptop up to 65 Watts
Fast Qi certified wireless charging
Mount: Desk edge, 0.75" - 1.75"
Conforms and tested to
UL 962A and UL 1310 standards
Tamper-resistant (TR) AC outlets
Integrated circuit breaker
Specifications
Input: 125VAC, 60Hz, 15A max
Output:
AC Outlets (2): 120VAC, 60HZ, 15A max
Single port use:
USB-A: 5V3A, 9V2.A, 12V1.5, 18W max
USB-C1: 5V/3A, 9V3A, 12V3A, 15V3A, 20V3.25A; PPS
(3.3-11V4.05A, 3.3-16V3A, 65W max), PD3.0,
APPLE2.4A, DCP1.5A, QC2.0/3.0, AFC
USB-C2: 5V3A, 9V2.22A, 12V1.67A, 20W max
Multi port use:
USB-C1 + USB-C2: USB-C1 max 45W (5V3A, 9V3A,
12V3A, 15V2.67A, 20V2.25A); USB-C2 max 20W
(5V3A, 9V2.22A, 12V1.67A);
USB-C1 + USB-A : USB-C1 max 45W (5V3A, 9V3A,
12V3A, 15V2.67A, 20V2.25A); USB-A max 18W
(5V3A, 9V2.A, 12V1.5, 18W max)
USB-C2 + USB-A : Both share 15W
USB-C1 + USB-C2 + USB-A : USB-C1 max 45W
(5V3A, 9V3A, 12V3A, 15V2.67A, 20V2.25A);
USB-C2 & USB-A share 15W;
Wireless Charging: Qi 5W, 7.5W, 10W, 15W (auto detection)

PAGE 7 OF 8

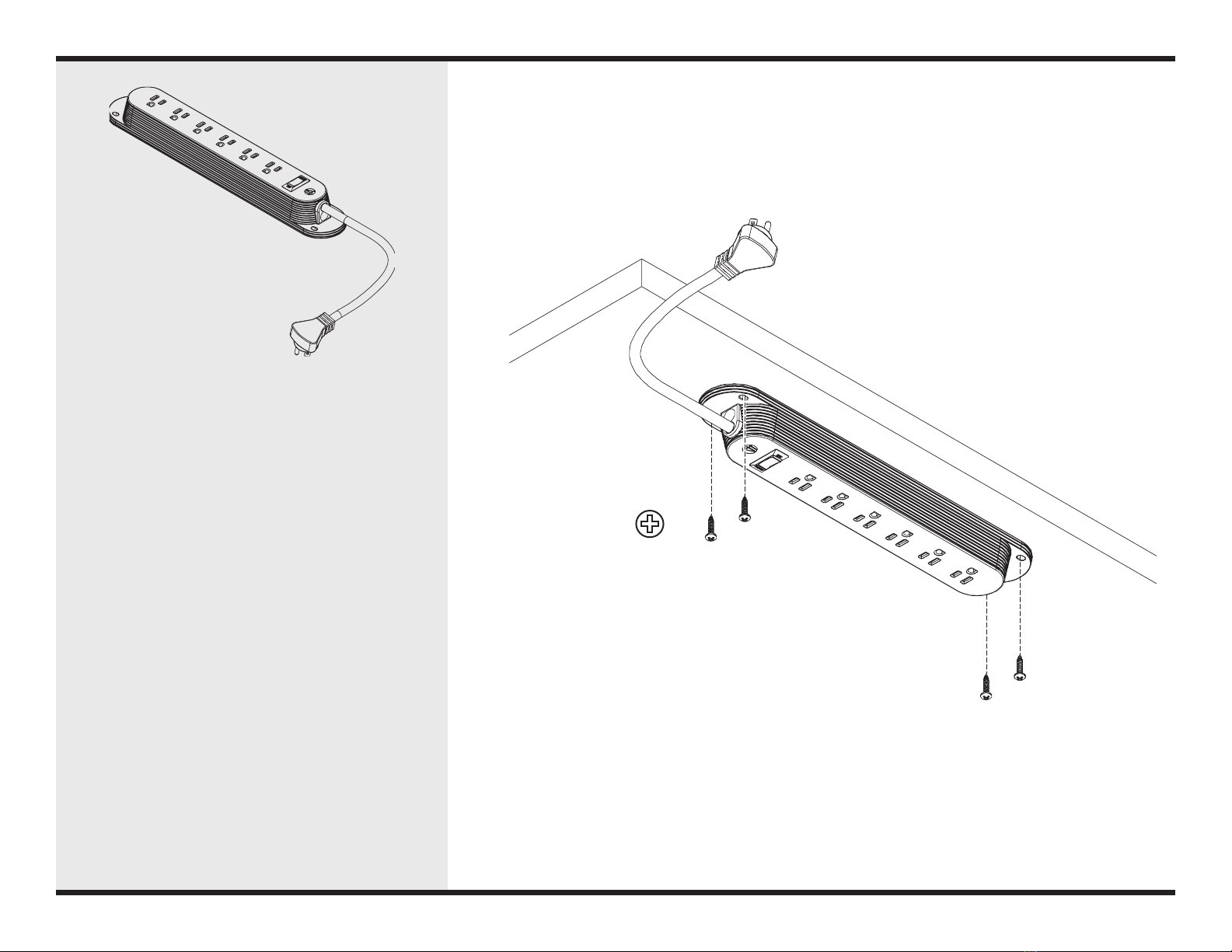

PWR-STRP
Features
6 power receptacles
Conforms and tested to
UL 962A and UL 498 standards
Tamper-resistant (TR) AC outlets
Integrated circuit breaker
Specifications
Input: 125VAC, 60Hz, 15A max
Output: AC Outlets (6): 120VAC, 60HZ, 15A max A

PAGE 8 OF 8

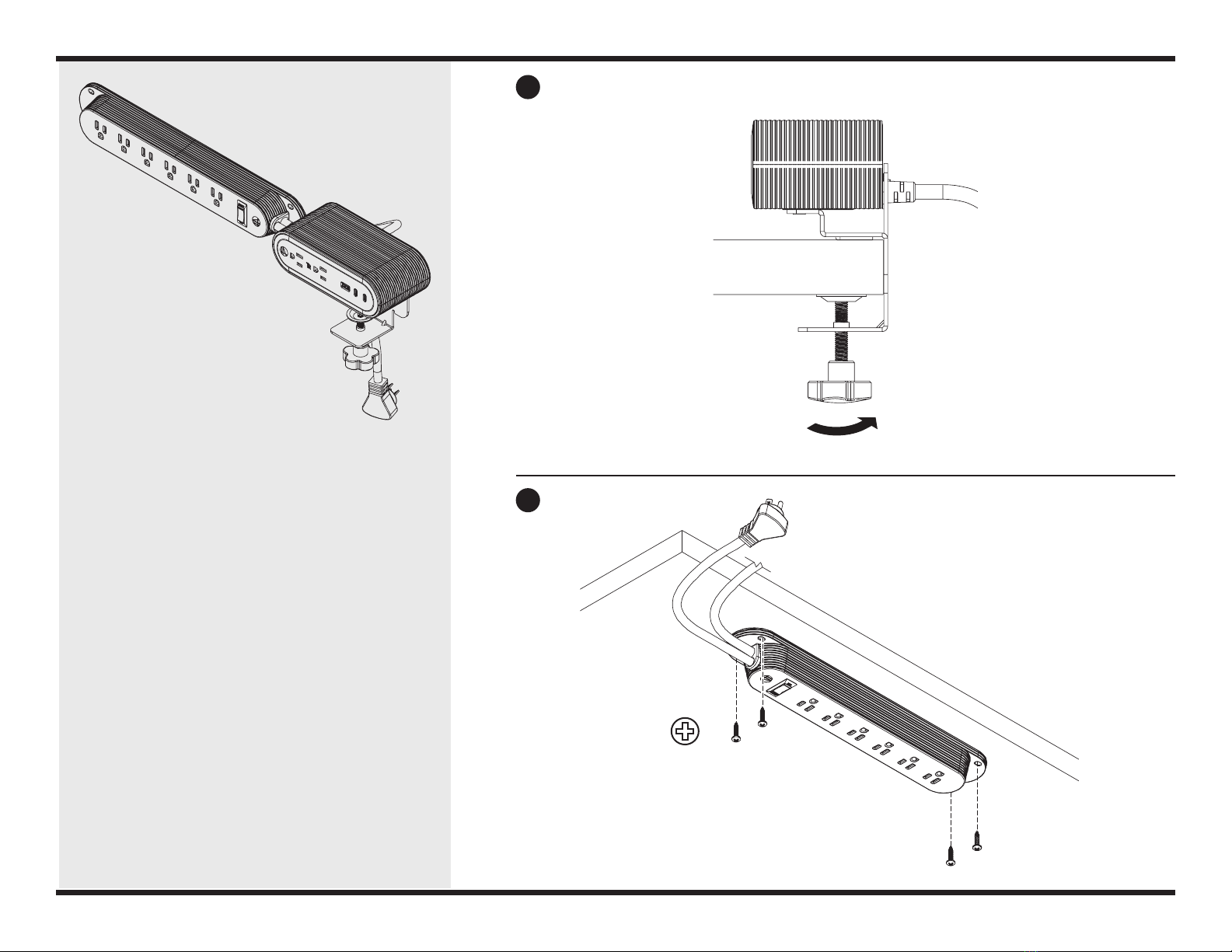

PWR-ACC-STRP
Features
Power Strip: 6 power receptacles
Power Module: 2 power receptacles
1 USB-A charger port
2 USB-C charger ports
Can charge laptop up to 65 Watts
Conforms and tested to UL 962A, UL 1310, and UL 498 standards
Tamper-resistant (TR) AC outlets
Integrated circuit breaker
Specifications
Input: 125VAC, 60Hz, 15A max
Output, Power Strip: AC Outlets (6): 120VAC, 60HZ, 12A max
Output, Surface Mounted Power Module:
AC Outlets (2): 120VAC, 60HZ, 15A max
USB:
Single Port Use
USB-A: 5V3A, 9V2.A, 12V1.5, 18W max
USB-C1: 5V/3A, 9V3A, 12V3A, 15V3A, 20V3.25A;
PPS (3.3-11V4.05A, 3.3-16V3A, 65W max),
PD3.0, APPLE2.4A, DCP1.5A, QC2.0/3.0, AFC
USB-C2: 5V3A, 9V2.22A, 12V1.67A, 20W max
Multi Port Use
USB-C1 + USB-C2: USB-C1 max 45W (5V3A, 9V3A,
12V3A, 15V2.67A, 20V2.25A); USB-C2 max 20W
(5V3A, 9V2.22A, 12V1.67A)
USB-C1 + USB-A: USB-C1 max 45W (5V3A, 9V3A,
12V3A, 15V2.67A, 20V2.25A); USB-A max 18W
(5V3A, 9V2.A, 12V1.5, 18W max)
USB-C2 + USB-A: Both share 15W
USB-C1 + USB-C2 + USB-A : USB-C1 max 45W
(5V3A, 9V3A, 9V3A, 12V3A, 15V2.67A, 20V2.25A);
USB-C2 & USB-A share 15W
