Hawg Wired MPS3004 User manual

d de es si ig gn ne ed d a an nd d b bu ui il lt t i in n t th he e u u. .s s. .a a. .
H
HA AW WG G W WI IR RE ED D
M
M
MP
P
PS
S
S3
3
30
0
00
0
04
4
4
/
/
/
R
R
RS
S
S4
4
40
0
00
0
04
4
4
A
A
AM
M
MP
P
PL
L
LI
I
IF
F
FI
I
IE
E
ER
R
R S
S
SY
Y
YS
S
ST
T
TE
E
EM
M
MS
S
S
I
IN NS ST TA AL LL LA AT TI IO ON N G GU UI ID DE E

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 2 NEWARK, CA
I
IN NT TR RO OD DU UC CT TI IO ON N
CONGRATULATIONS! YOU’VE JUST PURCHASED WHAT WE CONSIDER TO BE THE FINEST MOTORCYCLE
AUDIO EQUIPMENT AVAILABLE. WE TAKE PRIDE IN THE FACT THAT YOU’VE CHOSEN HAWG WIRED
PRODUCTS, AND WELCOME YOU TO OUR FAMILY OF AUDIOPHILE ENTHUSIASTS. OUR GOAL HERE IS
SIMPLE – TO BRING HIGH PERFORMANCE AUDIO FIDELITY TO YOU, THE RIDER, WITHOUT COMPROMISING
YOUR BIKE’S ELECTRICAL SYSTEM OR STORAGE SPACE. SOME SIDE EFFECTS MAY OCCUR HOWEVER,
INCLUDING BUT NOT LIMITED TO; PUZZLED LOOKS FROM OTHER MOTORISTS, OCCASIONAL SHOUTS
FROM YOUR NEIGHBORS, AND THE ENVY OF YOUR FRIENDS. AFTER YEARS OF DESIGN
AND ENGINEERING, CUSTOM CRAFTSMANSHIP, AND A CRAVE FOR CLEAN, CLEAR,
LOUD MUSIC, WE BELIEVE WE’VE NAILED THIS STUFF DOWN RIGHT.
THANK YOU FOR YOUR SUPPORT
THE HAWG WIRED TEAM
S
SE ER RI IA AL L N NU UM MB BE ER R
PLEASE RECORD THE MODEL AND SERIAL NUMBER[S] OF YOUR EQUIPMENT IN THE SPACE PROVIDED
BELOW AS YOUR PERMANENT RECORD. THESE NUMBERS CAN BE FOUND ON THE FRONT AND/OR
BOTTOM OF EACH COMPONENT. THIS WILL ASSIST US WITH YOUR FACTORY WARRANTY COVERAGE, AND
MAY BE USEFUL TO YOU IN THE UNFORTUNATE EVENT THAT IT’S STOLEN.
MODEL NUMBER[S]: SERIAL NUMBER[S]:
K
KI IT T C CO ON NT TE EN NT TS S
KIT ITEMS INCLUDED (BY QUANTITY): MPS3002
RS4002
MPS3004
RS4004
MPS3002 / RS4002 2 CHANNEL MAIN AMPLIFIER 1 1
MPS150 / RS200 SATELLITE AMPLIFIER 1
10 AWG POWER / GROUND CABLE 1 1
MAIN I/O HARNESS (FRONT HIGH LEVEL / FRONT SPEAKER OUT / REMOTE) 1 1
REAR SPEAKER OUTPUT CABLE 1
REAR HIGH LEVEL INPUT CABLE 1
LOW LEVEL (RCA TO PHONO) INPUT CABLE 1 2
CONTROL CABLE 1
SATELLITE BRACKET (BATWING USE ONLY) 1
LARGE VELCRO PAD 1 1
SMALL VELCRO PAD 1
30 AMP ATC FUSE 1 1
18 AWG BARREL CRIMP 8
8” BLACK ZIP TIE 6 6
DIELECTRIC GREASE PACKET 1 1
ALCOHOL CLEANING PAD 2 2

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 3 NEWARK, CA
B
BE EF FO OR RE E Y YO OU U B BE EG GI IN N
THIS SECTION IS INTENDED TO BRING YOU UP TO SPEED WITH OUR DOCUMENTATION CONVENTIONS.
WE RECOMMEND READING THIS MANUAL THOROUGHLY BEFORE BEGINNING YOUR INSTALLATION TO
ACHIEVE A TROUBLE FREE, LONG LASTING OUTCOME.
TERMINOLOGY USED IN THIS MANUAL:
SOURCE UNIT REFERS TO THE DEVICE THAT SUPPLIES THE AMPLIFIER WITH AUDIO INPUT,
TYPICALLY YOUR RADIO, HEAD UNIT, MEDIA DEVICE, ETC.
MAIN AMPLIFIER MPS3002 OR RS4002, MASTER 2 CHANNELS AMPLIFIERS THAT FUNCTION
STANDALONE. THE BIGGEST BOX IN THE KIT.
SATELLITE AMPLIFIER MPS150 OR RS200, ADD-ON AMPLIFIER THAT CONNECTS TO A MAIN AMPLIFIER.
ONLY USED FOR MORE THAN 2 CHANNELS. THE SMALL BOX IN YOUR KIT.
CONTROL CABLE USED TO CONNECT A SATELLITE AMPLIFIER TO THE MAIN AMPLIFIER FOR SYSTEMS
WITH MORE THAN 2 CHANNELS.
REMOTE TURN-ON WIRE USED TO SWITCH THE AMPLIFIER SYSTEM ON/OFF, USUALLY CONTROLLED BY YOUR
IGNITION SYSTEM (CIGARETTE LIGHTER METHOD), OR BY THE REMOTE LEAD OF AN
AFTERMARKET SOURCE UNIT.
LOW LEVEL INPUT CABLE USED WHEN RCA CONNECTORS ARE THE SOURCE OF INPUT TO THE AMPLIFIER,
TYPICALLY USED WITH AFTERMARKET SOURCE UNITS (PREFERRED METHOD).
HIGH LEVEL INPUT CABLE USED WHEN SPEAKER WIRES ARE THE ONLY SOURCE OF INPUT TO THE AMPLIFIER,
TYPICALLY USED WITH A FACTORY SOURCE UNIT.
BATWING FAIRING HARLEY-DAVIDSON®TERM FOR THE FAIRINGS ON ELECTRA GLIDE MODELS, FORK
MOUNTED, SINGLE HEADLIGHT STYLE.
SHARKNOSE FAIRING HARLEY-DAVIDSON®TERM FOR THE FAIRINGS ON ROAD GLIDE MODELS, FRAME
MOUNTED (FIXED), DUAL HEADLIGHT STYLE.
MANUFACTURER INSTRUCTIONS REFERS TO ANY DOCUMENTATION PROVIDED BY A MANUFACTURER OTHER THAN
HAWG WIRED (IE. HARLEY-DAVIDSON®SHOP REPAIR MANUAL, AFTERMARKET
SOURCE UNIT OR SPEAKER MANUAL, ETC.).
QUICK CONNECT SYMBOLS:
KEEP AN EYE OUT FOR THE “QUICK CONNECT” SYMBOLS THROUGHOUT THIS MANUAL; THEY PROVIDE A
VISUAL LINK BETWEEN INSTRUCTIONS, DIAGRAMS, AND THE SYSTEM COMPONENTS.
POWER BATTERY POSITIVE (+12VDC)
GROUND BATTERY NEGATIVE (–), CHASSIS GROUND
REMOTE REMOTE TURN-ON LEAD ACTIVATED BY +12VDC
FUSE ESSENTIAL PROTECTION FROM SHORTS
LINE-IN SOURCE INPUT, LOW LEVEL OR HIGH LEVEL INPUT
CONTROL MAIN AMPLIFIER TO SATELLITE AMPLIFIER CONNECTION
SPEAKER TERMINAL BLOCK CONNECTIONS FOR SPEAKER OUTPUT

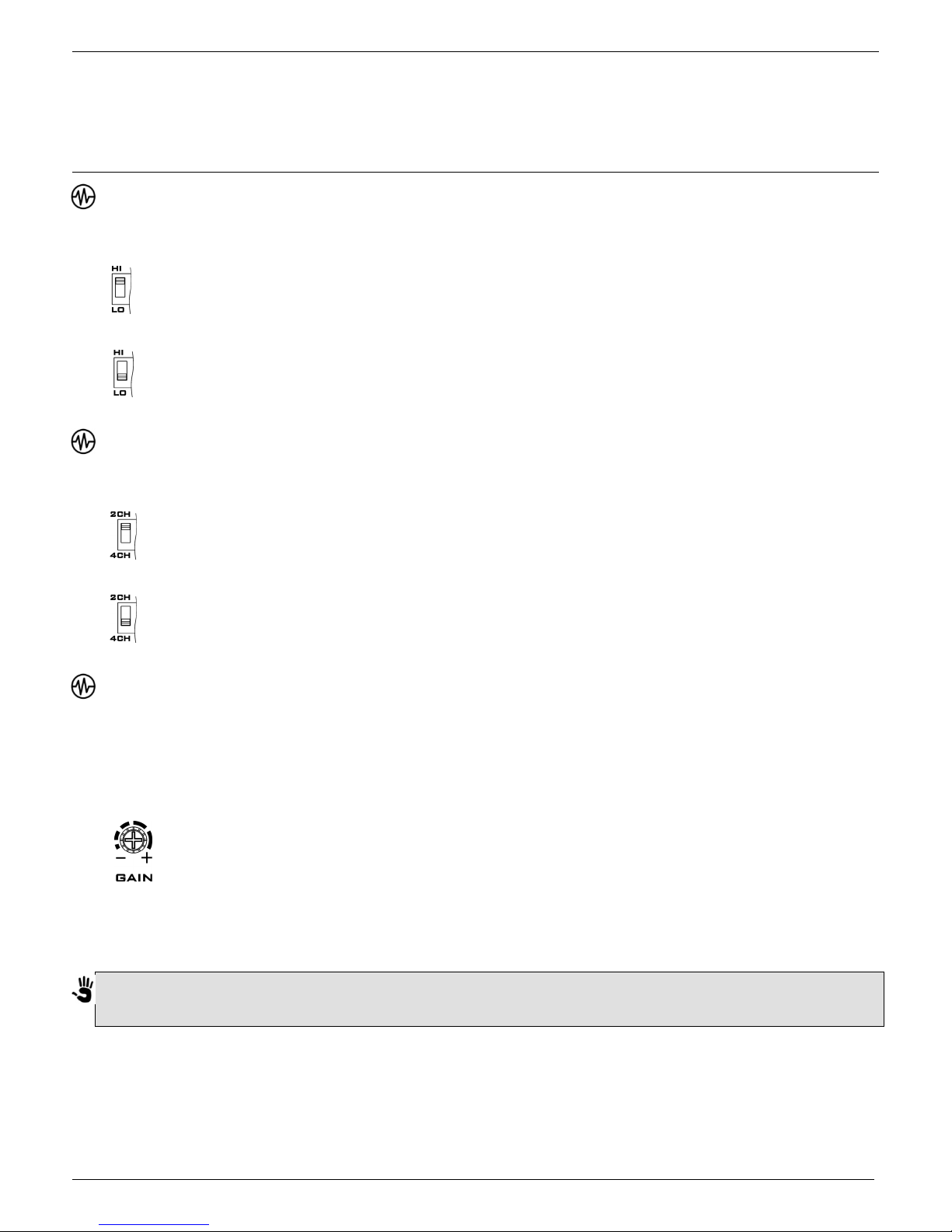

CONFIGURE AMPLIFIER CONFIGURATION FEATURES (GAIN, CROSSOVERS, ETC.)
NOTE: IF ANYTHING ABOUT THE INSTRUCTION OR INFORMATION PROVIDED IN THIS MANUAL IS UNCLEAR, QUESTIONABLE,
OR YOU THINK WE’RE DEAD WRONG ABOUT SOMETHING, PLEASE CONTACT US.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 4 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S
INITIAL TEAR-DOWN
IF YOU HAVEN’T ALREADY, GET FAMILIAR WITH YOUR NEW SYSTEM BY BROWSING THE “USER GUIDE” SECTION OF THIS
MANUAL. UNDERSTANDING YOUR EQUIPMENT FIRST CAN MAKE THE INSTALLATION INSTRUCTIONS EASIER TO FOLLOW.
1. WITH THE IGNITION SWITCH OFF, REMOVE THE SEAT.
WARNING: KEEP THE IGNITION SWITCH OFF THROUGHOUT THE ENTIRE INSTALLATION PROCESS.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
2. DISCONNECT THE NEGATIVE (–) SIDE OF THE BATTERY, FOLLOWED BY THE POSITIVE (+) SIDE.
WARNING: BE SURE TO PREVENT THE LOOSE BATTERY CABLES FROM CONTACTING THE EXPOSED BATTERY
TERMINALS ACCIDENTALLY DURING THE INSTALLATION PROCESS.
3. CAREFULLY REMOVE THE FRONT FAIRING COVER, NOTING WHICH HOLE EACH SCREW COMES
FROM, AS LENGTHS AND SIZES MAY DIFFER.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY, AND DON’T FORGET TO COVER YOUR FENDER.
WHILE YOU HAVE THIS THING APART, TAKE A MINUTE TO CHECK A FEW THINGS AT THE SAME TIME. BURNT OUT GAUGE
BULBS, LOOSE HARNESS CONNECTORS CAUSING RATTLES, THAT SEAL THAT NEVER FAILS TO FALL OFF THE EDGE OF
THE INNER FAIRING WITHOUT SOME TRIM ADHESIVE, INSTALLING THOSE NEW GAUGES YOU’VE BEEN WANTING TO GET…
4. DISCONNECT THE SPEAKER WIRING FROM THE FACTORY SPEAKERS (IF APPLICABLE).
4.1. FACTORY SOURCE UNIT
2 AND 4 CHANNEL SOURCE,
DISCONNECT THE FRONT
SPEAKER WIRES FROM THE
FACTORY SPEAKERS IN THE
FAIRING AND PUT ASIDE FOR
HIGH-LEVEL INPUT USE LATER.
4 CHANNEL SOURCE, IF RETAINING YOUR FRONT/REAR
FADER IS REQUIRED, GAIN ACCESS TO THE AUXILIARY
HARNESS AND CUT THE 4 WIRES IN A PLACE WHERE YOU
CAN EASILY BARREL CRIMP NEW WIRES TO ALL 8 WIRE
ENDS. PUT ASIDE FOR REAR HIGH-LEVEL INPUT AND NEW
SPEAKER WIRE USE LATER.
4.2. AFTERMARKET SOURCE UNIT
2 AND 4 CHANNEL SOURCE, DISCONNECT ANY FACTORY SPEAKER WIRES FROM THE BACK
OF SPEAKERS AND SECURE THEM OUT OF THE WAY.
4 CHANNEL
SOURCE WIRES
H-D® SOURCE UNIT MODELS
1998-2005
8 OHM
1998-20XX
CVO
2006-20XX
2 OHM
REAR LEFT + BRN
(PIN 10)
BRN
(PIN 10)
BRN3
(PIN 2)
REAR LEFT – WHT/BRN
(PIN 3)
WHT/BRN
(PIN 3)
WHT/BRN3
(PIN 25)
REAR RIGHT + GRN
(PIN 11)
GRN
(PIN 11)
GRN3
(PIN 1)
REAR RIGHT – L.GRN/BRN
(PIN 4)
L.GRN/BRN
(PIN 4)
L.GRN/BRN3
(PIN 24)
PIN NUMBERS APPLY TO OVERLAY HARNESS CONNECTOR
TIP: CUTTING A FEW WIRE TIES AND PULLING BACK LOOM WILL MAKE YOUR HARNESS MUCH EASIER TO WORK WITH.
CHECK AND RE-CHECK AGAIN BEFORE CUTTING ANY FACTORY WIRES.
AT THIS POINT, TAKE A VISUAL INVENTORY OF YOUR INNER FAIRING. SECURE ANY LOOSE WIRES OR LOOMS AWAY FROM
MOUNTING LOCATIONS WITH ZIP TIES. WITH THE MAIN AMPLIFIER TEMPORARILY IN PLACE, PERFORM A TEST FIT OF THE
FRONT FAIRING COVER TO ENSURE THAT NO CONTACT OCCURS BEFORE PROCEEDING.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 5 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [
[C CO ON NT TI IN NU UE ED D] ]
COMPONENT MOUNTING
USING VELCRO®AS A MOUNTING METHOD HAS THE FOLLOWING ADVANTAGES; IT HOLDS WELL UNDER EXTREME
VIBRATION CONDITIONS, PROVIDES SOME MEASURE OF SHOCK ABSORPTION, AND ALLOWS FOR SIMPLE INSTALLATION,
REMOVAL, AND ADJUSTMENT. HOWEVER, ONCE YOU STICK THOSE TWO SIDES TOGETHER WITH SOME PRESSURE, YOU’D
DO WELL TO USE A PUTTY KNIFE SEPARATING THE TWO AGAIN. USING A PIECE OF PAPER OR THIN CARDBOARD BETWEEN
THE 2 PIECES OF VELCRO WHEN TEST FITTING CAN MAKE THINGS A LOT EASIER.
NOTE: BE SURE TO CLEAN ALL ADHESIVE MATING SURFACES WITH THE INCLUDED ALCOHOL PADS BEFORE ATTACHING
THE ADHESIVE VELCRO®PATCHES. ONCE THE ADHESIVE SIDE IS APPLIED TO A CLEAN SURFACE, WORK OUT THE AIR
POCKETS WITH YOUR FINGER TIPS FOR MAXIMUM HOLDING STRENGTH AND LONGEVITY.
5. DETERMINE THE MOUNTING LOCATION FOR THE AMPLIFIER BASED ON YOUR FAIRING:
5.1. BATWING FAIRINGS
MOUNT THE MAIN AMPLIFIER (A) ON TOP OF THE
SOURCE UNIT USING ONE OF THESE METHODS:
2005 AND OLDER - USE THE LARGE VELCRO® PATCH
PROVIDED.
2006 AND NEWER - CUT THE LARGE VELCRO® PATCH IN
HALF AND CHOOSE THE APPROPRIATE METHOD BELOW:
WITH BOTH FACTORY XM AND CB MODULES INSTALLED ABOVE THE SOURCE UNIT, USE THE TWO PATCH
HALVES, ONE ON EACH MODULE.
WITH NO FACTORY MODULES INSTALLED ABOVE THE SOURCE UNIT, USE THE TWO PATCH HALVES, ONE ON
EACH SIDE OF THE RIB RUNNING DOWN THE MIDDLE OF THE SOURCE UNIT.
WITH ONLY ONE FACTORY MODULE INSTALLED ABOVE THE SOURCE UNIT, INSTALL THE HKA150 ADAPTER
BRACKET (SOLD SEPARATELY) IN THE BLANK MODULE SLOT, AND THEN USE THE TWO PATCH HALVES, ONE
ON EACH MODULE.
REMOVE BOTH LEFT AND RIGHT FACTORY SPEAKER BRACES AND INSTALL THE SATELLITE
BRACKET TO THE INNER FAIRING BRACE ON EITHER
SIDE REUSING THE FACTORY HARDWARE. MOUNT THE
SATELLITE AMPLIFIER (B) TO THE BRACKET USING THE
SMALL VELCRO®PATCH PROVIDED.
5.2. SHARKNOSE FAIRINGS
MOUNT THE MAIN AMPLIFIER (A) ON THE FLAT SPACE
BENEATH THE GLOVE BOX USING THE LARGE VELCRO®
PATCH PROVIDED. MOUNT THE SATELLITE AMPLIFIER
(B); IN FRONT OF MAIN AMPLIFIER USING THE SMALL
VELCRO®PATCH PROVIDED.
5.3. CUSTOM INSTALLS – MOUNTING LOCATIONS CAN VARY, AND MUST BE TEST FIT ON A ONE-
BY-ONE BASIS. CHECK FOR PROPER CLEARANCES BEFORE CONTINUING WITH THE
INSTALLATION. THE WIRING KIT MAY NOT INCLUDE LONG ENOUGH WIRING NEEDED TO
COMPLETE SOME CUSTOM INSTALLATIONS.
FOR ALL “TOP OF THE SOURCE UNIT” INSTALLATIONS, ENSURE THAT THE MAIN AMPLIFIER IS POSITIONED AS FAR BACK
TOWARDS THE INNER FAIRING AS POSSIBLE.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 6 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [
[C CO ON NT TI IN NU UE ED D] ]
WIRING THE MAIN AMPLIFIER
SOME BIKES MAY REQUIRE THAT THE GAS TANK BE LOOSENED OR REMOVED TO PROPERLY ROUTE THE POWER WIRE.
PLEASE TAKE EVERY POSSIBLE PRECAUTION NECESSARY WHEN DEALING WITH YOUR GAS TANK! DEFINITELY REFER TO
MANUFACTURER INSTRUCTIONS IF NECESSARY.
6. ROUTE AND CONNECT THE POWER WIRE (WITHOUT THE IN-LINE FUSE INSTALLED) FROM THE
POSITIVE (+) BATTERY TERMINAL (FIG. 6.A), UNDER THE RIGHT SIDE (PASSENGER, STARBOARD,
ETC.) OF THE GAS TANK, THROUGH THE FAIRING, AND TO THE MAIN AMPLIFIER. THE BLACK
SLEEVE SHOULD END UP COVERING THE EXPOSED POWER WIRE BETWEEN THE GAS TANK AND
THE FAIRING.
WARNING: DO NOT INSTALL THE IN-LINE FUSE UNTIL INSTRUCTED TO DO SO.
NOTE: ON 2006 AND NEWER, WE RECOMMEND UTILIZING THE FACTORY WIRING HARNESS CHANNEL UNDER THE
TANK WITH A SUITABLE WIRE FEEDING TOOL OR DEVICE. USE OF A COAT HANGER IS AT YOUR OWN RISK.

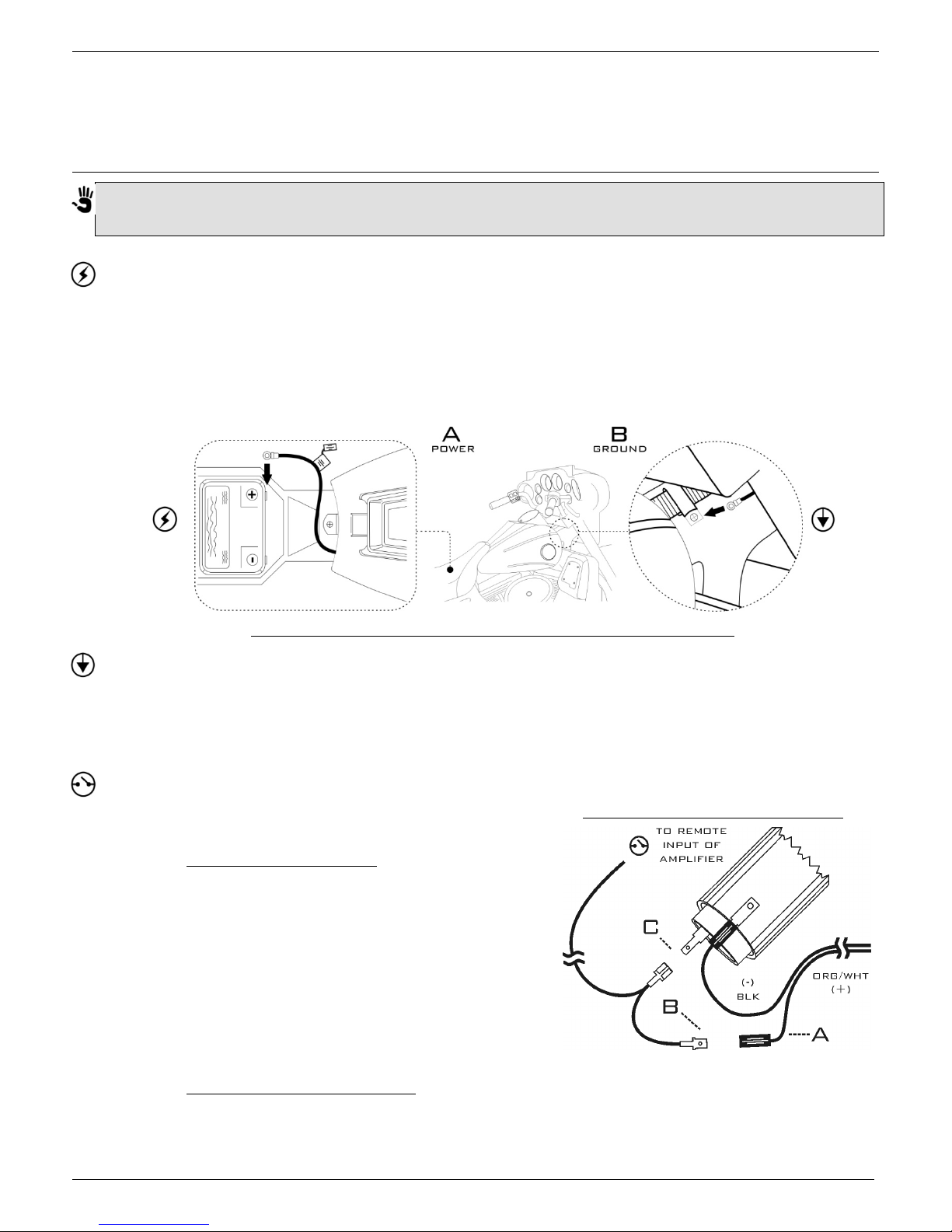

FIGURE 6 – POWER AND GROUND ROUTING AND CONNECTIONS
7. CONNECT THE GROUND WIRE TO CHASSIS GROUND (FIG. 8.B). TYPICALLY AN EXISTING SCREW
OR NUT ON THE BIKE FRAME SHOULD BE USED, PREFERABLY WHERE A FACTORY GROUND
STRAP ALREADY EXISTS.
TIP: THE MAJORITY OF PROBLEM INSTALLS ARE THE RESULT OF A POOR GROUND. REFER TO “BE WELL
GROUNDED” IN THE INSTALLATION CONSIDERATIONS SECTION FOR MORE INFORMATION.
8. CONNECT THE MAIN I/O HARNESS. ROUTE AND CONNECT THE REMOTE TURN-ON WIRE FROM THE
AMPLIFIER LABELED REM TO ONE OF THE
FOLLOWING LOCATIONS:
8.1. FACTORY SOURCE UNITS – TO UTILIZE THE
CIGARETTE LIGHTER METHOD, DISCONNECT
THE POWER TERMINAL FROM THE BACK OF
THE LIGHTER (FIG. 8.A) AND CONNECT IT TO
THE MALE TERMINAL OF THE REMOTE TURN-
ON WIRE (FIG. 8.B). THEN CONNECT THE
FEMALE TERMINAL TO THE LIGHTER
TERMINAL (FIG. 8.C). THIS WILL TURN THE
AMPLIFIER ON/OFF WITH THE IGNITION
SWITCH.
8.2. AFTERMARKET SOURCE UNITS - REFER TO YOUR SOURCE UNIT INSTRUCTIONS TO
DETERMINE IT’S REMOTE TURN-ON LEAD. THIS WILL TURN THE AMPLIFIER ON/OFF WITH
THE SOURCE UNIT POWER SWITCH.
FIGURE 8 – CIGARETTE LIGHTER METHOD

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 7 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [
[C CO ON NT TI IN NU UE ED D] ]
WIRING THE MAIN AMPLIFIER (CONTINUED)
9. DETERMINE AND CONNECT YOUR SOURCE UNIT OUTPUT TO THE AMPLIFIER INPUT CABLE(S)
USING ONE OF THE FOLLOWING HIGH OR LOW LEVEL INPUT METHODS:
9.1. FACTORY SOURCE UNITS - HIGH LEVEL INPUT (NO RCA CONNECTORS AVAILABLE)
2 CHANNEL SOURCE, CONNECT THE FRONT SPEAKER OUTPUT WIRES FROM THE SOURCE
UNIT TO THE HIGH LEVEL INPUT CABLE (USE ATTACHED TERMINALS TO CONNECT INPUT
WIRES TO THE SPEAKER WIRE TERMINALS IF POSSIBLE).
4 CHANNEL SOURCE, CONNECT THE FRONT AND REAR SPEAKER WIRES FROM THE SOURCE
UNIT TO THE HIGH LEVEL INPUT CABLES RESPECTIVELY.
NOTE: FOR CUSTOM WIRING CONNECTIONS, WE RECOMMEND CRIMP, SOLDER, AND HEAT SHRINK.
HIGH LEVEL INPUT CABLE(S)
CONNECT
TOGETHER
H-D® SOURCE UNIT MODELS
2 CHANNEL – USE FRONT ONLY
4 CHANNEL – USE BOTH
1998-2005
8 OHM
1998-20XX
CVO1
2006-20XX
2 OHM
FRONT LEFT + WHT 
  f f e e   WHT/ORG
(PIN 16)
WHT/ORG
(PIN 16)
WHT/ORG
(PIN 16)
FRONT LEFT – BLK (WHT TWIST) 
  f f e e    L.GRN/WHT
(PIN 17)
L.GRN/WHT
(PIN 17)
L.GRN/WHT
(PIN 17)
FRONT RIGHT + RED 
  f f e e    GRY/RED
(PIN 18)
GRY/RED
(PIN 18)
GRY/RED
(PIN 18)
FRONT RIGHT – BLK (RED TWIST) 
  f f e e    L.GRN/BLK
(PIN 1)
L.GRN/BLK
(PIN 1)
L.GRN/BLK
(PIN 1)
REAR LEFT + WHT 
  f f e e    BRN
(PIN 10)
BRN
(PIN 10)
BRN
(PIN 2)
REAR LEFT – BLK (WHT TWIST) 
  f f e e    WHT/BRN
(PIN 3)
WHT/BRN
(PIN 3)
WHT/BRN
(PIN 25)
REAR RIGHT + RED 
  f f e e    GRN
(PIN 11)
GRN
(PIN 11)
GRN
(PIN 1)
REAR RIGHT – BLK (RED TWIST) 
  f f e e    L.GRN/BRN
(PIN 4)
L.GRN/BRN
(PIN 4)
L.GRN/BRN
(PIN 24)
PIN NUMBERS APPLY TO H-D MAIN AND OVERLAY HARNESS CONNECTORS
NOTE1: CVO BIKES MAY BE EQUIPPED WITH A HIGH-OUTPUT SOURCE UNIT; DO NOT USE THE FOLLOWING WIRE
COLORS: WHT/PNK, PNK, WHT/GRY, GRY. THESE OUTPUTS CAN DAMAGE THE AMPLIFIER INPUTS.
9.2. AFTERMARKET SOURCE UNITS - LOW LEVEL INPUT (RCA OUTPUT CONNECTORS AVAILABLE)
2 CHANNEL SOURCE, CONNECT THE FRONT RCA OUTPUT CONNECTORS FROM THE SOURCE
UNIT TO THE LOW LEVEL INPUT CABLE.
4 CHANNEL SOURCE, CONNECT THE FRONT AND REAR RCA OUTPUT CONNECTORS FROM
THE SOURCE UNIT TO THE LOW LEVEL INPUT CABLES RESPECTIVELY.
NOTE: VERY LITTLE DIELECTRIC GREASE IS NEEDED TO KEEP YOUR CONNECTIONS CORROSION FREE. VERY LITTLE
MOISTURE IS NEEDED TO CORRODE CONTACTS NOT COVERED WITH DIELECTRIC GREASE.
10. PLUG THE CHOSEN INPUT CABLE(S) INTO THE CORRESPONDING CONNECTOR(S) OF THE MAIN
AMPLIFIER LABELED HIGH OR LOW,FRONT AND/OR REAR ACCORDINGLY.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 8 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [
[C CO ON NT TI IN NU UE ED D] ]
WIRING THE SATELLITE AMPLIFIER(S) (4 CHANNEL OPTIONS ONLY)
INSTRUCTIONS 11 – 14 REFER TO 4 CHANNEL SPECIFIC OPTIONS. IF YOU ARE INSTALLING THE MPS3002 OR RS4002 2
CHANNEL SYSTEMS, PLEASE SKIP AHEAD TO INSTRUCTION 15.
11. CHANNEL INPUT MODE SWITCH:
SET THIS SWITCH TO 2CH - 2 CHANNEL MODE OR 4CH – 4 CHANNEL MODE TO MATCH THE INPUT
METHOD YOU’RE NOW WIRED FOR IN STEPS 11 – 13:
11.1. 2CH - 2 CHANNEL MODE, USED FOR 2 CHANNEL SOURCE INPUT CONFIGURATIONS.
11.2. 4CH - 4 CHANNEL MODE, USED FOR 4 CHANNEL SOURCE INPUT CONFIGURATIONS.
NOTE: THIS SWITCH IS EXPLAINED IN DETAIL LATER IN THE “USER GUIDE” SECTION.
12. APPLY A SMALL AMOUNT OF DIELECTRIC GREASE (INCLUDED IN THE KIT) TO EACH CONTROL
CABLE CONNECTOR OF YOUR SYSTEM; CONTROL CABLE (BOTH ENDS), MAIN AMPLIFIER
CONNECTOR, AND THE SATELLITE AMPLIFIER CONNECTOR, FOCUSING ON THE ELECTRICAL
CONTACTS INSIDE THE PLASTIC CONNECTOR HOUSINGS.
NOTE: VERY LITTLE DIELECTRIC GREASE IS NEEDED TO KEEP YOUR CONNECTIONS CORROSION FREE. VERY
LITTLE MOISTURE IS NEEDED TO CORRODE CONTACTS NOT COVERED WITH DIELECTRIC GREASE.
13. WITH THE AMPLIFIER OFF, ROUTE AND CONNECT THE CONTROL CABLE FROM THE APPROPRIATE
CONNECTOR ON THE MAIN AMPLIFIER TO THE SATELLITE AMPLIFIER INSTALLED.
WARNING: NEVER CONNECT OR DISCONNECT THE CONTROL CABLES WHILE THE MAIN AMPLIFIER IS POWERED ON. THIS
CAN DAMAGE THE MAIN AND/OR SATELLITE AMPLIFIER(S), AND WILL VOID YOUR WARRANTY AS WELL!
KEEP IN MIND THAT IF YOU PURCHASED THE MPS3002 OR RS4002 AMPLIFIER AS A 2 CHANNEL UPGRADEABLE SYSTEM,
YOU CAN UPGRADE TO A 4 CHANNEL SYSTEM AT ANY TIME BY PURCHASING OUR SATELLITE AMPLIFIER.
WIRING THE SPEAKERS
14. REPLACE THE FACTORY SPEAKERS WITH 4 OHM AFTERMARKET SPEAKERS (IF APPLICABLE).
NOTE: IF YOU ARE INSTALLING HAWG WIRED SPEAKERS, REFER TO THE INSTALLATION INSTRUCTIONS THAT
CAME WITH THEM. IF INSTALLING ANOTHER BRAND OF SPEAKERS, REFER TO THOSE SPECIFIC MANUFACTURER
INSTRUCTIONS IF NECESSARY.
15. ROUTE AND CONNECT THE SPEAKER WIRES FROM THE MAIN AMPLIFIER I/O HARNESS AND REAR
SPEAKER OUTPUT CABLE TO EACH SPEAKER OF YOUR SYSTEM.
NOTE: KEEP THE POLARITIES (+/–) OF EACH WIRE PAIR CORRECT BETWEEN THE AMPLIFIER(S) AND SPEAKERS.
IF YOU ARE INSTALLING HAWG WIRED SPEAKERS, REFER TO THE INSTALLATION INSTRUCTIONS THAT CAME
WITH THEM. IF INSTALLING ANOTHER BRAND OF SPEAKERS, REFER TO THOSE SPECIFIC MANUFACTURER
INSTRUCTIONS IF NECESSARY.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 9 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [
[C CO ON NT TI IN NU UE ED D] ]
TESTING AND TUNING THE SYSTEM
16. RE-CONNECT THE POSITIVE (+) SIDE OF THE BATTERY, FOLLOWED BY THE NEGATIVE (-) SIDE.
WARNING: DO NOT INSTALL THE IN-LINE FUSE UNTIL AFTER THIS STEP.
THIS IS A GOOD TIME TO RE-CHECK YOUR CONNECTIONS BEFORE INSTALLING THE FUSE. MAKE SURE THAT THE
CONTROL CABLE IS COMPLETELY SEATED AND LATCHED IN THEIR RESPECTIVE CONNECTOR, AND THAT POWER AND
GROUND ARE PROPERLY CONNECTED TO THE MAIN AMPLIFIER.
17. INSTALL THE 30 AMP ATC FUSE INTO THE IN-LINE FUSE HOLDER ON THE POWER WIRE.
NOTE: IF THE FUSE DOESN’T BLOW WHEN YOU PLUG IT IN, YOU’VE PASSED THE INITIAL SMOKE TEST.
18. PERFORM A BASIC SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY
THAT THE AMPLIFIER(S) POWER UP (LED ON EACH COMPONENT SHOULD LIGHT) AND THAT THE
SPEAKERS FUNCTION PROPERLY. IF NOT, PROCEED DIRECTLY TO “TROUBLESHOOTING” IN THE
USER GUIDE SECTION.
19. CONFIGURE, TEST, AND TUNE YOUR SYSTEM BY FOLLOWING THE “TEST AND TUNE”
INSTRUCTIONS GIVEN IN THE “USER GUIDE” SECTION OF THIS MANUAL. WHEN YOU’VE
COMPLETED THESES INSTRUCTIONS AND ARE READY TO ROCK AND ROLL, RETURN HERE TO
COMPLETE THE INSTALLATION.
NOW IT’S TIME TO START ROTATING KNOBS AND FLIPPING SWITCHES TO GET THE MOST OUT OF YOUR NEW SYSTEM. IF
YOU RUN INTO ANY SNAGS ALONG THE WAY, LET US KNOW SO WE CAN HELP GET YOU UP AND RUNNING.
WRAPPING IT UP
20. WITH THE IGNITION OFF, CAREFULLY INSTALL THE FAIRING COVER, ENSURING THAT EACH
ATTACHING SCREW GOES BACK INTO THE HOLE IT CAME OUT OF. ONCE YOU HAVE EVERYTHING
LINED UP AND ALL SCREWS LOOSELY INSTALLED, TIGHTEN EACH SCREW IN AN EVEN PATTERN
TO AVOID BINDING.
WARNING: AVOID OVER-TIGHTENING; PLASTIC THREADS HAVE A TENDENCY TO PULL OUT EASILY. REFER TO
MANUFACTURER INSTRUCTIONS IF NECESSARY.
21. INSTALL THE SEAT, TAKING CARE NOT TO DAMAGE OR PINCH YOUR FACTORY WIRING HARNESS
OR NEW AMPLIFIER POWER WIRE.
TIP: BE SURE THAT BOTH BATTERY TERMINALS ARE CONNECTED AND TIGHT, AND THAT ANY GAS TANK BOLTS
LOOSENED EARLIER ARE NOW TIGHT. REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
76 22. PERFORM A FINAL SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY
THAT ALL COMPONENTS STILL FUNCTION PROPERLY.
23. PERFORM A TEST RIDE AND AGAIN VERIFY THAT THE SYSTEM IS OK, AND THAT YOUR FRIENDS
ARE SUFFICIENTLY JEALOUS.
TIP: JUSTIN WOULD LIKE TO REMIND YOU TO CHECK YOUR TIRE PRESSURE, AND FROM THE ENTIRE HAWG
WIRED TEAM, THANKS FOR MAKING THIS POSSIBLE, KEEP THE RUBBER SIDE DOWN, AND CRANK IT!

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 10 NEWARK, CA
U
US SE ER R G GU UI ID DE E

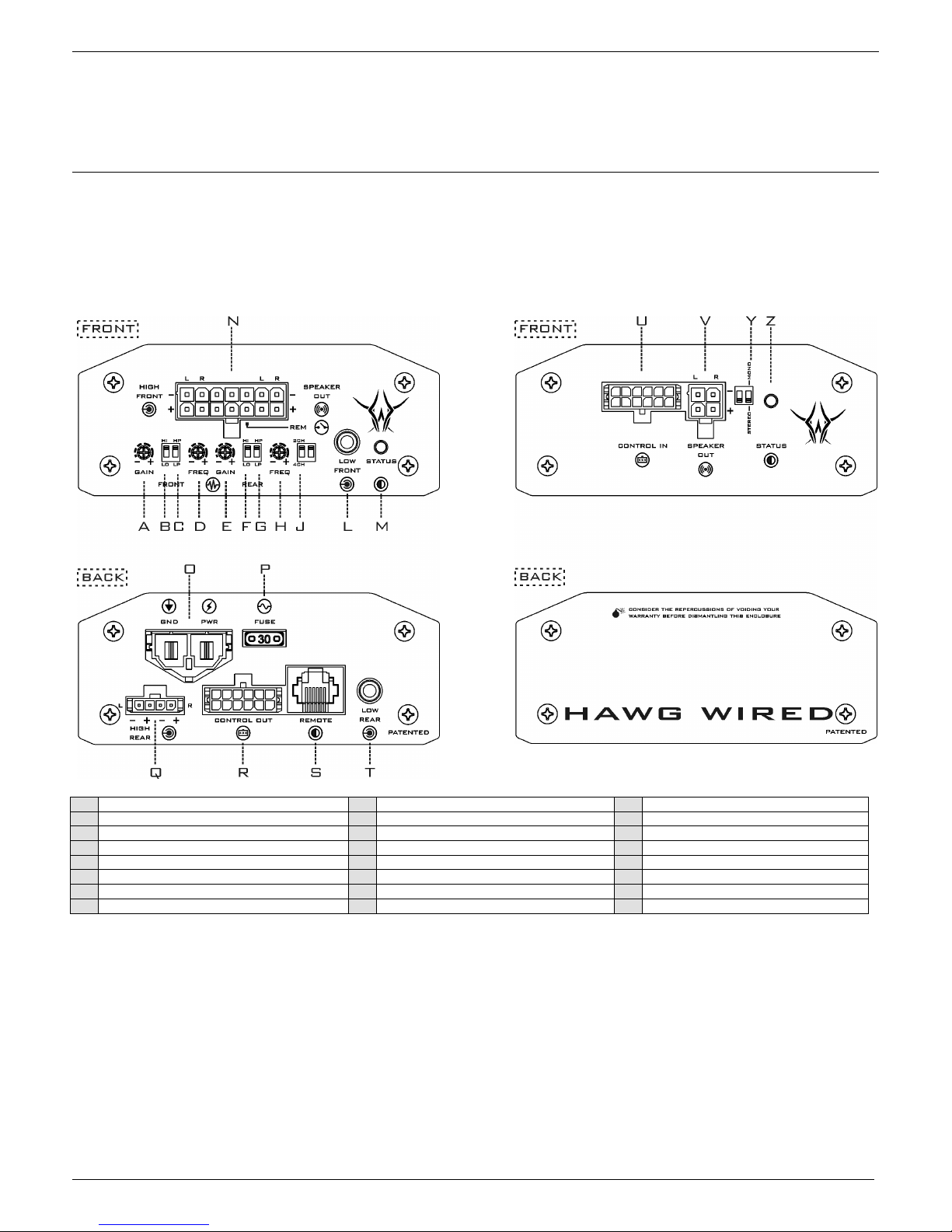

CONNECTORS AND CONTROLS
PLANNING YOUR SYSTEM CONFIGURATION IS THE FIRST STEP TOWARDS HI-FI HAPPINESS, AND IT’S
TIME YOU GET FAMILIAR WITH ALL THE BELLS AND WHISTLES ON YOUR NEW AMPLIFIER. THE TABLE
BELOW LISTS THE CONTROLS AND CONNECTORS OF THE MPS3002 / RS4002 AND MPS150 / RS200
AMPLIFIERS.
A INPUT GAIN ADJUST J CHANNEL MODE SWITCH S REMOTE CONTROL
B INPUT MODE SWITCH L LOW LEVEL INPUT T LOW LEVEL INPUT (REAR)
C CROSSOVER MODE SWITCH M STATUS INDICATOR U CONTROL IN
D CROSSOVER FILTER ADJUST N MAIN I/O CONNECTOR V SPEAKER OUT (REAR)
E INPUT GAIN ADJUST (REAR) O MAIN POWER CONNECTOR Y MONO / STEREO SWITCH
F INPUT MODE SWITCH (REAR) P AMPLIFIER PROTECTION FUSE Z STATUS INDICATOR
G CROSSOVER MODE SWITCH (REAR) Q HIGH LEVEL INPUT (REAR)
H CROSSOVER FILTER ADJUST (REAR) R CONTROL OUT

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 11 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
CONNECTORS DEFINED
MAIN POWER CONNECTOR:
THIS CONNECTOR IS FOR YOUR MAIN POWER AND GOUND CONNECTIONS. THIS CONNECTS THE BATTERY
AND GROUND CABLES TO THE AMPLIFIER. WITHOUT THIS, YOUR AMPLIFIER WOULD SIMPLY NEVER
WORK.
MAIN I/O CONNECTOR:
THIS CONNECTOR COMBINES FRONT HIGH LEVEL INPUT, FRONT SPEAKER OUTPUT, AND REMOTE TURN-
ON. HIGH LEVEL INPUT ALLOWS THE AMPLIFIER TO USE SPEAKER OUTPUTS FROM A SOURCE UNIT AS
INPUTS TO THE AMPLIFIER. THIS IS THE ONLY WAY TO CONNECT A FACTORY HARLEY-DAVIDSON®
SOURCE UNIT TO THIS SYSTEM. FRONT SPEAKER OUTPUTS WILL BE CONNECTED TO YOUR FRONT
SPEAKERS. REMOTE TURN-ON IS USED TO TURN 0N/OFF THE AMPLIFIER BY CONNECTING THIS TO A
SWITCHED 12V SOURCE.
WIRE COLORS FOR THE HIGH LEVEL INPUT:
HIGH LEVEL CABLE FRONT LEFT (+) FRONT LEFT (–) FRONT RIGHT (+) FRONT RIGHT (–)
FRONT OR REAR WHITE
BLACK/
TWISTED WITH
WHITE
RED
BLACK/
TWISTED WITH
RED
SPEAKER OUT CONNECTOR (REAR):
THIS CONNECTOR IS YOUR REAR SPEAKER OUTPUTS. REAR SPEAKER OUTPUTS WILL BE CONNECTED TO
YOUR REAR SPEAKERS.
HIGH LEVEL INPUT CONNECTOR (REAR):
THIS CONNECTOR ALLOWS THE AMPLIFIER TO USE SPEAKER OUTPUTS FROM A SOURCE UNIT AS
INPUTS TO THE AMPLIFIER. THIS IS THE ONLY WAY TO CONNECT A FACTORY HARLEY-DAVIDSON®
SOURCE UNIT TO THIS SYSTEM. YOU WILL USE THIS CONNECTOR IF YOU ARE INSTALLING A 4
CHANNEL SYSTEM ON A 4 CHANNEL SOURCE UNIT.
WIRE COLORS FOR THE HIGH LEVEL INPUT:
HIGH LEVEL CABLE FRONT LEFT (+) FRONT LEFT (–) FRONT RIGHT (+) FRONT RIGHT (–)
FRONT OR REAR WHITE
BLACK/
TWISTED WITH
WHITE
RED
BLACK/
TWISTED WITH
RED

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 12 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
CONNECTORS DEFINED
LOW LEVEL INPUT CONNECTOR(S):
THIS CONNECTOR ALLOWS THE AMPLIFIER TO USE INDUSTRY STANDARD RCA OUTPUTS FROM AN
AFTERMARKET SOURCE UNIT AS INPUTS TO THE AMPLIFIER. THIS IS THE PREFERRED METHOD WHEN
RCA OUTPUTS ARE AVAILABLE, AND WILL PRODUCE THE CLEANEST SOURCE SIGNAL TO THE
AMPLIFIER. IF YOU ARE INSTALLING A 4 CHANNEL SYSTEM ON A 4 CHANNEL SOURCE UNIT, BOTH
THE FRONT AND REAR LOW LEVEL INPUT CABLES ARE IDENTICAL, SO IT DOESN’T MATTER WHICH
ONE YOU USE FOR FRONT OR REAR; THE CONNECTIONS ARE THE SAME.
NOTE: WE USE INDUSTRY STANDARD 3.5MM HEADPHONE STYLE JACKS ON THE AMPLIFIER DUE TO THE SPACE
CONSTRAINTS (2 3.5MM PHONO-JACKS ARE A LOT SMALLER THAN 4 RCA JACKS). ALTHOUGH WE HIGHLY
RECOMMEND USING THE LOW LEVEL INPUT CABLES WE SUPPLY WITH THE KIT, TECHNICALLY YOU SHOULD BE ABLE
TO UTILIZE ANY STANDARD RCA TO PHONO ADAPTER CABLE FOUND AT YOUR LOCAL ELECTRONIC STORE TO MAKE
THESE CONNECTIONS. IT’S OUR GOAL TO KEEP THINGS SIMPLE AND STANDARD IF AT ALL POSSIBLE.
REMOTE CONNECTOR:
THIS CONNECTOR IS USED TO CONNECT OUR REMOTE CONTROL MODULE.
CONTROL CONNECTORS:
THE CONTROL CONNECTORS ARE USED TO CONNECT THE SATELLITE AMPLIFIER TO THE MAIN
AMPLIFIER. THE PURPOSE OF THE MODULAR SATELLITE AMPLIFIER IS SIMPLE; TO GIVE YOU THE
ULTIMATE INSTALLATION FLEXIBILITY WITHOUT ONE GIANT BOX. IT’S HOW WE’RE ABLE TO FIT UP TO
4 CHANNELS IN AS SMALL A SPACE AS A BATWING FAIRING.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 13 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
CONTROLS DEFINED
INPUT MODE SWITCH:
THIS SWITCH SELECTS WHICH MODE OF INPUT THE AMPLIFIER IS CONFIGURED FOR, HIGH LEVEL
INPUT OR LOW LEVEL INPUT. THE OPTIONS ARE AS FOLLOWS:
HI – HIGH LEVEL INPUT MODE – USED WHEN CONNECTING TO SPEAKER OUTPUTS FROM A
SOURCE UNIT AS INPUTS TO THE AMPLIFIER. THIS IS THE INPUT MODE TO CONNECT A
FACTORY HARLEY-DAVIDSON®SOURCE UNIT TO THIS SYSTEM.
LO – LOW LEVEL INPUT MODE – USED WHEN CONNECTING INDUSTRY STANDARD RCA OUTPUTS
FROM AN AFTERMARKET SOURCE UNIT AS INPUTS TO THE AMPLIFIER. THIS IS THE PREFERRED
METHOD WHEN RCA OUTPUTS ARE AVAILABLE, AND WILL PRODUCE THE CLEANEST SOURCE
SIGNAL TO THE AMPLIFIER.
CHANNEL MODE SWITCH:
THIS SWITCH SELECTS HOW MANY CHANNELS OF INPUT THE AMPLIFIER IS CONFIGURED FOR, 2 OR
4 CHANNELS. THE OPTIONS ARE AS FOLLOWS:
2CH - 2 CHANNEL MODE – USED WHEN ONLY 2 CHANNEL SOURCE IS CONNECTED TO THE
MAIN AMPLIFIER. USING THIS SETTING WILL FORCE THE FRONT AND REAR OUTPUTS TO BE
DRIVEN BY ONLY THE FRONT PAIR OF INPUTS.
4CH – 4 CHANNEL MODE – USED WHEN 4 CHANNEL SOURCE IS CONNECTED TO THE MAIN
AMPLIFIER. USING THIS SETTING WILL FORCE THE FRONT AND REAR OUTPUTS TO BE DRIVEN
BY BOTH FRONT AND REAR INPUTS INDEPENDENTLY.
NOTE: THIS ALLOWS FRONT TO REAR FADING FROM THE SOURCE UNIT (IF AVAILABLE).
INPUT GAIN ADJUSTMENT:
A COMMON MISCONCEPTION ABOUT GAIN ADJUSTMENT ON AMPLIFIERS IS THAT “MORE GAIN =
MORE VOLUME”. ACTUALLY, IT’S NOT THE VOLUME THAT’S BEING INCREASED, BUT RATHER THE
AMPLIFIER’S SENSITIVITY TO THE SOURCE INPUT. BY INCREASING THE GAIN LEVEL, YOU’RE
INCREASING HOW SENSITIVE THE AMPLIFIER IS TO THE SIGNAL IT RECEIVES FROM THE SOURCE
UNIT. THIS IS WHY IT’S IMPORTANT TO SET THE GAIN PROPERLY, RATHER THAN SIMPLY TURNING
THE KNOB UNTIL IT’S REALLY LOUD.
GAIN ALLOWS THE FOLLOWING NOMINAL OPERATING LEVEL ADJUSTMENTS:
LOW LEVEL INPUT (RCA LINE-IN) - 250MV TO 2.5V
HIGH LEVEL INPUT (SPEAKER-IN) - 500MV TO 5V
THESE VOLTAGE LEVELS CAN ACCOMMODATE VIRTUALLY ANY HARLEY-DAVIDSON®OR OTHER BRAND
OF CAR, MARINE, OR MOTORCYCLE SOURCE UNITS, AS WELL AS JUST ABOUT ANYTHING THAT HAS
RCA OR LINE-OUT STYLE OUTPUTS.
WARNING: SETTING THE GAIN TOO HIGH IN AN ATTEMPT TO GET “MORE VOLUME” CAN NOT ONLY CAUSE PREMATURE
DISTORTION, BUT CAN ALSO DAMAGE YOUR SPEAKERS. IF YOUR SYSTEM CONFIGURATION RESULTS IN YOUR GAIN
CONTROL BEING SET OUTSIDE THE TYPICAL RANGE AS INDICATED ABOVE, CALL US TO RESOLVE THE PROBLEM.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 14 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
CONTROLS DEFINED
CROSSOVER MODE SWITCH:
THIS SWITCH SELECTS WHICH RANGE OF FREQUENCIES THAT THE BUILT-IN CROSSOVER WILL
FILTER. EACH MODE IS EQUIPPED WITH 12DB PER OCTAVE ELECTRONIC FILTERS FOR PRECISE
FREQUENCY ATTENUATION WITH MINIMAL PHASE DISTORTION. THE OPTIONS ARE AS FOLLOWS:
LOW – LOW-PASS – USED WHEN SPEAKER OUTPUTS WILL DRIVE SUBWOOFERS, OR LOW RANGE
SPEAKERS ONLY.
HIGH – HIGH-PASS (DEFAULT) – USED WHEN SPEAKER OUTPUTS WILL DRIVE MIDDLE TO HIGH
RANGE SPEAKERS ONLY (RECOMMENDED SETTING FOR ALL 5.25” SPEAKERS).
CROSSOVER FILTER ADJUSTMENT:
THE PURPOSE OF A CROSSOVER CIRCUIT IS TO FILTER OUT A SPECIFIC RANGE OF FREQUENCIES
FROM A SPEAKER’S INPUT TO MAXIMIZE IT’S PERFORMANCE. FOR A TWEETER, THE GOAL IS TO
FILTER OUT LOW (BASS) RANGE FREQUENCIES TO MAXIMIZE THE HIGH RANGE (TREBLE) RESPONSE.
CONVERSELY, FOR A SUBWOOFER, THE GOAL IS TO FILTER OUT THE HIGH AND MID RANGE
FREQUENCIES, LEAVING ONLY LOW FREQUENCIES TO PLAY THROUGH THE WOOFER.
THERE ARE TWO KINDS OF CROSSOVER IMPLEMENTATIONS, ACTIVE OR PASSIVE:
ACTIVE CROSSOVER – THIS FILTERS SELECTED FREQUENCIES BEFORE THE AUDIO SIGNAL IS
AMPLIFIED, BETWEEN THE SOURCE UNIT AND AMPLIFIER. OUR BUILT-IN CROSSOVERS ARE AN
EXAMPLE OF THIS TYPE OF CROSSOVER.
THE GOOD - BY REMOVING UNWANTED FREQUENCIES FROM THE SIGNAL BEFORE IT’S AMPLIFIED, YOUR OUTPUT
BECOMES MORE EFFICIENT, ONLY WORKING TO AMPLIFY THE DESIRED RANGE OF FREQUENCIES.
THE BAD - BY REMOVING UNWANTED FREQUENCIES FROM THE SIGNAL BEFORE IT’S AMPLIFIED, YOU ARE DEDICATING
THOSE FILTERED CHANNELS TO ONLY PROVIDE A CERTAIN FREQUENCY RANGE.
PASSIVE CROSSOVER – THIS FILTERS SELECTED FREQUENCIES AFTER THE AUDIO SIGNAL HAS
BEEN AMPLIFIED, BETWEEN THE AMPLIFIER AND SPEAKER. SOME SPEAKERS ARE SOLD WITH
PASSIVE CROSSOVERS INCLUDED, TYPICALLY A SMALL PLASTIC ENCLOSURE (LIKE OUR
COMPONENT SERIES), OR CAPACITORS AND/OR COILS MOUNTED DIRECTLY TO THE SPEAKER (LIKE
OUR UPGRADE AND PERFORMANCE SERIES).
THE GOOD - BY REMOVING UNWANTED FREQUENCIES FROM THE SIGNAL AFTER IT’S AMPLIFIED, YOUR AMPLIFIER’S
OUTPUT IS STILL FULL RANGE, ALLOWING MORE FLEXIBLE USE, ABLE TO DRIVE TWEETERS, MID-RANGE, AND
SUBWOOFERS ALIKE.
THE BAD - BY REMOVING UNWANTED FREQUENCIES FROM THE SIGNAL AFTER IT’S AMPLIFIED, YOU ARE FORCING THE
FULL RANGE OF FREQUENCIES TO BE AMPLIFIED, REDUCING THE AMPLIFIER’S MAXIMUM POSSIBLE EFFICIENCY.
OUR BUILT-IN ACTIVE CROSSOVER(S) ARE FULLY ADJUSTABLE FROM 50HZ TO 250HZ, USING
EITHER A LOW-PASS MODE (BASS ONLY) OR HIGH-PASS MODE (MIDRANGE AND HIGHS ONLY)
TO EASILY MAXIMIZE YOUR SPEAKER’S POTENTIAL.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 15 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
TEST AND TUNE
SETTING THE GAIN:
WITH THE SYSTEM FUNCTIONING PROPERLY, FOLLOW THESE STEPS TO SET THE GAIN CONTROL:
1. TURN THE GAIN CONTROL(S) ALL THE WAY DOWN (COUNTER-CLOCKWISE).USING THE
ADJUSTMENT TOOL PROVIDED.
2. TURN THE KEY TO THE ACCESSORY POSITION, AND THEN TURN THE SOURCE UNIT ON.
3. SET ALL TONE (BASS, TREBLE) AND EQUALIZATION CONTROLS (BALANCE, FADE) ON THE
SOURCE UNIT TO “FLAT” OR “0”, AND TURN OFF “LOUD” OR “LOUDNESS”. IF A SEPARATE
EQUALIZER IS USED, DISABLE OR SET ALL OF IT’S CONTROLS TO “FLAT” OR “0”.
NOTE: IF CONFIGURING MORE THAN 2 CHANNELS, SET THE FADE CONTROL TO “FRONT” ONLY, PROCEED WITH
THESE INSTRUCTIONS, AND THEN SET FADE TO “REAR” ONLY AND REPEAT.
4. WHILE PLAYING A STANDARD NON-MP3 CD1, SET THE SOURCE UNIT’S VOLUME CONTROL TO
75% OF MAXIMUM LEVEL.
5. SLOWLY INCREASE TO GAIN CONTROL UNTIL YOU HEAR A SLIGHT DISTORTION
OF THE AUDIO PLAYBACK AND THE STATUS LIGHT ON THE AMPLIFIER STARTS
BLINKING. THE STATUS LIGHT BEGINS TO BLINK WHEN THE AMPLIFIER’S INPUTS
OR OUTPUTS ARE CLIPPING. THIS IS THE MAX YOUR GAIN SHOULD BE SET.
WARNING: SETTING THE GAIN TOO HIGH IN AN ATTEMPT TO GET “MORE VOLUME” CAN NOT ONLY CAUSE PREMATURE
DISTORTION, BUT CAN ALSO DAMAGE YOUR SPEAKERS.
SETTING THE CROSSOVER:
WITH THE SYSTEM FUNCTIONING PROPERLY, FOLLOW THESE STEPS TO SET THE CROSSOVERS:
1. SELECT THE DESIRED MODE FOR EACH CROSSOVER MODE SWITCH; LP FOR LOW-
PASS MODE OR HP FOR HIGH-PASS MODE (DEFAULT).
2. SET ALL TONE (BASS, TREBLE) AND EQUALIZATION CONTROLS (BALANCE, FADE) ON THE
SOURCE UNIT TO “FLAT” OR “0”, AND TURN OFF “LOUD” OR “LOUDNESS”. IF A SEPARATE
EQUALIZER IS USED, DISABLE OR SET ALL OF IT’S CONTROLS TO “FLAT” OR “0”.
3. WHILE PLAYING A STANDARD NON-MP3 CD1, SET THE CROSSOVER FILTER
ADJUSTER TO THE DESIRED FREQUENCY USING THE PROVIDED ADJUSTMENT
TOOL (ADJUSTABLE FROM 50HZ TO 250HZ).
NOTE: FOR SYSTEMS WITH MORE THAN 2 CHANNELS, FOLLOW BOTH OF THE ABOVE INSTRUCTIONS FOR THE FRONT AND
REAR SEPARATELY. ONCE YOU’VE CONFIGURED EACH CHANNEL SECTION, YOU CAN FINE-TUNE THE OVERALL SYSTEM
SETTINGS FOR OPTIMAL PERFORMANCE.
NOTE1: THIS IS THE PREFERRED AUDIO TESTING SOURCE METHOD, AS MP3, XM, FM, AND AM ALL HAVE SOME LEVEL OF
COMPRESSION OR DEGRADATION INVOLVED, WHICH CAN LEAD TO VARYING RESULTS. IF THE PREFERRED METHOD IS
NOT AVAILABLE, USE THE MOST COMMON PLAYBACK METHOD YOU USE WHILE RIDING.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 16 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
TROUBLESHOOTING
INFRACTION PROBABLE CAUSE RESTITUTION
MAIN AMPLIFIER DOESN’T
POWER UP (LED IS OFF)
REM WIRE IS NOT GETTING +12V
TO THE AMPLIFIER
CHECK YOUR WIRING OF THE
REMOTE TURN-ON WIRE. MAKE
SURE THE TURN-ON SOURCE IS
PROVIDING +12V.
PWR WIRE IS NOT GETTING +12V
TO THE AMPLIFIER
CHECK THIS WIRE ALL THE WAY
TO THE BATTERY. MAKE SURE
THE IN-LINE FUSE IS INSTALLED
AND NOT BLOWN.
GND WIRE IS NOT GETTING
GROUND TO THE AMPLIFIER
MAKE SURE THE GROUND
LOCATION SELECTED IS
PROVIDING A GOOD, CLEAN
CHASSIS GROUND.
SATELLITE AMPLIFIER DOESN’T
POWER UP (LED IS OFF)
CONTROL CABLE IS NOT
CONNECTED
MAKE SURE THAT THE CONTROL
CABLE CONNECTORS ARE
SEATED AND LATCHED
COMPLETELY.
AMPLIFIER(S) POWER UP, BUT
MAKE NO SOUND (LED IS ON)
SPEAKER WIRES ARE NOT
CONNECTED OR SHORTED
CHECK YOUR WIRING FROM THE
AMPLIFIERS TO EACH SPEAKER
IN THE SYSTEM. MAKE SURE
THAT THE WIRE TERMINALS ARE
NOT SHORTING TO THE BIKE
CHASSIS OR OTHER WIRES.
INPUT FROM SOURCE UNIT NOT
CONNECTED PROPERLY
CHECK YOUR HIGH OR LOW
LEVEL INPUT WIRING FROM THE
SOURCE UNIT TO THE MAIN
AMPLIFIER.
SOURCE UNIT HAS NO OUTPUT CHECK THAT YOUR SOURCE UNIT
IS FUNCTIONING PROPERLY.
REFER TO MANUFACTURER
INSTRUCTIONS IF NECESSARY.
SPEAKER OUTPUT SOUNDS LOW
OR DISTORTED
INPUT GAIN LEVEL SET
INCORRECTLY
SET THE GAIN LEVEL(S) USING
THE INSTRUCTIONS IN “TEST
AND TUNE”. IF YOU’VE ALREADY
COMPLETED THIS STEP, TRY
LOWERING THE GAIN SLIGHTLY
UNTIL THE DISTORTION STOPS.
LOW BATTERY CONDITION CHECK YOUR BATTERY FOR
PROPER CHARGE AND REPLACE
IF NECESSARY.

MPS3004 / RS4004 AUDIO SYSTEMS INSTALLATION GUIDE
HAWG WIRED PAGE 17 NEWARK, CA
W
WA AR RR RA AN NT TY Y I IN NF FO OR RM MA AT TI IO ON N
HAWG WIRED OFFERS A LIMITED WARRANTY OF OUR PRODUCTS ON THE FOLLOWING TERMS:
• LENGTH OF WARRANTY
1 YEAR ON AUDIO SYSTEMS, ELECTRONICS, SPEAKERS, AND ACCESSORIES (RECEIPT REQUIRED).
2 YEARS ON ALL REFERENCE SERIES AMPLIFIERS (RECEIPT REQUIRED).
• COVERAGE
THIS WARRANTY COVERS ONLY THE ORIGINAL PURCHASER OF A HAWG WIRED PRODUCT PURCHASED FROM AN AUTHORIZED
HAWG WIRED DEALER IN THE UNITED STATES. IN ORDER TO RECEIVE SERVICE, THE PURCHASER MUST PROVIDE HAWG WIRED
WITH A COPY OF THE RECEIPT STATING THE CUSTOMER NAME, DEALER NAME, PRODUCT PURCHASED AND DATE OF
PURCHASE.
• DEFECTIVE PRODUCTS
PRODUCTS FOUND TO BE DEFECTIVE DURING THE WARRANTY PERIOD WILL BE REPAIRED OR REPLACED (WITH A PRODUCT
DEEMED TO BE EQUIVALENT) AT HAWG WIRED'S DISCRETION.
• WHAT IS NOT COVERED
DAMAGE CAUSED BY ACCIDENT, ABUSE, IMPROPER OPERATIONS, WATER, THEFT
ANY COST OR EXPENSE RELATED TO THE REMOVAL OR REINSTALLATION OF PRODUCT
SERVICE PERFORMED BY ANYONE OTHER THAN AN AUTHORIZED HAWG WIRED SERVICE CENTER
ANY PRODUCT WITH THE SERIAL NUMBER OR TAMPER LABELS DEFACED, ALTERED, OR REMOVED
SUBSEQUENT DAMAGE TO OTHER COMPONENTS
ANY PRODUCT PURCHASED OUTSIDE THE U.S.
ANY PRODUCT NOT PURCHASED FROM AN AUTHORIZED HAWG WIRED DEALER
• LIMIT ON IMPLIED WARRANTIES
ANY IMPLIED WARRANTIES INCLUDING WARRANTIES OF FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION
TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH
OF AN IMPLIED WARRANTY, SO THIS LIMITATION MAY NOT APPLY. NO PERSON IS AUTHORIZED TO ASSUME FOR HAWG WIRED
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.
• HOW TO OBTAIN SERVICE
PLEASE CALL 510.894.2999 FOR HAWG WIRED CUSTOMER SERVICE. YOU MUST OBTAIN A RETURN MATERIAL
AUTHORIZATION NUMBER (RMA) TO RETURN ANY PRODUCT TO HAWG WIRED. YOU ARE RESPONSIBLE FOR SHIPPING
CHARGES OF RETURNED PRODUCTS TO HAWG WIRED.
• MADE IN THE USA
OUR PRODUCTS ARE PROUDLY DESIGNED, DEVELOPED AND BUILT IN THE USA*. THE MAJORITY OF THE COMPONENTS USED
IN THE CONSTRUCTION OF OUR PRODUCTS ARE PRODUCED BY AMERICAN COMPANIES. HOWEVER, DUE TO THE GLOBAL
NATURE OF MODERN MANUFACTURING AND THE ELECTRONICS INDUSTRY IN GENERAL, SOME PARTS MAY BE MANUFACTURED
IN OTHER COUNTRIES.
*OUR SPEAKERS ARE PROUDLY DESIGNED AND DEVELOPED IN THE USA. HOWEVER, DUE TO THE GLOBAL NATURE OF LOUDSPEAKER
MANUFACTURING, OUR SPEAKERS ARE MANUFACTURED IN OTHER COUNTRIES.
H
HA AW WG G W WI IR RE ED D, , I IN NC C. .
C
CO ON NT TA AC CT T U US S B BY Y E EM MA AI IL L
GENERAL INFORMATION – [e-mail]
SALES AND MARKETING – [e-mail]
TECHNICAL SUPPORT – [email protected]
C
CO ON NT TA AC CT T U US S B BY Y P PH HO ON NE E
MAIN 510.894.2999
EFAX 510.217.6994
VISIT US ON THE WEB AT HAWG-WIRED.COM
COPYRIGHT © 2013 HAWG WIRED, INC. ALL RIGHTS RESERVED.
REV.1A PRINTED IN THE U.S.A.
