Hawg Wired DCS1202 User manual

d
de es si ig gn ne ed d a an nd d b bu ui il lt t i in n t th he e u u. .s s. .a a. .
H
HA AW WG G W WI IR RE ED D
D
D
DC
C
CS
S
S1
1
12
2
20
0
02
2
2V
V
V
A
A
AM
M
MP
P
PL
L
LI
I
IF
F
FI
I
IE
E
ER
R
R S
S
SY
Y
YS
S
ST
T
TE
E
EM
M
MS
S
S
I
IN NS ST TA AL LL LA AT TI IO ON N G GU UI ID DE E

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 2 NEWARK, CA
I
IN NT TR RO OD DU UC CT TI IO ON N
CONGRATULATIONS! YOU’VE JUST PURCHASED WHAT WE CONSIDER TO BE THE FINEST MOTORCYCLE
AUDIO EQUIPMENT AVAILABLE. WE TAKE PRIDE IN THE FACT THAT YOU’VE CHOSEN HAWG WIRED
PRODUCTS, AND WELCOME YOU TO OUR FAMILY OF AUDIOPHILE ENTHUSIASTS. OUR GOAL HERE IS
SIMPLE – TO BRING HIGH PERFORMANCE AUDIO FIDELITY TO YOU, THE RIDER, WITHOUT COMPROMISING
YOUR BIKE’S ELECTRICAL SYSTEM OR STORAGE SPACE. SOME SIDE EFFECTS MAY OCCUR HOWEVER,
INCLUDING BUT NOT LIMITED TO; PUZZLED LOOKS FROM OTHER MOTORISTS, OCCASIONAL SHOUTS
FROM YOUR NEIGHBORS, AND THE ENVY OF YOUR FRIENDS. AFTER YEARS OF DESIGN
AND ENGINEERING, CUSTOM CRAFTSMANSHIP, AND A CRAVE FOR CLEAN, CLEAR,
LOUD MUSIC, WE BELIEVE WE’VE NAILED THIS STUFF DOWN RIGHT.
THANK YOU FOR YOUR SUPPORT
THE HAWG WIRED TEAM
S
SE ER RI IA AL L N NU UM MB BE ER R
PLEASE RECORD THE MODEL AND SERIAL NUMBER[S] OF YOUR EQUIPMENT IN THE SPACE PROVIDED
BELOW AS YOUR PERMANENT RECORD. THESE NUMBERS CAN BE FOUND ON THE FRONT AND/OR
BOTTOM OF EACH COMPONENT. THIS WILL ASSIST US WITH YOUR FACTORY WARRANTY COVERAGE, AND
MAY BE USEFUL TO YOU IN THE UNFORTUNATE EVENT THAT IT’S STOLEN.
MODEL NUMBER[S]: SERIAL NUMBER[S]:
K
KE EY Y D DE ES SI IG GN N F FE EA AT TU UR RE ES S
DCS SERIES AMPLIFIER SYSTEMS INCORPORATE THE FOLLOWING KEY DESIGN FEATURES:
CLASS-T®DIGITAL DESIGN MAKES FOR EFFICIENT POWER USAGE AND LOW HEAT DISSIPATION
CREATES CLEAN, RAW POWER WITHOUT TAXING THE BATTERY OR CHARGING SYSTEM
INDUSTRY STANDARD INTERFACES MAKE FOR ACROSS-THE-BOARD COMPATIBILITY
BUILT-IN CROSSOVER CIRCUITRY FOR OPTIMAL LOUDSPEAKER PERFORMANCE
COMPACT DESIGN ALLOWS FOR INSTALLATION AND MOUNTING IN TIGHT SPACES
CONFORMAL COATED WEATHERPROOF PRINTED CIRCUIT BOARDS
DIRECT CONNECT HARNESS MAKES FOR A PROFESSIONAL, CLEAN, AND EASY INSTALLATION
THIS AMPLIFIER KIT HAS BEEN DESIGNED TO FIT AND FUNCTION ON A VICTORY VISION™ MOTORCYCLE.
THE WIRING HARNESS INCLUDED HAS BEEN DESIGNED SPECIFICALLY FOR YOUR YEAR AND MODEL OF
MOTORCYCLE. BE SURE THAT YOU HAVE THE CORRECT HARNESS FOR YOUR SPECIFIC APPLICATION.
THE UNIVERSAL NATURE OF THIS AMPLIFIER’S DIRECT CONNECT INTERFACE ALLOWS US TO OFFER
DIFFERENT HARNESSES FOR DIFFERENT APPLICATIONS. LET US KNOW IF YOU HAVE A SPECIFIC OR
CUSTOM APPLICATION THAT THIS KIT DOES NOT COVER, AND WE’LL DO WHAT WE CAN TO
ACCOMMODATE YOUR NEEDS.
DID WE MENTION THAT THESE AMPLIFIERS REPRODUCE REALLY CLEAN, REALLY LOUD MUSIC?

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 3 NEWARK, CA
K
KI IT T C CO ON NT TE EN NT TS S
KIT ITEMS INCLUDED (BY QUANTITY): DCS1202V
DCS1202 2 CHANNEL MAIN AMPLIFIER 1
AMPLIFIER MOUNTING BRACKET 1
SX504-60 COMPONENT SPEAKER 2
DIRECT CONNECT WIRING HARNESS FOR VICTORY VISION™ 1
LARGE VELCRO PAD 1
8” BLACK ZIP TIE 6
DIELECTRIC GREASE PACKET 1
ALCOHOL CLEANING PAD 2
SPEAKER MOUNTING LOCK-NUT (5MM X 8) 8
SPEAKER MOUNTING FLAT WASHER (5MM) 8
GROUND STAR WASHER (1/4”) 1
25 AMP ATC FUSE 1
FUSETAP LUG (1/4” BLADE) 1
T
TA AB BL LE E O OF F C CO ON NT TE EN NT TS S
BEFORE YOU BEGIN ................................................................................................. 4
GETTING STARTED.................................................................................................... 5
INSTALLATION INSTRUCTIONS................................................................................... 6
INITIAL TEAR-DOWN .................................................................................................................. 6
COMPONENT MOUNTING ........................................................................................................... 6
WIRING THE MAIN AMPLIFIER ..................................................................................................... 7
REPLACING THE SPEAKERS ....................................................................................................... 7
TESTING THE SYSTEM ............................................................................................................... 7
WRAPPING IT UP....................................................................................................................... 7
USER GUIDE............................................................................................................ 8

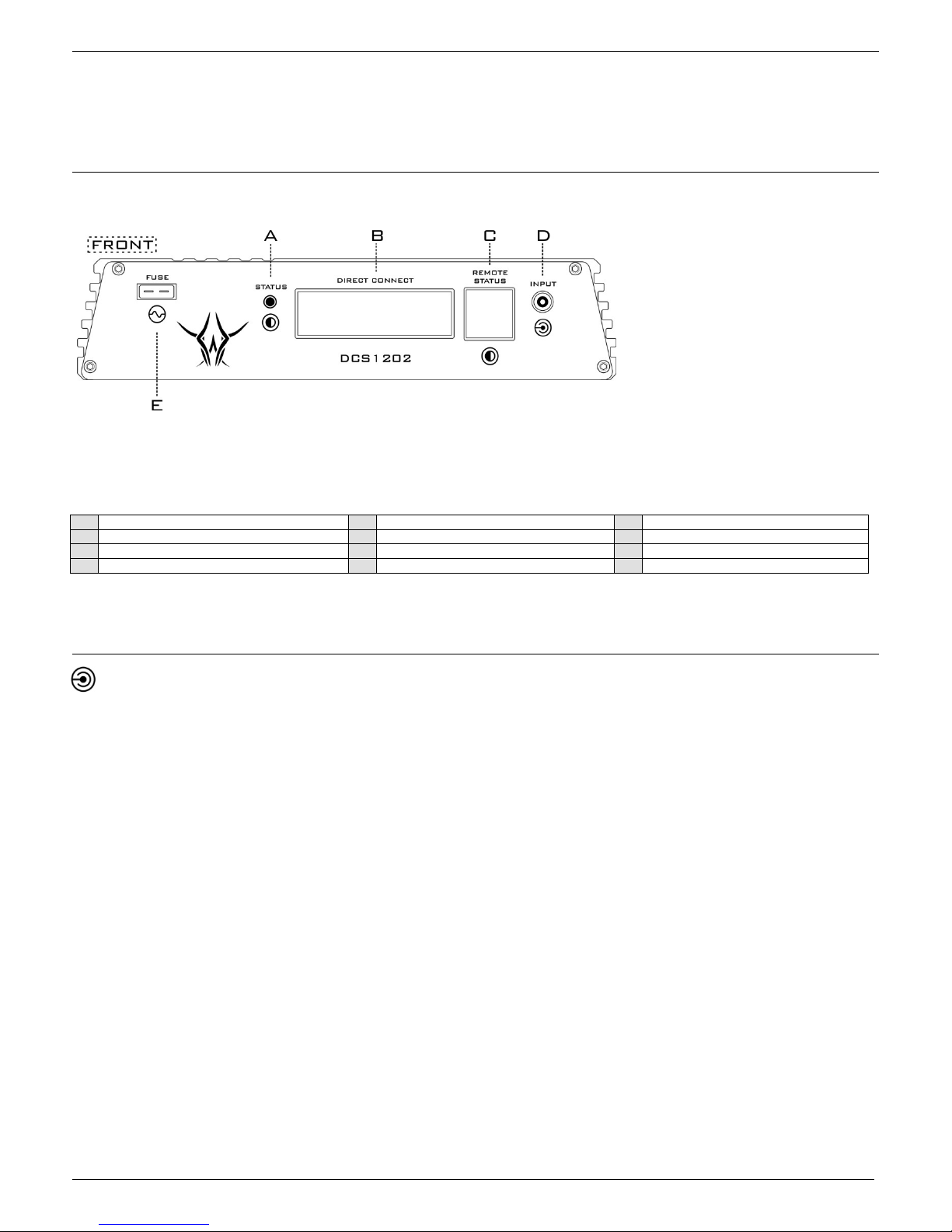

CONNECTORS AND CONTROLS .................................................................................................. 8
CONNECTORS DEFINED............................................................................................................. 8
SYSTEM DIAGRAMS ................................................................................................ 10
SPECIFICATIONS.................................................................................................... 11

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 4 NEWARK, CA
B
BE EF FO OR RE E Y YO OU U B BE EG GI IN N
THIS SECTION IS INTENDED TO BRING YOU UP TO SPEED WITH OUR DOCUMENTATION CONVENTIONS.
WE RECOMMEND READING THIS MANUAL THOROUGHLY BEFORE BEGINNING YOUR INSTALLATION TO
ACHIEVE A TROUBLE FREE, LONG LASTING OUTCOME.
TERMINOLOGY USED IN THIS MANUAL:
SOURCE UNIT REFERS TO THE DEVICE THAT SUPPLIES THE AMPLIFIER WITH AUDIO INPUT,
TYPICALLY YOUR RADIO, HEAD UNIT, MEDIA DEVICE, ETC.
MAIN AMPLIFIER DCS1202, MASTER 2 CHANNEL AMPLIFIER THAT FUNCTIONS STANDALONE. THE
ONLY RED BOX IN THE KIT.
DIRECT CONNECT HARNESS USED TO CONNECT THE AMPLIFIER TO YOUR AUDIO SYSTEM. DESIGNED
SPECIFICALLY FOR YEAR, MAKE, AND MODEL COMPATIBILITY.
LOW LEVEL INPUT CABLE USED WHEN RCA CONNECTORS ARE THE SOURCE OF INPUT TO THE AMPLIFIER,
TYPICALLY USED WITH AFTERMARKET SOURCE UNITS.
RADIO CONSOLE VICTORY VISION™ AUDIO SYSTEM SOURCE UNIT. MOUNTED DIRECTLY IN FRONT OF
THE SEAT BELOW THE INSTRUMENT CLUSTER.
ACCESS PANEL GENERIC TERM TO DESCRIBE PANELS OR COVERS THAT, WHEN REMOVED, PROVIDE
ACCESS TO AREAS OR HARDWARE THAT NEED TO BE ACCESSED OR REMOVED.
MANUFACTURER INSTRUCTIONS REFERS TO ANY DOCUMENTATION PROVIDED BY A MANUFACTURER OTHER THAN
HAWG WIRED (IE. POLARIS OR VICTORY SHOP REPAIR MANUAL, AFTERMARKET
SOURCE UNIT OR SPEAKER MANUAL, ETC.).
QUICK CONNECT SYMBOLS:
KEEP AN EYE OUT FOR THE “QUICK CONNECT” SYMBOLS THROUGHOUT THIS MANUAL; THEY PROVIDE A
VISUAL LINK BETWEEN INSTRUCTIONS, DIAGRAMS, AND THE SYSTEM COMPONENTS.
POWER BATTERY POSITIVE (+12VDC)
GROUND BATTERY NEGATIVE (–), CHASSIS GROUND
REMOTE REMOTE TURN-ON LEAD ACTIVATED BY +12VDC
FUSE ESSENTIAL PROTECTION FROM SHORTS
HARNESS DIRECT CONNECT HARNESS CONNECTION
SPEAKER TERMINAL CONNECTIONS FOR SPEAKER OUTPUT
NOTE: IF ANYTHING ABOUT THE INSTRUCTION OR INFORMATION PROVIDED IN THIS MANUAL IS UNCLEAR, QUESTIONABLE,
OR YOU THINK WE’RE DEAD WRONG ABOUT SOMETHING, PLEASE CONTACT US.

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 5 NEWARK, CA
G
GE ET TT TI IN NG G S ST TA AR RT TE ED D
UNDERSTANDING HOW TO INSTALL AND CONFIGURE YOUR AUDIO EQUIPMENT IS THE KEY TO
MAXIMIZING YOUR SYSTEM’S POTENTIAL. THIS SECTION IS INTENDED TO HELP YOU PREPARE AND
STRATEGIZE YOUR PLAN OF ATTACK BEFORE YOU START.
LOSE THE SPARK
DISCONNECT THE NEGATIVE BATTERY TERMINAL BEFORE DOING ANY ELECTRICAL WORK ON YOUR
MOTORCYCLE. ALWAYS DISCONNECT THE NEGATIVE (–) BATTERY POST FIRST, FOLLOWED BY THE
POSITIVE (+), AND WHEN IT'S TIME TO GO BACK TOGETHER, CONNECT THE POSITIVE (+) POST FIRST,
FOLLOWED BY THE NEGATIVE (–). THIS CAN MINIMIZE THE CHANCE OF SPARKS AND VOLTAGE SPIKES,
AND IS A GOOD GENERAL PRACTICE WHEN DEALING WITH ANY DC ELECTRICAL SYSTEM (CAR, BOAT,
MOTORCYCLE, ETC.).
BE WELL GROUNDED
BAD GROUNDS UNDER THE FAIRING HAVE PROVEN TO BE THE NUMBER ONE CAUSE OF PROBLEM
INSTALLS. THE BEST PLACE FOR CONNECTING TO CHASSIS GROUND IS ALWAYS DIRECTLY TO THE
FRAME ON A CLEAN SURFACE FREE OF PAINT, RUST, OR OTHER CONTAMINANTS.
ALWAYS USE THE SHORTEST LENGTH OF GROUND WIRE POSSIBLE BETWEEN CHASSIS GROUND
AND THE AMPLIFIER. NEVER USE A GROUND WIRE LONGER THAN THE ONE WE PROVIDE.
SOME FAIRINGS ARE NOT DIRECTLY MOUNTED TO THE BIKE FRAME, SO YOU MUST RUN THE
GROUND WIRE BACK THROUGH THE FAIRING TO THE FRAME.
THE GROUND WIRE AND POWER WIRE ARE EQUALLY IMPORTANT; IF EITHER ONE OF THEM IS
COMPROMISED, THE AMPLIFIER’S PERFORMANCE WILL DEGRADE OR CEASE TO FUNCTION.
USE PROTECTION EVERY TIME
ALWAYS INSTALL A MASTER FUSE WITHIN 12” OF THE BATTERY FOR ANY ADDITIONAL EQUIPMENT
ADDED TO YOUR MOTORCYCLE’S ELECTRICAL SYSTEM. THE MINI-FUSE INSTALLED ON THE MAIN
AMPLIFIER ONLY PROTECTS THE INTERNAL CIRCUITRY, NOT THE WIRING. IN THE EVENT OF A SHORT,
FAILURE TO INSTALL A FUSE NEAR THE BATTERY CAN CAUSE DAMAGE TO YOUR ELECTRICAL SYSTEM,
OR WORSE YET, THE POSSIBILITY OF FIRE.
CHECK YOUR POLARITY
THE WAY SPEAKER WIRES ARE MARKED FOR POLARITY (+/–) VARIES FROM BRAND TO BRAND. RED AND
BLACK COLORED WIRES ARE TYPICALLY POSITIVE (+) AND NEGATIVE (–) RESPECTIVELY, BUT WHEN IT
COMES TO WIRE PAIRS WITH ONE STRIPE, THINGS GET MESSY. SOME MANUFACTURES USE THE STRIPE
AS POSITIVE (+), WHILE OTHERS USE THE STRIPE AS NEGATIVE (–). BE SURE TO CHECK THE
DOCUMENTATION OF EACH COMPONENT YOU'RE DEALING WITH BEFORE MAKING CONNECTIONS.
THINK BEFORE YOU CUT
ALWAYS ROUTE WIRES AND CABLES SAFELY, AVOIDING SHARP EDGES AND BURRS ALONG THE WAY.
USE WIRE LOOM WHEN POSSIBLE. CHECK FOR PROPER LENGTH TO BOTH TERMINATION POINTS,
KNOWING WHERE EACH COMPONENT MOUNTS, BEFORE YOU CUT ANYTHING.
PROTECT THAT PAINT
IF YOU'RE LUCKY ENOUGH TO HAVE FENDER AND TANK COVERS, USE THEM EVERY TIME. IF YOU DON’T,
TOWELS, RAGS, EVEN AN OLD BLANKET WILL DO IN A PINCH. YOU ONLY HAVE TO DROP A TOOL AND
CHIP YOUR PAINT ONCE TO REGRET IT FOREVER.
READY TO GET SERIOUS ABOUT YOUR BIKE’S SOUND SYSTEM? ME TOO, SO HERE WE GO…

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 6 NEWARK, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S
INITIAL TEAR-DOWN
IF YOU HAVEN’T ALREADY, GET FAMILIAR WITH YOUR NEW SYSTEM BY BROWSING THE “USER GUIDE” SECTION OF THIS
MANUAL. UNDERSTANDING YOUR EQUIPMENT FIRST CAN MAKE THE INSTALLATION INSTRUCTIONS EASIER TO FOLLOW.
1. WITH THE IGNITION SWITCH OFF AND THE WINDSHIELD FULLY EXTENDED, CAREFULLY REMOVE
THE ACCESS PANEL DIRECTLY IN FRONT OF THE SEAT TO EXPOSE THE MOUNTING BOLTS, AND
THEN REMOVE THE SEAT.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
2. REMOVE THE GAUGE TRIM BEZEL TO EXPOSE THE SPEAKER GRILL MOUNTING SCREWS.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
3. REMOVE THE RADIO CONSOLE, BEING CAREFUL WITH THE WIRING AND HARNESS CONNECTIONS
ON THE BOTTOM SIDE OF THE RADIO.
4. REMOVE THE FRONT FAIRING ACCESS PANEL, FOLLOWED BY REMOVING THE LEFT AND RIGHT
FILLER PANELS BENEATH THE WINDSHIELD.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
5. REMOVE THE 4 SCREWS HOLDING THE PANEL UNDERNEATH THE WINDSHIELD. POP IT LOOSE
FROM THE DASH FOR ACCESS, BUT LEAVE THIS PANEL ON THE BIKE.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
6. REMOVE THE CENTER PIVOT BOLT FROM THE WINDSHIELD ASSEMBLY.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
7. REMOVE THE LEFT AND RIGHT MIRRORS, FOLLOWED BY THE COROSPONDING SPEAKER GRILLS.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
8. REMOVE THE FACTORY SPEAKERS AND SPEAKER BUCKETS.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
COMPONENT MOUNTING
NOTE: BE SURE TO CLEAN ALL ADHESIVE MATING SURFACES WITH THE INCLUDED ALCOHOL PADS BEFORE ATTACHING
THE ADHESIVE VELCRO®PATCHES. ONCE THE ADHESIVE SIDE IS APPLIED TO A CLEAN SURFACE, WORK OUT THE AIR
POCKETS WITH YOUR FINGERTIPS FOR MAXIMUM HOLDING STRENGTH AND LONGEVITY.
9. PLACE ONE SIDE OF THE VELCRO PATCH ON THE AMPLIFIER BRACKET PROVIDED AND THE
OTHER SIDE OF THE VELCRO PATCH ON THE BOTTOM OF THE AMPLIFIER.
10. MOUNT THE AMPLIFIER BRACKET ON THE LEFT SIDE OF THE FRAME NEXT TO THE REAR WHEEL
USING EXISTING BOLTS.
11. INSTALL THE AMPLIFIER INTO THE BRACKET.
TIP: USING A PIECE OF PAPER BETWEEN THE VELCRO PATCHES IS A GOOD WAY TO KEEP THEM FROM STICKING
TOGETHER UNTIL YOU GET THE AMPLIFIER INTO THE BRACKET COMPLETELY. THEN SIMPLY REMOVE THE PAPER
AND FIRMLY PRESS THE AMPLIFIER INTO THE BRACKET TO MESH THE TWO VELCRO HALVES.

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 7 NEWARK, CA
WIRING THE MAIN AMPLIFIER
12. ROUTE THE MAIN HARNESS FROM THE AMPLIFIER IN THE REAR, UP THROUGH THE TWO O
CLAMPS NEAR THE THROTTLE BODY ACCESS PANEL, AND FINISHING WITH THE SPEAKER WIRES
TO EACH RESPECTIVE SIDE OF THE FAIRING (LEFT AND RIGHT), AND THE POWER FEED GOING TO
THE FUSE PANEL AREA ON THE RIGHT HAND SIDE.
13. USING THE ZIP TIES PROVIDED, SECURE THE HARNESS IN PLACE AND CONNECT IT TO THE
AMPLIFIERS DIRECT CONNECTOR.
14. AFTER REMOVING THE RIGHT-HAND SIDE FUSE PANEL COVER, CONNECT THE POWER WIRE TO
ONE OF THE “SPARE FUSE” LOCATIONS USING THE FUSETAP LUG PROVIDED, AND REINSTALL
THE FUSE COVER.
15. CONNECT THE GROUND TERMINAL TO ONE OF THE MOUNTING BOLTS FOUND ON THE THROTTLE
BODY COVER PLATE USING THE STAR WASHER PROVIDED.
16. CONNECT THE REMOTE TURN-ON PLUG TO THE AUXILIARY CONNECTOR LOCATED BETWEEN THE
RADIO CONSOLE AND THE FRONT OF THE SEAT.
NOTE: IF AN ACCESSORY IS ALREADY USING THIS CONNECTOR, UNPLUG IT FROM THE AUXILIARY CONNECTOR
FIRST, AND CONNECT THE DCS REMOTE TURN-ON PLUG BETWEEN THE ACCESSORY AND THE BIKES HARNESS.
17. CONNECT THE SPEAKER INPUT WIRES OF THE DCS HARNESS TO THE 4 STOCK SPEAKER WIRES.
REPLACING THE SPEAKERS
18. REPLACE THE FACTORY SPEAKERS WITH 4 OHM SPEAKERS PROVIDED. RECONNECT THE NEW
SPEAKERS TO THE DCS HARNESS SPEAKER WIRES, MAKING SURE THAT POSITIVE (+) AND
NEGATIVE (-), LEFT AND RIGHT ARE PROPERLY MATCHED.
TESTING THE SYSTEM
19. PERFORM A BASIC SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY
THAT THE AMPLIFIER POWERS UP (LED SHOULD LIGHT) AND THAT THE SPEAKERS FUNCTION.
WRAPPING IT UP
20. WITH THE IGNITION OFF, CAREFULLY REVERSE THE INITIAL TEAR-DOWN STEPS TO REASSEMBLE
THE BIKE, ENSURING THAT EACH ATTACHING SCREW OR BOLT GOES BACK INTO THE HOLE IT
CAME OUT OF.
WARNING: AVOID OVER-TIGHTENING; PLASTIC THREADS HAVE A TENDENCY TO PULL OUT EASILY. REFER TO
MANUFACTURER INSTRUCTIONS IF NECESSARY.
21. PERFORM A FINAL SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY
THAT ALL COMPONENTS FUNCTION PROPERLY.
22. PERFORM A TEST RIDE AND AGAIN VERIFY THAT THE SYSTEM IS OK, AND THAT YOUR FRIENDS
ARE SUFFICIENTLY JEALOUS.
TIP: JUSTIN WOULD LIKE TO REMIND YOU TO CHECK YOUR TIRE PRESSURE, AND FROM THE ENTIRE HAWG
WIRED TEAM, THANKS FOR MAKING THIS POSSIBLE, KEEP THE RUBBER SIDE DOWN, AND CRANK IT!

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 8 NEWARK, CA
U
US SE ER R G GU UI ID DE E
CONNECTORS AND CONTROLS
PLANNING YOUR SYSTEM
CONFIGURATION IS THE FIRST
STEP TOWARDS HI-FI
HAPPINESS, AND IT’S TIME
YOU GET FAMILIAR WITH ALL
THE BELLS AND WHISTLES ON
YOUR NEW AMPLIFIER. THE
TABLE BELOW LISTS THE
CONTROLS AND CONNECTORS
ON THE DCS1202
FACEPLATES.
A POWER/STATUS INDICATOR E AMPLIFIER PROTECTION FUSE
B DIRECT CONNECT HARNESS INPUT
C REMOTE POWER/STATUS INDICATOR
D LOW LEVEL INPUT
CONNECTORS DEFINED
LOW LEVEL INPUT CONNECTOR:
THIS CONNECTOR ALLOWS THE AMPLIFIER TO USE INDUSTRY STANDARD RCA OUTPUTS FROM AN
AFTERMARKET SOURCE UNIT AS INPUTS. THIS IS THE PREFERRED METHOD WHEN RCA OUTPUTS
ARE AVAILABLE, AND WILL PRODUCE THE CLEANEST SOURCE SIGNAL TO THE AMPLIFIER.
NOTE: WE USE INDUSTRY STANDARD 3.5MM HEADPHONE STYLE JACKS ON THE AMPLIFIER DUE TO THE SPACE
CONSTRAINTS (TWO 3.5MM PHONO-JACKS ARE A LOT SMALLER THAN FOUR RCA JACKS). ALTHOUGH WE HIGHLY
RECOMMEND USING THE LOW LEVEL INPUT CABLES WE SUPPLY WITH THE KIT, TECHNICALLY YOU SHOULD BE ABLE
TO UTILIZE ANY STANDARD RCA TO PHONO ADAPTER CABLE FOUND AT YOUR LOCAL ELECTRONIC STORE TO MAKE
THESE CONNECTIONS. IT’S OUR GOAL TO KEEP THINGS SIMPLE AND STANDARD WHENEVER POSSIBLE.

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 9 NEWARK, CA
U
US SE ER R G GU UI ID DE E [
[C CO ON NT TI IN NU UE ED D] ]
CONNECTORS DEFINED (CONTINUED)
1. THIS IS THE PIN CONFIGURATION OF THE 20 PIN AMPLIFIER CONNECTOR. THIS IS FOR
REFERENCE ONLY. ADDITIONAL WIRING IS ONLY REQUIRED FOR CUSTOM APPLICATIONS THAT
ARE NOT COVERED BY THE DIRECT CONNECT HARNESS SUPPLIED WITH THE KIT.
PIN NUMBER FUNCTION PIN NUMBER FUNCTION
A1 RIGHT + INPUT B1 RIGHT – INPUT
A2 LEFT + INPUT B2 LEFT – INPUT
A3 RIGHT + OUTPUT B3 RIGHT – OUTPUT
A4 LEFT + OUTPUT B4 LEFT – OUTPUT
A5 B5
A6 B6
A7 B7
A8 GROUND B8 GROUND
A9 B9 +12V REMOTE ON
A10 +12V POWER B10 +12V POWER

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 10 NEWARK, CA
S
SY YS ST TE EM M D DI IA AG GR RA AM M

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 11 NEWARK, CA
S
SP PE EC CI IF FI IC CA AT TI IO ON NS S
DCS1202
INPUT CHANNELS: ......................................................................................... 2 HIGH AND LOW LEVEL
OUTPUT CHANNELS: ......................................................................................................2 CHANNELS
NOMINAL OUTPUT IMPEDANCE: ..............................................................................................4 OHMS
NOMINAL POWER OUTPUT (WATTS RMS): ................................................................120 (2 X 60) WATTS
FREQUENCY RESPONSE: .............................................................................................. 125HZ-50KHZ
LOW LEVEL (RCA LINE-IN) SENSITIVITY:............................................................................. 200MV – 6V
HIGH LEVEL (SPEAKER-IN) SENSITIVITY: ......................................................................... 400MV – 12V
INPUT IMPEDANCE: ........................................................................................................... 33K OHMS
CASE DIMENSIONS
MAIN AMPLIFIER: ................................................................................... 6.50” W X 3.75” D X 1.50” H
OUR AMPLIFIER TECHNOLOGY FEATURES CLASS-T®DIGITAL AMPLIFIERS BY TRIPATH
UNCOMPROMISED SOUND QUALITY TYPICALLY:.............................................0.010% THD+N @ 60W 4Ω
OVER-CURRENT AND OVER-TEMPERATURE PROTECTION, TURN-ON AND TURN-OFF POP SUPPRESSION
CONFORMAL COATED WEATHERPROOF PRINTED CIRCUIT BOARD(S)
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

DCS1202V AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED PAGE 12 NEWARK, CA
W
WA AR RR RA AN NT TY Y I IN NF FO OR RM MA AT TI IO ON N
HAWG WIRED OFFERS A LIMITED WARRANTY OF OUR PRODUCTS ON THE FOLLOWING TERMS:
• LENGTH OF WARRANTY
1 YEAR ON AUDIO SYSTEMS, ELECTRONICS, SPEAKERS, AND ACCESSORIES (RECEIPT REQUIRED).
• COVERAGE
THIS WARRANTY COVERS ONLY THE ORIGINAL PURCHASER OF A HAWG WIRED PRODUCT PURCHASED FROM AN AUTHORIZED
HAWG WIRED DEALER IN THE UNITED STATES. IN ORDER TO RECEIVE SERVICE, THE PURCHASER MUST PROVIDE HAWG WIRED
WITH A COPY OF THE RECEIPT STATING THE CUSTOMER NAME, DEALER NAME, PRODUCT PURCHASED AND DATE OF
PURCHASE.
• DEFECTIVE PRODUCTS
PRODUCTS FOUND TO BE DEFECTIVE DURING THE WARRANTY PERIOD WILL BE REPAIRED OR REPLACED (WITH A PRODUCT
DEEMED TO BE EQUIVALENT) AT HAWG WIRED'S DISCRETION.
• WHAT IS NOT COVERED
DAMAGE CAUSED BY ACCIDENT, ABUSE, IMPROPER OPERATIONS, WATER, THEFT
ANY COST OR EXPENSE RELATED TO THE REMOVAL OR REINSTALLATION OF PRODUCT
SERVICE PERFORMED BY ANYONE OTHER THAN AN AUTHORIZED HAWG WIRED SERVICE CENTER
ANY PRODUCT WITH THE SERIAL NUMBER OR TAMPER LABELS DEFACED, ALTERED, OR REMOVED
SUBSEQUENT DAMAGE TO OTHER COMPONENTS
ANY PRODUCT PURCHASED OUTSIDE THE U.S.
ANY PRODUCT NOT PURCHASED FROM AN AUTHORIZED HAWG WIRED DEALER
• LIMIT ON IMPLIED WARRANTIES
ANY IMPLIED WARRANTIES INCLUDING WARRANTIES OF FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION
TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE LENGTH
OF AN IMPLIED WARRANTY, SO THIS LIMITATION MAY NOT APPLY. NO PERSON IS AUTHORIZED TO ASSUME FOR HAWG WIRED
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.
• HOW TO OBTAIN SERVICE
PLEASE CALL 510.894.2999 FOR HAWG WIRED CUSTOMER SERVICE. YOU MUST OBTAIN A RETURN MATERIAL
AUTHORIZATION NUMBER (RMA) TO RETURN ANY PRODUCT TO HAWG WIRED. YOU ARE RESPONSIBLE FOR SHIPPING
CHARGES OF RETURNED PRODUCTS TO HAWG WIRED.
• MADE IN THE USA
OUR PRODUCTS ARE PROUDLY DESIGNED, DEVELOPED AND BUILT IN THE USA*. THE MAJORITY OF THE COMPONENTS USED
IN THE CONSTRUCTION OF OUR PRODUCTS ARE PRODUCED BY AMERICAN COMPANIES. HOWEVER, DUE TO THE GLOBAL
NATURE OF MODERN MANUFACTURING AND THE ELECTRONICS INDUSTRY IN GENERAL, SOME PARTS MAY BE MANUFACTURED
IN OTHER COUNTRIES.
*OUR SPEAKERS ARE PROUDLY DESIGNED AND DEVELOPED IN THE USA. HOWEVER, DUE TO THE GLOBAL NATURE OF LOUDSPEAKER
MANUFACTURING, OUR SPEAKERS ARE MANUFACTURED IN OTHER COUNTRIES.
H
HA AW WG G W WI IR RE ED D, , I IN NC C. .
C
CO ON NT TA AC CT T U US S B BY Y E EM MA AI IL L
GENERAL INFORMATION – [e-mail]
SALES AND MARKETING – [e-mail]
TECHNICAL SUPPORT – [email protected]
C
CO ON NT TA AC CT T U US S B BY Y P PH HO ON NE E
MAIN 510.894.2999
EFAX 510.217.6994
VISIT US ON THE WEB AT HAWG-WIRED.COM
COPYRIGHT © 2008 HAWG WIRED, INC. ALL RIGHTS RESERVED.
REV.1A PRINTED IN THE U.S.A.
