Hayter MT313 User manual

English Version
FROM SERIAL NO: 995A001001 MANUAL PART NO: 995901(REV.0.)
Issue: 14.04.04
OPERATOR'S MANUAL
MT313
TRIPLE TURF MOWER
CODE 995A
THIS MANUAL SHOULD BE REGARDED AS PART OF THE
MACHINE, AS IT GIVES ESSENTIAL INFORMATION REGARDING
MACHINE SAFETY, OPERATION AND SPECIFICATIONS.

ATTENTION
THIS SYMBOL MEANS
BE ALERT!
YOUR SAFETY IS INVOLVED
READ THIS MANUAL BEFORE USING THE MT313 MOWER.
IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY.
ALL OPERATORS SHOULD SEEK AND OBTAIN PROFESSIONAL AND
PRACTICAL INSTRUCTIONS ON THE SAFE USE OF THE MOWER. THESE
SERVICES ARE AVAILABLE THROUGH HAYTER LIMITED OR HAYTER APPROVED
COMMERCIAL DEALERS.

995901PM140404A
CONTENTS
CONTENTS
SAFETY PRECAUTIONS.
Training.
Preparation.
Operation.
Handling and storage of fluids.
Maintenance and storage.

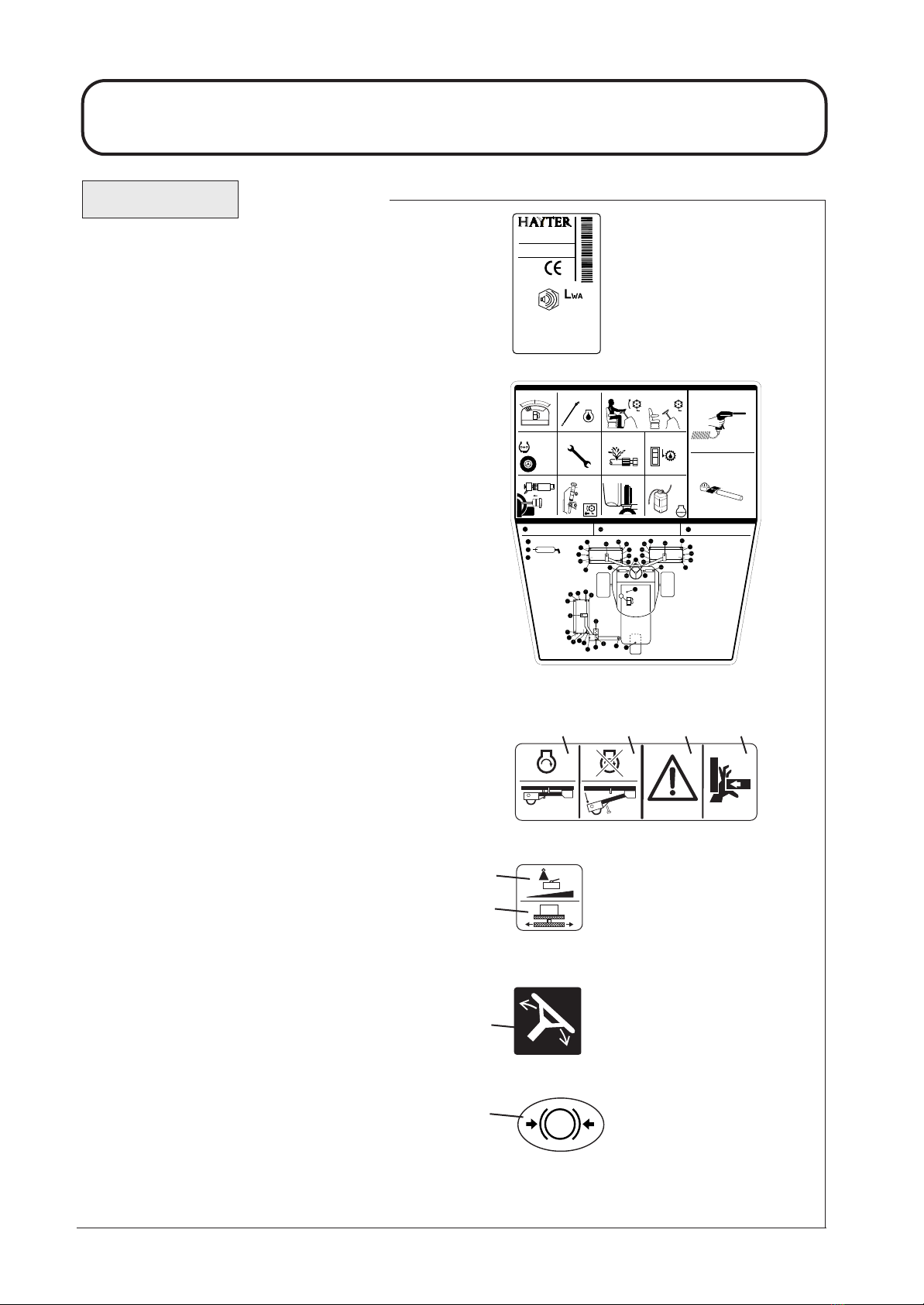

Decals.
EC CONFORMITY INFORMATION.

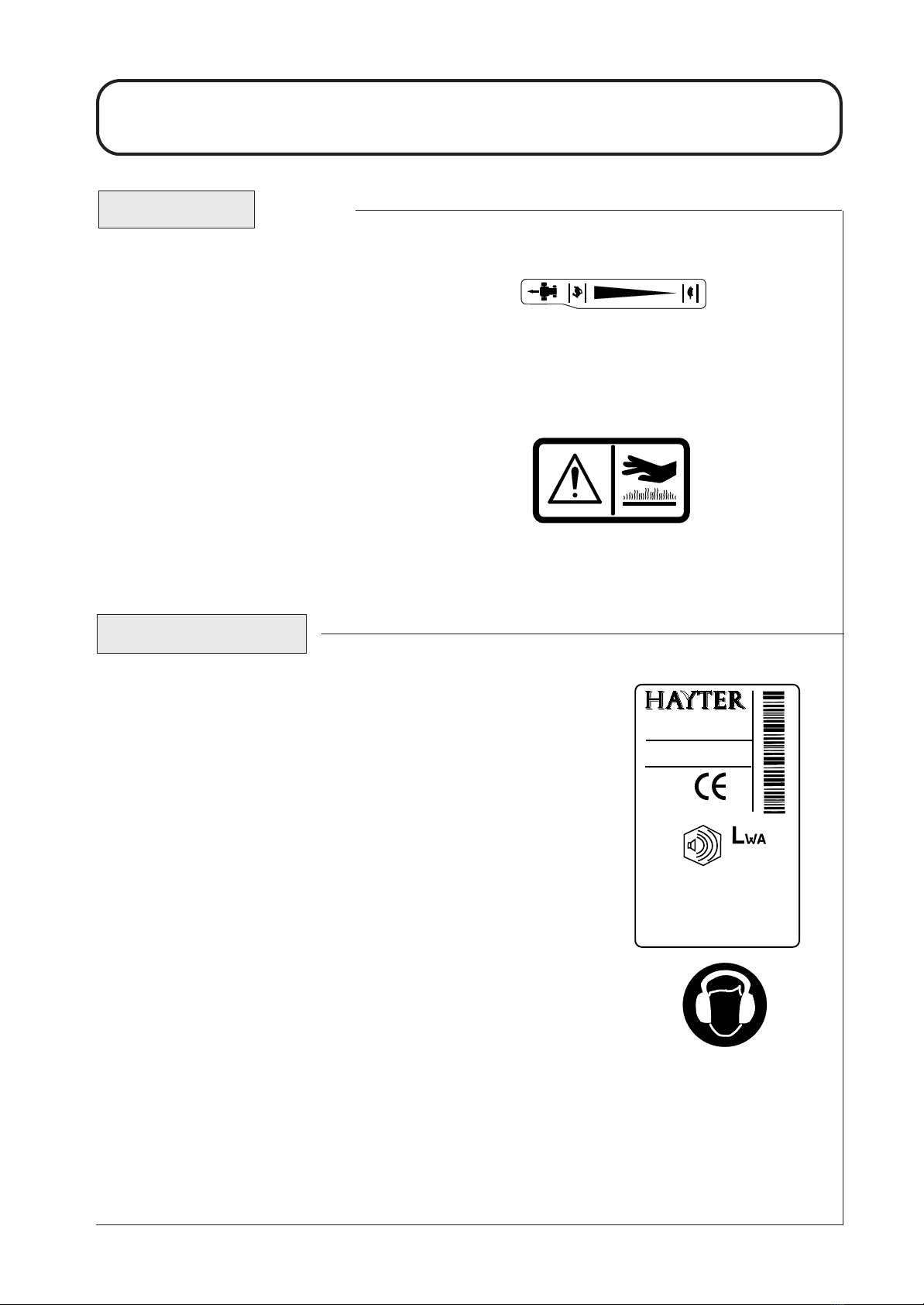

Noise levels.
EC Declaration of Conformity.
INTRODUCTION.
SPECIFICATIONS.
Engine.
Transmission system.
Cutterhead drive system.
Cutterhead lift system and steering.
Hydraulic system.
Vehicle specifications.
Operator controls.
Instrumentation.
Weight and dimensions.
Recommended lubricants and hydraulic fluids.
Cutterheads.
OPERATING THE MOWER.
Safety Notice.
Operator presence controls.
Identification of controls.
Braking system.
Throttle control.
Forward travel speed backstop lever.
Speed control pedal.
Transport latches.
Operator platform securing.
Adjustable steering column.
Operator seat.
Warning systems.
Audible warning horn.
Ignition key.
Engine pre-heat indicator light.
Page No.
1.6 - 1.15
1.6
1.6 - 1.7
1.7 - 1.9
1.10
1.11
1.12 - 1.15
1.15 - 1.16
1.15
1.16
1.17
1.18 - 1.24
1.18
1.19
1.19
1.20
1.20
1.21
1.22
1.22
1.23
1.23
1.24
1.25 - 1.40
1.25
1.25
1.26
1.27
1.27
1.28
1.28
1.28
1.29
1.30
1.30
1.31
1.31
1.32
1.32
1.4 1.4

995901PM140404A
CONTENTS
CONTENTS Continued.
Fuel level gauge.
Hourmeter.
Transmission neutral indicator light.
Cutterdeck drive switch indicator light.
Parking/emergency brake indicator light.
Cutterhead position control.
Cutterhead drive engagement.
Weight transfer/traction assistance.
Starting the engine.
Stopping the engine.
General operating hints.
Unblocking cutting cylinders.
Cutterhead general information.
Swing-out centre arm unit.
MAINTENANCE.
Maintenance
Engine.
Running in period.
Running in period - at first 50 hours.
Daily and before use.
Every 50 hours.
Every 250 hours.
Every 500 hours.
Cutterhead cylinder to bottom blade adjustment.
Cutterhead backlapping.
Cutterhead grinding.
Cutterhead bottom blade replacement.
Raising the mower off the ground.
Towing the mower.
GRASS CUTTING FAULTS.
TROUBLE SHOOTING.
ELECTRICAL CIRCUIT DIAGRAM .
HYDRAULIC CIRCUIT DIAGRAMS.
WARRANTY.
NOTES.
CUSTOMER INFORMATION.
Page No.
1.32
1.32
1.33
1.33
1.33
1.34
1.34
1.35
1.35 - 1.36
1.36
1.37
1.38
1.38 - 1.39
1.40
1.41 - 1.62
1.41 - 1.42
1.43
1.43
1.43
1.44 - 1.47
1.48 - 1.49
1.50
1.51 - 1.53
1.54
1.55
1.56
1.56
1.57
1.58 - 1.59
1.60 - 1.62
1.63 - 1.69
1.70 - 1.71
1.72 - 1.73
1.74
1.75
1.76
1.5 1.5

995901PM140404A
SAFETY PRECAUTIONS
TRAINING
Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. Learn
how to stop the mower quickly in an emergency.
Never allow children or people unfamiliar with these instructions to use the mower. Local regulations
may restrict the age of the operator.
Never mow while people, especially children, or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or
their property.
Do not carry passengers.
All drivers should seek and obtain professional and practical instruction. Such instruction should emphasise:
- The need for care and concentration when working with this machine.
- The need to slow down when making tight turning manoeuvres. Failure to take adequate care can affect
stability leading to loss of control of the machine particularly when operating in transport mode.
- Control of a ride-on-machine sliding on a slope will not be regained by application of the brake.
The main reasons for loss of control are:
- Insufficient wheel grip.
- Being driven too fast.
- Inadequate braking.
- The type of machine is unsuitable for the task.
- Lack of awareness of the effect of ground conditions, especially slopes.
- Incorrect load distribution.
PREPARATION
Check that the machine complies with all applicable regulations, including those in force when used on
the public highway.
While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when
barefoot or wearing open sandals. Eye protection should be worn.
Thoroughly inspect the area where the equipment is to be used and remove all objects which can be
thrown by the machine.
Never operate the machine without first checking that the operator platform is fully secured and in good
working order, refer - ‘OPERATOR PLATFORM SECURING’.
READ THIS MANUAL BEFORE USING THE MT313 MOWER, IT IS ESSENTIAL THAT
OPERATORS STUDY IT FOR THEIR OWN SAFETY.
THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS.
A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.
1.6 1.6

995901PM140404A
SAFETY PRECAUTIONS
PREPARATION Continued.
Ensure that the cutterheads are fully raised with the latches and safety locks engaged in position before
transporting the mower.
Replace faulty silencers.
Check the condition of the tyres and ensure that they are inflated to the correct pressures, refer -
SPECIFICATIONS.
This is particularly important if the machine is to be taken on the public highway.
Check that the mower is in good working order, paying particular attention to the brakes and steering.
Also ensure that the forward/reverse speed control pedals move freely to neutral when released.
Before use, always visually inspect to see that the blades, blade bolts and cutting cylinders are not worn
or damaged. Replace worn or damaged components.
Check the mower hydraulic system, particularly the hydraulic hoses, fittings and hose supports. Worn,
crushed or damaged hoses can burst, with risks to health and damage to the machine and surrounding
turf areas.
After refuelling and adding oil to the hydraulic oil tank ensure that the caps are replaced securely.
Check that all linkages, connections and pivot nuts are secure and that wheel nuts are torqued correctly,
refer - SPECIFICATIONS.
Before operating the machine ensure that there are no foreign objects or liquids on the platform or ped-
als - ALWAYS KEEP THE OPERATOR PLATFORM CLEAN.
OPERATION
Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
Mow only in daylight or in good artificial light.
Before attempting to start the engine, engage the parking brake, disengage the cutterhead drive system
and ensure that the forward/reverse speed controls are in the neutral position.
Never operate the machine without first checking that the operator platform rear securing bolts and latch
front bolt are torqued to 50Nm, refer - OPERATOR PLATFORM SECURING.
Before operating the machine ensure that the swing-out centre cutterhead mechanism is fully in position
and its securing bolt is tightened to 50Nm torque.
Whilst operating the machine ensure that all foreign objects are removed from the operator platform at
all times - ALWAYS KEEP THE OPERATOR PLATFORM AREA CLEAR AND CLEAN
1.7 1.7

Ground level
1P995A01A
12 Degree slope
15 Degree slope
995901PM140404A
SAFETY PRECAUTIONS
OPERATION Continued.
Do not use on a slope of more than 12 degrees unless all cutterheads are in contact with the ground
.
Never use on a slope of more than 15 degrees.
Where ground conditions are such that there may be risk of the mower rolling over the requirements of
SI 1998 No. 2306 “Provision and Use of Work Equipment Regulations” should be considered, refer -
Introduction - Optional Extras.
Warning: Prevent Accident
Ground conditions affect traction. Particular conditions may not permit safe operation on the slope lim-
its stated.
Remember there is no such thing as a" safe" slope. Travel on a grass slope requires particular care.
To guard against overturning:
- Exercise extreme care when changing direction on a slope.
- Do not stop or start suddenly when going up or downhill.
- Engage drive slowly, especially when travelling downhill.
- Machine speed should be kept low on slopes and during tight turns.
- Stay alert for humps and hollows and other hidden hazards.
- Keep away from sharp inclines and steep drops.
- Never mow across the face of a slope.
- Never park on a slope.
1.8 1.8

995901PM140404A
SAFETY PRECAUTIONS
OPERATION Continued.
Watch out for traffic when crossing or near roadways.
Use extreme caution when reversing.
Disengage the cutterhead drive system before crossing surfaces other than grass.
When using the machine, never direct discharge of material towards bystanders or allow anyone near the
machine while in operation.
Never operate the mower with defective guards, shields or without safety protective devices in place and in
good working order.
Do not change the engine governor settings or overspeed the engine. Operating an engine at excessive speed
may increase the risk of personal injury.
Before leaving the operator's position:
- Disengage the drive to the cutterheads.
- Lift cutterheads to the transport position and then get off the mower to securely
lock the safety latches. Or alternatively lower cutterheads to the ground.
- Change into neutral and set the parking brake.
- Stop the engine and remove the ignition key.
Engage the parking brake, disengage the drive to the cutterheads, stop the engine and remove ignition key :
- Before releasing blockages.
- Before checking, cleaning or working on the mower.
- After striking a foreign object. Inspect the mower for damage and make
repairs before restarting and operating the equipment.
- If the machine starts to vibrate abnormally ( check immediately ).
- Before refuelling.
- Before making cutterhead adjustments.
Disengage the drive to the cutterheads when transporting or not in use.
Reduce the throttle setting during engine run - out.
Never work on the mower when the engine is running.
Always keep feet and hands well away from the cutting cylinders when making adjustments.
1.9 1.9

995901PM140404A
HANDLING AND STORAGE OF FLUIDS
Hydraulic Oil
- Avoid contact with eyes and prolonged contact with skin.
- Protective goggles should be worn when pouring.
- Use of gloves or barrier cream is recommended.
- Wash hands thoroughly after contact.
- Store under cover, away from heat and sources of ignition.
Diesel Oil
- Avoid skin and eye contact.
- Wear impervious gloves when regular contact is likely and goggles when there is risk of splashing.
- Wash hands thoroughly after contact.
- Store in a cool dry well ventilated place away from heat and sources of ignition, in vessels specifi-
cally designed for storing fuel oils.
Lubricating Oil
- Avoid skin and eye contact.
- Wear impervious gloves when regular contact is likely and goggles when there is risk of splashing.
- Wash hands thoroughly after contact.
- Store in a cool dry well ventilated place away from heat and sources of ignition.
Anti- Freeze
- Keep away from heat, sparks, and flames.
- Avoid skin and eye contact and breathing vapours.
- Store in a closed container in a cool dry well ventilated area.
SAFETY PRECAUTIONS
1.10 1.10

995901PM140404A
SAFETY PRECAUTIONS
MAINTENANCE AND STORAGE
Take care when rotating a cutting cylinder as this can cause other cylinders to rotate.
When the machine is to be parked, stored or left unattended, lower the cutterheads to the ground or lift
the cutterheads to the transport position and engage the safety locks.
Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
Allow the engine to cool before storing in any enclosure.
To reduce the risk of fire, keep the engine, silencer, fuel tank and battery compartment free of grass,
leaves or excessive grease.
Frequently check fuel lines and fittings for cracks or leaks and replace if necessary.
Replace worn or damaged parts for safety.
Ensure that all safety decals are properly secured and in good condition.
If the fuel tank has to be drained, this should be done outdoors.
Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades
and fixed parts of the machine.
Never attempt to disconnect any part of the hydraulic system before de-pressurisation. This may be
achieved by lowering all cutterheads to the ground, stopping the engine and removing the ignition key.
Avoid skin or eye contact with hydraulic or diesel fluids. Wear protective clothing.
Leaking fluids under pressure can penetrate the skin or eyes, causing serious injury.
Always use a piece of cardboard or paper when searching for leaks.
Health and Safety at Work Act:
In accordance with section 6 of the Health and Safety at Work Act 1974, the MT313 Mower has been
designed and constructed so that, in so far as is reasonably practical, it will not endanger the safety and
health of those working with it. This is, however, subject to the machine being properly used and
maintained according to the conditions stated in this manual and elsewhere, which have been found
necessary as a result of the research and testing of Hayter Limited.
1.11 1.11

DECALS
Decal - Control Panel - Part No: 995904
Location: Control Panel
a) Ignition Switch h) Cutters - Off
b) Engine Speed - Slow i) Cutters - Forward
c) Engine Speed - Fast j) Horn
d) Cutter - Lift
e) Cutters - Hold
f) Cutters - Drop/Float
g) Cutters - Reverse
Decal - Incline MT313
Part No: 995906
Location: In front of seat front platform
Decal - Danger Latch Part No: 70-13-077
Location: LH / RH / Centre Arms
a) Caution
b) Stop engine/Remove ignition key before releasing or
operating safety latches
Decal - Diesel Part No: 70-13-078
Location: Fuel Tank
a) Diesel fuel only
Decal - Transmission Oil Part No: 70-13-071
Location: On Chassis left of the oil filler
a) Transmission Oil
b) Read and understand the Operators Manual
995901PM140404A
SAFETY PRECAUTIONS
1.12 1.12
IMPOR TANT /WICHTIG /BELANGRIJK
BEFORE USE : FILL MACHINE WITH RECOM-
MENDED OILTOCORRECTLEVEL. FAILURE TO
DOSO WILL CAUSE SERIOUS DAMAGEANDIN-
VALIDATE WARRANTY.
AVANT L'UTILISA TION : IL EST IMPERATIF DE
REMPLIR LA TONDEUSE AVEC UNE HUILE
SPECIFIEE AU NIVEAU EXACT POUR NE PAS
L'ENDOMMAGERSERIEUSEMENT ET ANNULER
LAGARANTIE.
VOR DEM GEBRAUCH: F ÜLLEN SIE DIE
MASCHINE MIT EMPFOHLENEM ÖL NACH,BIS
AUF DEN RICHTIGEN ST AND. DIE
NICHTBEACHTUNG DIESER INSTRUKTIONEN
KANN ZU ERNSTHAFTEN SCHADEN F ÜHREN
UNDDABEI WIRD DIE GARANTIE UNGÜLTIG.
VOOR GEBRUIK: VUL MACHINE MET
VORRGESCHREVEN OLIE TOT HET JUISTE
NIVEAU. HET NIET VOLGEN VAN DEZE
INSTRUKTIE LEIDT TOT ERNSTIGE SCHADE EN
VER VAL VANDE GARANTIE.
I
II
III
995904(1)
0
a
b
c
d
e
f
g
h
ij
ab
a
ab
0 - 15° 15°+
0 - 12° 12°+
995906 Rev.0.

995901PM140404A
SAFETY PRECAUTIONS
DECALS Continued.
1.13 1.13
HEIZKORPERDECKELENTFERNEN ERSTWENN DERMOTORKUHLIST.
ONLY REMOVE RADIATOR CAPWHEN ENGINE IS COOL.
VERWIJDERDE RADIATORDOPPASNADAT DE MOTORISAFGEKOELD.
IL FAUTTOUJOURSATTENDRELE REFROIDISSEMENTDU MOTEUR
AVANTDE RETIRERLE BOUCHONDURADIATEUR.
70-13-073 REV (.0.)
Decal - Jacking / Support Point Part No: 70-13-072
Location: Front Axle - 2 Points
a) Jacking and Support Point
Decal - Engine Fan / Radiator Part No: 70-13-073
Location: Engine Fan Cowl
a) Danger of Severing Fingers
b) Caution
c) Warning - Hot Surfaces
Decal - Tyre Pressure Part No. 995905
Location: LH/RH Chassis.
a) Tyre Pressure
b) Mowing & Road Travel all 3 Tyres
Decal - Platform Lift Warning Part No. 995912
Location: On Right Hand Rear Platform
a) Warning of heavy operator Platform
b) Take care when lifting and working under Platform.
Decal - Control Pedal Part No: 995908
Location: In front of seat on Platform
a) Forward Speed (continuously variable)
b) Reverse Speed (continuously variable)
Decal - Warning Platform Secure
Part No. 995910
Location: Either side of Operator Seat
a) Warning - Prevent Accidents: Operator platform can
raise if not correctly secured.
b) Ensure platform is correctly seated and both fasten-
ers replaced and to correct torque before operating
the machine
995905 Rev.0
1.0 BAR
14 PSI
x 3
a
abc
995908(0)
RF
a
b
995912 REV .0
Kg
50 Nm
995910 REV .0
a
b
a
b
a
b

995901PM140404A
SAFETY PRECAUTIONS
DECALS Continued.
1.14 1.14
Decal - Serial Number
Location: Rear Bulkhead
Decal - Maintenance
Part No. 995911
Location: Back of Operator Seat
Decal - Swing out arm
Part No. 995913
Location: On Centre Swing out arm
a) Engine will start only when arm is in operating position
b) Engine will not start unless arm is in the operating position
c) Caution
d) Beware of crashing hazard when moving arm
Decal - Weight Transfer
Part No. 995914
Location: On Weight Transfer Valve
a) Cutterhead Weight Transfer (continuously variable)
b) Rotate Thumb Nut
Decal - Steering Wheel Adjustment
Part No. 995909
Location: On Steering Column
a) Steering Wheel Adjustment
Decal - Parking Brake
Part No. 995907
Location: Steering Column
a) Parking Brake Engaged
MT313
- TRIPLE TURF MOWER
SPELLBROOK, BISHOP'S STORTFORD,
HERTS. CM23 4BU. ENGLAND.
Kg 730
RPM 2850
Serial No: 995A001001
CODE 995A
kW 15.0
2004
105dB
CLEAN AND INSPECT THE MACHINE.
WHEEL NUT TORQUE
FRONT: 54Nm
REAR: 54Nm
DAILY MAINTENANCE
DAILY
995911(Rev 0)
50 HOURS (WEEKLY)
GREASE POINTS
FUEL LEVEL
TYRES
AIR CLEANER
ENGINE OIL
FASTENERS
50 HOURS MAINTENANCE
CUTTERHEADS
HOSE LINES HYDRAULIC OIL
RADIATOR/SCREEN COOLANT LEVEL
SEAT SWITCH
1.0 BAR
14 PSI
x 3
01
40
90
140 C
0
D
DAILY (IF FITTED)
D
FULL
LOW
995913 (Rev.0.)
Kg
995914(0)
995909 Rev.0.
P
a dcb
a
b
a
a

995901PM140404A
SAFETY PRECAUTIONS / EC CONFORMITY
1.15 1.15
MT313
- TRIPLE TURF MOWER
SPELLBROOK, BISHOP'S STORTFORD,
HERTS. CM23 4BU. ENGLAND.
Kg 730
RPM 2850
Serial No: 995A001001
CODE 995A
kW 15.0
2004
105dB
Decal - Cruise Control
Part No. 953877
Location: Platform RH Side of Seat
Decal - Hot Surface
Part No. 950889
Location: RH Rear Chassis and Exhaust Guard
NOISE LEVELS
Operators Daily Personal Noise Exposure: HAYTER LIMITED have
no control over site conditions, duration of use, state of maintenance or
adjustment of the mower. All of these factors will affect the operator's
daily personal noise exposure level - LEP,d
Under typical working conditions operators could be exposed to a daily
personal noise exposure level in excess of 85 dB (A) LEP,d
Sound pressure level:
The maximum sound pressure level at the operator's position is 84 dB (A)
measured in accordance with European Standard EN836.
Sound power level:
The maximum sound power level is 105 dB(A) measured in accordance
with EC Directive 2000/14/EC.
If ear protection is required, ear protectors with good attenuation in the
63 - 8000 Hz frequency range should be used.
Employers of personnel using this machine are advised to read the 'Noise
at Work Regulations' as the operator's daily personal exposure level could
be above the 'First Action Level'. Wear Hearing
Protection
DECALS Continued.
950889 (Rev.0.)

995901PM140404A
EC CONFORMITY INFORMATION
EC DECLARATION OF CONFORMITY
1.16 1.16
VIBRATION INFORMATION
Lawnmower vibration information. RMS acceleration measured in 3 - axes at operators contact position on the
- steering wheel does not exceed 2.5ms -2
- seat = 0.6ms-2
EC DECLARATION OF CONFORMITY
HAYTER LIMITED,
Spellbrook, Bishop’s Stortford, Herts CM23 4BU ENGLAND
declare that the lawnmower:
Models: MT313
Machine Type No. CODE 995A
Category: Ride - on Lawnmower
Type: Cylinder
Engine - Manufacturer: Kubota
- Speed of rotation: 2800 rpm
Width of cutting device: 1830mm
Speed of rotation of the
cutting device: 1250 rpm
Complies with the provisions of Directive: 98/37/EC Essential Health & Safety Requirements Relating to the
Design & Construction of Machinery and Safety Components, as amended and the regulations transposed into
national law.
Also Directive 89/336/EEC Electromagnetic Compatibility, as amended and the regulations transposed into
national law.
Also Directive 2000/14/EC Noise emission in the environment by equipment for use outdoors, and the regula-
tions transposed into national law procedure applied for the conformity assessment: ANNEX VI, procedure 1.
Notified Body: Sound Research Laboratories Ltd. Holbrook House, Little Waldingfield,
Sudbury, Suffolk, CO10 02H. ENGLAND
Notified body identification No: 1088
Measured sound power level: 104 db(A)
Guaranteed sound power level: 105 dB(A)
Standards Used: EN292, EN836 and ENISO14982.
Authorised Signatory:
Signed Date: 18.02.04
Declaration done and Technical Documentation kept at:
HAYTER LIMITED,
M.A. Wright Spellbrook, Bishop’s Stortford,
(Technical Director) Herts CM23 4BU ENGLAND

INTRODUCTION
The Hayter MT313 Triple Turf Mower is a diesel engine powered self propelled machine with hydraulic sys-
tems for ground drive, cutterhead drives and steering. The machine operates in three wheel drive.
The Hayter MT313 Triple Turf Mower is a precision built machine designed solely for cutting grass and sim-
ilar low lying ground vegetation within the limitations stated in this manual. Use in any other way is consid-
ered as contrary to the intended use. Compliance with and strict adherence to the conditions of operation, ser-
vice and repair as specified in this Operators Manual also constitute essential elements of the intended use.
The way in which this machine is operated and maintained will have a profound effect on its performance and
reliability.
This manual contains advice on the Hayter MT313 Triple Turf Mower which should be operated, serviced and
repaired only by persons who are familiar with its particular characteristics and who are acquainted with the
relevant safety procedures.
The safety precautions listed herein and all other generally recognised regulations on safety and all road traf-
fic regulations must be observed at all times.
Any arbitrary modifications carried out to this machine may relieve Hayter Limited of liability for any result-
ing damage or injury.
In the pursuit of continuous product development Hayter Limited reserve the right to alter specifications with-
out notice.
Cutterhead Variants: The Hayter MT313 can be fitted with a range of cutterhead configurations and
optional extras:
Optional Extras:
- Beacon Kit - Amber flashing warning light.
- R.O.P.S Kit (Roll Over Protective Structure) 2 post design.
- Parking brake release kit
- Working light kit
- Independent cutting unit lift kit
- Grass box kit
- Narrow track kit
- Grooved front roller kit
- Crash frame kit
A R.O.P.S. is available for increased operator safety when working on slopes, refer - SAFETY PRE-
CAUTIONS.
When fitting optional extra kits to the mower be sure to fix the serial number decal supplied with the kit to
the rear bulkhead underneath the engine cover. This will help the Hayter spare parts department to supply
the correct spare parts throughout the service life of the mower.
Left and Right: Throughout this manual the terms 'Left' and 'Right' refer to the machine when looking in the
direction of forward travel.
995901PM140404A
INTRODUCTION
Fixed
Heads
Cutterhead Number of bladesCylinder diameter Floating Heads with
grooved front rollers
1.17 1.17
726B 178mm 5 ✔
726B 178mm 5 ✔
726B 178mm 7 ✔
726B 178mm 7 ✔

995901PM140404A
SPECIFICATIONS
SPECIFICATIONS
ALL FIGURES ARE NOMINALLY QUOTED AT THE RATED ENGINE SPEED OF 2800 RPM
UNLESS OTHERWISE STATED.
ENGINE
Type:
Power Rating:
Capacity:
Air Cleaner:
Cooling System:
Battery:
Alternator:
Starter:
Cold Starting:
Idle Speed:
Fuel Type:
IMPORTANT: PREVENT DAMAGE - for further information regarding the engine, refer to -
ENGINE MANUAL .
1.18 1.18
Kubota D902.
3 Cylinders in line.
20.1hp (15.0 kw) @ 2850 RPM.
DIN 70020.
898 cc
Clean air drawn through screened air intake in-front of
radiator via a cyclonic air cleaner with built in pre-cleaner.
Water-Cooled.
12V. 480 Amps S.A.E.
40 Amps.
1.2 KW Electric.
Glow Plug.
1250(+/-50) R.P.M.
Diesel.

995901PM140404A
SPECIFICATIONS
TRANSMISSION SYSTEM
Drive Type:
Pump:
Wheel Motors:
Drive:
Relief Valve Setting:
CUTTERHEAD DRIVE SYSTEM
Drive Type:
Pump:
Delivery Rate:
Cutterhead Motors:
Control:
Relief Valve Setting:
Hydraulic.
Variable displacement hydraulic piston pump with external charge
pump and pedal control.
Front Axle - Orbital, fixed displacement, with integral disc brake
(pressure released). Rear wheel - Orbital, fixed displacement.
3 wheel drive.
Main service relief 250 bar (3265 psi) differential.
Charge pressure relief 17 bar (250 psi) differential.
Hydraulic.
Hydraulic gear type.
40 Litres per minute.
Hydraulic gear type, reversible, pressure balanced with integral
differential pressure sensing relief check valve. Direct drive.
Electro-hydraulic.
Automatic diverter valve safety cut-off.
210 bar (3045 psi) differential.
1.19 1.19

995901PM140404A
SPECIFICATIONS
CUTTERHEAD LIFT SYSTEM AND STEERING
Drive Type:
Pump:
Delivery Rate:
Steering:
Cutterhead Lift Control:
Relief Valve:
Weight Transfer:
HYDRAULIC SYSTEM
Hydraulic Oil Type:
Capacity:
Cooling:
Suction Line Filtration:
Transmission Filtration:
Maximum Oil Contamination Level
Hydraulic.
Hydraulic gear pump with integral relief valve.
11 Litres per minute.
Power beyond hydrostatic steering valve with priority flow to
steering and auxiliary flow to cutterhead lift system. Manual
emergency steering.
Mechanical-hydraulic.
120 bar (1522 psi).
Variable hydraulic applied weight transfer acting on all
cutterheads.
Refer - RECOMMENDED LUBRICANTS
AND HYDRAULIC FLUIDS.
25.4 litres
Forced air aluminium combi unit.
125 micron no bypass mesh filter.
10 micron no bypass pressure filter.
ISO Code 18/13 or better (ISO 4406)
1300 - 2500 Particles/ml<15µ
40 - 80 Particles/ml>15µ
1.20 1.20
