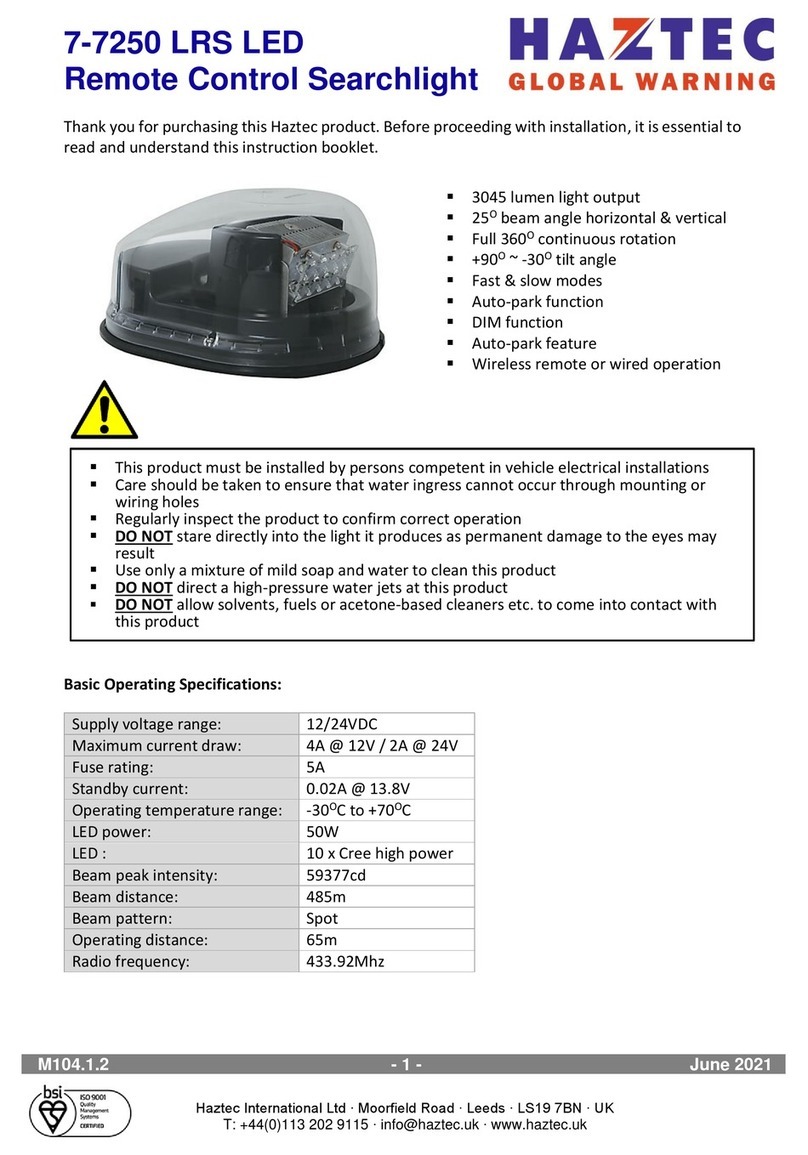

Haztec 7-7250-M LRS LED User manual

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
7-7250-M LRS LED
Remote Control Searchlight
Magnetic Mount
M205 Issue 1.0 Created by: Technical - 1 - June 2020
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential
to read and understand this instruction booklet.
Warning!
Regularly inspect the product to confirm correct operation
DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
Use only a mixture of soap and water to clean this product
DO NOT allow solvents, fuels or acetone-based cleaners etc. to contact this product
This product is designed for use on a stationary or slow moving vehicle only. It should not
be used at speeds above 5mph (8kph)
Always attach to a flat metal (ferromagnetic) surface
Inspect rubber boots regularly to ensure they are clean and free of dirt and damage
Basic Operating Specifications:
Supply voltage range:
12/24VDC
Maximum current draw:
4A @ 12V / 2A @ 24V
Fuse rating:
5A
Standby current:
0.02A @ 13.8V
Operating temperature range:
-30OC to +70OC
LED power:
50W
LED :
10 x Cree high power
Beam peak intensity:
59377cd
Beam distance:
485m
Beam pattern:
Spot
Operating distance:
65m
Radio frequency:
433.92Mhz
3045 lumen light output
25O beam angle horizontal & vertical
Full 360Ocontinuous rotation
+90O~ -30Otilt angle
Fast & slow modes
Auto-park function
DIM function
Auto-park feature
Wireless remote

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
7-7250-M LRS LED
Remote Control Searchlight
Magnetic Mount
M205 Issue 1.0 Created by: Technical - 2 - June 2020
Searchlight Operation:
Ensure that the cigar plug is pushed fully into the vehicle’s power outlet for a reliable
connection
Activate the switch on the cigar plug to put power to the Searchlight
Press the power button to switch on or off. The Searchlight will auto-park when switched
off
Operate the Searchlight by pressing the directional buttons
Up = Down = Left = Right =
Press the Fn button to change between slow and fast operation

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
7-7250-M LRS LED
Remote Control Searchlight
Magnetic Mount
M205 Issue 1.0 Created by: Technical - 3 - June 2020
Wireless Remote Programming:
Disconnect the power using the switch on the cigar plug
Ensure there is no other transmitter operating at the same time
Switch on the power and within 5 seconds press the remote Up and Down
buttons simultaneously
The Searchlight will flash to acknowledge connection with the remote
To program a second remote (upto 4 remotes can be used with the same Searchlight.
Programming a 5th will replace the first); Within 5 seconds of programming the first
remote, press the up and down buttons simultaneously on the second remote or repeat
from step 1
