HDL SB-Z-AUDIO User manual

Digital Background Music Player
SB-Z-AUDIO
www.hdlautomation.com
User manual

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual
Document updates:
Version
Date
Description
V1.0
2015.05.06
Finish new document

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual
INDEX
1. Overview........................................................................................................................................1
1.1 General Information.......................................................................................................... 1
1.1.1 Description.............................................................................................................. 1
1.1.2 Mounting.................................................................................................................. 1
1.2 Description of functions.................................................................................................... 1
1.3 Device Description............................................................................................................ 2
1.4Tips........................................................................................................................................3
2. Safety Precautions.......................................................................................................................3
3. Technical Data.............................................................................................................................. 4
4. Installation..................................................................................................................................... 6
4.1 Wiring...................................................................................................................................6
4.2 HDL Bus Pro Description................................................................................................. 7
4.3 Commissioning...................................................................................................................7
5. Software Configuration............................................................................................................... 8
5.1 Basic Information............................................................................................................... 8
5.1.1 Changing the ID..................................................................................................... 8
5.1.2 Changing the IP and IP MAC address............................................................... 8
5.2 Music Settings.................................................................................................................... 8
5.2.1 Accessing the SD Card......................................................................................... 9
5.2.2 Selecting a playlist from the SD card..................................................................9
5.3 Function selection and radio settings.......................................................................... 10
5.3.1 Functions............................................................................................................... 10
5.3.2FM Channel List.................................................................................................... 11
5.3.3 Audio Broadcast Setup........................................................................................11
5.4 Language synthesis........................................................................................................ 15
5.5 FTP Settings.....................................................................................................................15
5.5.1Introduction............................................................................................................ 15
5.5.2Playing music from a PC..................................................................................... 16
5.6Setting a button target..................................................................................................... 19
5.7 LCD Panel Control.......................................................................................................... 20
5.8 Universal Switch Control................................................................................................ 21
6. Note..............................................................................................................................................25

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 1
1. Overview
1.1 General Information
1.1.1 Description
The SB-Z-AUDIO is a multi-functional audio system which supports multiple music
sources. In combination with the i-Life app or a HDL DLP, the module can be fully
controlled and integrated with security systems and SMS modules.
1.1.2 Mounting
Screw fixing
DB Box installation
1.2 Description of functions
External input
Internal SD Card
FM Radio
FTP Server
Voice prompts
HDL Buspro communication

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 2
1.3 Device Description
a. +24V、GND、-24V：Power Supply
b.GND、DATA-、DATA+、DC24V：HDL Buspro
c.SD CARD
d. RJ45
e. Upgrade and Reset hold
f. LED: Green LED will flicker when reset or when system is upgraded
g. Working signal LED:Green LED will flicker when operational
h.Left channel(with amplifier),Connect to 8Ω Speaker
i. Right channel(with amplifier),Connect to 8Ω Speaker
j. AUDIO-OUT：Audio Output Port (No amplifier)
k. CD-IN：Audio Input Port
l.SGND、5V、LIN、ANT
SGND、5V：5V Power output port
LIN：Stand-by
ANT：FM Antenna

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 3
1.4Tips
1、LED flickers every 1.5swhenworking normally,the LED also flickers every0.1s when a
playlist is being uploaded.
2、If the module cannot be found using the software, and the LED does not blink every 1.5
seconds, reset the IP. By default the module IP is 192.168.10.250, the IP of a
connected PC should be set as 192.168.10..*
3、The SD card must use the FAT 32 file system.
4、After the IP of the module has been modified it will immediately restart, a user should
wait at least 5 seconds before using the module after a restart has occurred.
5、Any audio files that a user wishes to play must be in mp3 format, the name of an audio
file cannot exceed 21 characters, and its name cannot exceed 25 characters.
6、When using a SD card a maximum of 47 playlists are supported, with each playlist
supporting 999 songs. The FTP server supports 48 playlists, with each playlist
supporting 999 songs.
7、If a voice file is to be played it must have a numerical prefix, as an example the voice file
for a locking door would be ‘001lock.mp3’.
8、The SD card must be inserted into the module regardless of which audio source is to be
used.
2. Safety Precautions
Do not exceed 0.2Nm of torque when attaching the module.
Ensure the module is well ventilated.
Keep the module away from all liquids and corrosive gases.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 4
3. Technical Data
Electric Parameters ：
Working voltage
DC±24V
Static Power
1.6W
Audio input voltage
0.7VPP
Input resistance
50KΩ
Output resistance
RL=8Ω; RR=8Ω
Output power
20W×2
Harmonic distortion
<0.05%
SNR
97dB
Frequency range
22Hz~20KHz
File name length
≤25 bytes
Music Format
MP3
SD card capacity
≤8G
Communication protocol
HDL Buspro, FTP, UDP
Signal interface
RJ45, SD card, HDL-BUS, RCA Audio, Audio output, DC
power input

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 5
Environmental Conditions
Working temperature
0℃~45℃
Working relative humidity
Up to 90%
Storage temperature
-20℃~+60℃
Storage relative humidity
Up to 93%
Approved
CE
RoHS
Production Information
Dimensions
224×126×39 (mm)
Weight
1266(g)
Housing material
Steel
Installation
Screw fix /DB Box installation
Protection degree
IP20

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 6
4. Installation
4.1 Wiring

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 7
4.2 HDL Bus Pro Description
Connector Information
buspro
DC24V
Red
COM
Black
DATA -
White
DATA +
Yellow
4.3 Commissioning
Method One:
a. Run the HDL-BUS Pro Setup tool.
b. On the module long press the “programming button” for three seconds until the LED
turns red.
c. Using the software, click “Address management”, and then select “Modify address”, the
window below will then be displayed.
d) Click on “Indicate initial address”, and the current subnet/device ID of the device will
then be displayed. To modify the address, fill in the new address, and click the “Modify
initial address” then click the “+Add” button. The device will now be added to the “ON-line
devices list”.
Method Two:
a) Run the HDL-BUS Pro Setup tool.
b) Search for online devices by clicking the search tab, a new window will then appear.
Click the ‘fast search’ tab to search for online devices. If the “Add all” tab is clicked all
devices found will be added to the “ON-line devices” list.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 8
5. Software Configuration
5.1 Basic Information
5.1.1 Changing the ID
It’s recommended to connect it via RJ45 and set the subnet ID difference from the
Gateway (typically the SB-DN-1IP or HDL-MBUS01IP.431).
5.1.2 Changing the IP and IP MAC address
It is recommended that the default IP and the IP MAC address are changed, to avoid
possible conflicts or errors.
Default IP: 192.168.10.250
Default MAC: H-D-L-85-85-85
5.2 Music Settings
Preparation:
1- Connect the SD card to a PC, right click and select the file system as FAT32.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 9
2- Create a folder or folders on the SD card and import some songs to them, the audio
format must be MP3 with a folder name less than 21 characters long, and a song
name of less than 25 characters.
3- Power off the Z-Audio and insert the SD card.
5.2.1 Accessing the SD Card
Files on the SD card can be checked by using the HDL BUS Pro setup tool:
5.2.2 Selecting a playlist from the SD card
Using the HDL BUS Pro setup tool, click on the ‘Playlist in SD Card’ tab. When a playlist is
selected, its content will be displayed on the right hand side of the screen. If a song is
selected then it can be played, stopped, and the volume adjusted using the controls on
the bottom of the panel.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 10
5.3 Function selection and radio settings
5.3.1 Functions
The following audio sources can be played and controlled from the DLP and i-Life
interface.
SD card
FTP Server
FM radio
External audio input.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 11

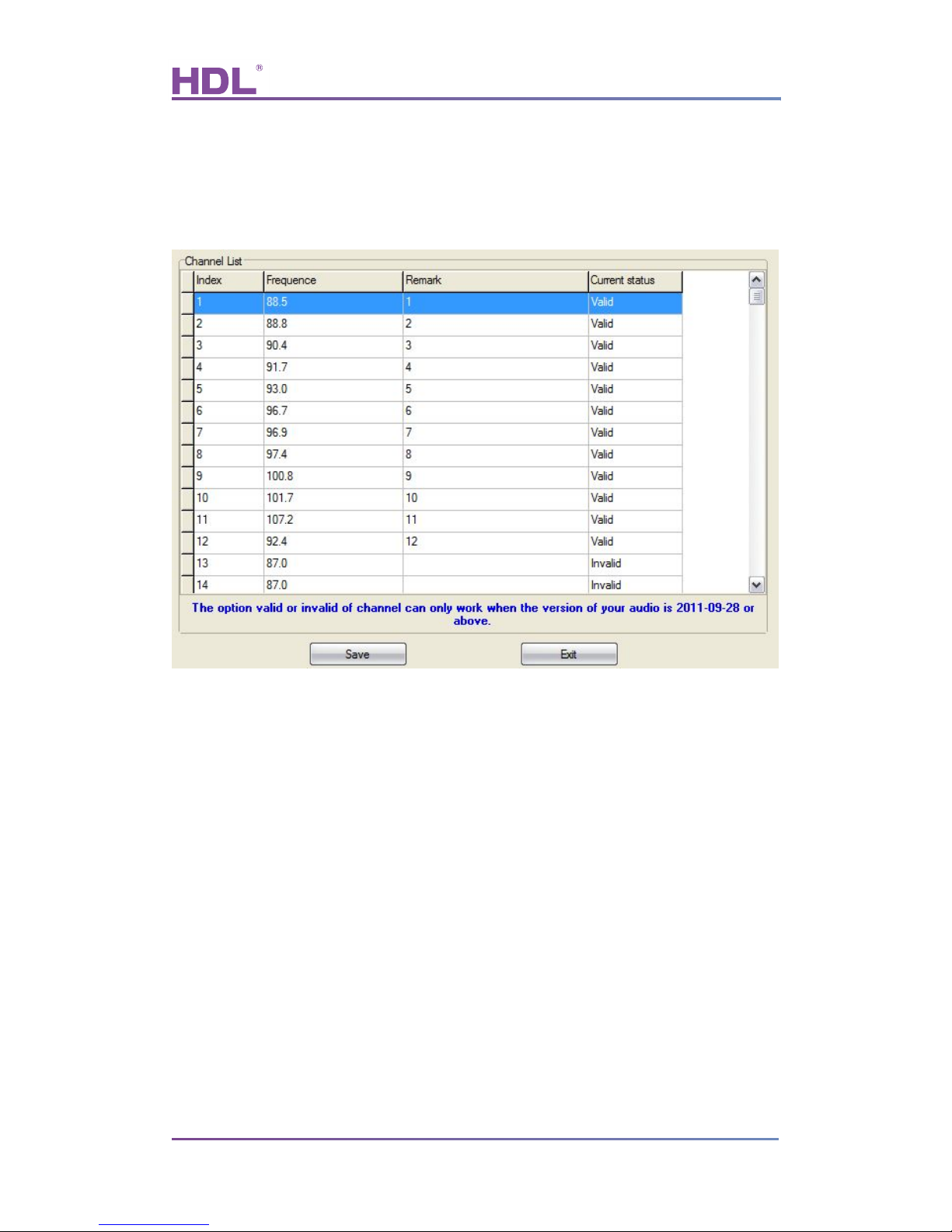

5.3.2 FM Channel List
The FM channel list supports 25 preset frequencies, for a channel to be used it must be
changed from the default ‘Invalid’ to ‘Valid’.
5.3.3 Audio Broadcast Setup
The ‘Broadcast’ function or ‘party mode’ as it is alternatively known, enables multiple
Z-Audio modules to play the same songs simultaneously.
If the HDL-BUS setup tool is opened, one Z-Audio module can be set as the master
module causing the remaining Z-Audio modules to be relegated to slave modules. If a
DLP panel then activates the ‘party mode’(the party mode can be enabled or disabled by
double pressing the top right hand button of the DLP), the master Z-Audio module will
then stream its data simultaneously via an Ethernet connection to all Z-Audio slave
modules.
Note: supported music source of party mode: SD Card, FTP(NAS-HDD) and radio.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 12
a) Create a folder named ‘PA_**’ in the SD card
Create a folder named ‘PA_**’ (The ‘**’can be a single character or multiple characters) in
the SD card, place your chosen songs into the folder and then insert the SD Card into the
master Z-Audio module.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 13
b) Configuring a Z-Audio module as a master module
Take the above Z-Audio as a master module.
Broadcast mode
- Host: act as the master Z-Audio, to synchronize its audio stream to other slave ones;
- Slave: act as the slave Z-Audio, to play the same audio which received from the host;
- Host and slave: act as the master Z-Audio and slave Z-Audio.
Volume synchronization
Enable this function, the master Z-Audio can synchronize the volume to the slave ones.
To then enable the ‘broadcast function’, the mode must be set as ‘host’ and the volume
synchronization tick box must be checked.
Four groups are available, however only the first is able to act as the host/master under
host mode. If another Z-Audio module has the same number (e.g. 1) in its four groups,
then it can synchronize with the host/master modules music library.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 14
c) Configuring the Z-Audio slave modules
Take below Z-Audio module as a slave module.
To then enable the module to receive commands from the master, the ‘slave’ mode must
be selected, and if the ‘volume synchronization’ tick box is checked, then it can
synchronize the volume of the master one.
Four groups are available, and all act as slave ones under slave mode. Set anyone group
e.g. Group1 the same number as the host one’s first group number(here it’s 1), it can then
synchronize with the host/master modules music library.
d) Setting the master Z-Audio module as the music control target
To set the master Z-Audio module as the music control target, the subnet ID and the
device ID must be entered.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 15
e) For a LCD panel to display the music page, the ‘Music Page’ tick box must be
checked.
5.4 Language synthesis
Language synthesis function has been canceled.
5.5 FTP Settings
5.5.1Introduction
If a user wishes to play audio from a FTP source via a FTP server, a SD card must be
placed into the module’s SD card slot. It is recommended that to select corresponding
server type and file encode parameters according to different FTP servers. These
parameters should be set in the HDL Bus setup tool.
No.
Server Name
Server Type
File Encode
1
Ms-dos
IIS
ASCII
2
unix
Server-U
UTF-8
3
HomeFtpServer
Server-U
ASCII
4
FileZilla Server
Server-U
ASCII
5
Server-U
Server-U
UTF-8

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 16
Server IP: set the IP address of server, PC or NAS.
Server type: select the server type according to the FTP server you used
User name: input the user name of your account which created in FTP server
Password: input the password of your account which created in FTP server
Note:
To play music from a FTP audio source, the Z-Audio IP should be in the same network as
the FTP audio source.
5.5.2Playing music from a PC
If a user wishes to play music from a PC, the PC should have the FTP server software
installed.
An example video using a HomeFTP server can be downloaded by following the link
below:
https://www.dropbox.com/sh/kcw380yhui8a827/AABtSTke2IKLMrSxo7QN8jQ_a?dl=0
In order to configure the FTP server, the below steps must be followed:
a) Open the Home FTP Server software, and when prompted click‘New Member’.

User Manual
SB-Z-AUDIO
Digital Background Music Player–User Manual 17
b) Set your user name and password, in the example below the user name is TEST, and
the password is 123456.
c) To access the music folders, click on the ‘Browse’ tab. A file explorer window will then
appear, selecting the ‘Music’ folder will cause any included playlists(have PM3 songs
inside) to be displayed. Then your home directory will end at ‘Music’, and click ‘OK’.
