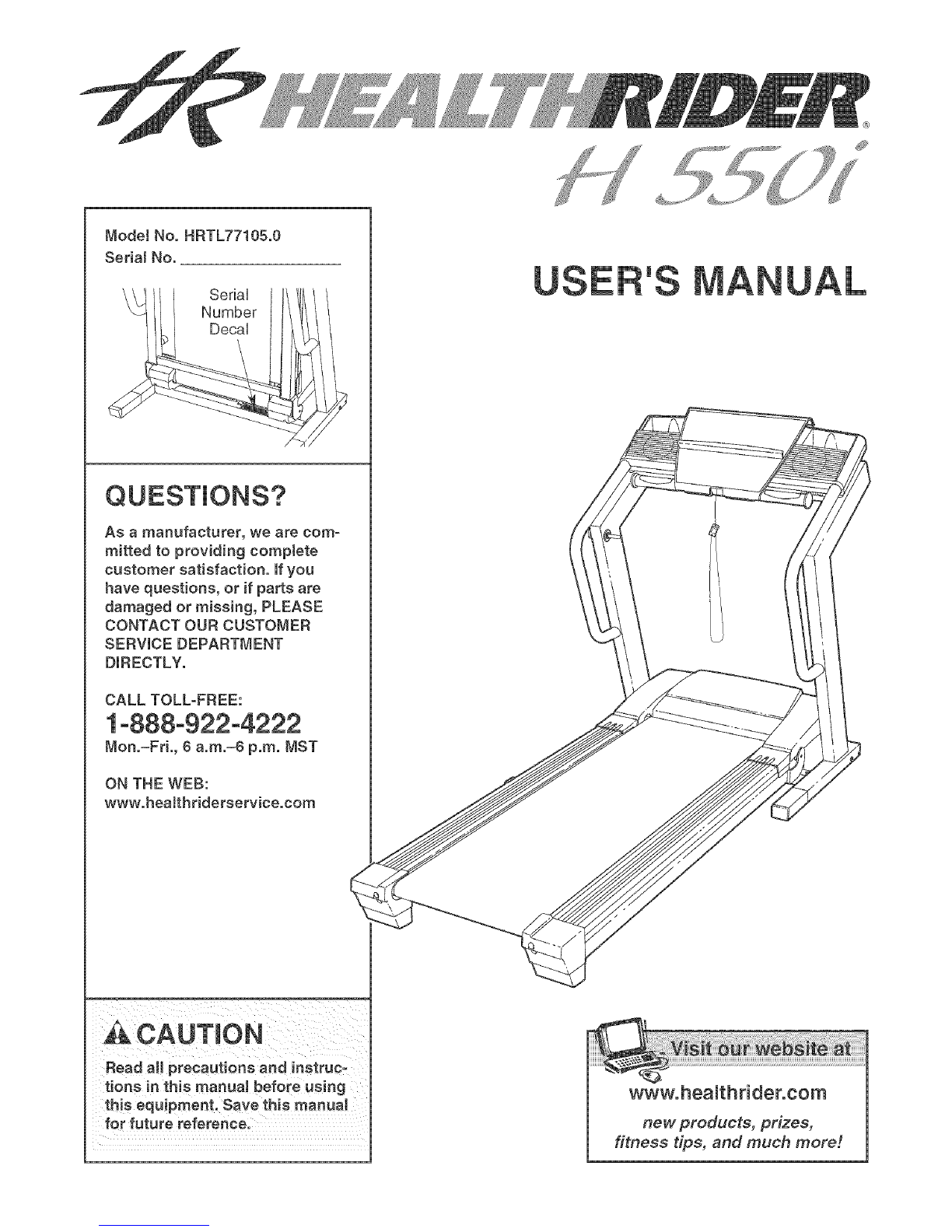

HEALTH RIDER H550i Treadmill User manual

ModeJNo.HRTL77105.0
SedaJNo.
Asamanufacturer,wearecom-
mittedtoprovidingcomplete
customersatisfaction,ffyou
havequestions,orif partsare
damagedormissing,PLEASE
CONTACTOURCUSTOMER
SERVmCEDEPARTMENT
DmRECTLY.
CALLTOLL-FREE:
Mon.=Fri.,6a.m.=6p.m.MST
ONTHEWEB:
www.heaJthriderservice.com
Readallprecautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
°S
www.heamthrider.com
new products, prizes,
fitness tips, and much more r.

TABLE OF CONTENTS
iMPORTANT PRECAUTIONS ................................................................. 3
BEFORE YOU BEGIN ....................................................................... 5
ASSEMBLY ............................................................................... 6
HOW TO USE THE CHEST PULSE SENSOR .................................................... 9
OPERATHON AND ADJUSTMENT ............................................................ 10
HOW TO FOLD AND MOVE THE TREADMHLL .................................................. 20
TROUBLESHOOTHNG ...................................................................... 22
CONDiTiONiNG GUiDELiNES ............................................................... 25
PART LiST ............................................................................... 26
LHMHTEDWARRANTY ............................................................... Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual,
HeaHthRider is a registered trademark of HCONHP,Hnc,
2

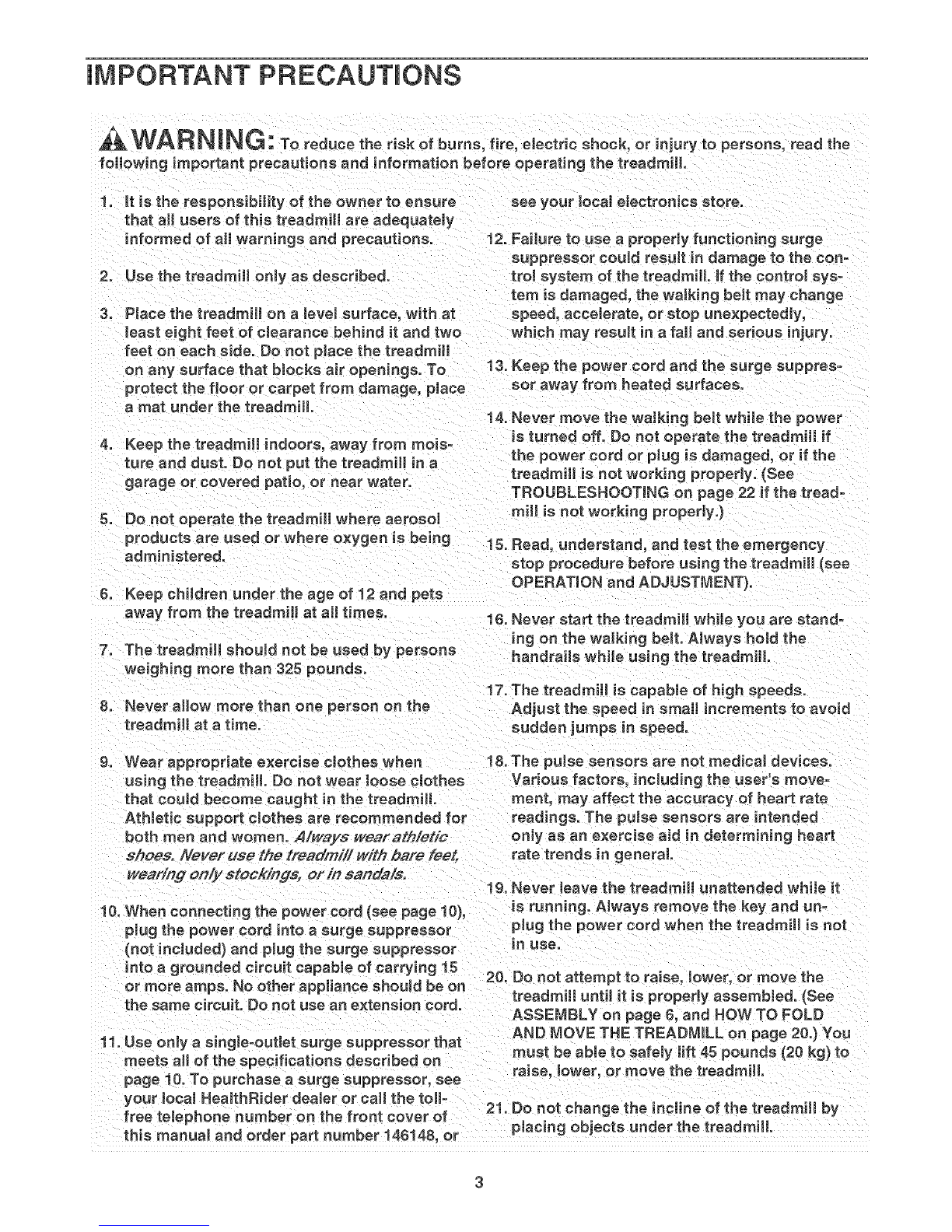

iMPORTANT PRECAUTIONS
WARNING: Toreducethe.e.ofburns,fire,electricehoc.,ornjurytopereons,readthe
following important precautions and information before operating the treadmi&
1. it is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of aHwarnings and precautions. 12.
2. Use the treadmill onJy as described.
3. Place the treadmill on a level surface, with at
see your local eJectronics store.
Failure to use a propedy functioning surge
suppressor could result in damage to the con-
tro[ system of the treadmill if the control sys-
tem is damaged, the walking belt may change
speed, acceJerate, or stop unexpectedJy,
least eight feet of clearance behind it and two which may result in a fall and serious injury.
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmH[ in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
& Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 325 pounds.
8. Never allow more than one person on the
treadmill at a time.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or it the
treadmHJ is not working properJy. (See
TROUBLESHOOTmNG on page 22 if the tread-
mi[[ is not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
OPERATION and ADJUSTMENT).
1& Never start the treadmill while you are stand-
ing on the waJking belt. Always hoJd the
handrails while using the treadmill.
17. The treadmill is capabJe of high speeds.
Adjust the speed in emaJl increments to avoid
sudden jumps in speed.
9. Wear appropriate exercise clothes when 18. The pulse sensors are not medical devices.
using the treadmill Do not wear loose c[othes Various factors, incJuding the user's move-
that could become caught in the treadmill merit, may affect the accuracy of heart rate
Athletic support clothes are recommended for readings. The pulse sensors are intended
both men and women. A/ways wear athletic only as an exercise aid in determining heart
shoes. Never use the treadmi// with bare feet, rate trends in general
wearing on/y stocki#gs, or in sandals. 19. Never leave the treadmill unattended while it
10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appJiance should be on 20.
the same circuit. Do not use an extension cord.
11. Use only a sing[e_outiet surge suppressor that
meets aJ[ of the specifications described on
page 10. To purchase a surge suppressor, see
your local HeaIthRider denier or call the toIF
free telephone number on the front cover of
this manual and order part number 146148, or
21.
is running. Always remove the key and un-
ph_g the power cord when the treadmill is not
in use.
Do not attempt to raise, lower, or move the
treadmill until it is propedy assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.) You
must be able to safely lift 45 pounds (20 kg) to
raise, lower, or move the treadmill
Do not change the incline of the treadmill by
placing objects under the treadmill.

22.When folding or moving the treadmill, make
sure that the storage tatch is fully closed.
23. inspect and properly tighten all parts of the
treadmill regularly.
24. Never insert or drop any object into any
opening.
25.DANGER: AIways.np!ugthepower
cord immediately after use, before cleaning
the treadmill, and before performing the main=
tenance and adjustment procedures de-
scribed in this manual Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative onJy.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in any eommer°
ciai, rental, or institutiona! setting.
RNING: Beforebeginningthisor any exerciseprogram, consuJtyour physician.This
is especially important for persons over the age of 35 or persons with preoexisting hearth probJems.
Read aHinstructions before using, mCONassumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE iNSTRUCTiONS
The decaJs shown here have been pJaced on the treadmill.
If a decal is missing, or if it is not legibJe, call the toil-free
teJephone number on the front cover of this manual and
order a free replacement decal Apply the deca! in the Joca-
tion shown. Note: The decaJs are not shown at actuaJ size.
KEEPHANDSANDFEETAWAY
FROMTHISAREAWHILETHE
TREADMILLISINOPERATION.
Plotect yourself a_ld
others from risk of serious
iniury. Read the user's
manual and :
,Stand onlyon the
side railswhen
startir,ge stopping
t_ead_kll
-Charadespeed in
small inc,eme_ts
-Hold handrailsto
safety clip while
o#eraUr_gtreadmill
,Stop if youfeel faint,
dizzy¸ or _hortof
b_ea_h
• F_lly_gage sto_age
latch before tread-
mill_ m_ved or
stored¸
,Reduce _cl_n_ to it_
lowest level before
foldingtreadmill into
storage posit_on
herin use
,Kee# clo hing,
fingers, and hair
awayf_om rY®ving
belt¸
•Neve_try toadjust
o_fix thebelt while
i_is movin_
•Alwayswear
athletic shoesw_le
opera_ir_gt_eadmill

BEFORE YOU BEGIN
Thank you for seUecting the new HeaUthRide¢_H 550i
treadmill The HeaUthRider H 550i treadmHUoffers an
impressive array of features designed to heUpyou
achieve your fitness goaUsin the convenience of your
home. And when you're not exercising, the unique
H 550i treadmHUcan be foUdedup, requiring Uessthan
haft the floor space of other treadmHUs.
For your benefit, read this manual carefully before
you use the treadmill. Ufyou have questions after
reading this manual pUeasesee the front cover of this
manual To heUpus assist you, note the product modeU
number and sedaUnumber before calling. The model
number of the treadmill is HRTL77105.0. The serial
number can be found on a decal attached to the tread°
mill (see the front cover of this manual for the location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.healthriderservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Water Bottle Holder
(no water bottle is included)
Book Holder
Handgrip Pulse Sensor
Latch Knob
Console
Key/Clip
Handrail
Reset/Off
Breaker
Walking Belt
Foot Rail
Power Cord
Cushioned Walking Platform

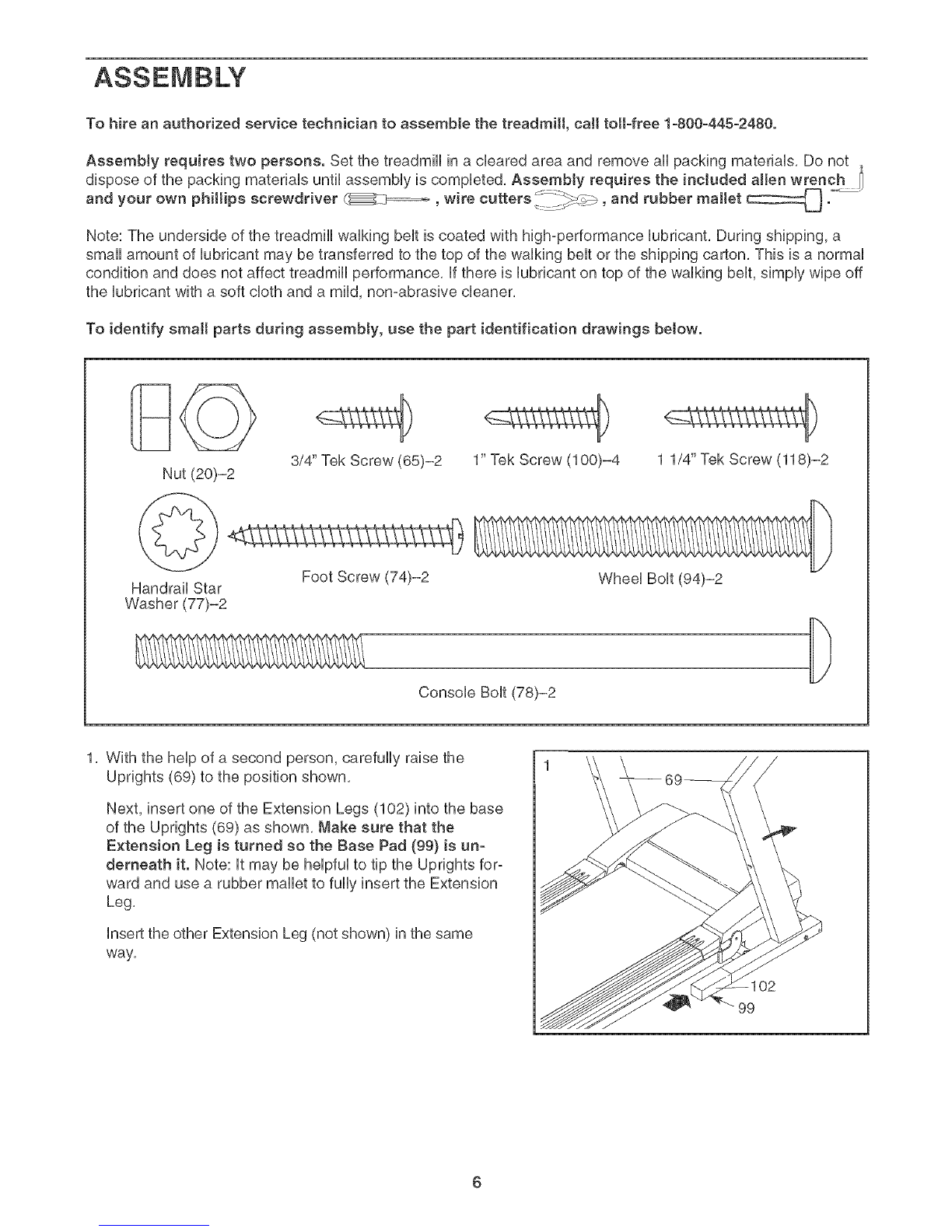

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
AssembJy requires two persons. Set the treadmHUin a cUeared area and remove aUUpacking materiaUs. Do not
dispose of the packing materiaUs untiUassembUy is compUeted. Assembly requires the incJuded allen wrenc h i
and your own phillips screwdriver (_L2_, wire cutters _- _1.:>}>, and rubber mallet _ ._'
Note: The underside of the treadmHUwaUkingbelt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
To identify small parts during assembly, use the part identification drawings below.
Nut (20)-2 3/4" Tek Screw (65)-2
Foot Screw (74)-2
Handrail Star
Washer (77)-2
1" Tek Screw (100)-4 1 1/4" Tek Screw (118)-2
Wheel Bolt (94)-2
Console Bolt (78)-2
1. With the help of a second person, carefully raise the
Uprights (69) to the position shown.
Next, insert one of the Extension Legs (102) into the base
of the Uprights (69) as shown. Make sure that the
Extension Leg is turned so the Base Pad (99) is un-
derneath it. Note: It may be helpful to tip the Uprights for-
ward and use a rubber mallet to fully insert the Extension
Leg.
insert the other Extension Leg (not shown) in the same
way.
99
6

2, insert the tab on one of the Handrail Brackets (70) into
the indicated sbt in the right Upright (69), Attach the
Handrail Bracket with a 3/4" Tek Screw (65),
Attach the other Handrail Bracket (not shown) to the bft
Upright (not shown) the same way,
While a second person hoUdsthe consob assemMy, re-
move the Consob BoUts(78), the Handrail Star Washers
(77), and the Nuts (A) from both Uprights (69) and the
consob assemMy, Discard the Nuts,
3, While a second person hoUdsthe consob assemHy, insert
the upper end of one of the Handrails (55) into the consob
assemMy; make sure that the Handrail Bracket (70) is in-
side of the bwer end of the Handrail, Tighten a 1 1/4" Tek
Screw (118) into the bottom of the Handrail, Repeat with
the other Handrail on the bft side (not shown),
Next, insert two Consob BoUts(78) with Handrail Star
Washers (77) into the right Upright (69) and the Handrail
(55), Finger tighten the Console Bolts; do not fully tighten
the ConsoJe Bolts yet, Repeat with the Handrail on the
left side (not shown), After all four Console Bolts have
been started, tighten them,
Console
Assembly
Console
Assembly
77
With the help of a second person, carefully tip the
Uprights (69) down as shown, Make sure that the
Extension Legs (!02} remain in the Uprights.
Attach each Extension Leg (102) with two 1" Tek Screws
(100) and one Base Pad (99) as shown; attach the lower
Tek Screw, without the Base Pad, first,
Note: One replacement Base Pad may be included, Use
the Base Pad to replace any Base Pad that becomes
worn,
69
_1 O2
O0

AttachaWheel(95)tothebaseoftheUprights(69)with

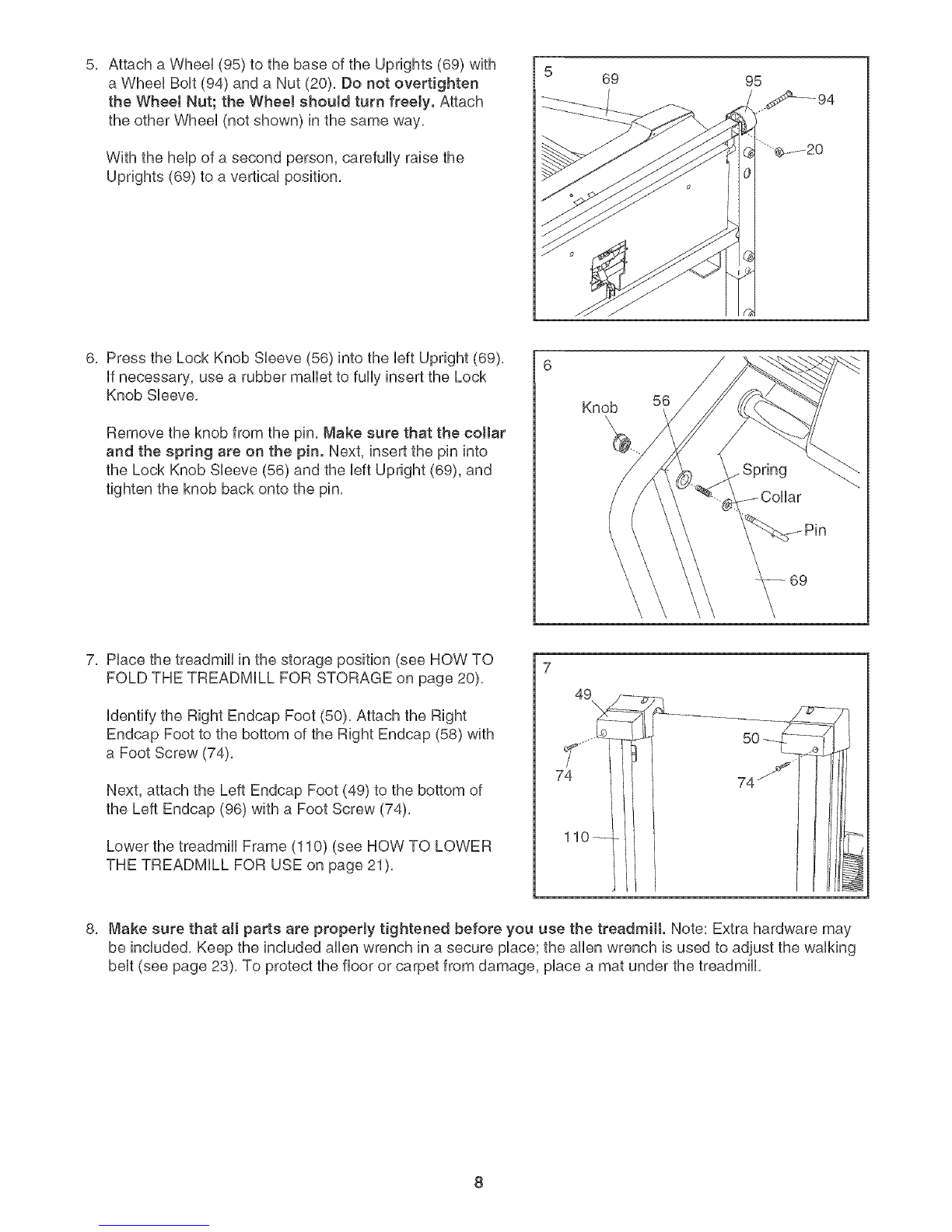

aWheelBolt(94)andaNut(20),Donotovertighten
theWheetNut;theWhee!shouldturnfreely.Attach
theotherWheel(notshown)inthesameway,
Withthehelpofasecondperson,carefullyraisethe
Uprights(69)toaverticalposition,
69
6, PresstheLockKnobSleeve(56)intotheleftUpright(69),
ifnecessary,usearubbermallettofullyinserttheLock
KnobSleeve,
Removetheknobfromthepin,Makesurethatthecolar
andthespringareonthepin.Next,insertthepininto
theLockKnobSleeve(56)andtheleftUpright(69),and
tightentheknobbackontothepin,
Knob 56
69
7, Hacethetreadmillinthestorageposition(seeHOWTO
FOLDTHETREADMILLFORSTORAGEonpage20),
identifytheRightEndcapFoot(50),AttachtheRight
EndcapFoottothebottomoftheRightEndcap(58)with
aFootScrew(74),
Next,attachtheLeftEndcapFoot(49)tothebottomof
theLeftEndcap(96)withaFootScrew(74),
LowerthetreadmillFrame(110)(seeHOWTOLOWER
THETREADMILLFORUSEonpage21),
749\
74
11
8, Makesurethatal partsareproperlytightenedbeforeyouusethetreadmtLNote:Extrahardwaremay
beincluded,Keeptheincludedallenwrenchinasecureplace;theallenwrenchisusedtoadjustthewalking
belt(seepage23),Toprotectthefloororcarpetfromdamage,placeamatunderthetreadmill,

HOW TO USE THE CHEST PULSE SENSOR
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pube sensor consists of two components--
the chest strap and the sensor unit,
_Chest Strap
Sensor Unit' Unit
insert the tab on one end of the chest strap into the
hob in one end of the sensor unit, as shown in the inset
drawing above, Press the end of the sensor unit under
the buckle on the chest strap, The tab should be flush
with the front of the sensor unit,
Next, wrap the chest
pulse sensor around
your chest and attach
the other end of the
chest strap to the
sensor unit, Adjust
the length of the
chest strap, if neces-
saG,, The chest pulse
sensor should be under your clothes, tight against your
skin, and as high under the pectoral muscles or
breasts as is comfortable, Make sure that the logo on
the sensor unit is facing forward and is right-side-up,
Pull the sensor unit away from your body a few inches
and locate the two electrode areas on the inner side
(the electrode areas are covered by shallow ridges),
Using saline solution such as saliva or contact lens so°
lution, wet both electrode areas, Return the sensor unit
to a position against your chest,
CHEST PULSE SENSOR CARE AND MAINTENANCE
Thoroughly dry the chest pulse sensor after each
use, The chest pulse sensor is activated when the
electrode areas are wetted and the heart rate
monitor is put on; the chest pulse sensor shuts off
when it is removed and the electrode areas are
dried, if the chest pulse sensor is not dried after
each use, it may remain activated longer than nee-
essary, draining the battery prematurely,
Store the chest pulse sensor in a warm, dry place,
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture,
Do not expose the chest pulse sensor to direct
sunlight for extended periods of time; do not expose
it to temperatures above 122 ° Fahrenheit (50°
Celsius) or below 14° Fahrenheit (-10 ° Celsius),
Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor,
Clean the sensor unit using a damp cloth--never
use alcohol, abrasives, or chemicals, The chest
strap may be hand washed and air dried,
CHEST PULSE SENSOR TROUBLESHOOTING
The instructions on the following pages explain
how the chest puJse sensor is used with the con-
sole. If the chest puJse sensor does not function
properly, try the steps below.
Make sure that you are wearing the chest pulse sen-
sor as described at the left, Note: if the chest pulse
sensor does not function when positioned as de-
scribed, move it slightly lower or higher on your chest,
Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the
sensor unit, if heart rate readings do not appear until
you begin perspiring, rewet the electrode areas,
As you walk or run on the treadmill, position your-
self near the center of the walking belt, For the
console to display heart rate readings, the user
must be within arm's tength of the console.
The chest pulse sensor is designed to work with
people who have normal heart rhythms, Heart rate
reading problems may be caused by medical
conditions such as premature ventricular contrac-
tions (pvcs), tachycardia bursts, and arrhythmia,
The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources, if it is suspected that
this is a problem, try relocating the treadmill,
The CR2032 battery may need to be replaced (see
page 24),

OPERATmON AND ADJUSTMENT
THE PRE-LUBRmCATED WALKmNG BELT
Your treadmHUfeatures a waUkingbeUtcoated with high°
performance Uubdcant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
of the equJpmentogrounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product--if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appli-
ances being turned on or off. To decrease the possi-
bility of your treadmill being damaged, aJways
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge sup-
pressor, see your Jocal NeaJthRider dealer or can
the toil-free telephone number on the front cover
of this manuaJ and order part number 146148, or
see your tocal electronics store.
Use onJy a singJe-ouflet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 voJts or tess
and a minimum surge dissipation of 450 jouJes.
The surge suppressor must be eJectdcaHy rated for
120 volts AC and !5 amps. There must be a moni-
toring Jight on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor couM result
in damage to the controJ system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop une×pect-
edty, which may result in a fan and serious injury.
This product must be grounded, if it should maffunc°
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of sbc°
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is property installed and grounded in
accordance with aH JocaJ codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outJets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pob
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
I-Grounded Outlet Box
_-I _ Surge Suppressor
... Grounding Pin
2_rounded Outlet Box
Adapter Surge Suppressor
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician,
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover,
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-poJe receptacle outJet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
10

]
pERSONAL TRAINER _ CREI\T[ _YOUR OWN
1 /
2 12 I
', Matrix Priority Dbplay
,,:":.:;i"....// //
\ _ _AN , t _, 'ERSQN L A Nt:R / H STAR[ J J 'k_ _ _ _ EA T /_ E CON DE/ / / L)ISPL/W / /
" ', ',' 'C OneTuu_h mNCLm_E_ ....... ,'"; _
\_ I [_'!_ I "_ 2 " 3 4 5 6,7 8 9 /10 ,/ //
( , , OneTo,_ch SPEED ....... ' " }
123",i 4 ' 5 6 7 8 9 10 ;: 11 12
-- g o;

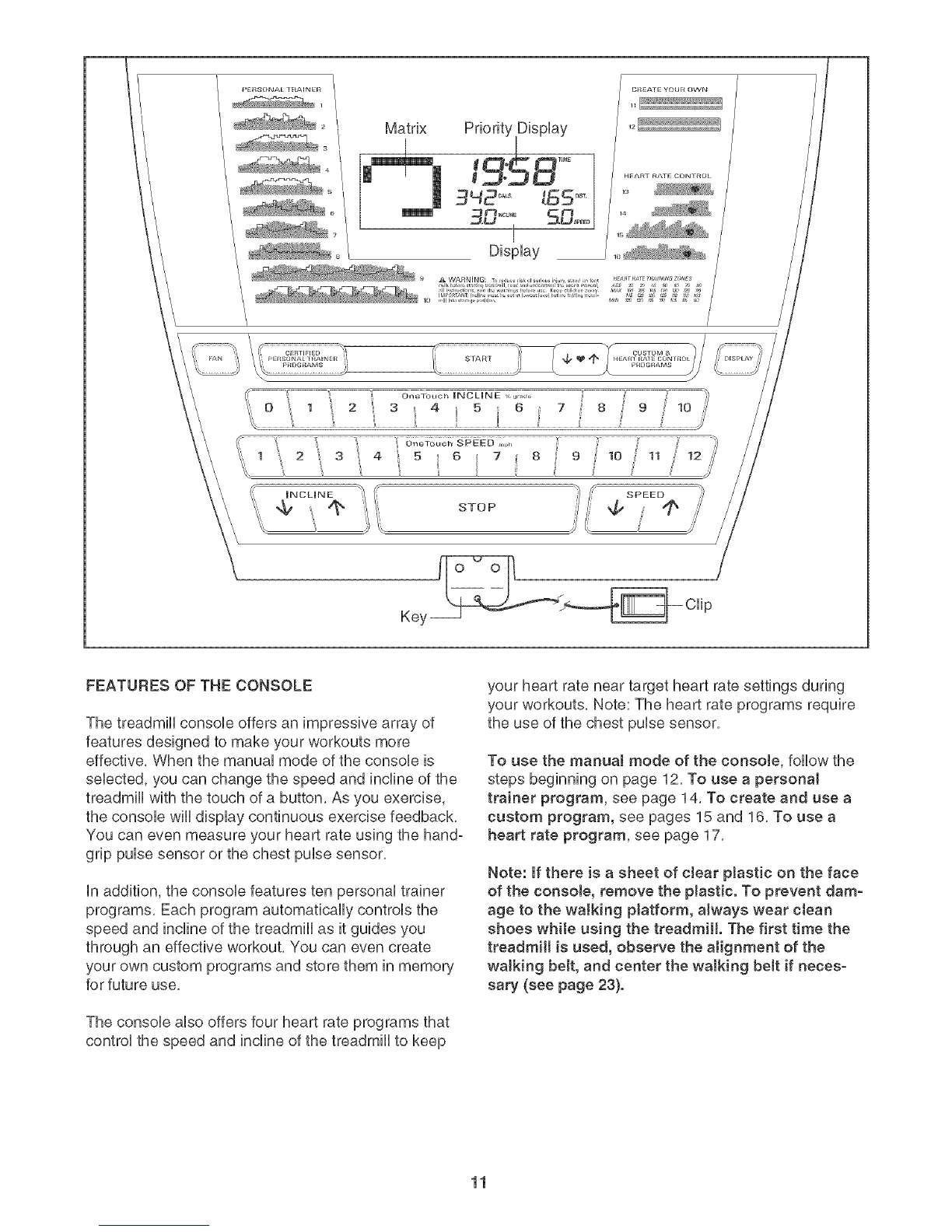

FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more
effective, When the manual mode of the console is
selected, you can change the speed and incline of the
treadmill with the touch of a button, As you exercise,
the console will display continuous exercise feedback,
You can even measure your heart rate using the hand°
grip pulse sensor or the chest pulse sensor,
in addition, the console features ten personal trainer
programs, Each program automatically controls the
speed and incline of the treadmill as it guides you
through an effective workout, You can even create
your own custom programs and store them in memory
for future use,
The console also offers four heart rate programs that
control the speed and incline of the treadmill to keep
your heart rate near target heart rate settings during
your workouts, Note: The heart rate programs require
the use of the chest pulse sensor,
To use the manual mode of the console, follow the
steps beginning on page 12, To use a personal
trainer program, see page 14, To create and use a
custom program, see pages 15 and 16, To use a
heart rate program, see page 17,
Note: If there is a sheet of c_ear plastic on the face
of the console, remove the plastic. To prevent dam-
age to the walking p_atform, a_ways wear clean
shoes while using the treadmill. The first time the
treadmill is used, observe the alignment of the
walking beR, and center the walking be_t if neces-
sary (see page 23).
11

HOW TO TURN ON THE POWER
Hug in the power cord
(see page 10), Next, locate
the reset/off circuit breaker
on the treadmill near the
power cord, Make sure that
the circuit breaker is in the
reset position,
Reset
Position
Next, stand on the foot rails of the treadmill, Find the
clip attached to the key (see the drawing on page 11),
and slide the clip onto the waistband of your clothes,
Then, insert the key into the console; after a moment,
the matrix and the display wiii light, Important: In an
emergency situation, the key can be pulled from
the console, causing the walking belt to slow to a
stop. Test the clip by carefully taking a few steps
backward; if the key is not pulled from the console,
adjust the position of the clip.
NOW TO USETHE MANUAL MODE
Insert the key into the console.
See HOW TO TURN ON THE POWER above.
Select the manuaJ mode.
Each time the key is in-
serted, the manual
mode wiii be selected
and a track will appear
in the matrix, if a pro-
gram has been se-
lected, reselect the
manual mode by re-
moving the key from
the console and then reinserting it,
Start the waJking belt.
To start the walking belt, press the Start button,
the Speed increase button, or one of the twelve
if the Start button or the Speed increase button is
pressed, the walking belt will begin to move at 1
mph, As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons, Each time a button
is pressed, the speed setting wiii change by 0,1
mph; if a button is held down, the speed setting
wiii change in increments of 0,5 mph, Note: After
the buttons are pressed, it may take a moment for
the walking belt to reach the selected speed setting,
if one of the twelve numbered speed buttons is
pressed, the walking belt wiii gradually increase in
speed until it reaches the selected speed setting,
To stop the walking belt, press the Stop button, To
restart the walking belt, press the Start button, the
Speed increase button, or one of the twelve num-
bered buttons,
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons, Each time
a button is pressed, the incline will change by
0,5%, Note: After the buttons are pressed, it may
take a moment for the treadmill to reach the se-
lected incline setting,
Follow your progress with the matrix and the
display.
When the manual mode
is selected, the matrix
wiii show a track repre-
senting 1/4 mile, As you
walk or run on the tread°
mill, the indicators
around the track wiii ap-
pear in succession until
the entire track appears,
The track wiii then disappear and the indicators wiii
again begin to appear in succession,
[]
The lower left corner of
the display wiii show the
calories you have
burned and the incline
level of the treadmill,
When you use the handgrip pulse sensor or the
chest pulse sensor, the lower left corner of the dis-
play will also show your heart rate,
12

The lower right corner
of the display wiii show
the distance that you
have walked or run,
the elapsed time, your
pace in minutes per
'.S5°'s'1,,
SoLJsP_Eo
mile, and the speed of the walking belt, Note:
When a program is selected (except for custom
programs and heart rate program 13), the lower
right corner of the display will show the time re-
in the program instead of the elapsed
time,
The center of the dis°
play is the priority dis°
play, Press the Display
button repeatedly until
the priority display
shows the information
that you want to view, Note: While information is
displayed in the priority display, the same informa-
tion wiii not be displayed in the lower left or right
corner of the display,
Note: The console can display speed and dis-
tance in either miles or kilometers, To change the
unit of measurement, see THE iNFORMATiON
MODE/DEMO MODE on page 19, Note: For sim-
plicity, all instructions in this section refer to
miles,
To reset the display, press the Stop button, re-
move the key, and then reinsert the key,
Measure your heart rate if desired.
Note: if you use the handgrip pulse sensor and
the chest pulse sensor at the same time, the con-
sob will not display your heart rate accurately,
To use the handgrip pulse sensor, first remove the
sheets of clear plastic from the metal contacts, in
addition, make sure that your hands are clean,
Next, stand on
the foot rails
and hold the
metal con-
tacts-avoid
moving your
hands, When Contacts
your pulse is de-
tected, the heart
symbol in the
lower left corner of the display will appear, one or
two dashes will appear, and then your heart rate
will be shown, For the most accurate heart rate
reading, continue to hotd the contacts for about
15 seconds.
Turn on the fans if desired.
To turn on the fans, press the Fan button, To turn
on the fans at high speed, press the button a sec-
ond time, To turn off the fans, press the button a
third time, Note: if the fans are left on when the
walkin 9 belt is stopped, the fans will automatically
turn off after a few minutes,
When you are finished exercising, remove the
key from the consote,
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the towest setting
when the treadmii! is fotded to the storage pos6
tion or the treadmill will become damaged. Next,
remove the key from the console and put it in a se-
cure place, Note: If the display remains tit after
the key is removed, the eonsoJe is in the
"demo" mode. See page 19 and turn off the
demo mode.
When you are finished using the treadmill,
switch the reseL/off circuit breaker to the "off"
position and unptug the power cord.
13

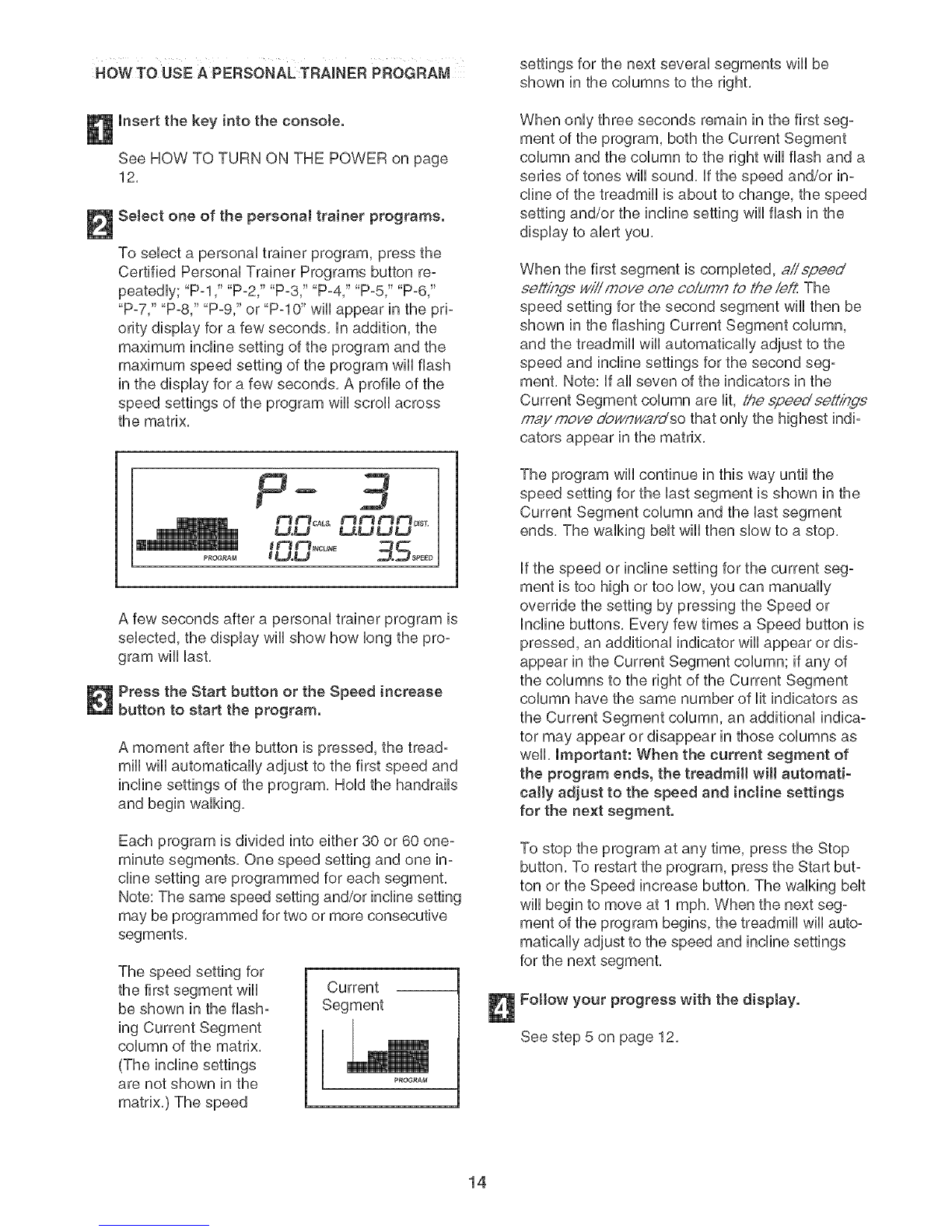

HOW TO USE A PERSONAL TRAINER PROGRAM
mnsertthe key into the console.
See HOW TO TURN ON THE POWER on page
12.
Select one of the personal trainer programs.
To select a personal trainer program, press the
Certified Personal Trainer Programs button re-
peatedly; "P-1," "P-2," "P-3," "P-4," "P-5," "P-6,"
"P-7," "P-8," "P-9," or "P-IO" will appear in the pri-
ority display for a few seconds. In addition, the
maximum incline setting of the program and the
maximum speed setting of the program will flash
in the display for a few seconds. A profile of the
speed settings of the program will scroll across
the matrix.
:23
LJoP.J t.JJLJ&JLJ
P,oG,,_,, 'U.&J 3S_ED
A few seconds after a personal trainer program is
selected, the display will show how long the pro-
gram will last,
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program, Hold the handrails
and begin walking,
Each program is divided into either 30 or 60 one-
minute segments, One speed setting and one in-
cline setting are programmed for each segment,
Note: The same speed setting and/or incline setting
may be programmed for two or more consecutive
segments,
The speed setting for
the first segment wiii
be shown in the flash-
ing Current Segment
column of the matrix,
(The incline settings
are not shown in the
matrix,) The speed
Current
Segment
PROGRAtd
settings for the next several segments wiii be
shown in the columns to the right,
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound, if the speed and/or in-
cline of the treadmill is about to change, the speed
setting and/or the incline setting wiii flash in the
display to alert you,
When the first segment is completed, allepeed
ee4@7_5"v/i//move one coidmn to the ie,_t.The
speed setting for the second segment will then be
shown in the flashing Current Segment column,
and the treadmill will automatically adjust to the
speed and incline settings for the second seg-
ment. Note: if all seven of the indicators in the
Current Segment column are lit, the epeed'ee4_i_'9':¢
maymove downwafdso that only the highest indi-
cators appear in the matrix.
The program wiii continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends, The walking belt wiii then slow to a stop,
if the speed or incline setting for the current seg-
ment is too high or too low, you can manually
override the setting by pressing the Speed or
Incline buttons, Every few times a Speed button is
pressed, an additional indicator wiii appear or dis-
appear in the Current Segment column; if any of
the columns to the right of the Current Segment
column have the same number of lit indicators as
the Current Segment column, an additional indica-
tor may appear or disappear in those columns as
well. Important: When the current segment of
the program ends, the treadmill will automati-
cally adjust to the speed and incline settings
for the next segment.
To stop the program at any time, press the Stop
button. To restart the program, press the Start but-
ton or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next seg-
ment of the program begins, the treadmill will auto-
matically adjust to the speed and incline settings
for the next segment.
Fottow your progress with the disptay.
See step 5 on page 12.
14

Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fans if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the console.
When the program ends, make sure that the in-
cline of the treadmil! is at the lowest setting.
Next, remove the key from the consob and put it in
a safe pUace.Note: If the display remains lit
after the key is removed, the console is in the
"demo" mode. See page 19 and turn off the
demo mode.
When you are finished using the treadmill,
switch the reset/off circuit breaker to the "off"
position and unplug the power cord.
HOW TO CREATE A CUSTOM PROGRAM
Insert the key into the console.
See HOW TO TURN ON THE POWER on page
12.
Select one of the custom programs.
To sebct a custom program, press the Custom &
Heart Rate ControUPrograms button repeatedUy;
"P=I 1" or "P=12" wHUappear in the priority display
for a few seconds.
pd
LJ.U U.ZJ _'
CUSTOMP,OG.A_ ZJ.ZJ ZJo_ s_D
Note: If the custom program has not yet been
defined, three columns of indicators will scroll
across the matrix, if more than three columns
of indicators appear, see HOW TO USE A CUS-
TOM PROGRAM on page 16.
Press the Start button or the Speed increase
button and program the desired speed and in-
cline settings.
A moment after the button is pressed, the walking
belt will begin to move. Hold the handrails and
begin walking.
Refer to the matrix.
Each custom program
is divided into one=
minute segments. One
speed setting and one
incline setting can be
programmed for each
segment. The speed
setting for the first seg-
Current
I Segment
CUSTOM PROGRAm4
ment will be shown in the flashing Current
Segment column of the matrix. (The incline set-
tings are not shown in the matrix.) To program a
speed setting and an incline setting for the first
segment, simply adjust the speed and incline of
the treadmill as desired by pressing the Speed
and Incline buttons. Every few times a Speed but-
ton is pressed, an additional indicator will appear
or disappear in the Current Segment column.
When the first segment of the program ends, a se-
ries of tones wiii sound and the current speed set-
ting and the current incline setting will be saved in
memory. The t,#Feeco/umne of /hd/_wtoFev/ill then
mo_:e one column to the left, and the speed set-
ting for the second segment will be shown in the
flashing Current Segment column. Program a
speed setting and an incline setting for the second
segment as described above.
Continue programming speed and incline settings
for as many segments as desired; custom pro-
grams can have up to forty segments. When you
are finished with your workout, press the Stop but-
ton twice. The speed and incline settings that you
have programmed and the number of segments
that you have programmed wiii then be saved in
memory.
When you are finished exercising, remove the
key from the consote.
See step 7 on this page.
15

HOW TO USE A CUSTOM PROGRAM
mnsertthe key into the console.
See HOW TO TURN ON THE POWER on page
12.
Select one of the custom programs.
To sebct a custom program, press Custom &
Heart Rate ControUPrograms button repeatedUy;
"P-11" or "P-12" wHUappear in the priority dispUay
for a few seconds, in addition, the maximum in-
dine setting of the program and the maximum
speed setting of the program wHUflash in the dis-
pUayfor a few seconds. A profile of the speed set-
tings of the program wHUscroll across the matrix.
pt t
_oLJ " LJ.LJULJ "
_.&JSPEED
A few seconds after a custom program is se-
bcted, the display will show how long the program
will last.
Note: if only three columns of indicators scroll
across the matrix, see HOW TO CREATE A
CUSTOM PROGRAM on page 15.
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings that you programmed previously.
Hold the handrails and begin walking.
Each custom program
is divided into several
One speed setting and
one
programmed for each
segment. (The same
speed setting and/or
incline setting may be
Current
I ad-
Segment
CUSTOMPROGRAM
programmed for two or more consecutive seg-
ments.) The speed setting for the first segment wiii
be shown in the flashing Current Segment column
of the matrix. (The incline settings are not shown
in the matrix,) The speed settings for the next four
segments are shown in the columns to the right,
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and the speed setting
and the incline setting wiii flash in the display.
When the first segment ends, aiispe.e.d'seLff/7ds
wiii mo_'e,one co/dmn to tA_eie_ The speed setting
for the second segment will then be shown in the
flashing Current Segment column, and the tread-
mill will automatically adjust to the second speed
and incline settings that you programmed previ-
ously.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column and the last segment
ends. The walking belt wiii then slow to a stop.
if desired, you can redefine to the program while
using it. To change the speed or incline setting
for the current segment, simply press the Speed
or Incline buttons. When the current segment ends,
the new setting will be saved in memory. To in-
crease the length of the program, first wait until
the program is completed. Then, press the Start but-
ton and program speed and incline settings for as
many additional segments as desired. When you
have added as many segments as desired, press
the Stop button twice. To decrease the Jength of
the program, press the Stop button twice at any
time before the program is completed.
To stop the program at any time, press the Stop
button, To restart the program, press the Start but-
ton or the Speed increase button,
Fottow your progress with the display.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fans if desired.
See step 7 on page 13.
When you are finished exercising, remove the
key from the consote.
See step 7 on page 15.
16

.OWTOUSEA.EARTRATEPROGRAM
CA UTION: ifyouhoveheartprob=
lems, or if you are over 60 years of age and
have been inactive, do not use the pulse pro-
grams. If you are taking medication regularly,
consult your physician to find whether the
medication will affect your exercise heart rate.
Follow the steps bebw to use a heart rate program,
Put on the chest pulse sensor.
You must wear the chest pulse sensor to use a
pulse program.
Insert the key into the consote.
See HOW TO TURN ON THE POWER on
page 12,
Select one of the heart rate programs.
To sebct a heart rate program, press the Custom
& Heart Rate Control Programs button repeatedly;
"P-13/"P-14," "P-15# or"P-16," will appear in the
priority display for a few seconds,
p
L.MJ t.J _,.J
rl rl_cu.E r_
LtoLJ _oU SPEED
If heart rate program !3 is selected, a pulse
symbol will scroll across the matrix (see the draw-
ing above),
If heart rate program
14, 15, or 16 is se-
lected, a profile of the
target heart rate set-
tings of the program
will scroll across the
matrix,
Enter a target heart rate setting.
If heart rate program
13 is selected, the tar-
get heart rate setting for
the entire program will
flash in the priority dis-
play, If desired, press
the increase and de-
! eu /
crease buttons beside the Custom & Heart Rate
Control Programs button to change the target
heart rate setting (see EXERCISE INTENSITY on
page 25}.
If heart rate program 14, 15, or !6 is selected,
the maximum target heart rate setting of the pro-
gram will flash in the priority display, if desired,
press the increase and decrease buttons beside
the Custom & Heart Rate Control Programs button
to change the maximum target heart rate setting
(see EXERCISE INTENSITY on page 25}. Note:
If the maximum target heart rate setting is
changed, the intensity level of the entire program
will change,
Press the Start button or the Speed increase
button to start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Heart rate program 13 is divided into 100 one-
minute segments. The same target heart rate set-
ting is programmed for all segments. (For a
shorter workout, simply stop the program before it
ends.) Heart rate programs 14, 15, and 16 are di-
vided into either 20 or 30 one-minute segments.
One target heart rate setting is programmed for
each segment. Note: The same target heart rate
setting may be programmed for two or more con-
secutive segments.
if heart rate program
14, 15, or 16 is se-
lected, the target heart
rate setting for the first
segment will be shown
in the flashing Current
Current
Segment
PULSE PROGRAM
matrix, The target heart
rate settings for the next
several segments will be shown in the columns to
the right, When only three seconds remain in the
first segment of the program, both the Current
Segment column and the column to the right will
flash and a series of tones will sound,
17

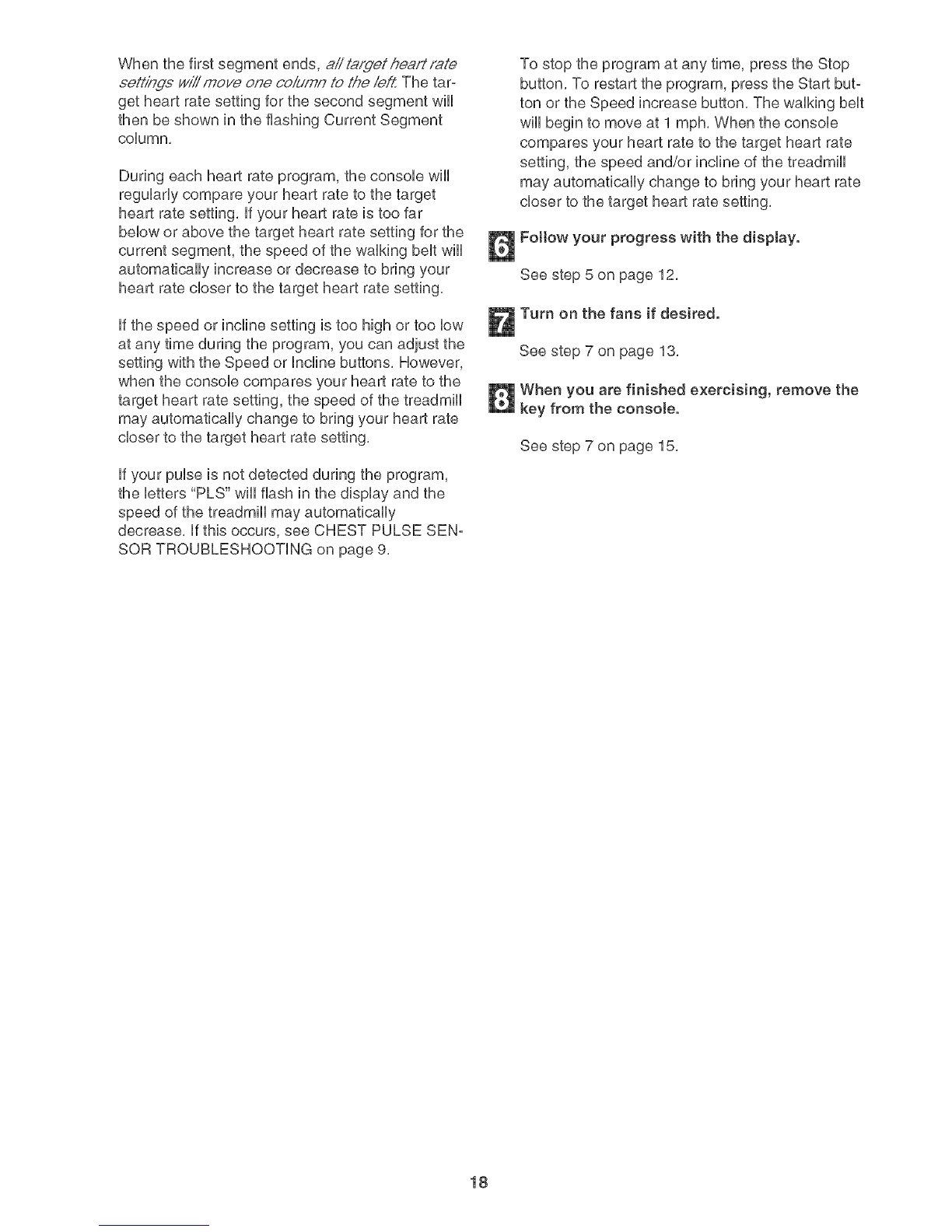

When the first segment ends, allta,%etheaftrate
settings wiiimove one coiumn tothe/eft.The tar=
get heart rate setting for the second segment will
then be shown in the flashing Current Segment
column,
During each heart rate program, the console wiii
regularly compare your heart rate to the target
heart rate setting, if your heart rate is too far
below or above the target heart rate setting for the
current segment, the speed of the walking belt will
automatically increase or decrease to bring your
heart rate closer to the target heart rate setting,
if the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the Speed or Incline buttons, However,
when the console compares your heart rate to the
target heart rate setting, the speed of the treadmill
may automatically change to bring your heart rate
closer to the target heart rate setting,
if your pulse is not detected during the program,
the letters "PLS" wiii flash in the display and the
speed of the treadmill may automatically
decrease, if this occurs, see CHEST PULSE SEN-
SOR TROUBLESHOOTING on page 9,
To stop the program at any time, press the Stop
button, To restart the program, press the Start but-
ton or the Speed increase button, The walking belt
will begin to move at 1 mph, When the console
compares your heart rate to the target heart rate
setting, the speed and/or incline of the treadmill
may automatically change to bring your heart rate
closer to the target heart rate setting,
Follow your progress with the display.
See step 5 on page 12,
Turn on the fans if desired.
See step 7 on page 13,
When you are finished exercising, remove the
key from the console.
See step 7 on page 15,
18

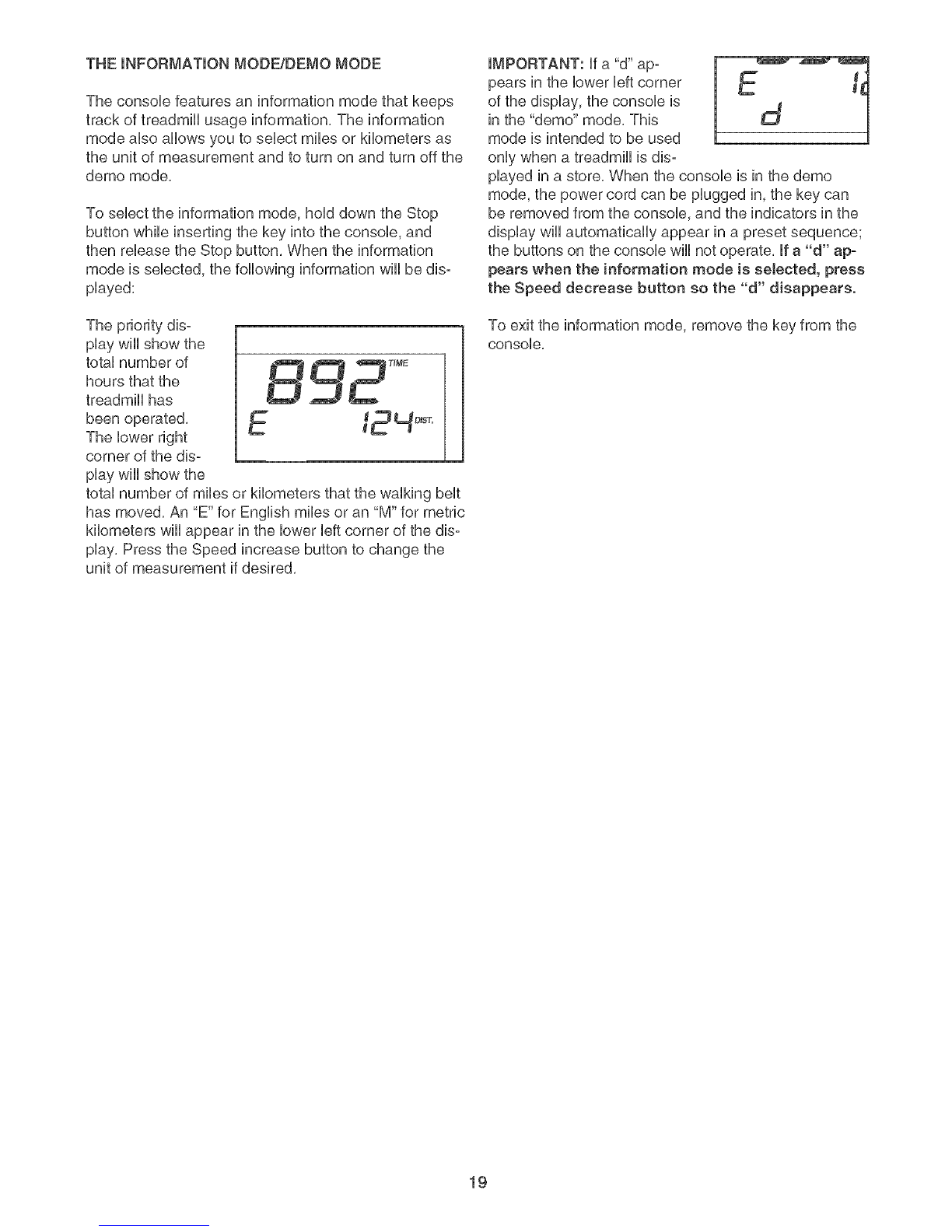

THE mNFORMATmONMODE/DEMO MODE
The console features an information mode that keeps
track of treadmHi usage information. The information
mode aiso allows you to select miles or kilometers as
the unit of measurement and to turn on and turn off the
demo mode.
To select the information mode, hoid down the Stop
button while inserting the key into the console, and
then release the Stop button. When the information
mode is selected, the following information wHi be dis-
piayed:
play wiii show the
total number of
hours that the
treadmill has
been operated,
The lower right
corner of the dis°
play wiii show the
total number of miles or kilometers that the walking belt
has moved, An "E" for English miles or an "M" for metric
kilometers will appear in the lower left corner of the dis°
play, Press the Speed increase button to change the
unit of measurement if desired,
Ce
E
IMPORTANT: if a "d" ap-
pears in the lower left corner
of the display, the console is
in the "demo" mode. This
mode is intended to be used
only when a treadmill is dis-
played in a store. When the console is in the demo
mode, the power cord can be plugged in, the key can
be removed from the console, and the indicators in the
display will automatically appear in a preset sequence;
the buttons on the console will not operate. If a "d" ap-
pears when the information mode is selected, press
the Speed decrease button so the "d" disappears.
To exit the information mode, remove the key from the
console.
19

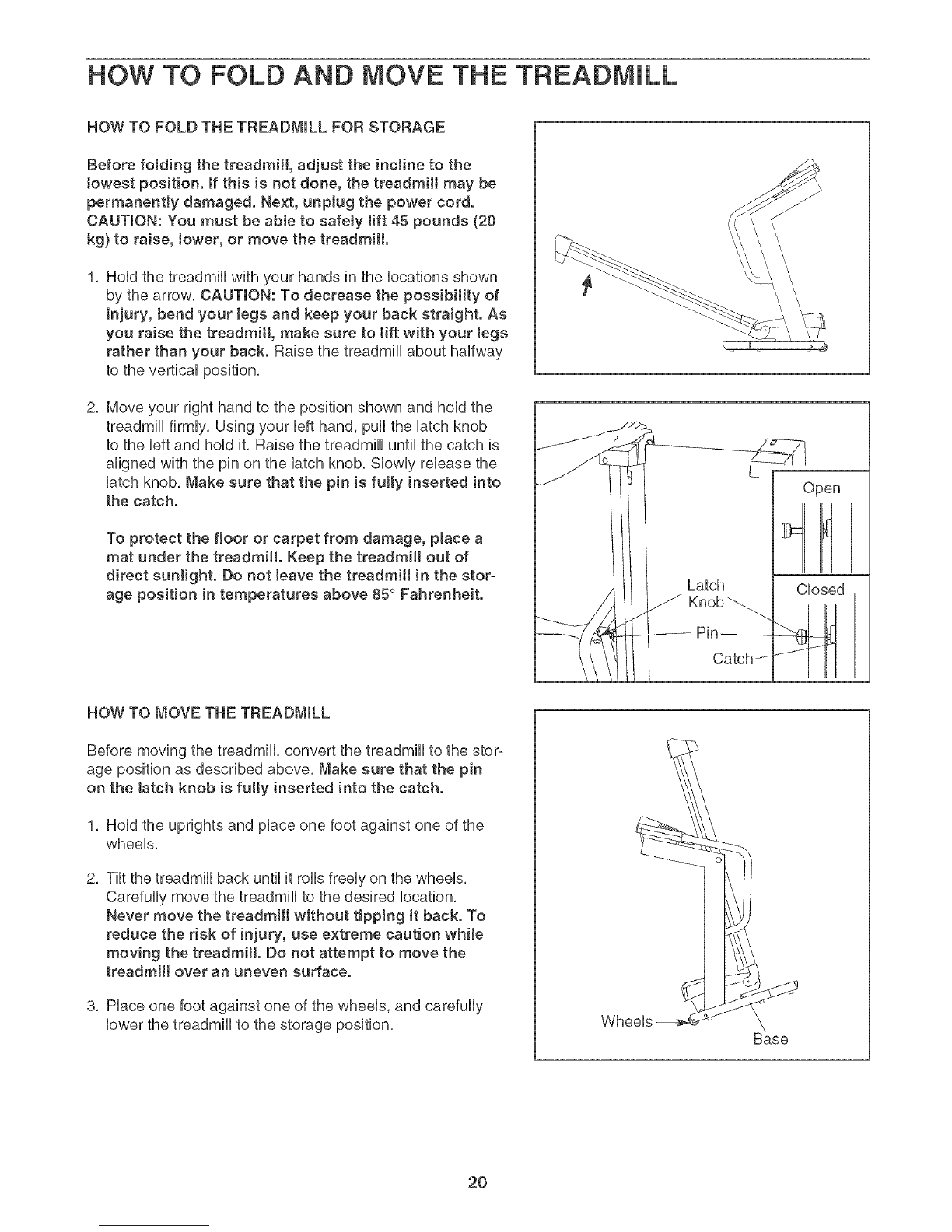

HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
Jowest position, ff this is not done, the treadmill may be
permanently damaged. Next, unptug the power cord.
CAUTION: You must be able to safety tift 45 pounds (20
kg) to raise, Jower, or move the treadmi&
1, HoUdthe treadmHUwith your hands in the Uocations shown
by the arrow, CAUTION: To decrease the possibility of
injury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to tift with your tegs
rather than your back. Raise the treadmHUabout haffway
to the vertical position,
2, Move your right hand to the position shown and hold the
treadmill firmly, Using your left hand, pull the latch knob
to the left and hold it, Raise the treadmill until the catch is
aligned with the pin on the latch knob, Slowly release the
latch knob, Make sure that the pin is fully inserted into
the catch.
To protect the floor or carpet from damage, ptace a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85° Fahrenheit.
Open
Closed
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the pin
on the tatch knob is fully inserted into the catch.
1, Hold the uprights and place one foot against one of the
wheels,
2, Tilt the treadmill back until it rolls freely on the wheels,
Carefully move the treadmill to the desired location,
Never move the treadmill without tipping it back. To
reduce the risk of injury, use extreme caution while
moving the treadmi& Do not attempt to move the
treadmill over an uneven surface.
3, Place one foot against one of the wheels, and carefully
lower the treadmill to the storage position, Wheels Base
2O
