HearthStone Brabura 40 User manual

Outdoor
Griddles
SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE
YOU INSTALL AND USE YOUR NEW OUTDOOR GRIDDLE.
For more information visit
www.hearthstoneoutdoor.com
If this griddle is not properly installed, a house re may result.
To reduce the risk of re, follow the installation instructions.
California Prop 65
WARNING: This product can expose you to chemicals including
glass wool ber and carbon monoxide which are known to the State of
California to cause cancer, birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or
FIRE OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
Brabura 40 (Model 830-3852)
Brabura 32 (Model 830-3052)
Brabura 22 (Model 830-2052)
Outdoor Griddles
Brabura 40 (Model 830-3852)
Brabura 32 (Model 830-3052)
Brabura 22 (Model 830-2052)
Manual: 6400-41431
(BG223240 ED00)
R: 4/18/2022
Installation and
Operating Instructions
OWNER’S MANUAL

2HearthStone Quality Home Heating Products, Inc. ®
TABLE OF CONTENTS
Introduction ............................................................................................................................................ 3
Safety and Warnings ............................................................................................................................... 4
Griddle Features...................................................................................................................................... 5
Specications.......................................................................................................................................... 7
Griddle Dimensions ................................................................................................................................ 8
Product Assembly ................................................................................................................................... 9
Battery Installation and Replacement ................................................................................................. 13
Gas Connections ................................................................................................................................... 14
Leak Testing........................................................................................................................................... 16
Lighting Instructions ............................................................................................................................. 17
Manual Lighting Instructions................................................................................................................ 18
Installation............................................................................................................................................. 19
Installation - Countertop....................................................................................................................... 20
Installation - Built-in.............................................................................................................................. 21
Care and Cleaning ................................................................................................................................. 23
Conversion to Natural Gas .................................................................................................................... 24
Conversion to Liquid Propane.............................................................................................................. 30
Conversion Checklist............................................................................................................................. 31
Troubleshooting ................................................................................................................................... 32
Installer Checklist ................................................................................................................................. 33
Accessories ............................................................................................................................................ 34

3Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
INTRODUCTION
Welcome to your HearthStone Outdoor Griddle
This manual has been written to help you use your Griddle with safety and satisfaction. It includes detailed
information about the griddle, components, systems, installation, and operation. Please read it carefully, and
familiarize yourself with your Griddle before you start cooking.
NOTES:
- This instruction manual contains important information necessary for the proper assembly and
safe use of the appliance.
- Read and follow all warnings and instructions before assembling and using the appliance.
- Follow all warnings and instructions when using the appliance.
- Keep this manual for future reference.
For support information on using your HearthStone Outdoor Griddle, go to www.hearthstoneoutdoor.com
SAFETY AND WARNINGS
DANGER WARNING
IF YOU SMELL GAS
- Shut o gas to the appliance.
- Extinguish any open ame.
- Open the lid.
- If odor continues, keep away from the
appliance and immediately call your gas
supplier or your re department.
Failure to follow these instructions could result
in re or explosion which could cause property
damage, personal injury or death.
- Do not store or use gasoline
or other ammable liquids
or vapors in the vicinity of
this or any other appliance.
- An LP cylinder not connected
for use shall not be stored
in the vicinity of this or any
other appliance.
DANGER
- Never operate this appliance unattended.
- Heated liquids remain at scalding temperatures long aer the cooking process.
Never touch cooking appliance until liquids have cooled to 115°F (45°C) or less.
- If a re should occur, keep away from the appliance and immediately call your re
department. Do not attempt to extinguish an oil or a grease re with water.
Failure to follow these instructions could result in re, explosion or burn hazard which
could cause property damage, personal injury or death.

4HearthStone Quality Home Heating Products, Inc. ®
SAFETY AND WARNINGS
To reduce the risk of re, injury to persons or damage when using the appliance, follow the safety instructions listed
below. Read all the guidance before using the Griddle. Do not use a gas griddle for purposes other than intended.
- Use only in well ventilated areas.
- Never leave the product unattended when in use.
- Always open the lid before lighting. Do not close the lid during cooking or before the appliance has cooled
down.
- Do not use a ame to check for gas leaks.
- Do not attempt to disconnect any gas connection while your appliance is in use or the gas supply is on.
- Never connect an unregulated gas line to the appliance.
- When not in use, make sure the gas supply is turned o at the supply cylinder.
- Keep appliance covered when not in use.
- Aer a period of storage or non-use, the appliance should be checked for gas leaks, deterioration, proper
mounting, and burner obstruction before use.
- Do not move the device during use.
- Children should not be le alone or unattended in an area where the product is in use.
- Never allow them to sit, stand or play on or around the unit at any time.
- Never use the appliance in a very windy area.
- Do not obstruct the ow of combustion and ventilation to the appliance.
- Spiders and insects can nest in burners or openings and can block or restrict the burner. This can cause a ash
back to the control panel, which can cause a re.
- Do not place, store or operate the appliance on a slope.
- Unit should be inspected at least once a year or immediately if gas odor is present along with burner ames
appearing yellow, appliance does not come up to temperature or heats unevenly, or unit makes popping noises.
- Do not smoke during leak test and extinguish all open ames.
- When cleaning burners, properly center burner in orice and ensure burners are level before lighting to avoid
re or explosion hazard.
- Do not place the unit directly on the ground or other unsupported surface. This will prevent damage to the
regulator/hose assembly.
- This appliance can be used with any brand of 20 pound LP gas tank, provided it is compatible with a suitable
retention device (not included).
- Never use a cylinder with a damaged valve. The cylinder being used must have a collar to protect the cylinder
valve.
- All pipe sealants must be of an approved type and resistant to the actions of LP gases. Never use pipe sealant
on ared ttings.
- Always check for leaks aer every LP tank change.
- For LP units, check with a full cylinder.
- Do not use the appliance until all connections have been checked and are free of leaks.
- Before each use, inspect the gas supply pipe or hose before turning on the gas. If there is evidence of cuts,
wear or abrasion, it should be replaced before use. Replacement hose assembly must be as specied by the
manufacturer.
- The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Storage and Handling of Liqueed Petroleum Gases, ANSI/NFPA 58; or Natural
Gas and Propane Installation Code, CSA B149.1; Propane Storage and Handling, CSA B149.2; or the Standard
for Recreational Vehicles, ANSI A119.2/NFPA 1192; and Recreational Vehicle Code, CSA Z240 RV Series, as
applicable.
- It shall be used only outdoors, and shall not be used in a building, garage, or any other enclosed area.
- It is not intended to be installed in or on a boat.
HearthStone Quality Home Heating Products, Inc. and BRABURA Griddle cannot be held responsible for any damage
incurred to objects or people resulting from incorrect installation or use of the griddle.

5Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
GRIDDLE FEATURES
Enameled Cast Iron
The enameled cast iron griddle has incredible heat retention properties that sears foods perfectly, distributes
heat for even cooking. The enameled surface is durable, non-stick, and cleans up easily.
High Quality Construction
The chassis and lid are constructed from heavy duty 304 stainless steel for easy cleaning and corrosion
resistance. The 304 stainless steel burner tubes are long-lasting and dependable.
Exceptional Design
Independent burners provide dierent heat zones. Robust LED knobs are shown when burners are lit. The
drain at the front of the griddle leads to a pull-out grease tray for quick and easy clean-up.
1. Heavy cast iron griddle
- Exceptional heat retention
- Covers the burners keeping them free from
grease for many years of use.
2. Black enamel cooking surface
- Durable, metal tools OK
- Non-stick
- Easy to clean
- Clean cooking surface, no residual avor
3. Built-in weather lid
- Not for use while cooking
- Close aer use to protect the griddle
4. Grease drain
- Move cooking residue to the grease drain during
cleanup to collect in the grease tray
5. Grease tray
- Catches the residue from the grease drain for
12
3
4
5
6
78
9
10
easy cleanup
- Disposable foil liners available
6. Independent zone burners
- Create dierent heat zones across the griddle
- 304 stainless steel construction
7. 304 stainless steel chassis
- Weather resistant construction
8. LED burner knobs
- Glow orange when the burner is lit
- Continuous spark ignition
9. LED on/o button
- Activates the knob halo lights
10. Battery access
- Burner ignition is battery powered
- LED knob lights are powered by a separate
battery pack

6HearthStone Quality Home Heating Products, Inc. ®
GRIDDLE FEATURES
Independent Burners
HearthStone Outdoor Griddles are equipped with a thermocouple and safety valve system which monitors
each burner. This will turn the gas o if the burner is not lit.
Each knob controls an independent burner to create dierent heat zones. Continuous spark ignition is
provided on each burner.
Gas Connection
The gas connection is located on the bottom le side of the griddle.
The Griddle is factory set for LP gas. It comes equipped with an LP hose/regulator assembly for connection to
a standard 20 lb. LP cylinder (Type 1). The LP tank is not included. The griddle system is leak tested.

7Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
Model Number
Number of Burners
BTUs per Burner
Total Surface BTUs/hr
Griddle Area
Griddle Surface Dimension
Burger Count
Gas Type
Fuel Conversion to NG
Griddle Plate Material
Burner Material
Chassis Material
Ignition Type
Knobs
Brabura 22
830-2052
2
9,000
18,000
333 sq.in.
19’’ x 17 1/2’
16
LP
Kit Included
Enameled Cast Iron
304 Stainless Steel
304 Stainless Steel
Continuous Spark
LED-lit, orange / white
SPECIFICATIONS
Brabura 32
830-3052
3
9,000
27,000
508 sq.in.
29’’ x 17 1/2’’
22
LP
Kit Included
Brabura 40
830-3852
4
9,000
36,000
648 sq.in.
37’’ x 17 1/2’’
27
LP
Kit Included

8HearthStone Quality Home Heating Products, Inc. ®
GRIDDLE DIMENSIONS
22 5/16"
567mm
24 1/8"
613mm
4 3/4"
120mm
19 15/16"
506mm18 1/2" 470mm
8 1/4"
210mm
7 3/16"
183mm
8 1/4"
210mm
23 15/16"
609mm
19 11/16"
500mm
22"
559mm
Brabura 22 Griddle
Front Side
32 5/16"
821mm
24 1/8"
613mm
4 3/4"
120mm
29 15/16"
760mm18 1/2"
470mm
8 1/4"
210mm
7 3/16"
183mm
8 1/4"
210mm
23 15/16"
609mm
19 11/16"
500mm
32"
813mm
Brabura 32 Griddle
40 5/16"
1024mm
24 1/8"
613mm
4 3/4"
120mm
37 15/16"
963mm18 1/2" 470mm
8 1/4"
210mm
7 3/16"
182mm
8 1/4"
210mm
23 15/16"
609mm
40"
1016mm
19 11/16"
500mm
Brabura 40 Griddle
Front
Front
Side
Side

9Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
PRODUCT ASSEMBLY

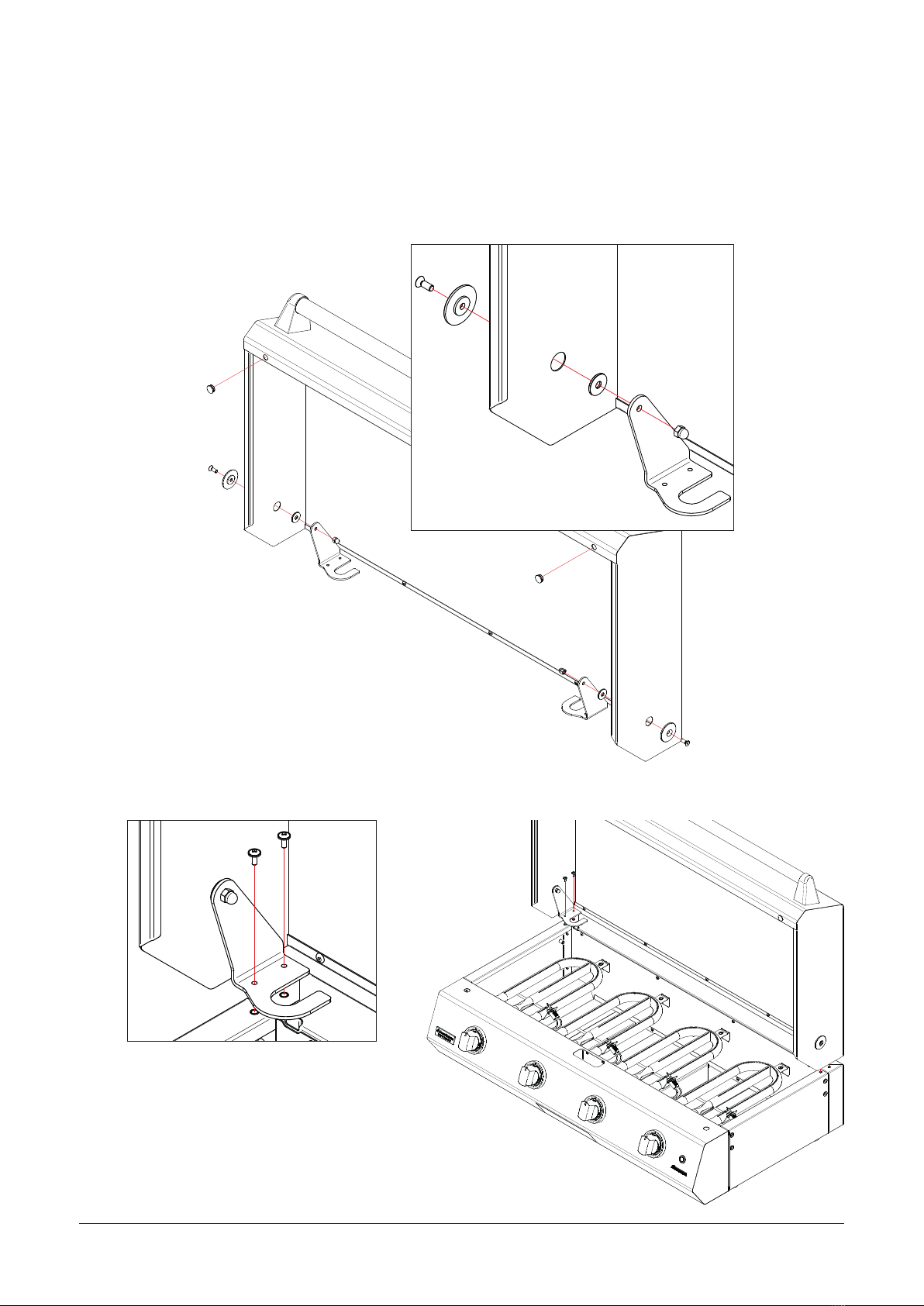

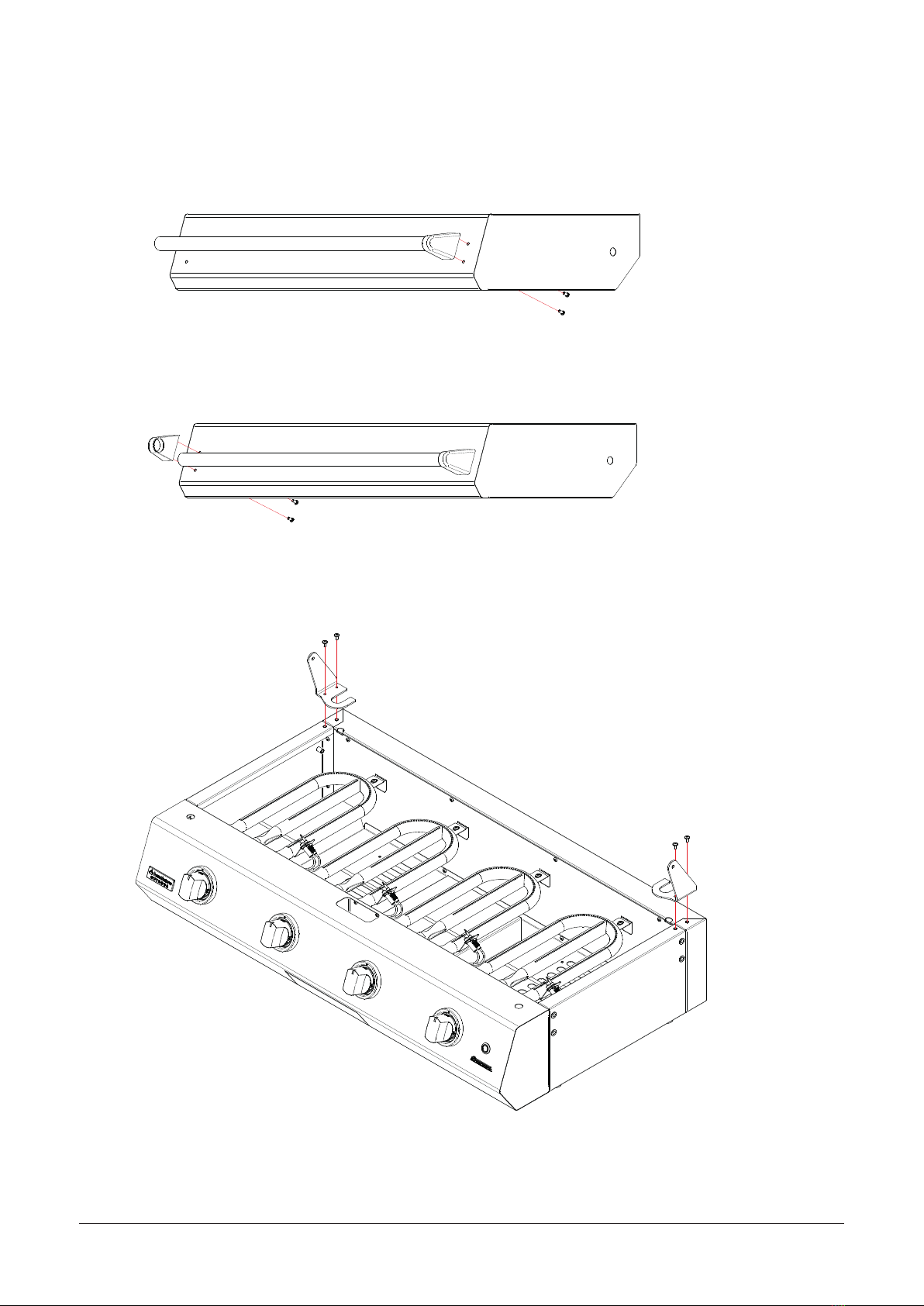

1. Lid components list
1
2
9
5
7
6
3
8
4
ITEM DESCRIPTION QUANTITY
1HANDLE 1
2LEFT ENDCAP 1
3SCREW M6x16 FLAT HEAD 2
4ACORN NUT M6 2
5BEARING 2
6SCREW M6x16 4
7 RUBBER BUMPER 2
8WASHER 2
9RIGHT ENDCAP 1
Packing list:
-Lid with parts and hardware for the
handle and hinges, see below
-Enameled cast iron griddle
-Griddle chassis, fully assembled
-NG conversion kit
(orice and conversion label)
Some assembly is required to complete
your griddle. Follow the steps to assemble
the lid, mount the lid to the griddle chassis,
and set the griddle in place.
Lid
Enameled Cast
Iron Griddle
Chassis

10 HearthStone Quality Home Heating Products, Inc. ®
2. Attach the right end cap with 2 M6 screws, place the handle in the end cap
3. Capture the opposite end of the handle with the le end cap and attach it to the lid with 2 M6 screws
4. Remove the 2 lid brackets from the griddle chassis by removing 2 M4 screws from each bracket.

11Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
5. Attach the hinge brackets to the lid as shown. The components should be stacked in the following order
from the outside in: M6 at head screw - bearing - lid - washer - lid bracket - acorn nut.
Attach the 2 rubber bumpers by pushing them into the holes on the lid as shown.
6. Mount the assembled lid to the griddle chassis by re-attaching the hinge bracket using the M4 screws.

12 HearthStone Quality Home Heating Products, Inc. ®
7. Place the enameled cast iron griddle on the griddle chassis. The feet on the bottom of the griddle should
align with the holes on the top surface of the griddle chassis as shown.
Excessive Weight Hazard
Two or more persons are
required to handle the enameled
cast iron cooking plate.
Note: Be sure to place the griddle in the proper direction, so
the backsplash is at the back of the appliance and the grease
drain at the front.
CORRECT INCORRECT

13Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)

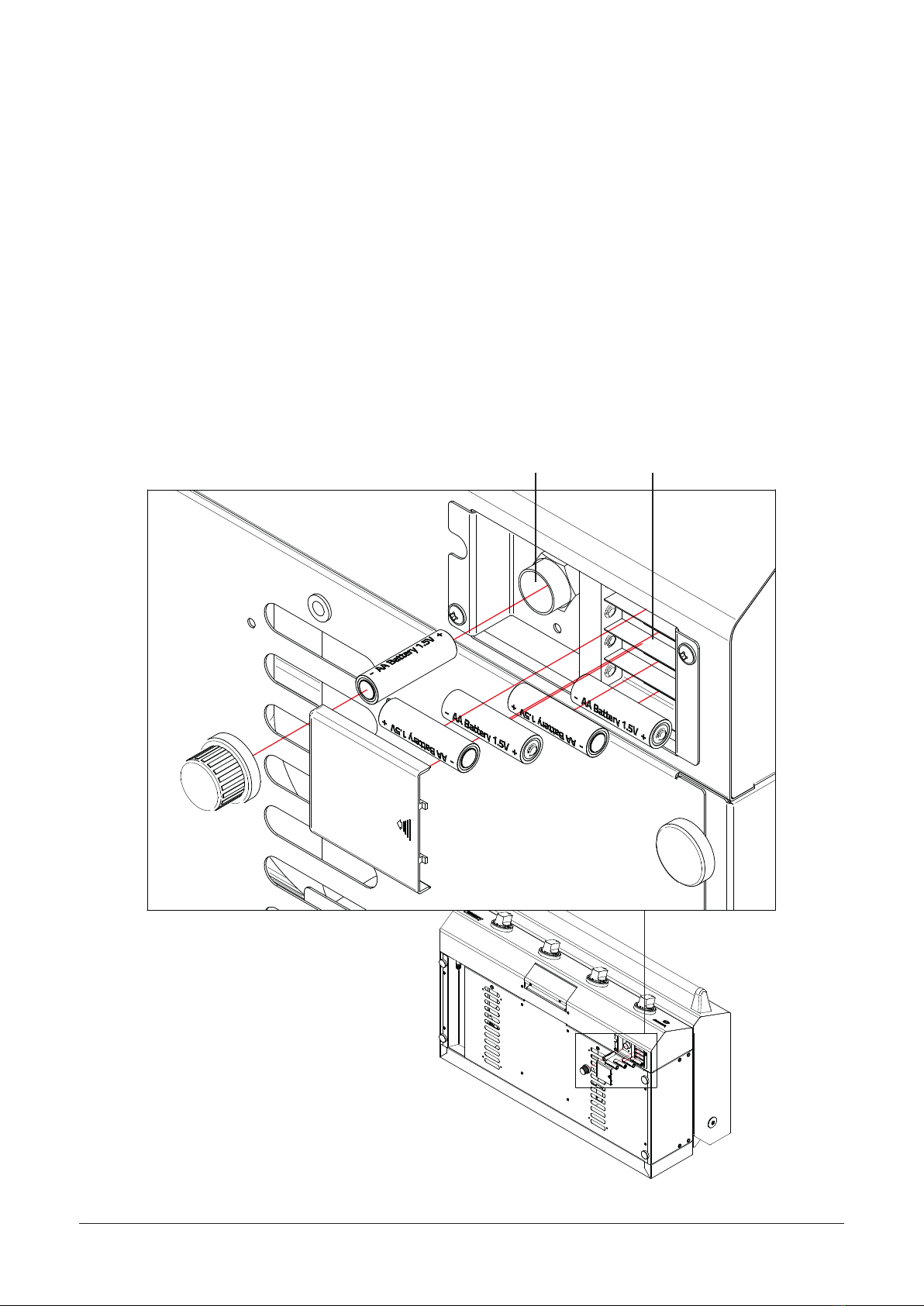

BATTERY INSTALLATION AND REPLACEMENT
Batteries are required to power 2 separate systems in your griddle, burner ignition and LED knob lighting.
Your Griddle is delivered with 5 AA (1.5V) batteries to power these systems.
Ignition
The piezoelectric unit requires 1 AA battery to provide continuous spark ignition to each burner.
Ignition
LED Knob Lighting
The LED knob lights require 4 AA batteries installed in the battery holder located on the bottom of the
griddle chassis in the front corner.
When a knob is in use, an orange halo around that knob will illuminate. This will change from orange to white
if the knob is turned to OFF.
LED Knob Lighting

14 HearthStone Quality Home Heating Products, Inc. ®
Gas Requirements
It is critical that the gas you use matches that which the Griddle is set up for. The Griddle is factory set to use
liquid propane (LP). A gas conversion kit is included and must be installed in order to use natural gas (NG).
Follow the instructions in the natural gas conversion section to convert your Griddle to NG.
You can verify which gas the appliance is set for by checking the rating label. The rating label is located on the
rear of the chassis. The rating label lists the serial number, model number, and gas type.
Never connect an unregulated gas line to the appliance. You must use a gas regulator even if the supply is
controlled.
Example rating label:
Manufactured for:
317 STAFFORD AVE,
MORRISVILLE VT 05661 - USA
Manufactured by:
MONSALUD 23,
VILLAFRANCA DE LOS BARROS 06220 - SPAIN
POWER 36.000 BTU/HR
9.000 BTU/HR PER BURNER
CERTIFIED TO / CERTIFIE SELON:
ANSI Z21.89/CSA1.18-2017 - OUTDOOR COOKING SPECIALTY GAS APPLIANCE
ANSI Z21.58/CSA1.6-2017 - OUTDOOR COOKING GAS APPLIANCE
MODEL: 830-3852
NG
PROPANE
GAS TYPE
7.0” W.C
11.0” W.C
OPERATIONAL
PRESSURE
FOR OUTDOOR USE ONLY. IF STORED INDOORS, DETACH AND LEAVE CYLINDER OUTDOORS.
1. READ INSTRUCTIONS BEFORE LIGHTING AND COOKING USE.
2. ALWAYS OPEN LID DURING LIGHTING AND COOKING USE.
3. IF IGNITION DOES NOT OCCUR IN 5 SECONDS, TURN THE BURNER CONTROL KNOB OFF.
4. WAIT 5 MINUTE, THEN REPEAT THE IGNITION SEQUENCE.
- MINIMUM CLEARANCE FROM SIDES AND BACK OF UNIT TO COMBUSTIBLE MATERIALS:
24” FROM SIDES OF APPLIANCE
24” FROM BACK OF APPLIANCE
- DO NOT USE THIS APPLIANCE UNDER OVERHEAD COMBUSTIBLE MATERIALS.
- TURN OFF GAS SUPPLY AT SOURCE WHEN APPLIANCE IS NOT IN USE.
- THIS APPLIANCE IS NOT INTENDED FOR COMMERCIAL USE.
POUR UTILISATION EXTÉRIEURE UNIQUEMENT. SI ENTREPOSÉ À L’INTÉRIEUR,
DÉTACHER ET LAISSER LA BOUTEILLE À L’EXTÉRIEUR.
1. LISEZ LES INSTRUCTIONS AVANT D’ALLUMER ET DE CUISINER.
2. TOU JOURS OUVRIR LE COUVERCLE PENDANT L’ALLUMAGE ET LA CUISSON
3. SI L’ALLUMAGE NE SE PRODUIT PAS DANS LES 5 SECONDES, ARRÊTEZ LE BOUTON DE COMMANDE
DU BRÛLEUR.
4. ATTENDEZ 5 MINUTE, PUIS RÉPÉTEZ LA SÉQUENCE D’ALLUMAGE.
- DÉGAGEMENT MINIMUM DES CÔTÉS ET DE L’ARRIÈRE DE L’UNITÉ AUX MATÉRIAUX COMBUSTIBLES:
24” DES CÔTÉS DE L’APPAREIL
24” À L’ARRIÈRE DE L’APPAREIL
- N’UTILISEZ PAS CET APPAREIL SOUS DES MATÉRIAUX COMBUSTIBLES AÉRIENS.
- FERMEZ L’ALIMENTATION EN GAZ À LA SOURCE LORSQUE L’APPAREIL N’EST PAS UTILISÉ.
- CET APPAREIL N’EST PAS DESTINÉ À UN USAGE COMMERCIAL.
brabura
1. THE INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.
2. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLIANCE.
3. FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN USING THE APPLIANCE.
4. IF INSTRUCTIONS OR PARTS ARE MISSING CONTACT YOUR VENDOR.
1. CETTE NOTICE CONTIENT DES RENSEIGNEMENTS IMPORTANTS PERMETTANT UN ASSEMBLAGE ADÉQUAT ET À UNE UTILISATION SÉCURITAIRE DE L’APPAREIL.
2. LIRE ET SUIVRE TOUTES LES MISES EN GARDE ET TOUTES LES INSTRUCTIONS AVANT L’ASSEMBLAGE ET L’UTILISATION DE L’APPAREIL.
3. SUIVRE TOUTES LES MISES EN GARDE ET LES INSTRUCTIONS LORS DE L’UTILISATION DE L’APPAREIL.
4. SI VOUS N’AVEZ PAS TOUTES LES INSTRUCTIONS OU LES PIÈCES, COMMUNIQUEZ AVEC VOTRE FOURNISSEUR.
SERIAL NUMBER: G4022xxxx
MC 302640
GAS CONNECTIONS

15Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
LP Connection
The Griddle is factory set for LP gas. It comes equipped with an LP hose/regulator assembly for connection
to a standard 20 lb. LP cylinder (Type 1). The LP tank is not included. The griddle system is leak tested. Do not
remove the Regulator/Hose assembly from the product during cart installation.
Connection: LP Hose with a type 1 quick disconnect and regulator. Operating pressure: 11.0"W.C.
Ensure the main valve on the tank is completely closed and all burner knobs are in the OFF position. Although
the ow of gas is stopped when the Type 1 system is disconnected as part of its safety feature, you should
always turn o the LP tank main valve aer each use and during transport of the tank or unit.
Insert the regulator inlet into the tank valve and turn the black coupler clockwise until it tightens. Do not over
tighten the coupler. Turn the main tank valve ON and the burner control valves to HI for about 20 seconds to
allow the air in the system to purge. Turn the valves OFF and wait 5 minutes before attempting to ignite the
burners.
When an LP unit is being directly connected to an LP house system, you must follow the natural gas connection
guidelines. The installer must provide the proper gas regulator to reduce the gas pressure to 11" W.C.
Changing the LP cylinder
Ensure the main tank valve is turned OFF and the control knobs are in the OFF position before turning the
coupler counter clockwise to disengage the inlet. Remove the inlet from the tank valve opening.
The LP tank must be changed in a well ventilated place, away from any heat sources (cigarette, electrical
appliances, etc.).
Always check for gas leaks aer every LP tank change.
3"
76mm
MIN
Notes:
1. Do not store a spare LP gas cylinder
under or near this appliance;
2. Never ll the cylinder beyond 80
percent full; and
3. If the instructions in 1 and 2 are
not followed exactly, a re causing
death or serious injury may occur.
CGA No. 791 connection: “Place dust
cap on cylinder valve outlet whenever
the cylinder is not in use. Only install the
type of dust cap on the cylinder valve
outlet that is provided with the cylinder
valve. Other types of caps or plugs may
result in leakage of propane.”
GAS CONNECTIONS

16 HearthStone Quality Home Heating Products, Inc. ®
LEAK TESTING
Leak Test Procedure
A complete gas tightness check must be performed at the installation site. Periodically check the whole
system for leaks, or immediately if the smell of gas is present.
1. Prepare soap solution by combining one part of liquid detergent and one part of water.
2. Ensure all control valves are in the OFF position before turning the gas supply ON.
3. Check all connections from the supply line or LP cylinder by applying the solution around the connection,
tubing and end of the manifold.
4. If bubbles appear to “grow” on any of the connections, you have a gas leak. IMMEDIATELY turn o the gas
supply.
5. Tighten any leaking connections. Turn the gas ON, and recheck. If you cannot stop a gas leak, turn the gas
supply OFF, do not use your Griddle, and contact the shop where you purchased this appliance.
Advice: Before each use of the Griddle, clean and inspect the hose. If there is evidence of abrasion,
wear, cuts, or leaks, the hose must be replaced prior to the appliance being put into operation.
The replacement hose assembly must be: LP regulator hose assembly 11" W.C.

17Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
LIGHTING INSTRUCTIONS
HearthStone Outdoor Griddles are equipped with a thermocouple and safety valve system which monitors
the burner. This will turn the gas o if the burner is not lit.
1. Open the lid and remove any cooking utensils.
Ensure the grease tray is in place and all the
knobs are on the OFF position.
2. Turn the gas supply ON at the cylinder.
4. Push in and hold the selected knob for 2
seconds. Turn the knob to HIGH and hold for
10 seconds to light the burner.
5. If the burner does not light aer several
attempts, turn the knob to OFF, wait 5 minutes,
and repeat step 4. If the burners do not stay lit,
repeat steps 4 and 5.
6. When the burner is lit, adjust the heat by
turning the knob to the desired high/low
position.
7. To shut the Griddle o, turn the cylinder valve
to the OFF position, then turn all the control
knobs on the appliance clockwise to the OFF
position.
3. Press the knob light button to the right if the
burner knobs. This button activates the halo
lights on the knobs. When a knob is in use, an
orange halo around that knob will illuminate.
This will change from orange to white if the
knob is turned to OFF.

18 HearthStone Quality Home Heating Products, Inc. ®
MANUAL LIGHTING INSTRUCTIONS
If the burner will not light aer several attempts, the burner can be manually lit. If you have attempted to light
the burner with the ignition, allow 5 minutes for any accumulated gas to dissipate.
1. Open the lid and remove any cooking utensils. Ensure the grease tray is in place and all the knobs are on
the OFF position.
2. Using a special safety match, carefully light a match, turn on the burner you wish to light, and insert the
lit match between the cast iron griddle and the chassis to ignite the burner. Repeat for each burner you
want to light.
3. Once the burner is lit, adjust the heat by turning the knob to the desired high/low position.
4. To shut the Griddle o, turn the cylinder valve to the OFF position, then turn all the control knobs on the
appliance clockwise to the OFF position.

19Outdoor Griddles (Models 830-3852, 830-3052, 830-2052)
INSTALLATION
Our Griddles are designed for easy
installation in one of three ways.
1. Countertop: Set the griddle on top of a
non-combustible counter.
2. Built-in: Installed into a non-
combustible counter, or a combustible
counter using the Build-in liner
accessory.
3. Rolling Base: Mount the griddle to
the Rolling Base accessory to make
a freestanding griddle. Instructions
included with the Rolling Base.
HearthStone Outdoor Griddles must be located outdoors only. As with any gas appliance, harmful carbon
monoxide is produced during the combustion process that should not be allowed to accumulate in a conned
space. Also, since hot air rises above the Griddle while in operation, covered locations should be avoided.
Do not locate the Griddle where an overhang or awning may cover it. CAUTION should be taken when grills
are used near glass, vinyl siding or other temperature sensitive construction materials. In some cases it may
be necessary to increase the clearance around the Griddle to avoid damage to vinyl siding. Check with the
manufacturer of the siding material for details.
The Griddle is design-certied for use outdoors only and is not intended to be installed in or on recreational
vehicles and/or boats. This appliance must be on a level, stable surface in an area clear of combustible
material. An asphalt surface may not be acceptable for this purpose.

20 HearthStone Quality Home Heating Products, Inc. ®
INSTALLATION - COUNTERTOP
Your Griddle may be installed on top of a non-combustible counter. The Griddle must be located outdoors
only. This appliance must be on a level, stable surface in an area clear of combustible material.
Clearances to Combustible Surfaces - Countertop
The Griddle should not be located closer than 24”/610mm to any adjacent combustible surface.
Allow 24”/610mm from the sides and rear to combustible construction while in operation.
The Griddle should not be located under any overhead unprotected combustible construction.
24"
610mm
24"
610mm
Locating the Griddle
When determining a suitable location, take into account concerns such as exposure to wind, proximity to
traic paths, and keeping any gas supply line as short as possible.
- Locate the unit in a well-ventilated area.
- The counter and supporting ledges or deck must be level and at.
- The enclosure should have ventilation holes to prevent gas build-up in the event of a leak.
HearthStone recommends installing the manual shut-o valve in a location readily accessible by the customer,
so that gas to the appliance can be shut o in an emergency situation. However, the appliance must not be
modied in any way to accommodate such placement.
