WARNING
If the information in these instruc-
tions is not followed exactly, a
re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overre - If heater or chimney con-
nector glows, you are overring. Overring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specied. Failure to
comply may cause house re.
Fire Risk.
WARNING
Tested and approved for wood pellets.
Burning of any other type of fuel will void
your warranty.
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.
Owner’s Manual
Installation and Operation
Models:
ECO-ADV-PS35
ECO-ADV-PS50
Pellet Burning Stove
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010 1
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and national
codes and regulations.
• Consult local building, re ofcials or authorities having jurisdic-
tion about restrictions, installation inspection, and permits.
CAUTION
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
ECO-ADV-PS35 ECO-ADV-PS50

12
R
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010
R
C. General Maintenance
1. Types of Fuel
Depending on the type of fuel you are burning will dictate how
often you have to clean your repot.
If the fuel you are burning has a high dirt or ash content, it may
be necessary to clean the repot more than once a day.
Dirty fuel will cause clinkers to form in the repot. A clinker
is formed when dirt, ash or a non-burnable substance is
heated to 2000°F (1093°C) and becomes glass-like. See
“D” page 16 in this section for more details on fuels with
high ash content.
Clinker
Figure 12.1 - Clinker
Shock and Smoke Hazard
• Turn down thermostat, let appliance completely
cool and exhaust blower must be off. Now you
can unplug appliance before servicing.
• Smoke spillage into room can occur if appliance
is not cool before unplugging.
• Risk of shock if appliance not unplugged before
servicing appliance.
CAUTION
A. Proper Shutdown Procedure
Cleaning or Inspection Frequency Daily Weekly Monthly Yearly
Ash Drawer Every 5 bags of fuel OR X
Ash Removal from Firebox Every 5 bags of fuel or more
frequently depending on ash
build-up
OR
X
Blower, Exhaust More frequently depending on
the fuel type
OR X
Blower, Convection Every 25 bags or more fre-
quently depending on operat-
ing environment.
OR
X
Door Handle & Gasket Inspection Prior to heating season OR X
Exhaust Path, Drop Tube and Behind
Bafes
Every 25 bags or more fre-
quently depending on ash
build-up
OR
X
Firepot Cleaning Rod Every 1 bag of fuel OR X
Firepot with Clean-out Tool Every 5 bags of fuel OR X
Firebox - Prepare for Non-Burn Season At end of heating season OR X
Glass When clear view of repot
becomes obscure
OR X
Hopper Every 50 bags of fuel OR X
Top Vent Adapter More frequently depending on
ash build-up
OR X
Venting System Every 3 tons or more fre-
quently depending on the fuel
type
OR
X
B. Quick Reference Maintenance Chart
Follow the detailed instructions found in this
section for each step listed as referenced in the
chart below.
NOTICE: These are recommendations. Clean more frequently if you encounter heavy build-up of
ash at the recommended interval or you see soot coming from the vent. Not properly
cleaning your appliance on a regular basis will void your warranty.
3Maintaining & Servicing Your Appliance

R
R
13
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010

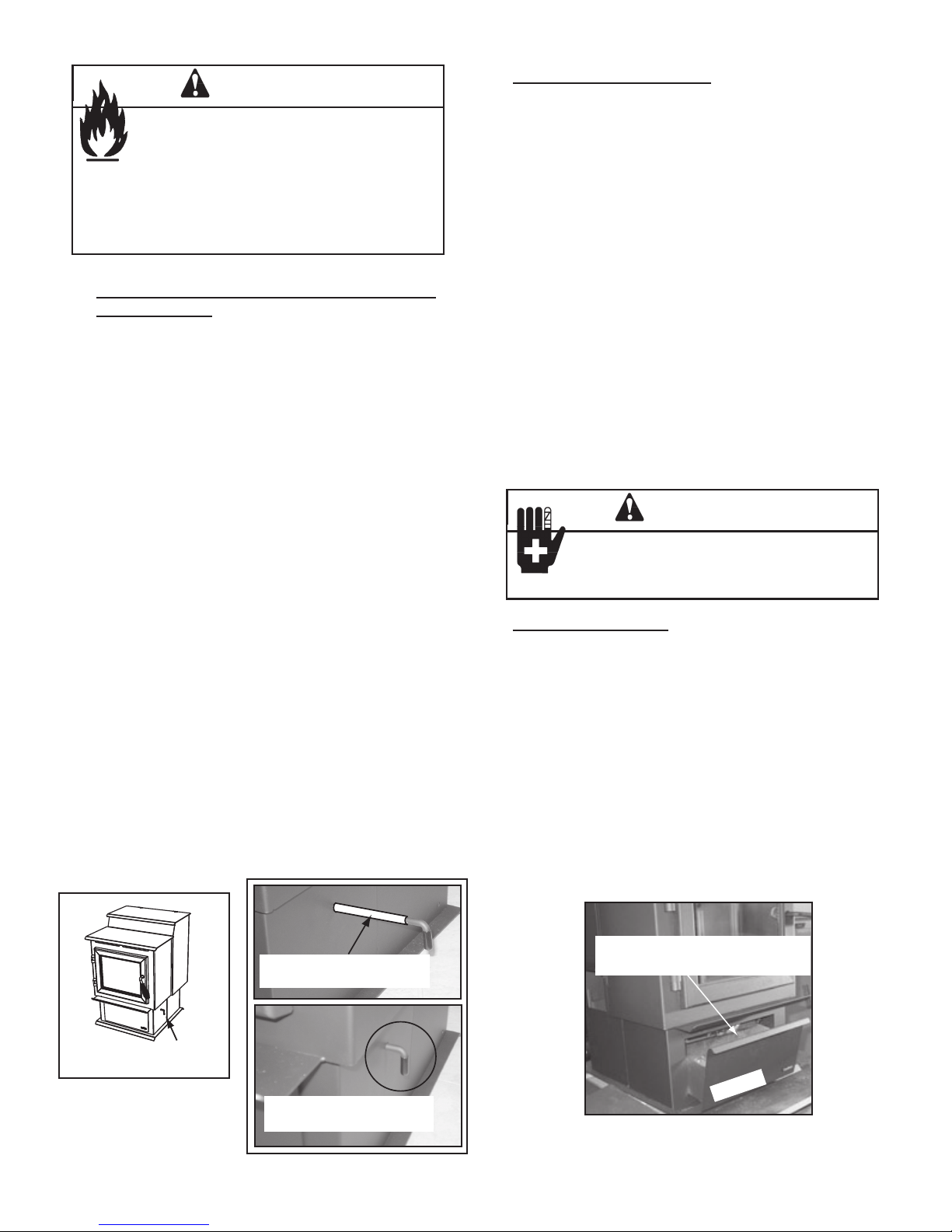

2. Cleaning Firepot with Cleaning Rod & Firepot
Clean-Out Tool;
• Frequency: Daily or more often as needed
• By: Homeowner
WARNING
• NEVER pull repot cleaning rod out when
appliance is operating.
• Cleaning Rod MUST be complelety pushed in
before operating appliance.
•. Hot pellets may fall into ashpan and start a re
or mis-starts due to lack of vacuum.
Fire Risk
4. Cleaning Ash Drawer
• Frequency: Weekly or every 5 bags of fuel
• By: Homeowner
3. Ash Removal from Firebox
• Frequency: Weekly or more frequently depending on
ash build-up.
• By: Homeowner
Pull out Ash Drawer & Dispose of
Ashes in Non-Combustible Container
Ash Drawer
Figure 13.3
Firepot Cleaning Rod
Figure 13.1
Figure 13.2
OPEN Position. Light color
painted area visible
CLOSED Position
No light color paint is visible
WARNING
• NEVER remove ash drawer while appliance is
operating.
Burn Risk
a. The appliance must be in complete shutdown and cool
and the exhaust blower off. If you are just cleaning the
repot, there is no need to unplug the appliance.
b. Locate the repot cleaning rod on the right side of the
appliance. Figure 13.1. When you pull the cleaning rod
straight out it will slide open the repot oor to allow the
ashes to be deposited in the ash drawer. You will see
the light color painted area on the cleaning rod to let you
know the rod is in OPEN position. Figure 13.2.
c. Pull the repot cleaning rod OUT and IN a couple of times
to help shake debris loose. If the rod is hard to pull, it
may be necessary to use your repot clean-out tool to
chip away material that has built up on the bottom plate
of the repot and to push out any clinkers. while in the
open position. Larger clinkers may have to be removed
from the top of the repot.
d. To close the repot oor slightly raise the cleaning rod
and then push it back into place. If you have closed the
cleaning rod properly (pushed all the way in) you will not
see any of the light color painted area. Figure 13.2.
e. Always have the ash drawer in place before pulling
the repot cleaning rod, otherwise the ashes will fall
down and ll the outside air opening and the appliance
will produce soot out of the exhaust and will affect
efciency.
a. There must not be any hot ashes in the rebox during
cleaning so allow the appliance to completely cool. The
rebox ash should be removed every time the exhaust path
is cleaned. Frequent cleaning of the ash in the rebox will
help slow down the build-up of ash in the exhaust blower
and vent system.
b. Vacuum out the rebox thoroughly on both sides of the
rebox and the oor and ceiling. The ash drawer should be
emptied every time you clean the rebox. Remember to
place the ash and debris into a metal or non-combustible
container.See Disposal of Ashes.
c. Always have the ash drawer in place before pulling the
repot cleaning rod, otherwise the ashes will fall down and
ll the outside air opening and the appliance will produce
soot out of the exhaust and will affect efciency.
a. There must not be any hot ashes in the ash drawer when
you empty it, so allow the appliance to completely cool.
b. Locate the ash drawer underneath the repot. Slide the
ash drawer straight out. Empty into a non-combustible
container and re-install the ash drawer. See Disposal of
Ashes.
b. Always have the ash drawer in place before pulling the
repot cleaning rod, otherwise the ashes will fall down and
ll the outside air opening and the appliance will produce
soot out of the exhaust and will affect efciency.

14
R
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010
R
Figure 14.1
NOTE: Hearth & Home Technologies recommends to
use a heavy duty vacuum cleaners specically
designed for solid fuel appliance cleaning.
6. Cleaning the Exhaust Path, Bafes & Drop Tube
• Frequency: Monthly or every 25 bags or more fre-
quently depending on ash build-up.
• By: Homeowner
a. Appliance must be completely cool.
b. Open the door and remove the center bafe rst and
then the right and left bafes. See Bafe Removal
Instructions on page 21. Thoroughly vacuum the
exhaust path and drop tube and continue throughout
the rest of the rebox. Also vacuum the front and
back of the bafes.
c. Also vacuum the convection blower impellers or use
a soft brush to remove any ash build-up.
c. Replace the right and left bafes and then the center
bafe and close and latch the door.
7. Cleaning the Hopper
• Frequency: Monthly or after burning 50 bags of fuel
• By: Homeowner
After burning approximately 50 bags of fuel you will
need to clean the hopper to prevent sawdust build-up.
A combination of sawdust and pellets on the bottom
end of the auger reduces the amount of fuel supply to
the repot. This can result in nuisance shutdowns and
mis-starts.
a. The appliance must be in complete shutdown.
Allow the appliance to completely run out of pellets
and cool down.
b. Empty the hopper of any remaining pellets.
c. Vacuum the hopper and feed tube.
8. Soot and Fly Ash: Formation & Need for Removal
in Exhaust Venting System.
• Frequency: Yearly or more frequently depending on
ash build-up.
• By: Qualied Service Technician/Homeowner
Be sure the appliance is allowed to cool, has been unplugged
and the exhaust blower is off.
The products of combustion will contain small particles of y
ash. The y ash will collect in the exhaust venting system
and restrict the ow of the ue gases.
At start-up if there is incomplete combustion, or if there is a
shutdown or incorrect operation of the appliance it will lead
to some soot formation. This will collect in the exhaust vent-
ing system.
The venting (chimney) system may need to be cleaned at
least once a year or more often depending upon the qual-
ity of your fuel or if there are any horizontal pipe sections.
Ash will build up more quickly in the horizontal sections and
elbows.
Baffles Removed
Exhaust Path and
Blower Impellers
Drop Tube
Disposal of Ashes
WARNING
• Ashes should be placed in metal container
with tight tting lid.
• Ashes should be retained in closed container
until all cinders have thoroughly cooled.
5. Disposal of Ashes
• Frequency: As needed
• By: Homeowner
Ashes should be placed in a metal container with a
tight-tting lid. The closed container of ashes should
be placed on a non-combustible oor or on the ground,
well away from all combustible materials, pending nal
disposal.
If the ashes are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the
closed container until all cinders have been thoroughly
cooled.
9. Door Handle Inspection
• Frequency: Monthly or prior to heating season
• By: Homeowner
The gasketing between the glass and rebox should be
inspected periodically to make sure there is a good seal.
Check door handle for smooth cam operation.
Locknut
Door Cross Section
(example)
Latch Cam
Spacing
Washers
Square Key
Door Handle
Spring
Handle
Figure 14.2

R
R
15
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010
10. Cleaning the Glass
• Frequency: When clear view of the repot becomes
obscure
• By: Homeowner
a. Appliance must be completely cool before cleaning
glass.
b. Vacuum y ash from glass and door rope.
c. Use a damp paper towel or any non-abrasive glass
cleaner. Wipe off with dry towel.
Handle glass assembly with care.
When cleaning glass:
• Avoid striking, scratching or
slamming glass.
• Do NOT clean glass when hot.
CAUTION
• Do NOT use abrasive cleaners.
• Refer to maintenance instructions.
11. Cleaning Exhaust Blower - Requires No
Lubrication
• Frequency: Yearly or more frequently depending on
ash build-up
• By: Homeowner or Qualied Service Technician
12. Cleaning Convection Blower - Requires No
Lubrication
• Frequency: Yearly or more frequently depending on
ash build-up
• By: Homeowner or Qualied Service Technician
Figure 15.1
a. The appliance must be in complete shutdown and
the exhaust blower should be off. Allow the appli-
ance to completely cool down.
b. Open the clean-out cover. Figure 15.1.
c. Sweep out any ash build-up.
14. Preparing Firebox for Non-Burn Season
• Frequency: Yearly
• By: Homeowner
a. Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is off.
b. Remove all ash from the rebox and vacuum thorough-
ly.
c. Paint all exposed steel, including cast-iron.
• Purchase paint from your local dealer.
• Must use a high-temperature paint made speci-
cially for heating appliances.
Clean-Out Cover
13. Cleaning the Top Vent Adapter
• Frequency: Yearly or more frequently depending on
ash build-up
• By: Homeowner
Handle glass with care.
• Inspect the gasket to ensure it is
undamaged.
• Do NOT strike, slam or scratch glass.
• Do NOT operate appliance with glass
assembly removed.
WARNING
• Do NOT operate with glass cracked, broken or
scratched.
a. Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is off.
b. Follow the directions for cleaning the exhaust path
found on page 14.
c. If unable to thoroughly clean the blower through this
access, then follow the directions on page 19 for direct
access to the exhaust blower.
d. Vacuum the blower’s impellers. Use care not to bend
or damage the blower ns.
a. Be sure the appliance is allowed to cool, has been
unplugged and the exhaust blower is off.
b. Follow the directions on page 19 for direct access to
the convection blower.
d. Vacuum the blower’s impellers.
NOTE: Hearth & Home Technologies recommends to
use a heavy duty vacuum cleaners specically
designed for solid fuel appliance cleaning.

16
R
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010
R
D. High Ash Fuel Content Maintenance
• Frequency: As needed
• By: Homeowner
Figure 16.3
Figure 16.1
Figure 16.2
Fire Risk.
WARNING
• High ash fuels, or lack of maintenance, can
cause the firepot to overfill. Follow proper
shutdown procedure if ash buildup exceeds
half way point in firepot.
• Failure to do so could result in smoking,
sooting and possible hopper fires.
Poor quality pellet fuel, or lack of maintenance, can create
conditions that make the repot ll quickly with ashes and
clinkers.
This condition makes the appliance susceptible to overlling
the repot with pellets which may result in smoking, sooting
and possible hopper res. Figure 16.1 shows an example
where the repot overlls, pellets back up into the feed tube
and ash has accumulated in the rebox.
An inefcient and non-economical method of burning of fuel
caused by poor quality pellet fuel is shown in Figure 16.2.
The correct ame size when good quality, premium pellet
fuel is burned is shown in Figure 16.3.
If the ash buildup exceeds the half way point in the repot
IMMEDIATE ATTENTION AND CLEANING IS REQUIRED.
Correct Flame Height
Yellow/White in Color
Incorrect Flame Height
Tall, Lazy Flame
Orange in Color
Pellets Back-up in Feed Tube
Ash build-up in Firebox
Firepot Overfills

R
R
17
Heatilator • ECO-ADV-PS35/50 • 7058-142D • July 21, 2010
E. Frequently Asked Questions
Odors and vapors released during initial operation.
• Curing of high temperature paint.
• Open windows for air circulation.
Odors may be irritating to sensitive individuals.
CAUTION
ISSUES SOLUTIONS
1. Metallic noise. 1. Noise is caused by metal expanding and contracting as
it heats up and cools down, similar to the sound pro-
duced by a furnace or heating duct. This noise does not
affect the operation or longevity of your appliance.
2. White ash buildup on glass. 2. This is normal. Clean the glass.
3. Glass has build-up of black soot. 3. Excessive build up of ash. See solution #4. The lower
burn settings will produce more ash, the higher burn
settings produce less. The more it burns on low the
more frequent cleaning of the glass is required.
4. Fire has tall ames with black tails and is lazy. 4. The feed rate needs to be reduced or the repot,
exhaust blower, exhaust path or bafes needs cleaning.
5. Smokey start-up or puffs of smoke from the airwash. 5. Either the repot is dirty or there is too much fuel at
start-up and not enough air. Close down feed rate 1/4
inch (6.35mm) at a time until this no longer happens.
6. Large ame at start-up. 6. This is normal. Flame will settle down once the re is
established.
7. Rumbling sound. 7. Make sure the ash drawer is completely closed. The
feed rate needs to be reduced or close the combustion
air damper 1/4 inch (6.35mm) at a time until the sound
stops.
