heddier electronic FP-PRO-HD+ User manual

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 1
Contents
1. FP-PRO HD+ Video Player 3-7
1.1 Medium
1.2 Requirement for playing files
1.3 Access to setup menu
1.4 Set video resolution
1.5 Slideshow setup
1.6 Name files
1.7 Supported video format
1.8 Supported audio format
2. FP-PRO HD+ Connection Ports 8-11
2.1 Definition „Memory Card“
3. Application Examples 12-19
3.1 Loop after powering up
3.2 Timer Mode (Standard Mode)
3.3 IR Mode (Standard Mode)
3.4 Standard Mode
3.5 Fast Mode
3.6 Sync a Group of FP-PRO HD+
3.7 Remote Management
4. Standard- or Fast Mode 20- 31
4.1 Choose Mode
4.2 Reasons for Fast- or Standard Mode
4.3 Fast Mode
4.3.1 Input Codes
4.4 Standard Mode
4.4.1 Resume Function
4.4.2 Loop files
4.4.3 Seamless play of video files
4.5 Timer Mode (Standard Mode)
4.5.1 Set number of files
4.5.2 Set time delay
4.5.3 Required items
4.5.4 Function
4.5.5 Function with time delay
4.6 Digital Input
4.6.1 Standard Mode
4.6.2 IR Mode

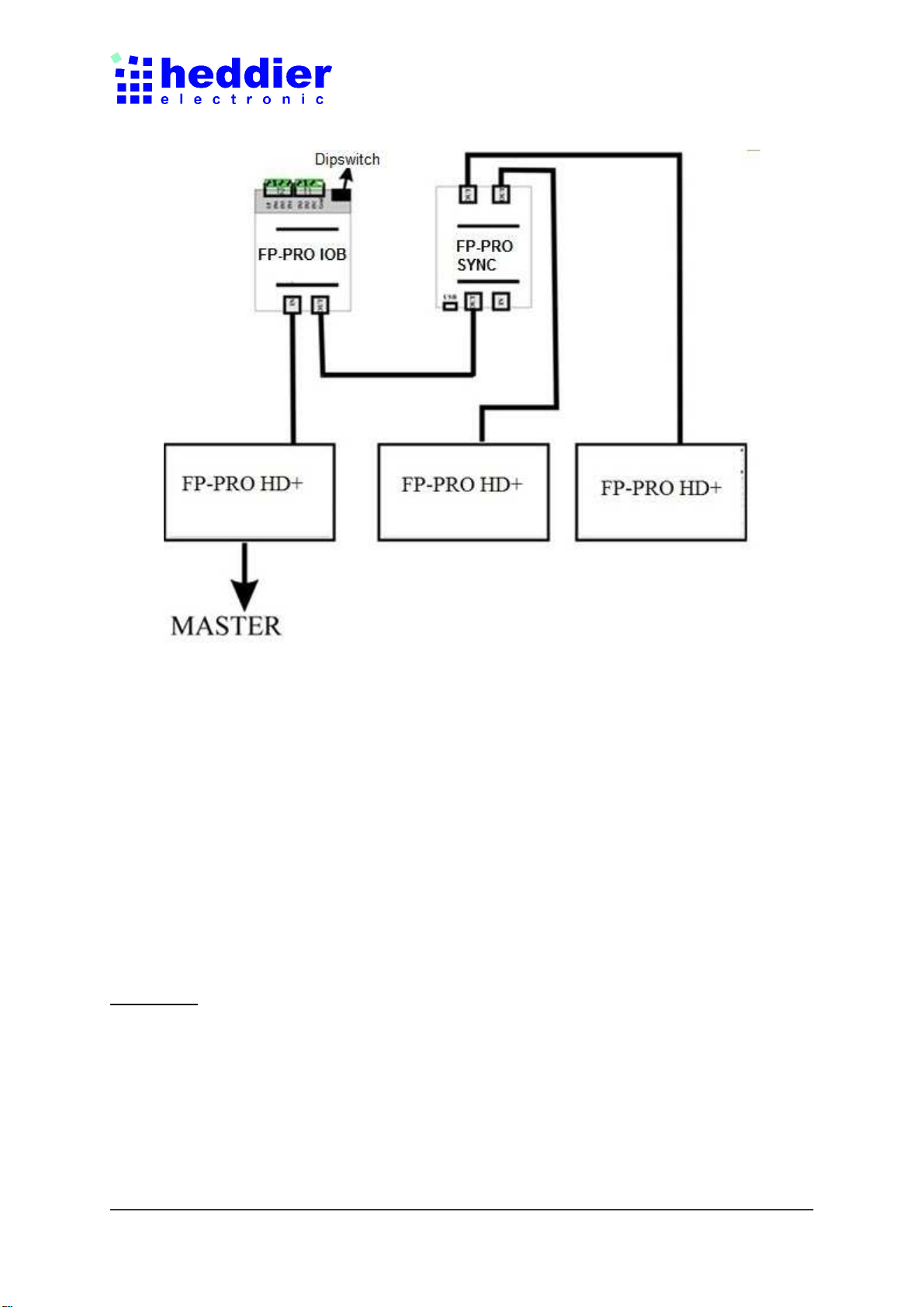

5. Sync a Group of FP-PRO HD+ 32-33
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 2
6. FP-PRO HD+ Specification 34-38
6.1 Data Storage
6.2 Video resolution
6.3 Video Output
6.3.1 HDMI
6.3.2 YpbPr
6.3.3 A/V
6.4 How to handle Data
6.4.1 Copy files wiht PC/MAC
6.4.2 Name video
6.4.3 Sort video
6.5 Power supply
6.6 Autoplay Mode
6.7 Definition of Inputs in „Autoplay.txt“
7. FP-PRO IOB (Standard-, IR- and Sync Mode) 39-45
7.1 Connect some FP-PRO-IOB or FP-PRO SYNC
7.2 Adjust FP-PRO-IOB
7.3 FP-PRO-IOB in Standard Mode
7.4 FP-PRO-IOB address
7.5 Connect 12 Push buttons
7.6 FP-PRO-IOB in SYNC Mode
7.7 Program synctime
7.8 FP-PRO-IOB in IR Mode
8. IR Remote Control 46-48
8.1 Manual Mode
8.2 Autoplay Mode
9. Play video through Network 49
10. Copy files through Network 50
11. Operating Notes 51-52
11.1 HD bit rate
11.2 HD video output
11.3 Storage format
11.4 LAN Port
11.5 Operating temperature
11.6 Power supply
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 3
FP-PRO HD+ Video Player
1.1 FP-PRO HD+ plays from:
1. USB 2.0 memory device such as USB drive, USB External hard drive, memory card
reader etc.
2. 2. 2.5” SATA laptop/solid state hard drive from the built in 2.5” internal SATA
socket.
1.2 To play automatically after powering up, following items are required:
1. At least 1 file in the root directory. File could be Video OR Jpeg.
2. Must have autoplay.txt in the root directory. Note chapter 6.7 on how to create autoplay.txt.
3. Without the above 2 items, it will not play and show a black screen after powering up.
4. Autoplay setting is ON. If autoplay is OFF, FP-PRO HD+ will be in manual mode.
Notes:
1. FP-PRO HD+ is shipped with autoplay setting On.
After powering up, the FP-PRO HD+ should automatically play.
2. File name has to be 8 characters or less all in 1 word without any space in between e.g:
bigbird.mov.

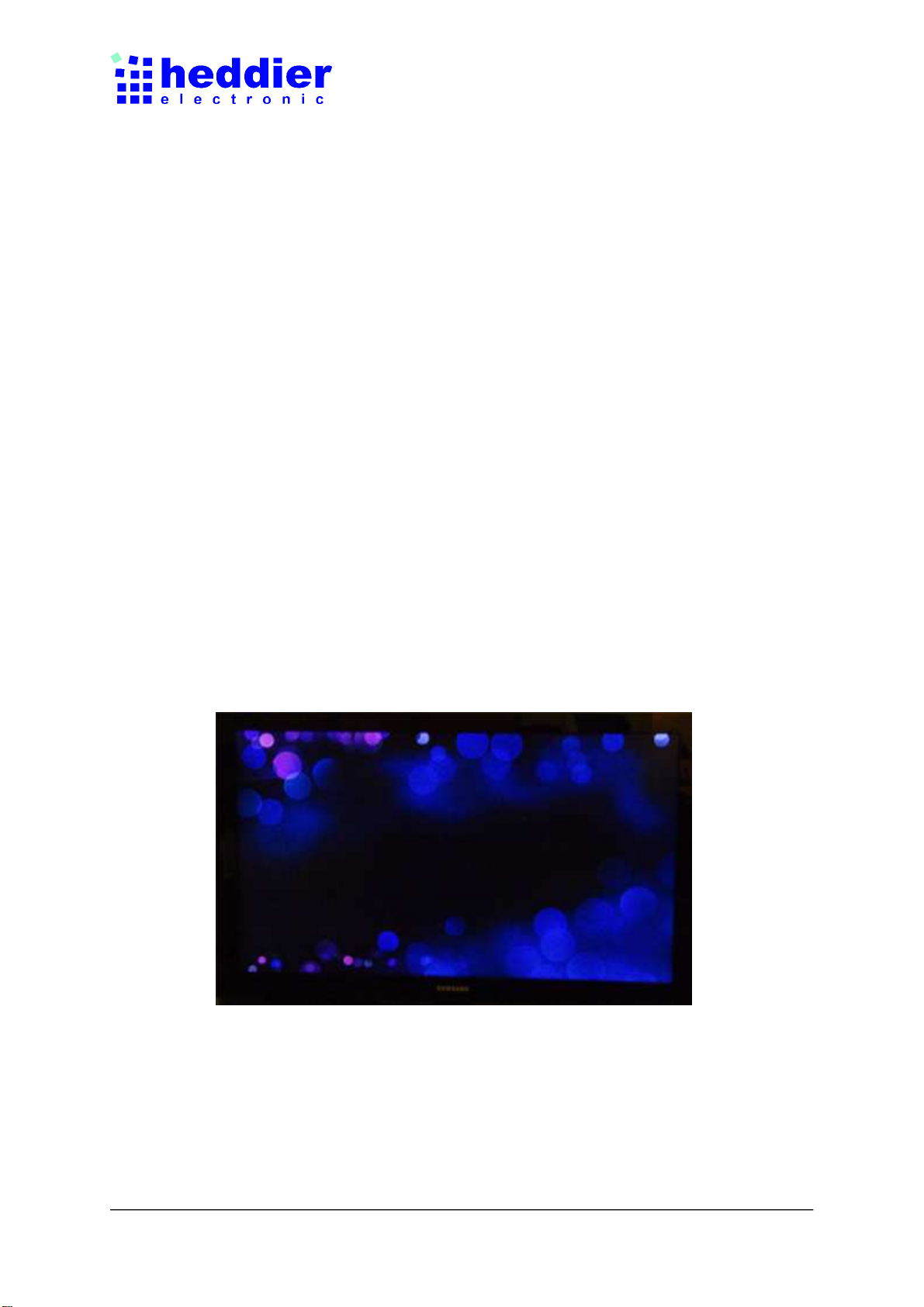

After powering up, a “bubble” screen saver appears for 15 seconds and the FP-PRO HD+ will
automatically play the video(s) in the root directory of the memory card.
However if the above screen appears and the FP-PRO HD+ fails to play, turn power OFF and
check the memory card for the following:
1. Autoplay.txt must be present in the root directory of the memory card. Without this, the FP-
PRO HD+ will stop at the above screen.
2. Must have at least 1 file (video or Jpeg) in the root directory.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 4
1.3 How to access setup menu
To change the setup on the FP-PRO HD+, use the IR remote control. While FP-PRO HD+ is
playing press SETUP key. The following screen will appear:
1.4 How to Set/Adjust video resolution output:
FP-PRO HD+ video output is shipped from factory at 720p. To select or adjust the video
output to either lower or higher resolution, do the following:
While a video is playing press setup key on the IR remote, the setup screen will appear. From
the setup screen use the cursor to go to VIDEO as follows:
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 5
From Video use the cursor to go to Video System and select the desired resolution as follows:
Press OK to select the resolution and press SETUP key again. The FP-PRO HD+ will return
to resume the playback. The FP-PRO HD+ will remember this setting.
1.5 How to adjust JPEG slide show
From MISC screen, adjust the slide show timing, transition effect and PAN&SCAN setting
(Ken Burns=OFF). Press SETUP key again to return to autoplay. The FP-PRO HD+ will
return to resume the playback. The FP-PRO HD+ will remember this setting.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 6
1.6 File name
File name has to be 8 characters or less all in 1 word without any space in between.
Example: bigbird.mov.
If file name has space such as big bird.mov, this file might not play. Change this to
big_bird.mov. If file name has over 8 characters such as verybigbird.mov, this file will not
play.
FP-PRO HD+ sort the file numerically using 2 digit number. Example: 01bird.mov,
02cat.mov etc.
1.7 Video format support (Video must have embedded audio)
Apple’s quicktime (xxx.mov,xxx.qt) at up to 35 mbps:
The player supports quicktime xxx.mov and xxx.qt files that have been encoded using h.264
(Mpeg4- AVC) and standard Mpeg4. The video size is up to 1080p (1920X1080) and average
bit rate is 35mbps with peaks at up to 50mbps. For continuous 24/7 loop file only, limit the
average bit rate to 25mbps.You can use MAC to create the quicktime video and copy it
directly into a brand new USB drive.
The resource fork files that are automatically created by MAC (and usually cause problem for
PC and other media players) will be recognized by the FP-PRO HD+ and will not create
problem.
To automatically play the file, create Autoplay.txt using MacWord and save it as text file.
Mpeg2 HD (xxx.ts, xxx.m2t) at up to 40 mbps:
The player supports Mpeg2-HD xxx.ts and xxx.m2t files (main profile@high level). The
video size is up to 1080p (1920X1080) and bit rate is 40mbps. The player supports both CBR
and VBR encoding.
For continuous 24/7 loop file only, limit the average bit rate to 25mbps.
Windows media HD (xxx.avi,xxx.wmv) at up to 35 mbps:
The player supports windows media HD VC-1 files xxx.avi (AP@L3). The video size is up to
1080p (1920X1080) and average bit rate is 35mbps with peaks at up to 50mbps. For
continuous 24/7 loop file only, limit the average bit rate to 25mbps.
Panasonic and Sony HD camcorder (xxx.mp4):
The player plays files created by Panasonic and Sony HD camcorders. These HD camcorders
record video using AVC-HD file format (h.264).
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 7
Flip Video HD movie file (xxx.mp4):
The player supports movie files that have been created using Flip Video hand held HD
recorder. Files created are mpeg4 HD, xxx.mp4.
Digital camera movie file (xxx.mp4,xxx.avi):
The player supports movie files that have been created using regular Digital cameras (with
movie recording capability). These cameras usually create pictures in xxx.mov, xxx.avi and
xxx.mp4 formats.
You can copy these files directly into the USB drive and play it on the FP-PRO HD+.
REALPLAYER download files (h.263):
The player plays YOUTUBE and other internet downloaded realplayer movie files such as
xxx.flv, xxx.rm and xxx.rmvb.
DVD and Mpeg2 video:
The player supports standard DVD file xxx.vob and also regular Mpeg2 file.
1.8 Audio format
The player supports xxx.wav file, DMOV, AAC, Dolby stereo and dolby 5.1
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 8
2. FP-PRO HD+ Video player with SYNC
Front View FP-PRO-HD+
Power switch:
Switch to ON position to power the FP-PRO HD+. When using USB drive, bootup time is 35
seconds. When using the (optional) internal SATA Hard Drive, bootup time is 25 seconds.
Mini USB port:
Use this port to access the internal Hard Drive only. Use Mini USB to Std USB cable.
Connect to PC’s USB port and turn FP-PRO HD+ power on. PC will see the FP-PRO HD+
and assign a letter hard drive. Use it to format the hard drive (NTFS format) and to copy and
delete files in the Hard Drive.
SATA socket (built in internal socket only, no hard drive):
The FP-PRO HD+ has a built in SATA socket for 2.5” laptop SATA hard drive, 5400 or 7200
rpm. The SATA hard drive is not included. For new hard drive only, format it using NTFS
before use.
For heavy duty application, use Solid State SATA hard drive.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 9
Caution: Due to heat generated by the internal SATA laptop hard drive, place the FP-PRO
HD+ in an air conditioned and well ventilated area. If possible, use solid state hard drive to
minimize the heat.
Remote:
IR receiver for IR remote control. Use the IR remote control (“TV Mode” key) to adjust the
resolution output (from 480p to 1080p), test the input and adjust the FP-PRO HD+ setting in
manual mode.
Use the IR remote control to set the IR mode and auto time delay.
LED indicator:
RED LED indicates power is ON.
GREEN LED blinks only when using Hard disk. When using USB drive or playing from
network, green LED is OFF.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 10

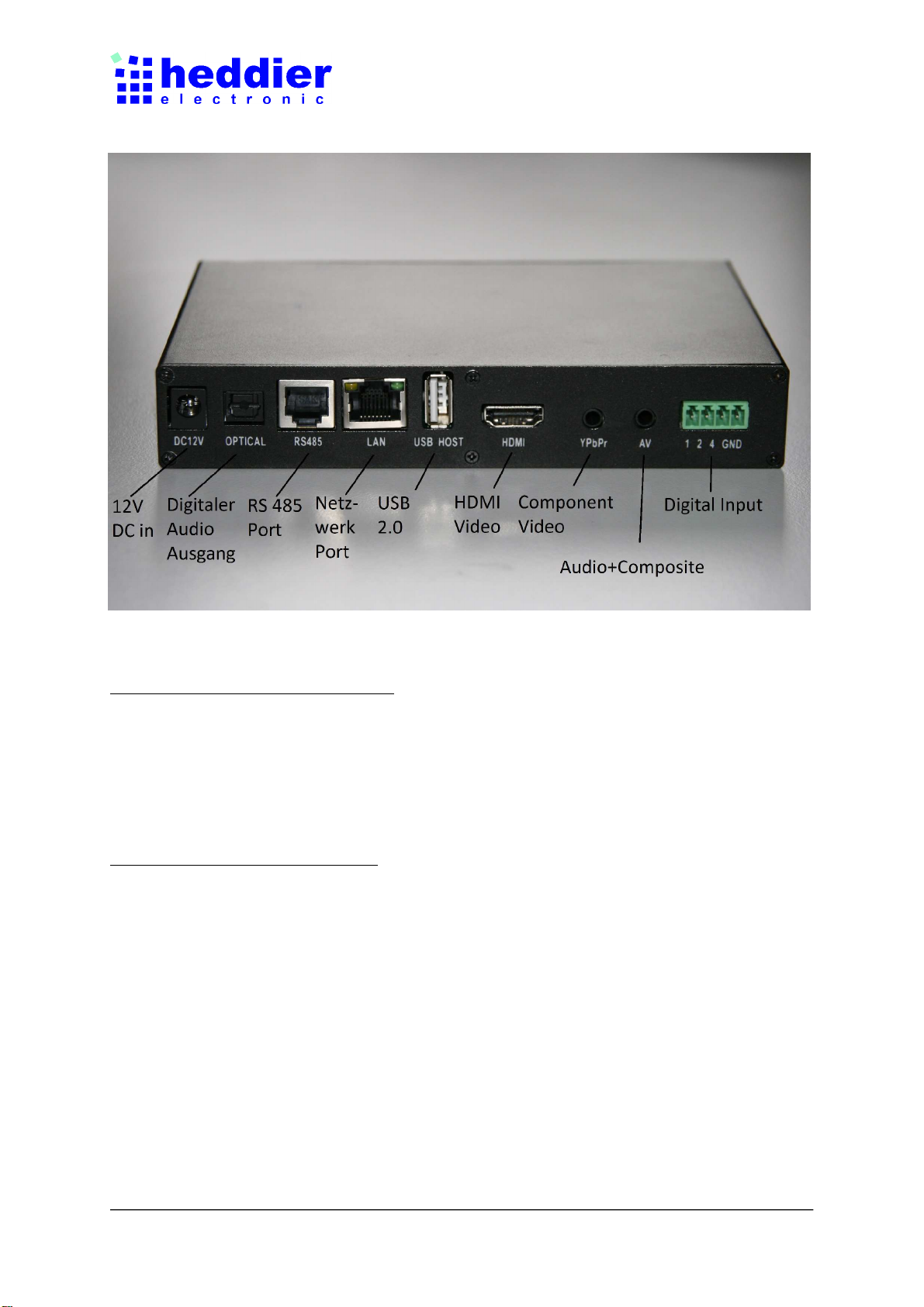

Rear View of FP-PRO-HD+
Digital Input: (see description below):
Built in digital input. Connect 3 single pole push buttons OR 3 single cont act + 3 double
contact for a total of 6 push buttons. To trigger the input, short it momentarily to ground.
Input 1 plays line 01=xx in the autoplay.txt etc. For more info, see digital input section below.
For more input, use a input board.
A/V port, Composite and audio out:
This output is always on at all video setting.
For composite video plus stereo audio use triple mini jack to 3 RCA cable adapter. The triple
mini jack is included with the unit. Composite video is on the RED RCA and the stereo audio
is on the Green and Blue RCA.
A regular Ipod triple mini jack will not work because the metal plug is too short. Output is
composite video and 2 RCA audio line out. While booting up, the output is at 576p. You need
a monitor that can automatically switch between PAL/NTSC. If you are using NTSC monitor,
you will not see anything during booting up.
Use SETUP key of the IR remote to enter setup menu and set video resolution from Video
menu.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 11
YPbPr component video out:
This output is always on at all video setting.
Use triple mini jack to 3 RCA cable adapter that is included with the unit.
A regular Ipod triple mini jack will not work because the metal plug is too short.
Audio for YPbPr is available on the A/V port. Use the triple mini jack (included with the
unit).
Use SETUP key of the IR remote to enter setup menu and set video resolution from Video
menu.
HDMI out:
This output is always on at all video setting.
Use HDMI cable to connect into the HDMI input of the LCD TV monitor. HDMI cable
carries the dig ital Audio and Video signal.
For DVI input, use HDMI to DVI cable adapter. Audio for DVI is available on the A/V port.
SPDIF digital audio out:
Digital audio out using TOSLINK fiber optic cable. Connect this into digital audio processor
unit using fiber optic cable. The 1080p will pass through digital audio including AC3 stereo
and Dolby 5.1.
USB2.0 port:
Connect to USB Flash drive (thumb drive, Stick drive) and any other memory storage that use
USB2.0 interface such as External Hard Drive (passport), Memory card reader etc.
LAN port:
Connect into the hub of the local area network using Cat5 cable. When using hard drive, the
FP-PRO HD+ will appear on the network. You can copy, edit, delete files and reboot FP-PRO
HD+ through the network. RS485 port:
Connect into a input board using RJ12 cable. You can connect up to 4 FP-PRO IOB, total 48
digital input. This port is also used to sync FP-PRO HD+’s using the FP-PRO-IOB and FP-
PRO Sync board.
Power input:
Connect into the power supply (included). Power supply is universal 110VAC/220VAC and
output is 12VDC 25 watt. FP-PRO HD+ input is 16VDC max.
2.1 The term Memory Card used in this manual refers to one of the following:
USB Flash Drive, Stick Drive, Thumb drive, External Hard drive (Passport etc), Card reader
using USB 2.0 and Internal SATA 2.5” solid state or laptop hard drive.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 12
3. Application Examples
3.1 Application, loop only after powering up:
After powering up, you want to loop a single or a group of video clips. You do not need to
trigger any push button or sensor to play different video clips.
What to do:
1. Copy the video file(s) into the root directory of the memory card.
2. Create autoplay.txt.
3. If you are looping a single video, the FP-PRO HD+ will loop this with a 1-2 second of
black screen in between.
You can loop this video seamlessly without any black screen in between loop by adding
“endtime=xxx” statement in the autoplay.txt.
Sample of memory card:
F:/ Tiger.mov <this is the loop file>
Autoplay < this is autoplay.txt, content could be empty>
After powering up, FP-PRO HD+ will loop Tiger.mov.
If autoplay.txt has endtime=80 statement, Tiger.mov will play for 80 seconds and seamlessly
loops back.
3.2 TIMER Mode (Standard Mode)
After powering up, you want to loop the video. At a set time delay (e.g. every 15 minutes)
you want to play a video clip from a group of video clips. After playing one video clip, FP-
PRO HD+ will resume playing the loop video.
After the time delay elapses, the FP-PRO HD+ will play the next video clip from the group of
video clips. After playing the last video clip (from the group) and after the set time delay
elapses, it will play the first video clip again.
What to do:
1. For this application you will be using Timer Mode.
2. Copy the loop video into the root directory of the memory card.
3. Create a folder and copy the group of video files (that will be played using the time delay)
inside this folder.
4. Create autoplay.txt.
5. Set the player into Timer mode using the remote control.
To enter timer mode use IR remote control and do the following:
“Time seek”, “Time seek”, “x”, “Time seek”, where X is the number of time delay in
minutes. If x=0, the FP-PRO HD+ will exit timer mode.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 13
Suppose you want to set time delay to 15 minutes
While the FP-PRO HD+ is playing a video, press the following keys: “Time seek”, “Time
seek”, “15”, “Time seek”
The time delay is now set to 15 minutes.
To exit timer mode use IR remote control and do the following: “Time seek”, “Time seek”,
“0”, “Time seek”.
Set number of files (TIMER MODE, use SLOW key):
In Timer mode, set lines 80=xxx to 99=xxx in the autoplay.txt. Use the IR remote control and
do the following:
Suppose you only want to play 4 files (line 80 to line 83).
While the FP-PRO HD+ is booting up or while playing a video, press the following key
sequence: “SLOW”, “SLOW”, “4”, “SLOW”.
The number of files to play is now 4 (lines 80 to 83).
To exit timer mode use IR remote control and do the following: “SLOW”, “SLOW”, “0”,
“SLOW”
Note:
The FP-PRO HD+ will remember this Timer Mode setting. Sample of memory card content
for TIMER MODE:
F:/ Tiger.mov
autoplay.txt
VIDEO …… (file folder)
Bird.mov
Cat.mov
Dog.mov
Lion.mov
And here is an example of the autoplay.txt for timer mode:
80=VIDEO/Bird.mov
81=VIDEO/Cat.mov
82=VIDEO/Dog.mov
83=VIDEO/Lion.mov
After powering up Tiger.mov will loop.
After 15 minutes, Bird.mov will automatically play and then return back to loop Tiger.mov
After another 15 minutes, Cat.mpv will play etc
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 14
3.3 IR Mode (Standard Mode)
After powering up, you want to loop a video clip. You want to use a single push button to
play a video clip sequentially from a group of video clips and return to resume playing the
loop video again.
What to do:
1. For this application you will be using IR Mode and connect the push button/sensor into
input 4 (next function) of the FP-PRO HD+.
2. Connect push button/sensor into input 4 (next function)..
3. Copy loop video into the root directory.
4. Create a folder and copy the group of video files (that will be played sequentially using the
input) inside this folder.
5. Create autoplay.txt.
6. Set the FP-PRO HD+ into IR mode using the remote control. To enter IR mode use the
remote and press the following keys:
“Menu”, “Menu”, “x”, “Menu”, where x is a number between 1 to 20
VIDEO …… (file folder)
Bird.mov
Cat.mov
Dog.mov
Lion.mov
To play 6 files, press “Menu”, “Menu”, “6”, “Menu”. To exit IR mode, set the number of
files to 0.
To EXIT IR mode press: “Menu”, “Menu”, “0”, “Menu”
FP-PRO HD+ has a total of 6 built in input. In IR mode, these inputs operate as follows:
IN1 operates as PAUSE/PLAY.
IN2 operates as PREV (previous, plays lines 60 to 79 in autoplay.txt).
IN4 operates as NEXT (next, plays lines 60-79 in autoplay.txt).
IN3 (IN1+IN2) operates as STOP.
IN5 (IN1+IN4) operates as VOL + (volume up).
IN6 (IN2+IN4) operates as VOL- (volume down).
Example of the memory card content for IR mode:
F:/ Tiger.mov
autoplay.txt
VIDEO …… (Video Folder)
Bird.mov
Cat.mov
Dog.mov
Lion.mov
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 15
Here is an example of the autoplay.txt, set to play 4 files using NEXT/PREV:
60=VIDEO/Bird.mov
61=VIDEO/Cat.mov
62=VIDEO/Dog.mov
63=VIDEO/Lion.mov
After powering up Tiger.mov will loop.
If Input 4 (NEXT) is triggered, Bird.mov will play.
If Input 4 (NEXT) is triggered again, Cat.mov will play etc.
3.4 Standard Mode
After powering up, you want to loop a video clip. You want to use many push buttons to play
different video clips and after finish playing return to resume playing the loop video again.
What to do:
1. For this application you will be using Standard Mode and connect the push buttons/sensors
into FP-PRO HD+ input. If you need more than 6 input, use a FP-PRO IOB.
2. Copy the loop video into the root directory of the memory card.
3. Create a folder and copy the group of video files (that will be played using the input) inside
this folder.
4. Create autoplay.txt.
5. In this mode, when the input is triggered there will be a 1-2 seconds of black screen.
Example of the memory card content for playing using digital input:
Tiger.mov
autoplay.txt
VIDEO …… (Video Folder)
Bird.mov
Cat.mov
Dog.mov
Lion.mov
Tiger.mov
Bear.mov
Content of autoplay.txt for digital input:
01= VIDEO/bird.mov
02= VIDEO/dog.mov
03= VIDEO/cat.mov
04= VIDEO/lion.mov
05= VIDEO/tiger.mov
06= VIDEO/bear.mov
endtime=60 <use this to seamlessly loop tiger.mov, change this 60 sec endtime
accordingly).>
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 16
After powering up Tiger.mov will loop.
If Input 1 is triggered, bird.mov will play.
If Input 2 is triggered, dog.mov will play.
If Input 3 (IN1+IN2) is triggered, Cat.mov will play.
If Input 4 is triggered, Lion.mov will play.
If Input 5 (IN1+IN4) is triggered, Tiger.mov will play.
If Input 6 (IN2+IN4) is triggered, Bear.mov will play.
Note: To add more input use FP-PRO-IOB. Maximum input using a input board is 48.
3.5 Fast Mode
You have a dark ride, a haunted house or a video game that needs instant switching of video
clip when a sensor(s) is triggered.
What to do:
1. For this application you will be using FAST MODE and connect the push buttons/sensors
into FP-PRO HD+ input. If you need more than 6 input, use a FP-PRO IOB.
2. Copy the video into the memory card. See how to create this video in the fast mode page 8.
3. Create autoplay.txt.
4. After powering up, it will seamlessly loop the Loop video segment.
5. When the input is triggered the video clip will be played instantly, no delay.
And here is an example of the memory card in fast mode:
Test.mov
Autoplay.txt
And here is the content of the autoplay.txt:
fastmode=yes ……. (important: lower case letters only)
00=00,100
01=100,160 02=160,240
03=240,460
After powering up, FP-PRO HD+ will seamlessly loop 00 (from 0 seconds to 100 seconds).
If Input 1 is triggered, FP-PRO HD+ will instantly jump to 100 seconds and play up to 160
seconds and then return to 00 again.
If Input 2 is triggered, FP-PRO HD+ will instantly jump to 160 seconds and play up to 240
seconds and then return to 00 again.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 17
If Input 3 is triggered, FP-PRO HD+ will instantly jump to 240 seconds and play up to 460
seconds and then return to 00 again.
Note: To test input, use the IR remote control. To test input 1, press key 1 etc.
3.6 Sync a Group of FP-PRO HD+
After powering up, you want to play sync a group of FP-PRO HD+.
What to do:
1. For this application you need 1 FP-PRO HD+ as a master and connect this into the FP-PRO
IOB and the rest of the FP-PRO HD+’s into the sync board,
2. Set synctime by adding this text line inside the autoplay.txt of the master unit only:
3. synctime=xxx (where xxx is the synctime in 0.1 sec, all lower case letters).
4. Connect the FP-PRO-IOB into the FP-PRO SYNC (RJ12 port next to mini USB port).
5. 60 seconds after powering up, the input board will sync the entire FP-PRO HD+ group.
6. After the initial 60 seconds, the master FP-PRO HD+ will re-issue the sync command at the
synctime interval.
Example of the memory card content for sync playing:
Memory card #1
F:/ Tiger.mov
autoplay.txt
Memory card #2
F:/ Lion.mov
autoplay.txt
Memory card #3
F:/ Cat.mov
autoplay.txt
Note: Each memory card will have different loop video but the same play time.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 18
If the file is 80 seconds long, add this text line inside the autoplay.txt of the master unit only:
synctime=800. Please note time is in 0.1 seconds increment.
3.7 Remote Management through Network (LAN):
You have a number of FP-PRO HD+ that you want to remotely manage the memory content.
These FP-PRO HD+ are connected into the LAN through the LAN port and into a wireless
HUB that is connected into your LAPTOP.
From your LAPTOP wirelessly through the network you want to copy new files, delete some
old files and change the operation of the FP-PRO HD+.
What to do:
1. For this application you need to use hard drive.
2. Remove the 6 small screws from the front panel and slide out the PCB.
3. Install the SATA 2.5” Hard Drive into the socket. Hard drive is any LAPTOP SATA (or
SATA2) hard drive, 5400 rpm or 7200 rpm.
4. Install rubber pad between the HD and the PCB to avoid contact. Close back the front
panel.
5. After powering up, the FP-PRO HD+ will automatically go to FORMAT Screen. Answer
YES to format. Midway formatting a window will appear asking to transfer BT/SAMBA.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 19
Answer YES to BT/SAMBA. This will transfer the BT, SAMBA and UNIX driver into the
hard drive.
6. After finish formatting, power down and up again. The FP-PRO HD+ will now appear on
LAN.
7. Copy the video clips and autoplay into the FP-PRO HD+.
8. To play the new files and new autoplay you need to reboot the FP-PRO HD+.
9. To reboot the FP-PRO HD+ remotely, create reboot.txt using Notepad. Content of
reboot.txt is empty because the FP-PRO HD+ is only using the name (reboot.txt), not the
content.
10. Copy reboot.txt into the FP-PRO HD+ through the network. The FP-PRO HD+ will
automatically reboot and starts using the new video files and the new autoplay.txt.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com

Manual heddier FP-PRO-HD+
Rev. 1.1 (09.02.11)
Page 20
4. Standard- or Fast Mode
4.1 Choose Mode
If the autoplay.txt has the following statement:
fastmode=yes (lower case letters only), then FP-PRO HD+ will enter Fast Mode. If the
autoplay.txt DOES NOT have fastmode statement, then FP-PRO HD+ is in standard mode.
4.2 When to use Fast Mode or Standard mode
•If you need instant playback when a input (push button) is triggered, choose Fast
Mode.
•In this Fast Mode you are limited to maximum 32 inputs (files) and you have to
combine these 32 files into a single file.
•If you are playing many files (different format) using push button OR need to use
Timer and/or IR mode, choose the standard mode. In this mode, there is a 2-3 seconds
delay between input trigger.
4.3 Fast Mode
In this mode, FP-PRO HD+ will play a video segment instantly when an input is triggered.
The FP-PRO HD+ will only play only a single file in the root, it will not play multiple files.
After powering up, FP-PRO HD+ will SEAMLESSLY loop line 00 (see line 00 explanation
below).
If you have a number of files that you want to play using the input, use your video editing
software to combine these files together to create a new single file. This single file is basically
a compilation of many files (video segments) where each video segment is represented by
playtime in seconds. You can then assign different input to play these different video
segments.
Example:
Suppose you have 4 different files, 1 loop file: loop.mov and 3 files to play using input:
Lion.mov, Dog.mov and Tiger.mov.
Suppose Loop.mov is 100 second long, Lion.mov is 60 seconds, Dog.mov is 80 secs and
Tiger.mov is 220 secs.
Use your video software editing program to combine these 4 files and create a single file e.g.
Test.mov. Inside this test.mov, you actually have 4 video segments: loop, lion, dog and
tiger.mov. Total playtime of this test.mov is 100+60+80+220= 460 seconds long.
heddier electronic GmbH
Pascherhook 34
48653 Coesfeld © 2011
by heddier electronic GmbH
Telefon [phone]
E-Mail: [e-mail]
Internet: www.heddier.com
