HeimVision A80S User manual

A80S Smart Wake-Up Light
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

3
WARNING
To reduce risk of Fire, Electric Shock, or Injury to Persons:
•This appliance is only intended for household use, including similar use in hotels.
•Place this appliance on a stable, level and non-slippery surface.
•Do not use this appliance in wet surroundings (e.g. in the bathroom or near a
shower or swimming pool.)
•Make sure the adapter does not get wet.
•Do not let water run into the appliance or spill water onto the appliance.
•Only use the original adapter. Do not use the other adapter if they are damaged.
•This appliance has no on/off switch. To disconnect the appliance from the power
source, remove the plug from the wall outlet.
•Do not use this appliance as a means to reduce your hours of sleep. The purpose
of this appliance is to help you wake up more easily. It does not diminish your
need for sleep.
STORAGE
•Clean the appliance with a soft cloth.
•Do not use abrasive cleaning agents, pads or cleaning solvents like alcohol,
acetone etc., as this might damage the surface of the appliance.
•If the appliance will not be used for an extended period of time, remove the
power cord from the wall outlet and store the appliance in a safe, dry
surroundings where it will not be crushed, banged, or subject to damage.

4
OVERVIEW
①Alarm Clock 2 ⑨Volume -
②Alarm Clock 1 ⑩Sleep Timer
③Down button ⑪Setting Button
④LED Light ⑫USB Output
⑤Up Button ⑬FM Antenna
⑥Snooze button ⑭Micro USB Input
⑦Volume + ⑮Speaker
⑧Radio ⑯Button Battery

5
OPERATION GUIDE
First use- setting the clock time:
You have to set the clock time when you plug in the appliance for the first time.
Set the time
Plug in the power and start Hold for 3 seconds until the Use to adjust the
setting. hour time begins to blink. Hour.
Press the again to confirm Use to adjust the minutes. Press the once more
the hour time and move to the to confirm the minutes
minutes. And move to choose
the time format.
Note: When the 12-hour time format is selected, PM or AM will be displayed.

6
Setting Alarm Clock
You can set four alarm clocks for this wake-up light. (Note: clock 3 & clock 4 can only be
set to APP)
Take clock 1 setting as an example:
Note: When the set light time arrives, the light will slowly turn from dark to the preset
brightness level. OFF means turning off the light. Set the light state to OFF when you do
not need a light to wake up.
1. In time state press to turn on alarm, the alarm
symbol appears on the display when you turn on it, and
dissapears when you turn off the alarm.
2. Hold for 3 seconds until the hour time begins to
blink, and use to adjust the hour time
3. Press second time to confirm the hour time and
move to the minutes, and use to adjust the
minutes.
4. Press third time to confirm the minutes and move to
choose the alarm sound, and use to adjust your
choices. (You can choose between 7 pre-set sounds
or FM radio as a wake-up sound.)
5. Press fourth time to confirm the alarm sound and
move to set the wake-up sound volume, and press
to adjust the volume.
6. Press fifth time to confirm the volume and move to
set the wake-up light, and press to adjust the light
intensity. (OFF, L-01~L-20)

7
SNOOZING
•When the alarm goes off (or snooze state), press the corresponding alarm clock
button to turn off light and sound.
•When the alarm goes off, if there aren‘t any operations within 15 minutes, it will
turn off the light and sound automatically.
7. Press sixth time to confirm the light brightness and move
to set the simulated sunrise time, and press to adjust from
10-60 MIN, then press to confirm, finish setting.
(You can set the light to turn on 10-60 minutes before the alarm
sounds. In the set sunrise simulation time the light intensity of
the lamp gradually increases to the set level and the light color
changes from deep morning red to bright daylight.)
Leave for about 15 seconds to confirm selected option.
When the alarm goes off, press to enter snooze
state, you can get an extra 9 minutes of sleep time.
(Note: snooze up to 5 times.)

8
SWITCHING THE LIGHT ON/OFF
You can adjust the display type: Sunrise Light OR Colorful Light
Sunrise Light:
Press to turn on/off Press to adjust the
sunrise light light intensity
Colorful Lights:
Double click to turn on/turn off colorful lights, and enter automatic mode;
Press to switch manual mode.
Long press to switch to automatic mode again.
SWITCHING THE FM RADIO ON/OFF
Press for 3 seconds to turn on automatic search mode in your first use, the radio will
automatically scan radio frequencies and the frequency of P01, P02….

9
Turn on radio
In time state, press to switch on/ switch off FM radio. Long press for three
seconds to set FM frequency. Short press to set radio volume.
Turn off radio
In radio-on state, press to turn off FM radio.
Note: To get a good radio signal, fully unwind antenna and move it around until you
receive the best reception.
SETTING THE SLEEP TIMER
Press to initiate sleep Long press to set the Press second time
timer. simulated sunset time, to set the sleeping light
and press to adjust and press to adjust
the timer. the light intensity.
Press third time to set the sleeping music,
and press to choose the sound. You can
use the natural sounds or the FM radio as a
sleeping sound, the wake-up light has three
built-in natural sounds.
Press fourth time to set the sleeping
sound volume, and press to adjust
the volume.

10

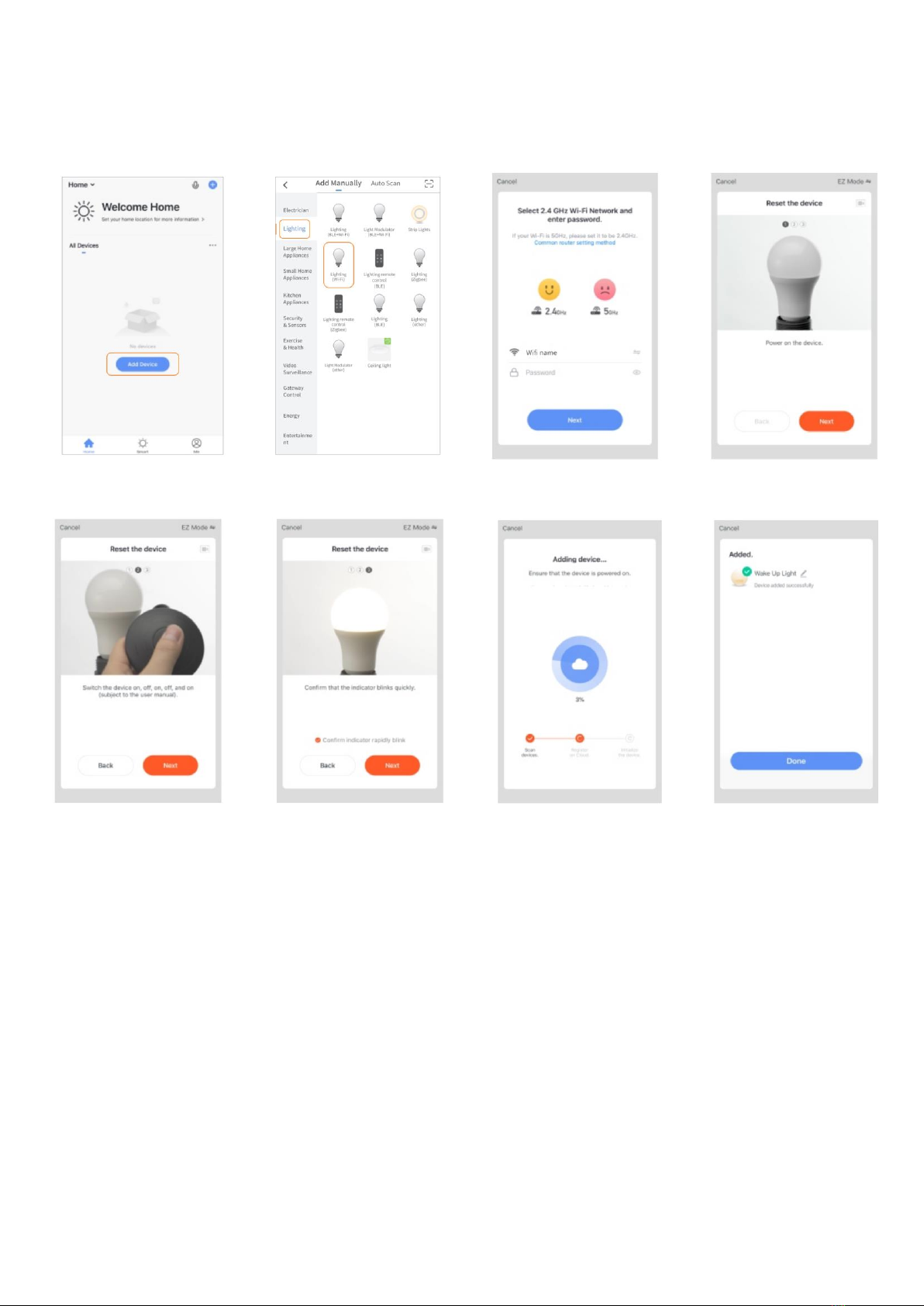

CONNECTING YOUR MOBILE DEVICE
•Download ‘Smart Life’ / Scan for Video
Instruction
1. Download Smart Life into
Your mobile device from App
Store/Google Play or by
scanning QR code.
Android/IOS
Scan for Video Instruction
2. Create an Account and Log in

11
3. Connect the Device to Your Phone
Option 1: Auto Connection
IMPORTANT:
1. Turn on the bluetooth of your phone.
2. Power on your wake-up light.
0
Automatically
searching the
device, please
wait.
A pop-up
window
shows the
searched
device.
Select your
wifi and enter
the correct
password.
Wait for
connecting.
Create a
name
for your
wake-up
light

12
Option 2: Manual Connection
Select your wifi and enter
the correct password.
Power on your wake-up light, the wifi
icon will flash quikly.
If not, long press the Snooze Button
(about 10s) until the wifi icon begins to
flash quickly.
Wait for connecting.
Create a name for your
wake-up light.

13
If your network is weak, you can choose to connect the wake-up light through AP Hotspot.
Switch to AP Mode
Long press the Snooze
Button (about 10s) until
the wifi icon begins to
flash slowly.
Connect to wifi
SmartLife-XXXX.
Wait for connecting.
Create a name for your
wake-up light.

14
How to Operate the Light via Smart Life
APP Operation Panel
A. Click to set the time of the wake-up light
and time display brightness.
SNOOZE
LIGHT
ALARM
ALARM
RADIO
SLEEP TIMER
SETTING
Please make sure you
have chosen the
Network auto-time,
otherwise alarm
settings might not be
inaccurate.
B. Click to set the four alarm clocks.

15
C. Click to choose the light display
type and adjust the light intensity
D. Click to set the snoozing pattern.
E. Click to turn on/ turn off the FM radio, and
choose the frequency you want.
F. Click to set the sleep timer and
create your Sleep AID.

16
HOW TO CONNECT WITH AMAZON ALEXA
1. Download Amazon Alexa and sign in your Amazon account.
2. Select Skills & Games, search Smart Life, and ENABLE TO USE it.

17
.
•Login your “Smart Life“ account, then Authorize and close the successfully linked page
after it is connected successfully to enter Discover Devices page.
3. Discover Devices
This wake-up light works with Alex, though this skill, Amazon Alexa will find and list devices you
originally added in Smart Life app.

18
Note:
If your Smart Life account has linked to Alexa, please add the devices by the following steps:

19
1. Download Google Home and sign in your google account
HOW TO CONNECT WITH GOOGLE HOME

20
2. Login your “Smart Life“ account, then Authorize and close the Accounts now linked page after
it is connected successfully to enter Choose Device page. Then you can control the wake-up light
via Google Home after complete setting.
