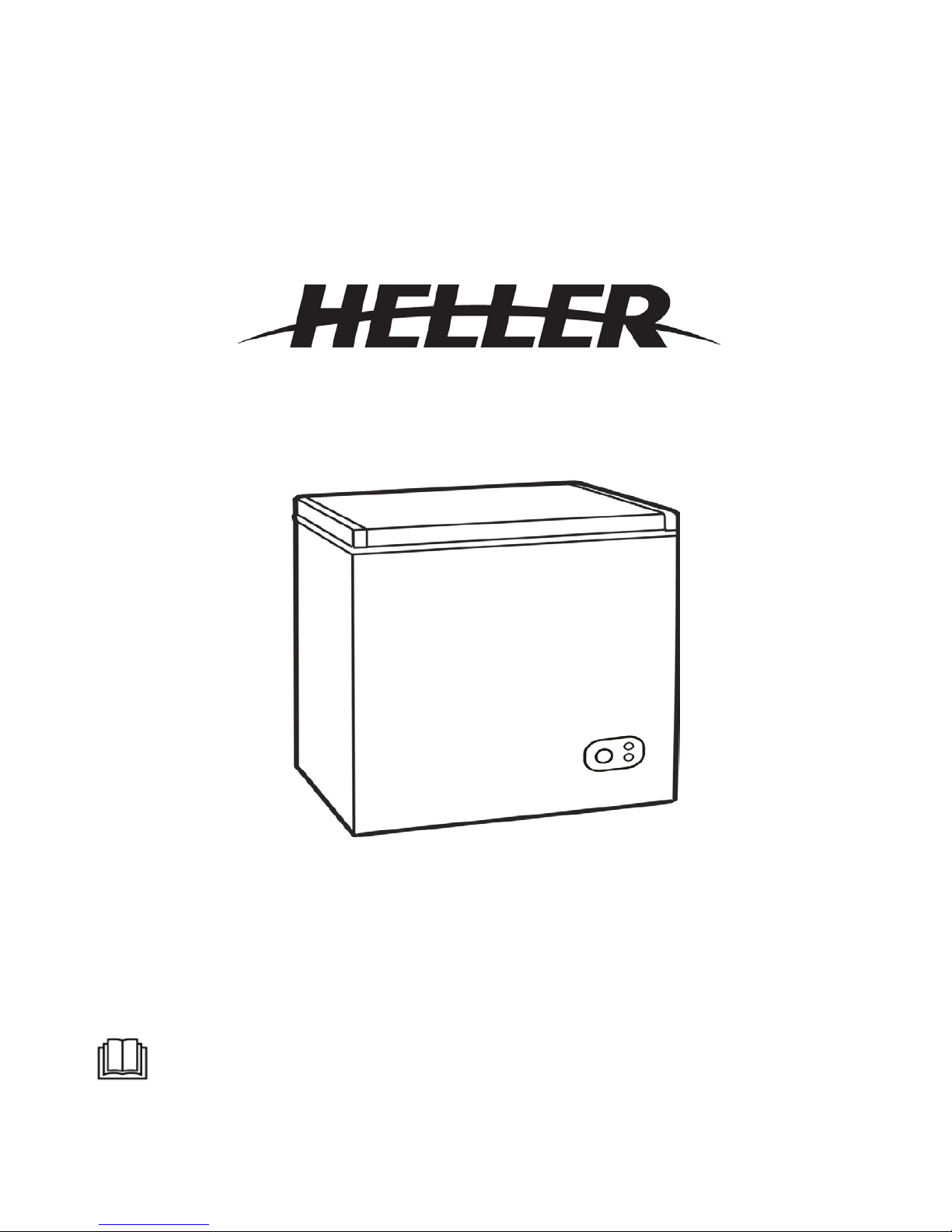

HELLER CFH10 Instruction and safety manual

INSTALLATION USE AND CARE MANUAL
CHEST FREEZER
MODEL: CFH10/CFH20/CFH55/CFH30
Please read this manual carefully and follow all safety rules and
operating instructions before using the appliance.
FDH 280

BEFORE FIRST USE
Read and follow all the instructions in this Installation Use And Care Manual even if you feel you are
familiar with the product, and find a place to keep it handy for future reference.
Your attention is , Care, drawn particularly to the sections concerning IMPORTANT SAFEGUARDS
statements. Cleaning and Storage", and SERVICE
For your convenience record the complete model number (located on the product identification plate) and
the date you received the product, together with your purchase receipt and attach to the warranty and
service information. Retain in the event that warranty service is required.
NOTE: The rating of this product (as marked on the product identification plate) is based on specific
loading tests. Normal use or the use of other recommended attachments may draw significantly less
power.
When using any electrically powered product, basic safety precautions should
always be followed, including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.
WARNING - to reduce the risk of fire, electrical shock or injury to persons or property:
•Always operate the product from a power source of the same voltage, frequency and rating as
indicated on the product identification plate.
• Close supervision is necessary when the product is used by or near children or invalids. Do not allow
children to use it as a toy.
• Do not operate any product with a damaged cord or plug, or after the product malfunctions, or is
dropped or appears damaged in any way. Return the complete product to the place of purchase for
inspection, repair or replacement.
• WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to this manual. For assistance or additional information consult a qualified
installer, service agency or the gas supplier.
• To reduce the risk of electric shock, do not immerse or expose the product or flexible cord to rain,
moisture or any liquid.
• This product should not be used in the immediate vicinity of water, such as bathtub, washbowls,
swimming pool etc. where the likelihood of immersion or splashing could occur.
• Never install the unit where it could be subject to:
* Heat sources such as radiators, heat registers, stoves or other products that produce heat.
* Direct sunlight.
* Excessive dust.
* Mechanical vibration or shock.
* Lack of ventilation, such as bookcase or cabinet.
* Uneven surface.
* Moisture.
It is hazardous for anyone other than an Authorised Service Person to service this
appliance. In Queensland – the authorized Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs which
involve the removal of covers.
IMPORTANT SAFEGUARDS

•Switch off and unplug from outlet when not in use, before assembling or disassembling parts and
before cleaning.Remove by grasping the plug - do not pull on the cord.
•Do not place objects on the product or allow objects to obstruct the inlet or outlet openings, or operate
in close proximity to walls or curtains, etc. The back of the appliance should be close to the wall but
leaving the required distance for ventilation as stated in the installation instructions.
•After installation, the appliance should be left for 2 hours before it is switched on in order to allow the
refrigerant to settle.
•Always install the freezer on flat and solid surface.
•Do not hang anything on the door in order to avoid the freezer from tilting or goods from dropping.
•Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other
appliance.
•Do not extend or fold the power cord, keep the power cord away from compressor, because the
compressor will be hot when the unit operates.
•The use of attachments or accessories not recommended or sold by the product distributor may
cause personal or property hazards or injuries.
•Do not use the freezer outdoors.
•This product is intended for normal domestic/household use only.
When there is a power failure:
•If you are informed that there will be an interruption to the power, set the thermostat control to 7, the
coldest setting to let it operate for 2 to 3 hours before the power interruption and allow the unit to
achieve maximum freezing temperature. Ensure the thermostat is returned to the normal position after
the power is restored.
•Minimize the number of times the door is opened.
•Dry the baskets before restarting the freezer.
READ AND SAVE THESE INSTRUCTIONS

PARTS LOCATION:
CONTROL PANEL
INSTALLING THE FREEZER
Before using the freezer, remove all the exterior and interior packaging.
To ensure correct operation, this appliance must not be located where the temperature
will rise above 38°C.
Good Ventilation
For the purpose of easy dissipation of heat, high efficiency of refrigeration and low power consumption, a
space or clearance is required around the refrigerator. The refrigerator must have at least 50mm
clearance between the rear of the appliance and the wall, 100mm between the sides and wall, and the
space above the top should be at least 50mm. Ensure that there is enough spacing to open the door to
160°.

Ensure that the appliance does not stand on the electrical supply cable.
Parts which heat up should not be exposed. Whenever possible, the back of the appliance
should be close to a wall but leaving the required distance for ventilation.
Power Supply
•The appliance is suitable for connection to 230-240Vac 50Hz supply. It is advisable to install an
individual socket that is separated from other appliances.
•Do not share one socket together with other electrical units such TV set, microwave oven and lamps.
•The main cord of the freezer is fitted with three pins plug and one of the pins is for earthing. It should be
plugged into a separate socket which has reliable earthing.
Protection from moisture
Do not locate the freezer in moist place to avoid the metal parts of the appliance from rusting. Do not spray
water to the freezer, otherwise this will weaken the insulation and cause electrical hazard.
Stable placing
The freezer must be placed on a flat and solid floor. DO NOT install the appliance directly on carpeting or
soft material. Carpeting must be removed or protected by a metal or wood panel beneath the appliance,
which extends at least the full width and depth of the appliance.
The appliance should be levelled to eliminate vibration:
Ensure the appliance is upright and 2 adjustable feet are in firm contact with the floor so that the cabinet is
level.
Adjust the level by screwing out the 2 appropriate adjustable feet at the front, (use a suitable spanner) .
This appliance is heavy. Care should be taken when moving it.

USING THE APPLIANCE
This appliance is designed for domestic use only, especially for the storage of edible food.
This appliance is designed to operate in ambient temperature (surrounding air temperature) no
higher than 38°C.
If the ambient temperature is warmer than 38°C, the appliance will not operate correctly.
Before Use
•When using the freezer for the first time, remove all securing tapes.
•Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a damp cloth.
•Keep the door open and insert the power supply cord into the socket.
•Turn the thermostat control knob to 1. Close the door and let the freezer operate.
Note: After installation, the appliance should be left for 2 hours before it is switched on in order to allow the
refrigerant to settle
Thermostat Control
The thermostat control knob situated in the control panel regulates the temperature of the freezer
compartment.
Position “0” – Stop running.
Position “1-5” – The temperature will be maintained at between -18°C and -36°C.
Position “6”- Continuously running at coldest temperature.
Position “7” – Super fast freeze mode. For food need to be frozen quickly.
Please note that
1. The temperature mentioned above will be affected by:
•Room temperature
•How often the door is opened
•Location of the appliance
2. Super fast freeze mode is for quick freeze only. Do Keep the thermostat control knob at position 7 more
than 3 hours. Turn the knob to 1-5 to keep a normal freeze temperature.
In determining the correct temperature control setting, all these factors have to be considered and some
experimentation may be necessary.
Do not allow children to tamper with the control knob or play with the product.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or
products containing alcohol.
Starting the Appliance
1. Allow the appliance to stand for 2 hours after installation.
2. Plug in the appliance and switch on at the mains supply.
3. Turn the thermostat control to the desired setting. A midway setting is usually suitable for normal
operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for the correct temperature to be reached before
placing food inside.

The Freezer Compartment
The freezer will store frozen food at -18°C or colder, allowing for long term frozen food storage and
freezing of fresh food. The freezer temperature is controlled automatically by the thermostat situated in
the control panel.
Due to the different installations, methods of usage and weather conditions, adjustments to the
temperature settings may be required. These are best achieved byplacing a thermometer on the food and
record the temperature reading. The reading must be taken quickly as the thermometer temperature will
rise rapidly after removal.
Freezing Fresh Food
During the freezing process the temperature of fresh food should be reduced quickly so that the ice
crystals formed are small as possible to prevent damaging the structure of food. Freeze food as fast as
possible to maintain its quality. Rapid freezing prevents undesirable large ice crystals from forming
throughout the product because the molecules don't have time to take their positions in the characteristic
six-sided snowflake. Slow freezing creates large, disruptive ice crystals. During thawing, they damage the
cells and dissolve emulsions. This causes meat to "drip"--lose juiciness. Emulsions such as mayonnaise
or cream will separate and appear curdled.
Frozen foods should not be refrozen once it has thawed out.
Do not remove items from the freezer if your hands are damp/wet, as this could cause skin
abrasions or “freezer burns”.
Frozen Food Storage
The appliance has the following net storage volume: CFH10—100 litres; CFH20—200 litres; CFH55—155
litres.
This is a standard measurement and the actual capacity depends upon the density and sizes of the food.
Your freezer provides long term storage which generally means up to 3 months but the length of the time
can vary and it is important to follow the recommended times shown on packets of commercially frozen
food.
Do not place sealed containers or carbonated liquids such as fizzy drinks into the freezer as it
creates pressure on the container which may cause it to explode resulting to damage to the
freezer.
Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it
may result in skin abrasions.
Hints and Tips
•Any opened packets of frozen food, should be rewrapped in airtight materials to prevent surface
evaporation which causes freezer burn.
•Frozen food which is allowed to thaw accidentally should either be used immediately or thrown away.
Alternately if the food is uncooked and has not been completely defrosted it can be cooked and then
refrozen.
•Aim to check dates on packets and rotate food regularly.
Normal Operating Sounds
•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or
tubing at the rear, to the cooling plate/evaporator on the fixed freezer shelves.
•When the compressor is on, the refrigerant is being pumped around, and you will hear a whirring
sound or pulsating noise from the compressor.

•A thermostat controls the compressor, and you will hear a faint ‘click’ when the thermostat cuts in and
out.
Food Storage
•To obtain the best results from your appliance, hot foods should be cooled down and then put them in
the chest freezer.
•Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is
advisable. When you arrive home, place the frozen food in the freezer immediately.
•Keep the time between buying chilled food and placing it in your freezer as short as possible.
•Do not push food together too much, try to allow air circulate around each item.
•Do not store food uncovered.
•Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food
is consumed at its best.
•Remove suspect food from your freezer and clean, refer to cleaning and maintenance.
Energy Saving Advice
•Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator.
•Locate the appliance in a cool and well ventilated room and make sure that the air openings of the
cabinet are not obstructed.
•Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before
placing them in the freezer.
•Always leave warm food to cool down to room temperature before placing it in the freezer.
•Try to avoid keeping the door open for long periods, or opening the door too frequently as warm air will
enter the cabinet, as this will lower efficiency of the refrigerator and minimise the work of the
compressor.
•Ensure there are no obstructions preventing the door from closing properly.
•It is advisable to clean the refrigeration system periodically at the back of the appliance with a duster or
vacuum cleaner.
In the Event of Power Failure
If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature
within your freezer should increase, do not refreeze the food without checking its condition.
How to place food
•Do not crowd the freezer with too much food to avoid blocking the airflow, which will increase the
energy consumption.
•Use sealed container and plastic preservative bag to prevent food from getting dried or mixed tastes
with different kinds of food in the refrigerator.
•Clean the food and packed articles before storage. Sweep out the water if any.
•Hot foods should be cooled down to room temperature before storage otherwise these will affect their
preservation and increase the energy consumption.
•Do not place food too close each other and to the surface of the shelves of the freezer.
Notes
•Do not use the freezer to store medical, inflammable and explosive articles.
•It is not recommended to let the freezer remain empty for a long time. If you do so, clean the freezer,
open the doors and let it stand upright for several days to allow the moisture to dry out.

CARE AND MAINTENANCE
To keep your chest freezer operating efficiently and safely, periodic inspection and cleaning of several
components once a month is recommended.
Cleaning your freezer
•For safety reason, switch off and unplug the appliance from outlet before cleaning. Remove by
grasping the plug - do not pull on the cord.
•Wipe the inside and the outside of the freezer with a damp cloth, using lukewarm water.
•If the chest freezer is very dirty, wipe it with a neutral detergent first, then use a clean cloth to dry it.
•Do not use other types of detergents, cleaners, abrasive powder or solvents which may contain
chemicals that could damage the lacquer coat and plastic surface of the refrigerator.
Care of Plastic Parts
•Ensure that the rubber door seal is kept clean and free from dirt, grease, etc. Inspect regularly to
ensure it is clean.
•If the plastic parts of the chest freezer are contaminated by oil/grease (animal or vegetable) for a
long time, they will age more quickly and can become brittle and crack easily. They will also emit
bad smell. Therefore, you should get the habit of cleaning it regularly.
Notes
After cleaning the freezer; check the following points:
•Are the power supply cord and the plug broken?
•Is the plug set properly?
•Is the earthing wire loose?
•Is there a block on the drainage outlet?
•Is it properly installed?
To Defrost the Freezer
•For the most efficient operation and minimum energy consumption, defrost the freezer when
the frost on the freezer walls excessive or 5mm thick.
•Unplug the freezer. Remove the frozen food from the freezer and place it in a cooler to protect
the food.
•Open the door to defrost your freezer.
•Place a suitable container under the drain hole situated in the front of the chest freezer to collect
the defrost water.
•Unplug the water drain cap inside the chest freezer first. And then unplug the drain hole cap to
drain the water inside the chest freezer.
•After defrosting, clean and dry the interior.
•Switch the appliance on and replace any frozen food.

TROUBLE SHOOTING GUIDE
When there is something wrong with your freezer, check the following points before asking for
repair.
PROBLEM
CAUSE
The refrigerator does not operate
-Not plugged in or plug is not inserted correctly.
-The circuit breaker is tripped or fuse is blown.
-The temperature control knob is set to “0” position.
Insufficient refrigeration
-There are too many foods in the chest freezer and they
are blocking the airflow.
-The refrigerator doors do not close properly.
-Poor ventilation or not enough around the refrigerator.
-The chest freezer is placed under direct sunshine or near
heating source.
Sound like running water
-It is the sound of the refrigerant flowing. It is not a fault
The side panels and the front frame
heats up.
-It is not a fault of the unit. This is result of heat dissipation
from the condensers that are found inside two sides.
Condensation forms on the outside
of the cabinet.
-Condensation will form on the outside of the refrigerator
if is operated in moist areas. It is not a fault, just wipe it
dry.
The refrigerator seems to make too
much noise.
-The refrigerator is not level.
-The refrigerator is touching the wall.
In winter, the refrigerator does not
operate.
-When the room temperature is below 10°C, the
compressor will only operate for a short time.
In summer, the refrigerator does not
stop.
-The thermostat may be set too low.
-There is bad ventilation around the freezer.
-The door is not closed completely.
-The seal does not seal completely.
-The door is opened too often.
The door will not close properly
-The refrigerator is not level.
-The rubber seal is dirty.
-The baskets are out of position.
Dew inside the cabinet.
-The ambient temperature is high and the door is left
open for long time.
-Liquid food is not covered before storage.
FOR YOUR SAFETY
•Always check full chest freezer operation as detailed above before returning the unit as faulty
•It is not advised to loosen any parts which are fixed by screw, contact the manufacturer for
advice.
•Do not operate the unit with a damaged cord or plug, or after the unit malfunctions, or is
damaged in any manner. Return the complete unit to the place of purchase for in-warranty
replacement, or inspection and repair.
•CAUTION: To reduce the risk of electric shock, DO NOT remove the cover (or back) whilst the
unit is in operation or connected to the mains supply.
•In some products, the replacement of flexible cords by the user is not intended. Special tools are
required to safely replace the cord. Return the complete product for inspection and repair.
DANGER! Never try to repair a faulty – or what is thought to be a faulty machine yourself. This can
jeopardize your life or the lives of subsequent users. Leave repairs to electrical equipment to authorized
technicians.

WARNING!
• Keep ventilation openings, in the appliance enclosure or in the build-unstructured, clear of
obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless
they are of the type recommended by manufacturer.
G.A.F. Control (Sales) Pty. Ltd.,
441 Kororoit Creek Road,
Altona,
Victoria, 3018
1300 659 489
R600a Refrigerant Warning
This appliance contains a small quantity of R600a refrigerant which is environmentally
friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect.
During transportation and installation, ensure that the tubing of the refrigerant circuit is
not damaged.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any device which
creates a spark.Disconnect the appliance from the mainspower,
Thoroughly ventilate the room in which the appliance is located for several minutes.
The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant. The refrigerant quantity contained in this appliance is noted on the Rating
Plate of the appliance.
It is hazardous for anyone other than an Authorised Service Person to service this
appliance. In Queensland – the authorized Service Person MUST hold a Gas Work
Authorisation for hydrocarbonrefrigerants, to carry out Servicing or repairs which
involve the removal of covers.
READ AND SAVE THESE INSTRUCTIONS
