HERA P03001 Series Installation and operating instructions

www.heraled.comwww.heraled.com
Index

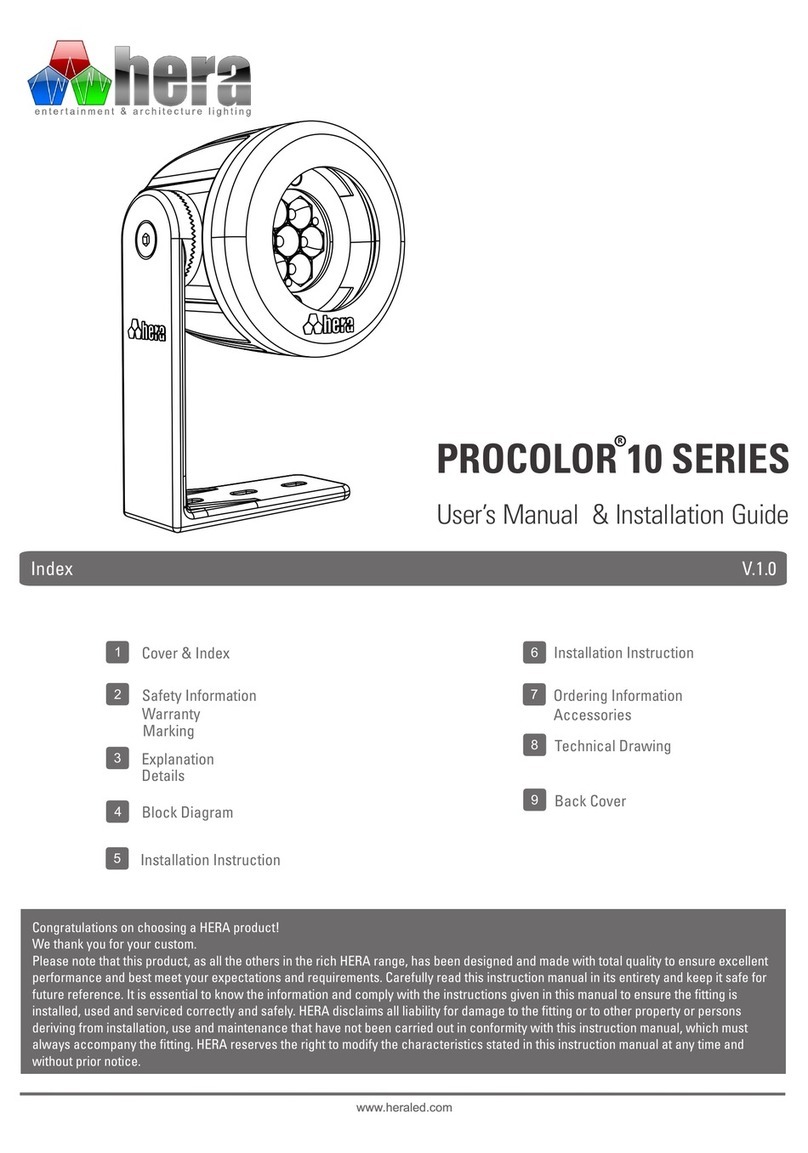

PROCOLOR 10 SERIES
User’s Manual & Installation Guide
V1.0
Cover & Index
1
Safety Information / Warning / Warranty /Marking
2
Installation Instruction
7
Product Specifications
4
Connection Diagram
5
Explanation / Dimension
3
Back Cover
Ordering Information
6
8
Congratulations on choosing a HERA product!
We thank you for your custom.
Please note that this product, as all the others in the rich HERA range, has been designed and made with total quality to ensure excellent performance and best meet your
expectations and requirements. Carefully read this instruction manual in its entirety and keep it safe for future reference. It is essential to know the information and comply
with the instructions given in this manual to ensure the fitting is installed, used and serviced correctly and safely. HERA disclaims all liability for damage to the fitting or to
other property or persons deriving from installation, use and maintenance that have not been carried out in conformity with this instruction manual, which must always
accompany the fitting. HERA reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.

www.heraled.com
PROCOLOR 10 SERIES
2
Marking
67
Safety Information
Warranty
Caution – unplug the power supply from the main power before connecting any cables as this can damage the products.
Caution – avoid looking directly into the led light source at close range for your own safety.
Any people installing this product should comply with local standards and regulations and must be qualified for the handling of
electrical equipment.
• Do not attempt to install or use the product until installation instructions and safety labels are fully understood.
This product is designed for indoor and outdoor usage.
• Ensure product operates within the specified temperature range.
• Do not attempt to open the product.
• Do not use the product if the power cables are damaged.
• Only use product for specified voltage.
• Always maintain connection to ensure waterproofing.
• If the product has been subjected to drastic temperature variances, for example, following transportation,
do not connect the fixture until it has reached room temperature, as moisture condensation may cause electric
shock and product damages.
• When installing the products and system power supplies, please ensure they will not be exposed to moisture and extreme heat
(and direct sunlight for outdoor products). Besides, keep a clean operating environment for the fixtures and system power
supplies.
.
•
Any non-compliance of the Installation Guide will
void the Hera
warranty.
Hera warrants the products for a period of five (5) years from date of purchase, provided that
the purchased items are used under the conditions stated in this user manual.
Warning
Please study this Installation Guide throughly and check the latest Technical Specification Sheets available from the
our website www.heraled.com before setup.
Risk of
Electric
Shock
Do Not Open
Products
Warning!
Refer to User
Manual.
Not Suitable
for Household Room
Illumination
DIRECTIVE 2012/19/EU
Waste Electrical
and Electronic Equipment

Explanation
www.heraled.comwww.heraled.com 3
Procolor 10SC has Red, Green, Blue, Amber, 2700K, 4000K, 6500K colors and each fixture consists of 7 LEDs. Procolor 10SC
has solid die cast aluminum body. It is used in flood lighting, spot lighting, and wall washing applications. Universal power
input 90 ~ 264VAC is used for long range connection.
• It can be used with very long starting cables and jumper cables for flexible and easy application due to its 90 ~ 264VAC
50/60Hz universal voltage range.
• It has 3 different light beam angles in 8° / 30° / 45°.
• Direction of fixture can be adjusted by movable mounting device on fixture in product of 6°. Device is moved and fastened
up by stabile gear system, by this means fixture holds its adjusted direction.
• Fixtures are designed for harsh outdoor condition and resistant against vibration, impact and thermal shock owe to their
solid die cast aluminum body and tempered glass cover and IP67 class protection markings.
• Fixtures are produced in RAL9005 black color but according to customers’ demand fixture can be painted to different
RAL colors
Dimension
85mm / 3,34"
82mm / 3.22" 107 mm / 4,21"
35mm / 1,37"
131mm
5,15"
118mm
4,60"
PROCOLOR 10 SERIES

Light Source:
Lumen Maintenance:
Green
Operating Voltage:
Power Consumption:
Housing:
Environment:
7pcs High Power Single Color LEDs
60.000+ hours L70 @ 25° C (full output)
973lm
90 ~ 264VAC 50/60Hz Universal AC input
10W max.
Die-Cast Aluminium Body
I P67, I K10
Color Range: Red, Green, Blue, Amber, Warm White, Natural White, Cool White
Blue
Natural White
Red 525lm
Product Specifications
Amber
Warm White
280lm
826lm
980lm
1050lm
Cool White 1176lm
www.heraled.comwww.heraled.com 4
PROCOLOR 10 SERIES
Operating Temperature:
Storage Temperature:
-40°C - 50°C - (-40° - 122° F)
-40°C - 85°C - (-40°C - 185° F)
Dimensions (H x W x D):
Weight:
131x82x107 mm (5.15x3.22x4.21 in)
0.72kg (1.58lb)
Certification:
EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
EU EMC: EN55015, EN61547, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-4, EN61000-4-5
US safety (pending): ANSI/UL 1598
US EMC: 47 CFR Part 15 Class B

www.heraled.comwww.heraled.com
www.heraled.com 5
Connection Diagram Outdoor Zone
PROCOLOR 10 SERIES

Installation Instruciton
Installation Instruction
6
www.heraled.comwww.heraled.com
www.heraled.com
*Adjustable gear of luminaries with 6 angle
PROCOLOR 10 SERIES
12
Assemble leg of luminaries to wall or ground Synchronize the gear with surface of luminaries and leg
345Finished installation
Tighten the screw
Turn the luminaries into
the suitable position

Ordering Information
P03001XX1 Procolor® 10 Single Color Flood Light Spot Beam 19°
P03001XX2 Procolor® 10 Single Color Flood Light Medium Beam 26°
P03001XX3 Procolor® 10 Single Color Flood Light Flood Beam 54°
7
www.heraled.comwww.heraled.com
www.heraled.com
PROCOLOR 10 SERIES
*Standart product that we provided is above. Please contact us for special orders
P1 2 3 4 7XX
01-Red
02-Green
03-Blue
04-Amber
05-Warm White
06-Natural White
07-Cool White
