HERA Proline RGBW Series Installation and operating instructions

www.heraled.com
PROLINE RGBW SERIES
User’s Manual & Installation Guide
Congratulations on choosing a HERA product!
We thank you for your custom.
Please note that this product, as all the others in the rich HERA range, has been designed and made with total quality to ensure excellent
performance and best meet your expectations and requirements. Carefully read this instruction manual in its entirety and keep it safe for
future reference. It is essential to know the information and comply with the instructions given in this manual to ensure the fitting is
installed, used and serviced correctly and safely. HERA disclaims all liability for damage to the fitting or to other property or persons
deriving from installation, use and maintenance that have not been carried out in conformity with this instruction manual, which must
always accompany the fitting. HERA reserves the right to modify the characteristics stated in this instruction manual at any time and
without prior notice.
Index V.1.0
1
Technical Drawing
Ordering Information
Installation Instruciton
Block Diagram
6
7
Safety Information
Warranty
Marking
2
Explanation
Details
Ordering Information
3
4
Cover & Index
Back Cover
Accessories
Installation Instruciton
Connection Diagram
5
8
9
10

www.heraled.com
Safety Information
2
Warranty
Hera warrants the products for a period of three (3) years from date of purchase, provided that
the purchased items are used under the conditions stated in this user manual.
Marking
DMX
RDM
66
Caution – unplug the power supply from the main power before connecting any cables as this can damage the products.
Caution – avoid looking directly into the led light source at close range for your own safety.
Any people installing this product should comply with local standards and regulations and must be qualifed for the handling of
electrical equipment.
• Do not attempt to install or use the product until installation instructions and safety labels are fully understood.
This product is designed for indoor and outdoor usage.
• Ensure product operates within the specifed temperature range.
• Do not attempt to open the product.
• Do not use the product if the power cables are damaged.
• Only use product for specifed voltage.
• Always maintain connection to ensure waterproofing.
• If the product has been subjected to drastic temperature variances, for example, following transportation,
do not connect the fixture until it has reached room temperature, as moisture condensation may cause electric
shock and product damages.
• When installing the products and system power supplies, please ensure they will not be exposed to moisture and extreme heat
(and direct sunlight for outdoor products). Besides, keep a clean operating environment for the fixtures and system power supplies..
• Any non-compliance of the Installation Guide will void the Hera warranty.
Please study this Installation Guide thougly and check the lates Tecnical Specification Sheets available from the
our website www.heraled.com before setup.
PROLINE RGBW SERIES

www.heraled.com
Details
Proline RGBW Series consists of four models such as 30-60-90-120cm. It is produced as 30cm 12 Led 20 Watt, 60cm 24 Led 40 Watt, 90cm
36 Led 60 Watt, 120cm 48 Led 80 Watt It has options such as Narrow, Middle and Asymmetric angle. It is controlled with 4 Channel DMX.
Channel 1: 0-255 Red, Channel 2: 0-255 Green, Channel 3: 0-255 Blue, Channel 4: 0-255 White. It is high quality product with industrial
standard. Power unit is built in. It has 90~264VAC 50/60Hz Universal operating voltage. It has anodized aluminum body. It is adjustable and
lockable with 6 degree angles thanks to gearwheel in the body and assembly column. It has a safe use with UV protected polycarbonate
cover. It is in IP67 protection class with 60 shore gasket. It is not evaporated with PG9 Stainless Steel Cable Glands&Ventilation Plug It is
manufactured by using stainless steel screws with AISI304 quality. It has wide range of accessories according to the application.
• Linear solution in architecture illumination
• Locking at 6 degree angles with gearwheel
• 12/24/36/48 High Powered LED
• 90~264VAC 50/60Hz Universal operating voltage with built in power unit
• Safe use in interior and external environment with IP66 protection
Light Source : 12/24/36/48 Pcs. Nichia 219 Series
Lifetime : 50.000 Hours
Input : 3+5-Pin IP67 Waterproof Connector (Power + DMX)
90~264VAC 50/60Hz Universal AC input / Full range
Power Consumption : 20/40/60/80 Watt
Luminous Intensity : 1724/3448/5172/6896 lm Full Color Mode
*Preliminary data, figures are approximate.
Control and Programming : DMX 512
DMX Channels : Ch1: Red 0 - 255/ Ch2: Green 0 - 255/ Ch3: Blue 0 - 255 Ch4: White 0 - 255
Color Temperature Control: 2.000 - 10.000K Continuous Mixing
DMX Address Settings : RDM (Group of Remote Addressable Systems)
Housing : Aluminium Extrusion Body
Die-Cast Polycarbonate with UV Stabilizer Cover
Screw and Mounting Accessories : Die-Cast Aluminium Installation Equipment
304L Stainless Steel
Temperature : Operating : -40°C - 50°C - (-40° - 122° F)
Storage : -40°C - 85°C - (-40°C - 185° F)
Dimensions (H x W x D) : 94x70x305 mm ( 3,74x2,75x12 in) 94x70x610 mm ( 3,74x2,75x24 in)
94x70x915 mm ( 3,74x2,75x36 in) 94x70x1220 mm ( 3,74x2,75x48 in)
Weight : 1,4kg (3,8 lb) / 2,6kg (5,7lb) / 3,9kg (8,5lb) / 5,1kg (11lb)
Certification : EU safety: EN60598-2-5 (EN60598-1), EN62471, EN62493, EN60598-2-1
EU EMC: EN55015, EN61547, EN61000-3-2, EN61000-3-3, EN61000-4-2,
EN61000-4-4, EN61000-4-5
US safety (pending): ANSI/UL 1598
US EMC: 47 CFR Part 15 Class A
Explanation
3
PROLINE RGBW SERIES

www.heraled.com
Block Diagram
90~264VAC 50/60HZ
POWERDMX OUTDMX INUSBETHERNET
Please Check MADRIX Web Site
Minimum Computer System Requirements
Any device which supports Art-Net to DMX 512 or USB Interface
Art-Net
UL / cUL
L
N
L
N
LUNA8
Outdoor Zone
Indoor Zone
RISK OF
ELECTRIC
SHOCK
DMX Signal
4
Proline® RGBW Series 30CM
Max. in chain 32 pcs.
Proline® RGBW Series 30CM
Max. in chain 32 pcs.
Proline® RGBW Series 30CM
Max. in chain 32 pcs.
Proline® RGBW Series 30CM
Max. in chain 32 pcs.
PROLINE RGBW SERIES
White
DMX (+)
Blue
DMX (-)
L
N
DMX(+)
DMX(-)
RISK OF
ELECTRIC
SHOCK

www.heraled.com 5 www.heraled.com 5
PROLINE RGBW SERIES
Connection DiagramConnection Diagram
TURN
12
2
Connection Diagram
RISK OF
ELECTRIC
SHOCK
L
N
DMX(+) DMX(-)
RISK OF
ELECTRIC
SHOCK
Insert the connector into the appropriate input and screw the conection
The correct type of connection as shown at figure
N
L
N
L
White DMX (+)
Blue DMX (-)
White DMX (+)
Blue DMX (-)

www.heraled.com
Installation Instruction
12
3
4
6
PROLINE RGBW SERIES
1
8
0
1 Assemble leg of luminaries to wall or ground as shown at figure 1
Synchronize the gear with surface of luminaries and leg as shown at figure 2
Adjustable gear of luminaries with 6 angle, turn luminaries into suitable position and tighten the screw
3
Step Description
2
4Finished installation as shown at figure 4
as shown at figure 3

Installation Instruction
www.heraled.com
12
3
4
7
PROLINE RGBW SERIES
1
8
0

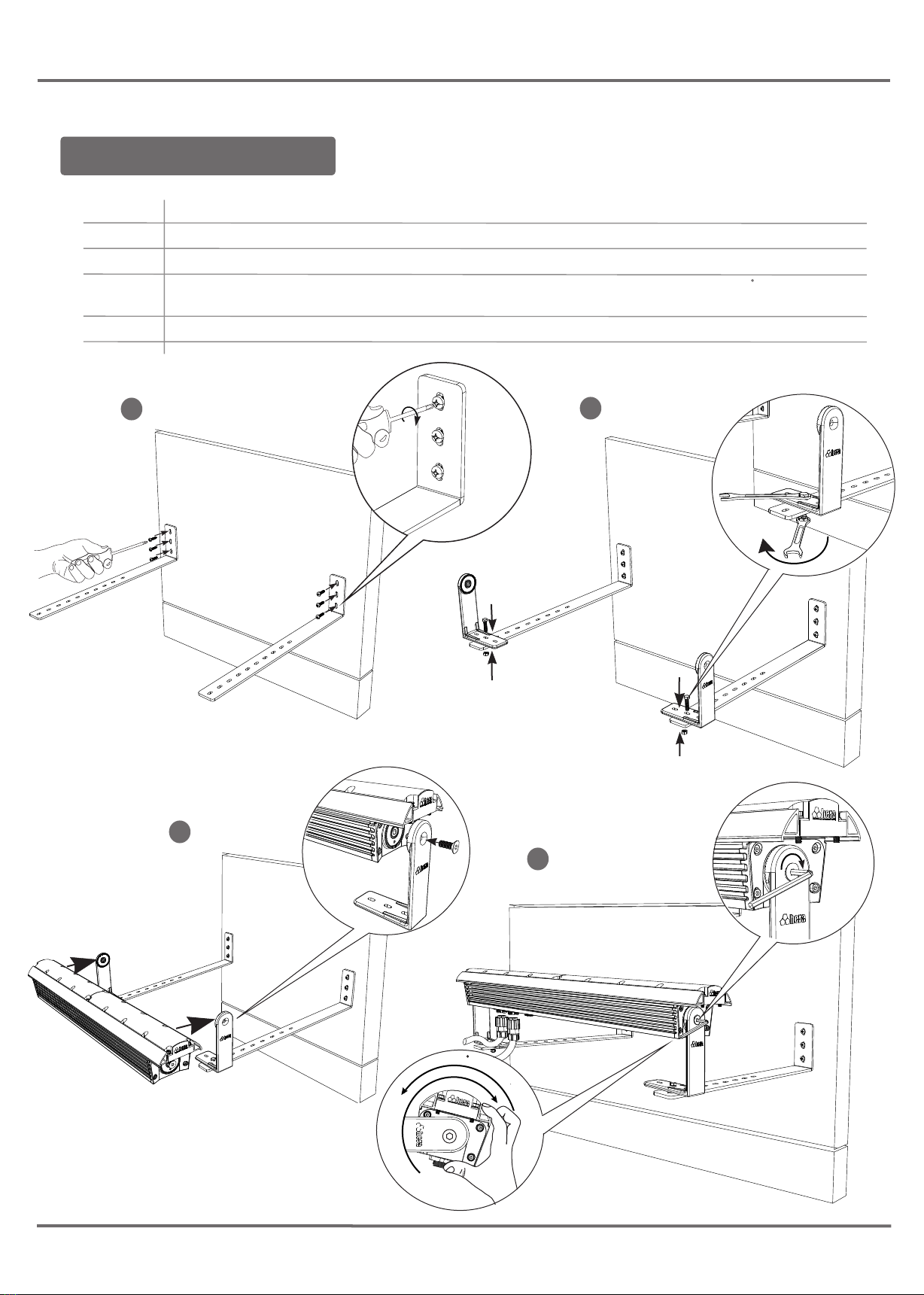

1 Assemble mounting bracket to wall or grnd as shown at figure 1
Leg of luminaries fix leg of accesories with screw, appropriately as shown at figure 2
Synchronize the gear with surface of luminaries and accessories . All gear adjustable 6 angle
3
Step Description
2
4Turn the luminaries into sutiable position and tighten the screw. Finished installation as shown at figure 4
as shown at figure 3

www.heraled.com

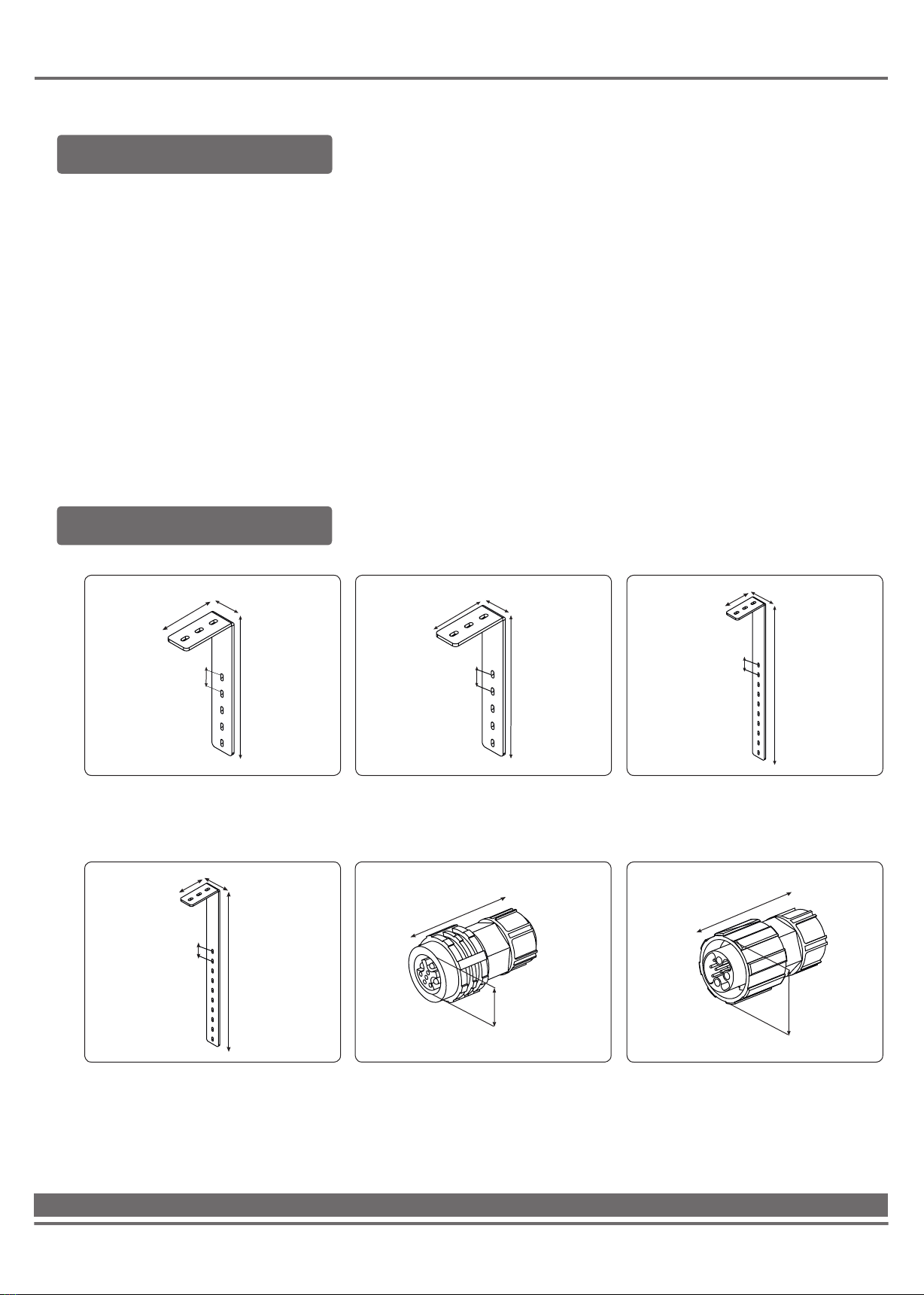

Accessories
A01011
300mm Mounting Bracket
A01012
400mm Mounting Bracket
A01010
200mm Mounting Bracket
84mm/3" 35mm/1.3"
25mm
1"
A01033
3+5 Pin Male IP68 Connector
A01034
3+5 Pin Female IP68 Connector
A01012
200mm
8"
35mm/1.3"
84mm/3"
25mm
1" 400mm
84mm/3" 35mm/1.3"
25mm
1" 300mm 16"
35mm/1.3"
84mm/3"
25mm
1" 500mm
50mm/2"
24mm/1"
50mm/2"
24mm/1"
20"
Ordering Information
Proline 30RGBW DMX Linear Light Spot Beam P0201010
Proline30RGBW DMX Linear Light Medium Beam P02010102
Proline 30RGBW DMX Linear Light Flood Beam P02010103
Proline 30RGBW DMX Linear Light Asymmetric Beam P02010106
Proline 60RGBW DMX Linear Light Spot Beam P02011101
Proline 60RGBW DMX Linear Light Medium Beam P02011102
Proline 60RGBW DMX Linear Light Flood Beam P02011103
Proline 60RGBW DMX Linear Light Asymmetric Beam P02011106
Proline 90RGBW DMX Linear Light Spot Beam P02012101
Proline 90RGBW DMX Linear Light Medium Beam P02012102
Proline 90RGBW DMX Linear Light Flood Beam P02012103
Proline 90RGBW DMX Linear Light Asymmetric Beam P02012106
Proline 120RGBW DMX Linear Light Spot Beam P02013101
Proline 120RGBW DMX Linear Light Medium Beam P02013102
Proline 120RGBW DMX Linear Light Flood Beam P02013103
Proline 120RGBW DMX Linear Light Asymmetric Beam P02013106
*Standart product codes that we provided is above. Please contact us for special orders.
Optional Optional Optional
500mm Mounting Bracket
Optional Standard Optional
8
PROLINE RGBW SERIES
12"

Technical DrawingTechnical Drawing
Technical Drawing
117mm
46mm
35 mm
1220mm / 48"
915mm / 36"
610mm / 24"
305mm / 12"
4,64"
1,81"
70mm / 2.75"
1.37"
PROLINE RGBW SERIES
www.heraled.com 9
94mm
3,70"
94mm
3,70"
94mm
3,70"
94mm
3,70"
70mm
2,75"
70mm
2,75"
70mm
2,75"
