Hermes VINYLE User manual

BOOM BOX
VINYLE
NOTICE / USER MANUAL

2
EN

3
TABLE OF CONTENTS
1. .PRESENTATION OF THE SPEAKER
1. . YOUR BOOMBOX SPEAKER
2. . SAFETY INFORMATION
3. . WARRANTY AND REPAIR
4. . GENERAL DESCRIPTION
5. . KNOB AND COMMAND PANEL
2. .USING THE BOOMBOX
1. . ON / OFF
2. . CHOSSING YOUR SOURCE
3. . VOLUME, BASS AND TREBLE SETTINGS
4. . TURNTABLE USE
5. . USING YOUR BOOM BOX WITH YOUR DEVICES
3. .
MAINTENANCE AND ASSISTANCE
1. . CLEANING THE BOOM BOX
2. . NO POWER
3. . NO SOUND
4. . DISTORTION OF SOUND OR BUZZING
5. . BACKGROUND NOISE AND UNWANTED INTERFERENCE
7. . THERMAL PROTECTION OF THE AMPLIFIER
8. . BAD BLUETOOTH CONNECTION
9. . TECHNICAL SUMMARY

4
Boom Box
1. DESCRIPTION OF THE BOOM BOX

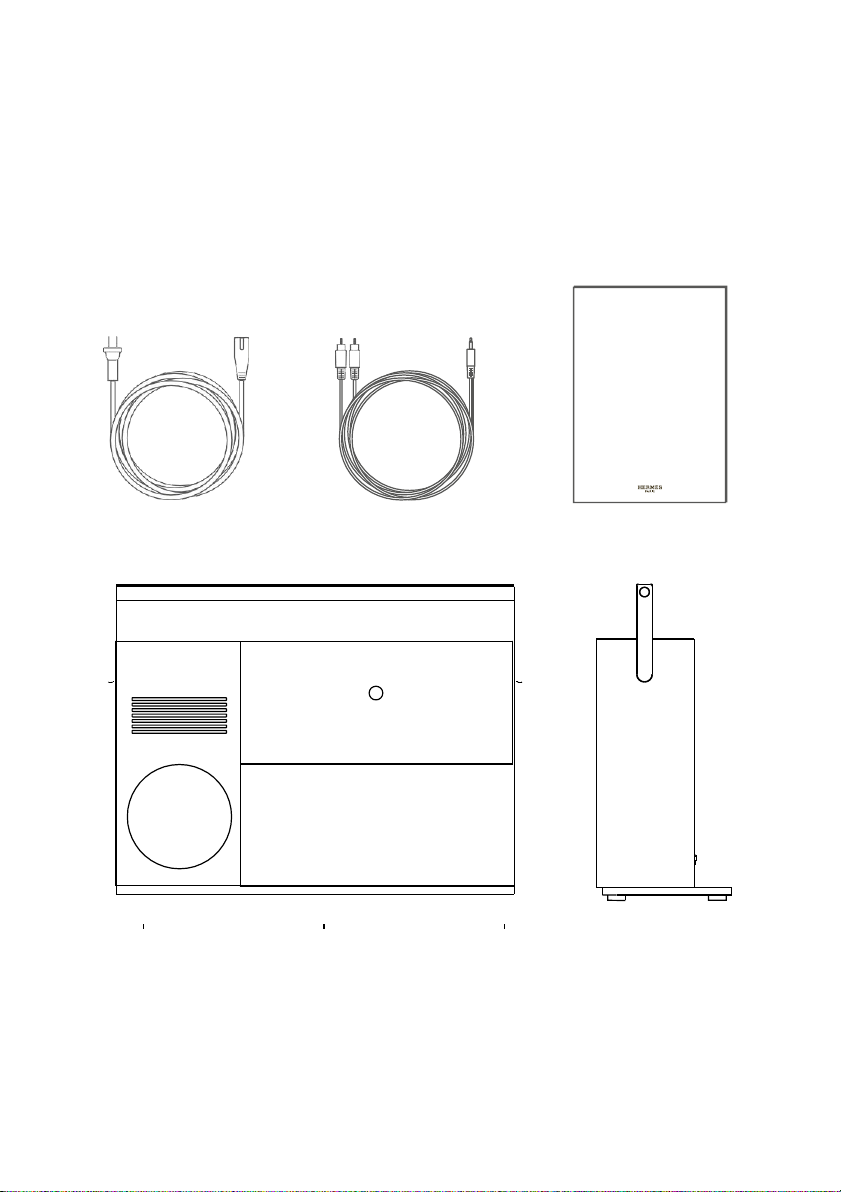

1. . YOUR BOOM BOX SPEAKER

5
2. . SAFETY INFORMATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Respect the safety principale of the biased plug. A biased plug is equipped
with two pins, one larger than the other. If the provided pin is not adapted
to your electrical wall power socket, call an electrician to replace the
obsolete electrical wall power socket.
10. Protect the power-supply cord from being stepped on or pinched, particulary
at plugs, convenience receptacles and the point where they exite from the
apparatus.
11. Only use attachments / accessories specified bu the manufacturer.
12. Use the BOOM BOX only in its original base.
13. Unplug this apparatus during lightning storms or when unused for long period
of time.
14. Have all maintenance work done by qualified, specialized personnel. Repairs
are required when the device has been damaged : power cord or plug damaged
; liquid spilled on the device or if an object has fallen on it ; if it rains on the device or
if it is wet or damp ; if the device not normally operating ; or is the device has fallen.
15. The equipment shall be used at a maximum of 45degrees C ambient temperature.
16. To reduce the risk of electric shock, do not open the equipment. For safety reasons,
only allow qualified safety personnel to open the equipment.
17. The mains plug or AC inlet is used as the disconnect means and shall remain readily
available

6
WARNINGS : To reduce the risk of fire or electrical discharge, do not expose the unit
to rain or wet sources. The unit is class 1 classified, and it must be connected to the
electrical wall power socket with an earth plug. The unit must be installed so that it
can be removed from the electrical network by means of the earth plug (or with an
adapted connector located on the rear side of the unit). If the power plug is used as a
disconnection device, the unit must be available and easy to use. Only use the power
cords supplied with the unit. We recommend not to place in a confined space. Do not
place the unit on a rug, or on a smooth surface, and do not obstruct the air holes, the
amplifier’s radiator (blades), or the output screens. The unit must not be used nearby
water ; it must not be exposed to an evacuation source, or to splashing, or to any other
types of liquids. No object filled with water such as vases, should be placed on the unit.
The assembly of the BOOM BOX is a very important step for the correct use of the product. The
end user should carefully read the assembly guidelines before setting up the product or consult a
brand representative in case of any question. CCLAB Hermès and its distributors cannot be held
responsible in case of the product falling due to a mounting that did not follow these guidelines.
IMPORTANT : THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITIES FOR RADIO OR
AUDIOVISUAL INTERFERENCES GENERATED BY UNAUTHORISED CHANGES MADE ON THIS
DEVICE. SUCH CHANGES COULD WOULD VOID THE MANUFACTURER WARRANT AND
CANCEL THE AUTHORIZATION OF UTILIZATION BY THE USER.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.

7
Low power radio wave radiating motor management method
Article 12
A low-power RF motor that has passed the type approval shall not change the frequency,
increase the power or change the characteristics and functions of the original design without
permission.
Article 14
The use of low-power RF motors shall not affect the safety of flying and interfere with legal
communications; if interference is found, it shall be improved until no interference is required.
Legal communication in the preceding paragraph refers to radio communications operating in
accordance with the provisions of the Telecommunications Act. Low-power RF motors must
withstand interference from legitimate communications or radiological electrical equipment
for industrial, scientific, and medical use.

8
!

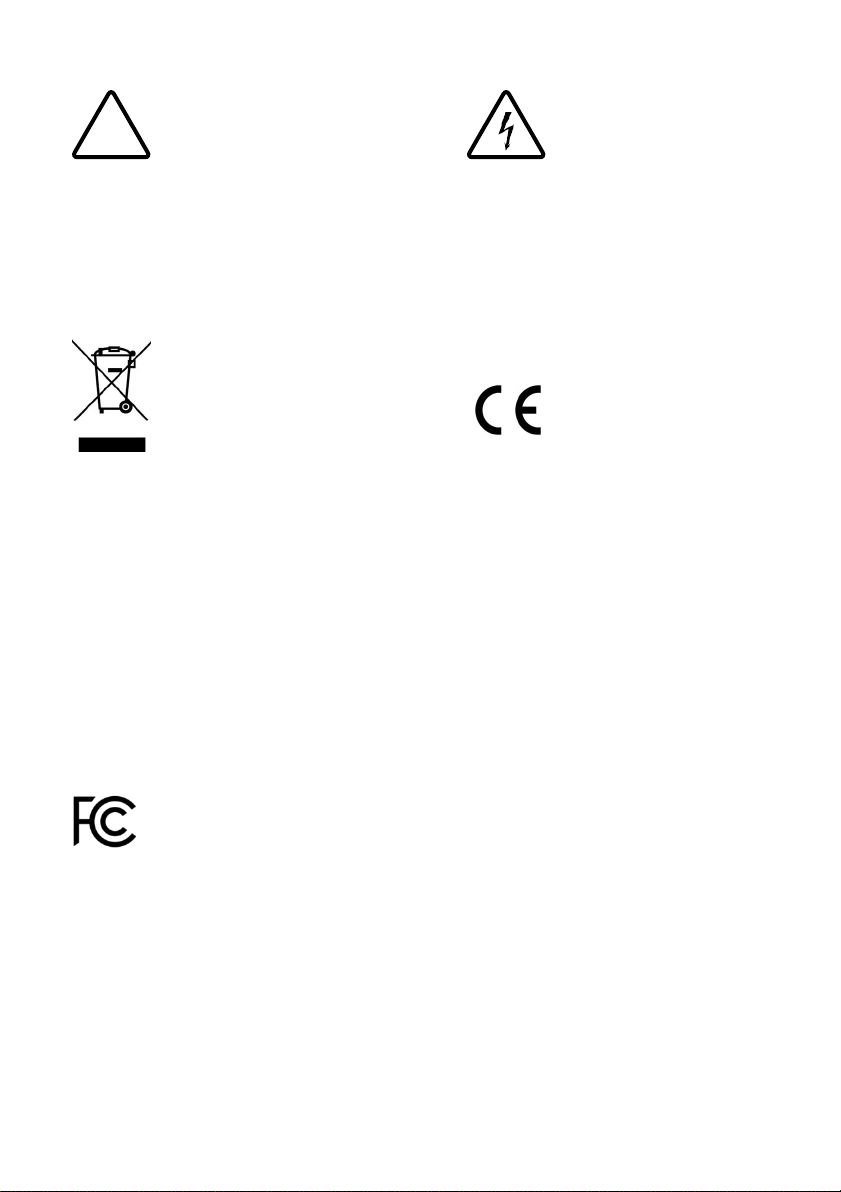

ATTENTION The purpose of the
exclamation point in equilateral
triangle is to inform the user of the
presence of important instructions in
this manual about how to operate the
device and maintenance operations.
DEEE SYMBOL The separate recycling
of electrical and electronic devices.
This product contains electrical and
electronic equipments which can be
reused, recycled or recovered, and
therefore must not be discarded
in your usual trash, which is not
selectively sorted. Please return the
unit or contact the authorized dealer
who supplied you the product for
more information.
NORMES FCC
The BOOM BOX speaker is an
acoustic speaker which integrates a
power amplifier.
DANGEROUS VOLTAGE The
luminous indicator with the “arch
in an equilateral triangle” symbol
is intended to warn the user of the
presence of a “dangerous current”
not insulated in the product, and this
current could be strong enough to
cause an electric discharge on people.
MARQUE CE This product in
conformed to the European directives
related to low voltage (2006/95/EC)
and electromagnetic compatibility
(89/336/EEC) when the unit is installed
and used accordingly to the users
manual instructions. To guarantee
extended conformity, only La Boîte
Concept accessories should be used
with this product and the maintenance
operations must be conferred to
qualified and specialized personnel.

9
AERATION / IMPORTANT
The unit may heat when used. Never operate the central part without its side bases. Do
not place the equipment in a completely closed room or in a compartment insufficiently
ventilated. Make sure that no small object can pass through the BOOM BOX. If it happens,
immediately switch off the device, disconnect it from the wall power socket and contact
your dealer for assistance and advice.
LOCATION
Carefully select a spot for installing your equipment. Avoid placing it directly in sunlight
or nearby a heat source. No fire source such as candles shall be placed on the device. Also,
avoid any source which could cause vibration, dust, coolness or moisture. The device can
be used at average temperatures. The unit must be installed on the two (2) BOOM BOX
provided legs. Do not operate the central part without its sides bases. Do not install the
equipment in a completely closed room or in a set of compartments. Do not place the
unit on an unstable surface or on a shelf. Make sure that the furniture inserts have been
correctly fastened. If not, the unit could fall and injury a child or an adult, and damage the
product as well. Due to the disturbed magnetic fields, no record player or CRT television
set must be placed nearby the device to avoid possible interference.
POWER SOURCE
The unit should only be used with the type of electric power source compatible indicated
in the trapdoor storage space. If you are not sure about the power source rating in your
place, please contact your dealer or the company responsible for the electric power
installation in your area. The unit was designed to be left in Stand-by mode when not in
use ; this wall allow increasing the amplifier’s life (this is true for all electrical devices).
To switch off the unit, press the ON/OFF button on the rear of the device (metal plate
located under the central unit). If you do not intend to use the unit for a long period,
simply unplug it from the wall power socket.
OVERLOAD
Avoid overloading the wall-mounted electrical installations or the extension cords
because this could cause a fire or an electrical discharge. Overloaded DC installations,
extension cords, damaged power cables, a damaged or cracked insulation and broken
plugs are dangerous. They could cause a discharge or a fire. Make sure that each cables are
correctly inserted. To avoid humming or background noise, do not mix interconnections
with the power cord or loudspeakers cables.

10
CLEANING
In order to clean the unit, wipe it with a dry, lint-free cloth. Do not use liquid cleaning
products containing alcohol, ammonia or abrasives. Do not use a spray on and nearby the
unit.
REPAIRS
These units should not be repaired by the user. Do not try to repair, dismount or un- assemble
the unit if a problem occurs. A strong electric discharge could take place if this precautionary
measures are not respected. In case of a problem or failure, please contact your dealer.

11
3. HERMÈS LIMITED WARRANTY

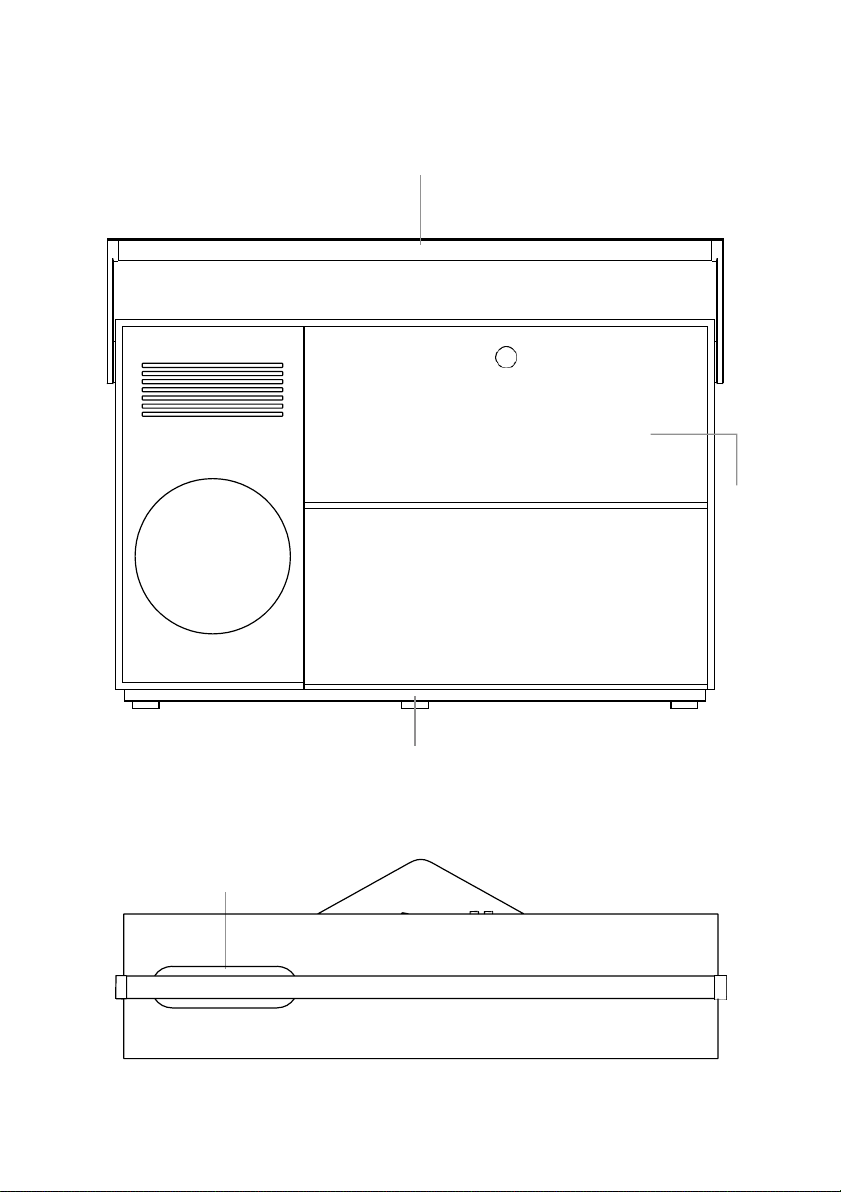

4. GENERAL DESCRIPTION
Transport handle
Flap
FRONT
CL OS E D B OOM B OX
TOP
Anti-vibration tripod
CL OS E D B OO M B OX
Control panel

12

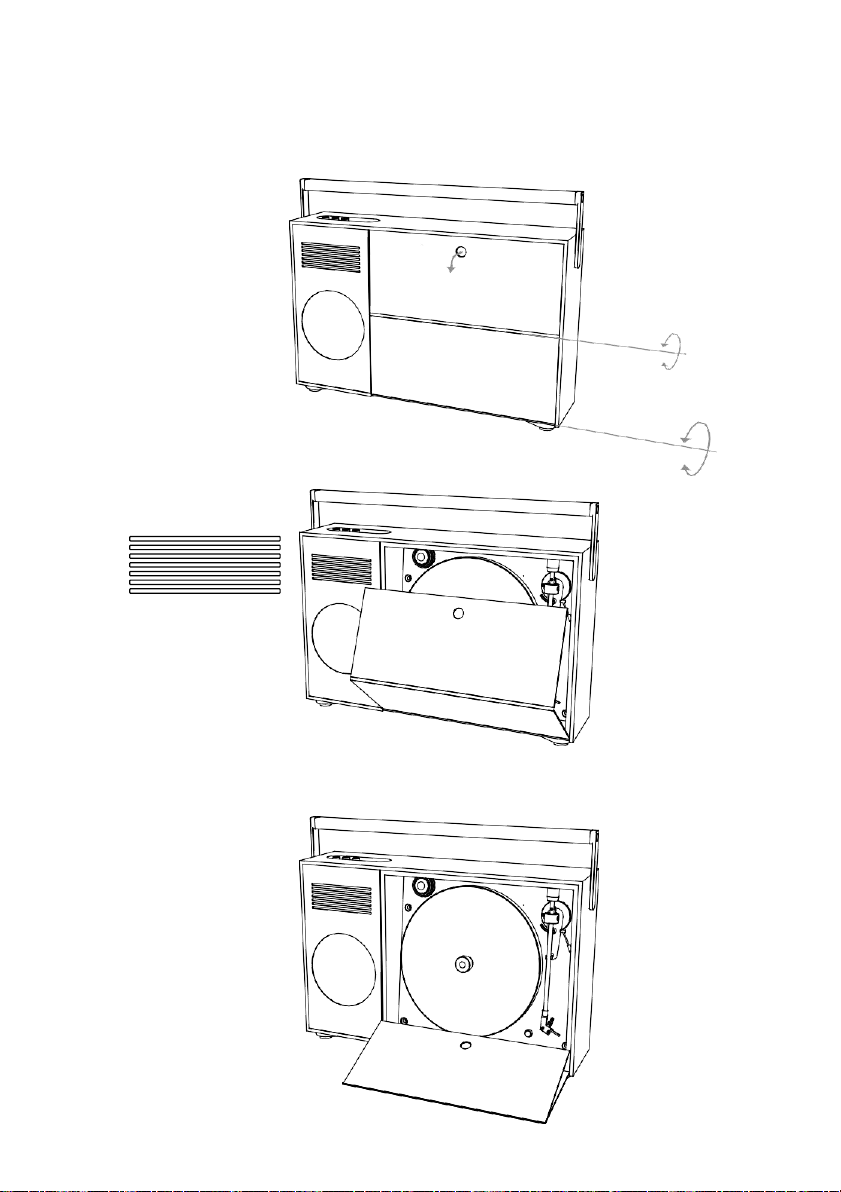

BOOM BOX OPENING
1.
2.
3.

13

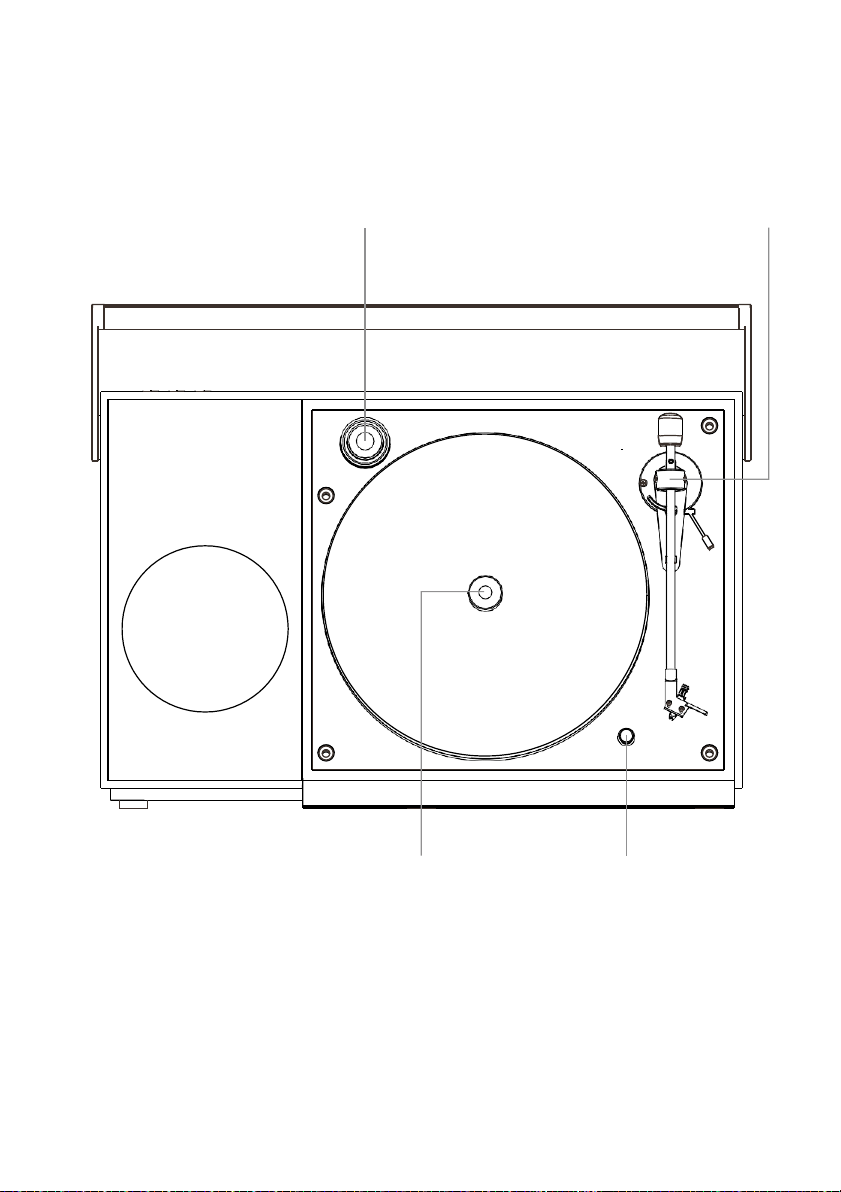

FRONT
BOOMBOX OPENED
Motor pulley Vinyl arm
Vinyl holder Motor switch

14
ARRIÈRE
Master ON/OFF
1
[
Ll
jJ
®
@
@
•
T
RCA
®
_rp "'_,,r
®i[E] :
@
@
Power socket
n
/J
/J
'
(
J
J
"
('
"
Q
c;
0
(
(
(

15

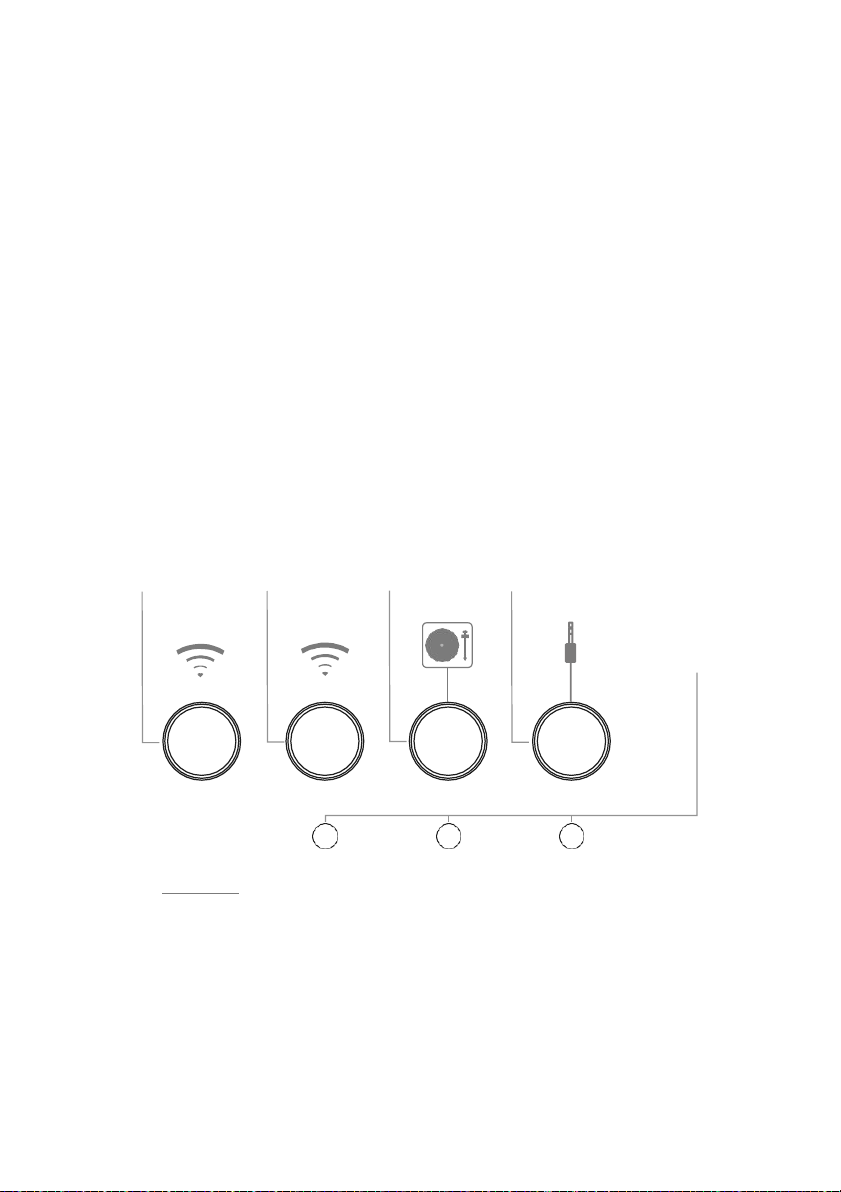

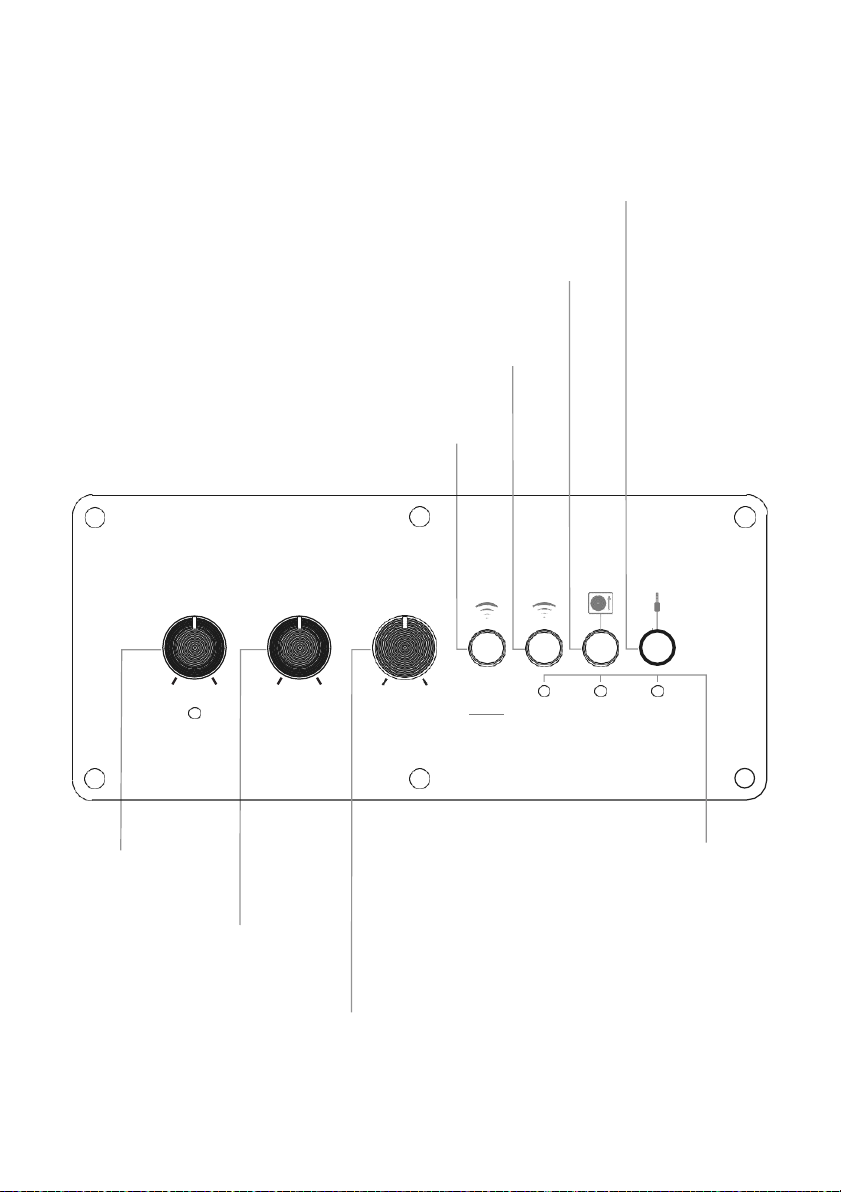

5. . BOUTONS & PANNEAU DE COMMANDE
Aux
knob
Turntable
knob
Bluetooth®
knob
Pairing knob
for Bluetooth®
VOLUME BASS TREBLE
Off + - + - +
Standby
BT Pair
Wake
BT Phono Aux
Volume control
knob
LED light
(source indicator)
Bass control
knob
Treble control
knob

16
2.
USING THE BOOM BOX
1. . ON / OFF
1. Insert the power cord into the power socket behind your BOOM BOX.
2. Connect the power cord to the wall outlet.
3. First, Turn ON the master button at the rear of the speaker system to pre-power on the
BOOM BOX speaker system.
4. Second, turn the volume knob clockwise to turn on the BOOM BOX speaker system. The
Bluetooth LED lights up.
VOLUME
Off +
Standby
VOLUME
Off +
Standby
6. The BOOM BOX will automatically go into sleeping mode if you leave your device
without any signal for 30 minutes. To wake up the device, play music from Bluetooth
mode or from another source.
7. To temporarily switch off the BOOM BOX, turn the volume button counter-clockwise
and match the cursor to Standby.
VOLUME
Off +
Standby
VOLUME
Off +
Standby
8. To turn off the BOOM BOX completely, switch off the ma. All LED lights go out.

17
2. . CHOOSING YOUR SOURCE
On your BOOM BOX, the choice of the sound source is made at the control panel by
pressing one of the buttons from 1 to 4, after you have made your connections to the
source panel.
/ Source selection BT Pair
/ Source selection BT
/ Source selection Phono
matches (1) the Bluetooth® pairing with your devices.
matches (2) the Bluetooth® input with your devices.
marches (3) the Phono input with your devices.
/ Source selection
Aux
matches (4) the Auxiliary input.
Note : source used is indicated by Led light (5).
1 2
BT Pai r
Wake
BT Phono Aux
3
4
5

20
3. . VOLUME, BASS AND TREBLE SETTINGS
VOLUME SETTING
TO INCREASE THE VOLUME
Turn the volume knob clockwise.
TO DECREASE THE VOLUME
Turn the volume knoc counter-clockwise.
VOLUME
Off +
Standby
BASS SETTING
Vary the cursor to the - to emit less bass and to the + to emit more bass.
Setting at 12h = 0: neutral position.
BASS
TREBLE SETTING
Vary the cursor to the - to emit less treble and to the + to emit more treble.
Setting at 12h = 0: neutral position.
TREBL E
-+

21
4. . TURNTABLE USING
1
Positioning the belt:
/ With your left hand, gently hold the belt in the groove of the intended pulley.
/ With your right hand, stretch the pulley belt to the tray, avoiding stretching.
/ Gently wrap the belt around the tray without folding.

22
2
Select the speed according to your disc, 33 or 45 RPM by positioning the belt on the
motor:
3
Unscrew the vinyl holder in the center of the tray.
45 T OU R S
33 T OU R S
