HF Elfin-EG41 User manual
Elfin-EG41 用户手册
http://www.iotworkshop.com - 1 -
Elfin-EG41
RS485 to 2G/3G/4G
User Manual
V 1.2
Overview of Characteristic
Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network, sub-type to support specific
cellular network
Support RS485 to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps
Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data
Cache
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support SMS AT Command Configuration
Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of
ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.
Support NTP
Support Modbus TCP to Modbus RTU
Support IOTBridge for Remote Control and Config.
Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow
charge.
Support Serial Port, Network OTA Upgrade Firmware.
Elfin-EG41 用户手册
http://www.iotworkshop.com - 3 -
TABLE OF CONTENTS
TABLE OF CONTENTS....................................................................................................................3
LIST OF FIGURES............................................................................................................................4
LIST OF TABLES .............................................................................................................................4
1. PRODUCT OVERVIER ........................................................................................................5
1.1. General Description.........................................................................................................5
1.2. Device Parameters...........................................................................................................6
1.3. Key Applications..............................................................................................................7
2. HARDWARE INTRODUCTION ...........................................................................................8
2.1. APPEARANCE..................................................................................................................8
2.2. Elfin-EG41 Pin Definition.................................................................................................9
2.3. RS485 Interface..............................................................................................................10
2.4. Mechanical Size .............................................................................................................10
2.5. RJ45 8PIN Connector ....................................................................................................10
2.6. RJ45 4PIN Connector ....................................................................................................11
2.7. Conversion Cable ..........................................................................................................12
2.8. EG11 Interface Conversion Cable................................................................................13
2.9. Fixed Bracket .................................................................................................................13
2.10. Rail Bracket ....................................................................................................................14
2.11. Bracket............................................................................................................................14
2.12. RJ45 Transform Connector...........................................................................................14
2.13. Product Installation .......................................................................................................15
2.14. EVK..................................................................................................................................15
2.15. Product Order Information............................................................................................16
APPENDIX A: CONTACT INFORMATION....................................................................................18
Elfin-EG41 用户手册
http://www.iotworkshop.com - 4 -
LIST OF FIGURES
Figure 1. Elfin-EG41 Appearance...................................................................................................................8
Figure 2. Elfin-EG41 RJ45 Interface Pin.........................................................................................................9
Figure 3. Elfin-EG41 Mechanical Size ..........................................................................................................10
Figure 4. RJ45 8PIN Connector....................................................................................................................11
Figure 5. EG41+8PIN Connector..................................................................................................................11
Figure 6. RJ45 4PIN Connector....................................................................................................................11
Figure 7. EG41+4PIN Connector..................................................................................................................12
Figure 8. Cable Manufacture Guide..............................................................................................................12
Figure 9. Interface Conversion Cable ...........................................................................................................13
Figure 10. Fixed Bracket.................................................................................................................................13
Figure 11. Rail Bracket ...................................................................................................................................14
Figure 12. Bracket Install Picture....................................................................................................................14
Figure 13. RJ45 Transform Connector............................................................................................................15
Figure 14. Product Installation........................................................................................................................15
Figure 15. EVK Package.................................................................................................................................16
Figure 16. Elfin-EG41 Product Order Information...........................................................................................17
LIST OF TABLES
Elfin-EG41 Series Defination..................................................................................................................5
Elfin-EG41 Technical Specifications.......................................................................................................6
Elfin-EG41 Interface Definition ...............................................................................................................9
HISTORY
V 1.0 03-29-2019. First Version
Elfin-EG41 用户手册
http://www.iotworkshop.com - 5 -
1.PRODUCT OVERVIER
1.1. General Description
The Elfin-EG41 support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network full network.
4G network support maximum download data rate 150Mbps, upload data rate 50Mbps.
The Elfin-EG41 module support TCPIP protocol, with its /RS485 interface, it make traditional
UART device easy connecting to IOT.
Elfin-EG41 is an RJ45 interface serial server with ultra-small size: 68.5 x 35 x 17.8mm
Elfin-EG41 include different sub-type, as following table.
Elfin-EG41 Series Defination
Elfin-EG41 用户手册
http://www.iotworkshop.com - 6 -
1.2. Device Parameters
Elfin-EG41 Technical Specifications
Item
Parameters
System Information
Processor/Frequency
Cortex-M3/96MHz
Operating System
FreeRTOS
2G/3G/4G Interface
Transmit Power
LTE-TDD: Class 3(23dBm+1/-3dB)
LTE-FDD: Class 3(23dBm±2dB)
WCDMA: Class 3(24dBm+1/-3dB)
TD-SCDMA: Class 3(24dBm+1/-3dB)
GSM900: Class 4(33dBm±3dB)
DCS1800: Class 1(30dBm±3dB)
GSM900 8-PSK: Class E2(27dBm±3dB)
DCS1800 8-PSK: Class E2(26dBm±3dB)
Receive Sensivity
FDD B1: -96dBm(10M)
FDD B3: -96dBm(10M)
FDD B5: -96dBm(10M)
FDD B8: -96.5dBm(10M)
TDD B38: -96dBm(10M)
TDD B39: -97dBm(10M)
TDD B40: -96.5dBm(10M)
TDD B41: -96dBm(10M)
WCDMA B1: -110dBm
WCDMA B8: -111dBm
TDSCDMA B34: -109dBm
TDSCDMA B39: -109dBm
GSM 900M: -109dBm
GSM 1800M: -109dBm
LTE
Maximum Support non-CA CAT4
Support 1.4~20MHz RF Bandwidth
Downstream Support Multiple Users MIMO
FDD: Maximum Upstream Rate 50Mbpsm Maximum
Downstream Rate 150Mbps
TDD: Maximum Upstream Rate 35Mbpsm Maximum
Downstream Rate 130Mbps
WCDMA
3GPP R8 DC-HSPA+
16-QAM,64-QAM and QPSK Modulation
Maximum Upstream 5.76Mbps
Maximum Downstream 42Mbps
TD-SCDMA
CCSA Relese 3
Maximum Upstream 2.2Mbps
Maximum Downstream 4.2Mbps
GSM/cellular network
R99：
CSD Transmission Rate：9.6Kbps/14.4Kbps
cellular network：
Support cellular network multi-slot class 12
Code Method：CS-1/CS-2/CS-3/CS-4
Serial Port
Port Number
1
Interface Standard
EG41: RS485 或3.3V TTL UART
Data Bits
7,8
Elfin-EG41 用户手册
http://www.iotworkshop.com - 7 -
Stop Bit
1,2
Check Bit
None,Even,Odd
Baud Rate
TTL：1200 bps~460800 bps
Flow Control
No Flow Control
Half-Duplex(RS485)
Software Flow Contorl
Software
Configuration
Serial AT Command
IOTService Serial Port Configuration Software
IOTService Network Configuration Software
Firmware Upgrade
UART or OTA Upgrade
Basic Parameter
SIM Card
Nano SIM card(1.8V/3V)
Size
68.5mm x 35mm x 17.8mm
Operating Temp.
-40 ~ 85°C
Storage Temp.
-45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage
Elfin-EG41: 9~18VDC@1A
Elfin-EG41A: 9~36VDC@1A
Average Working
Current
~300mA@9V
Peak Current
2A
1.3. Key Applications
The Elfin-EG41 module connects the serial device to the Internet and conforms to the TCP/IP
protocol for transmitting serial data.
⚫Remote device monitoring
⚫Production asset tracking and monitoring
⚫Security field
⚫Industrial sensors and controllers
⚫Health medical equipment
⚫ATM equipment
⚫Data acquisition equipment
⚫UPS power management equipment
⚫Telecommunication equipment
⚫Data display device
⚫Hand-held device
⚫Attendance system and terminal equipment
Elfin-EG41 用户手册
http://www.iotworkshop.com - 8 -
2.HARDWARE INTRODUCTION
Elfin-EG41 is a cellular network solution for serial device networking. Data transmission via
cellular network makes product integration very easy. This product meets EMC Class B security level
and can pass relevant certification tests in various countries.
2.1. APPEARANCE
Figure 1. Elfin-EG41 Appearance
Elfin-EG41 用户手册
http://www.iotworkshop.com - 9 -
2.2. Elfin-EG41 Pin Definition
Figure 2. Elfin-EG41 RJ45 Interface Pin
Elfin-EG41 Interface Definition
Pin
Description
Net Name
Signal Type
Notes
1
UART_TX
TTL Voltage
TTL_UART_
TXD
O
3.3V TTL UART Output
2
UART_RX
TTL Voltage
TTL_UART_
RXD
I
3.3V TTL UART Input
3
NC
Please leave it open
4
NC
Please leave it open
5
RS485_A+
RS485_A+
IO
RS485 A+
6
RS485_B-
RS485_B-
IO
RS485 B-
7
Power VCC
VCC
Power
9～18VDC
8
Power GND
GND
Power
9
Green LED
Net Status
Net
O
Boot On: Power is OK.
2s Off -> 2s On: cellular network Register
is OK.
0.1s Off -> 0.1s On: cellular network data
is transferring.
10
Amber LED
Data Transfer
Active
O
Off: No data transfer
0.3s Off -> 0.9s On: UART TX Output
0.3s Off -> 0.3s On: UART RX Receive
On: UART bidirection.
<Notes>:
I —Input; O —Output; Power—Power Supply
Note
PIN1/2 is TTL UART, PIN5/6 is RS485 interface, it is same UART for internal MCU, just the
hardware driver is different. Choose either TTL or RS485
Elfin-EG41 用户手册
http://www.iotworkshop.com - 10 -
2.3. RS485 Interface
RS485 use two wire links, A(DATA+), B(DATA-). Connect A(+) to A(+), B(-) to B(-) for communication.
Suggest to connect GND together when interference is very severe.
The RS485 interface support maximum 32 485 device, device. The cable maximum length is 1200
meters. Need to add 120Ohm terminal resistor for over 300 meters.

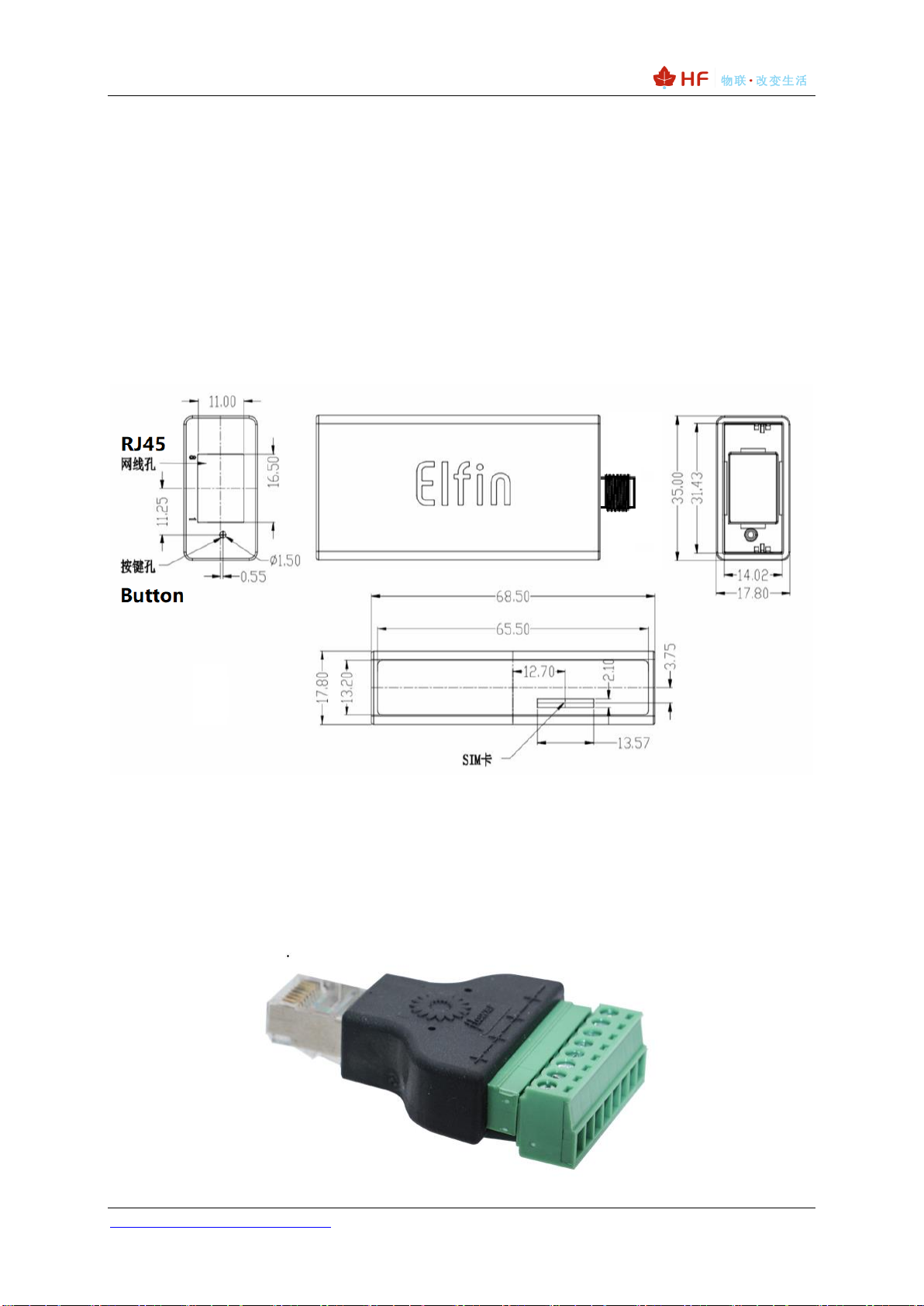

2.4. Mechanical Size
The dimensions of Elfin-EG41 are defined as following pictures(mm):
Figure 3. Elfin-EG41 Mechanical Size
2.5. RJ45 8PIN Connector
RJ45 8PIN Connector Type Order: 10810001001
Elfin-EG41 用户手册
http://www.iotworkshop.com - 18 -
APPENDIX A: CONTACT INFORMATION
------------------------------------------------------------------------------------------------------------
Address: Room1002 , #1Building, No.3000 Longdong Avenue, Pudong District, Shanghai,
China 201202
Website: www.iotworkshop.com or www.hi-flying.com
Contact:
Sales：sales@iotworkshop.com
Support：support@iotworkshop.com
Service：service@iotworkshop.com
Business：business@iotworkshop.com
---------------------------------------------------------------------------- -------------------------------
For more information about us, please visit our website: www.iotworkshop.com
< END OF DOCUMENT >
