Hi-Tec ZIPPER User manual

www.hitecrcd.com
OPERATION MANUAL Ver 1.0

2
Section 1
Introduction............................................................................................................................................................. 2
Warnings and Safety Instructions.................................................................................................................... 3
Features and Specications ............................................................................................................................... 3
Items Required to Ready This Model for Flight........................................................................................... 3
Parts Layout and Listing...................................................................................................................................... 4
Section 2
Assembly Instructions.......................................................................................................................................... 4
Section 3
Preparing for Flight ............................................................................................................................................... 6
• Speed Control Operation......................................................................................................................... 6
• Flying Your Plane......................................................................................................................................... 6
Section 4
Spare Parts ............................................................................................................................................................... 6
Service and Support ............................................................................................................................................. 7
Warranty.................................................................................................................................................................... 7
TABLE OF CONTENTS
Thank you for purchasing the Weekender Zipper radio control airplane. With its durable EPO foam con-
struction and aileron/elevator three-channel control, this sporty aerobatic plane is a great t for novice/
intermediate pilots. The preinstalled brushless motor, speed control and servos will have you in the air in
a ash. Zip through the skies with the agile Zipper!
The Weekender Zipper is a radio control model plane designed for novice/intermediate pilots
over the age of 14. User negligence or improper assembly can lead to serious injury and/
or property damage to yourself or others. Weekender is not responsible for any damages or
injuries caused by the user’s negligence or improper assembly of the model. Be sure to read
the instruction manual thoroughly before assembling and ying the model.
Safety is of the utmost importance when ying any model aircraft. Third party insurance is
mandatory. If you join a model club or association, suitable coverage will usually be available
through the organization. It is your personal responsibility to ensure that your insurance is
adequate (i.e. that its coverage includes powered model aircraft). Always y in such a way that
you do not endanger yourself or others. Bear in mind that even the best RC systems are subject
to outside interference. No matter how many years of accident-free ying you have, there is
always the possibility of an unforeseen problem or error that can cause an accident. Make it
your job to keep your models and your radio control system in perfect operating condition at
all times. Check and observe the correct charging procedure for the batteries you are using.
Before every ight, check that the wings and the tail panels are attached and rmly
seated. Also check to make sure that each control surface is operating correctly.
INTRODUCTION
SECTION 1
FEATURES AND SPECIFICATIONS
ITEMS REQUIRED TO READY THIS MODEL FOR FLIGHT
MODEL FINISHING

3
Flying Your Aircraft
• You should only y at an ocial model aireld.
• Check that other pilots and spectators are positioned safely before ying your model.
• Wait for other pilots to land their models if they are ying already.
• Do not y the plane behind yourself or others.
• Do not y under the inuence of alcohol or drugs or if you are feeling ill.
• Do not y during thunderstorms or high wind.
• Do not y in an area where people are gathered or near tall buildings.
• Do not y near streets or where vehicles or trains pass by.
• Do not y near explosive materials.
• Do not y near power lines or transmission towers.
• Be sure to do pre-ight safety checks of the model before ying.
• Always remember that the pilot is responsible for any outcome that may occur during the
ight.
The Weekender Zipper is a Plug and Play-type model where additional items are required for
operation. The items listed below are needed to y:
• 6-Channel Radio and Receiver
• 2 - 3S, 7.4 ~ 11.1V, 400 ~ 500 mAh LiPo battery
• Charger Suitable for the Battery Above
Features
• Durable pre-painted EPO airframe, easily
assembled in less than 45 minutes
• Powerful preinstalled brushless outrunner
motor and 10-amp ESC
• Preinstalled nano servos
• Removable canopy for easy access to
motor and ESC
• 6+ minute runtimes with recommended
battery
Specications
• Wingspan: 23.6 in (600 mm)
• Length: 21.3 in (541 mm)
• Weight: 5.3 oz (150 g)
• Wing Area: 93 sq in (6 dm2)
• Wing Loading: 8.2 oz/sq ft (25 g/dm2)
FEATURES AND SPECIFICATIONS
ITEMS REQUIRED TO READY THIS MODEL FOR FLIGHT
The Zipper comes unnished but can easily be painted with commercially available enamel paints. When
painting, you should use multiple light coats to avoid damaging the foam or adding too much weight.
MODEL FINISHING

4
A. Fuselage Assembly (includes installed Motor,
ESC and Elevator Servo)
B. Main Wing
C. Horizontal Stabilizer
D. 2x Spinner
E. Small Parts Package, Includes:
i. Propeller
ii. 1 piece 2.0 x 16mm screw for wing
iii. 1 piece double sided tape for
mounting receiver
iv. 1 piece Velcro hook and loop for
mounting battery
ASSEMBLY INSTRUCTIONS
SECTION 2
Tools Required for Assembly
•#1PhillipsHeadScrewdriver•RazorKnife
Step 1: Horizontal Stabilizer Assembly
Slide the horizontal stabilizer through the fuselage until it locks into place. Slide the elevator linkage
into the swivel and tighten the screw.
Step 1
While not necessary, you can apply a small amount of CA glue to hold the pieces permanently
in place.
PARTS LAYOUT AND LISTING
Note: Before assembly, it is important that you remove the parts from the packaging and
check to make sure that all the parts are included and that they are in good condition.

5
Step 2: Main Wing Assembly
Install the wing by sliding the tab on the front
of the wing into the fuselage while guiding the
servo leads through the hole. Insert the 2.0 x
16mm screw and tighten until snug.
Step 2
Step 3: Spinner Assembly
Place the foam spinner over the propeller.
Step 3
While not necessary, you can apply a
small amount of CA glue to hold the
pieces permanently in place.
Step 5: Cutting the Control Surfaces
Before ying, you will need to cut the control
surface so they can move freely. Using a sharp
razor knife, cut only where indicated with
dashed lines in the above illustration.
Step 4: Receiver and Battery Installation
Using the double sided tape, install the receiver
into the fuselage and plug the servo and ESC
leads into the appropriate channels. Using the
included Velcro strip, install the battery into the
front of the fuselage.
Step 4 Step 5

6

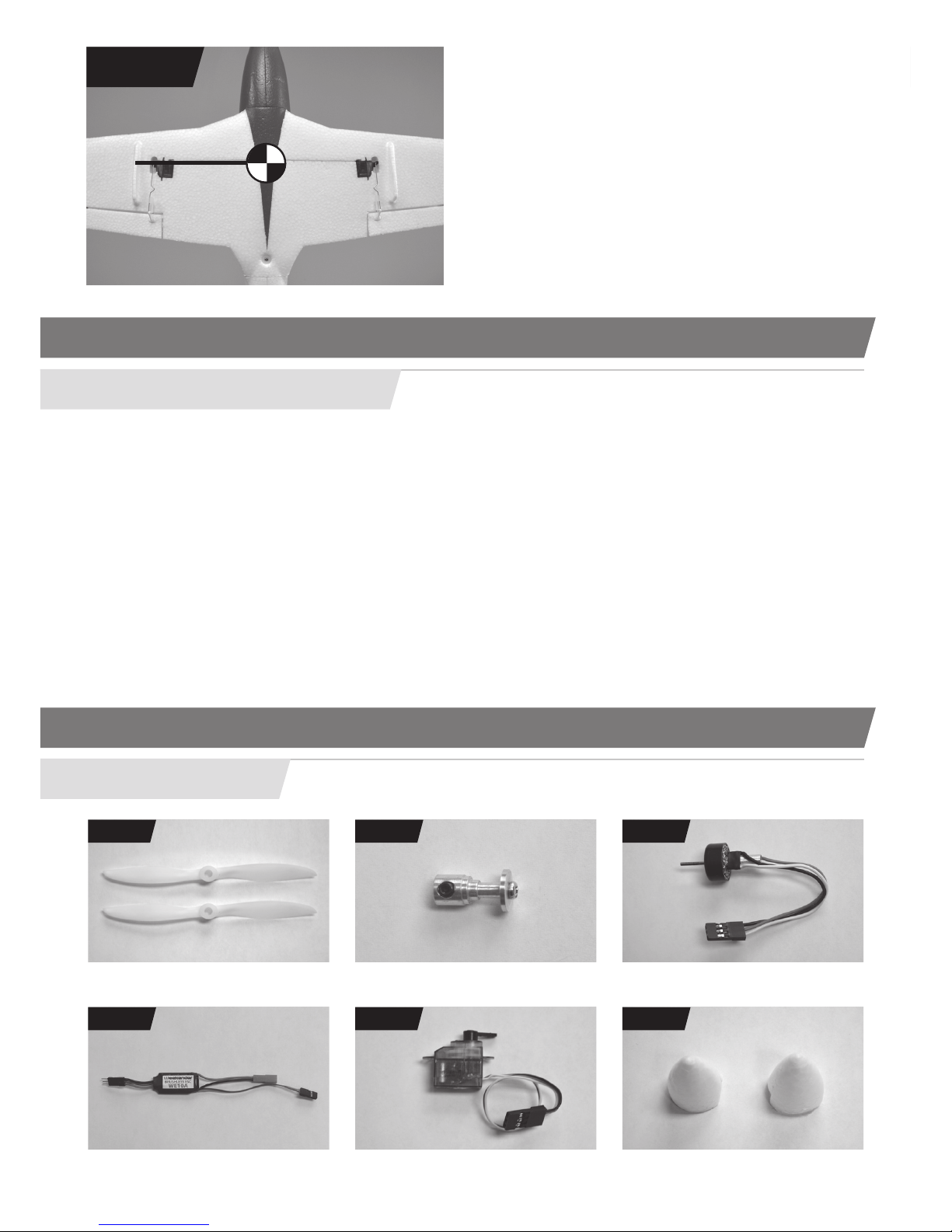

Step 6: Balancing Your Model
Check the center of gravity (CG) on your model
by balancing it on your ngers.The CG should
be at about the same place as the servo leads on
the bottom of the wing. You can adjust the CG by
moving the battery forward or backwards.
PREPARING FOR FLIGHT
SECTION 3
SECTION 4
Speed Control Operation
The ESC is set for optimal performance at the factory and should not be changed. Before connecting the
battery, make sure the throttle is in the lowest (o) position. If the throttle is not in the lowest, o position,
the speed control will not initialize. If this happens, you will need to disconnect the battery and repeat the
initialization sequence.
Flying Your Plane
Before taking o, perform a radio range check and make sure all your control surfaces are operating in
the proper direction. Take o into the wind and climb to 50 feet to begin your trim out procedures. Once
trimmed out, feel free to test the performance of the plane by performing a variety of aerobatic
maneuvers.
SPARE PARTS
SERVICE AND SUPPORT
Propeller x2
59005
ESC
59008
Motor
59007
Propeller Hub
59006
Foam Spinner\ x2Servo
59004 59010
Step 6
CG

7
Weekender by Hitec Customer Service
Help is available from Hitec RCD USA, Inc. Customer Service through phone support: [phone] and
e-mail: [e-mail]. Our oce is generally open Monday through Friday, 8:00 AM to 4:30 PM
PST. These hours and days may vary by season. Every attempt is made to answer all incoming service
calls. Should you get our voice mail, please leave your name and number and a sta member will return
your call.
SERVICE AND SUPPORT
LIMITED WARRANTY
Weekender by Hitec guarantees the component parts in this kit to be free from defects in both materials
and workmanship that exist at the time of purchase for a period of 90 days from the date of purchase. If
any component part fails to function because of defects in materials or workmanship during this period,
the manufacturer’s obligations are limited, at its discretion, to either, repair or replace the defective part.
This warranty does not cover any component part that has been damaged through use, modication,
misuse, abuse, accident or neglect; nor does it cover normal wear and tear. Additionally, this warranty is
void if the component part has been altered or modied or repaired by anyone other than Hitec RCD USA,
Inc. or its authorized agents.
Hitec RCD USA, Inc. is not responsible for loss of use of the Weekender by Hitec model, or other incidental
or consequential damages. Under no circumstances shall the Manufacturer or any of its representatives
be held liable for injury to persons or property damage resulting from the assembly of the product or from
the use of the nal user assembled product. Furthermore, no liability shall be attached to Weekender by
Hitec or Hitec RCD USA, Inc. from the use of the nal assembled product because: the product operates
and is controlled by way of remote radio frequency; and outside radio frequencies may interfere with the
product frequency, causing loss of control. Because an out-of-control model has the potential to cause
personal injury and property damage, Weekender by Hitec or Hitec RCD USA, Inc. cannot be held liable for
personal injury or property damage caused by the use or misuse of Weekender by Hitec model products.
By the act of using the user-assembled products, the user accepts all resulting liability. Some states do not
allow exclusion of incidental or consequential damages, so the above limitations and exclusion may not
apply to you.
Weekender by Hitec and Hitec RCD USA, Inc. hereby exclude any and all express warranties not specically
stated herein and all implied warranties of merchantability and tness for a particular purpose. There are
no warranties which extend beyond the description of the warranties contained within this document.
What to Return
Return only the component part that is defective in materials or workmanship. Please pack the unit
carefully and insure it, as this warranty does not cover loss or damage in transit.
Hitec RCD USA, Inc.
12115 Paine St.
Poway CA, 92064
[phone]
