Xray 373522 User manual

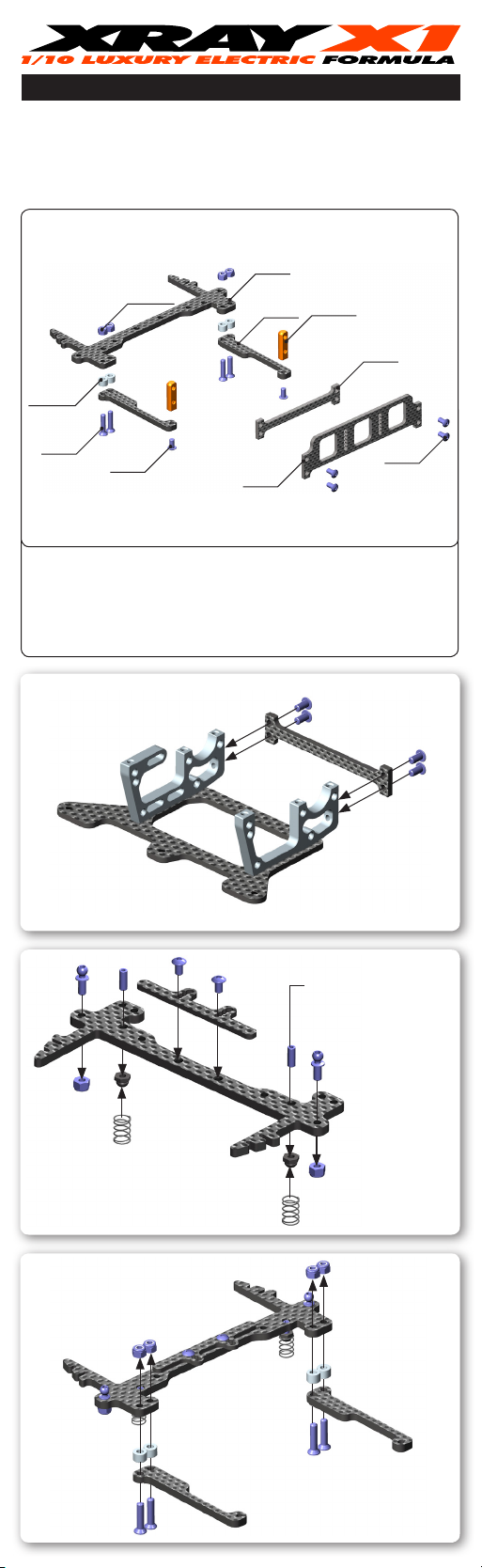

#373522 X1 FULLY INDEPENDENT REAR WING MOUNT (SET) #373522 X1 FULLY INDEPENDENT REAR WING MOUNT (SET)
3x6x4mm 3x6x4mm
3x6x4mm 3x6x4mm
3x12mm 3x12mm
3x12mm 3x12mm
3x6mm 3x6mm
3x6mm 3x6mm
3x6mm 3x6mm
#296530-O ALU NUT M3 - ORANGE (10)
#303127-K ALU SHIM 3x6x4.0MM - BLACK (10)
#306200-O ALU SERVO MOUNT - ORANGE (2)
#902306 HEX SCREW SH M3x6 (10)
#903314 HEX SCREW SFH M3x14 (10)
#296530-O ALU NUT M3 - ORANGE (10)
#303127-K ALU SHIM 3x6x4.0MM - BLACK (10)
#306200-O ALU SERVO MOUNT - ORANGE (2)
#902306 HEX SCREW SH M3x6 (10)
#903314 HEX SCREW SFH M3x14 (10)
Follow the instruction manual
X1'19 page 16/ step 1 for
screw setting
Follow the instruction manual
X1'19 page 16/ step 1 for
screw setting
This wing mount set allows to install rear wing fully independently from the rear pod plate.
When the rear suspension is moving the wing stays in the same position which helps to improve
car stability and increases traction, making the car easier to drive in all conditions. The wing
mount plate features holes for wing mounting in exactly the same positions as the standard
wing mount. Can be used either with the rear gear differential or ball differential.
This wing mount set allows to install rear wing fully independently from the rear pod plate.
When the rear suspension is moving the wing stays in the same position which helps to improve
car stability and increases traction, making the car easier to drive in all conditions. The wing
mount plate features holes for wing mounting in exactly the same positions as the standard
wing mount. Can be used either with the rear gear differential or ball differential.
373522 373522
306200-O 306200-O
373522 373522
373522 373522
296530-O 296530-O
902306 902306
373522 373522
902306 902306
903314 903314
303127-K 303127-K

If you have any questions, please do not hesitate to contact XRAY at [e-mail] or visit our website at
www.teamxray.com for news and updates.
If you have any questions, please do not hesitate to contact XRAY at [e-mail] or visit our website at
www.teamxray.com for news and updates.
3x6mm3x6mm
3x6mm3x6mm
3x6mm3x6mm
3x6mm3x6mm
3x6mm3x6mm
3x6mm3x6mm
3x6mm3x6mm
3x6mm3x6mm
NOTE
ORIENTATION
NOTE
ORIENTATION
