Hiboy HoverFootball User manual

ＵＳＥＲ ＭＡＮＵＡＬ

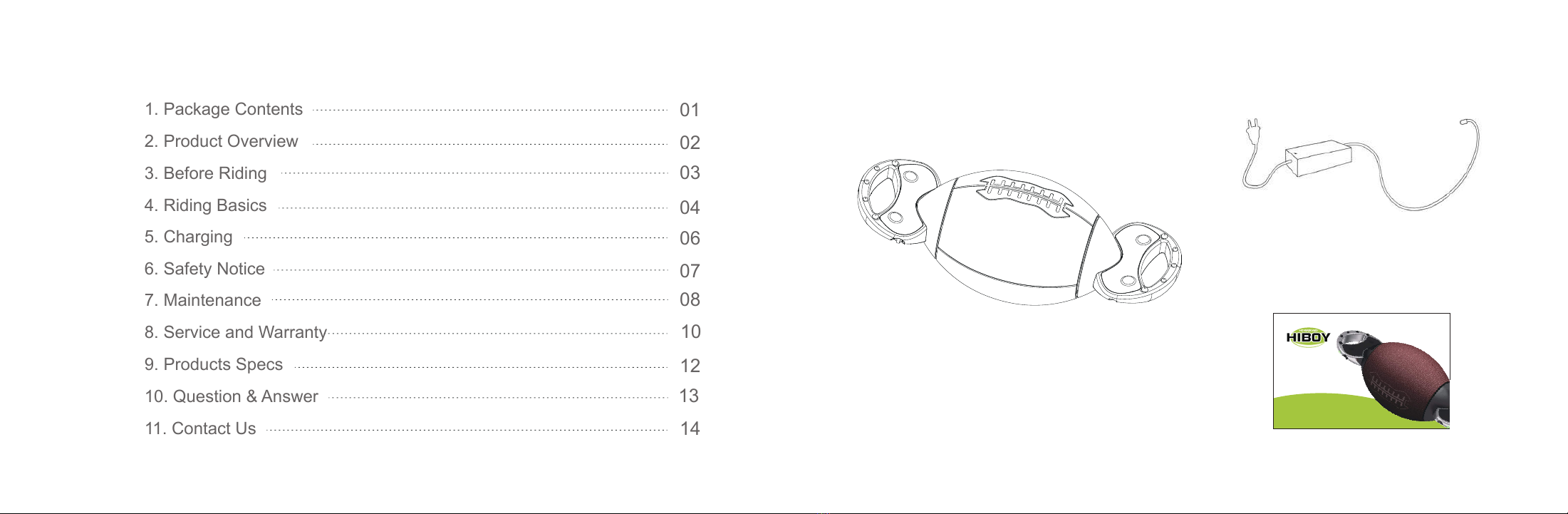

Contents
1. Package Contents
1
01
02
03
04
06
07
08
10
12
13
14
1. Package Contents
2. Product Overview
4. Riding Basics
5. Charging
9. Products Specs
10. Question & Answer
11. Contact Us
7. Maintenance
6. Safety Notice
3. Before Riding
8. Service and Warranty
ＵＳＥＲ ＭＡＮＵＡＬ
2. Charger
1. Product
3. Manual

2. Product Overview 3. Before Riding
32
1
2
345
6
8
910
7
1.Pedal 2.Fender cover 3.Power button 4.Tyre 5. Buzzer 6. Handle 7. Pedal sensor 8.
Charging port 9. Battery capacity indicator 10. LED indicator
Power switch
Press the power button once to power on/off the HoverFootball.
Calibration:
1. Turn off the HoverFootball,and put it on flat ground;
2. Long press the power button until you hear Bi Bi sound;
3. Restart the Hoverfootball, now you’ve finished calibration.

5
4

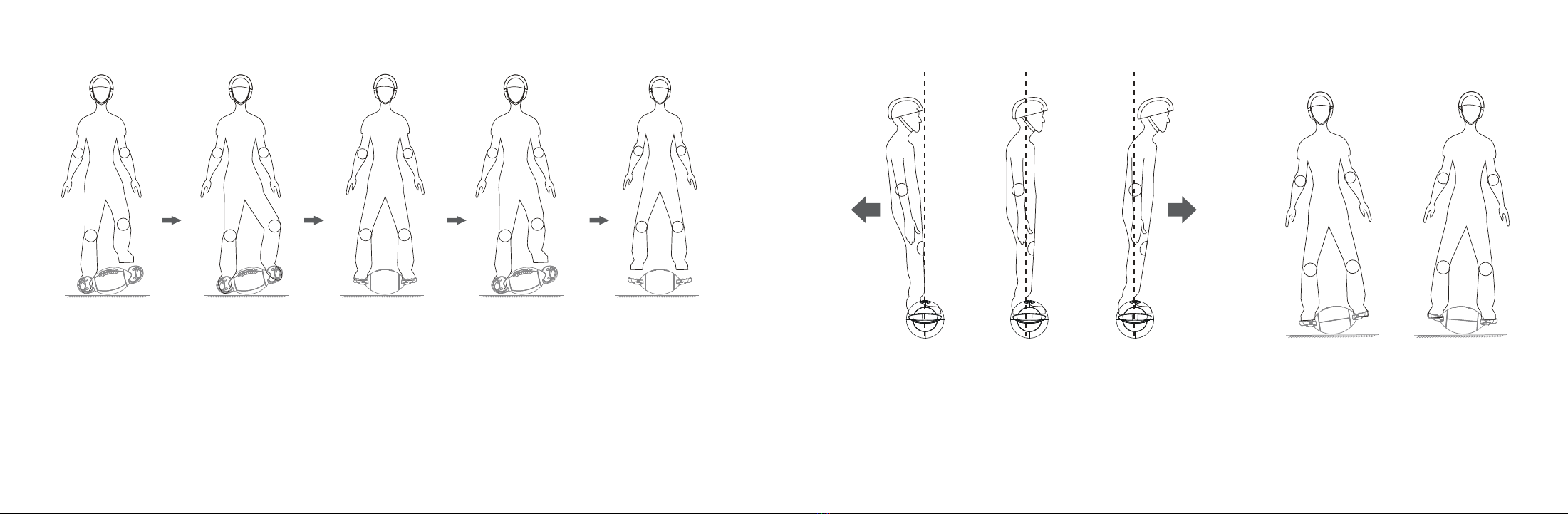

4. Riding Basics
1. Press the power button to turn on the scooter.
2. Put one foot onto one side’s pedal, and make the pedal touch the ground.
3. Put another foot onto another side’s pedal, balance the HoverFootball first then you can ride it.
4. When you wanna get off the scooter, slower down the speed, when the HoverFootball is gonna
incline, take one foot off the pedal and step on the groud.
Go forward: Incline your body forward and
ride forward.
Go backward/brake: Incline your body
backward and ride backward/brake.
Turn left: Incline the body and
HoverFootball to the left.
Turn left: Incline the body and
HoverFootball to the right.

76
5. Charging 6. Safety Notice
Battery indicating
5%
Charging port
Battery indicating LED
30%
30-70%
70-100%
Attention for charging:
1. Please use the original charger in the box only;
2. Please turn off the HoverFootball before charging, and do not move the HoverFootball whilecharging.
3. When the charger indicator changed from red to green, it means the HoverFootball is fully charged,
please take off the charger.
4. Please put the waterproof cap onto the charging port when finished charging.
1.The Hoverfootball has been designeds a recreational product. Before mastering riding skills,
you need to practice. Hiboy Inc. is not responsible for any injuries or damage caused by a
rider's inexperience or failure to follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings
in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the
Hoverfootball you risk injury or death from loss of control, collisions, and falls.
When entering into public spaces always comply with the local laws and regulations. As with other
vehicles, faster speeds require longer braking distance. Sudden braking on smooth surfaces could
lead to wheel slip, loss of balance, or falls.Be cautious and always keep a safe distance between you
and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.
Users are responsible for following all local, state, and federal laws regarding the use of this product.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly
with the chin strap in place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets,
vehicles, bicycles, or other obstacles and potential hazards.
5. PARENTAL/ADULT SUPERVISION IS NECESSARY WITH CHILDREN UNDER 12. If you are under
18, please get your parents permission.
6. The Hoverfootball is not for users weighing less than 44lbs/20kg or more than 220lbs/100kg. The
maximum weight limit of 220 lbs (100 kg) includes items that might be worn or carried such as
backpacks, clothes, or personal items. Failure to adhere to the minimum and maximum weight
limits can cause personal injury to the user and damage to the Hoverfootball. Meeting the weight
restrictions does not necessarily mean the person is the appropriate size for fitting on, operating,
riding, and controlling the device.

98
7. Maintenance
7. Do not allow anyone to ride your Hoverfootball on his/her own unless they have carefully read this
manual. The safety of new riders is your responsibility. Assist new riders until they are comfortable
with the basic operation of the Hovereshoes. Make sure each new rider wears a helmet and other
protective gear.
8. Before each ride check for loose fasteners, damaged components, and low tire pressure. If the
Hoverfootball makes abnormal sounds or signals an alarm, immediately stop riding.
9. Never ride at high speeds on uneven terrain or slopes. Never ride in the dark, or dimly lit areas. Do
not ride in the snow in the rain, or on roads which are wet, muddy, icy, or that are slippery for any
reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of
balance or traction and could cause a fall.Never ride backwards for long distances or at high speeds.
Clean: Please clean your Hoverfootball so that they can maintain the best performance.You can wipe the
Hoverfootball with a soft and wet cloth.
NOTE: The IP Rating of the mainframe is IP54, IP Rating of the battery pack is IPX6. Do not wash
your Hoverfootball with gasoline, acetone, or other corrosive/volatile solvents. These substances
may damage the appearance and internal structure of your Hoverfootball. Do not wash your Hoverfootball
with a power washer or high pressure hose. Make sure the Hoverfootball is powered OFF, the charging
cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise
you may expose yourself to electric shock or damage the electronic components. After flushingyou
must wipe them dry as soon as possible and place them in a ventilated place to dry to avoid corrosion
of the steel partsWhen not in use, try to store it indoors in a dry, cool place. Try to avoid storing it
outdoors for a long time. Sunlight exposureand very hot/cold environments will ruin the appearance
of the Hoverfootball
Store: Please try to store the Hoverfootball in a cool and dry place between 0℃and 40℃. In
extremely humid environments the interior of the Hoverfootball may suffer condensation or even
water accumulation, which may damage the battery rapidly.In daily use, try to avoid recharging
the Hoverfootball until completely exhausting the battery.
Note: Do not pierce the battery with sharp objects.Do not use heavy objects to hit the battery.It is
forbidden to put the battery into fire or water to avoid danger or environmental pollution.
If the battery is low, charge it as soon as possible.Please charge the Hoverfootball every other
month to preserve thebattery.
Disposal: When disposing of Hoverfootball or batteries, they must be recycled according to the
regulations and standards of each region.

1110
8. Service and Warranty
1. The warranty period is consistent with the national and local warranty policy.The warranty period is
calculated from the date of purchase by the user (on the basis of the date on the purchase receipt).
2. Maintenance costs beyond the warranty period and beyond the scope of the warranty only incur
maintenance costs.
3. Not covered by the free warranty obligation
The product or parts that have exceeded the warranty period;
Failure or damage caused by not following the instructions for use;
Damage caused by abnormal operation and man-made or natural disasters;
Damage caused by dismantling or changing any part (such as lines) by yourself.
Part Name
Li-ion Battery
Controller
Motor
Plastic PartsRubber
PartsTires LED Lights
Warranty Period
6 months
12 months
12 months
Quick-wear parts are not covered
by warranty
Exception
1.Damage due to
long-term power lack
1.Water log
1.Damage by strong
deliberate impact
1.Water log
1.Damage by strong
deliberate impact
2.Water log
Note
Replacement
out of warranty will be
charged at cost price
Replacement
out of warranty will
be charged at cost price
Replacement out
of warranty will be
charged at cost price
Replacement parts are not
covered by warranty will be
charged at cost price

1312
1. What if the Hoverfootball arrived missing accessory or broken part?
A: Please take a photo and send to Hiboy Support Team by sending email:
[e-mail] Hiboy Support Team will reply you soon and send correct
accessory or part replacement.
2.When the Hoverfootball can't keep its balance or something goes wrong during the
ride
A：Please try to reboot or recalibrate the self-balancing.
3.The hoverfootball can't ride in the direction you expect?
A：It may be pedal sensor failure, please contact customer service and attach video.
9. Products specs
220LBS/100KG
16.5LBS/7.5KG
18.9*7.4*7.4IN/480*189*189MM
7.4*8.3IN/189*210MM
12MPH/7.4KM/H
6.2-9.3MI/10-15KM
50.4V 2.0Ah
350W
1.5-2.5H
Max load
Product weight
Product size
Tyre size
Max speed
Max distance
Battery capacity
Motor Power
Charging time
18.9in
7.4in
7.4in
10. Question & Answer

14
@HiboyUS
HiboyUS
www.hiboy.com
hiboyus
@Hiboy_Official
Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your Hiboy Product
HIBOY LIMITED
18351 Colima Rd APT 983 Rowland Heights CA 91748
E-mail Service: [e-mail]
11. Contact Us
