Hidromasajes Estilo BR -0502S Instruction sheet

MODEL :BR -0502S
Sanitary Ware Expert,
Your best choice!
MASSAGE BATHTUB
1. The rated power of this product is 220V 50Hz, please make
sure not to overload it.
2. Make sure to fix leakage protection device, and the socket
must be connected with earth line.
3. Please don't block the water recycle nozzle by any part of
your body, if that occurs, turn off the pump or power at
once.
4. A switch for the supply of the hot /cool water must be
installed,when stop to use this product the water supply
switch and the power source switch should be turned off.
5. Check the water level if it is 10-20mm above the spray
nozzle before you start the pump or the pump could be
damaged.
6. Don't use corrosive detergent to clean the bathtub, you
could use common daily detergent or toothpaste to clean it.
7. Dispose of the product according to the local law when it is
out of use.
8. Please contact the local dealer for help if you have any
Attention
Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.

1. Adjust the feet-screw to make the bathtub horizontal.
2. Connect the drainpipe to the cloaca.
3. Fix shower head and pillow.
4. Connect to the cool(blue) and hot(red) water pipe.
5. Connect to power source, then fill water to have a test.
Vol tag e: 22 0V -24 0V 50 Hz /6 0Hz □
Power: 1HPx2
Hydraulic pressure : 0.1~0.2Mpa
Size: 1800x1500x700mm
1. Fill water
Turn the cool/hot switch to adjust the water temperature, turn the
shift switch to fill water through shower head or faucet or waterfall.
Stop to fill water when the water level is 10-20mm above the water
jet.
2. Hydraulic massage
Press the pump switch to start the pump and bubble pump,then there
will be bubble come out from the air bubble jets and turn the air
regulator to adjust the hydraulic power. Push the jet to change the
water spray direction. Press the switch again to turn off the pump.
3. Shower
Turn the cool/hot water switch to get suitable temperature, then turn
the shift switch to use shower head to take a shower.
4. Power off
Press the pump switch to turn off the pump, then turn the drain
switch to let out the water,when stop use ,turn off the power source
switch and the water supply switch.
Parameter
Operation

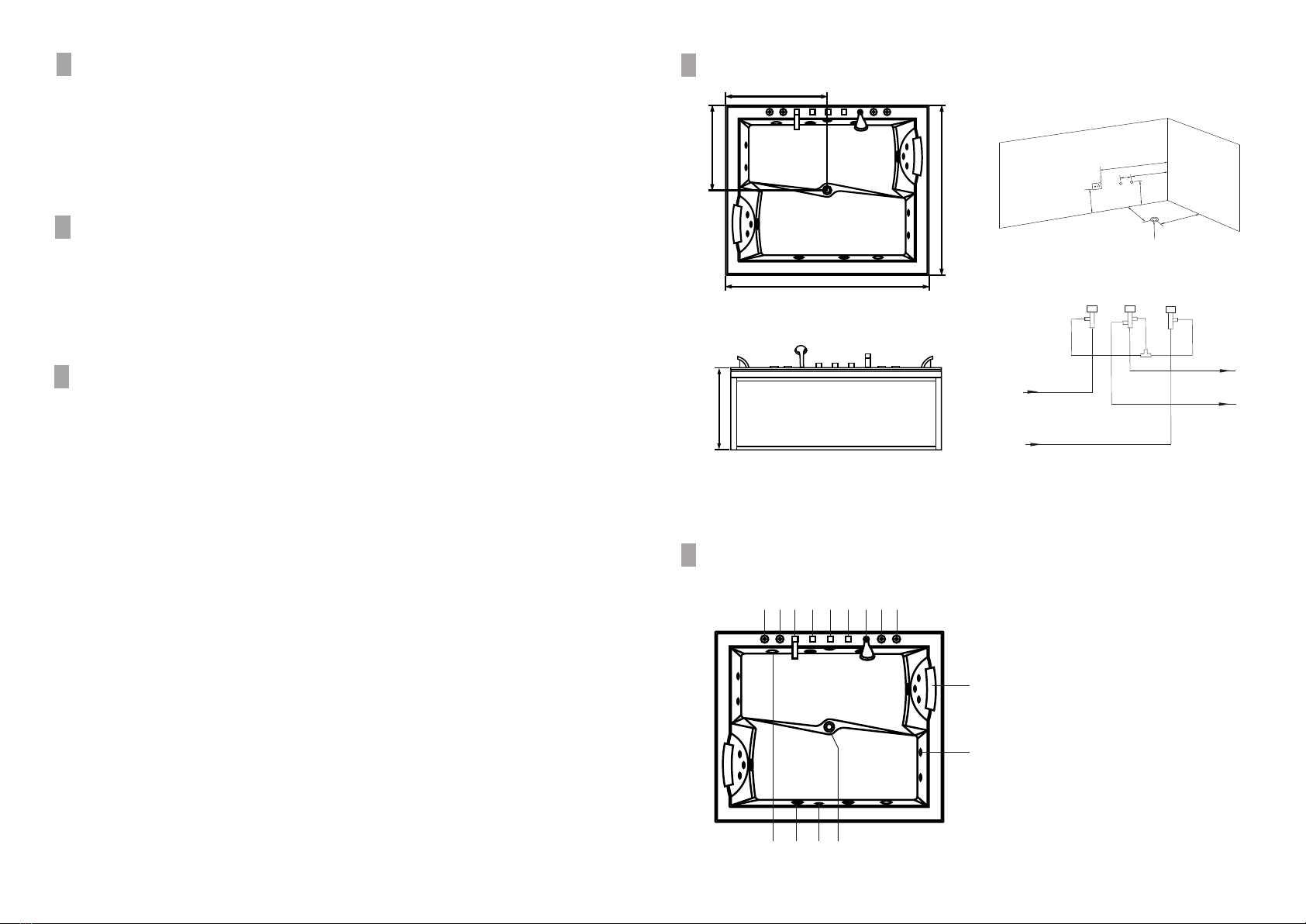

Installation Sketch
150
450
450
1500
650
950
750
cold water
hot water
tap
shower
drainage
Sketch
1
750
900
1500
1800
SIZE:1800X1500X700mm
2 3 4 5 6 7 8 9
15
10 11 12 13
14
700
1.water pump switch
2.air conditioning
3.tap
4.hot water switch
5.shift switch
6.cold water switch
7.shower
8.air conditioning
9.water pump switch
10.water inlet
11.big nozzle
12.drainage switch
13.drainage
14.Pillow
15.small nozzle

Model Size： ：
Construction instruction
Construction plan of water and electricity
A C 2 2 0～2 4 0 V 50 H z
Telephone socketTV signal socket
1.The appliance should be connected through a Residual Current Device which accord with CE Standard,(L,N) open, and with a rated
residual current not exceed 30mA
2.The current of RCD is 32A
3.Single-phase three-wire system, BV =3*4m
4.Make sure waterproof and the device is effective
㎡
Rated power
Rated Voltage Rated Frequency
Product electric parameter
NOTE please co nfirm t he ground bo ard and bathtub height is on the same level
before install, if any difference, please adjust bottom screw to make the height
same, then, install the bathtub, e nsure all bottom feet stand on the ground.
:
Side-glance drawing of ground board
Overlook view of ground board
Overlook view of product Front view of product
Front view of ground board
Three-dimensional drawing of ground board
L.R radio frequency soc ket Cold-hot water-in valve(G1/2) Drainage hole
BR-0502S 1800x1500x700mm
GD350 3.25kW
