High Lifter Arctic Cat 500-04 User manual

1
780Professional Dr. North, Shreveport, LA 71105
Phone 318.524.2270 Fax 318.524.2297
Arctic Cat 500-04 Lift Kit
Read before Installation
This product is designed for use on ATVs and/or RUVs to increase ground clearance and fender clearance. Purchasers should be aware
that use of this product may increase the frequency of required maintenance, part wear, and will raise the center of gravity on your ATV
and/or RUV, increasing risk of roll-over, injury and death on all types of terrain. It is your responsibility to always inform other operators
and passengers of this vehicle about the added risks.
High Lifter Products, products are designed to best fit users ATV/RUV under stock conditions. Adding, modifying, or fabricating any
OEM or aftermarket parts will void warranty. High Lifter Products, products could interfere with other aftermarket accessories. If the
user has aftermarket products on machine, contact High Lifter Products to verify that they will work together. Adding aftermarket
suspension components and/or more aggressive tires can cause breakage of other OEM driveline components such as differentials, axles
or drive shafts.
We recommend that wider tires and/or wheel spacers be used to achieve a wider stance and to improve stability of the ATV and/or RUV.
Riders should be advised that the handling characteristics of a taller ATV and/or RUV are different and require extra care when riding,
particularly on side hills or off-camber situations. If you further raise the center of gravity by adding taller tires, heavy loads to racks or
seats, or by any other means, the ATV and/or RUV must be operated with even more care, at slower speeds and on relatively flat ground.
All turns should be done at a slow speed, even on level ground.
Operation of an ATV and/or RUV with or without modified suspension components, while or shortly after consuming alcohol or drugs,
subjects the rider to the risk of serious bodily harm or possible death. This risk is compounded if the rider does not wear an approved
helmet and other safety gear. High Lifter urges that all approved safety gear be worn when riding an ATV and/or RUV as a driver or
passenger.
By purchasing and installing High Lifter Products, products, user agrees that should damages occur, High Lifter Products will not be held
responsible for loss of time, use, labor fees, replacement parts, or freight charges. High Lifter Products will not be held responsible for any
direct, indirect, incidental, special, or consequential damages that result from any product purchased from High Lifter Products. The total
liability of seller to user for all damages, losses, and causes of action, shall not exceed the total purchase price paid for the product that
gives rise to the claim.
Dealers and other Installers
You are responsible for informing your customer and end user of the information contained above and the increased potential hazards of
operating an ATV and/or RUV equipped with modified suspension components. If you install any suspension modifying components, it
is your responsibility to also install the warning label prominently in view of the driver and in prominent view of the driver and passenger
on RUVs and multi-passenger ATVs. They should also be instructed to notify anyone operating the vehicle, as well as any passengers, that
said vehicle is modified.
As discussed above, it is critically important that they be instructed in the need for slower speed operation, regardless of terrain, after this
lift kit is installed.

2
Parts Diagram

3
Front Lift Installation Instructions and Illustrations
1. Place the jack under the center of the ATV front end until front wheels clear the ground. Be careful to support ATV properly
so that it is secure, but so that the A-arms and shocks can droop to full extension.
2. Remove front wheels and shock.
3. Place the Large spacer on the inside of the lower shock mount, placing the Front Square Tube Bracket, with the notch down
and facing inward, and open end down and outwards, over the shock mount. Secure this bracket with a 10x45mm bolt and a
10mm nut that’s provided with the kit.
4. Place the bottom of the shock inside the top of the Front Square Tube Bracket and placing one Small Spacer between the
front of the shock and the Tube Bracket.
5. Next, place the Flat Bracket (Long) on the rear and to the outside of the Tube Bracket. Securing it with a 10x45mm Hex
Head Bolt and 10mm Lock Nut.
Note: The angle of the bracket should extend rearward.
6. Secure the Flat Bracket (Long) to the rear of the A-arm and the Flat Bracket (Small) on the front of the A-arm with two
1”x1 ¾ Hex Head Bolts, and secure it with two ¼” Lock Nut. Before tightening all nuts, ensure the angle of the shock is at
the same original angle.
7. Tighten all bolts. Repeat this procedure for the other side.
8. Install the wheels, torque all wheel lugs to factory specifications, lower and remove jack. Check for clearance problems or
misalignment.

4
Tie Rod Installation
1. Included in this kit are two replacement tie rods.
2. Mark sure to mark the where the stock tie rod ends on the tie rod end.
3. Once you have marked both tie rod ends remove the stock tie rod and ends from the ATV.
4. Remove the tie rod ends from the stock tie rod.
5. There is a long end and a short end, make sure to attach the long end to the steering stem and the short
end to the knuckle assembly.
6. Place the stock tie rod ends onto the new tie rod provided in the kit.
7. Make sure that the ends are installed up to the marked area.
8. Install the new tie rod assembly onto the ATV.

5
Rear Lift Installation
Rear Lift Installation Instructions and Illustrations
1. Place jack under the ATV rear end and lift until the wheels are off the ground. Be careful to support the
ATV properly so that it is secure, but so that the A-arms and shocks can droop to full extension.
2. Remove the rear wheels and shocks.
3. Place the Large Spacer on the inside of the top shock mount, placing the Rear Square Tube Bracket,
with the notch down and facing inward, the open end down and outwards, over the shock mount.
4. Place the Rear Flat Bracket (with the point facing outward and to the rear of the tube bracket) next to the
Rear Tube Bracket.
5. Now, loosely secure the Rear Tube Bracket, Large Spacer and Flat Brace with one 10x45mm bolt and
10mm Lock Nut. Slide the bolt from the rear of the ATV to the front.
6. Place the top of the shock into the center of the Rear Tube Bracket. Aligning it with the two holes in the
bracket.
7. Insert three 10mm washers between the rear of the bracket and top of the shock, securing it with one
10x45mm bolt and 10mm Lock Nut. Slide the bolt form the rear of the ATV to the front.
8. Next secure the Rear Flat Bracket to the A-arm. Remove and reverse the top A-arm bolt and attach the
bracket and secure it with the factory hardware.
9. Tighten all remaining nuts and bolts.
10. Reattach shock to A-arm. Repeat steps for the other side.
11. Install the wheels, torque all wheel lugs to factory specifications, lower and remove jack. Check for
clearance problems or misalignment.

6

7
High Lifter Lifetime Warranty
From the beginning, High Lifter has engineered and manufactured some of the toughest, most durable products
on the market. That’s why this product comes with a Lifetime Warranty. It’s our promise that High Lifter will
never let you down.
The Lifetime Warranty covers products sold to the original purchaser only and is not transferable. The
term of the warranty is for the lifetime of the vehicle in question.
Normal wear and tear items and finishes, such as, but not limited to: Heim joints, tie rod ends,
ball joints, bearings, seals, bushings, bushing sleeves, zinc plating , powder coating, or chipping and
discoloration of any finish is not covered.
High Lifter will ship the replacement product after the returned product has been inspected by High
Lifter staff.
The warranty shall not include claims for damages, installation time or labor charges, economic losses,
inconvenience, transportation, towing, down time, direct or indirect or consequential damages or
delay resulting from any defect.
The warranty does not apply to products that have been improperly applied or improperly installed.
Making a warranty claim
1. All claims must be accompanied by the part and the original sales receipt or other acceptable proof of
purchase from the original owner.
2. All warranties must be accompanied with a Return Merchandise Authorization (RMA) number.
(Contact High Lifter at 318-524-2270 or 800-699-0947 for an RMA number)
3. When shipping the damaged product:
a. Write the RMA number on the outside of the box.
b. Also include the RMA number, proof of purchase and any notes inside the box.
c. Please keep your tracking number and shipment information.
4. The customer is responsible for shipping the product to High Lifter--return shipping within the lower 48
states will be paid by High Lifter products. With all warranty claims, only standard shipping services
apply.
5. High Lifter will process your order within 24 business hours of receiving the returned item.
6. Ship to: High Lifter Products, 780 Professional Drive North, Shreveport, Louisiana 71105
Table of contents
Other High Lifter Lifting System manuals
Popular Lifting System manuals by other brands

Stenhoj
Stenhoj MOLNAR BRADBURY SB40 Please read this manual before you get started. You must read and understand the precautions for saf

Lifter

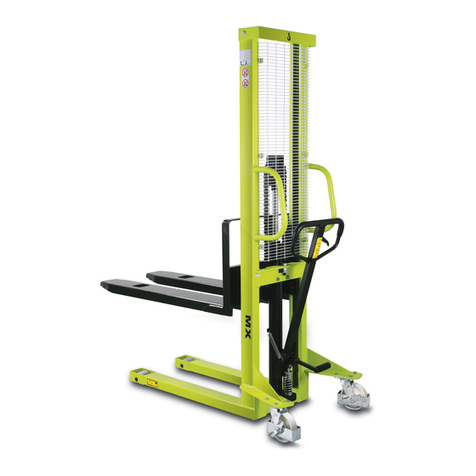

Lifter MX 510 Use and maintenance manual
