High Lifter Arctic Cat Wild Cat Upper Radius Bars User manual

780 Professional Drive N Shreveport, LA 71105 Phone [phone]
Arctic Cat Wild Cat Upper Radius Bars
Read before Installation
This product is designed for use on ATVs and/or RUVs to increase ground clearance and fender clearance. Purchasers
should be aware that use of this product may increase the frequency of required maintenance, part wear, and will raise the
center of gravity on your ATV and/or RUV, increasing risk of roll-over, injury and death on all types of terrain. It is your
responsibility to always inform other operators and passengers of this vehicle about the added risks.
High Lifter Products, products are designed to best fit users ATV/RUV under stock conditions. Adding, modifying, or
fabricating any OEM or aftermarket parts will void warranty. High Lifter Products, products could interfere with other
aftermarket accessories. If the user has aftermarket products on machine, contact High Lifter Products to verify that they will
work together. Adding aftermarket suspension components and/or more aggressive tires can cause breakage of other OEM
driveline components such as differentials, axles or drive shafts.
We recommend that wider tires and/or wheel spacers be used to achieve a wider stance and to improve stability of the ATV
and/or RUV. Riders should be advised that the handling characteristics of a taller ATV and/or RUV are different and require
extra care when riding, particularly on side hills or off-camber situations. If you further raise the center of gravity by adding
taller tires, heavy loads to racks or seats, or by any other means, the ATV and/or RUV must be operated with even more care,
at slower speeds and on relatively flat ground. All turns should be done at a slow speed, even on level ground.
Operation of an ATV and/or RUV with or without modified suspension components, while or shortly after consuming
alcohol or drugs, subjects the rider to the risk of serious bodily harm or possible death. This risk is compounded if the rider
does not wear an approved helmet and other safety gear. High Lifter urges that all approved safety gear be worn when riding
an ATV and/or RUV as a driver or passenger.
By purchasing and installing High Lifter Products, products, user agrees that should damages occur, High Lifter Products will
not be held responsible for loss of time, use, labor fees, replacement parts, or freight charges. High Lifter Products will not be
held responsible for any direct, indirect, incidental, special, or consequential damages that result from any product purchased
from High Lifter Products. The total liability of seller to user for all damages, losses, and causes of action, shall not exceed the
total purchase price paid for the product that gives rise to the claim.
If this product is not what you expected, or is not consistent with your intended use, you should return the product
immediately to the seller, before installation, for a refund of the purchase price; less any fees. After installation, product is
warranted for 90 days for defects in workmanship and materials. High Lifter Products will warranty only parts provided by
High Lifter Products. Any damage or problems with OEM housings, bearings, seals, or other manufacturer’s products will
not be covered by High Lifter Products. Parts and products will not be warranted if item was not installed properly, misused,
or modified.
Dealers and other Installers
You are responsible for informing your customer and end user of the information contained above and the increased potential
hazards of operating an ATV and/or RUV equipped with modified suspension components. If you install any suspension
modifying components, it is your responsibility to also install the warning label prominently in view of the driver and in
prominent view of the driver and passenger on RUVs and multi-passenger ATVs. They should also be instructed to notify
anyone operating the vehicle, as well as any passengers, that said vehicle is modified.
As discussed above, it is critically important that they be instructed in the need for slower speed operation, regardless of
terrain, after this lift kit is installed.

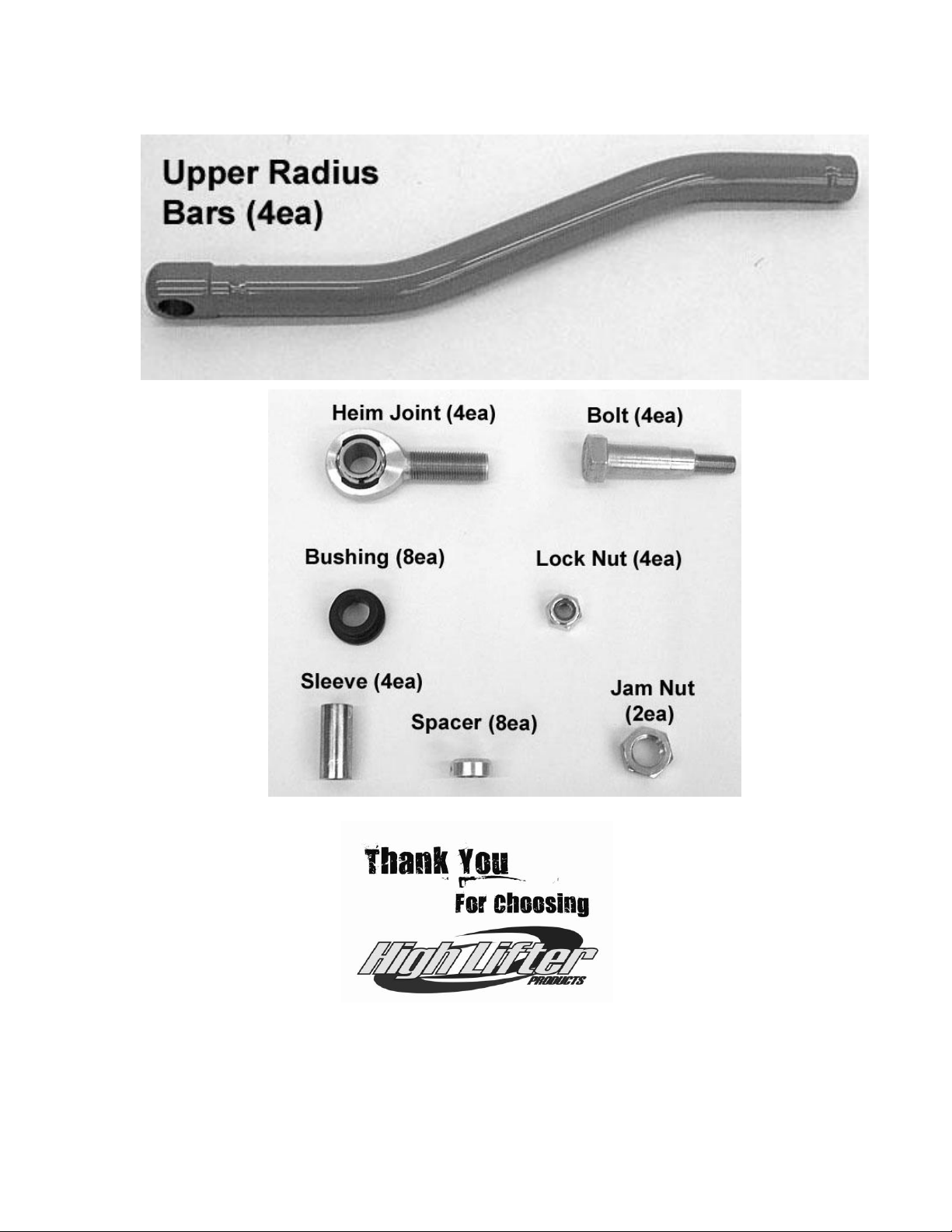

Parts Diagram

Installation Instructions

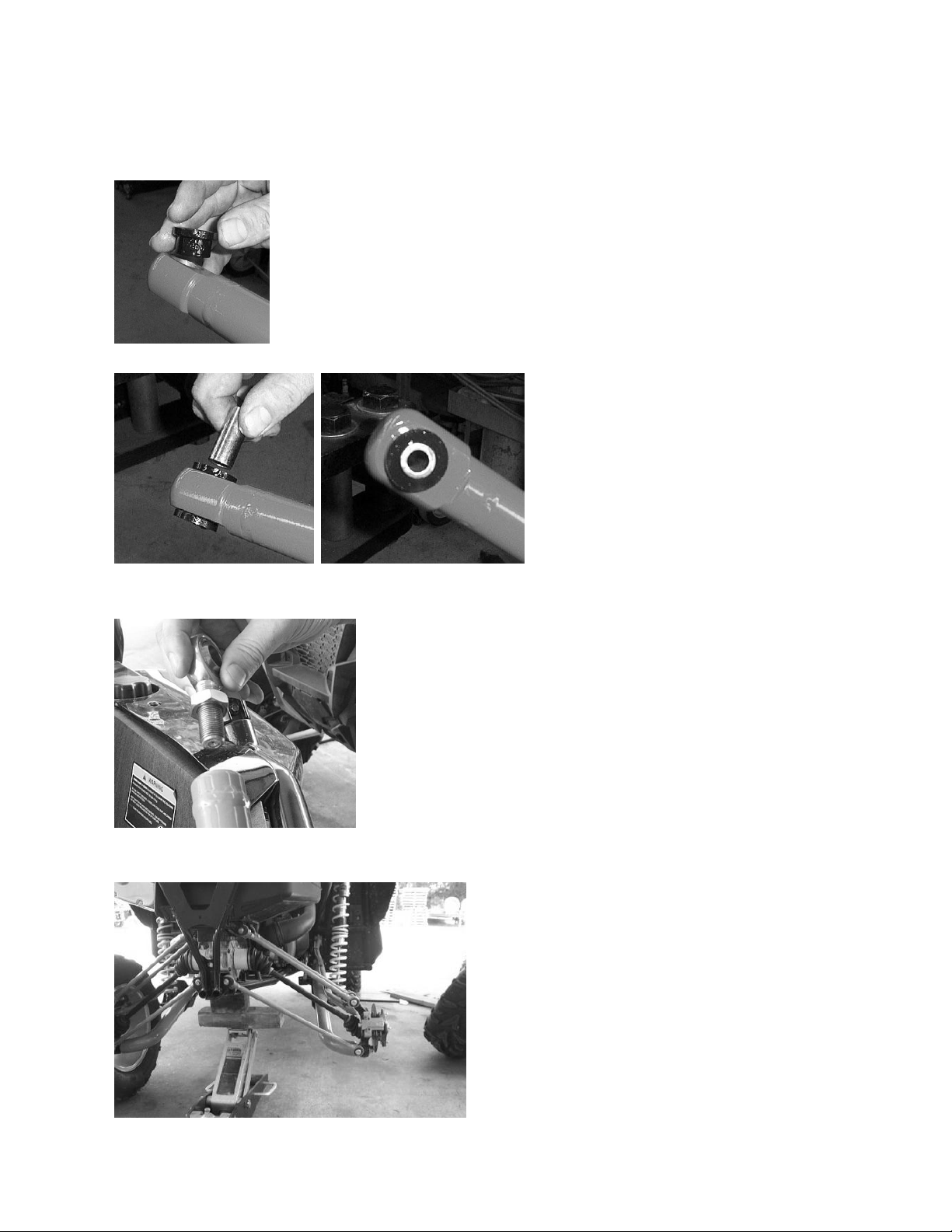

1. Preassemble the new radius bars.
2. Insert the two black rubber bushings into open end of the radius bar. Mare sure to add a little grease
to the bushings, this will make the installation easier.
3. Next insert one sleeve in to the bushings.
4. Now thread the jam nut onto the heim joint. Run it all the way down to the bottom of the threads and
screw the heim joint into the radius bar
5. Once you have preassemble the radius bars, jack up the rear of the UTV enough so that the rear arms
drop to full extension and the tires are off the ground.

6. Disconnect the rear stock Upper radius rods.
7. When you have removed the rods you will need to take a measurement of the rod. Measure from
eyelet to eyelet. You will need to adjust the new radius rod to this distance.
8. Set the distance on the new rod by adjusting the heim joint and jam nut.
9. Once you have set the distance on the new rod attach it to the UTV. Attach the ends of the radius bars
to the frame using stock hardware. Torque nuts to factory specifications.

10. Connect the new Heim Joint and Spacers to the knuckle assembly using the new shoulder bolt and
10mm lock nut provided in the kit. When you place the spacer on the bolt make sure that the tapered
end goes into the eye of the heim joint. Now insert into the heim joint, and then place another spacer
on the other side of the heim joint, and connect it to the knuckle assembly using the lock nut provided
in kit.
11. Once you have connected the new radius rods on both sides, place the wheels back on the UTV if you
removed them, torque all lugs to factory specifications, and lower the jack.
BEFORE AFTER

High Lifter Lifetime Warranty
From the beginning, High Lifter has engineered and manufactured some of the toughest, most durable
products on the market. That’s why this product comes with a Lifetime Warranty. It’s our promise that
High Lifter will never let you down.
The Lifetime Warranty covers products sold to the original purchaser only and is not transferable. The
term of the warranty is for the lifetime of the vehicle in question.
Normal wear and tear items and finishes, such as, but not limited to: Heim joints, tie rod ends, ball
joints, bearings, seals, bushings, bushing sleeves, zinc plating , powder coating, or chipping and
discoloration of any finish is not covered.
High Lifter will ship the replacement product after the returned product has been inspected by High
Lifter staff.
The warranty shall not include claims for damages, installation time or labor charges, economic losses,
inconvenience, transportation, towing, down time, direct or indirect or consequential damages or
delay resulting from any defect.
The warranty does not apply to products that have been improperly applied or improperly installed.
Making a warranty claim
1. All claims must be accompanied by the part and the original sales receipt or other acceptable proof of
purchase from the original owner.
2. All warranties must be accompanied with a Return Merchandise Authorization (RMA) number.
(Contact High Lifter at 318-524-2270 or 800-699-0947 for an RMA number)
3. When shipping the damaged product:
a. Write the RMA number on the outside of the box.
b. Also include the RMA number, proof of purchase and any notes inside the box.
c. Please keep your tracking number and shipment information.
4. The customer is responsible for shipping the product to High Lifter--return shipping within the lower 48
states will be paid by High Lifter products. With all warranty claims, only standard shipping services
apply.
5. High Lifter will process your order within 24 business hours of receiving the returned item.
6. Ship to: High Lifter Products, 780 Professional Drive North, Shreveport, Louisiana 71105
