HIGHLEAD GL13118-1 Instruction Manual

HIGH LEAD
GL13118-1
Blindstitch machine
Instruction Manual
Parts Catalog
SHANGHAI HUIGONG N0.3 SEWING MACHINE FACTORY
From the library of: Diamond Needle Corp

INDEX
I. BriefInstruction ............................. ; ....................................... 1
2. Main Specification ..................................•............................... !
3. Installation and Preparation .................•.................................... 1
A. Installation ........................................................................ 1
1. Take Machine Head out
11. Install the Stand
m. Install the Machine
IV. Install the Cloth Plate Assy
B. Preparation ........................................................................ 2
1. Clean the Machine
11. Check the Machine
m. Lubricate the Machine
4. Operation ................................................................................ 3
A. Rotation and Speed ............................................................... 3
B. Needle Selection .................................................................. 3
C. Needles and Thread .............................................................. 3
D. Replace Needles .................................................................. 3
E. Threading .......................................................................... .4
F. Pressing in and out.. ............................................................. .4
G. Skip Stitch Device .............................................................. .4
H. Feed Dog Adjustment.. ........................................................... .4
5. Adjustment ............................................................................. .4
A. Adjust Stitch Length ............................................................... 5
B. Adjust Needle Penetration ........ ·' ............................................... 5
C. Adjust the Pressing Plate .......................................................... 5
D. Adjust Needle and Needle Plate .................................................. 5
1. Back and Forth Position
11. Up and Down Position
From the library of: Diamond Needle Corp

111. Left End Position
IV. Needle Stroke
E. Spreader Position Adjustment ................................................... 7
1. Standard Position
n. Left and Right Position
111. Up and Down Position
1v. Back and Forth Position
F. Feed Lifting Position Adjustment.
.............................................. 8
1. Left and Right Position
n. Back and Forth Position
111. Assembling and Disassembling the Feed Lifting Wheel
G. Adjust Presser Feet Pressure ..................................................... 10
H. Adjust Thread Tension ............................................................ lO
6. Machine Supply ......................................................................... 10
7. Standard Accessories ................................................................... lO
8. Parts List
A. Arm and Bed
B. Main Shaft Mechanism
c. Feed Dog and Needle Shaft Assy
D. Spreader Mechanism
E. Needle Plate Assy
F. Presser Foot Mechanism
G.
Feed Lifting Mechanism
H. Knee Lifter Mechanism
I. Thread Tension Mechanism
J. Cloth plate Assy
From the library of: Diamond Needle Corp

1. Briefinstruction
This model is designed with needle bar to take up thread and spreader
mechanism
to catch thread loop producing Stitch 103 and straight blind stitch seam by
one arched needle and one spreader. Also it is equipped with regulation mechanism
to
adjust presser foot pressure, thread tension, stitch length, feed lifting, presser foot left
and feed ratio for blind stitching light
to medium heavy weight fabrics or sewing
operations, such
as trousers cuff, lap, fore pant of suit, etc.
It is requested to read this instruction manual carefully before operating the machine,
for best machine performance.
2. Main Specification
(!)Max. Sewing speed
(2)Max. Stitch length
(3)Feed ratio
(
4)Presser foot lift
(5)Needle
(6)Thread
(7)Motor power
(8)Measurements
(9)Gross weight
2500 r.p.m.
3mm-8mm
1:1 2:1
7mm
GLX 1 NM75-100 (LWX 6T 3#-4#)
14.5-7.5 tex cotton
14.8-7.4 tex terylene cotton
270W
510X360X245
24.5kgs
3. Installation and Preparation
A. Installation
1. Take Machine Head out
When taking machine head out
of the packing, be careful not to damage
the exposed parts such
as thread tension, thread guide etc.
Don't dispose
of any packing material before checking up with the packing
list in order
to avoid any parts missing.
n. Install the Stand
a. First assemble back brace and treadle brace with left and right legs,
then set treadle holders to treadle brace.
b. Install motor onto table.
c. Set table onto stand with washers and wood screws.
d. Connect motor
and treadle lever by draw bars. After adjusting treadle
position, tighten the nuts for draw barjoint and treadle.
111. Install the machine
From the library of: Diamond Needle Corp

a. Put Cushion D, Brace C, Cushion B, Cushion E, Machine Head A
onto the table, then put Bolt F through holes, Washer G and Washer
H and tighten Nut I (Fig.
1) finally.
b. Assemble Knee Lifting Bar K, Bushing L to long shaft. Tighten the
bushing when 1em is obtained between the knee lifting bar and table
(fig. 2).
c. Set V-belt N to the machine pulley and align motion pulley with
machine pulley. After adjusting motor position and the V-belt tension,
tighten the nuts for the motor.
d. Set motor switch on the right underside of the table.
~t~-~:A I
-+-~ B
""G
:--a
'I
Fig. I
'·c
D
--~
E
IV. Install the cloth plate assy (Fig. 3)
'!"""
'
'•
I
,o- ["'" l
~
'
I
~J
_,
,,_,>'-\1_'-, • '5.5c
L 1cm
Fig.2
a. Set Support A to the machine head by Screw B.
m
b. Tighten Screw G into Shaft C, then put Shaft C into the hole of
Support A, set Retainer F and tighten Screw H. Be sure the cloth
plate rotates
freely.
c. Insert Pin D into Bushing K; and tighten the screw.
d. Adjust the height of Cloth Plate E and tighten Screw I.
B. Preparation
1. Clean the machine
Clean
off anti-rust grease from the machine parts with soft cloth and
gasoline before using a new machine or a machine idle for a long time.
n. Check the machine
The machine parts may get loose or deformed by strong jolt
in
transportation. Check the machine carefully by turning machine pulley to see
if there is any collision, noise or looseness. Be sure the machine is in good
condition before
rum1ing it.
m. Lubricate the machine
Fill the oiling holes with a few drops
of machine oil before operating the
machine (Fig. 4), making sure all the movable parts are well lubricated, then
run the machine at
low speed for a few minutes. A new machine is requested
From the library of: Diamond Needle Corp

to be oiled at least twice per shift. To avoid c;ontamination on sewing fabrics
be sure to clean the machine after oiling and running idle.
C:=J
Fig. 3 Fig. 4
4. Operation
A. Rotation and Speed
The machine pulley should rotate clockwise viewing from right side of the
machine. It is suggested
to use a new machine at a speed less than 1800r.p.m. for the
first 60 days. After this period you may operate the machine at a higher speed.
B. Needle Selection
Be sure to use the needles GLX 1 NM75-1
OO(LW X6T 3#-4#). A different
needle size is required for different sewing fabric.
C. Needle
and Thread
Please refer to the table below for the selection of needles and thread.
Thread Size
Needle Size Sewing Fabric
Cotton Terylene Cotton
75
7.5tex 7.4tex 130 Plain cloth, terylene cotton, nylon
.
90 9.5tex Cotton, wool, medium heavy fabric
100 14.5tex 14.8tex Corduroy, heavy wool heavy duty fabric
D. Replace Needles (Fig. 5)
-
Fig. 5
Fig.6
From the library of: Diamond Needle Corp

After turning machine pulley to bring the needle to left end, and adjust the
feed lifting dial
to a, loosen Screw B and replace the old needle with a new
one. Make sure the needle shank is
in the center of the left guide slot of the
needle plate. Finally tighten Screw B and adjust the feed lifting dial back to
the original position. After replacing the needle properly. If there is a bar on
needlepoint
or the needle is bent or blunt; you must replace it for proper
sewing performance.

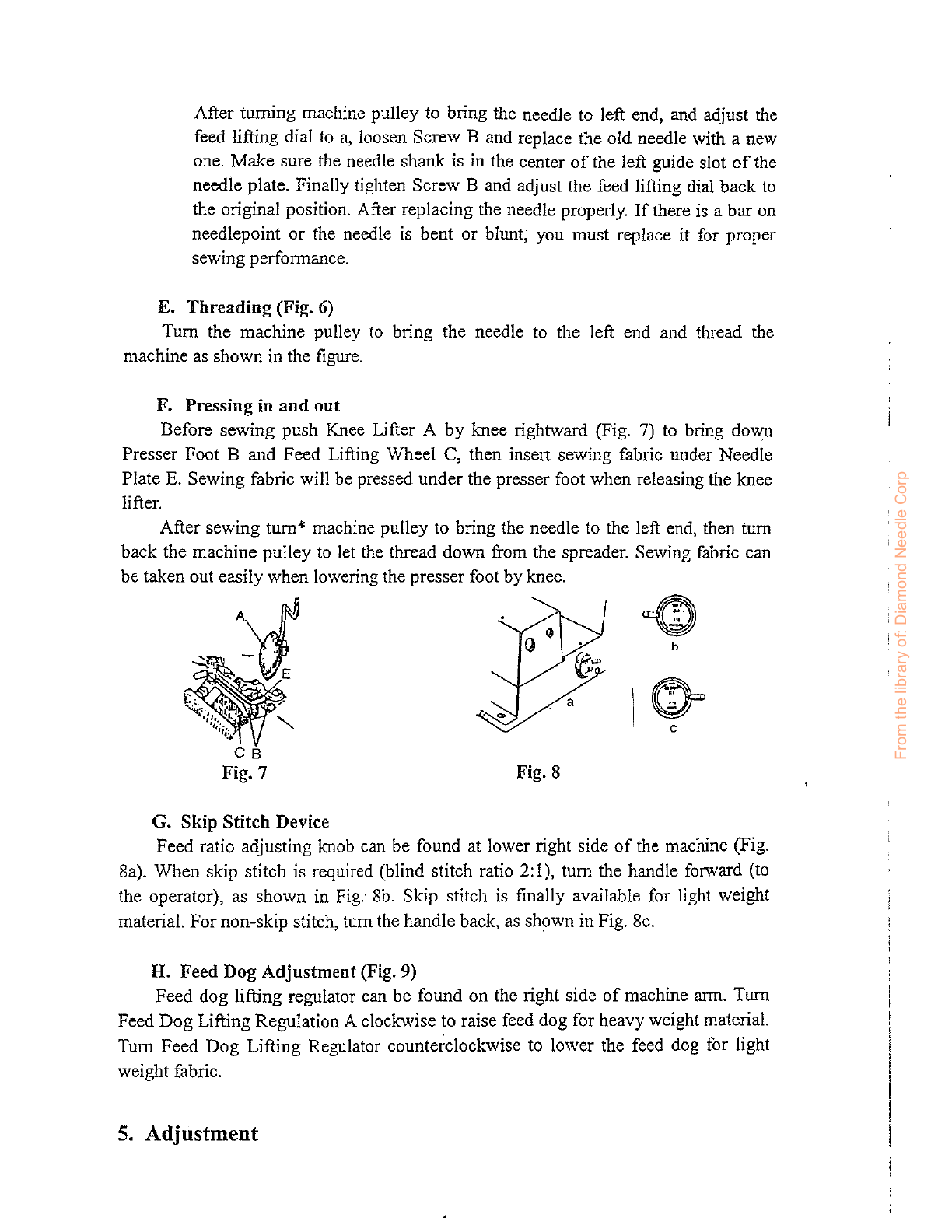

E.
Threading (Fig. 6)
Tum the machine pulley to bring the needle to the left end and thread the
machine as shown in the figure.
F. Pressing in
and out
Before sewing push Knee Lifter A by knee rightward (Fig. 7) to bring down
Presser Foot B and Feed Lifting Wheel C, then insert sewing fabric under Needle
Plate E. Sewing fabric will be pressed under the presser foot when releasing the knee
lifter.
After sewing tum* machine pulley to bring the needle to the left end, then tum
back the machine pulley
to let the thread down from the spreader. Sewing fabric can
be taken out easily when lowering the presser foot by knee.
CB
Fig. 7
G. Skip Stitch Device
Fig. 8
Feed ratio adjusting knob can be found
at lower right side of the machine (Fig.
8a). When skip stitch is required (blind stitch ratio
2:1 ), tum the handle forward (to
the operator), as shown in
Fig. 8b. Skip stitch is finally available for light weight
material. For non-skip stitch, tum the handle back, as shown in Fig. 8c.
H. Feed Dog Adjustment (Fig. 9)
Feed dog lifting regulator can be found on the right side
of machine arm. Tum
Feed Dog Lifting Regulation A clockwise to raise feed dog for heavy weight material.
Tum Feed Dog Lifting Regulator counterclockwise to lower the feed dog for light
weight fabric.
5. Adjustment
From the library of: Diamond Needle Corp

A. Adjust stitch length (Fig. 10)
Press down the button by left hand while turning the machine pulley by right
hand. After you hear a click, keep depressing button
and turning machine pulley until
the figure on left side of machine pulley aligns with the scale. If the stitch length
required
is smaller than the figure shown on the scale, tum the machine pulley
clockwise, or tum counterclockwise for longer stitch length.
r~tc;;--~·
Graduation
Fig. 9 Fig. 10
B. Adjust Needle Penetration
A feed lifting wheel regulator can be found in the middle of lower arm of the
machine. It consists
of Knob A and Indicator B (Fig. 11 ). The height of Feed Lifting
Wheel C decides stitching thickness. Adjust stitching as per the exposed stitches. Tum
the knob clockwise to lower the feed lifting wheel for reduced stitching thickness, or
tum the knob counterclockwise
to raise the feed lifting wheel for increased stitching
thickness.
Fig.
11
Fig. 12
C. Adjust the Pressing Plate (Fig. 12)
This blind stitch machine
is equipped with an all-purpose needle plate available
for tooth light and heavy weight fabrics. When sewing adjust Pressing Plate A
as per
the thickness
of the sewing material. When adjusting, tum Screw B clockwise for
increased pressure for heavy weight fabric, or tum Screw B counterclod.-wise
for
reduced pressure for light weight fabric.
D. Adjust Needle and Plate
1. Back and Forth Position
Needle B should be in the center of Left Guide Slot C of the needle plate
(Fig. 13a).
If the needle is not positioned properly, loosen Screw A and move
From the library of: Diamond Needle Corp

Needle Clamp D back and forth (Fig. l3b ). After adjustment, tighten the screw
a
gam.
A
Fig. 13a Fig. 13b Fig. 14
u. Up and Down Position (Fig. 14)
There are three checkpoints for the up and down position of the needle:
a. The clearance between the needle and the bottom of Left Guide Slot
C should be less than 0.3mm;
b. The needle should be just in touch with the bottom of the right guide
slot (KL arched surface). Wrong positioning will cause the problems
like needle like breakage, thread breakage, skipping, etc. Wben
adjusting, loosen Screw H and I
to move the needle plate up and
down
to the correct position. After adjustment, tighten screws again.
(Fig.IS)
H
I
l
H
Fig. 15
nr. Left End Position
F
I
•
l ..
I
i~
Fig. 16
The needlepoint should be flush with Right Side F
of the left guide slot
of the needle plate (Fig. 16)
When adjusting, tum the left end pulley to bring the needle to the left
end.
If not positioned correctly, loosen screw A (Fig. 13b) and turn the needle
clamp. Tighten the screw when the proper position is obtained.
IV. Needle Stroke
The needle stroke decides the right end of the needle movement. Wben
the needle moves
to the right end, the distance between the needlepoint and
the right side of the needle plate should be almost 2mm (Fig. 17)
From the library of: Diamond Needle Corp

E
..,
j
.
'2_
e
F
Fig. 17 Fig. 18
When adjusting, remove the cover
of the upper arm, insert the
screwdriver into Hole H, loosen Screw G and turn Pin F till the correct
needle stroke is obtained. (fig. 18)
E. Spreader Position Adjustment
1. Standard Position
The standard position
of the spreader is obtained by Crarik A and Shaft
B. When assembling align the dot on the crank with the center
of the V slot
of the shaft. (fig. 19)
11. Left and Right Position
When the long finger point
of the spreader touches the center line of the
needle, the distance between the center
of the long finger point and the left
edge
of the needle hole should be almost 2mm. (Fig. 20)
A c
2
Fig. 19 Fig. 20
When adjusting
a) Loosen Bolt
E, and move Eccentric Bushing D left and right. Tighten Bolt
E again when the correct position is obtained. (Fig. 21)
b) Turn the machine pulley to see
if Spreader F collides with Point G of
Needle Guard K (Fig. 22). If it does move the eccentric bushing left a little.
c) Adjust the relative position for the dot on the crarik to the V slot. When
adjusting the left and right position
of the spreader, you must base on the
specific conditions and choose suitable steps for adjustment.
111. Up and down Position
The clearance between the long finger point and the needle should be
Jess
From the library of: Diamond Needle Corp

than 0.05mm when crossing (Fig. 20).
·F
G
Fig. 21 Fig. 22
When adjusting
a) Loosen
BoltE (Fig. 21) and tum Eccentric Bushing D till the clearance is
obtained
with the spreader at the right end.
G
Fig. 23 Fig. 24
b) After adjustment, make
sure the needlepoint should be in the center of the
opening
of spreader C with the spreader at the left end (Fig. 23)
tv.
Back and Forth Position
Adjust the back and forth position as follows:
a. Adjust the position of the dot point on the crank in relation to the V
slot
of the shaft (Fig. 19).
b. Loosen Nut F and
Screw H and tum the spreader to adjust the
position.
If the above adjustment still cannot come to satisfaction, loosen screw K and
move the spreader slightly back or forth for optimum position. Be sure the
clearance between the front
edge of the spreader sha:ft and Spreader C should
be less than 0.5mm.
F. Feed Lifting Position Adjustment
1. Left and Right Position
The center of Feed Lifting Wheel C should coincide with the center of
the V slot of the pressing plate (Fig. 25 & 26).
R
From the library of: Diamond Needle Corp

L
D "V"
),~
~c
Fig. 25 Fig. 26

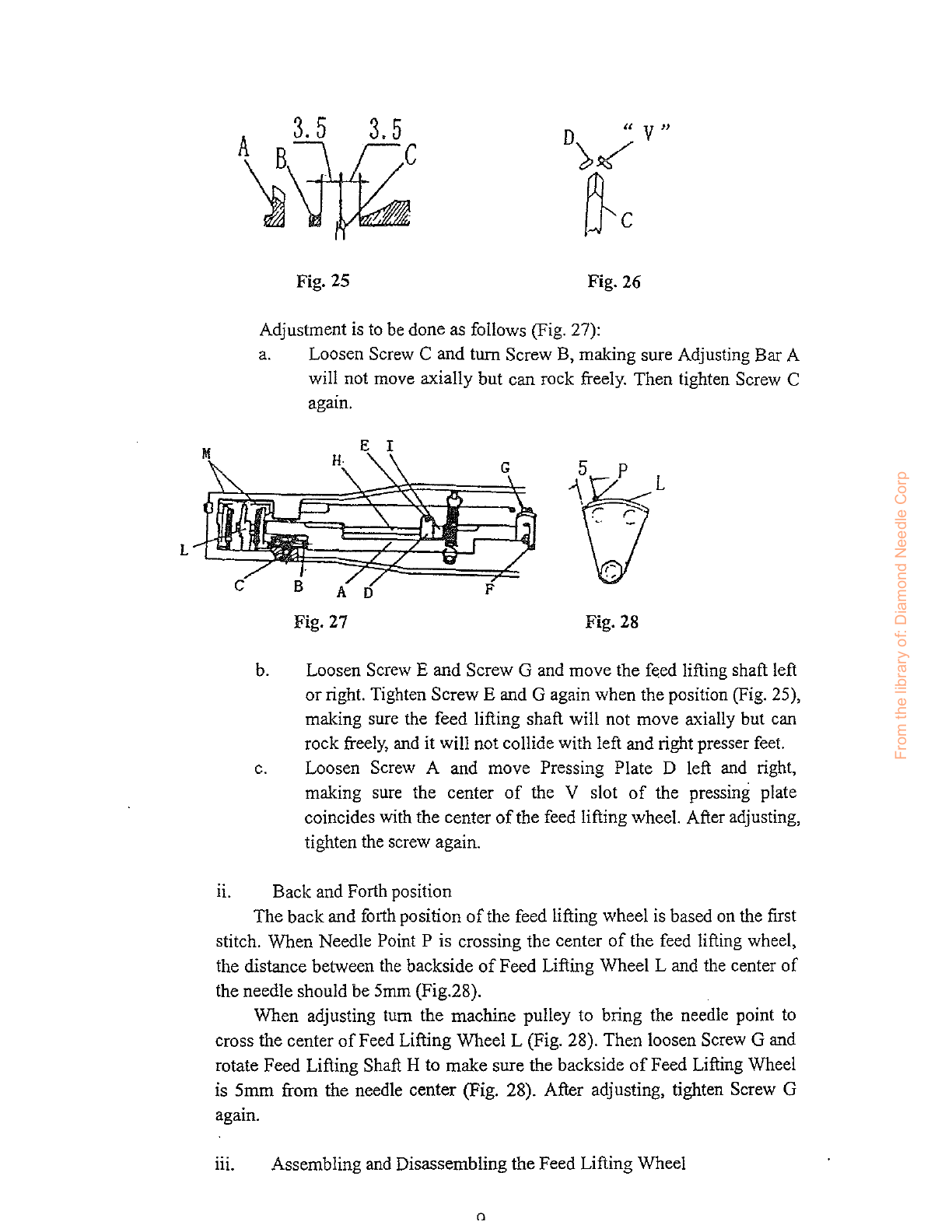

Adjustment is to be done as follows (Fig. 27):
a. Loosen Screw C and turn Screw B, making sure Adjusting Bar A
will not move axially but can rock freely. Then tighten Screw C
agam.
L
Fig. 27 Fig. 28
b. Loosen Screw E and Screw G and move the feed lifting shaft left
or right. Tighten Screw E and G again when the position (Fig. 25),
making sure the feed lifting shaft will not move axially but can
rock freely, and it will not collide with left and right presser feet.
c. Loosen Screw A and move Pressing Plate D left and right,
making sure the center
of the V slot of the pressing plate
coincides with the center
of the feed lifting wheel. After adjusting,
tighten the screw again.
11. Back and Forth position
The backand forth position
of the feed lifting wheel is based on the first
stitch. When Needle Point P is crossing the center
of the feed lifting wheel,
the distance between the backside
of Feed Lifting Wheel L and the center of
the needle should be 5mm (Fig.28).
When adjusting tum the machine pulley to bring the needle point to
cross the center
of Feed Lifting Wheel L (Fig. 28). Then loosen Screw G and
rotate Feed Lifting Shaft H to make sure the backside
of Feed Lifting Wheel
is
5mm from the needle center (Fig. 28). After adjusting, tighten Screw G
again.
m. Assembling and Disassembling the Feed Lifting Wheel
()
From the library of: Diamond Needle Corp

K L
/
.H
J
,----
N
Fig. 29
,;·
c
Fig. 30
\
f/
I '
A i

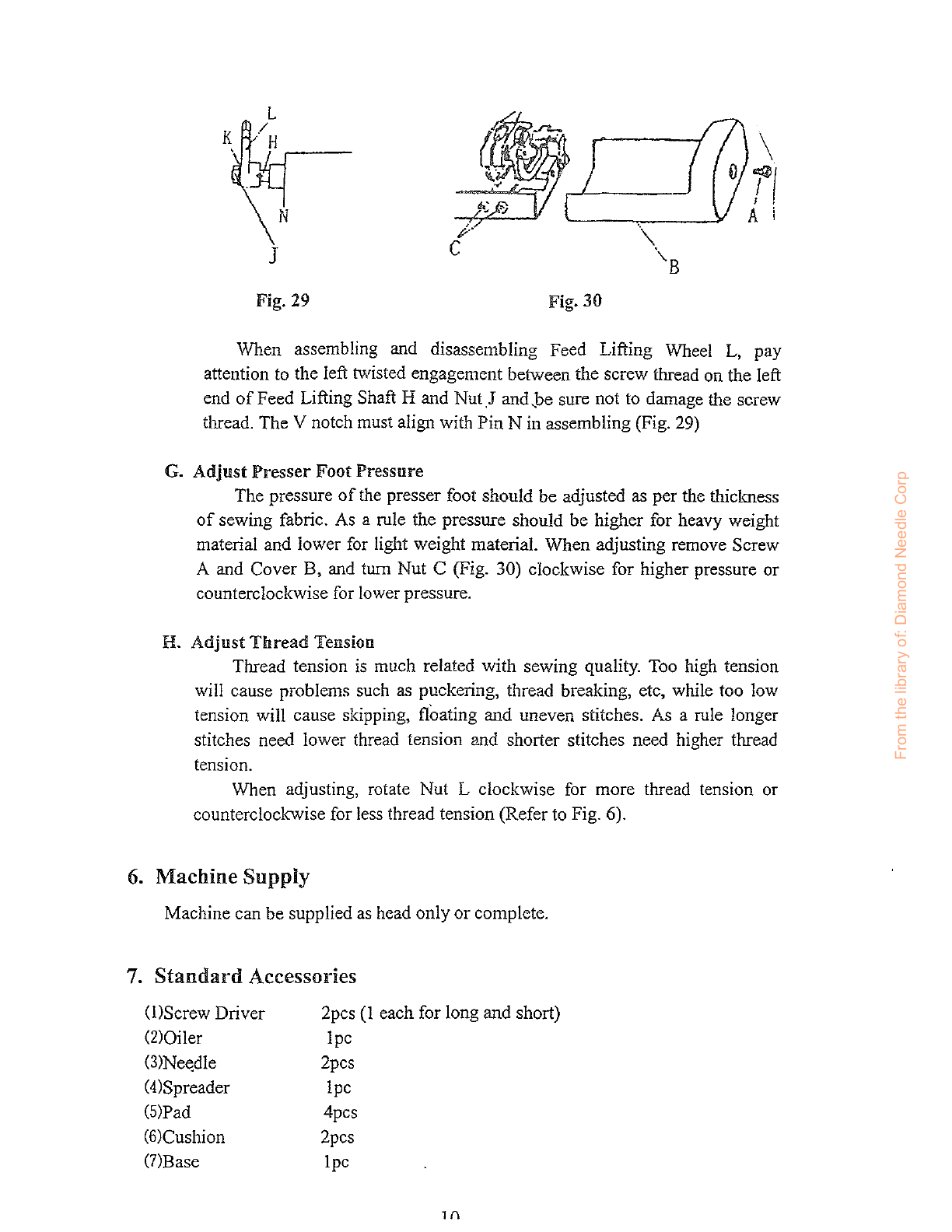

When assembling and disassembling Feed Lifting Wheel L, pay
attention to the left twisted engagement between the screw thread on the left
end
of Feed Lifting Shaft Hand NutJ and,be sure not to damage the screw
thread. The V notch must align with Pin N in assembling (Fig. 29)
G.
Adjust Presser Foot Pressure
The pressure of the presser foot should be adjusted as per the thickness
of sewing fabric. As a rule the pressure should be higher for heavy weight
material and lower for light weight material. When adjusting remove Screw
A and Cover B, and tum Nut C (Fig. 30) clockwise for higher pressure or
counterclockwise for lower pressure.
H.
Adjust Thread Tension
Thread tension
is much related with sewing quality. Too high tension
will cause problems such as puckering, thread breaking, etc, while too low
tension will cause skipping, floating and uneven stitches. As a rule longer
stitches need lower thread tension and shorter stitches need higher thread
tension.
When adjusting, rotate Nut L clockwise for more thread tension or
counterclockwise for less thread tension (Refer to Fig. 6).
6. Machine Supply
Machine can be supplied as head only or complete.
7. Standard Accessories
(!)Screw Driver
(2)0iler
(3)Nee;dle
(4)Spreader
(S)Pad
(6)Cushion
(?)Base
2pcs (I each for long
and short)
lpc
2pcs
lpc
4pcs
2pcs
lpc
1()
From the library of: Diamond Needle Corp

(8)Knee Lifter Assy Iset
(9)Screw 4pcs
(IO)Nut
4pcs
ODWasher
4pcs
(IZ)Thread Stand Iset
(l3)Instruction Manual
lpc
From the library of: Diamond Needle Corp

PARTS LIST
From the library of: Diamond Needle Corp

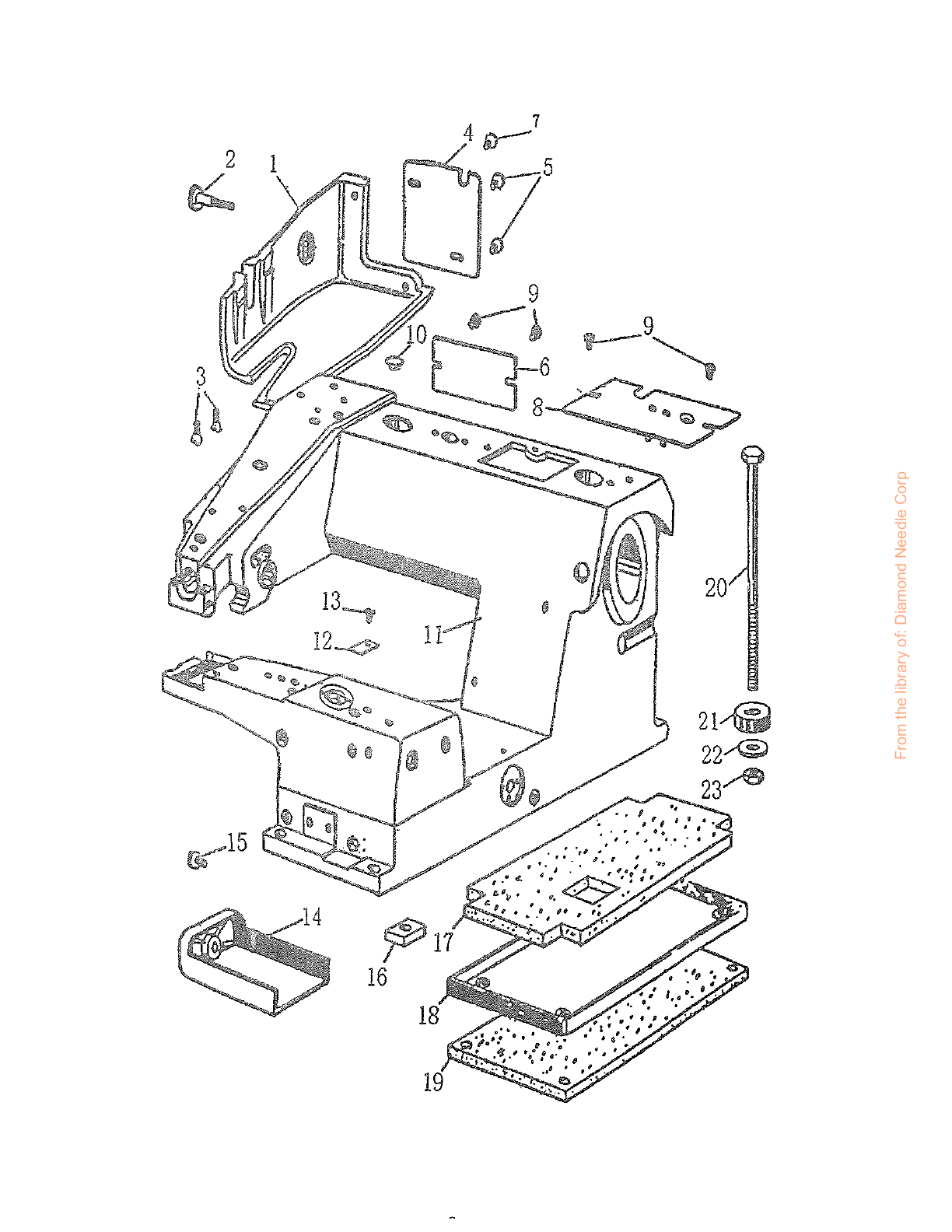

l.ARM&BED
Ref.Nos. Parts No. Description Quantity
1
GKl-2
Arm cover 1
2
GSl-2
Screw 1
3 GS7-2 Cone screw 2
4 GK3-2 Side cover 1
5 S40 Screw 2
6 GK4-2
Back cover 1
7 GS6-2 Screw 'l
8 GK2-2 Top
cover
1
GR3-2 Pipe 2
9 S40 Screw 4
10 GRI0-2 Rubber plug 1
11
GQl-2
Bed 1
12
GK6-2 Oil
cap
1
13 .GS6-2 Screw 1
14
GK5-2 Bed cover 1
15
GS2-2 Screw 1
16
GR14-2 Rubber cushion l
17
GR15-2 Rubber cushion 1
18
GR16-2 Seat 1
19
GRI7-2 Rubber cushion 1
20 GS103-2 Screw 4
21
GR18-2 Rubber cushion 4
22
GR201-2 Washer 4
23
GLlOl-2
Nut 4
From the library of: Diamond Needle Corp

__-15
&
4~
7
13_,
12~
q
Gr/5
7
"~~·~
--~~ ~ ~ ~~-- -__,
8
~17
16
20
21~
22..--®
23_A!il
From the library of: Diamond Needle Corp

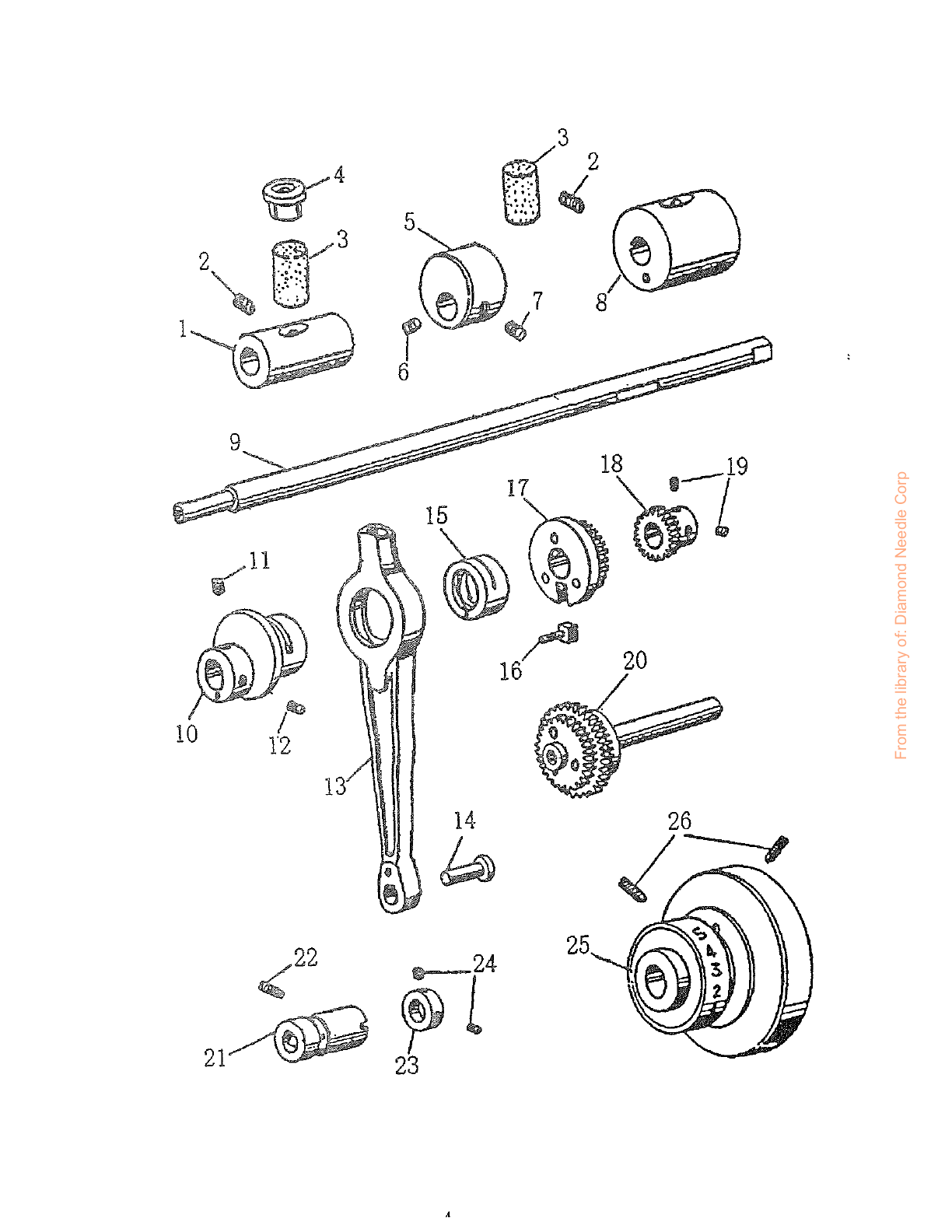

2.Main Shaft Mechanism
Ref.Nos. Parts No. Description Quantity
1 G01-2 Bushing (left) 1
2 GS37 Set screw 2
3 GR4-2 Felt 2
4
GRI-2
Plug 1
5 G03-2 Balance 1
6 GS8-2 Set screw 1
7 GS9-2 Set screw 1
8 G07-2 Bushing (right) 1
9 GZ2-2 Main shaft 1
10 G04-2 Eccentric bushing 1
11
GS50 Set screw 1
12 GS50 Set screw 1
13
GHI-2
Link
1
14 GX3-2 Pin 1
15
G05-2 Eccentric bushing 1
16
GX2-2 Slide pin 1
17
G06-2 Gear bushing 1
GCI-2
Gear 1
GXI02-2
Rivet 3
18
GC2-2 Pinion 1
19
GS43 Set screw 2
20 GC4-2 Idle pinion 1
GC3-2 Idle gear· I
G010-2 Gear bushing 1
GZ3-2 Gear
bar
1
GX103-2 Rivet 3
21 G09-2 Eccentric bushing 1
22 GS37 Set screw 1
23
G08-2 Collar 1
24 GS43 Set screw 2
25
GPI-2
Hand wheel 1
26 GS37 Set screw 2
From the library of: Diamond Needle Corp

3 2
01(
17
18
)iit
20
13
14
~
22
~ 8 24 25
21~ ~i
23
A
From the library of: Diamond Needle Corp

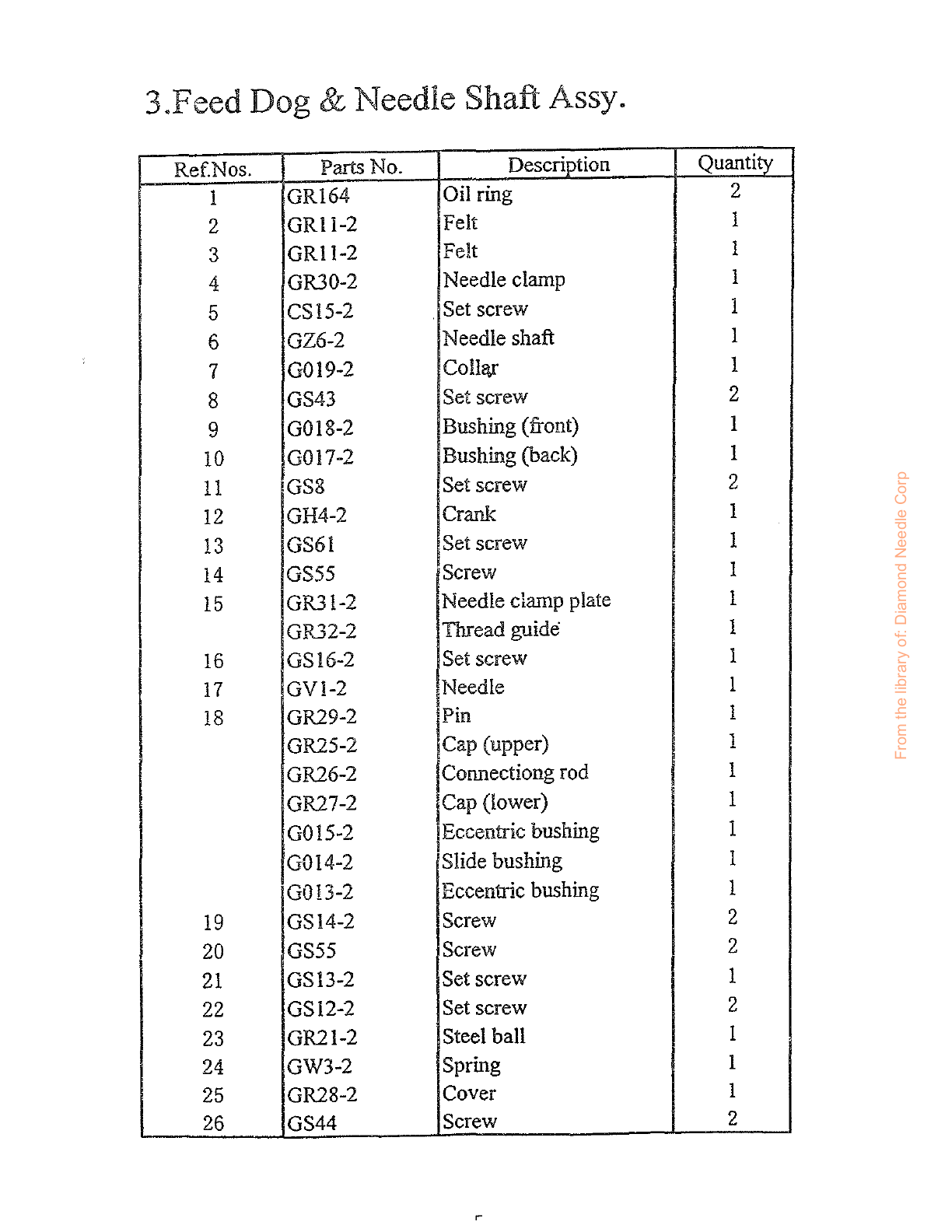

3.Feed Dog & Needle Shaft Assy.
Ref.Nos. Parts No. Description Quantity
1 GR164 Oil ring 2
2
GRll-2
Felt 1
3
GRll-2
Felt 1
4 GR30-2 Needle clamp 1
5 CS15-2 Set screw 1
6 GZ6-2 Needle shaft 1
7 G019-2
Coll!\1'
1
8 GS43 Set screw 2
9 G018-2 Bushing (front) 1
10 G017-2 Bushing (back) 1
11
GS8 Set screw 2
12 GH4-2 Crank 1
13
GS61 Set screw 1
14 GS55 Screw 1
15
GR3l-2
Needle damp plate 1
GR32-2
Thread guide 1
16 GS16-2 Set screw 1
17
GVI-2
Needle 1
18 GR29-2 Pin 1
GR25-2 Cap (upper) 1
GR26-2 Connectiong rod 1
GR27-2 Cap (lower) 1
G015-2 Eccentric bushing 1
G014-2 Slide bushing 1
GOB-2
Eccentric bushing 1
19 GS14-2 Screw 2
20 GS55 Screw 2
21
GSB-2
Set screw 1
22
GSI2-2
Set screw 2
23 GR21-2 Steel
ball
1
24 GW3-2 Spring 1
25 GR28-2
Cover
1
26 GS44 Screw 2
From the library of: Diamond Needle Corp
