Hillman HDC-1160 User manual

HDC-1160
CD/MP3 PLAYER WITH FM/MW TUNER
OPERATING INSTRUCTION
www.hillman-electronics.com

2
Safety Information ........................................ 2
Panel Controls.............................................. 3
Remote Controls........................................... 4
General Operation........................................ 5
CD Player Operation .................................... 6
Tuner Operation ........................................... 7
RDS(Radio Data System).......................... 7-8
Playing MP3/WMA Files............................ 8-9
Menu Function............................................ 10

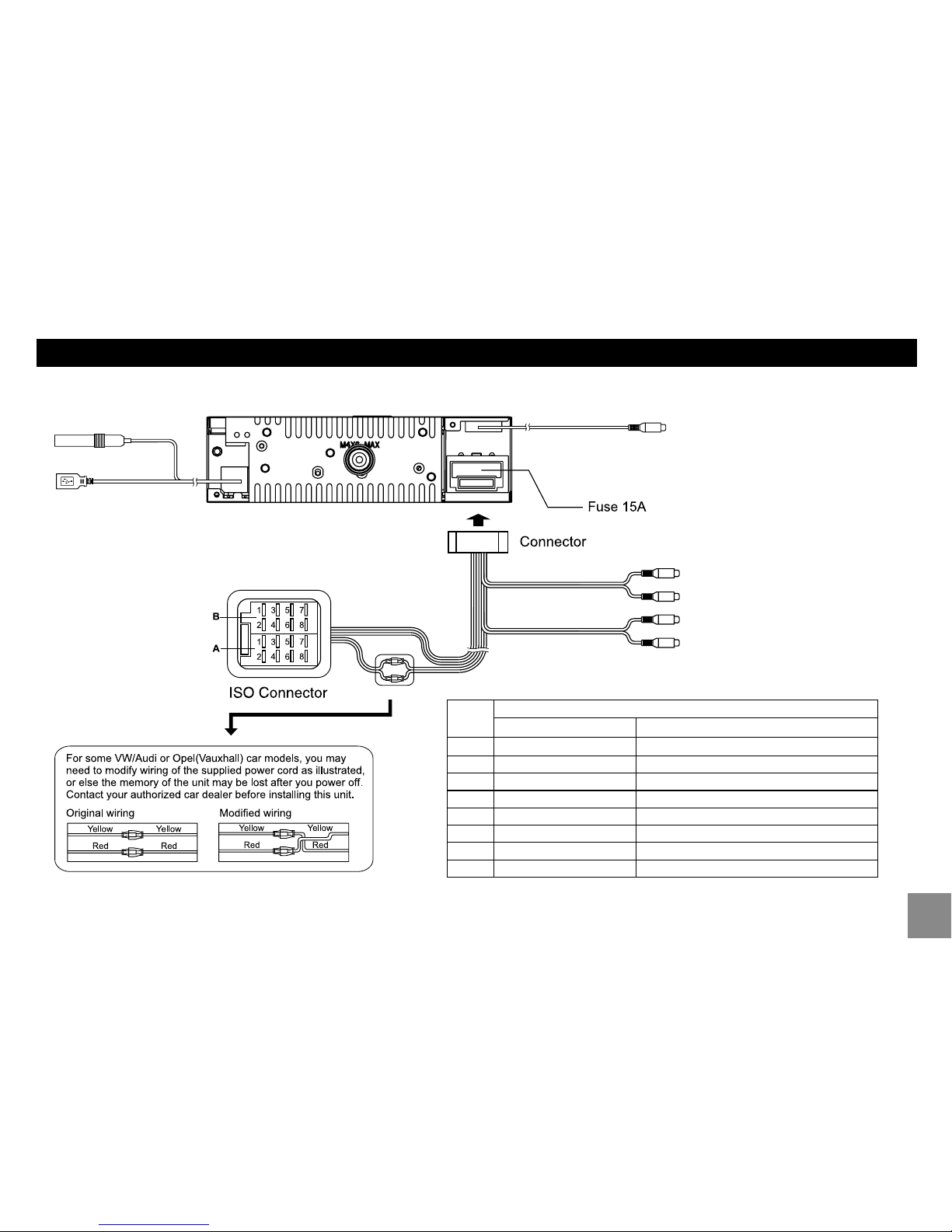

Electrical Connections................................ 11

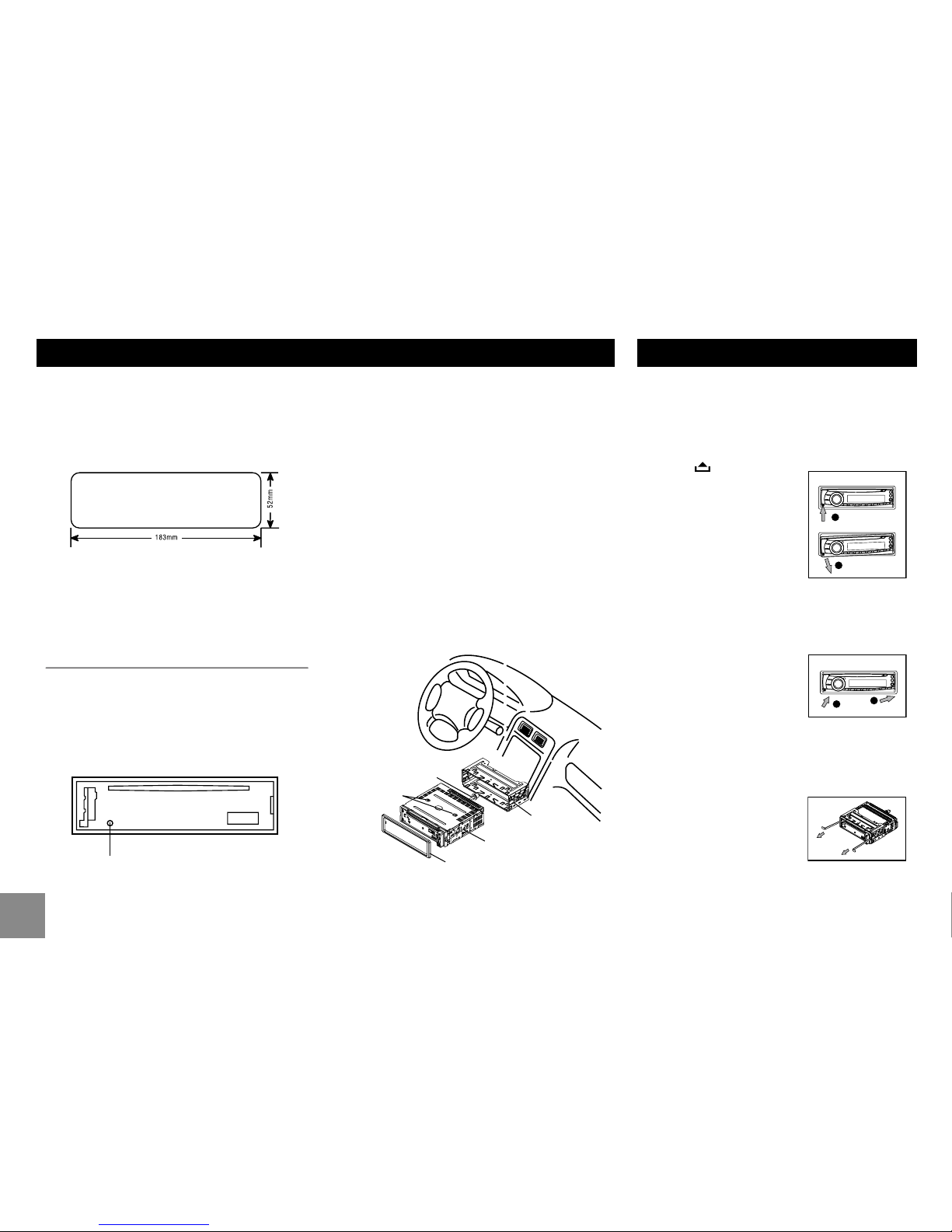

Installation Guide................................... 11-12
Anti-Theft System....................................... 12
Troubleshooting.......................................... 13
Specications ............................................. 14
To provide a clear demonstration and an
alternative for easy understanding of the
operation of this unit, graphic illustration
was used. However, this illustration is not
necessary printed as the actual image found
on the unit.
Thank you for purchasing this product. Please
read through these operating instructions
so you will know how to operate your model
properly. After you have finished reading the
instructions, keep this manual in a safe place
for future reference.
PRECAUTIONS
Use only in a 12-volt DC negative-ground
electrical system.
Disconnect the vehicle's negative battery
terminal while mounting and connecting the
unit.
When replacing the fuse, be sure to use
one with an identical amperage rating.
Using a fuse with a higher amperage rating
may cause serious damage to the unit.
DO NOT attempt to disassemble the unit.
Laser beams from the optical pickup are
dangerous to the eyes.
Make sure those pins or other objects do
not get inside the unit, they may cause
malfunctions, or create safety hazards such
as electrical shock or laser beam exposure.
If you have parked the car for a long
time in hot or cold weather, wait until the
temperature in the car become normal
before operating the unit.
Keep the volume at a level at which you can
hear outside warning sounds (horns sirens,
etc.).
Stop the car before perf o r m i n g a n y
complicated operation.
CD NOTES
Playing a defective or dusty CD can cause
dropouts in sound.
Handle the disc by holding its inner and
outer edges. Do not touch the surface of
the unlabeled side of the disc.
Do not touch the unlabeled side.
Do not attach any seal, label or data
protection sheet to either side of a disc.
Do not expose a CD to direct sunlight or
excessive heat.
Wipe a dirty CD from the center outward
with a cleaning cloth.
Never use solvents such as benzine or
alcohol.
This unit can not play 3-inch ( 8cm ) CDs.
Never insert a 3-inch CD contained in the
adapter or an irregularly shaped CD. The
unit may not be able to eject it, resulting in
a malfunction.
In addition to ordinary CDs, this unit can
play back a CD-R/CD-RW/MP3/UDF/CD-
TEXT.
CAUTION
Please power off this unit at once and send it
back to the after-sales service center or the
dealer /distributor you purchased from if one
of the following symptoms is found:
(1) Water or other obstacle enters the unit;
(2) Smoking;
(3) Peculiar smell.
SAFETY INFORMATION CONTENTS

3

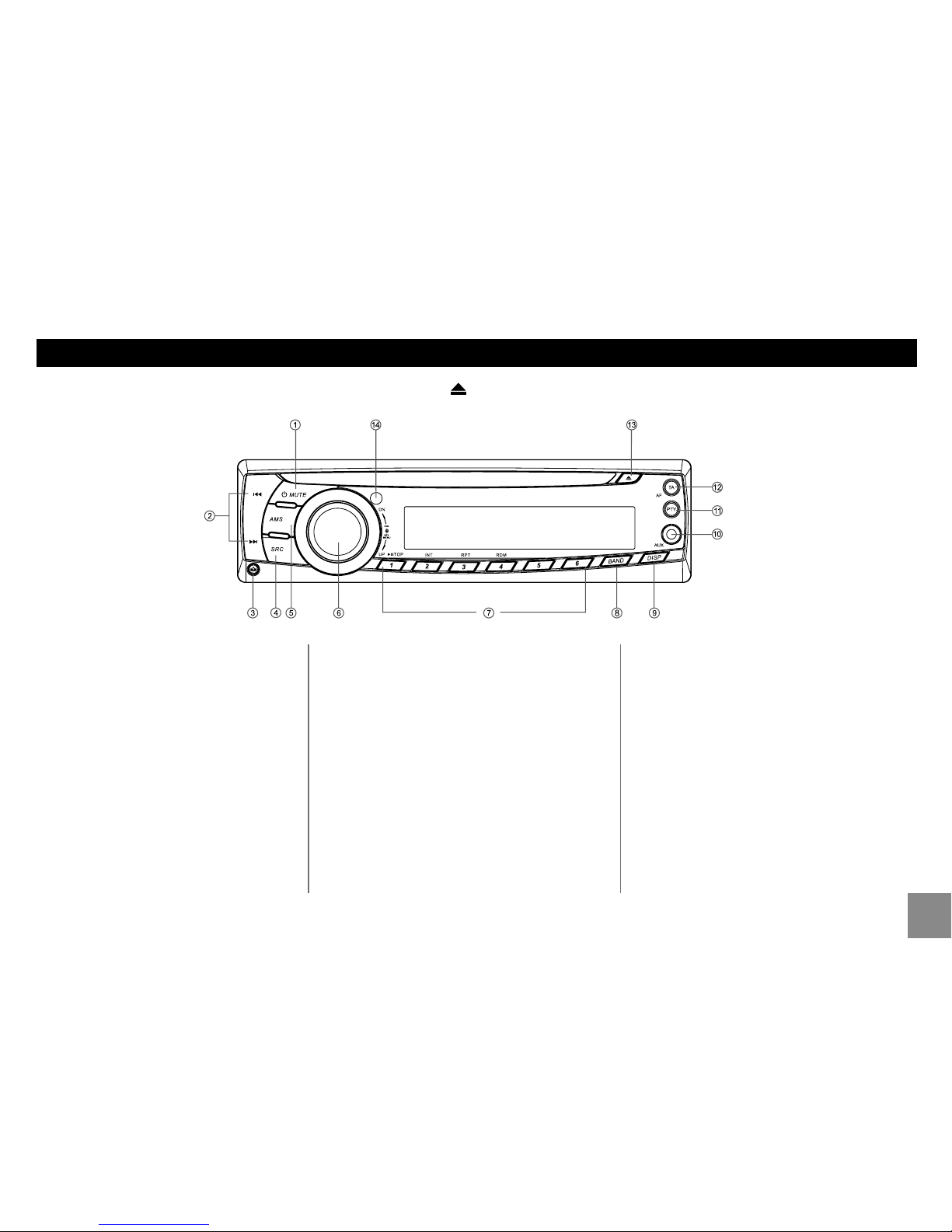

Panel Controls
Power on : Press any button on the panel exceptand to turn on the unit.
1. - Power on / Power off (long press)
- Mute
2. - Radio tune
- Track seek
3. - Panel release
4. SRC
- Radio
- Disc play (when disc inserted)
- Aux-in
- USB (when USB device connected)
5. - AMS: Radio preset scan/Radio auto
preset
- SEARCH: MP3 track/file/character
search
6. - Rotate the knob to adjust volume level.
- Push to select VOL/BAS/TRE/BAL/
FAD, rotate the knob to adjust level.
- Press more than 2 seconds to enter menu
mode.
7. Disc playback
Button 1: - Play/Pause
- Top play (press more than 2 sec.)
Button 2: - Intro play (10 sec.)
Button 3: - Track repeat play
Button 4: - Track random play
Button 5: - MP3 folder down (If there are more
than 1 folders)
- MP3 track -10 down (long press)
Button 6: - MP3 folder up (If there are more
than 1 folders)
- MP3 track +10 up (long press)
Radio preset 1~6
- Press to tune in a preset station.
- Hold for more than 2 seconds to store
station.
8. - Band switch:
FM1 -> FM2 -> FM3 -> MW1 -> MW2
9. - Display switch/Time adjust
10. - Aux-in jack
11. - Program type
- REG on/off (long press)
12. - Alternative frequency
- Traffic announcements identification (long
press)
13. - Disc eject
14. - Remote sensor

4
1. - Power on/off
2. - Volume
3. - Mute
4. - Press to select VOL/BAS/TRE/BAL/FAD,
use volume button to adjust level.
- Press and hold it to enter Menu mode.
5. -Trafcannouncementsidentication
6. - Alternative frequency
- REG on/off (long press)
7. - Disc Playback
Button 1: - Play/Pause
- Top play (press more than 2 sec)
Button 2: - Intro play (10 sec)
Button 3: - Track repeat play
Button 4: - Track random play
Button 5: - MP3 folder down
- MP3 track -10 down (long press)
Button 6: - MP3 folder up
- MP3 track +10 up (long press)
- Radio Preset
Press to listen to a preset station.
Press and hold to store station.
8. - Radio tune/Track seek
9. - Radio/Disc (when disc is in)/Aux-in/USB
(when USB device connected)
10. - AMS: Radio preset scan/Radio auto preset
 -SEARCH:MP3track/le/charactersearch
11. - Band switch: FM1, FM2, FM3, MW1, MW2
12. - Program type
13. - Display switch
SEARCH
MUTE
SEL
MENU
RDMRPT
INT
/TOP
DISP
4
3
21
65
VOL
BAND
SRC
AMS
TA
AF/REG
PTY
REMOTE CONTROLS
Replacing the lithium battery of
remote control unit.
When the range of the operation of the card
remote control becomes short or no functions
while operating. Replace the battery with a
new lithium battery. Make sure the battery
Polarity replacement is correct.
1. Pull out the battery holder while pressing
the stopper.
2. Insert the button-type battery with the
stamped(+) mark facing upward.
Insert the battery holder into the remote
control.
WARNING:
Store the battery in place where children
cannot reach. If a child accidentally
swallowed the battery, consult a doctor
immediately.
Do not recharge, short, disassemble or
heat the battery or dispose it in a fire.
Doing this may cause the battery to give
offheat,crackorstartare.
Do not leave the battery with other metallic
materials or poke the battery with tweezers
or similar tools.
When throwing away or saving the battery,
wrap it in tape and insulate.
(CR2025)
Remote Sensor
Operating range
Point the remote control unit to the remote
sensor when you operate with it.
The remote control can operate within a
distance of 3~5m.

5
GENERAL OPERATION
Power On/Off Button
Press the POWER button to turn the unit on
when the vehicle ignition switch is on. Press
and hold the button to turn the unit off.
Adjust Volume level
Rotate the VOL/MENU control to adjust
volume level. Rotate it clockwise to increase
and anticlockwise to decrease the volume.
Audio Mute
Press the MUTE button to mute the volume
from the system. “MUTE” will appear on the
display panel and the volume will be muted.
Press the MUTE button again, or rotate or
press the VOL/MENU control to return the
volume level to the setting in use before the
Mute function was activated.
Audio Controls
To adjust the bass, treble, balance and
fader, press the VOL/MENU control until the
appropriate audio control appears on the
displaypanel.Withinveseconds,rotatethe
VOL/MENU control to adjust the audio settings
for the selected function.
Mode Button (SRC)
Press the SRC button to change between
Radio, DISC (when disc is in) or AUX play.
Auxiliary Input
To access an auxiliary device:
1. Connect the portable audio player to the
AUX interface on the front panel.
2. Press the SRC button to select Aux-In
mode.
Press SRC again to cancel Aux-In mode and
go to the next mode.
Display Selector (DISP)
This unit can display either the clock time
or radio frequency/CD player functions.
Ordinarily, the radio frequency or CD
player track indication is displayed, but the
unit will display the time when the DISP
button is pressed. The time will display for
approximately 5 seconds then return to the
radio or CD player function display.
Setting the Clock
The correct time of day can be set by pressing
and holding the DISP button.
To set the clock, perform the following steps:
1. Turn the vehicle ignition and radio on.
2. Press the DISP button to view the clock.
3. With the clock visible on the display, press
and hold the DISP button until the time
displayashes.
4. Within 5 seconds, rotate the VOL/MENU
control counter clockwise to adjust the
minutes to the desired setting. To change
the hour, rotate the VOL/MENU control
clockwise to adjust the hour to the desired
time.
Using USB device
1. Connect your USB device to the USB
cable which you placed in the dashboard
or glove box during installation of the car
radio.
When connecting a USB device, the unit
willreadthelesautomatically.
2. To remove the USB device, you should
first select another source, in order to
avoid damaging the USB device.
USB Notes
USBfunctions(ashmemorytype)MP3musicplay
1. USBashmemory2in1support
2. Fat 12/fat 16/fat 32 is possible
 -Fat12/16(dir:200support,le:500support)
 -Fat32(dir:200support,le:500support)
3. File name: 32 byte/dir name: 32 byte /tag name:
32 byte
4. Tag (ID3 tag ver 2.0)
- Title/artist/album: 32 byte support
5. USB 1.1/2.0 support
(It can not support USB 2.0 speed. Just, get the
same speed with USB 1.1)
Not all kinds of USB devices are compatible with
the unit.

6
CD PLAYER OPERATION
Inserting a Disc
With the label surface facing up, fully insert
a compact disc into the disc slot until the
mechanism engages and pulls the disc in.
Play will automatically begin from the first
track on the disc.
NOTE: The unit is designed for play of
standard 5” (12 cm.) compact discs only. Do
not attempt to use 3” (8 cm.) CD singles in
this unit, either with or without an adaptor,
as damage to the player and/or the disc may
occur.
Disc Eject Button
Press the eject button to stop disc play and
eject the disc. The unit will revert to radio
operation. Discs may be ejected with the
vehicle ignition switch on or off. If an ejected
disc is not removed from the disc slot within
10 seconds of being ejected, the disc will be
re-inserted automatically.
NOTE: To prevent a disc from accidentally
being damaged, always remove the disc from
theunitwhendiscplayisnished.
CD Play/Pause Selector
Press the 1 >/|| button to freeze disc playback.
Press 1 >/|| again to resume disc playback.
Seek Up/Next Track
Press the next track >>| button during disc
play to select the beginning of the next track.
Seek Down/Previous Track
Press the previous track |<< button during
disc play to select the beginning of the current
track. Press twice to select the beginning of
the previous track.
Cue/Review Functions
High-speed audible search to any section of
the disc can be made by the Cue and Review
functions. Press and hold the next track >>|
button to advance rapidly in the forward
direction or the previous track |<< button to
advance rapidly in the backward direction.
Intro Play Selector
During disc play, press the 2/INT button to
select“INTON”andplaytherst10seconds
of each track. Press 2/INT again to select “INT
FOLD”andplaytherst10secondsofeach
track in the current folder. When a desired
track is reached, press the 2/INT button to
select “INT OFF” and play the current track.
Track Repeat Play Select
During disc play, press the 3/RPT button to
select “RPT ON” and repeatedly play the
selected track. Press 3/RPT again to select
“RPT FOLD” and repeatedly play all tracks in
the current folder. Repeat play will continue
until 3/RPT is pressed to select “RPT OFF”.
Random Play Select
During disc play, press the 4/RDM button to
select “RDM ON” and play all tracks on the
discinrandom,shufedorder.Press4/RDM
again to select “RDM FOLD” and randomly
play all songs in the current folder. In Random
Play mode, you can press the tune/track
buttons to select tracks in a random order
instead of the normal progression. Press 4/
RDM again to select “RDM OFF” and cancel
Random Play mode.

7
CT Service ( Clock Time )
When receiving an RDS station, the CT (Clock
Time) service automatically adjusts the time.
Trafc Announcements
Some RDS FM stations periodically provide
trafcinformation.
TP(TrafcProgramIdentication)
Broadcastingoftrafcinformation.
TA(TrafcAnnouncementsIdentication)
Radioannouncementsontrafcconditions.
TA Mode: Press and hold TA/AF to turn
on/off the TA function. When TA mode is
turned on, the TA indicator will blink. When
traffic announcement is received, the TA
indicator will display. The unit will temporarily
switch to the tuner mode (regardless of the
current mode) and begin broadcasting the
announcement at TA volume level. After the
traffic announcement is over, it will return to
the previous mode and volume level. When
TA is turned on, SEEK, SCAN, AMS function
can only be received or saved when traffic
programidentication(TP)codeisreceived.
EON (Enhanced Other Networks)
When EON data is received, the EON
indicator lights and the TA and AF functions
are enhanced.
RDS service availability varies with areas.
Please understand if RDS service is not
available in you area, the following service is
not available.
RDS Basics
AF (Alternative Frequency): When the radio
signal strength is poor, enabling the AF
function will allow the unit to automatically
search another station with the same PI
(ProgramIdentication)asthecurrentstation
but with stronger signal strength.
PS (Program Service name): The name of
station will be display instead of frequency.
AF Mode: Press TA/AF button to switch AF
mode on and off.
AF on: AF function is activated.
AF off: AF function is disabled.
Remark: AF indicator on LCD will flash until
RDS information is received. If RDS service
is not available in your area, turn off the AF
mode.
REG Mode: Press PTY for more than 2
seconds to switch REG mode on and off.
REG on: AF function will implement the
regional code (of the PI) and only stations in
the current region can be tuned automatically.
REG off: AF function will ignore the regional
code(of the PI) and stations in the other
regions can also be tuned automatically.
TUNER OPERATION
FM/AM Band
During radio play, press the BAND button to
choose between three FM and two AM bands.
The indication “AM” or “FM” appears on the
display panel according to your selection.
Up Tuning
Press the seek up >>| button to tune stations
upward step-by-step. The current frequency
will be shown in digital format on the display
panel.
Press and hold the seek >>| button to the next
available station.
Down Tuning
Press the seek down |<< button to tune
stations downward step-by-step.
Press and hold the seek down |<< button to
the previous available station.
Auto Store
Press the AMS button to scan preset stations
1-6. Hold it to automatically select six strong
stations and store them in the current band.
The new stations replace stations already
stored in that band.
RDS (Radio Data System)

8
TA: Trafcinformationcanbereceivedfrom
the current station or stations in other network.
AF: The frequency list of preset RDS
stations is updated by EON data. EON
enables the radio to make fuller use of RDS
information. It constantly updates the AF
list of preset stations, including the one that
currently tuned into. If you preset a station
around the area at your home, you will later
be able to receive the same station at an
alternative frequency, or any other station
serving the same program, EON also keeps
track of locally available TP stations for quick
reception.
PTY Reception ( Program Type )
RDS FM stations provide a program type
identicationsignal.
Example: news, rock, info, sport, etc.
PTY Type Preset
Press PTY button once to enter the MUSIC
type or press “ PTY ” twice to enter the
SPEECH type. Then use number button
to select the desired program type. The
selected PTY type is shown and searching
starts if no other function is selected for 2
seconds. If there is no corresponding program
type, NO PTY is shown and the unit will
return to normal mode.
RDS (Radio Data System) PLAYING MP3/WMA FILES
Display Information
During playback, ID3 tag information display
scrolling on the screen: FOLDER, FILE,
ALBUM, TITLE, ARTIST and Track Number/
Elapsed Time.
Folder Up/Down
Press the 5/DN button to go to the previous
folder. Press the 6/UP button to go to the next
folder.
Direct Song/File Access
1. Press the AMS button once and press the
knob to enable direct track searching.
2. Rotate the VOL/MENU control to select a
digit.
3. Press the VOL/MENU control to confirm
entryandthetensdigitwillash.
4. Rotate the VOL/MENU control to select
digit.
5. Repeat above steps to enter the hundreds
and thousands digit, if necessary.
NOTE: The unit will only allow the
selection of digits that correspond with
the numberoflesonthemediayouare
searching.
6. Once the track number appears on the
screen, long press the VOL/MENU control
toplaytheselectedsong/le.
Searching Folders/Files
1. Press the AMS button twice and press the
knobtoaccessthelesearchoption.
2. Rotate the VOL/MENU control to select
the desired directory/song.
3. Press the VOL/MENU control to view the
lesinsidetheselecteddirectory.
4. Rotate the VOL/MENU control to select
the song/file. Long press the VOL/MENU
controltoplaytheselectedsong/le.
Searching by Name (CHAR-SCH)
1. Press the AMS button three times and
press the knob to access the character
search option.
2. Rotate the VOL/MENU control to select
the characters A-Z, _ , - , + , and 0-9 for
therstcharacter.
3. Press the VOL/MENU control to confirm
entry of the character and move to the
next position.
4. Repeat for up to eight characters.
5. Press and hold the VOL/MENU control for
2 seconds to begin the search.
6. If a directory is found, rotate the VOL/
MENUcontroltoselectthesong/leinthis
directory/folder.
7. Press and hold the VOL/MENU control for
2 seconds to play the selected song/file.
“NO MATCH” appears if there is no file
beginning with the search string entered.

9
MP3 Overview
MP3 is short for MPEG Audio Layer 3 and
refers to an audio compression technology
standard.
 ThisproductallowsplaybackofMP3les
on CD-R or CD-RW discs.
 TheunitcanreadMP3leswritteninthe
format compliant with ISO 9660. However
it does not support the MP3 data written by
the method of packet write.
 TheunitcannotreadanMP3lethathas
aleextensionotherthan".mp3".
If you play a non-MP3 file that has the
".mp3"extension,youmayhearsome
noise.
In this manual, we refer to what are called
"MP3file"and"folder"inPCterminology
as"Track"and"Album",respectively.
Maximum number of directory level is 8,
including the root directory. Maximum
numberoflesandfoldersperdiscis256.
The unit may not play tracks in the order of
track numbers.
The unit plays only the audio tracks if a
disc contains both audio tracks and MP3
les.
PLAYING MP3/WMA FILES
When playing a disc of 8kbps or VBR*, the
elapsed playing time in the display window
will not be correct and also the intro play
may not function properly.
*VBR: Variable Bit Rate.
Note on creating your own CD-Rs or
CD-RWs containing MP3 les
To enjoy high quality sound, we
recommend converting to MP3 files with
a sampling frequency of 44.1 kHz and a
xedbitrateof128kbps.
DO NOT store more than 256 MP3 files
per disc.
For ISO 9660-compliant format, the
maximum allowable depth of nested folders
is 8, including the root directory(folder).
When CD-R disc is used, playback is
possible only for discs which have been
nalized.
Make sure that when MP3 CD-R is burned
that it is formatted as a data disc and NOT
as an audio disc.
You should not write non-MP3 files or
unneededfoldersalongwithMP3leson
the CD-R otherwise it takes a long time
until the unit starts
 toplayMP3les.
With some CD-R media, data may not
be properly written depending on their
manufacturing quality. In this case, data
may not be reproduced correctly. High
quality CD-R disc is recommended.
Up to 16 characters are displayed for the
name of an Album or a Track. ID3 TAG
version 1.x is required.
Note that the unit may not play tracks in
the order that you wrote them to the disc.

10
SEEK 1 / 2 mode
SEEK 1: Searching station will stop when the
next station is received.
SEEK 2: Searching station will stop when |<<
or >>| button is released and next station is
received.
STEREO/MONO mode
Rotate to choose FM stereo or mono.
LOCAL/DX mode
Rotate the knob to choose tuner sensitivity
local or distant.
VOL LAST/ADJ mode
Rotate the knob to choose power on volume
mode.
VOL LAST: The turn on volume level is the
volume level of latest power off.
VOL ADJUST: press to enter A-VOL mode,
then rotate to set the turn on volume level.
12/24 HOUR
Rotate the knob to choose clock format.
Press SEL/MENU button more than 2 seconds
to enter menu mode, then each press changes
the mode, rotate the knob to adjust.
TA mode
IftheTA(TrafcAnnouncements)isturnedon
and there is no traffic program identification
code received in the specified time, no TA/
TP will display and either TA ALARM or TA
SEEK will be activated.
TA ALARM : Alarm is turned on.
TA SEEK: TA SEEK is automatically activated.
MASK mode
In some cases, the AF function may be
influenced by some interference, examples
are signals with strong field but without the
RDS data. For this reason, the unit has two
options to avoid the above interference.
MASK DPI mode : Only AF which has different
programidenticationismasked.
MASK ALL mode : The AF which has different
programidenticationandNORDSsignalwith
higheldstrengthismasked.
TA VOL mode
Rotate the knob to adjust TA volume level.
RETUNE mode
RETUNE-S or RETUNE-L is time length
selection of TA SEEK retune interval.
RETUNE-S: short, TA SEEK retune interval is
45 seconds.
RETUNE-L: long, TA SEEK retune interval is
180 seconds.
Remark: RETUNE mode functions for TA
during TA SEEK mode only.
DSP mode
Rotate the control to choose DSP sound
effect: POP - ROCK - CLASSIC - FLAT - OFF
EPS mode
ESP 12s: Selected as CD-ESP time 12
seconds, MP3-ESP time >100 seconds.
ESP 45s: Selected as CD-ESP time 45
seconds, MP3-ESP time >100 seconds.
MULT ON/OFF
Multi Session on/off (Multi session off: mixed
CD, ONE session CD; Multi session on:
Mixed, Extra, multi session CD)
LOUD ON/OFF
Rotate the knob to choose loudness on or off.
WOOF ON/OFF
Rotate to choose Sub-woofer on or off.
BEEP ON/OFF
Rotate the knob to choose button beep sound
on or off.
MENU FUNCTION

11
Electrical Connections
Wiring Diagram
(Black)
SUB-woofer out
ANTENNA
USB SLOT
Rear line out
(Gray)
R(Red)
L(White)
Front line out
(Brown)
R(Red)
L(White)
(Green)
Location Function
Connector A Connector B
1 Rear Right (+) / Purple
2 Rear Right (-) / Purple with Black Stripe
3 Front Right (+) / Gray
4 Battery 12V(+) / Yellow Front Right (-) / Gray with Black Stripe
5 ANT/AMP control / Blue Front Left(+) / White
6 Front Left(-) / White with Black Stripe
7 ACC+ / Red Rear Left (+) / Green
8 Ground / Black Rear Left (-) / Green with Black Stripe

12
INSTALLATION GUIDE
Installation Opening
This unit can be installed in any dashboard
having an opening as shown below. The
dashboard should be 4.75mm - 5.56mm thick
in order to be able to support the unit.
Iftheopeningistoosmall,carefullycutorle
as necessary until the sleeve easily slides into
the opening. Do not force the sleeve into the
opening or cause it to bend or bow. Check for
sufcientspacebehindthedashboardforthe
unit chassis.
Reset
Press the RESET button with a pointed object
to reset the unit to the original status.
Note: Press the RESET button will erase the
clock setting and stored stations.
Installation Procedures
1. If relevant, remove any other audio system
from the car.
2. Insert the mounting sleeve into the
dashboard.Fixitrmlyinplacebyfolding
down the metal tabs.
3. Perform the required electrical
connections.
4. Then check that everything works before
installing the main unit.
5. Remove the two screws on the top of the
unit, otherwise, the unit will not work.
6. Install the car radio in the dashboard using
the supplied screws (M5x6mm).
7. Attach the outer trim frame.
If you are not sure how to install this unit
correctly,contactaqualiedtechnician.
Mounting sleeve
Main unit
Trim plate
Remove the
two screws
Mounting bolt
Rubber cushion
Anti-Theft System
This unit is equipped with a detachable panel.
Removing this panel makes the radio totally
inoperable.
Remove the detachable panel
1. Press button.
2. Hold the part popped out
and pull the panel out.
3. Gently press the button
of the case and open the
cover. Place the panel
into the case and take it
with you when you leave
the car.
Install detachable panel
1. Fix right part of face
plate in the panel slot of
the unit.
2. Press down the left side
of the face plate until it
clicks into the panel slot.
Remove the unit
1. Switch off the power of the unit.
2. Remove the panel and
the trim plate.
3. Insert both L-Keys into
the hole on the front of
the set until they lock.
4. Pull out the unit.
2
2
1
1
2
2
1
1
2
2
1
1
Reset

13
TROUBLESHOOTING
The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting it, check the connections
and follow the instructions in the user manual. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell can
causereorelectricshock,immediatelystopusingitandcallthestorewhereyoupurchasedit.
Problem Possible cause Solution
General
The unit will not switch on.
Car ignition is not on.
Cable is not properly connected.
Fuse is burnt.
Turn your car key in the ignition.
Check cable connection.
Replace fuse with a new fuse of the same capacity.
No sound Volume is set at minimum or the mute
function is on. Check the volume or switch the mute function off.
The unit or screen does not work normally. The unit system is unstable. Press the RESET button.
DISC mode
The appliance will not play discs. The disc is inserted incorrectly.
The disc is dirty or damaged.
Disc must be inserted with the label side facing up. Clean
the disc and check for damage. Try another disc.
Sound skips due to vibration. Mountingangleisover30˚.
Mounting is unstable.
Adjustmountingangletolessthan30˚.
Mount the unit securely with the supplied parts.
TUNER mode
Unable to receive stations. The antenna is not connected properly. Connect the antenna properly.
Poor quality reception of radio station. The antenna is not fully extended or it is
broken.
Fully extend the antenna and if broken, replace it with a
new one.
Preset stations are lost. The battery cable is not properly connected. Connect the permanent live on the unit to the permanent
live on the vehicle.
USB mode
Unable to insert USB device. The USB device has been inserted the
wrong way round. Insert it the other way around.
The USB device cannot be read. NTFS format is not supported.
CheckthattheUSBlesystemisinFATorFAT32format.
Due to different formats, some models of USB storage
devices or MP3 players may not be read.

14
SPECIFICATION
General
Power supply: 12V DC (11V-16V)
Test voltage 14.4V, negative ground
Maximum power output: 45Wx4 channels
Continuous power output: 20Wx4 channels (4 ,10% T.H.D.)
Suitable speaker impedance: 4-8 ohm
Pre-Amp output voltage:
2.0V (CD play mode: 1KHz, 0 dB, 10 K load)
Fuse: 15A
Dimensions(WxHxD): 178x50x160mm
Weight: 1.7kg
Aux-in: ≥300mV
Subwoofer-out: 2.0V
FM Stereo Radio
Frequency range:
87.5-108.0 MHz (EUROPE )
87.5-107.9 MHz (USA)
Usable sensitivity: 8 dBμ
Quieting sensitivity(S/N=50dB): 12 dBμ
Frequency response: 30Hz-15kHz
Stereo separation: 30dB (1kHz)
Image response ratio: 50dB
IF response ratio: 70dB
Signal/noise ratio: 55dB
MW(AM) Radio
Frequency range: 522-1620 KHz (EUROPE)
530-1710 KHz (USA)
Usable sensitivity(S/N=20dB): 30 dBμ
Note:Specicationsandthedesignaresubjecttochangewithoutnotice
due to improvements in technology.
Disc Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >80 dB
Total harmonic distortion: Less than 0.20% (1kHz)
Wowandutter: Below measurable limits
Channel separation: >55 dB
Components
Mounting collar 1
Machine screws M5x6mm 4
Mounting bolt (50mm) 1
Wire connector 1
Removable face plate case 1
Trim plate 1
L-key 2
Operating instructions 1
Rubber cushion 1
Remote control unit 1

PN: 127075002316
CLASS 1
LASER PRODUCT
